Description

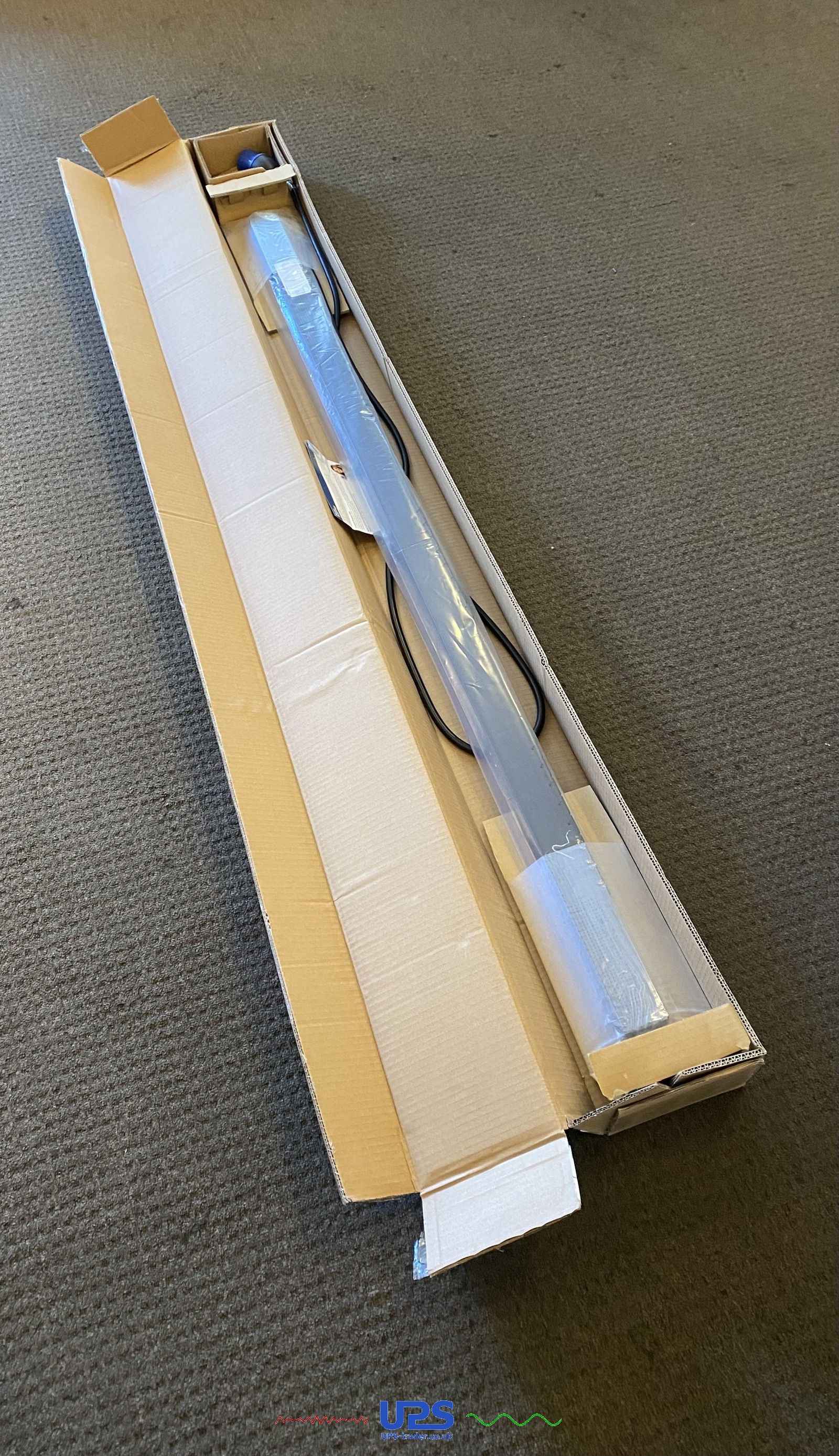

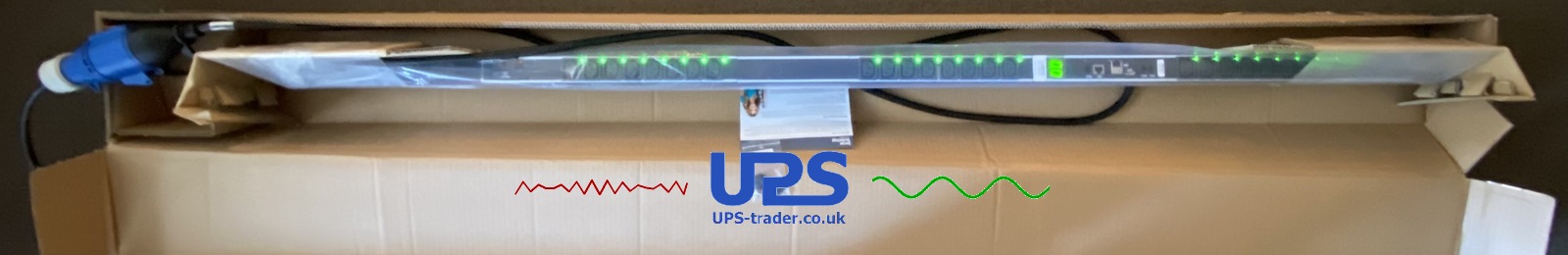

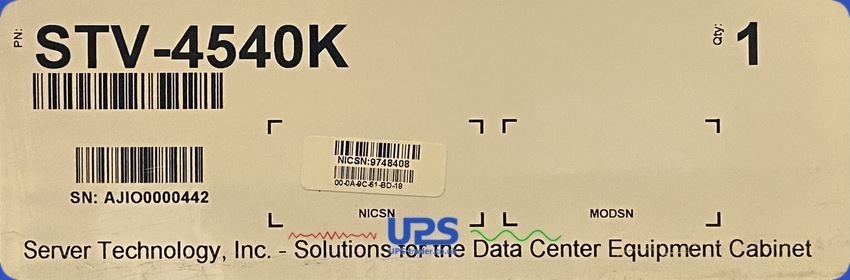

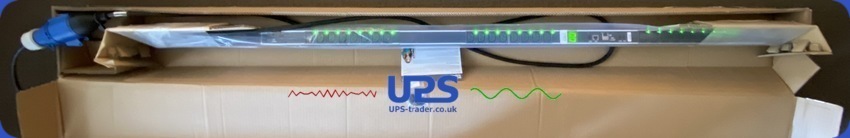

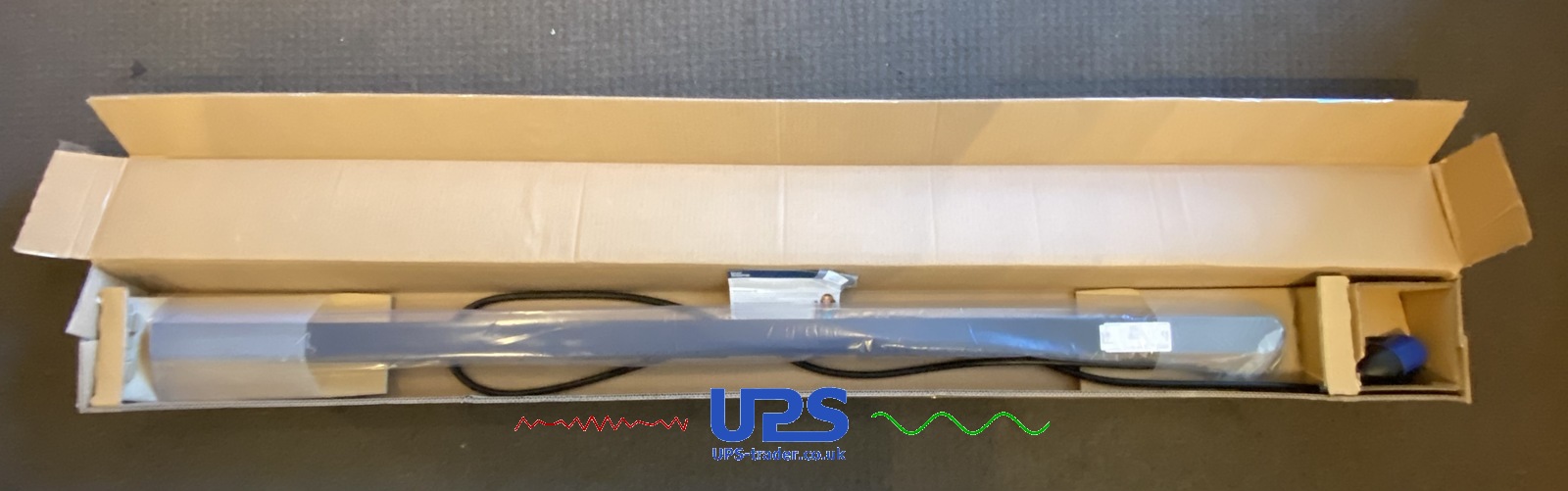

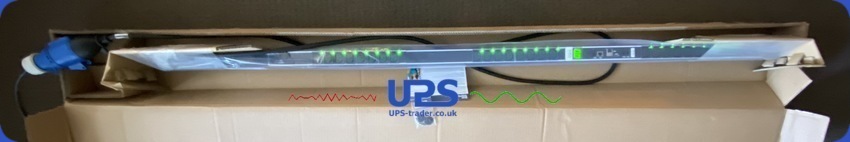

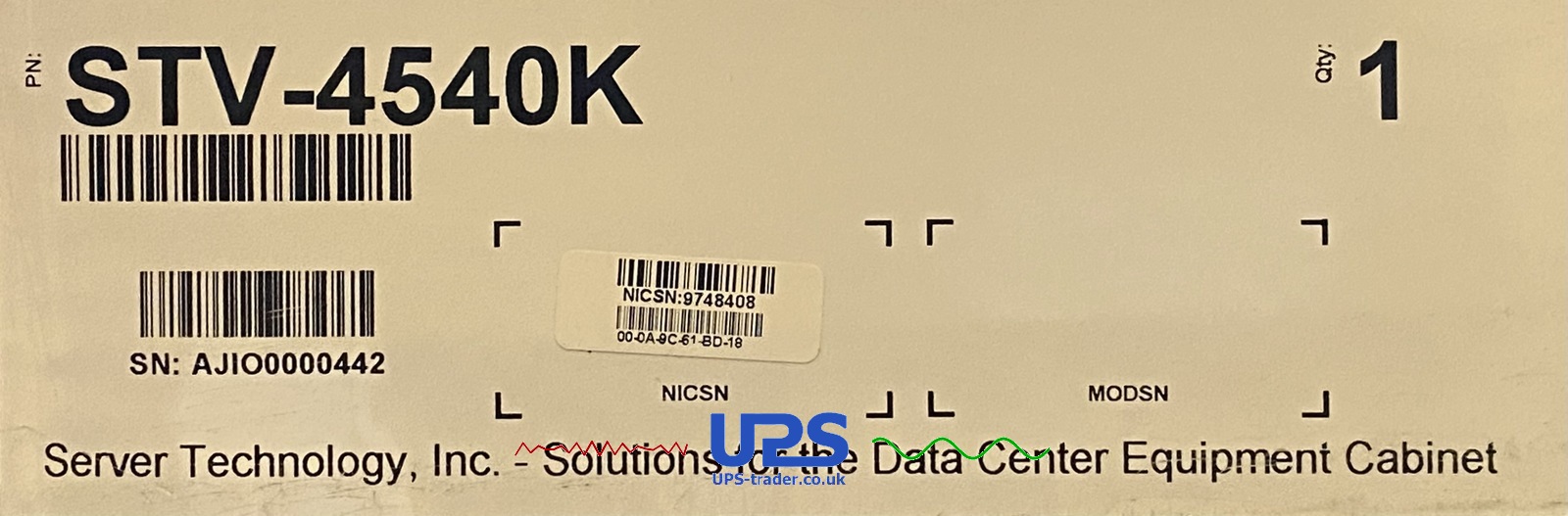

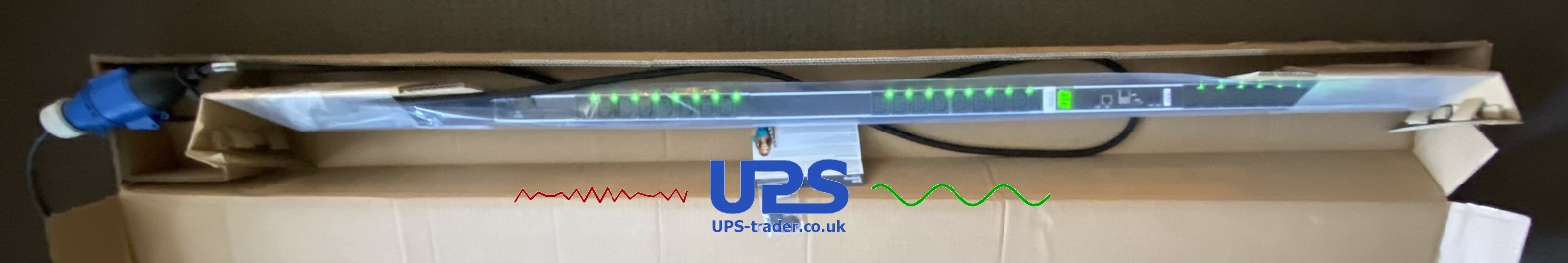

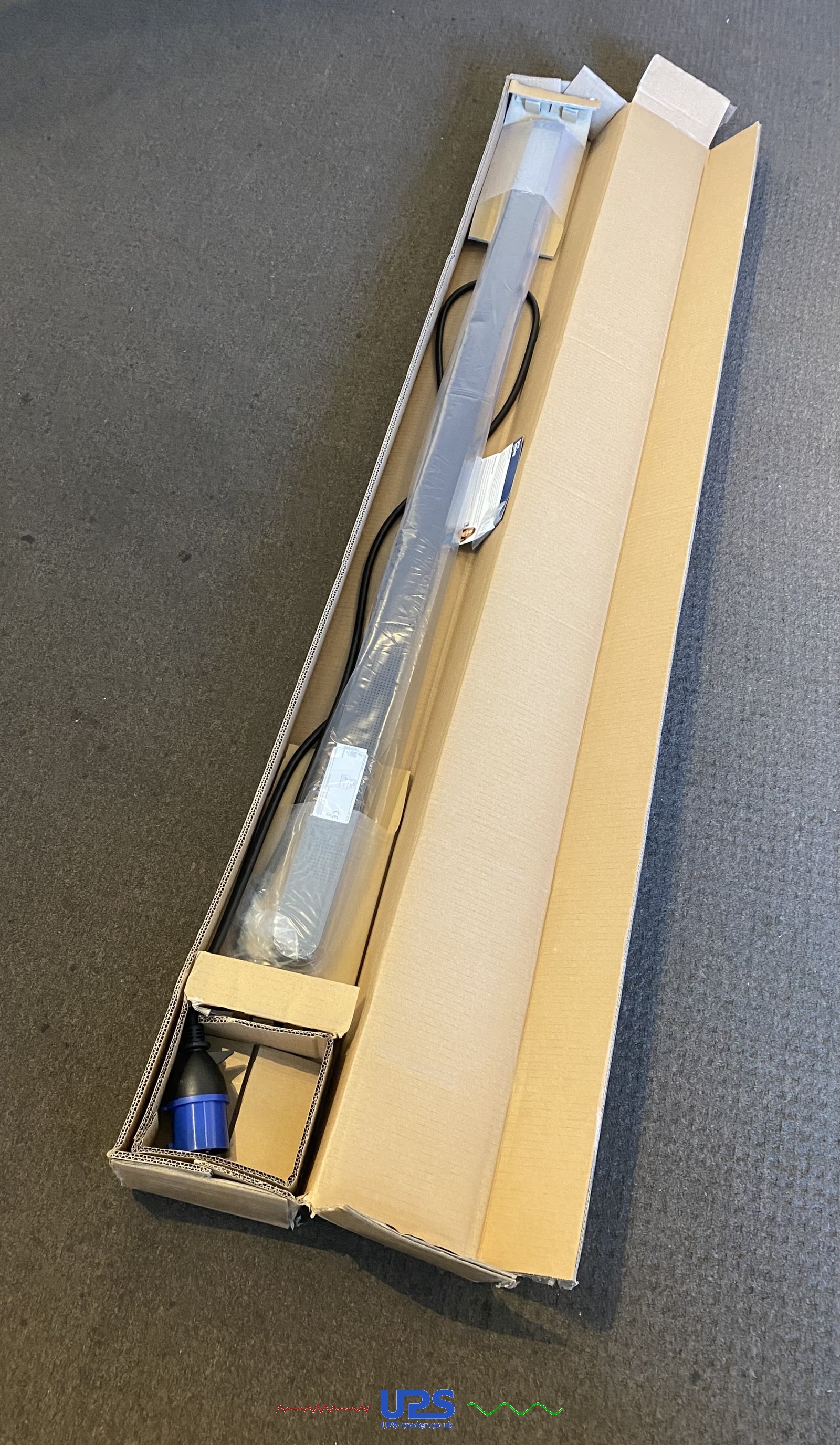

This Server Technology PRO1 STV-4540K Switched PDU is New and unused in its original Box.
It will be thoroughly tested by our technicians prior to dispatch and carries our 12-month RTB warranty.
Full manual available here
secure.ups-trader.co.uk/index.php?controller=attachment&id_attachment=303

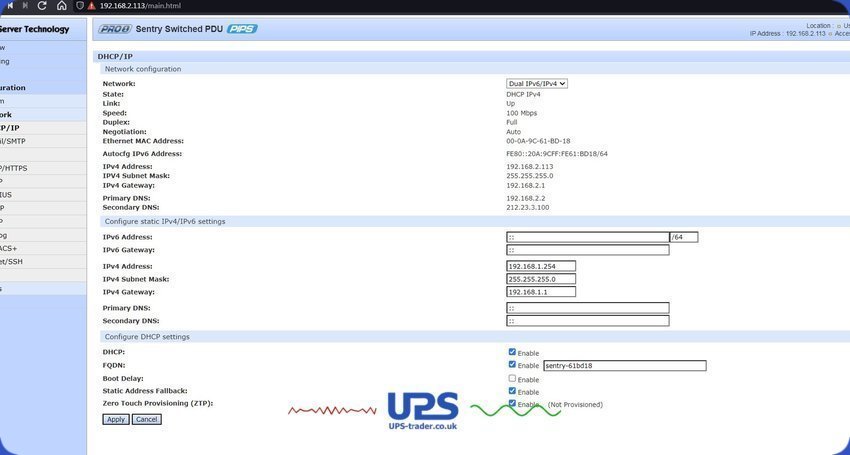

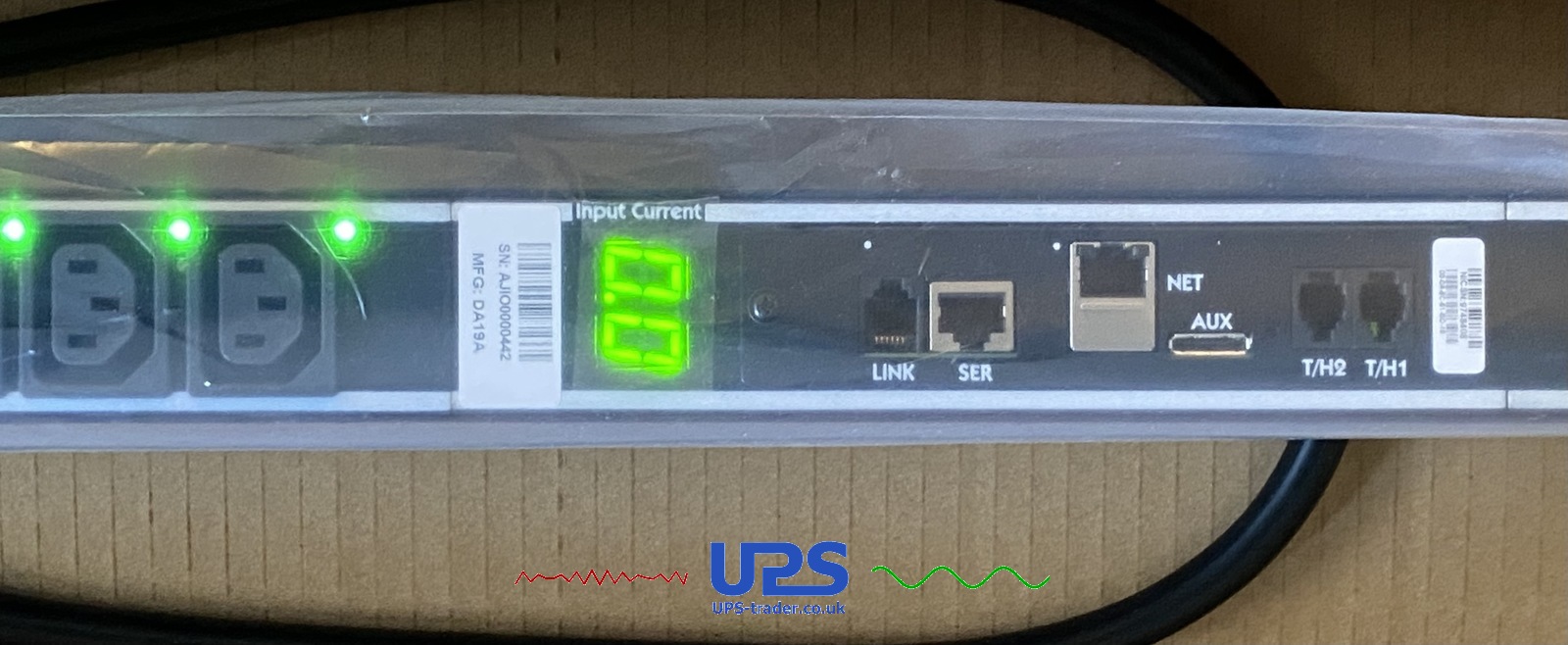

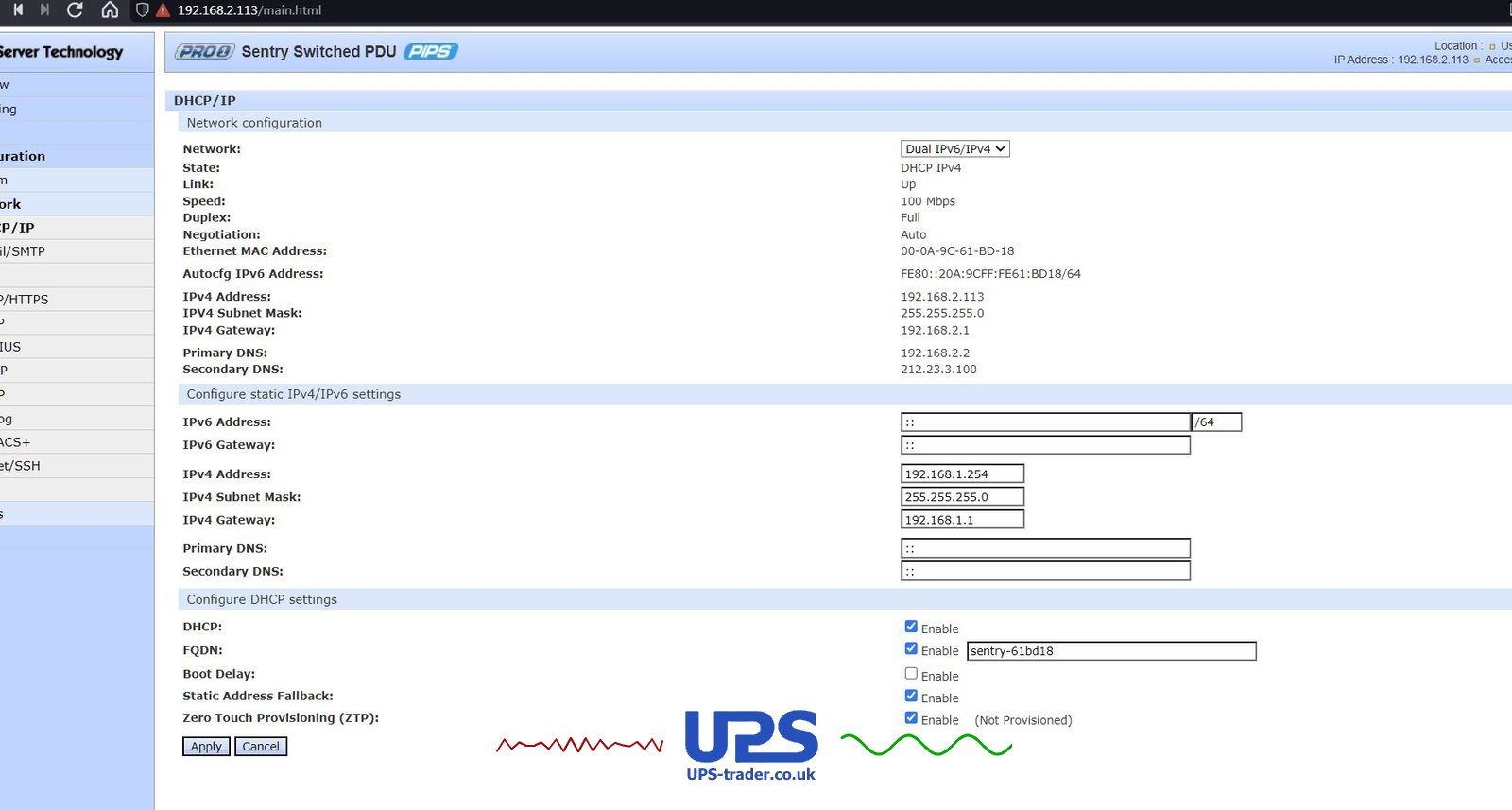

DHCP IP assignment. The front mounted LCD can show the IP address given.

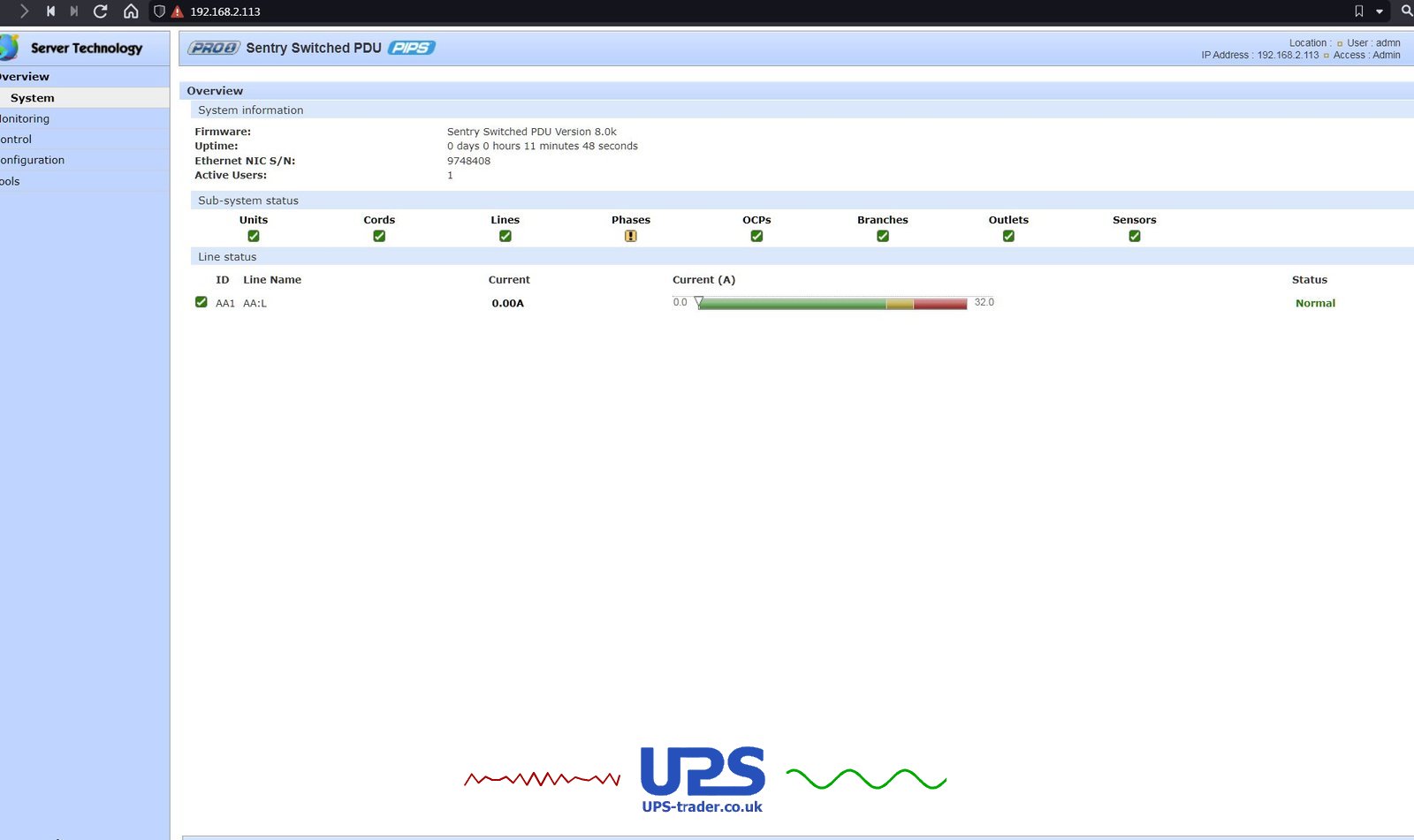

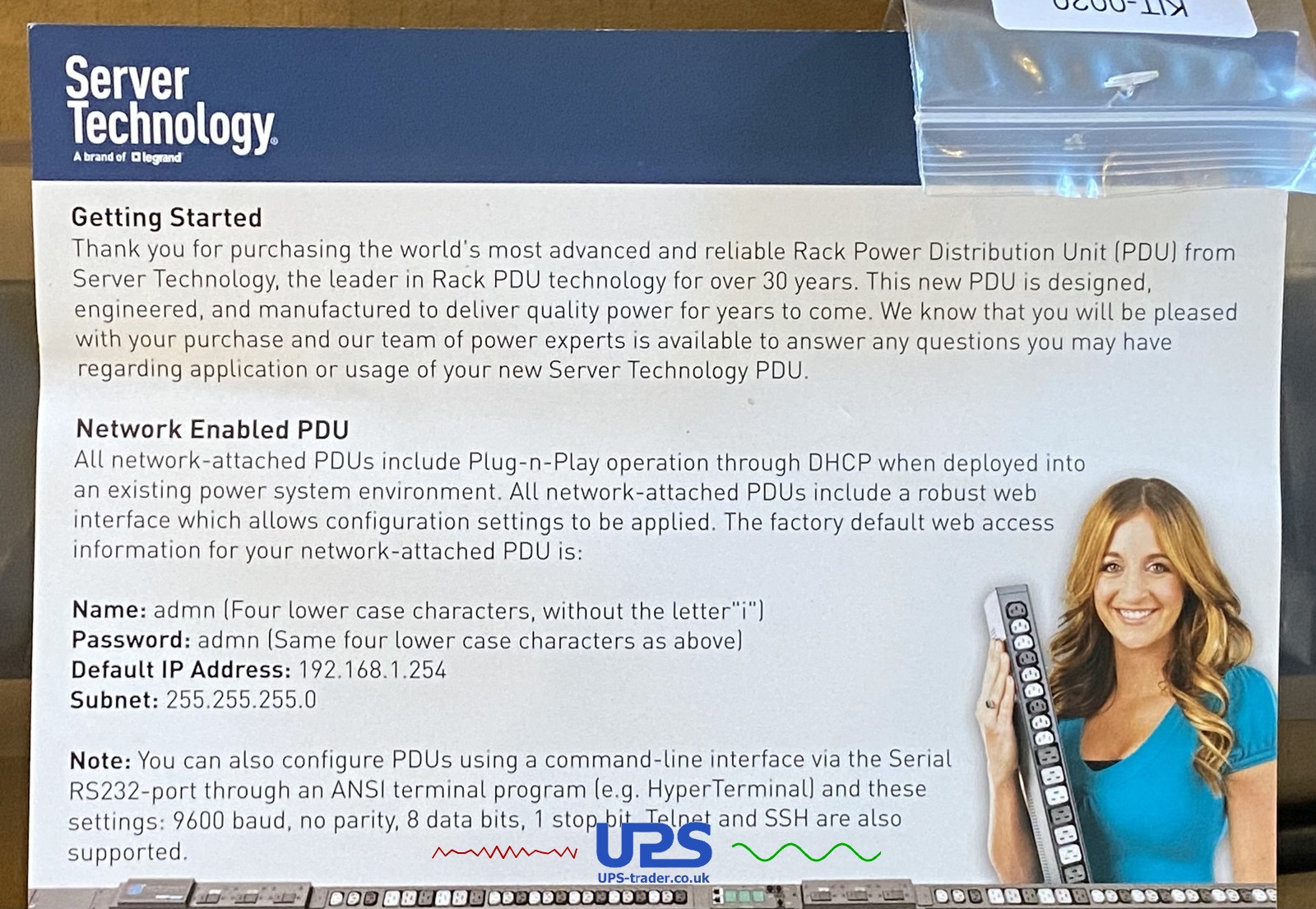

username and password for web interface (port 80 and 443) both admn (note no "i") - and resettable by holding in the reset button for between 10 and 15 seconds.

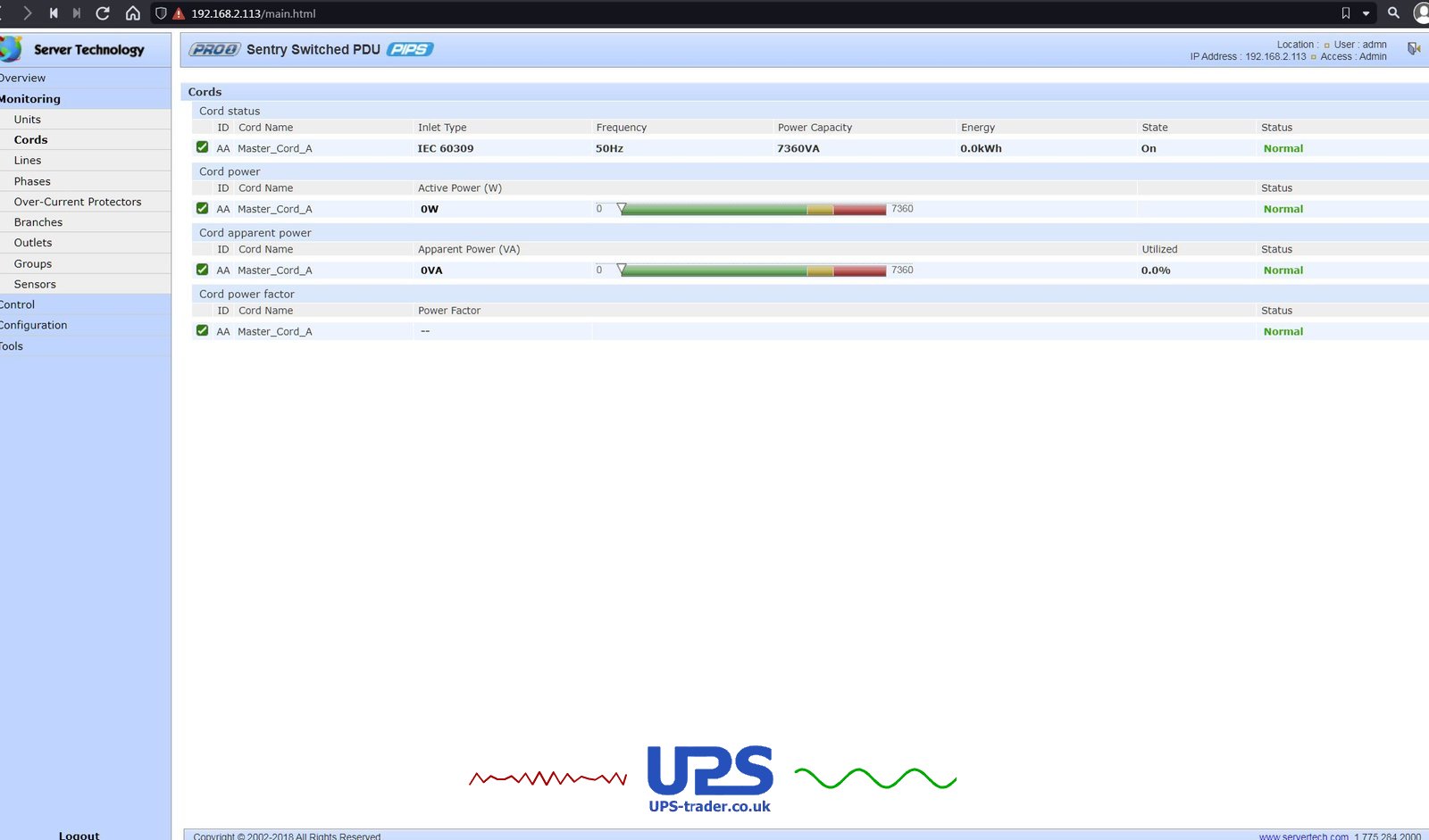

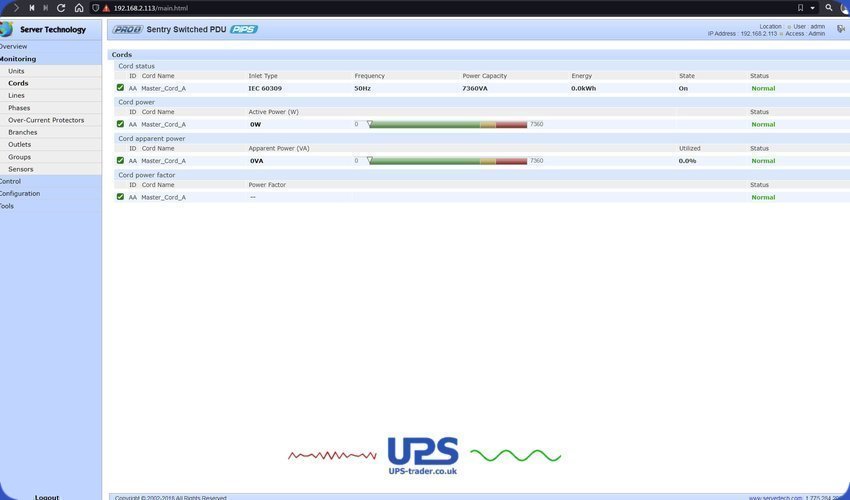

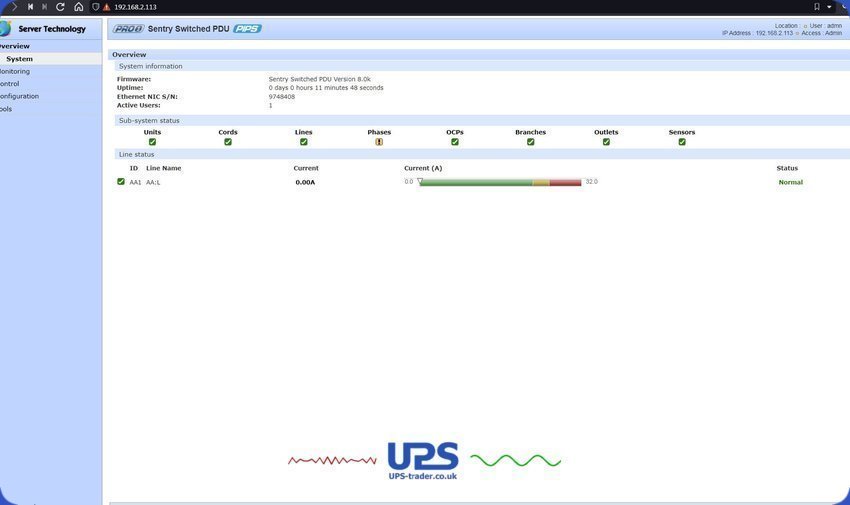

There is metering, on the whole PDU

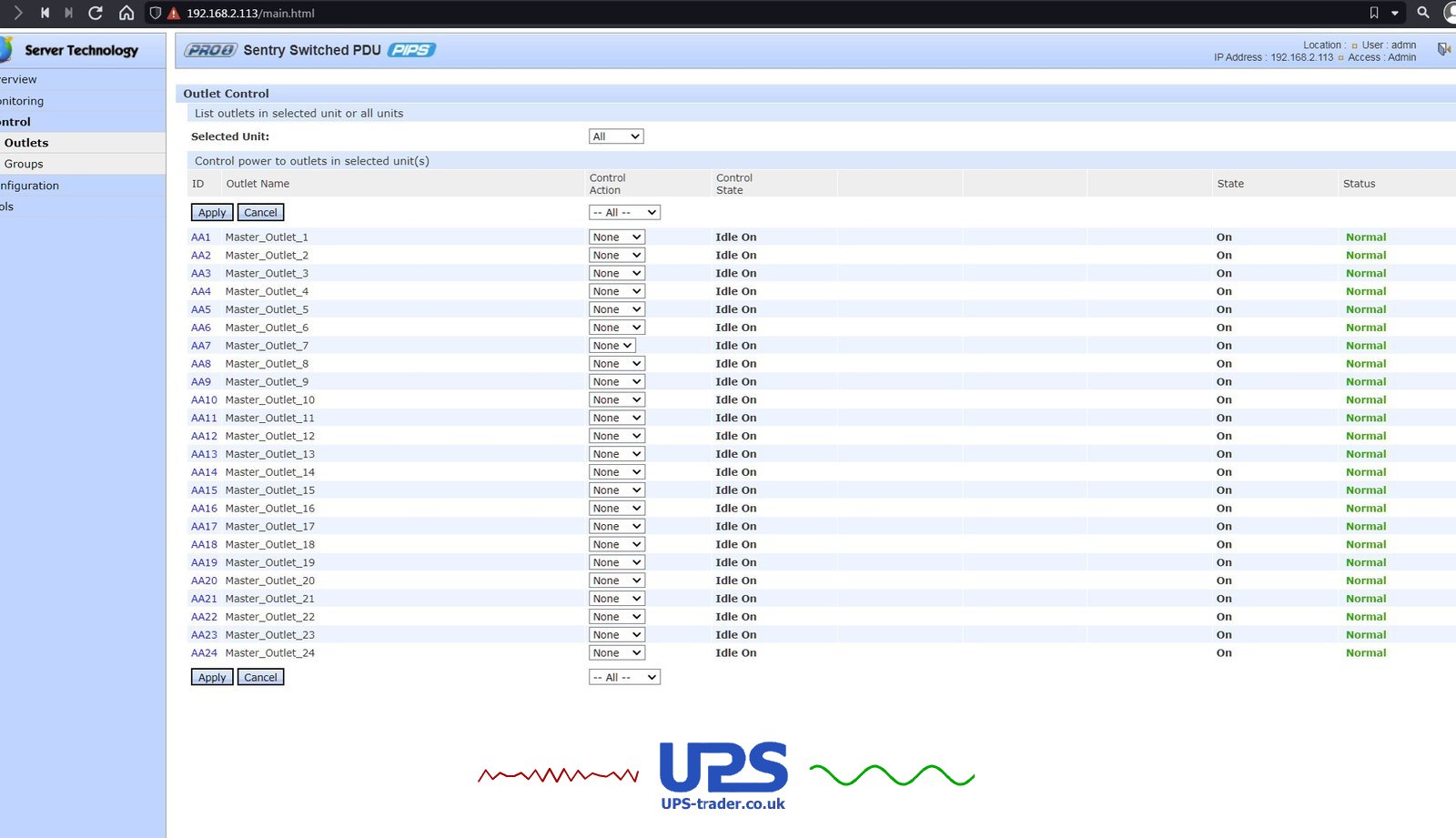

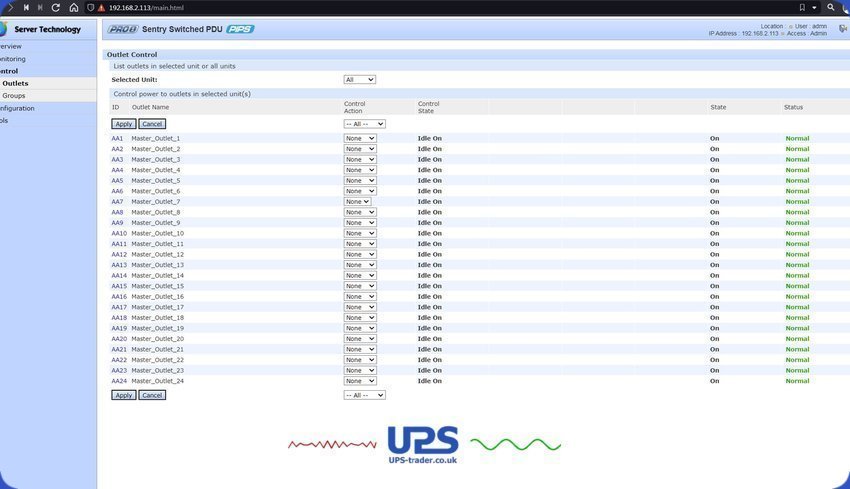

and each outlet is on/off/reboot remote controllable.
When power is returning it can stagger the on sequence to limit inrush.
The Server Technology® PRO1 Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Switched “Primary” PDU can be connected to as many as three (with optional module) PRO1 Switched “Link” PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
Our products are comprehensively tested by UPS experts and are fully working. We have been supplying UPS since 2002 and are the respected leader in the field, with the most used stock in Europe. Our experience reduces the occurrence of problems, and the availability of resources and stock we hold means we have the ability to quickly resolve issues when they do arise.
We set our same day dispatch times on eBay as a guide. This is a broad stroke estimation, as our items are of varying complexity. While simple orders can be packed and shipped quickly, large units or volume quantities may roll over to being dispatched the following working day. You can contact us if you need to be sure of when we can send an order and we can make a plan.
All of our consignments are sent fully insured on a 24 hour service with our carriers. We cover all problems that occur in transit. We can ship to the EU (transit time varies) and have experience packing and shipping to overseas destinations. The EU shipping costs are estimated and can be subject to surcharge. Large UPS may be palletised or shipped with the UPS in one box, and the cells in another. We have the packing materials to make sure that there are few problems in transit. Our warehouse is based in the UK.
When we process the order, we issue a dispatch notification via email. This will have a PDF invoice attached, and detail which courier we have shipped with, along with the tracking number and any pertinent information & guidance.
Specification

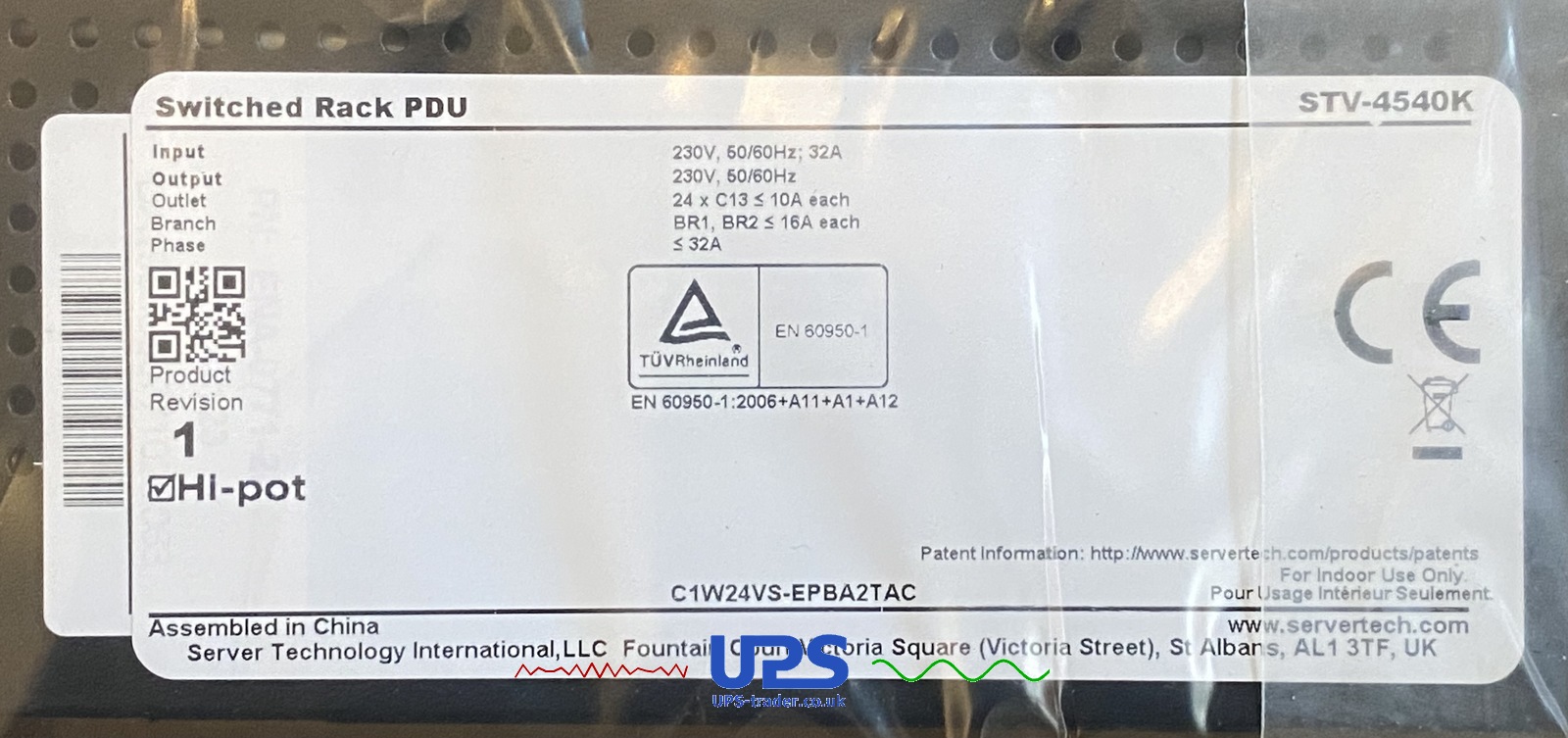

Inputs
Input Voltage (V): 230
Input Plug: IEC 230V/32A 2P+PE 6Hr
Input Current (A): 32
Input Current Rated (A): 32
Input Power Capacity (kW): 7.3
Outputs
Connector Rating
(24) x IEC 60320/C13 Global Rating: ≤ 10A @230V L-N

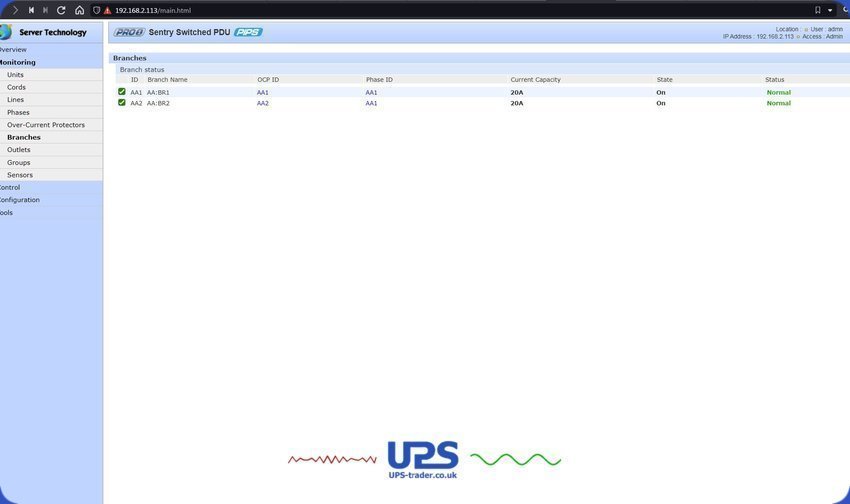

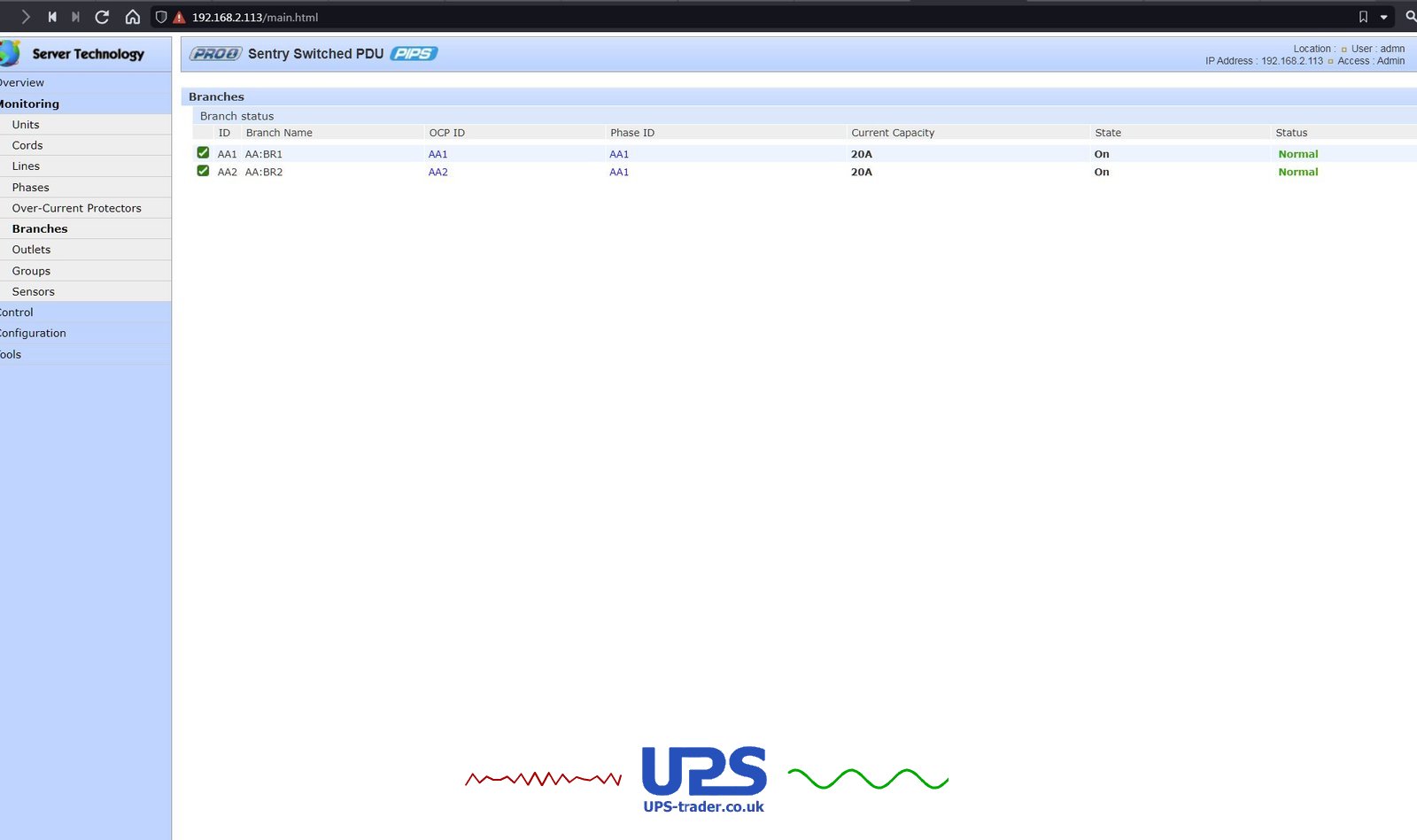

Branch Circuit Protection
UL489 Compliant 2-pole, 20A trip circuit breakers, two (2) branch, rating: ≤ 16A, 5 kAIC Interrupt
Rating
Physical
Dimensions: 69.0in tall x 1.75in wide x 2.25in deep [1753mm x 45mm x 58mm]
Environmental
Operating Environment: 32°F to 140°F / 0°C to 60°C | 8%RH to 90%RH non-condensing | 6,500ft/2km elevation
Storage Environment: -40°F to 185°F / -40°C to 85°C | 8%RH to 90%RH non-condensing | 50,000ft/15km elevation
Quiescent / Unloaded Power Draw: < 10W for all configurations
Communications & Security
10/100/1000 Mbps Ethernet (RJ-45 connector), RS-232 serial (RJ-45 connector)
Two (2) temperature/humidity sensor inputs (4P4C), Link port (RJ-12) - {also on Link PDU}
Web-browser GUI and command-line interface (CLI): HTTP/HTTPS, TLSv1.2, SSHv2, Telnet, SNMPv2c and v3 (GET, SET, Traps), IPv4 and IPv6, LDAPv3/LDAPS, TACACS+, RADIUS, FTP/SFTP
|
|
