✅ Warranty: Rest easy with a 1-year quality warranty for Motor and Battery. Free repair or replacement in case of any quality issues.
Key Features:
Four Riding Modes: Choose from pure electric mode, human riding model, power assistance, and push models. Enjoy the flexibility of easily switching between 4 working modes.
Easy Installation: Effortlessly install this mid-drive motor into your electric bicycle using just a few tools. Remove the crankset and center shaft, then use the provided installation tools for a seamless setup.
Compatibility: This kit is compatible with a wide range of bikes, including mountain bikes, road bikes, racing bikes, and more, with a bottom bracket size of 68-73mm.
Four Riding Modes: Choose from pure electric mode, human riding model, power assistance, and push models. Enjoy the flexibility of easily switching between 4 working modes.
Easy Installation: Effortlessly install this mid-drive motor into your electric bicycle using just a few tools. Remove the crankset and center shaft, then use the provided installation tools for a seamless setup.
Compatibility: This kit is compatible with a wide range of bikes, including mountain bikes, road bikes, racing bikes, and more, with a bottom bracket size of 68-73mm.
48V750W68mm Mid Drive Motor Specification:
Bafang Model: M315 MM G340.750.C
Power: 750W
Voltage:48V
Controller Current: 24A
Max speed with Pedal Assistance: 45-55km/h
MAX Torque: 120N.m
Efficiency: > 78%
PAS SENSOR : Speed Sensor
Reduction Ratio: 1 : 21.9
Motor Operation Temperature:-20℃-45℃
Bafang Controller: Integrated Inside the Motor
Bracket bottom length: 68mm(The bottom bracket shall be 68-73mm)
Certification:CE/EN 14764/ROHS
Waterproof Grade:IPX5
Net Motor Weight: 4.224kg
Bafang Model: M315 MM G340.750.C
Power: 750W
Voltage:48V
Controller Current: 24A
Max speed with Pedal Assistance: 45-55km/h
MAX Torque: 120N.m
Efficiency: > 78%
PAS SENSOR : Speed Sensor
Reduction Ratio: 1 : 21.9
Motor Operation Temperature:-20℃-45℃
Bafang Controller: Integrated Inside the Motor
Bracket bottom length: 68mm(The bottom bracket shall be 68-73mm)
Certification:CE/EN 14764/ROHS
Waterproof Grade:IPX5
Net Motor Weight: 4.224kg
Protocol: CAN Protocol.

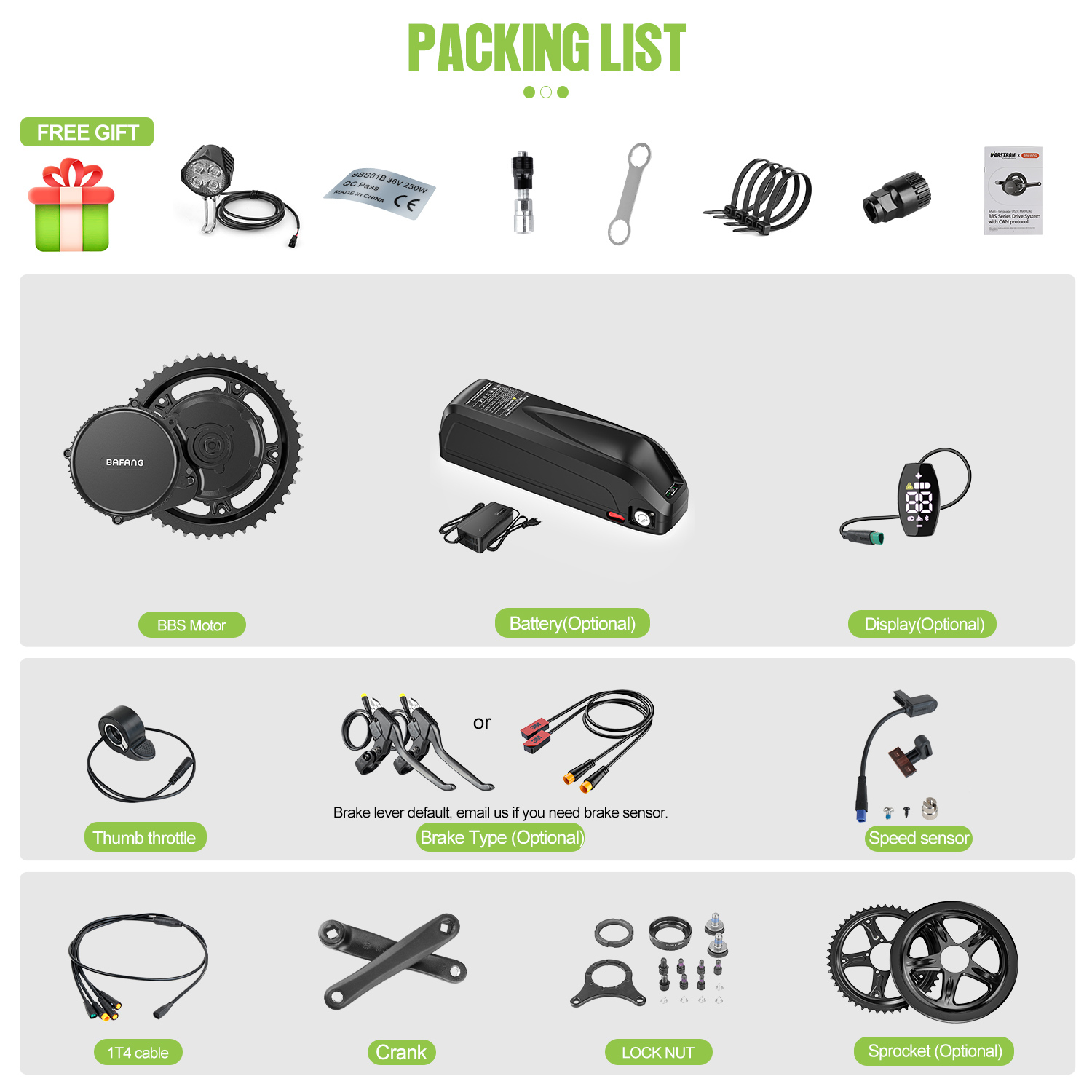

Package Includes:
1 * 48V750W68mm Mid Drive Motor
1 * CAN protocol Display (Optional)
1 Pair * Mechanical Brake Lever default (Pls leave a note if you need brake sensors)
1 Pair * Crank
1 Pair * 44T Chainwheel
1 Set * Thumb Throttle
1 Set * Speed Sensor
1 * 4 to 1 Cable
1 * Accessories
1 * User Manual
1* Bottom Bracket Remover
1 * Headlight
1 * Wrench Tool
1 * 48V750W68mm Mid Drive Motor
1 * CAN protocol Display (Optional)
1 Pair * Mechanical Brake Lever default (Pls leave a note if you need brake sensors)
1 Pair * Crank
1 Pair * 44T Chainwheel
1 Set * Thumb Throttle
1 Set * Speed Sensor
1 * 4 to 1 Cable
1 * Accessories
1 * User Manual
1* Bottom Bracket Remover
1 * Headlight
1 * Wrench Tool
Battery Information:
If you choose the battery option, it comes with a charger.
If you choose "no need battery," please note that the motor kit does not include a battery. Thank you.
Note: Gear shift sensor is not included. Please contact us if you require one.
If you choose "no need battery," please note that the motor kit does not include a battery. Thank you.
Note: Gear shift sensor is not included. Please contact us if you require one.
FAQ:
Q: How do I know if this mid-drive motor will fit my bike?
A: A: This 68mm mid-drive motor is compatible with bikes having a bottom bracket width of 68mm (2.68 inches) to 73mm (2.87 inches). The inner diameter of the bracket should be 34-36mm.
For 73mm bottom brackets, we'll provide extra installation accessories. Please leave a note for the 73mm bottom bracket.
Q: How do I know if this mid-drive motor will fit my bike?
A: A: This 68mm mid-drive motor is compatible with bikes having a bottom bracket width of 68mm (2.68 inches) to 73mm (2.87 inches). The inner diameter of the bracket should be 34-36mm.
For 73mm bottom brackets, we'll provide extra installation accessories. Please leave a note for the 73mm bottom bracket.

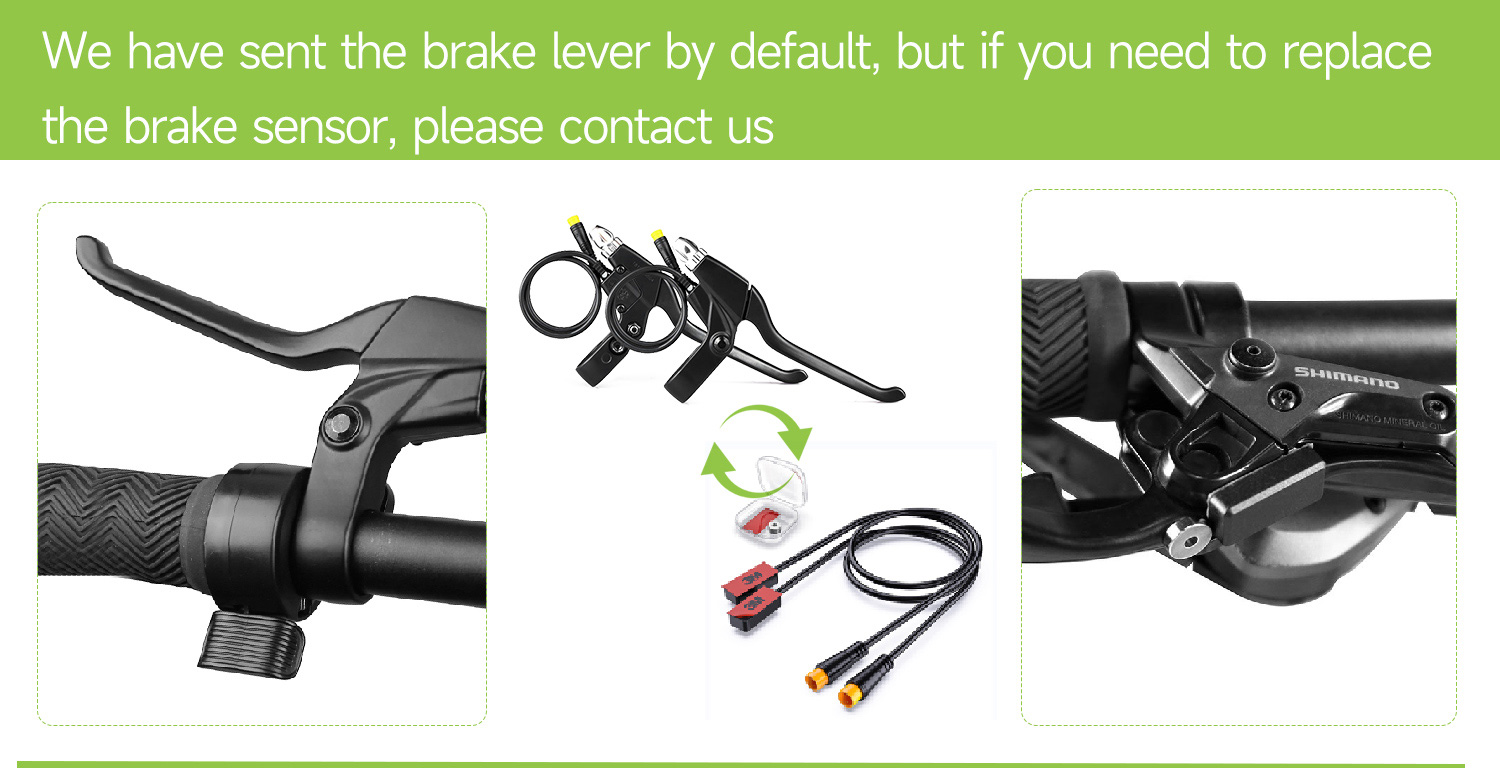

Q: How do I choose between brake levers and brake sensors?
A: If you have hydraulic brakes or prefer to use your own brake sensors, you can choose brake sensors. They can connect directly with your brakes for seamless functionality.
A: If you have hydraulic brakes or prefer to use your own brake sensors, you can choose brake sensors. They can connect directly with your brakes for seamless functionality.
Q: Can I install the motor as soon as it arrives?
A: Before installing the motor, please refer to the manual and follow the instructions to connect the motor and verify its normal operation.
A: Before installing the motor, please refer to the manual and follow the instructions to connect the motor and verify its normal operation.
Please ensure not to disconnect any connections while the power supply is still active.
