H-Beam Connecting Rods ARP for Ford XFlow Lotus twincam BDA 5.23" Wide Journal

	See Details
Beam Type	H-Beam
Material	Forged 4340 Chrome Moly Steel
Application	For Ford X Flow Lotus twincam BDA Cosworth BDG narrow journal
C-C Length	132.84mm/5.230in
Big end diameter	52.91mm/2.083in
Small end diameter	20.62mm/0.811in
Big end width	23.67mm/0.932in
Small end width	24.13mm/0.95in

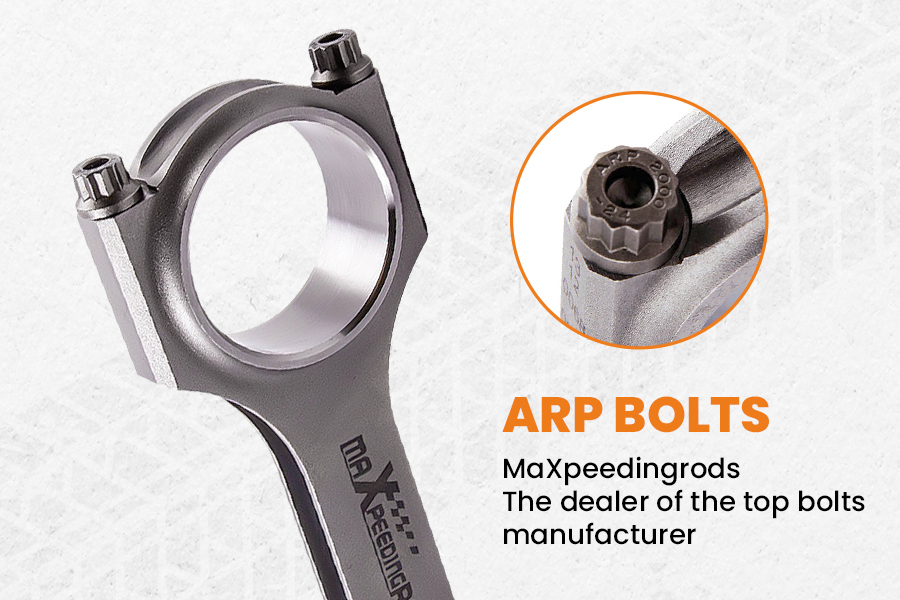

ARP Bolts

The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

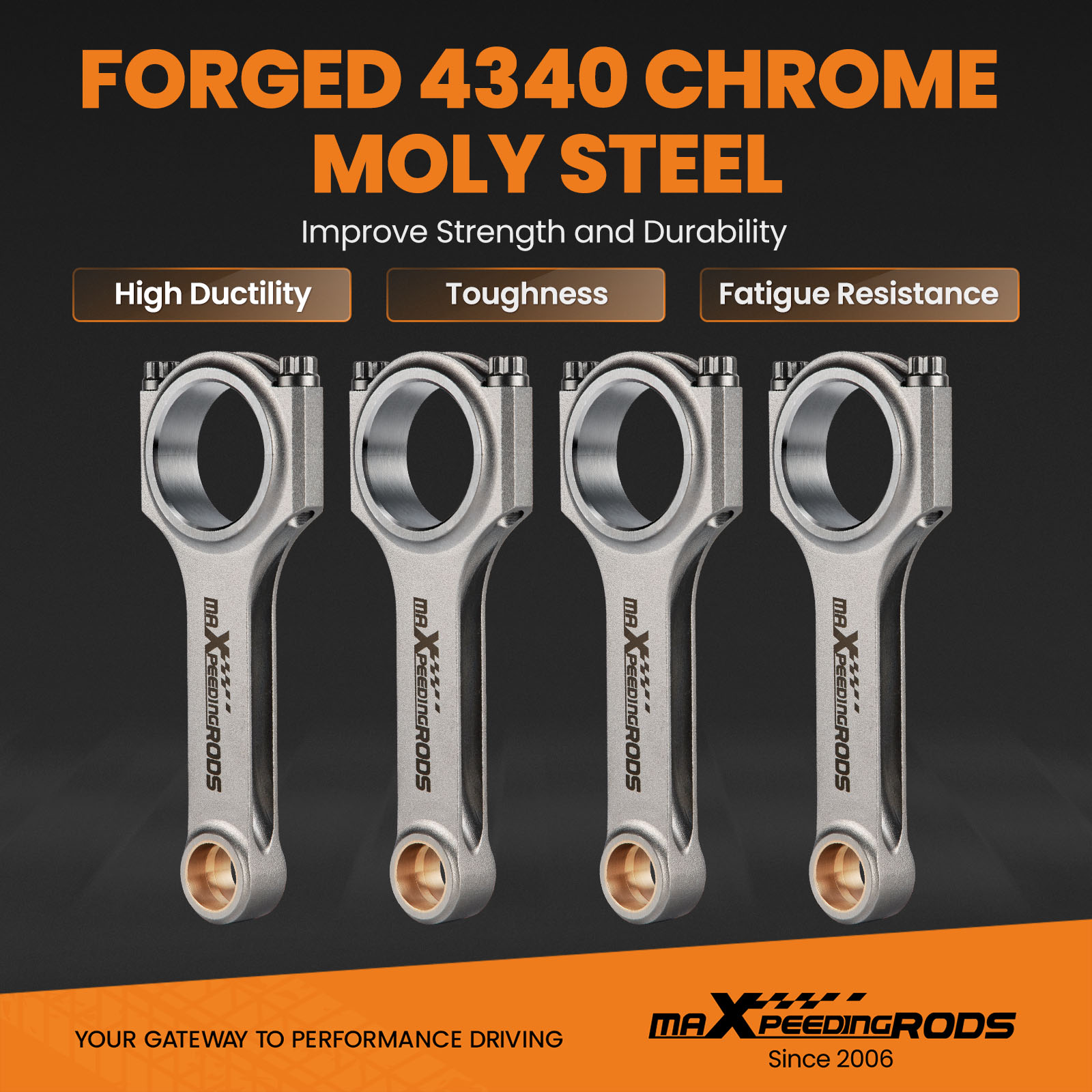

Forged 4340 Steel

Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing.

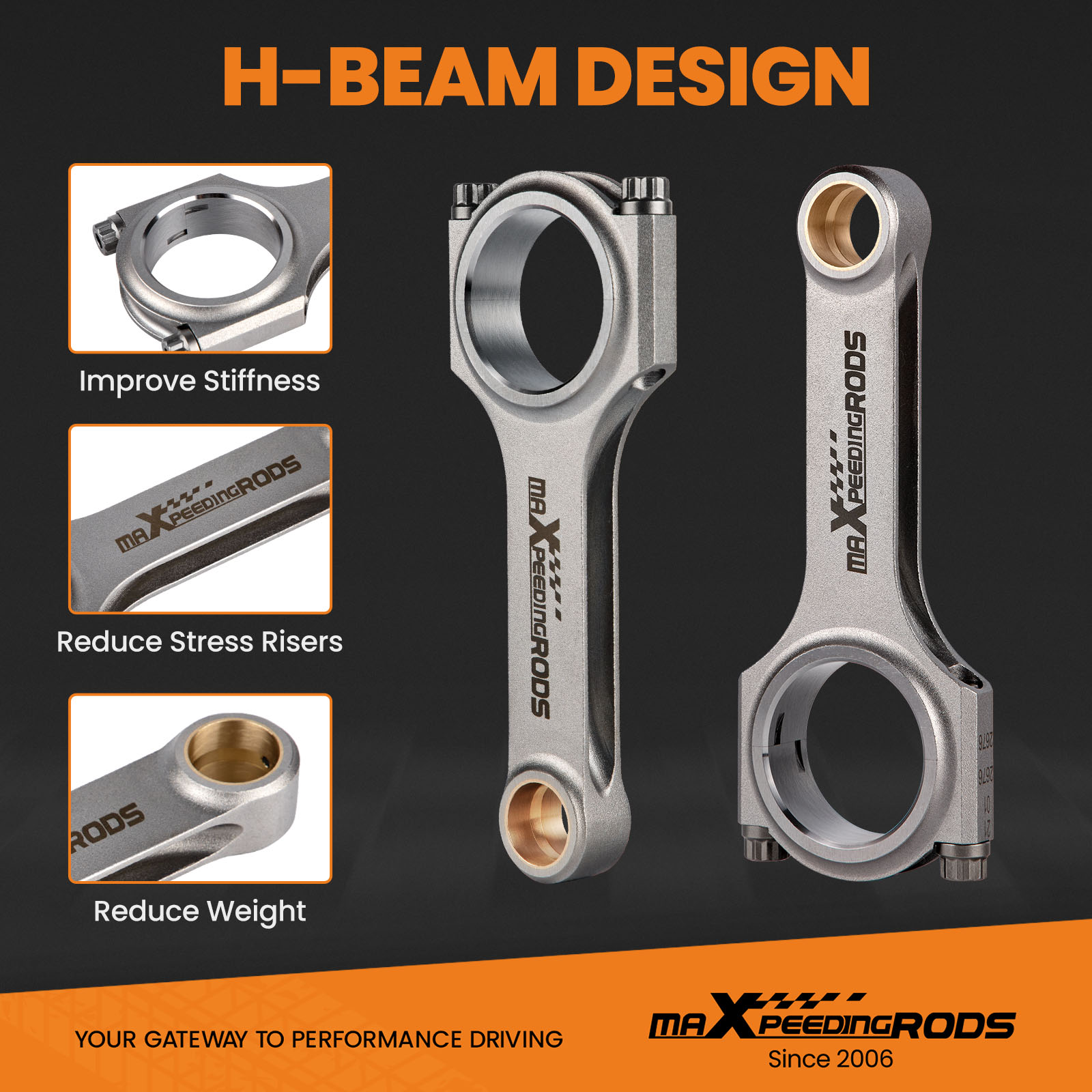

H-Beam Design

H-Beam helps improve stiffness, reduce stress risers and weight.

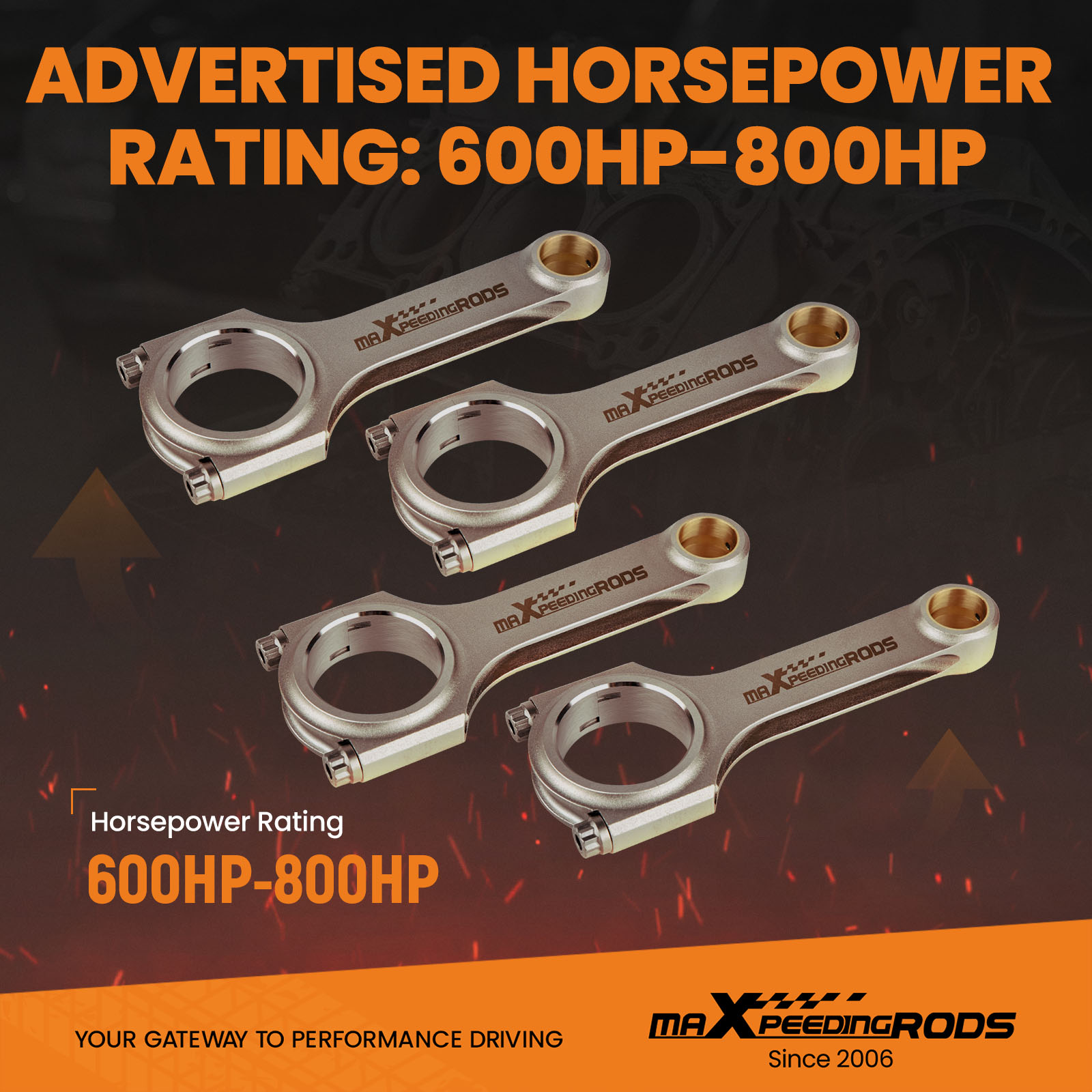

Horsepower Rating

Advertised horsepower rating: 600HP-800HP.

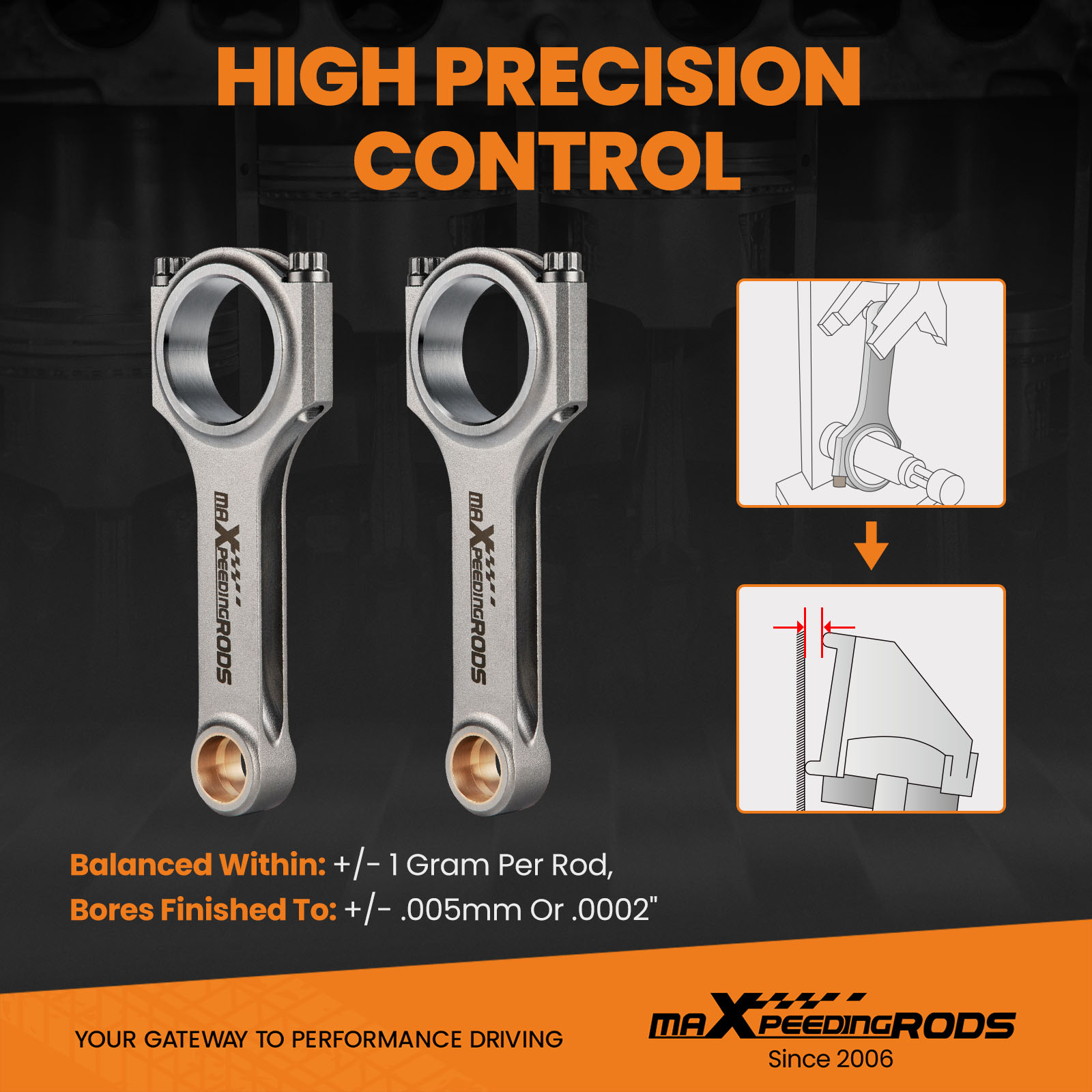

High Precision Control

Balanced within:+/- 1 gram per rod,

Bores finished to:+/- .005mm or .0002".

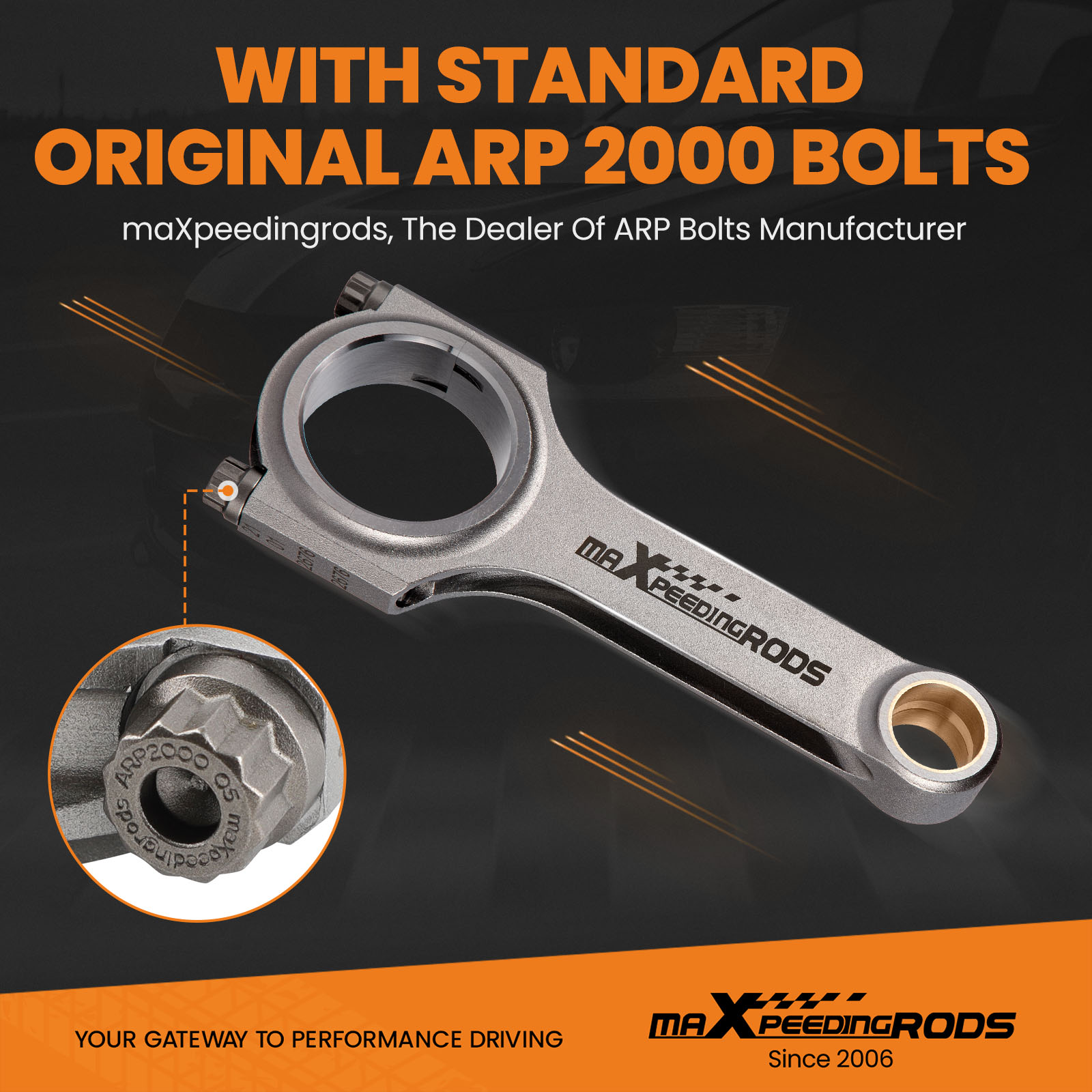

ARP 2000 Bolts

With Standard Original ARP 2000 Bolts.

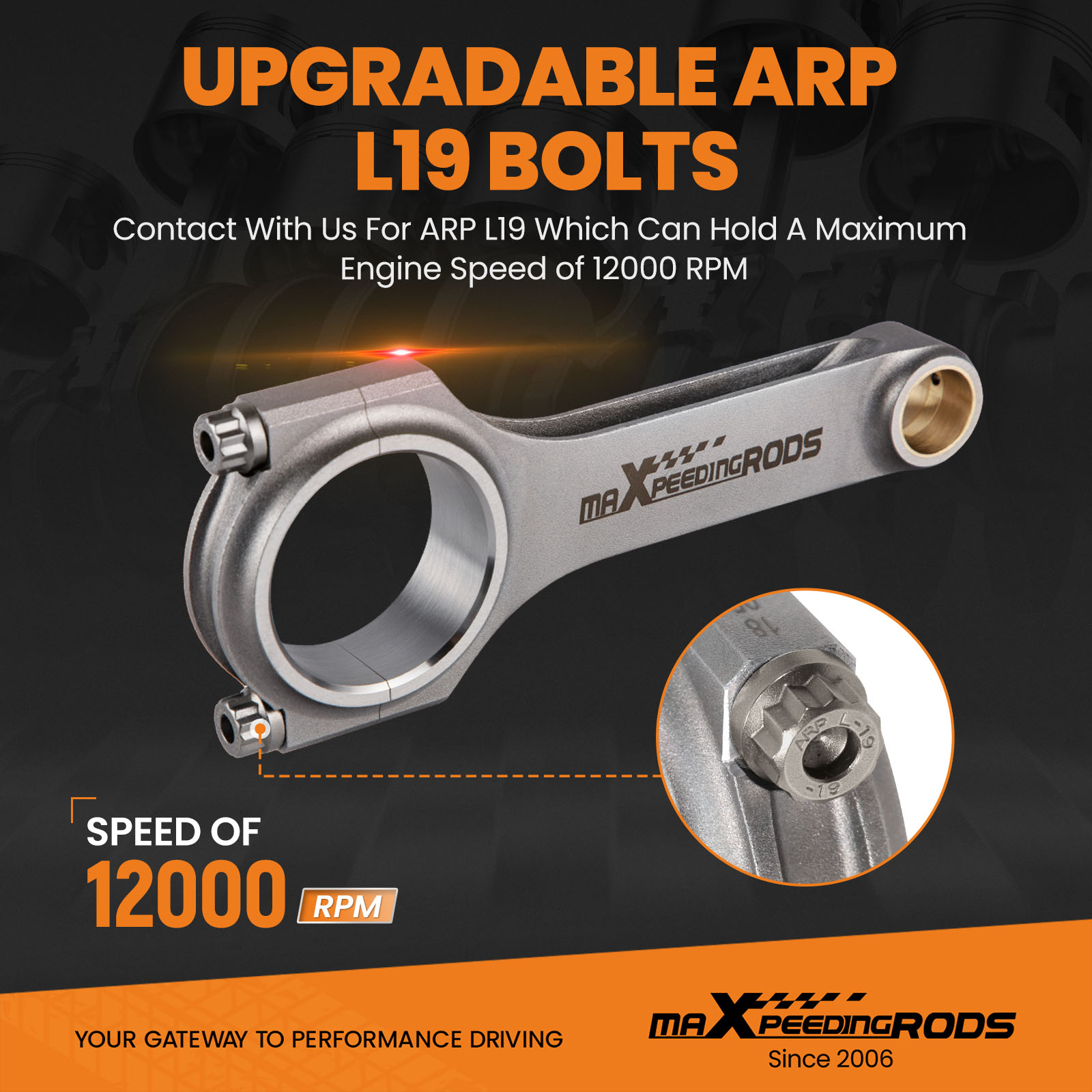

Upgradable ARP L19 Bolts

Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.

Application

For Ford Escort RS1600 / XFlow / Lotus Twin Cam / Cosworth BDA / Cosworth BDG

Fits For 5.23" Wide Journal engine series

Dimension

Connecting Rod Length Center to Center	132.84mm/5.230in
Approximate Connecting Rod Weight	592g
Big End Bore Diameter	52.91mm/2.083in
Pin End Bore Diameter	20.62mm/0.811in
Big End Width	26.80mm/1.055in
Small End Width	24.10mm/0.949in
