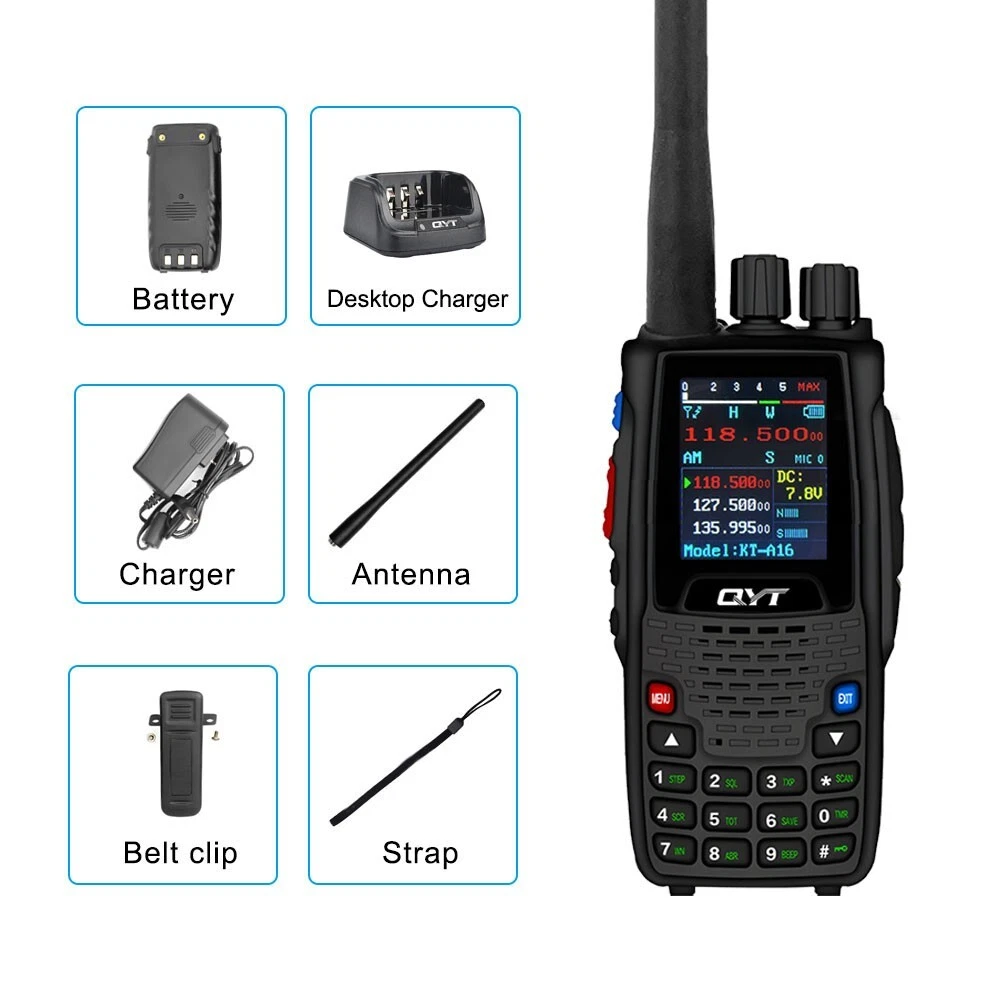

QYT KT-A16 Air Band Radio 6W 10 NOAA Weather Forecast
Channels Handheld Transmit
Features
Superheterodyne Circuit
6W output Power
1.77”TFF-LCD color Screen
200 Memory Channels
10 NOAA Weather forecast Channels
Channel Spacing 25K / 8.33K for AM mode
VOX
Air Band: 118.00000-136.99975MHz for Tx, 108.00000-136.99975MHz for Rx
2.50/5.00/6.25/10.00/12.50/25.00K Frequency Step
Scanning
Time,Carrier or Search three kinds of Scanning Modes
PC programming
Squelch Level Adjustable
2000mAh Rechargeable Battery Pack
General
Frequency Range
TX:118.00000-136.99975MHz
RX:108.00000-136.99975MHz
WX:161.650-163.275MHz
Channel Spacing
25kHz
Mode
6k00A3E/5K60A3E
16K0G3E(WX)
Number of Memory Channels
200
Antenna Impedance
50ohm
Antenna Connector
SMA-Female
Power Supply Requirement
7.2V DC
Current Drain
Less than 1.8A
Operating Temperature range
-10°c`+60°c
Dimensions
62(W)*128(H)*35(D)mm
Weight
239g with 2000mah Battery
Transmitter
Output Power
6.0W(PEP),1.8W(CW)
Modulation Limiting
70-100%
Audio harmonic distortion
Less than 10%(at 60% modulation)
Ham and Noise Ratio
More than 35dB
Spurious emissions
More than 46dB
Frequency Stability
±0.4kHz
Receiver
Receive system
Double conversion superheterodyne
Intermediate frequencies
1st46.35MHz,2nd 450kHz
Sensitivity
COM: Less than 0dBu (at 6dB S/N)
NAV: Less than 3dBu (at 6dB S/N)
WX: Less than -8dBu (at 12dB SINAD)
Squelch Sensitivity(Threshold)
COM/NAV: Less than 0dBu
WX: less than -5dBu
Spurious response rejection Ratio
COM/NAV: More than 60dB
WX:More than 30dB
QYT KT-A16 Air Band Radio 6W 10 NOAA Weather Forecast
Channels Handheld Transmit
Features
Superheterodyne Circuit
6W output Power
1.77”TFF-LCD color Screen
200 Memory Channels
10 NOAA Weather forecast Channels
Channel Spacing 25K / 8.33K for AM mode
VOX
Air Band: 118.00000-136.99975MHz for Tx, 108.00000-136.99975MHz for Rx
2.50/5.00/6.25/10.00/12.50/25.00K Frequency Step
Scanning
Time,Carrier or Search three kinds of Scanning Modes
PC programming
Squelch Level Adjustable
2000mAh Rechargeable Battery Pack
| General |
|
| Frequency Range |
TX:118.00000-136.99975MHz RX:108.00000-136.99975MHz WX:161.650-163.275MHz |
| Channel Spacing |
25kHz |
| Mode |
6k00A3E/5K60A3E |
|
|
16K0G3E(WX) |
| Number of Memory Channels |
200 |
| Antenna Impedance |
50ohm |
| Antenna Connector |
SMA-Female |
| Power Supply Requirement |
7.2V DC |
| Current Drain |
Less than 1.8A |
| Operating Temperature range |
-10°c`+60°c |
| Dimensions |
62(W)*128(H)*35(D)mm |
| Weight |
239g with 2000mah Battery |
| Transmitter |
|
| Output Power |
6.0W(PEP),1.8W(CW) |
| Modulation Limiting |
70-100% |
| Audio harmonic distortion |
Less than 10%(at 60% modulation) |
| Ham and Noise Ratio |
More than 35dB |
| Spurious emissions |
More than 46dB |
| Frequency Stability |
±0.4kHz |
| Receiver |
|
| Receive system |
Double conversion superheterodyne |
| Intermediate frequencies |
1st46.35MHz,2nd 450kHz |
| Sensitivity |
COM: Less than 0dBu (at 6dB S/N) |
|
|
NAV: Less than 3dBu (at 6dB S/N) |
|
|
WX: Less than -8dBu (at 12dB SINAD) |
| Squelch Sensitivity(Threshold) |
COM/NAV: Less than 0dBu |
|
|
WX: less than -5dBu |
| Spurious response rejection Ratio |
COM/NAV: More than 60dB |
|
|
WX:More than 30dB |
