All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

Applications

For Inifinit M35x 06-10 AWD
For Inifinit M45x 06-10 AWD
For Inifinit G35x 03-08 AWD
For Inifnit G37x 08-13 AWD

Note:
1.Will not fit RWD model.
2.The rear is true coilovers instead of divorced coils.

Specfication

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Damping : Not adjustable
Top mounts: Front and rear standard rubber top mounts
Camber adjustable: Not available
Spring Rate Front: 12kg/mm (672 lbs/in)
Spring Rate Rear: 10kg/mm (560 lbs/in)
Spring length Front: 160 mm
Spring length Rear: 200 mm
Front spring inner diameter: 62 mm
Rear spring inner diameter: 62 mm
Spring Preload advised: 7-10 mm
Shock Type:Twin tube

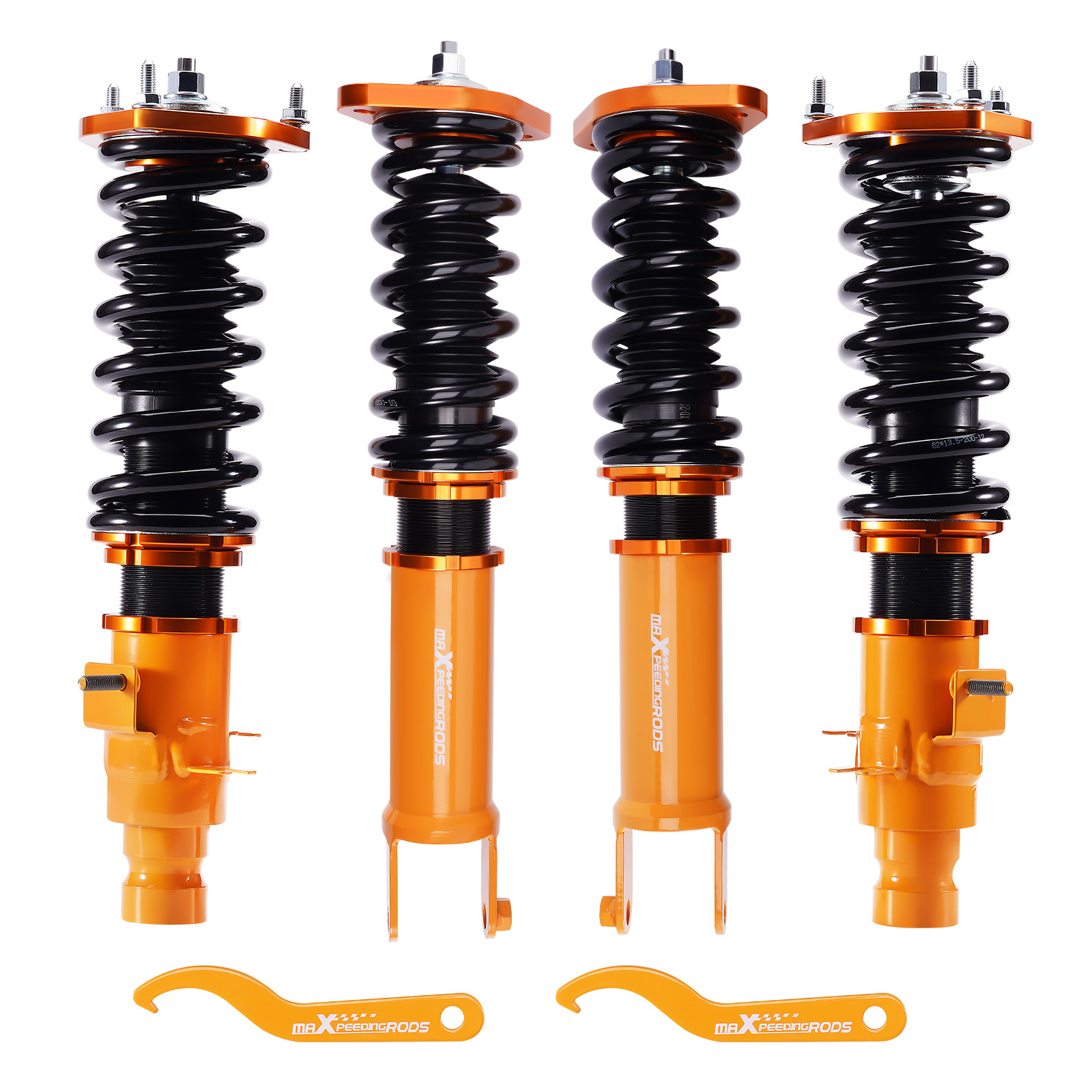

Package included
2x Front coilovers
2x Rear coilovers
2x C spanners

Dimension
Package Size: 64*50*20 cm
Weight: 23000 g

Feature

1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring---  600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
