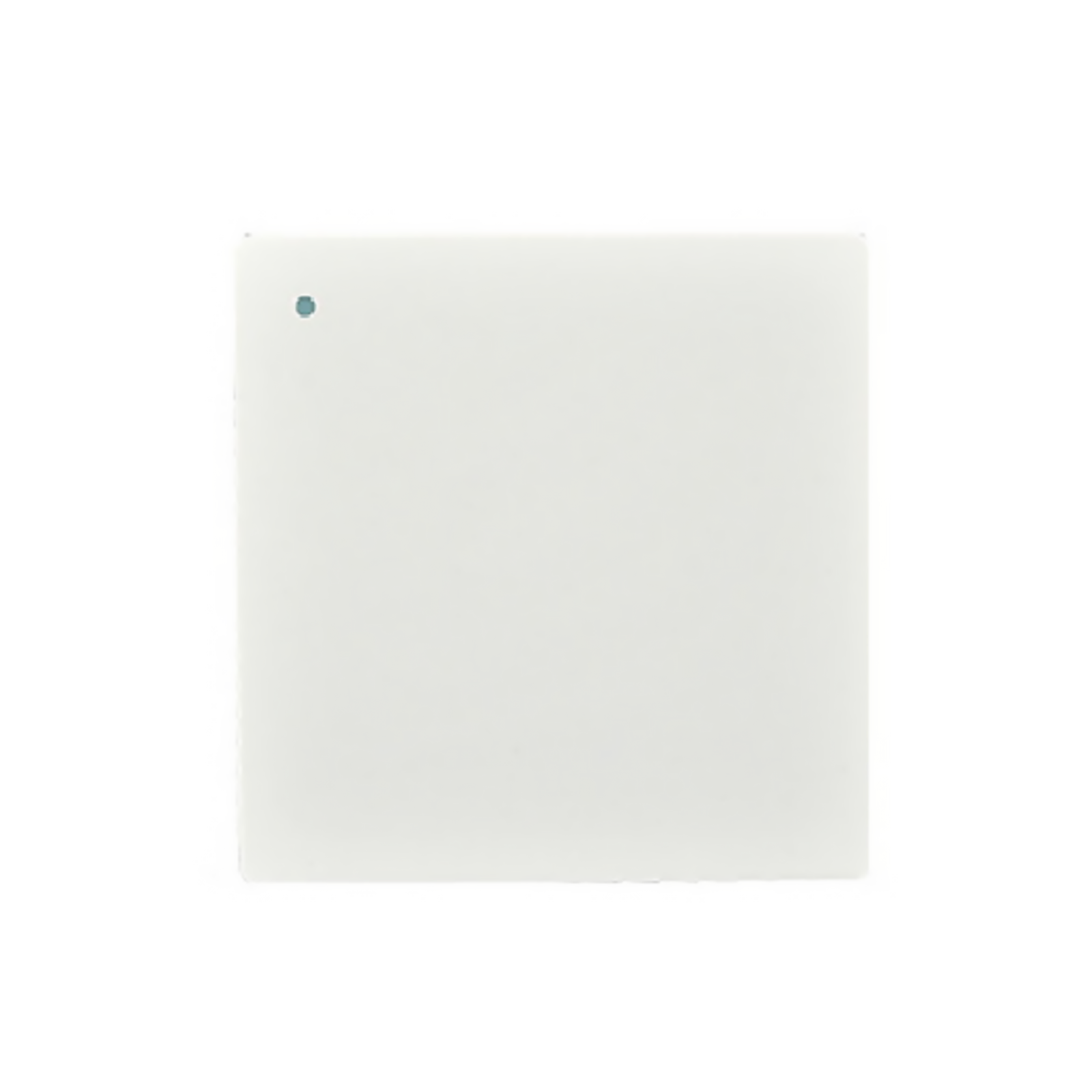

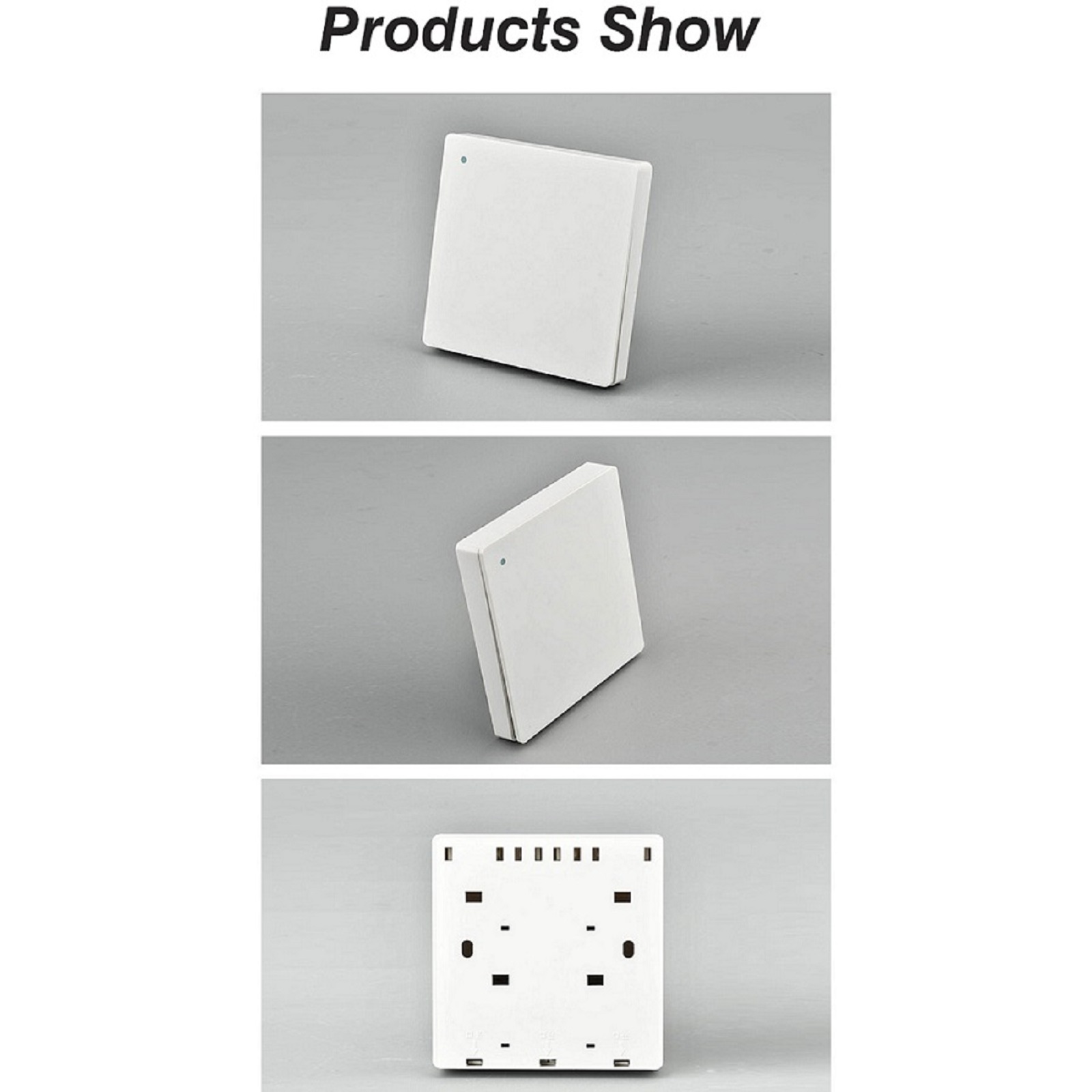

433MHz AC90-250v Wireless Remote Control Kinetic Self-powered No Battery Wall Light Switch

Specifications:

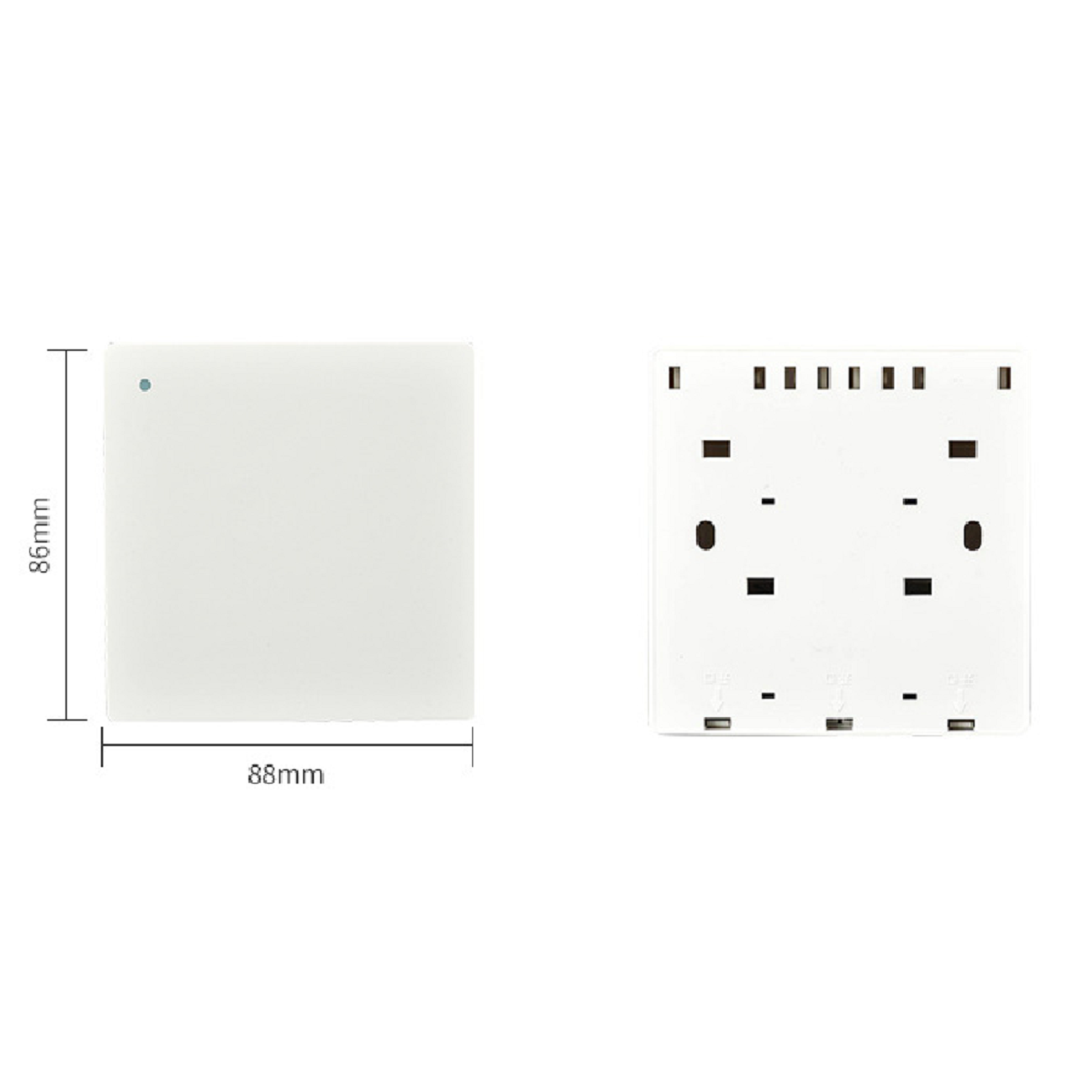

Size: 86*88*15.5mm
Working voltage: self-generation
Emission current: <30mA
Transmit power: >+13dBm
Keystroke force: 300+/-50g
Waterproof performance: IP54
Panel bottom shell: interchangeable bottom shell universal
Standby current: 0 ua
Frequency: 433.92+/-75KHz MHz（Encryption processing）
Remote control distance: open area>100M indoor<60M
Button life: >200,000 times

Feature:
Remote distance receiving, has stable performance, good signal and sensitive response.
It can be controlled remotely, making life smarter and more convenient.
It is a new type of for smart switch, can control one or more light lamps indoors, has stable performance.
It is applicable to the doors(wooden door, glass door, etc), home light lamps, curtains and so on.

Instruction Manual:
1. Set on and off status
Long press the receiver button for 3 seconds, the indicator light flashes once, release the button, press the wall switch once, and the receiver indicator flashes once, indicating successful learning.
2. Set the on state (only for turning on the light)
Long press the receiver button for 5 seconds, the indicator light flashes twice, release the button, press the wall switch once, and the receiver indicator flashes once, indicating successful learning.
3. Set the off state (only for turning off the lights)
Long press the receiver button for 7 seconds, the indicator flashes 3 times, release the button, press the wall switch once, and the receiver indicator flashes once, indicating successful learning.
4. Clear the learning status.
Long press the receiver button for 10 seconds, the indicator light flashes 4 times, indicating that all learning remote controls are deleted.
5.Short press the receiver button, each time you press it, the relay will turn on or off.

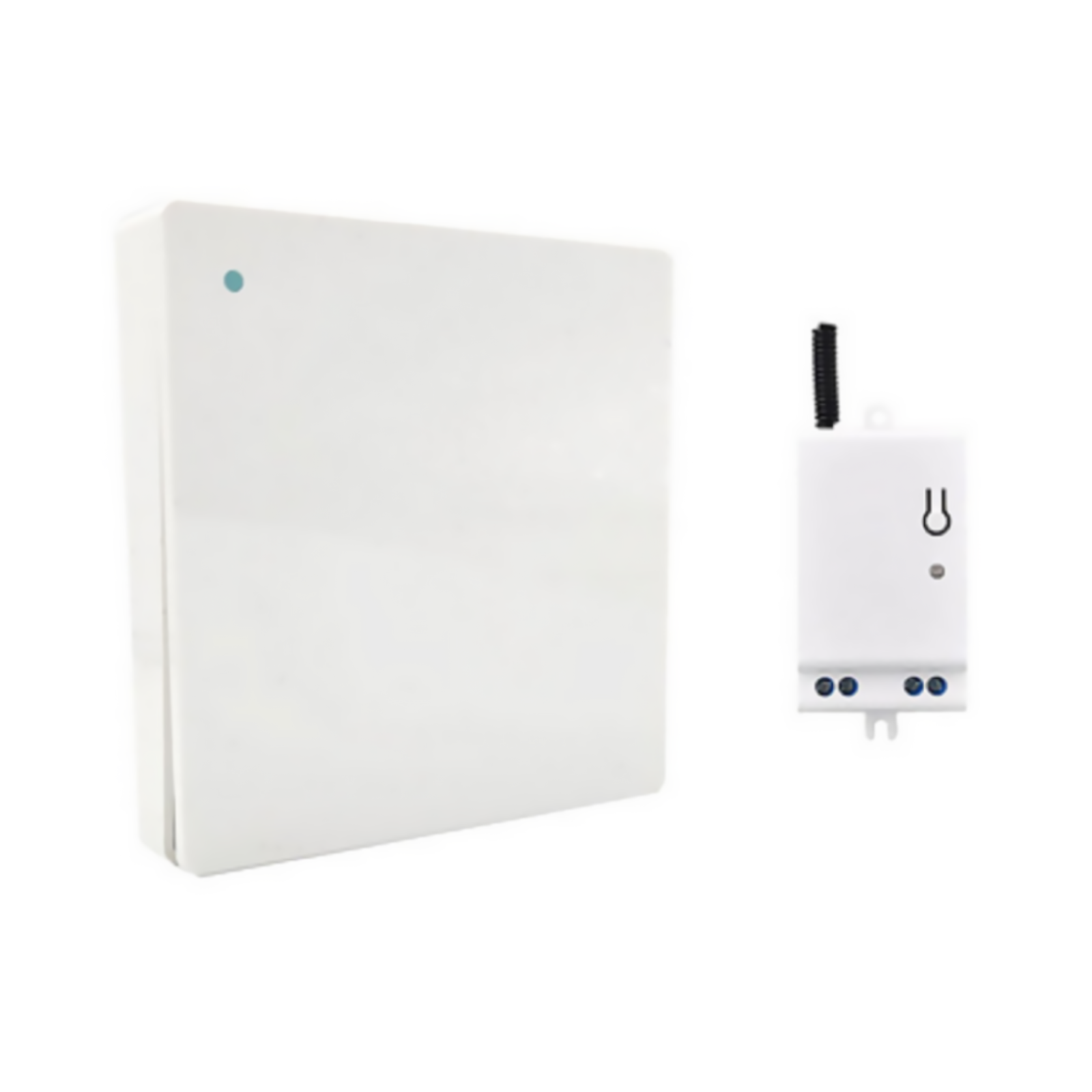

Package Includes:
1 x Wireless Controller Switch

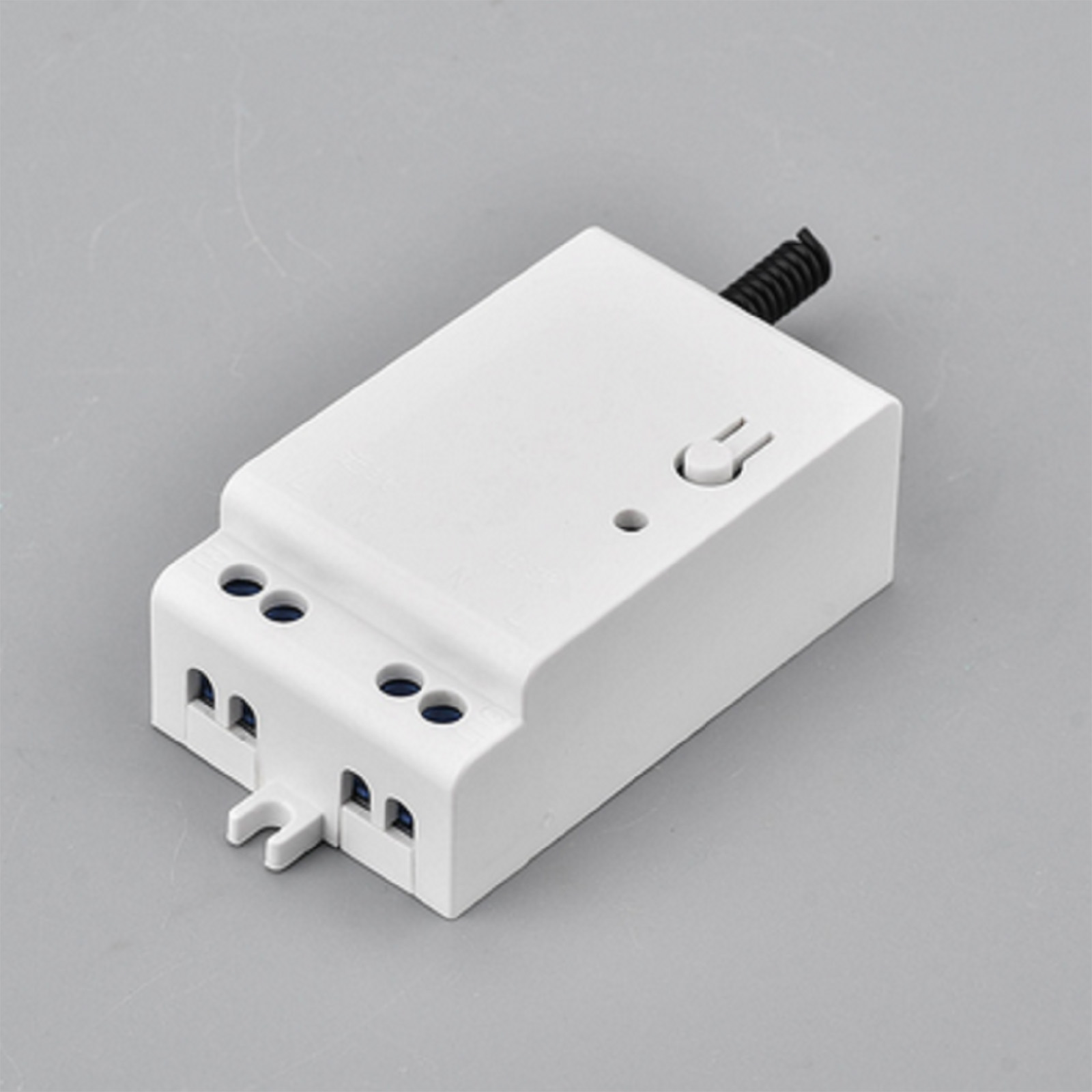

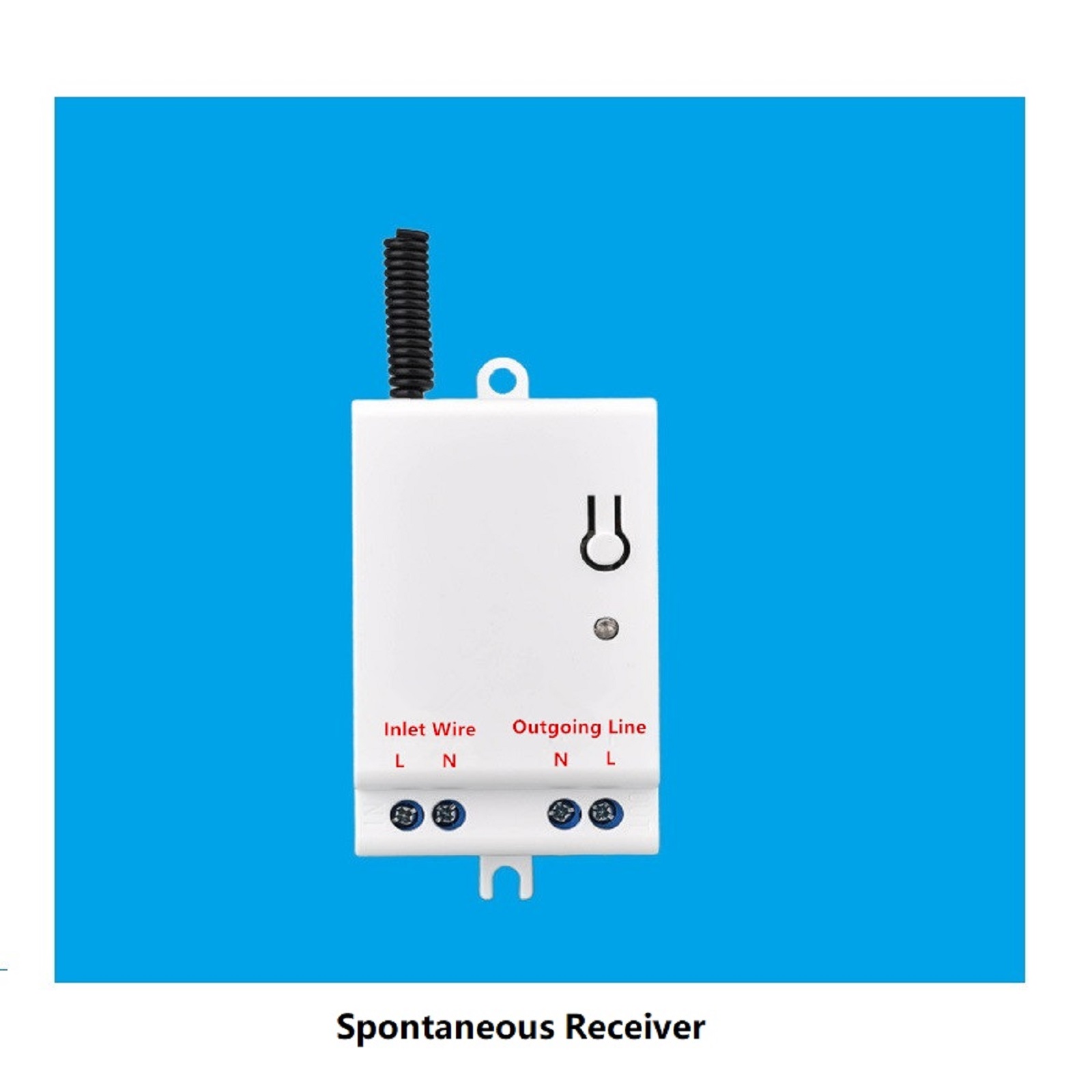

1 x Receiver Module
