Product Description

Bullet Points:
Powerful Output: Utilizing an advanced flexible tapping system and imported servo motor, the taps are less susceptible to damage when tapping blind and deep holes, ensuring high-quality threaded holes and suitable for a variety of applications. Furthermore, the forward and reverse speeds can be adjusted to meet your needs.
Applicable Materials: The electric tapping machine is suitable for tapping copper, lead, A3 steel, cast iron, pig iron, die steel, 45 steel, Q235, hardened NAK80 molds, and other metal materials. It can easily handle tapping a variety of materials, including iron, steel, copper, aluminum, wood, and nylon.
Three Tapping Modes: Our electric tapping machine can meet diverse processing needs. ① Manual mode allows you to set the tapping speed and pitch, and manually retract the tap until the thread reaches the desired depth by observing the displayed value. This mode is suitable for single-piece processing. ② Automatic mode allows you to automatically tap by simply entering the tapping speed, retraction speed, and tapping depth. The touchscreen automatically adjusts the torque, making it ideal for batch processing. ③ Deep Hole Machining Mode is primarily used for deep hole machining. The system intelligently simulates manual machining methods using a one-step forward and one-step back cycle, ensuring chip removal while machining to ensure optimal tapping results.

Superior Quality and Flexible Design: The electric CNC tapping machine utilizes a suspended manipulator, enabling flexible and convenient tapping in any direction. The machine features an integrated design with all brackets constructed from high-strength aluminum alloy, making it durable and resistant to deformation. Our electric tapping machine is easy to operate and allows for quick workpiece positioning, precise and repeatable tapping, and high production efficiency, making it suitable for batch tapping tasks.

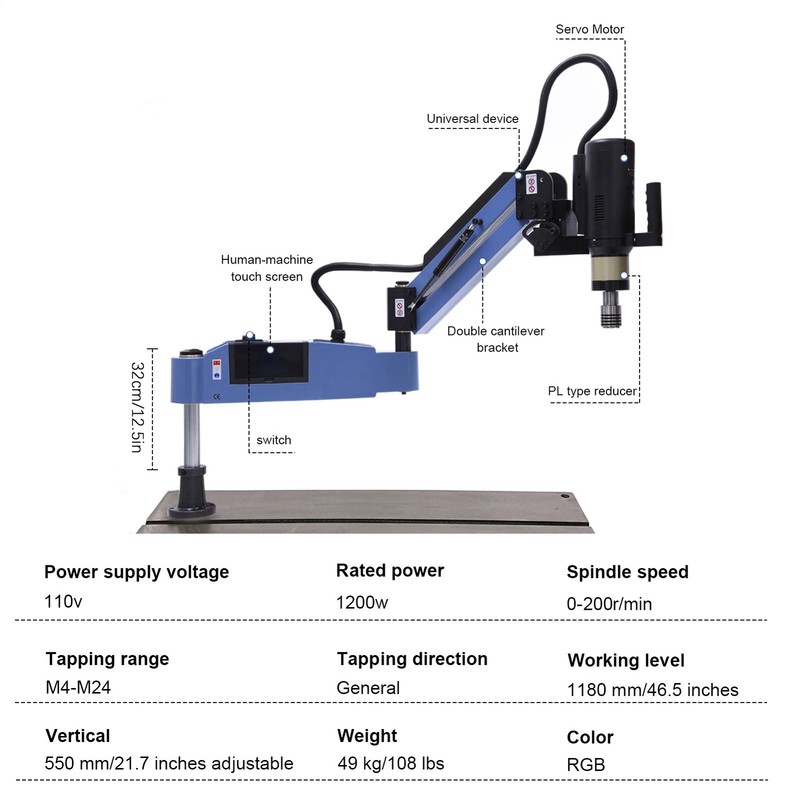

Details: The electric tapping machine consists of a servo motor, PL-type reducer, universal mechanism, dual cantilever bracket, and touchscreen operation panel. The high-strength, one-piece body features a protective cooling fan on the rear to effectively prevent chips and dust from entering the power socket, and it has a built-in fuse. The dual cantilever motor bracket provides strong impact resistance, and double-sided support brackets and hydraulic levers provide stability, saving effort and effectively assisting in tapping and thread retraction.



Specification:
Models M4-M24
Voltage 110V
Rated Power 1200W (Actual load power is lower than the rated value, possibly due to mechanical efficiency or insufficient load).
Measured Power 840W
Maximum Speed 200RPM
Operating Modes: Manual, Automatic, Batch
Vertical Extension 550mm
Working Radius 1180mm
Chuck Models: 1/4", 5/16", 3/8", 1/2", 9/16", 5/8", 11/16", 13/16", 7/8", 15/16"
Compatible with aluminum, copper, A3 steel, 45 steel, cast iron, pig iron, Q235, S136, mold steel, 718H, 40Cr, stainless steel, plastics, and wood.

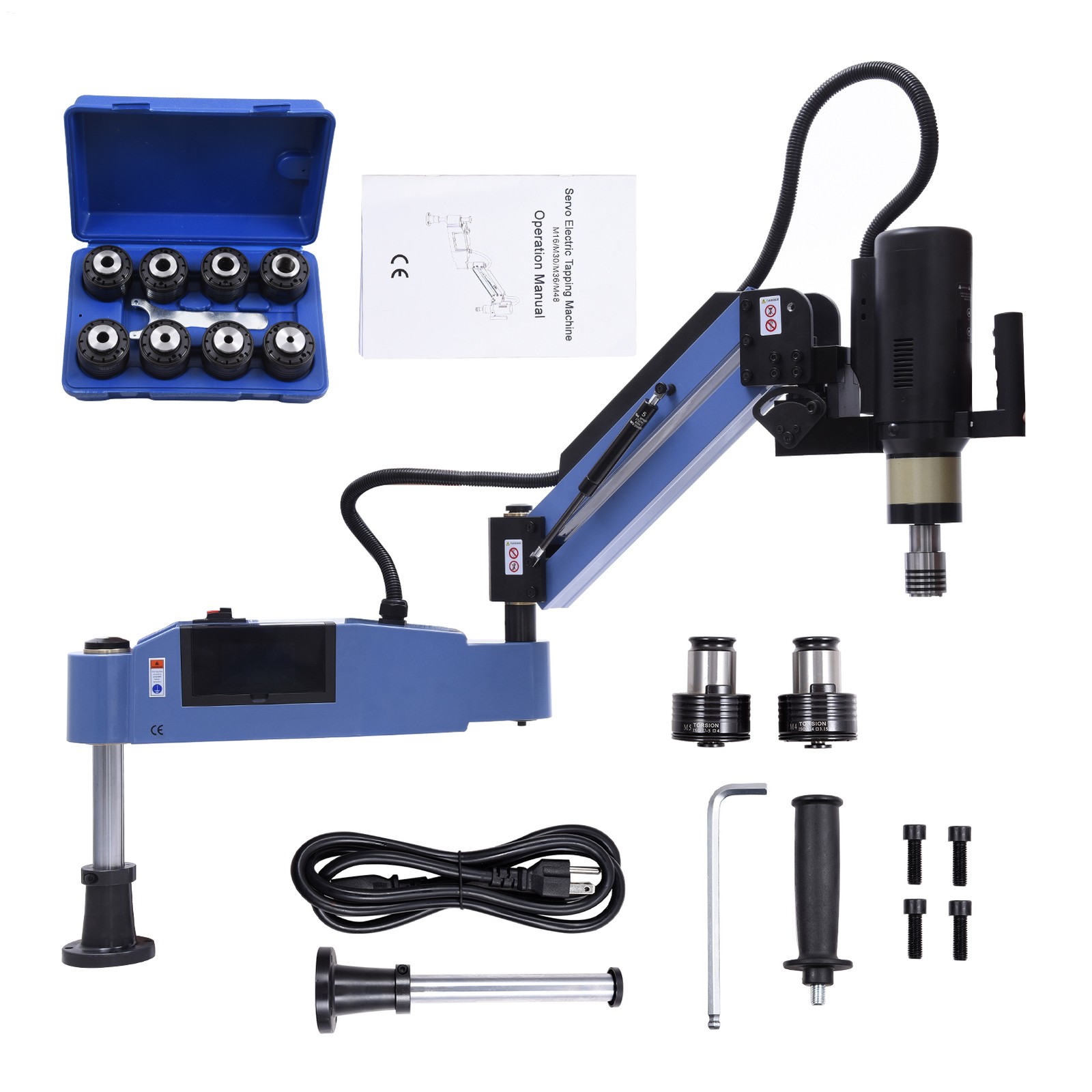

Packing List:
110V US plug M4-M24 tapping machine set
Main unit*1
Chuck set
Power cord*1
Standard*1
Instruction manual*1
