Applications

Universal For Car Pickup Truck Offroad  UTV ATV Boat

Apply to: For Pickup, Wagon, UTB, Cab, ATV, SUV, Truck, Boat, Bus.
Apply to: For Sport Utility, 4WD, 4X4, Mining, Marine, Car, Excavator, Forklift.
Apply to: For Tractor, UTE, UTV, Van Camper, Road roller, Bulldozer, Crane, Off-road, UTV.
Apply to: For Indoor and Outdoor uses Back up light. Garden, Backyard Lighting, Boat Lighting, Warehouse, etc.
Applications Widely Support, except for off road vehicle lighting, it can also be applied to Material handling, Agricultural machinery lighting, Marine LED lighting. Such as: Off-Road Vehicles: UTV, sand rail, ATV, SUV, truck, wagon, train, motorcycle, motorbike, bus, tank etc. Engineering Vehicles: excavator, road roller, bulldozer, crane, fork lift and mining truck etc. Specialized Vehicles: fire engine, communication vehicle, military command vehicle etc. Others: boat, fishing, courtyard lamp, yacht, road/street lamp, etc.

Specifications

Button Quantity: 6 Gang
Button Type: Touch
Control Modes：4 Types: Toggle (Red Light), Momentary (Blue Light), Slow Strobe (Purple Light), and Fast Strobe (Green Light).
Backlight Color: RGB
Backlight Adjustment: Automatic
Max Current: 60A
Rated Power: 720W/12A, 1440W/24V
Voltage: 12-24V
Housing Material: Aluminium
Housing Color: Black
Panel Installation Method: Bracket or Adhesive Tape
Control Box Mounting Bracket: 2 Ways
Mounting Bracket Material: Carbon Steel
Control Box Power Supply Method: ACC
Operating Temperature: -40° ~ +85°

Feature
* 4 Control Modes with Color Indicators - Master different devices with ease using the 4 distinct control modes, each with a corresponding color indicator: Toggle (Red Light), Momentary (Blue Light),  slow Strobe(Purple Light), and fast strobe (Green Light). At the same time, the buttons have a memory function.
* Maxpeedingroads 6 gang RGB switch panel  has 8 backlight colors and 3 effects (gradient, jumping, breathing)，which can be freely selected according to your needs.it has automatic dimmable feature. When in a tunnel or dark place, the panel will dim to reduce the impact on the driver's vision. When on the road or in bright places, it will be brighter to make it easier for the driver to control. Of course, you can also close it at any time.
* Using high-quality aluminum and ABS heat-resistant materials, it has good heat resistance, corrosion resistance, and good heat dissipation. The metal material button can be pressed up to 200000 times or more. At the same time, it is equipped with dual overload protection and Positive and negative pole connection error protection, making it safe, reliable, sturdy and durable.
* Customize your own panel, with 140 switch panel stickers, you can customize your unique personal switch panel according to certain needs.
* It allows you to add integrated professional controls for the electronic devices needed in any vehicle, making the wiring inside the car neat and orderly. For example, installed on trucks, pickups UTV、 On vehicles such as sedans, ships, ATVs, UTVs, and RVs.

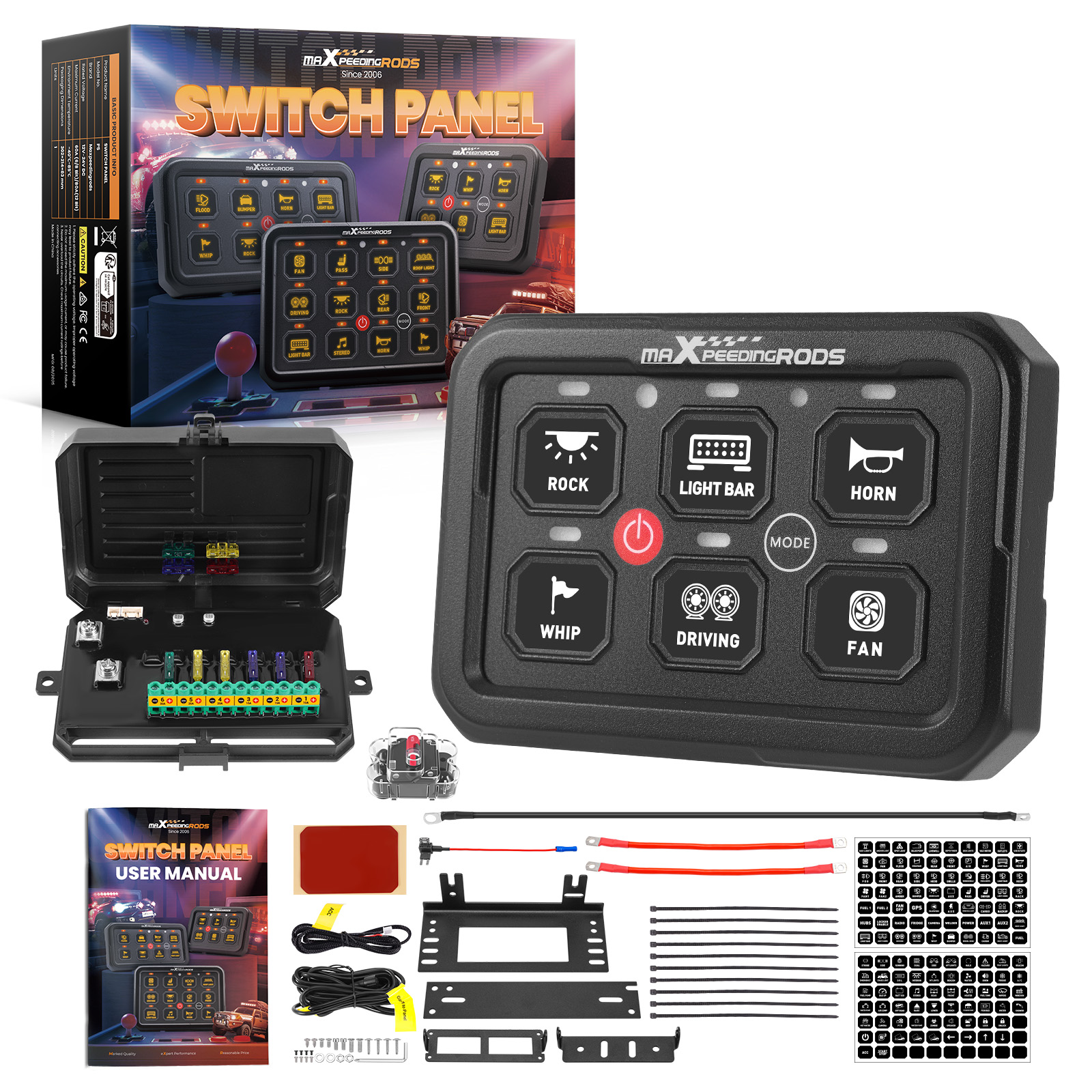

Package Included

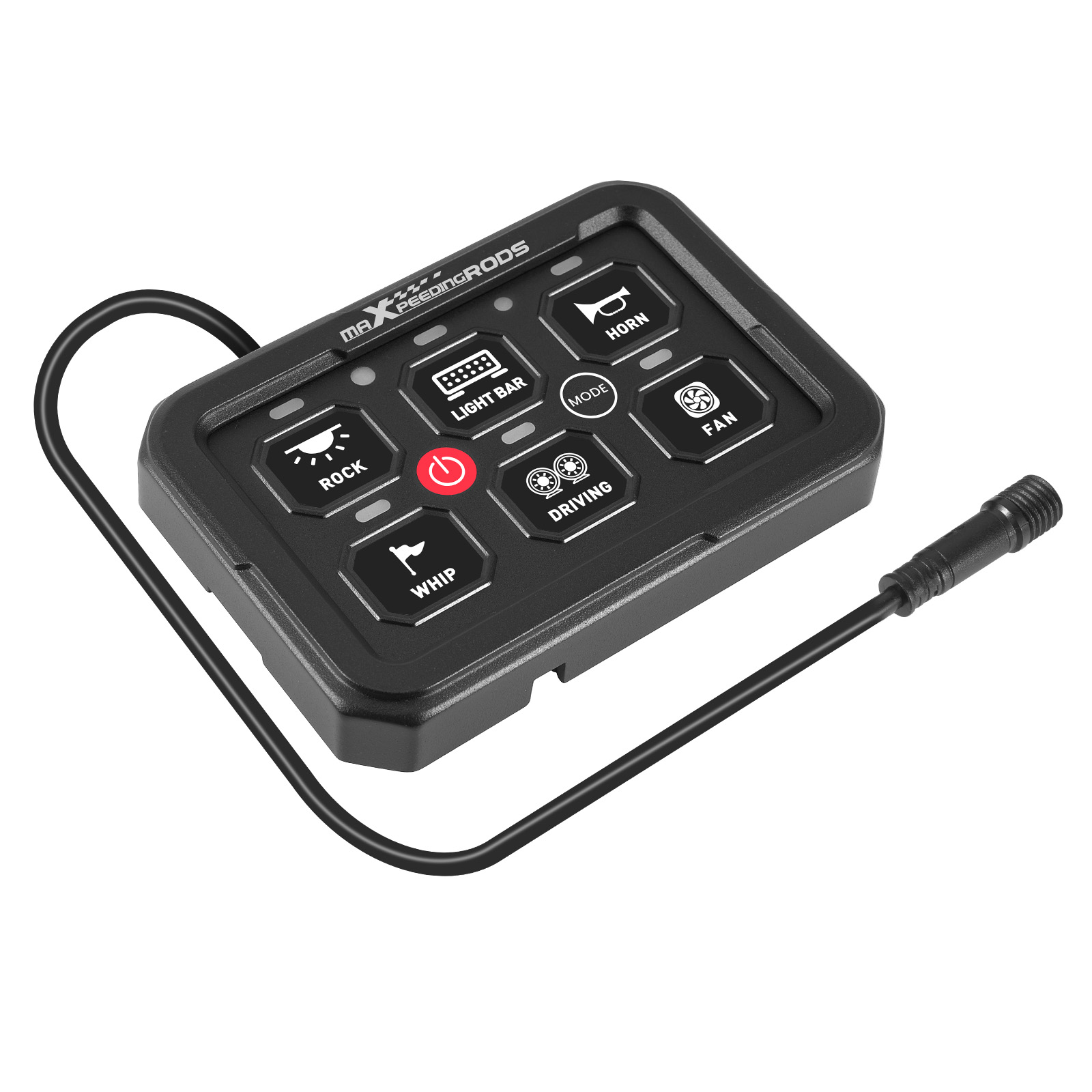

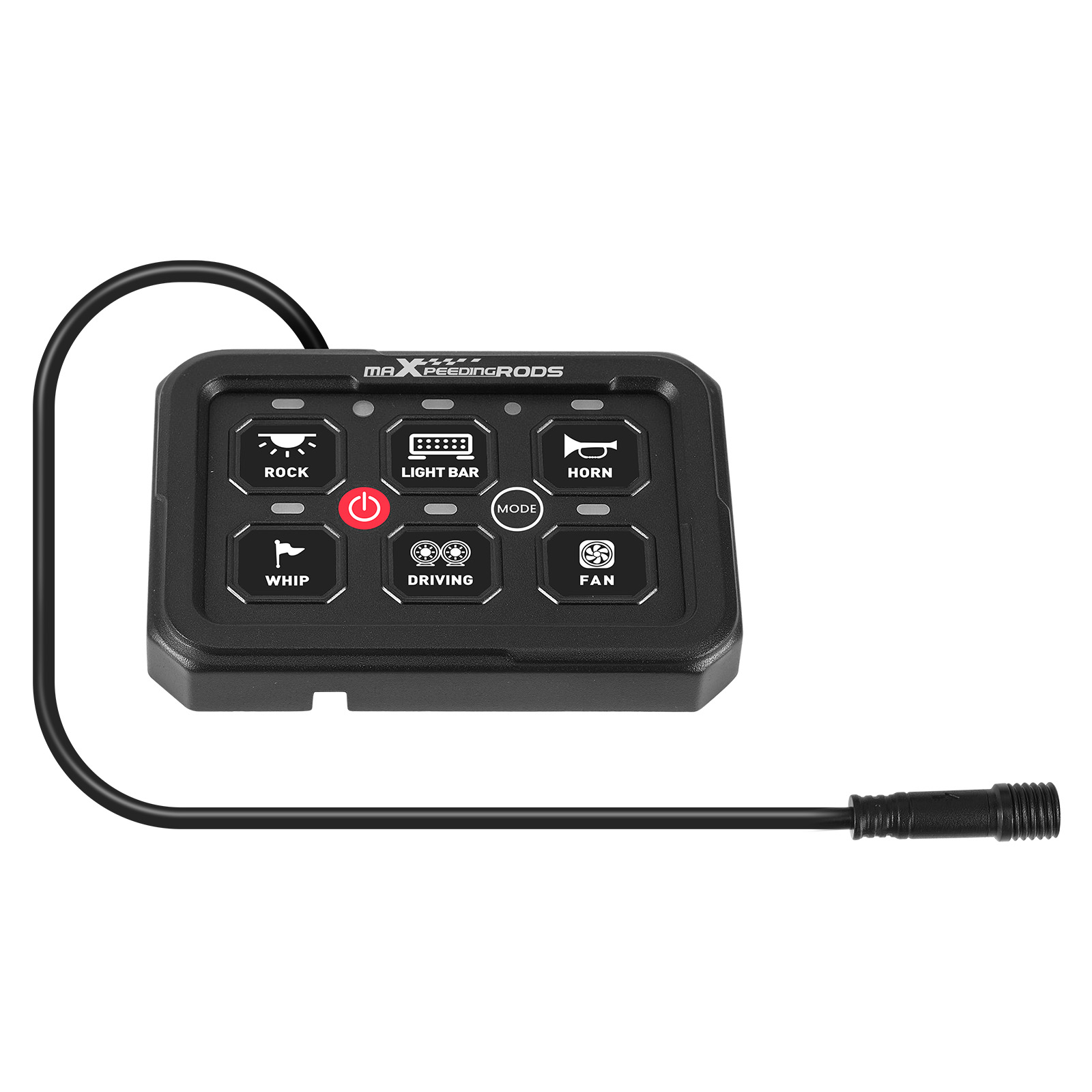

1* Switch Panel

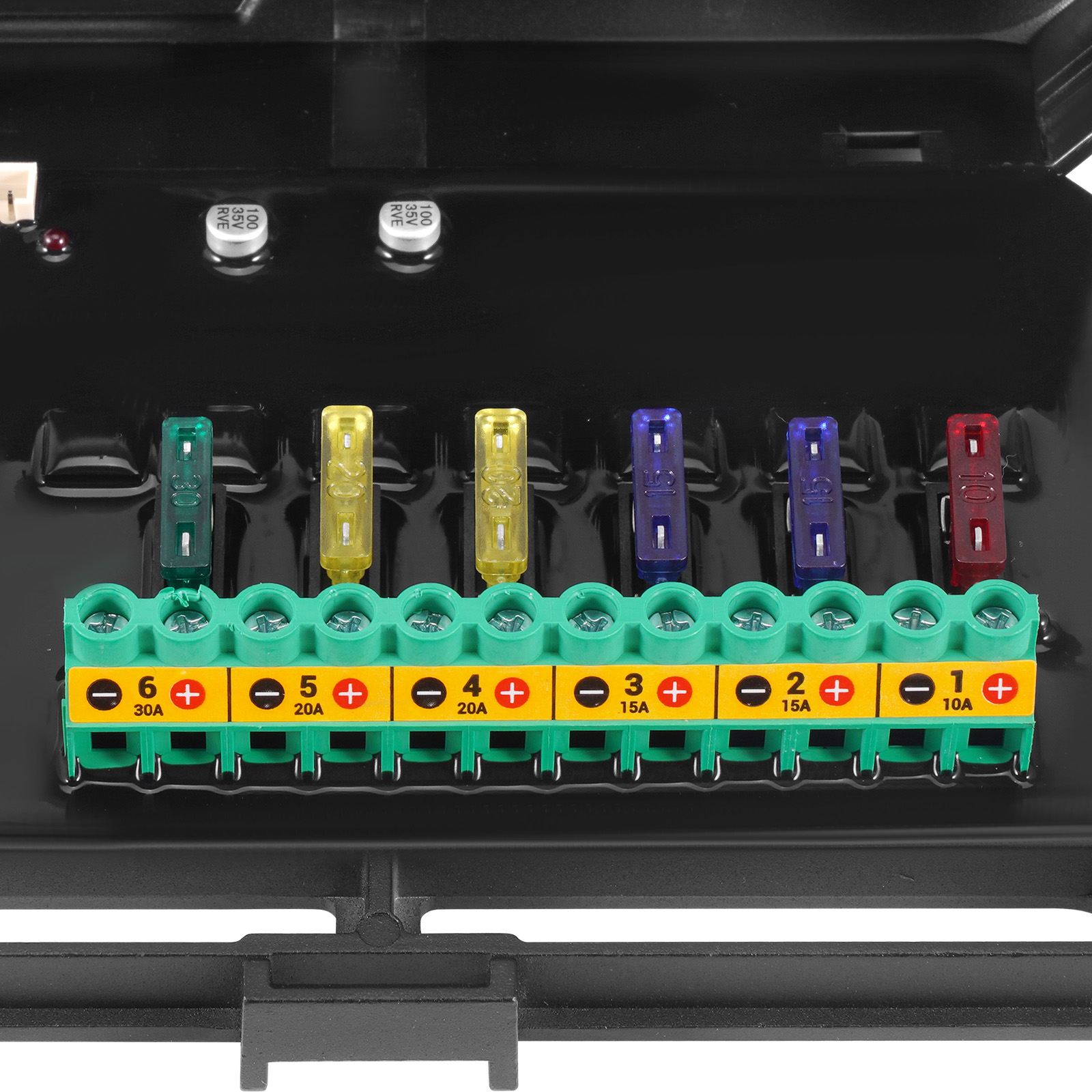

1* Switch Control Box
1* Breaker
1* Adhesive Mounting Tape
1* Panel Mounting Bracket

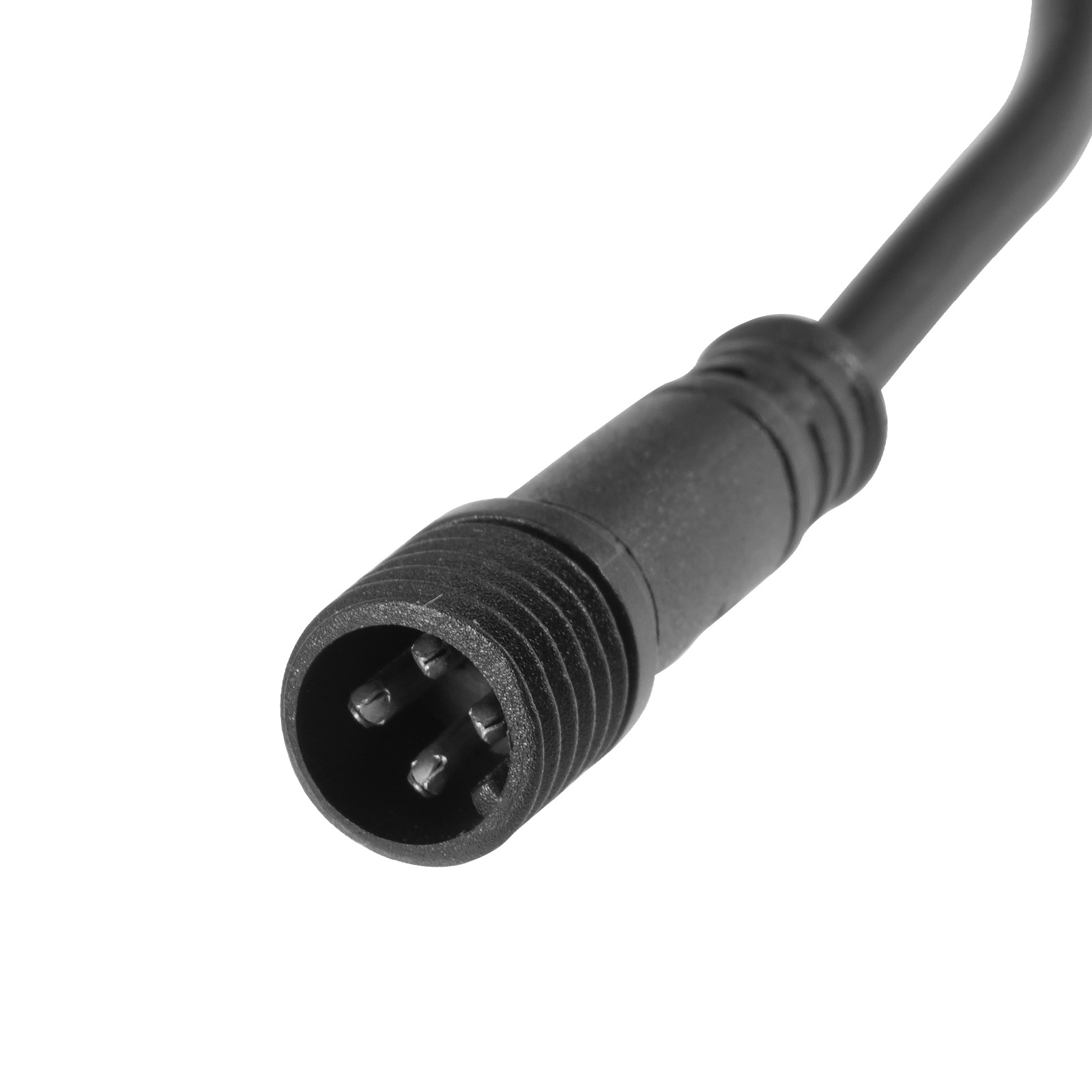

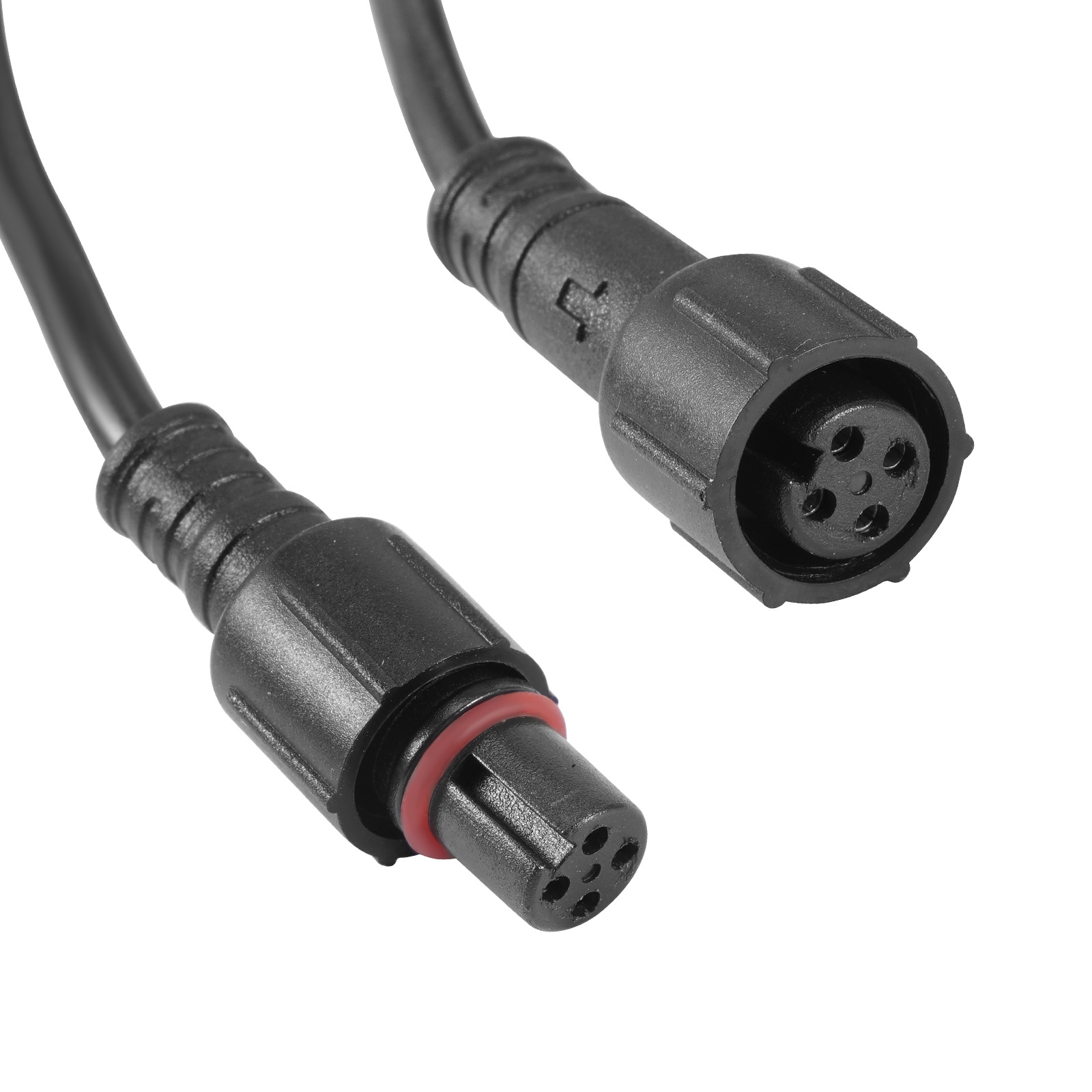

1* Set of Wiring Harness
1* Set of Mounting Accessories
1* Installation Instruction
2* Control Box Mounting Bracket
2* 70Pcs Stickers
4* Spare Fuse
10* Cable Ties

Note
* This kit has everything you need for installation and use. No need to buy extra parts.
* Please check our store for other auto parts you may be interested in.
