Air Spring Bag Kit W/ Dual Gauge for Fiat Ducato Peugeot Boxer 1994- Motorhome



MaXpeedingrods Air suspension kit

MaXpeedingrods Air suspension kit

  • [Dual-path System]

The dual-path system provides independent air spring control, boosting stability in turns and leveling uneven loads seamlessly, perfect for motorhomes and heavy-duty use.


  • [Quick No-Drill Install & 4000KG Capacity

Built with galvanized steel and natural rubber for 4000KG strength, installs in 1-2 hours without drilling.

MaXpeedingrods Air suspension kit

Dual-Channel Precision Control

Custom Ride Optimization, Any Terrain?

Independent left/right air spring adjustment


Uneven Load? Instant Solution

Rapidly auto-level your vehicle


Tailored Ride Experience, Any Situation?

Raise/lower passenger vs. cargo sides separately

Maxpeedingrods Air Spring Bag Kit


Condition Brand New
Placement on Vehicle Rear Left and Right
Capacity 8800 LB / 4000 KG
Design height 172 mm
Stroke 140mm
Max. Extended 230mm
Min. Compressed 90mm
Unloaded Min 10 PSI
Loaded 75 PSI
Maximum Working Voltage 10 bar (1 MPa )
Operating Pressure ≤2.0Mpa
Temperature ≤+70° , ≥-40°
Wheelbase 156mm
Instruction included Yes

MaXpeedingrods Air Compresssor


Air Compressor inlcuded Yes
Power 150 W
Output Voltage 12 V
Maximum Current 10 A
Cigarette lighter socket included Yes
Compressor hose dia 0.72m
Compressor cable dia 2.6m

MaXpeedingrods Air suspension kit

Application

For Fiat Ducato 1994-2024

For Citroën Relay 1994-2024

For Peugeot Boxer 1994-2024

For Citroën Jumper  1994-2024

Single rear wheel and Twin rear wheel, RWD and FWD

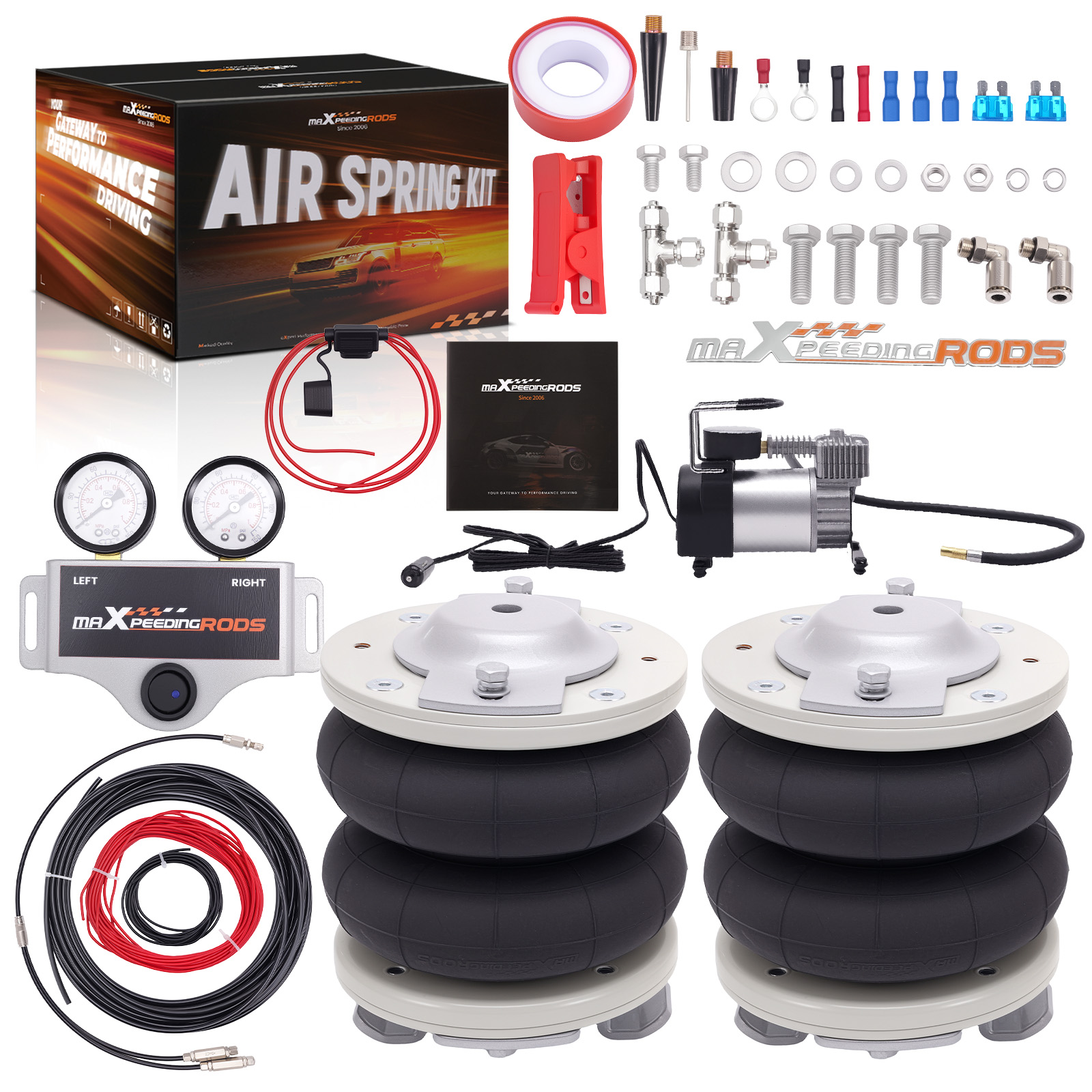

Package Includes:

2x Natural Rubber & Hi-tensile steel Air spring bag

4x Galvanised Heavy duty mounting bracket

1x Heavy Duty 12V Air compressor

1x Dual Gauge

1x Air line 14m

1x Fuse harness

1x Y-type air line connector

Other bolts, screws, washers, spring washers and all you need to fit the kit


Notice:

- Professional installation is recommended

- Contact us please for whatever we can help

MaXpeedingrods Air suspension kit

How to Prevent Leaks Caused by Installation Mistakes

1. Make sure leave a perfectly smooth and tight seal.


2. Verify that the air line is properly placed and routed.


3. Use a spray bottle filled with soap and water to spray down all of your fittings (included the bag itself) which helps you find a leak instantly and easily.
