Product View
Detail
Features

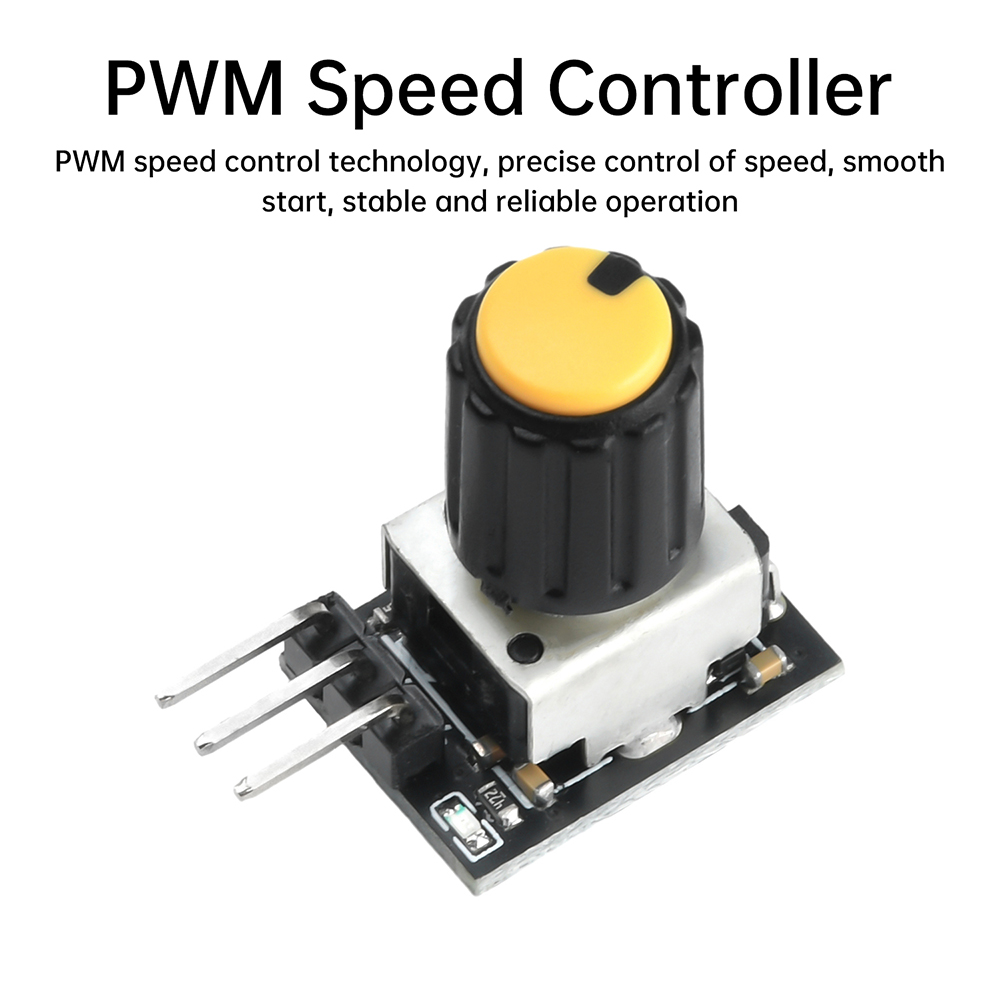

1.Support 5-26V wide voltage input, suitable for a variety of DC motors and brushless motor equipment 2.PWM speed control technology, precise control of speed, smooth start, stable and reliable operation
3. Miniaturized design, compact structure, easy to carry and DIY modification.

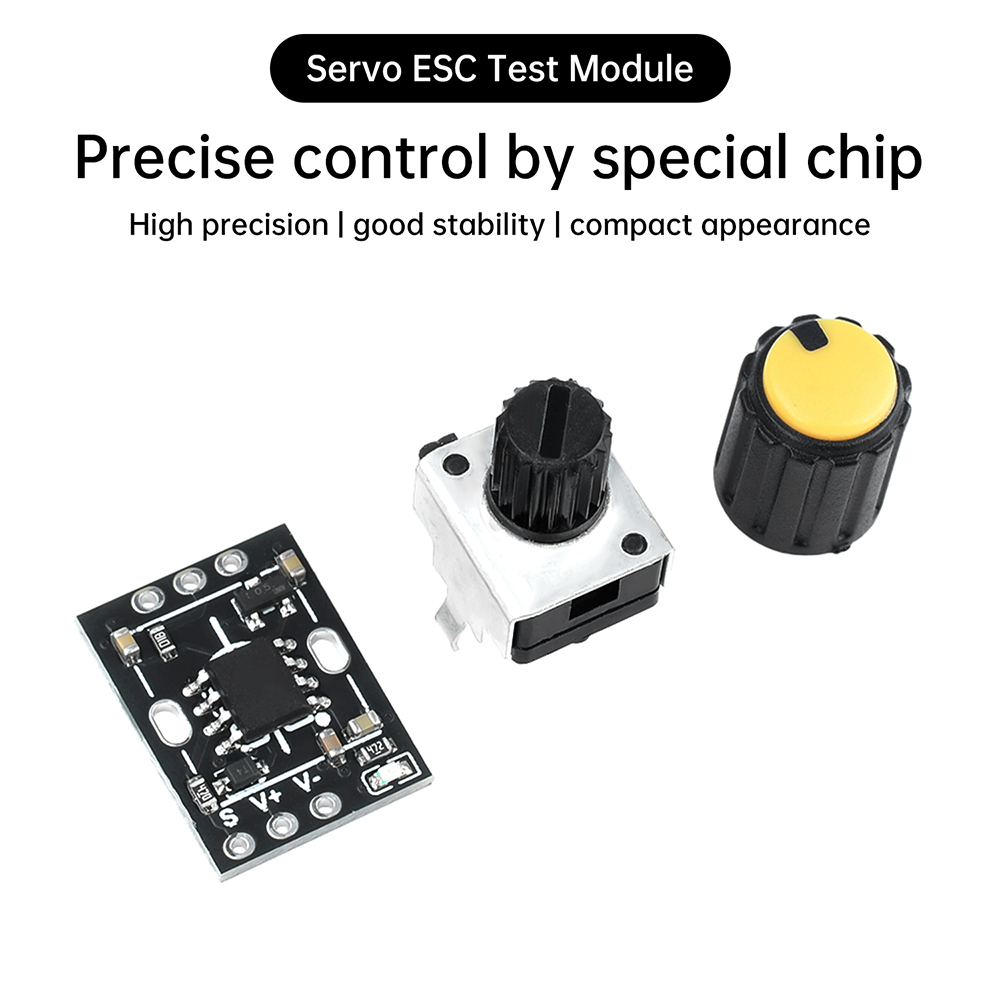

4. Precise control by special chip, good stability, improve work efficiency.
5. Designed for air model, brushless fan design, strong compatibility, suitable for all kinds of innovative applications

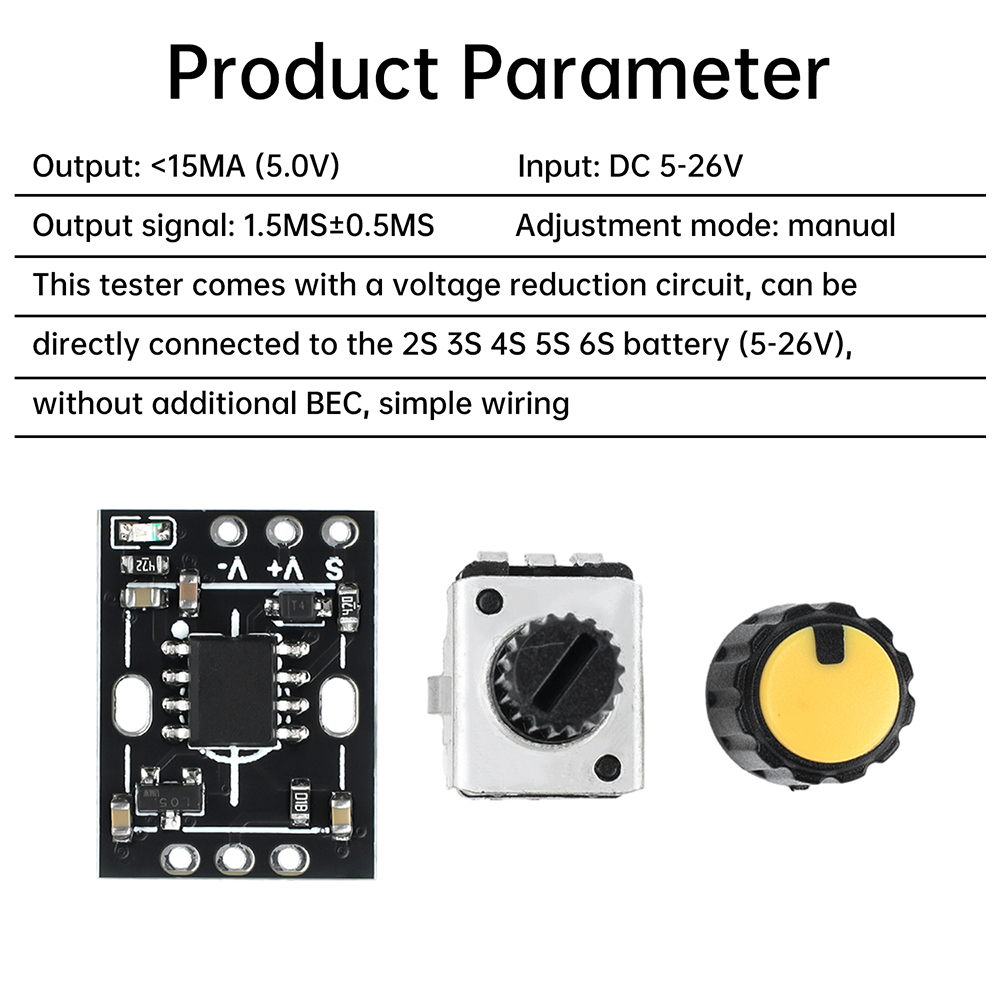

Parameter:
Output: <15MA (5.0V)

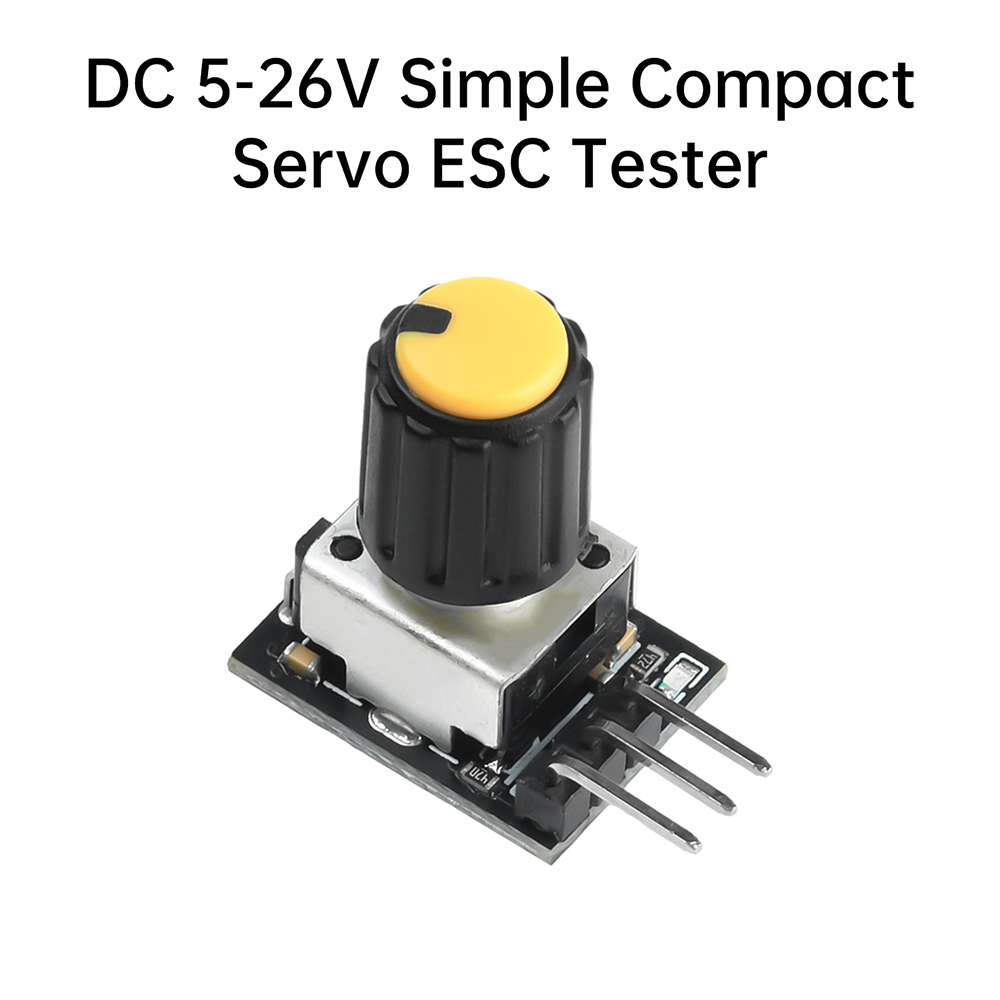

Input: DC 5-26V
Output signal: 1.5MS±0.5MS
Adjustment: manual
This tester comes with a voltage reduction circuit, which can be directly connected to the 2S 3S 4S 5S 6S batteries (5-26V), without the need for an additional BEC, simple wiring.
Product features:

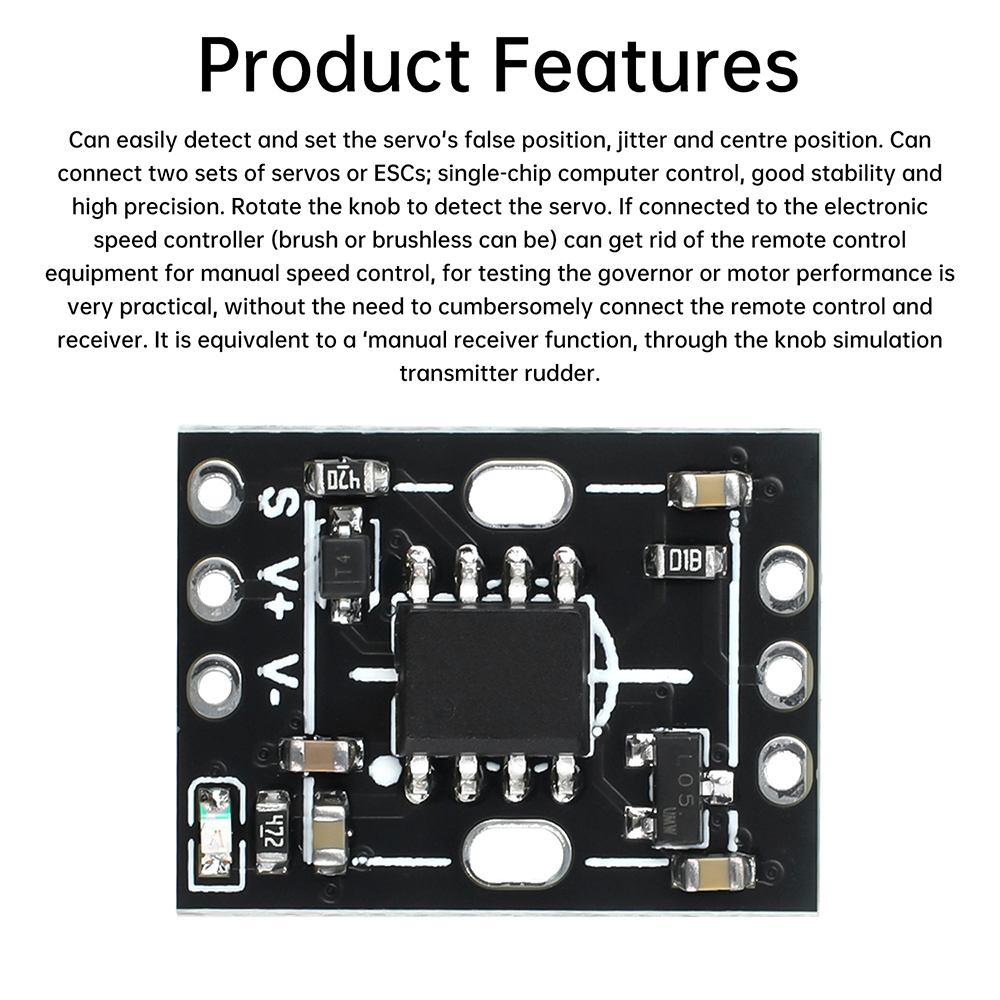

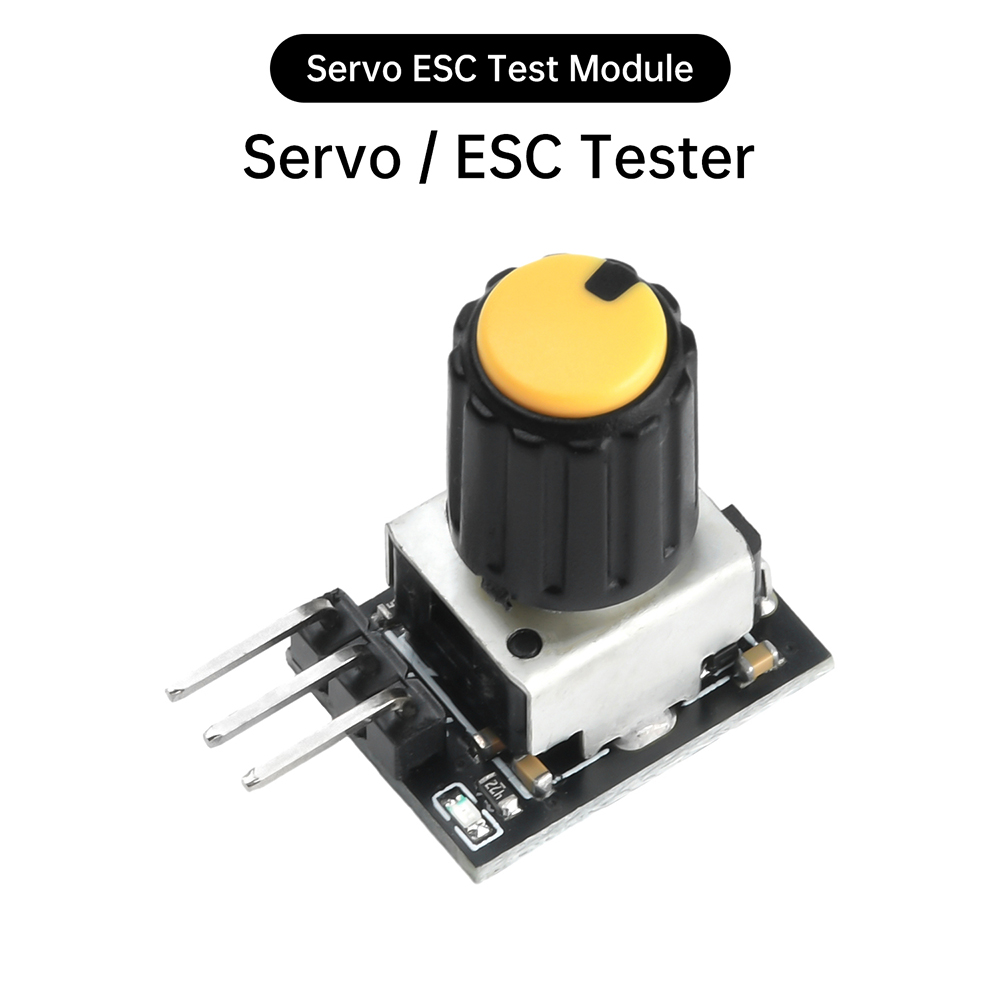

can easily detect and set the servo's false position, jitter and center position. Can connect two sets of servos or ESCs; single-chip control, good stability and high precision. Rotate the knob to detect the servo. If connected to the electronic speed controller (brush or brushless can be) can get rid of the remote control equipment for manual speed control, used to test the performance of the governor or motor is very practical, do not need to tediously connect the remote control and receiver. It is equivalent to a "manual receiver function, through the knob to simulate the transmitter rudder.
Note:

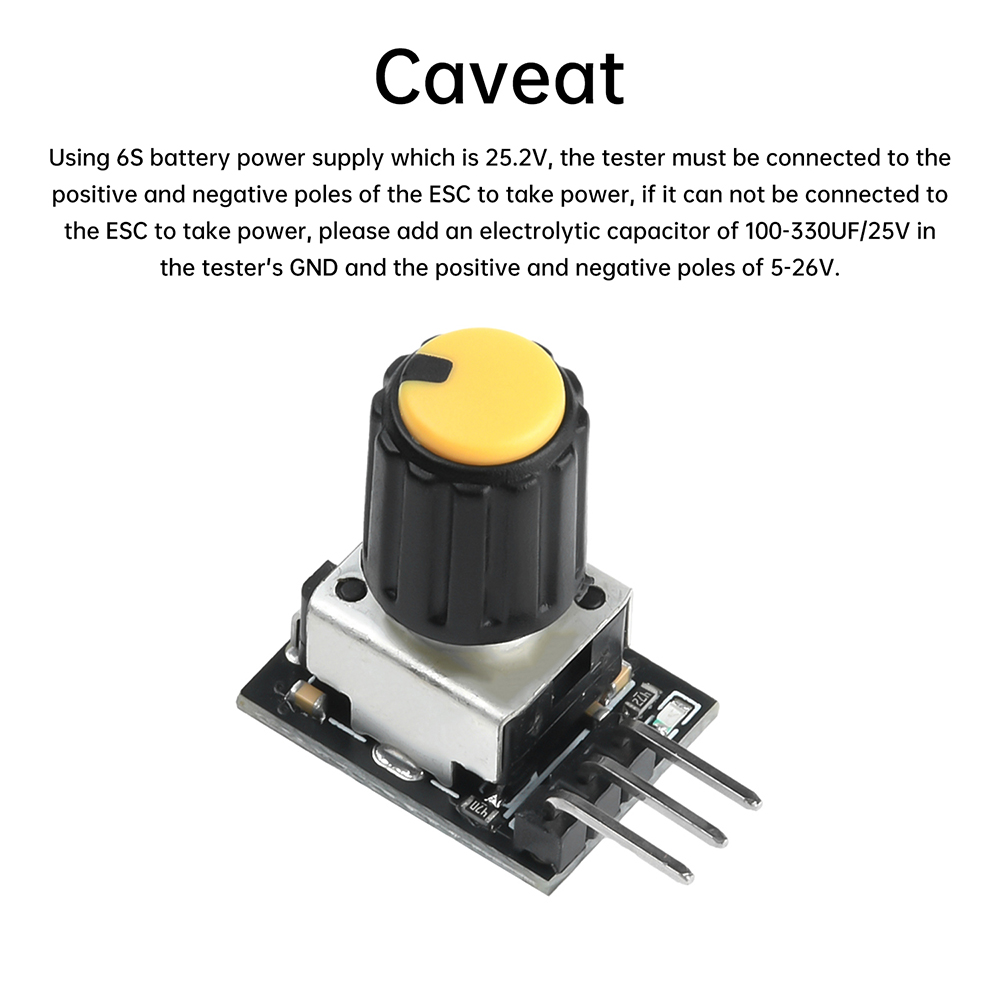

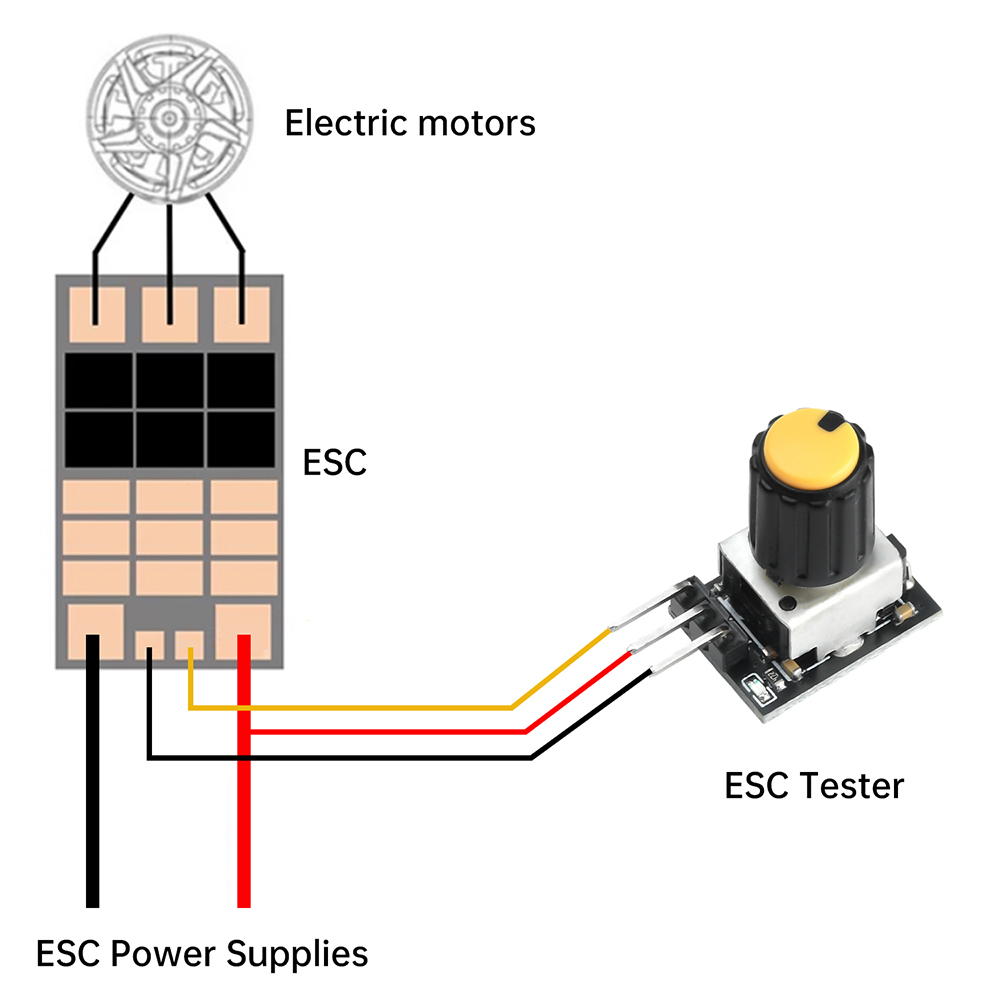

using 6S battery power supply is 25.2V, the tester must be connected to the ESC positive and negative poles of the power supply, if not connected to the ESC power supply, please add an electrolytic capacitor of 100-330UF/25V in the tester GND and the positive and negative poles of 5-26V.
Package include
finished product: governor *1 knob cap *1-10
bulk: governor bare board *1 knob cap *1 potentiometer *1-10
Copyright © 2017 DataDaciques
Product View
Detail
Features
1.Support 5-26V wide voltage input, suitable for a variety of DC motors and brushless motor equipment 2.PWM speed control technology, precise control of speed, smooth start, stable and reliable operation
3. Miniaturized design, compact structure, easy to carry and DIY modification.
4. Precise control by special chip, good stability, improve work efficiency.
5. Designed for air model, brushless fan design, strong compatibility, suitable for all kinds of innovative applications
Parameter:
Output: <15MA (5.0V)
Input: DC 5-26V
Output signal: 1.5MS±0.5MS
Adjustment: manual
This tester comes with a voltage reduction circuit, which can be directly connected to the 2S 3S 4S 5S 6S batteries (5-26V), without the need for an additional BEC, simple wiring.
Product features:
can easily detect and set the servo's false position, jitter and center position. Can connect two sets of servos or ESCs; single-chip control, good stability and high precision. Rotate the knob to detect the servo. If connected to the electronic speed controller (brush or brushless can be) can get rid of the remote control equipment for manual speed control, used to test the performance of the governor or motor is very practical, do not need to tediously connect the remote control and receiver. It is equivalent to a "manual receiver function, through the knob to simulate the transmitter rudder.
Note:
using 6S battery power supply is 25.2V, the tester must be connected to the ESC positive and negative poles of the power supply, if not connected to the ESC power supply, please add an electrolytic capacitor of 100-330UF/25V in the tester GND and the positive and negative poles of 5-26V.
Package include
finished product: governor *1 knob cap *1-10
bulk: governor bare board *1 knob cap *1 potentiometer *1-10
