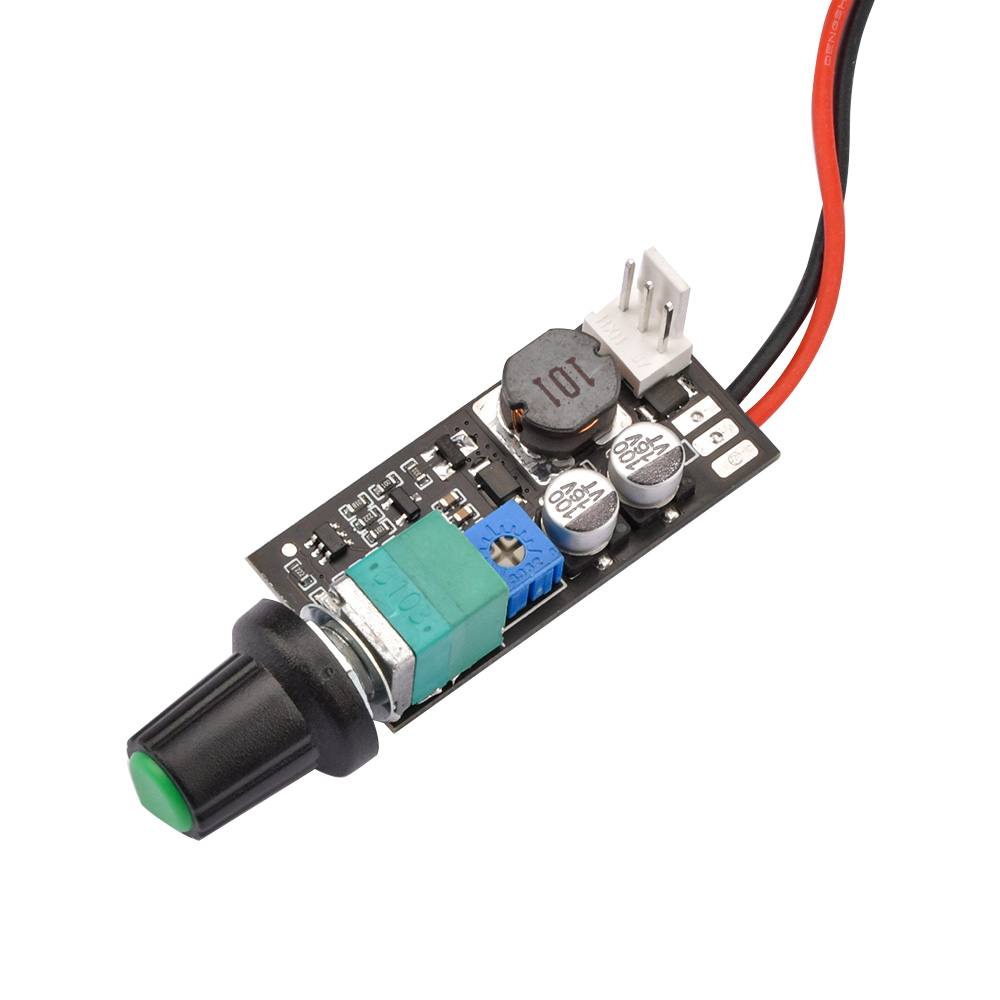

DC 5-12V 1A PWM Fan Speed Controller with Rotary Switch Adjustable 2510-3P

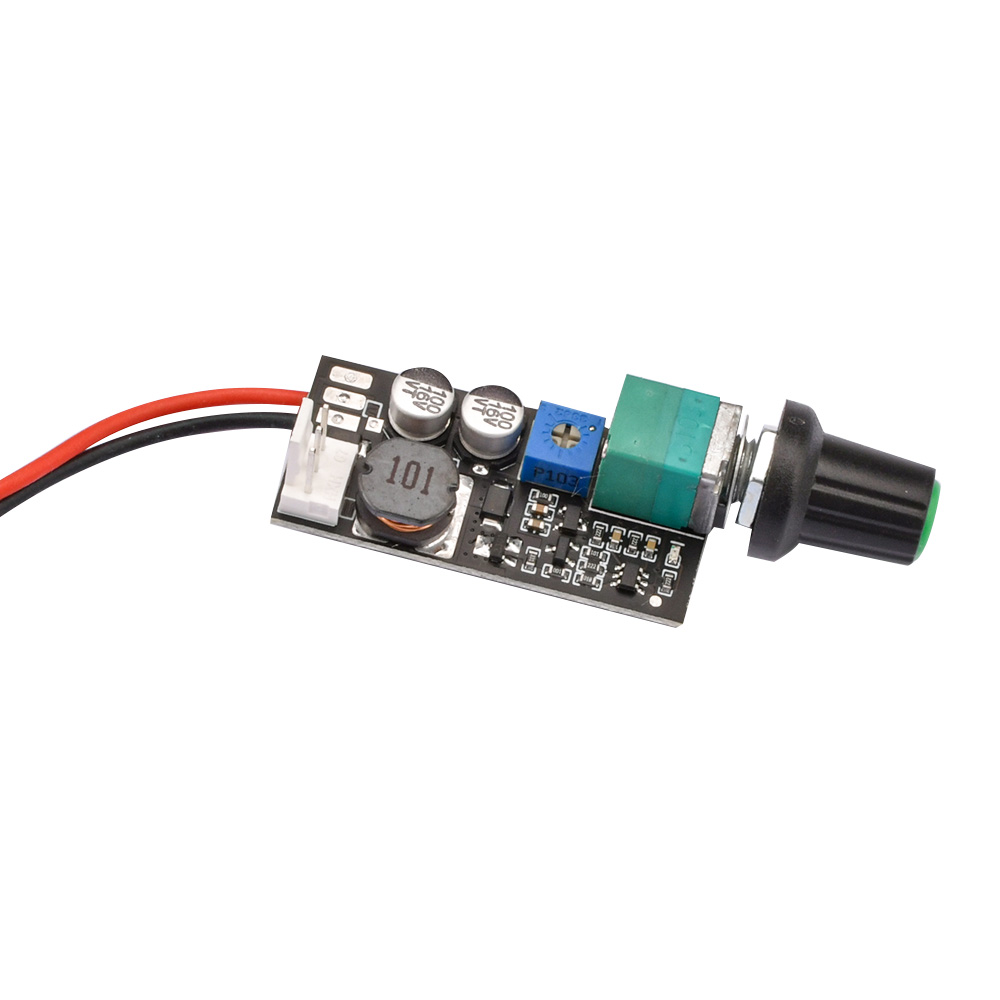

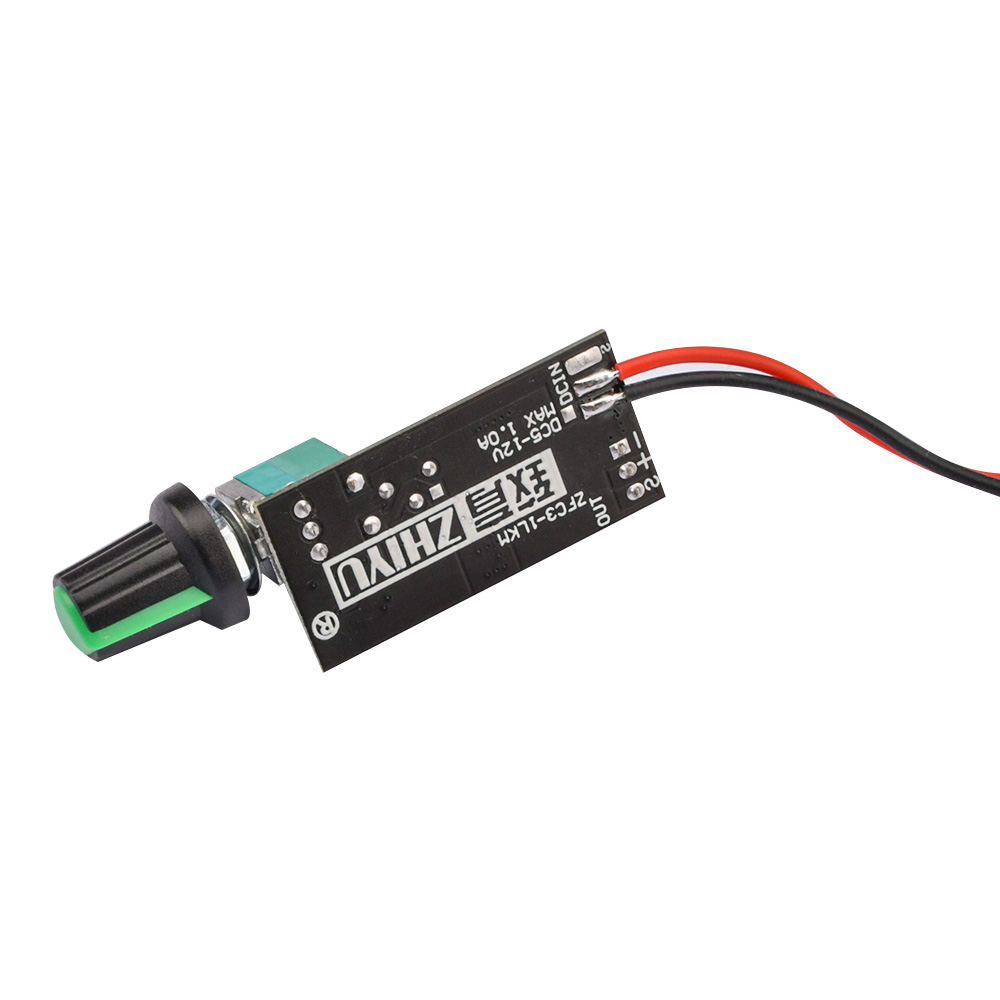

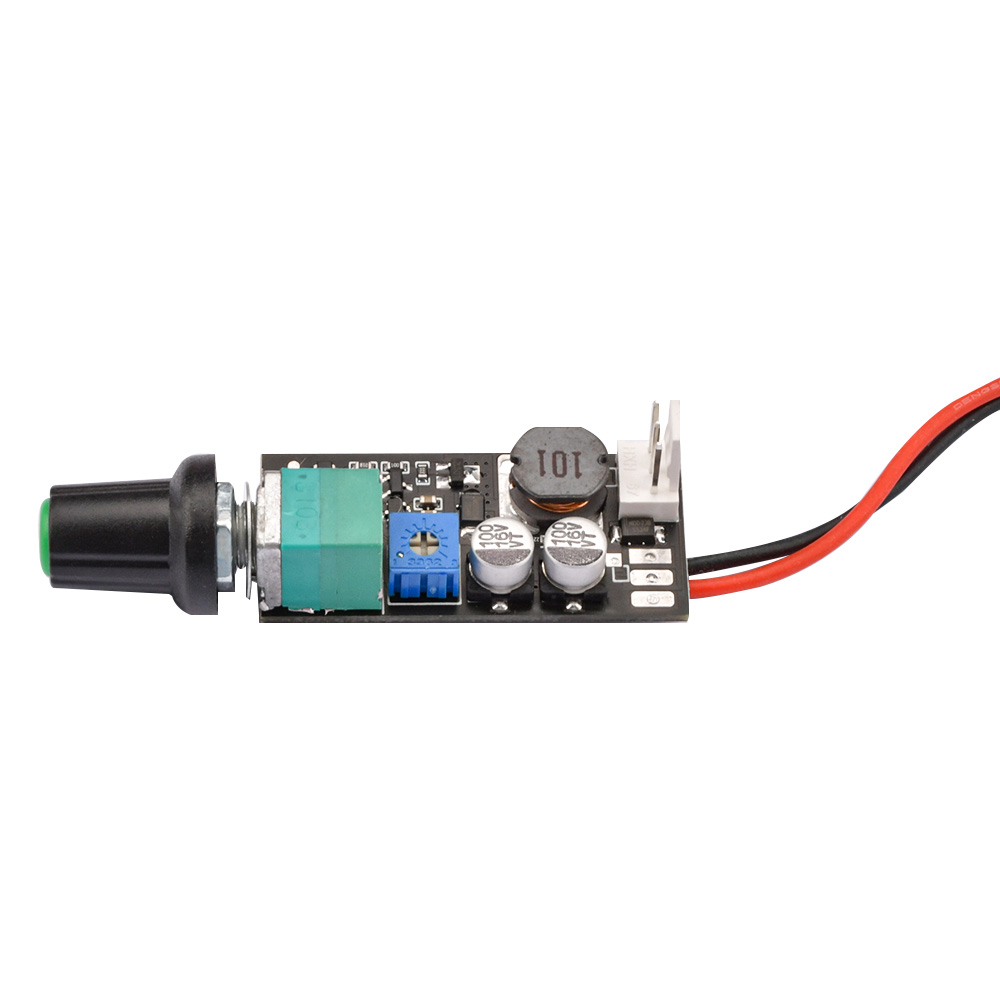

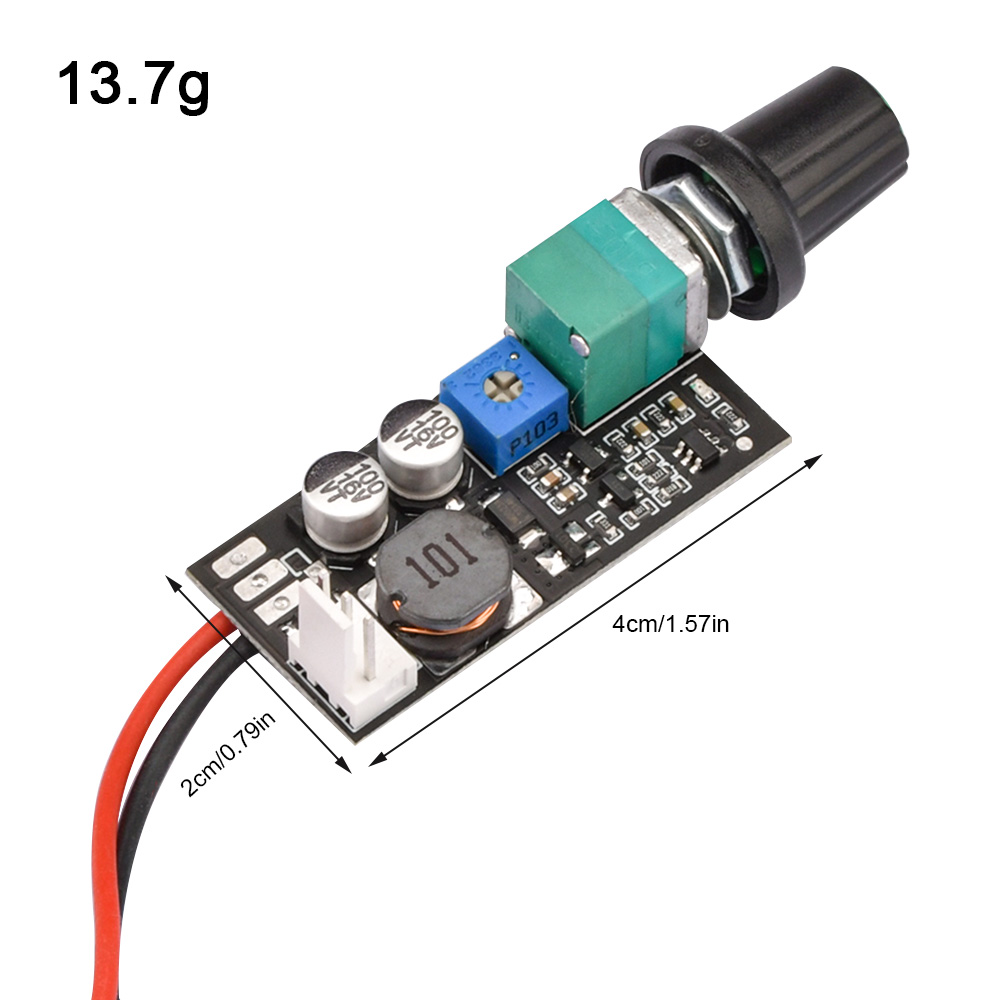

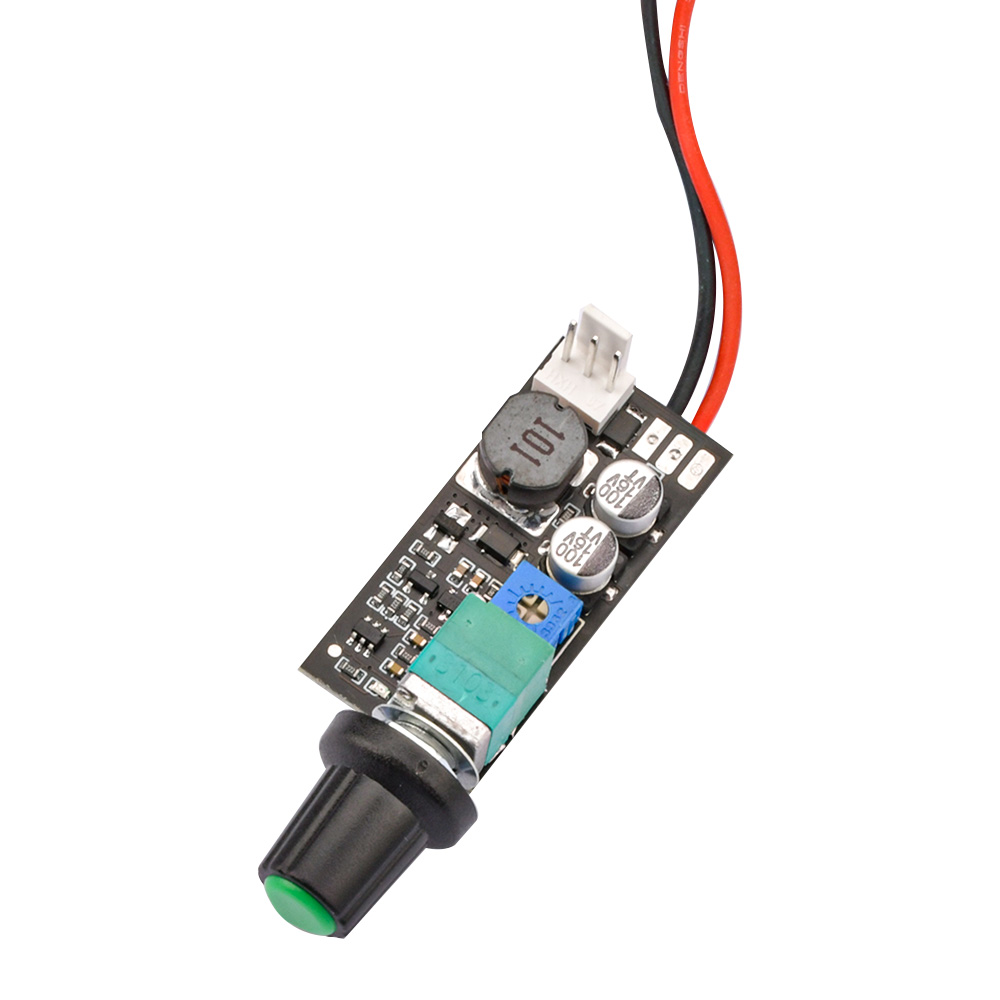

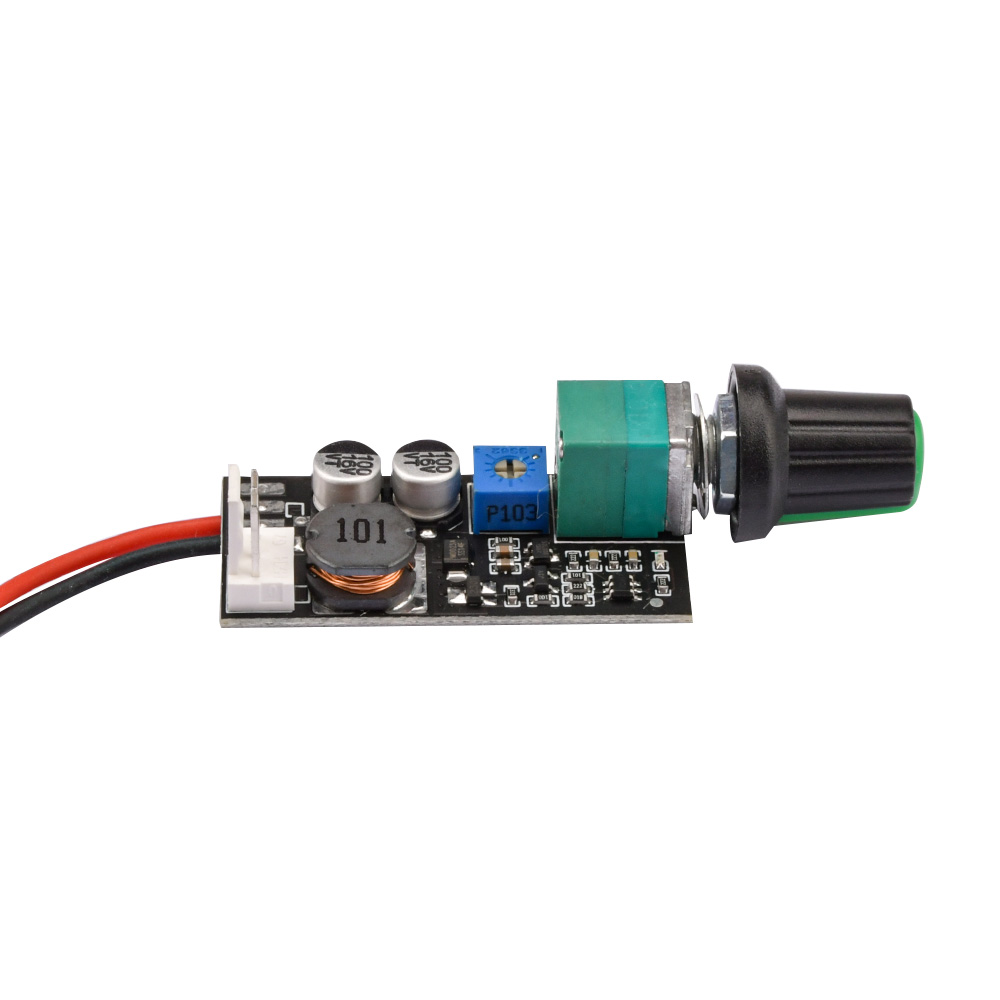

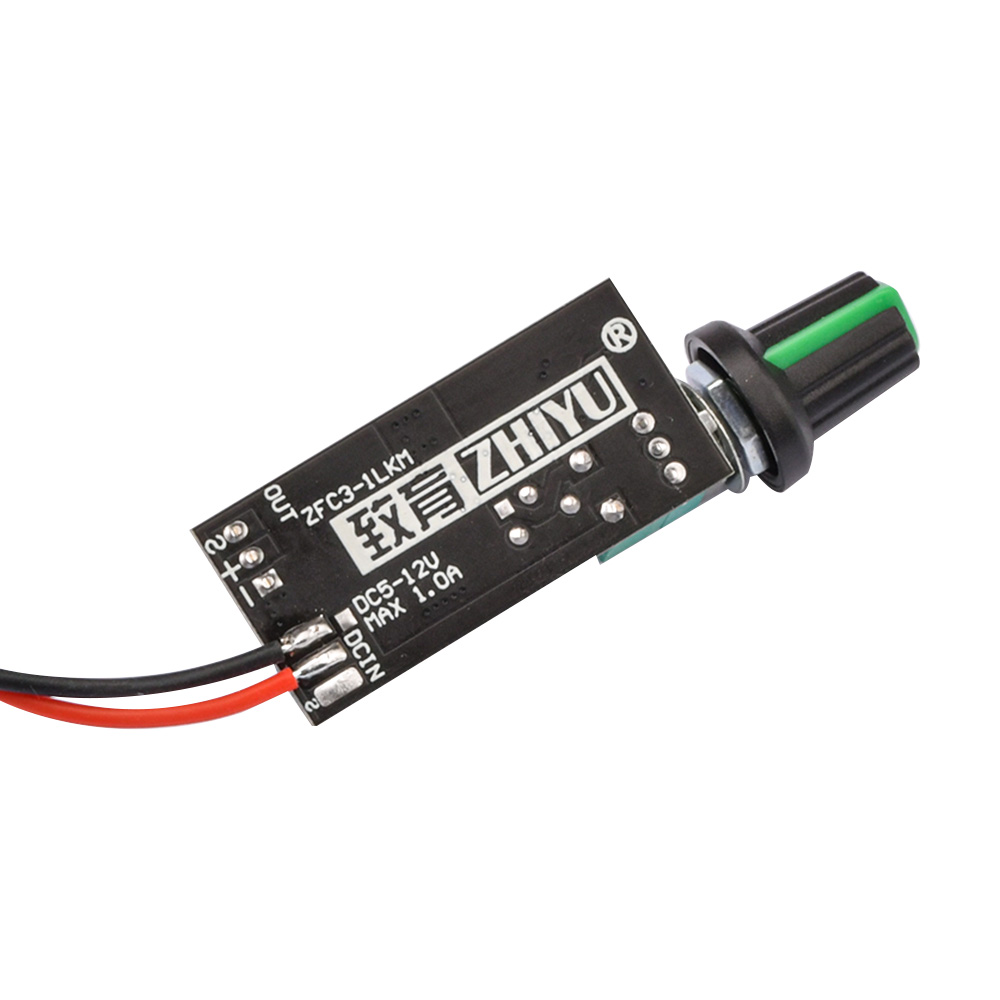

Product View
Detail
Product Feature:
1. Smooth DC output, good control effect
2. With switch, can be shut down
3. Product appearance is exquisite
4. The starting speed can be adjusted, and the use effect is good
5. Simple and convenient operation
Product parameters:
Working voltage: DC5-12V (DC4.7-14V)
Fan current: 0.1-1A Fan current is lower than 0.1A Control effect is slightly poor, more than 1A may damage the circuit board
Self loss, not connected to fan, less than 30mA
Start position adjustment range: 0% - 60% (internal circuit control parameters)
Input interface model: red and black line input/2510-3P terminal input optional
Output interface model: 2510-3P, spacing 2.54mm, conventional CPU, chassis fan socket

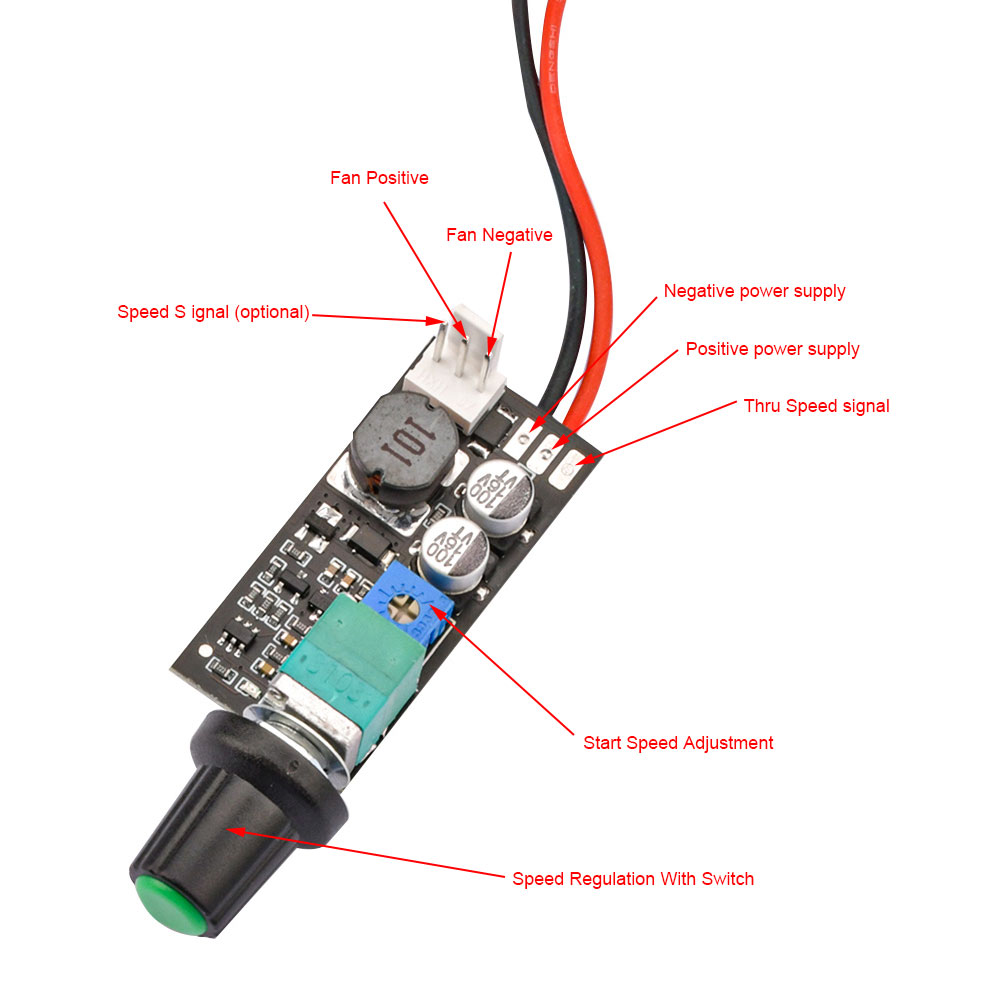

Function description:
Pay attention to the positive and negative poles and the power supply voltage (reverse connection will damage the board). After the power supply and fan are connected, they can be used. The potentiometer is closed anticlockwise to the end, and clockwise to the end is the maximum output
The separate small adjustable resistor (initial speed adjustment) on the board is used to adjust the speed of the just opened position. The input of the speed signal port is directly connected with the fan output. It is mainly used to lead the fan speed signal back to the main board of the device to detect the speed. There is no connection with the circuit of the controller
matters needing attention:
Do not control fans over 1A, do not connect the wrong or reverse power supply, and do a good job of insulation to avoid output short circuit
Shipping list:
Speed control module X1
