1.2GHz Video Receiver Module 9-CH 1080~1360MHz Video Transmitter Module -95dBm

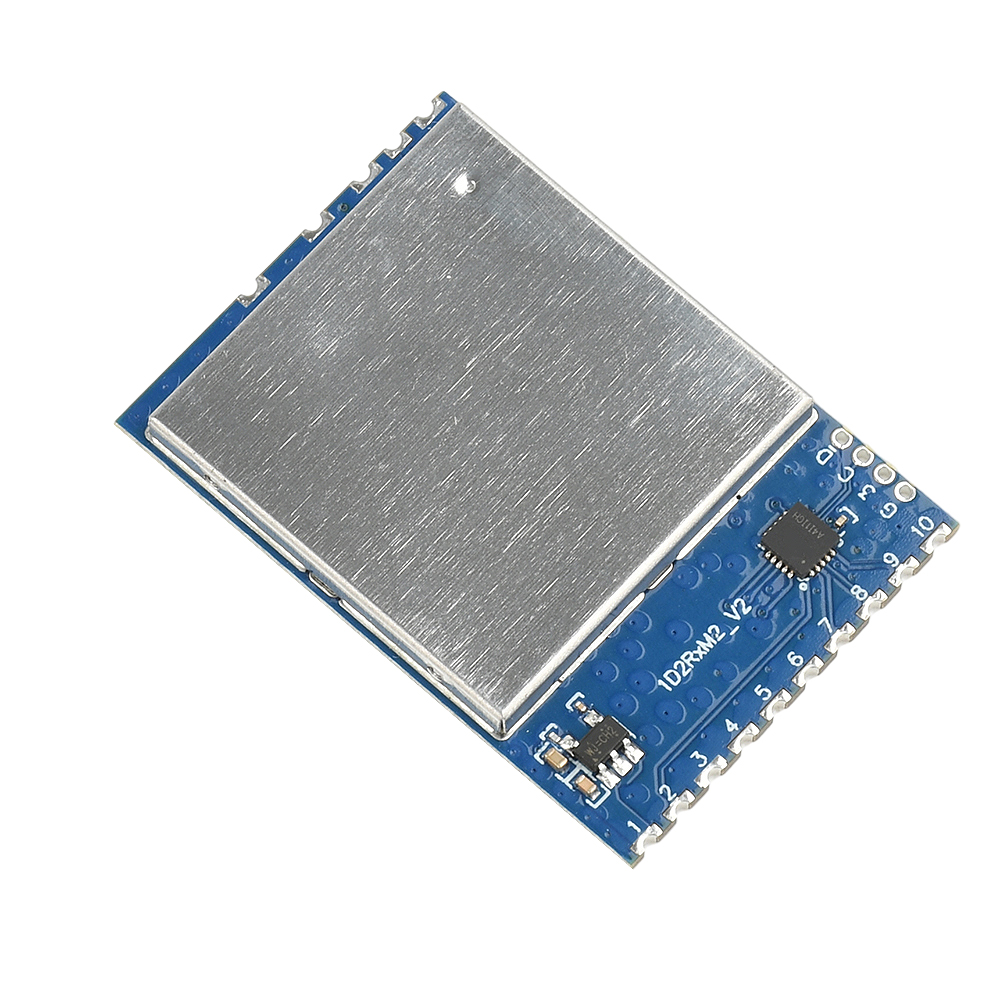

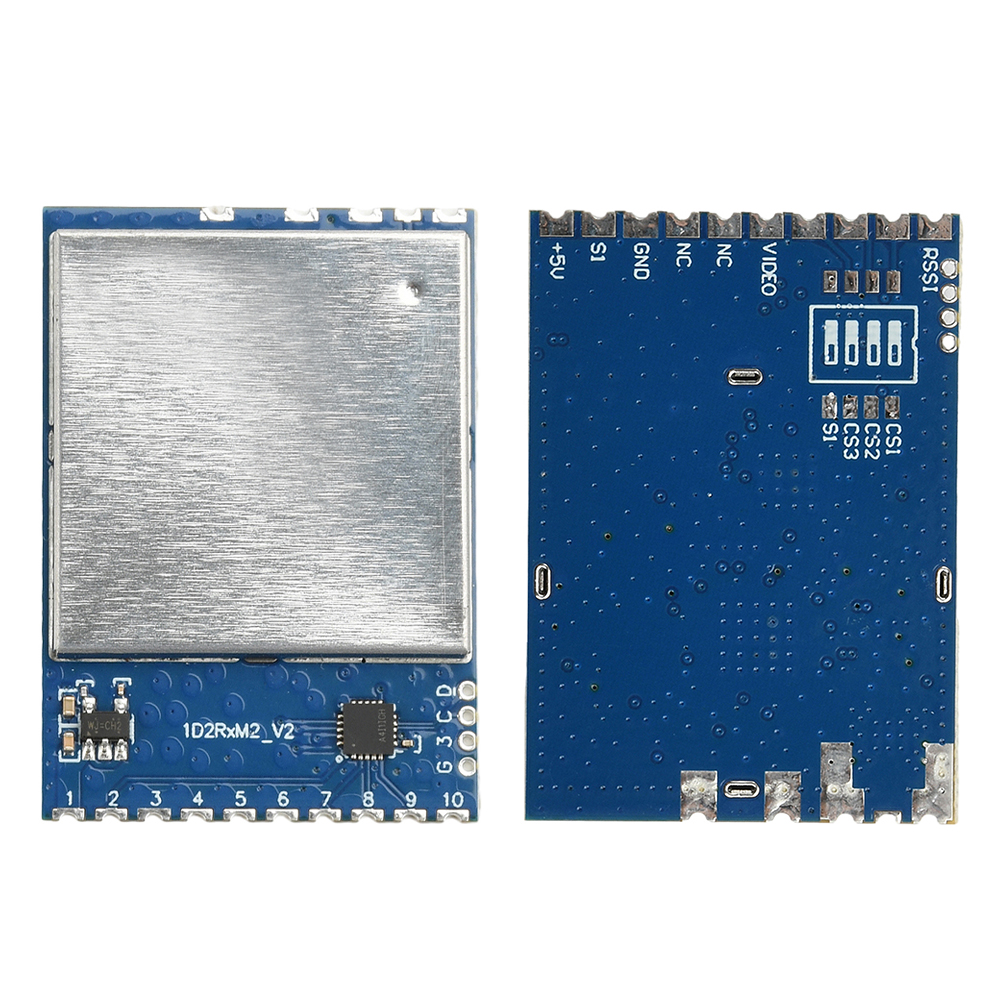

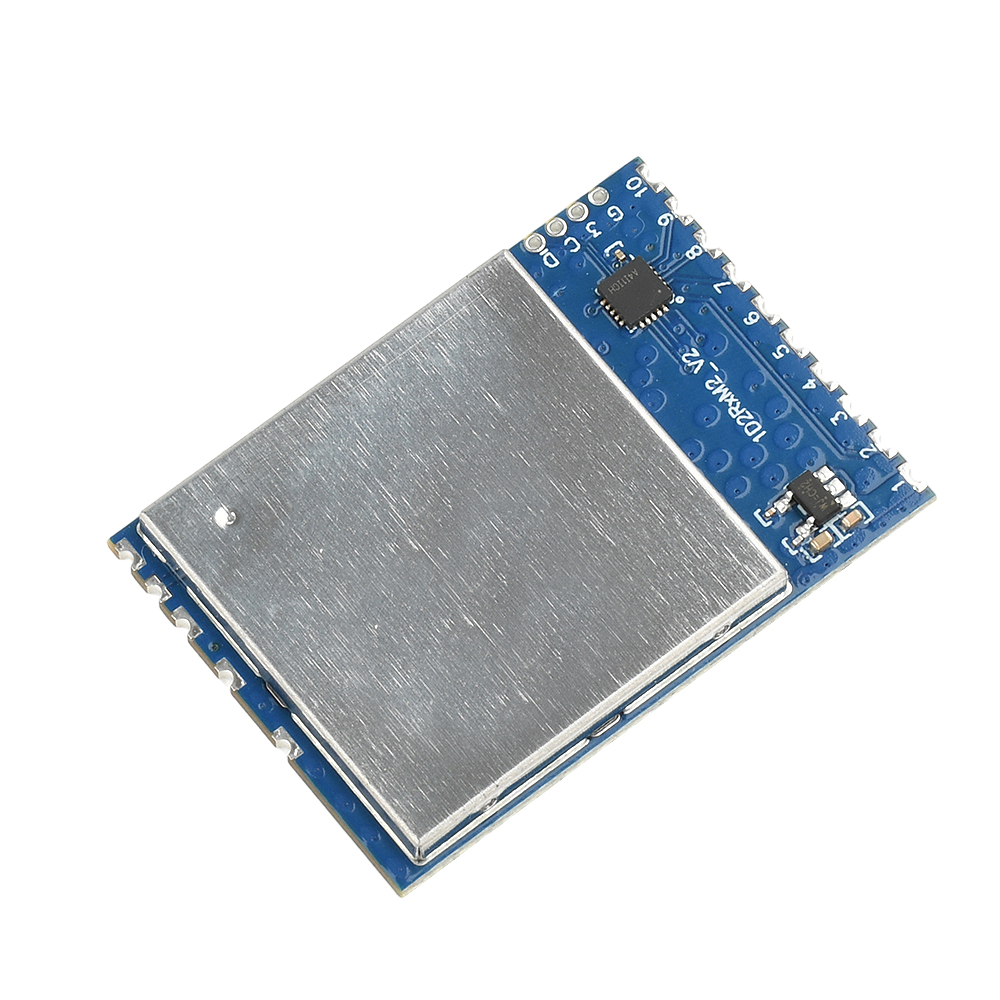

Product View
Detail
Features
1. High sensitivity receiver module: receiving sensitivity up to -95dBm, ensuring stable transmission of weak signals.
2.Multi-frequency band support design: support 9 frequency points (1080~1360MHz), to meet the diversified use requirements
3.Super RSSI signal function: RSSI output voltage range 1.3~0.7V, accurately reflecting the signal strength.
4. Wide operating temperature range: operating temperature -10~+65℃, adapt to a variety of environmental conditions
5. High-quality video transmission performance: signal-to-noise ratio ≥ 38dB, video frequency response ± 5dB, clear and stable picture quality
1. High sensitivity receiver module: receiving sensitivity up to -95dBm, ensuring stable transmission of weak signals.
2.Multi-frequency band support design: support 9 frequency points (1080~1360MHz), to meet the diversified use requirements
3.Super RSSI signal function: RSSI output voltage range 1.3~0.7V, accurately reflecting the signal strength.
4. Wide operating temperature range: operating temperature -10~+65℃, adapt to a variety of environmental conditions
5. High-quality video transmission performance: signal-to-noise ratio ≥ 38dB, video frequency response ± 5dB, clear and stable picture quality

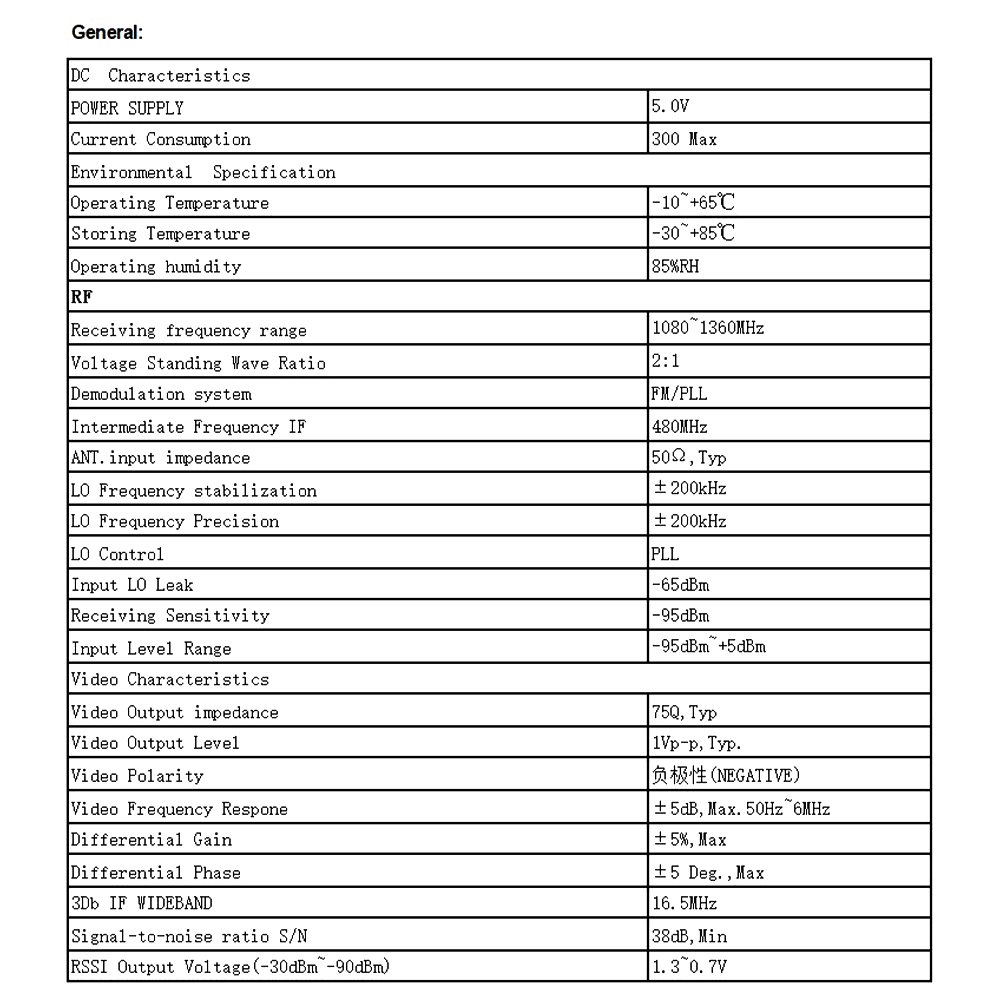

Specification

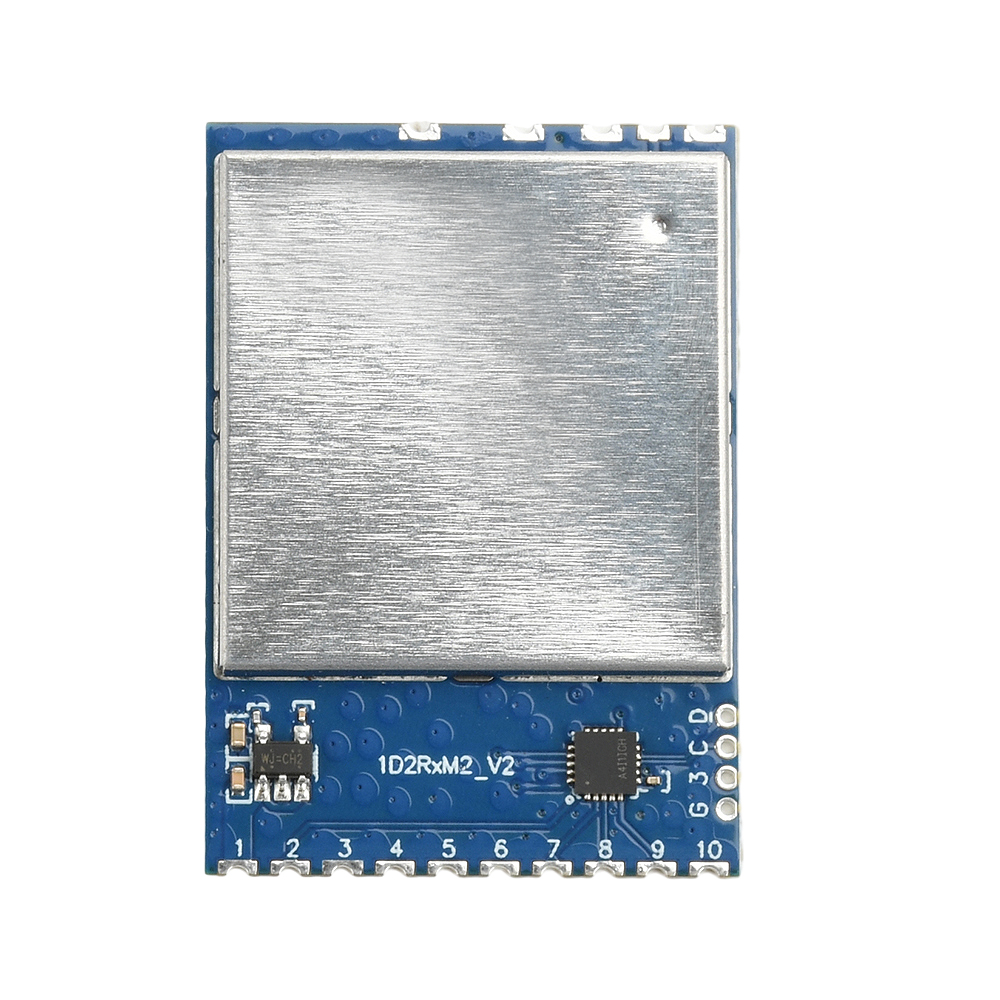

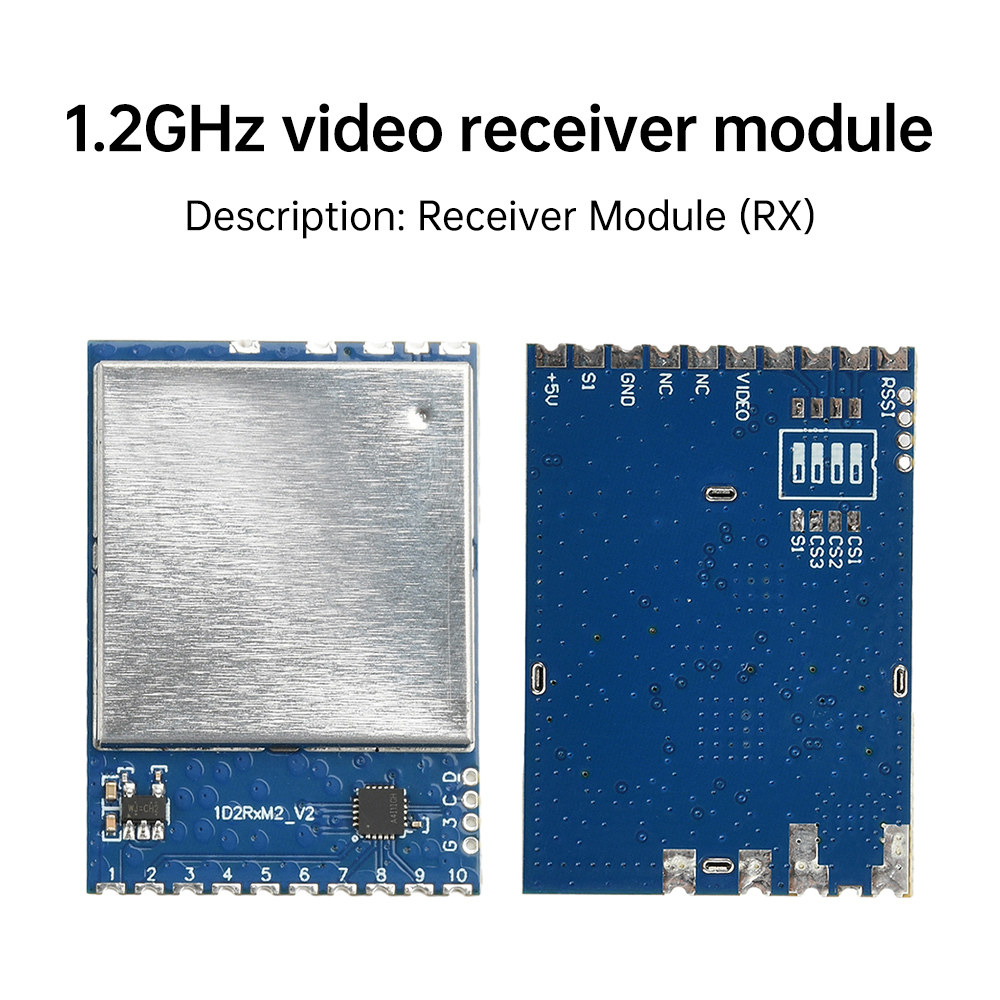

Product name: 1.2GHz video receiver module
Supply voltage: DC 5V
Current consumption: 300 Max
Working temperature: -10~+65 ℃
Storage Temperature：-30~+85 ℃
Operating Humidity: 85%RH
Receiving frequency range: 1080~1360MHz

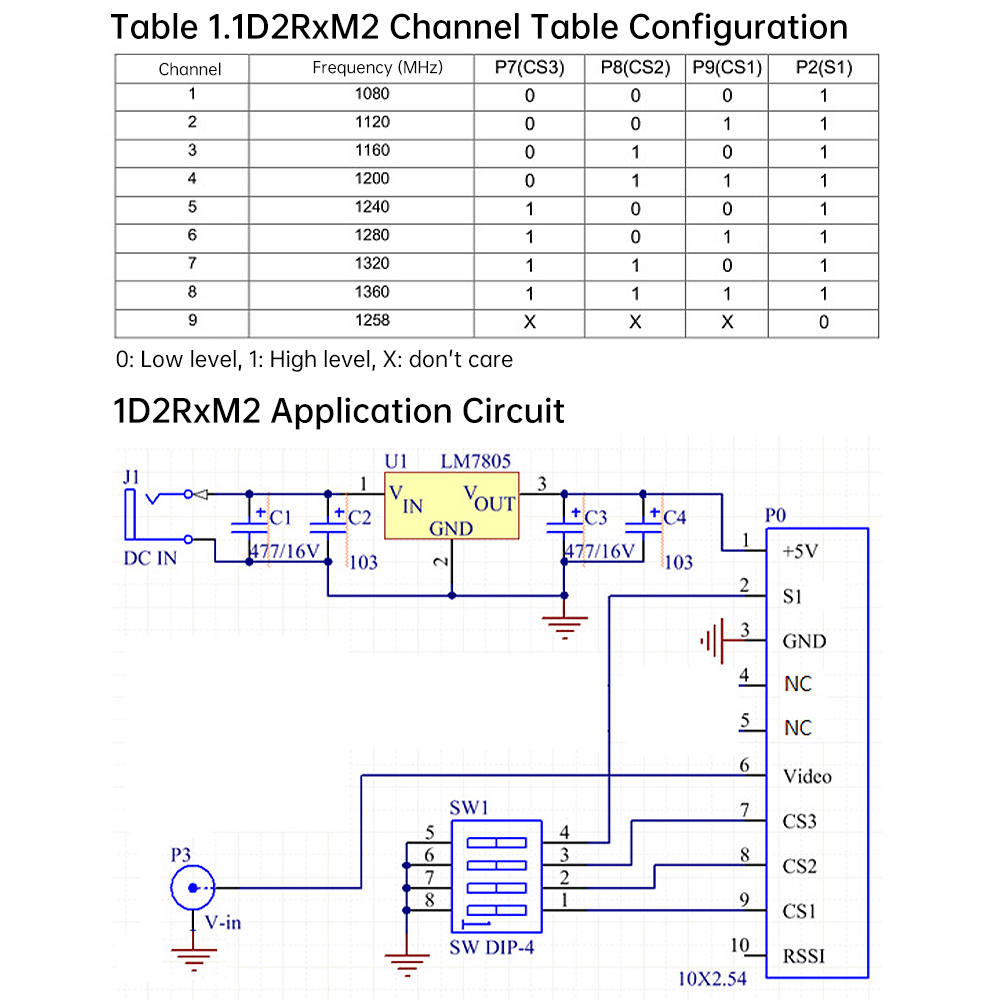

Frequency Points: Support nine frequency points, 1080, 1120, 1160, 1200, 1240, 1280, 1320, 1360, 1258

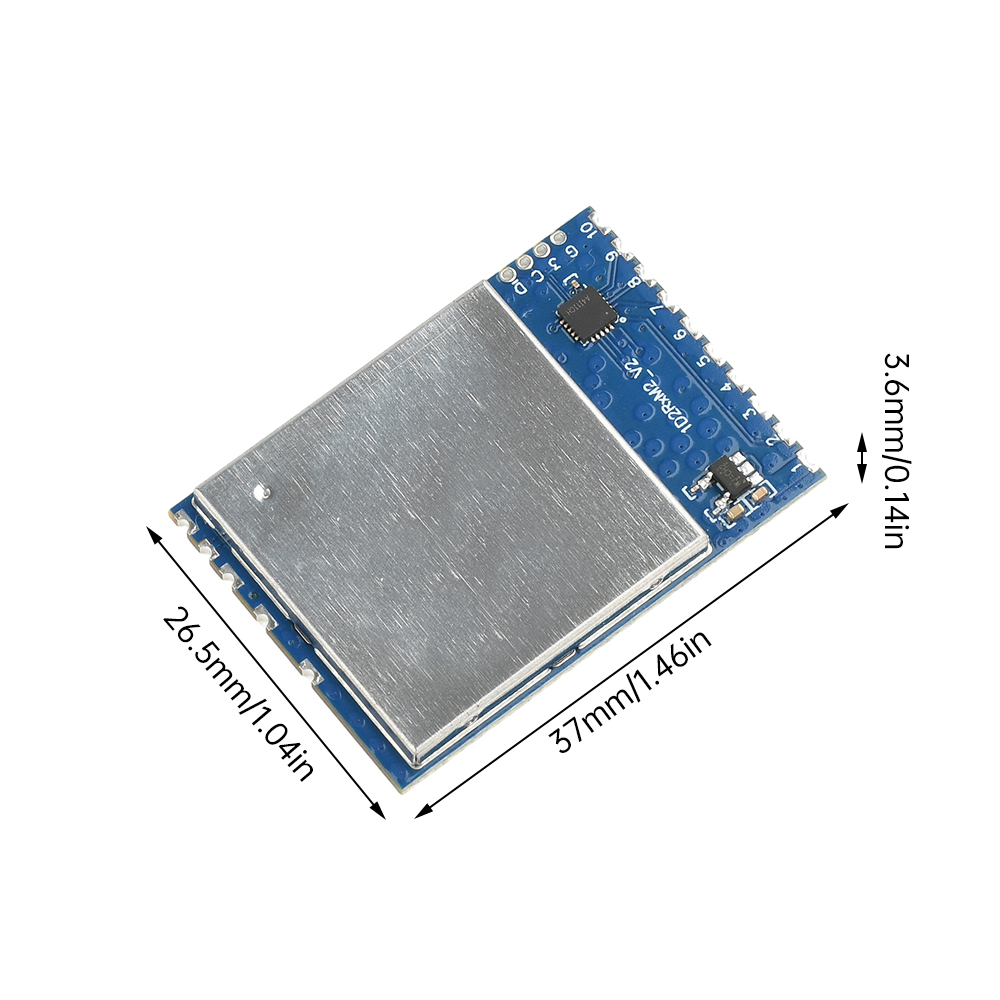

Product size: 37x26x4mm
Product name: 1.2GHz video receiver module
Supply voltage: DC 5V
Current consumption: 300 Max
Working temperature: -10~+65 ℃
Storage Temperature：-30~+85 ℃
Operating Humidity: 85%RH
Receiving frequency range: 1080~1360MHz
Frequency Points: Support nine frequency points, 1080, 1120, 1160, 1200, 1240, 1280, 1320, 1360, 1258
Product size: 37x26x4mm
Package Includes
1 x Module
1 x Module
Copyright © 2017 DataDaciques
Product View
Detail
Features
1. High sensitivity receiver module: receiving sensitivity up to -95dBm, ensuring stable transmission of weak signals.
2.Multi-frequency band support design: support 9 frequency points (1080~1360MHz), to meet the diversified use requirements
3.Super RSSI signal function: RSSI output voltage range 1.3~0.7V, accurately reflecting the signal strength.
4. Wide operating temperature range: operating temperature -10~+65℃, adapt to a variety of environmental conditions
5. High-quality video transmission performance: signal-to-noise ratio ≥ 38dB, video frequency response ± 5dB, clear and stable picture quality
1. High sensitivity receiver module: receiving sensitivity up to -95dBm, ensuring stable transmission of weak signals.
2.Multi-frequency band support design: support 9 frequency points (1080~1360MHz), to meet the diversified use requirements
3.Super RSSI signal function: RSSI output voltage range 1.3~0.7V, accurately reflecting the signal strength.
4. Wide operating temperature range: operating temperature -10~+65℃, adapt to a variety of environmental conditions
5. High-quality video transmission performance: signal-to-noise ratio ≥ 38dB, video frequency response ± 5dB, clear and stable picture quality
Specification
Product name: 1.2GHz video receiver module
Supply voltage: DC 5V
Current consumption: 300 Max
Working temperature: -10~+65 ℃
Storage Temperature：-30~+85 ℃
Operating Humidity: 85%RH
Receiving frequency range: 1080~1360MHz
Frequency Points: Support nine frequency points, 1080, 1120, 1160, 1200, 1240, 1280, 1320, 1360, 1258
Product size: 37x26x4mm
Product name: 1.2GHz video receiver module
Supply voltage: DC 5V
Current consumption: 300 Max
Working temperature: -10~+65 ℃
Storage Temperature：-30~+85 ℃
Operating Humidity: 85%RH
Receiving frequency range: 1080~1360MHz
Frequency Points: Support nine frequency points, 1080, 1120, 1160, 1200, 1240, 1280, 1320, 1360, 1258
Product size: 37x26x4mm
Package Includes
1 x Module
1 x Module
