MLX90640 1.8inch TFT Infrared Sensor Simple Thermal Imager Thermograph Camera
Product View
Detail
Features

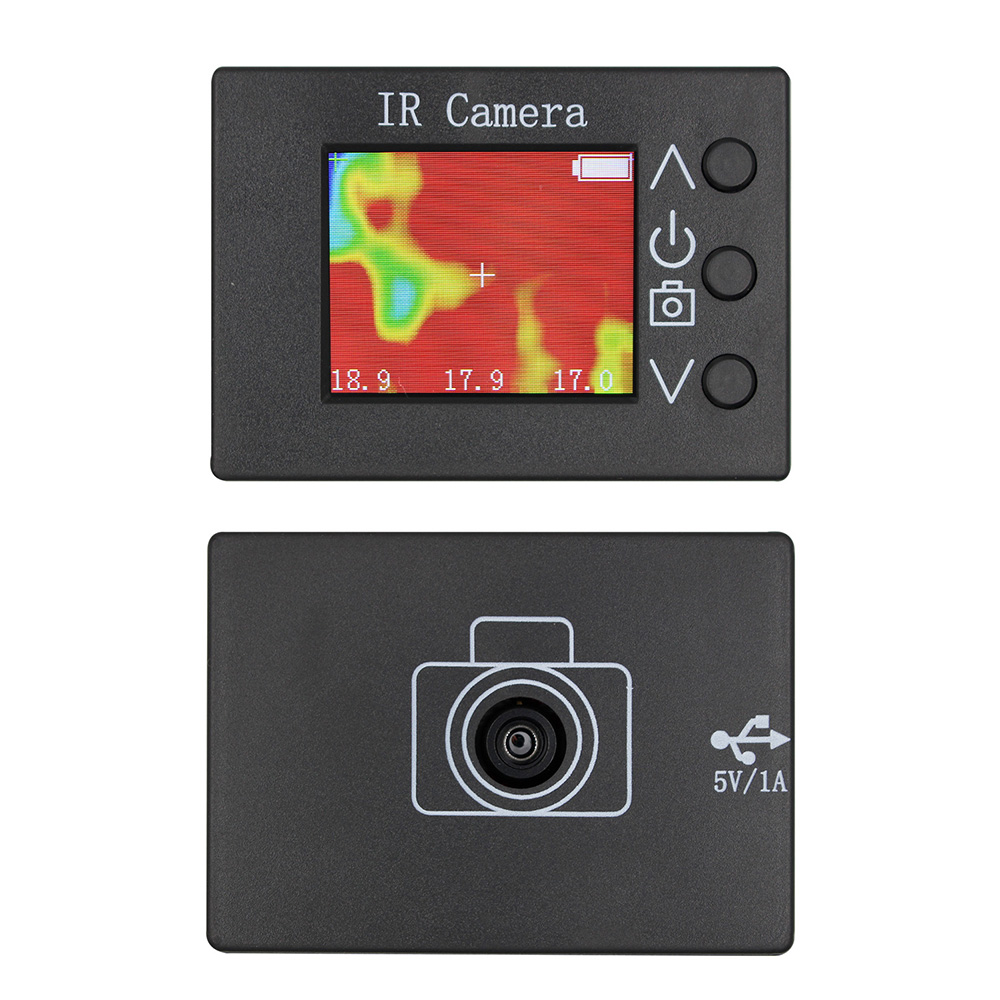

1.This is a handheld multi-functional use MLX90640ESF_BAB infrared sensor thermal imaging camera, with small size and light weight features
2. With 1.8" TFT display, data can be seen at a glance
3. Can be used in a variety of occasions, is an indispensable tool for home and industrial use

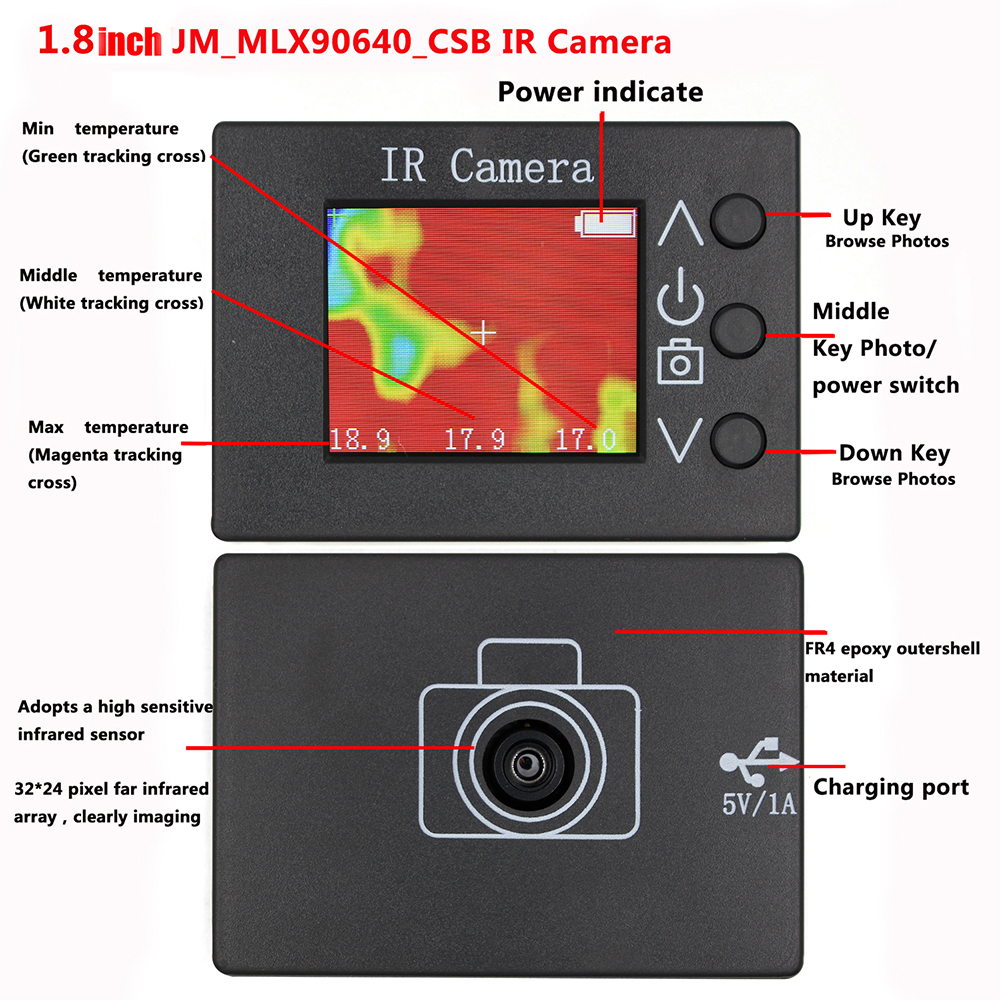

4. This device adopts the integrated design, no external equipment can work, the screen display parameters as shown below
5. Applications: high-precision non-contact temperature measurement security and intrusion detection, underfloor heating equipment side leakage and maintenance, thermal detection of circuit boards and components, etc.
2. With 1.8" TFT display, data can be seen at a glance
3. Can be used in a variety of occasions, is an indispensable tool for home and industrial use
4. This device adopts the integrated design, no external equipment can work, the screen display parameters as shown below
5. Applications: high-precision non-contact temperature measurement security and intrusion detection, underfloor heating equipment side leakage and maintenance, thermal detection of circuit boards and components, etc.

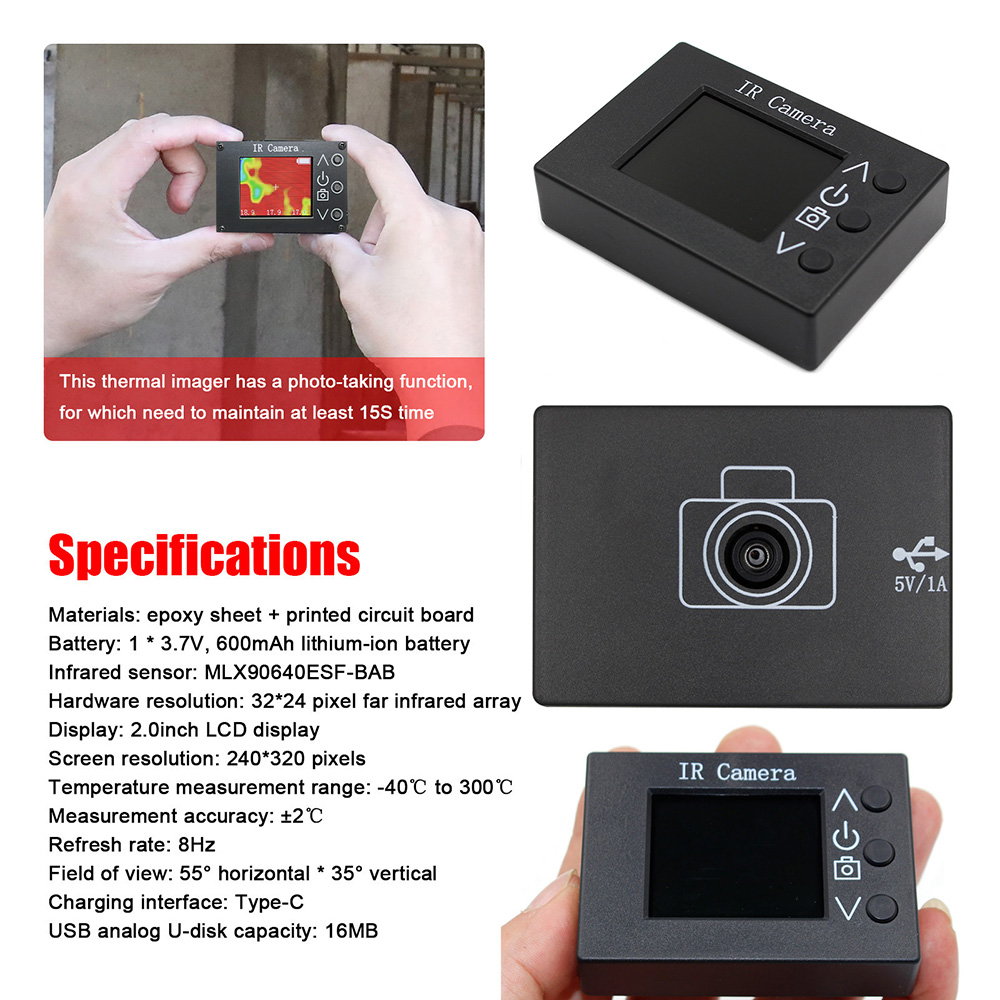

Specification
Shell material: ABS
Module:JM_MLX90640_CSB
Using MLX90640ESF_BAB infrared sensor
Resolution:32x24
Temperature measurement range: -40℃~300℃.
Measurement accuracy: +/-2℃ (center area, 0~100℃)
Operating Temperature: 10°C~50°C
Operating humidity: <=70%
Refresh rate: 8HZ
No calibration required
Field of view: 55°x35

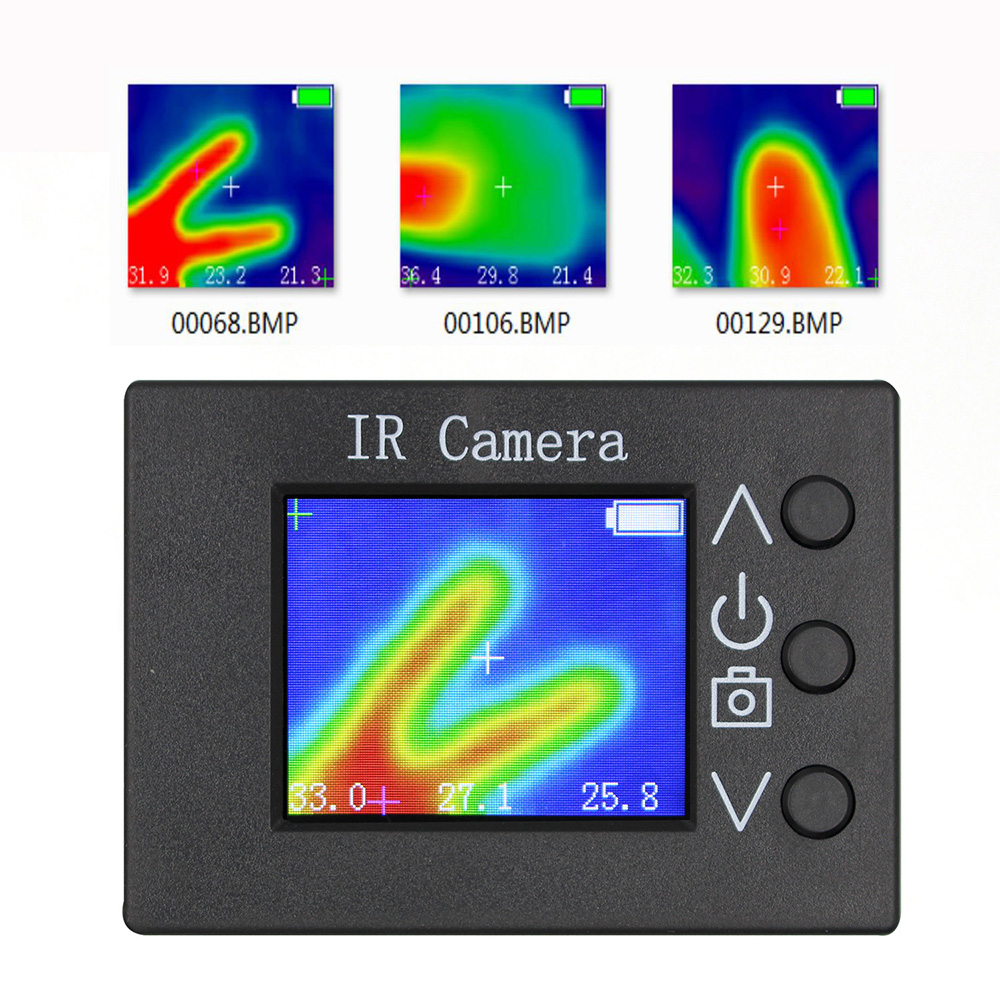

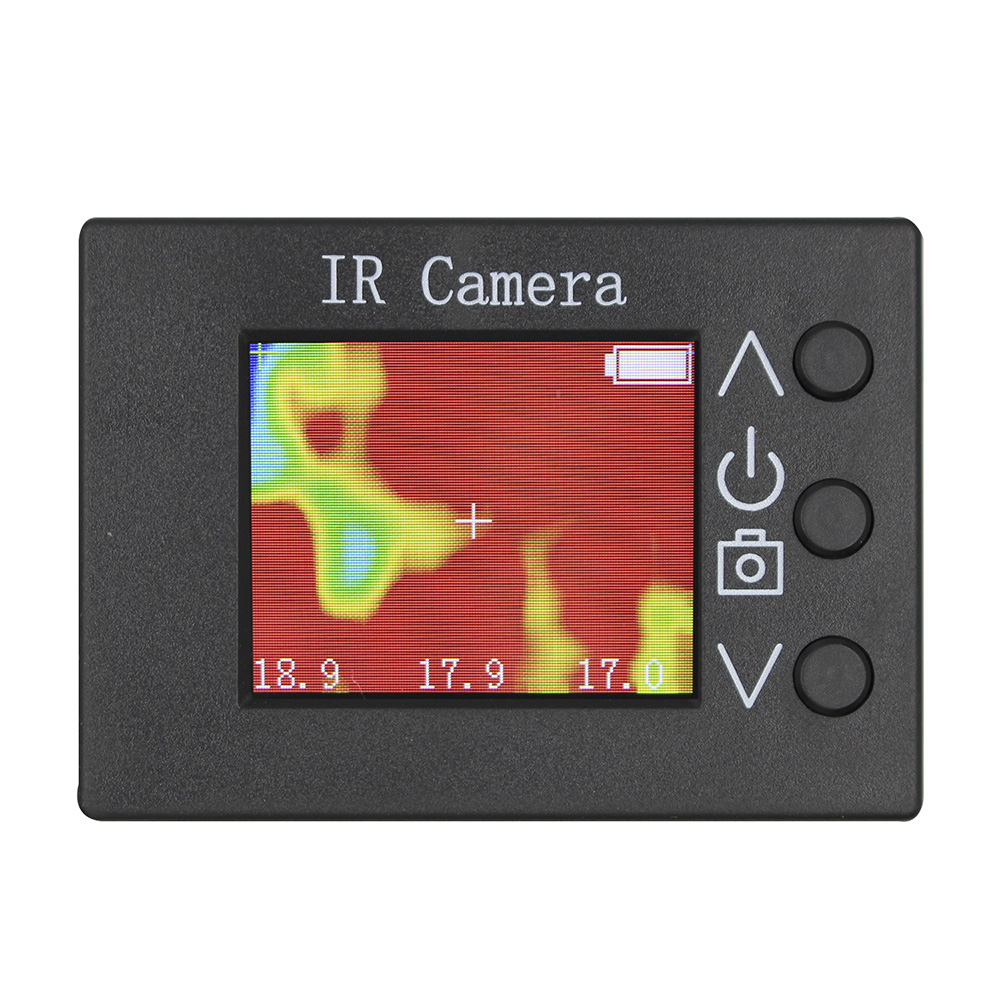

Display center point, maximum and minimum temperature

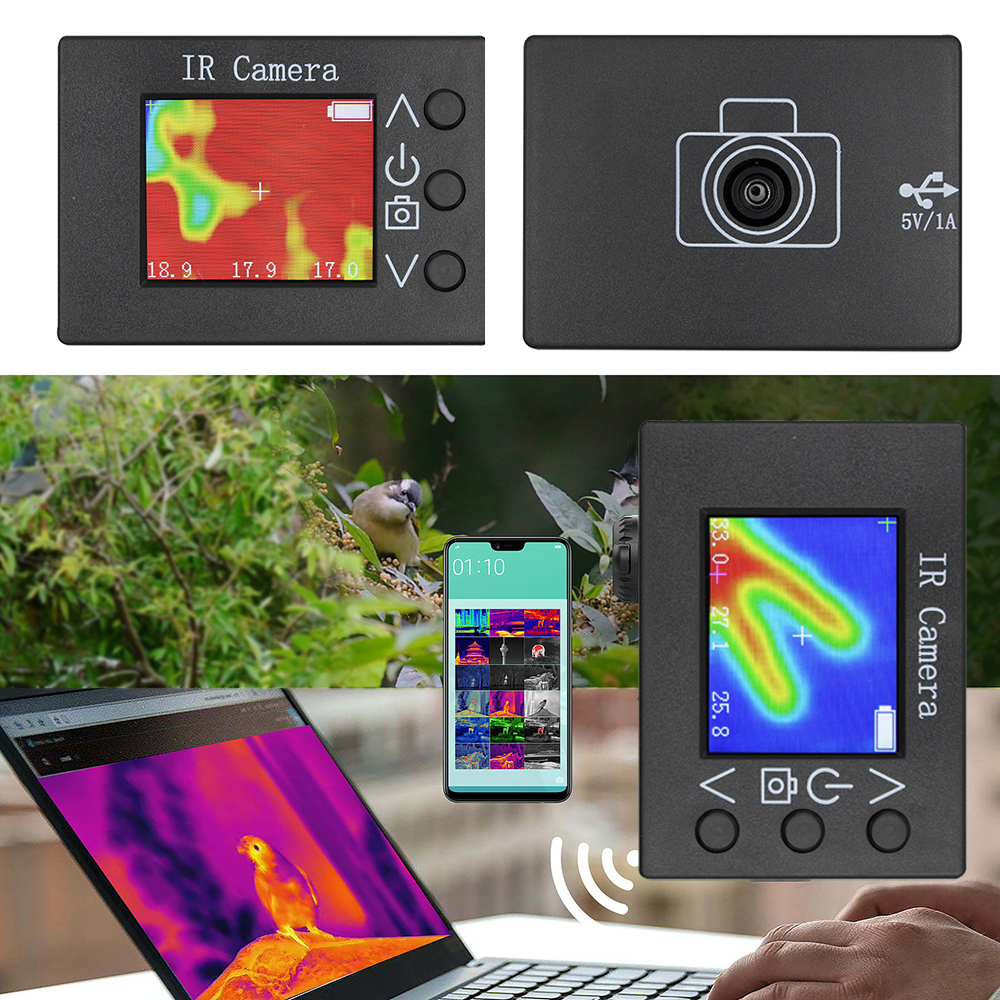

Taking pictures (up to 90 photos, connectable to PC, copyable and deletable)
Rechargeable battery (200 mAh)
TFT size: 1.8 inches (display resolution: 160x128)

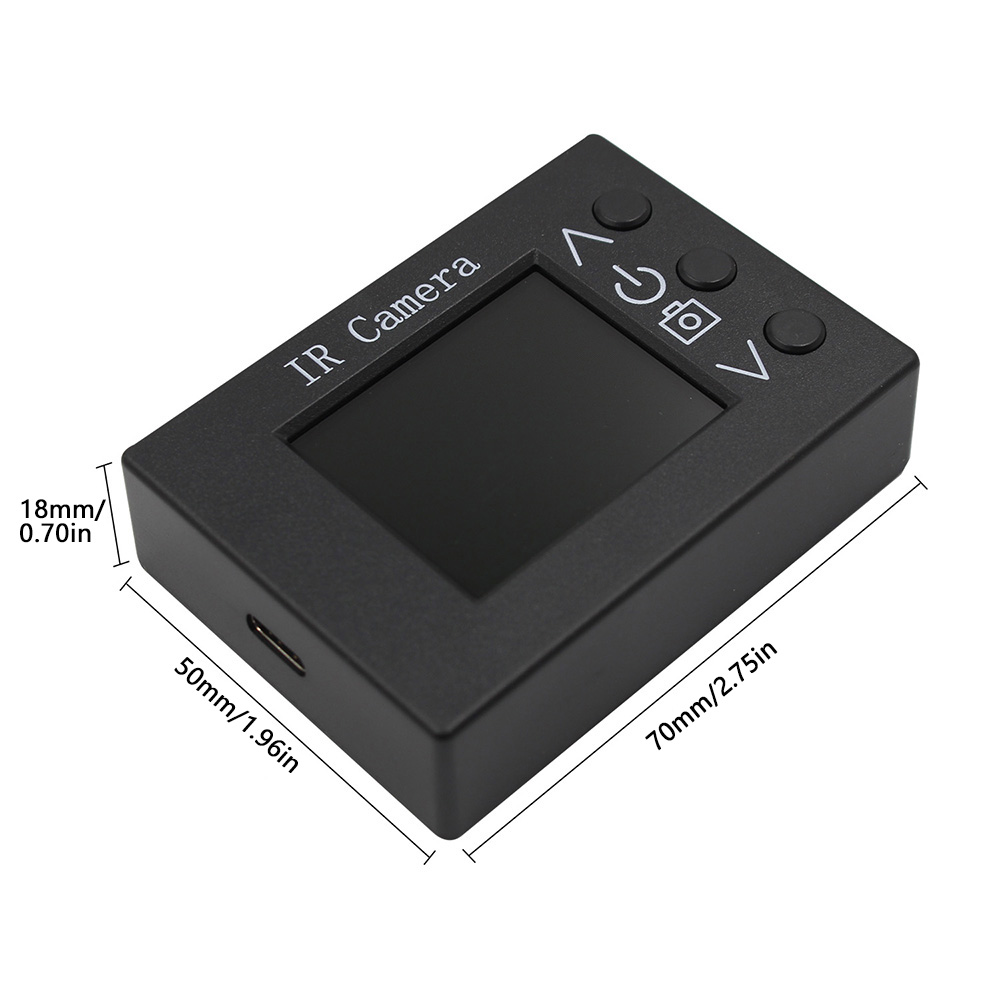

Product size : 66x46x20mm
Power port : USB Type-C 5V/1A
Operating time : ≥ 4 hours
Operating Instructions:
1, Charging : Use USB Type-C cable, 5V/1A.
2, Turn on/off: Long press the center button
4、Photo: Press the center button
5、View photos: Press up or down button
6、Exit photos: Long press the up or down button

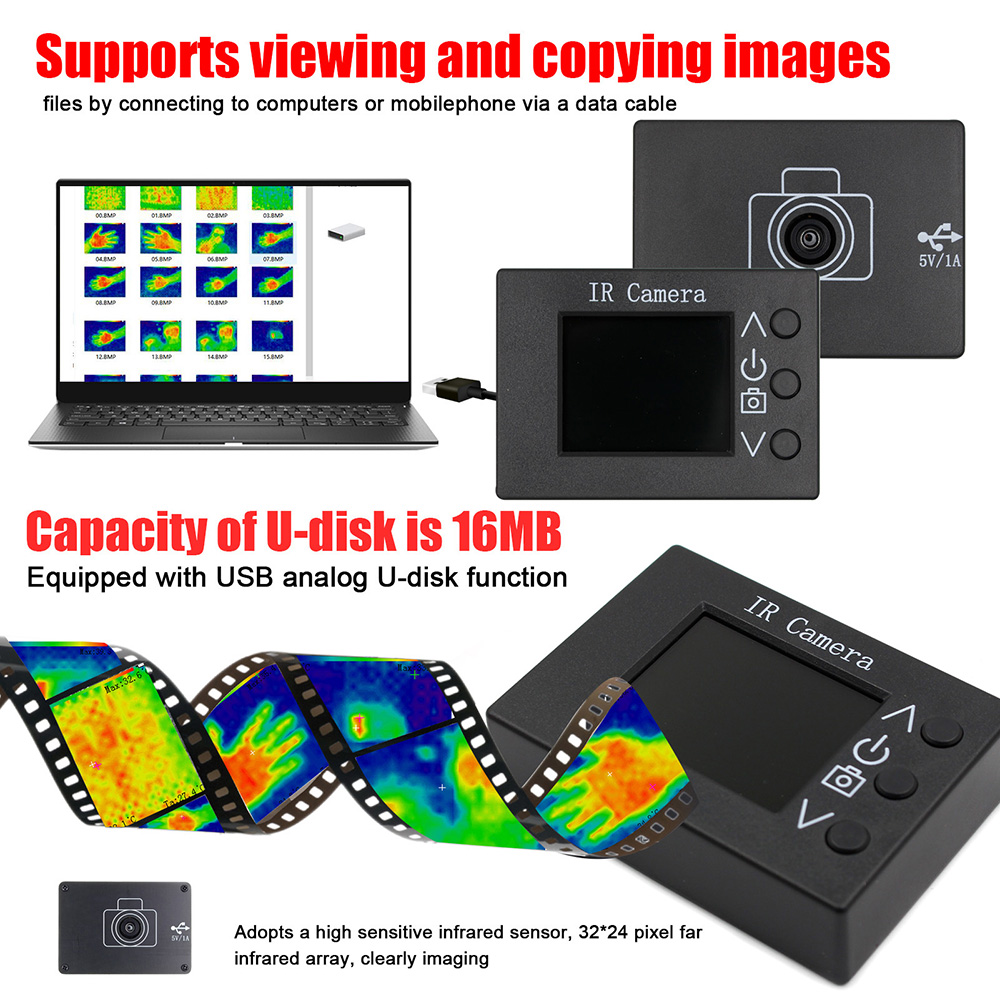

7、Copy photos: connect to computer with usb cable, computer will get a disk.
Note: You can't change the photos in the disk or put other files into the disk. Before
Before connecting to the computer, please fully charge and turn off the computer.
Shell material: ABS
Module:JM_MLX90640_CSB
Using MLX90640ESF_BAB infrared sensor
Resolution:32x24
Temperature measurement range: -40℃~300℃.
Measurement accuracy: +/-2℃ (center area, 0~100℃)
Operating Temperature: 10°C~50°C
Operating humidity: <=70%
Refresh rate: 8HZ
No calibration required
Field of view: 55°x35
Display center point, maximum and minimum temperature
Taking pictures (up to 90 photos, connectable to PC, copyable and deletable)
Rechargeable battery (200 mAh)
TFT size: 1.8 inches (display resolution: 160x128)
Product size : 66x46x20mm
Power port : USB Type-C 5V/1A
Operating time : ≥ 4 hours
Operating Instructions:
1, Charging : Use USB Type-C cable, 5V/1A.
2, Turn on/off: Long press the center button
4、Photo: Press the center button
5、View photos: Press up or down button
6、Exit photos: Long press the up or down button
7、Copy photos: connect to computer with usb cable, computer will get a disk.
Note: You can't change the photos in the disk or put other files into the disk. Before
Before connecting to the computer, please fully charge and turn off the computer.

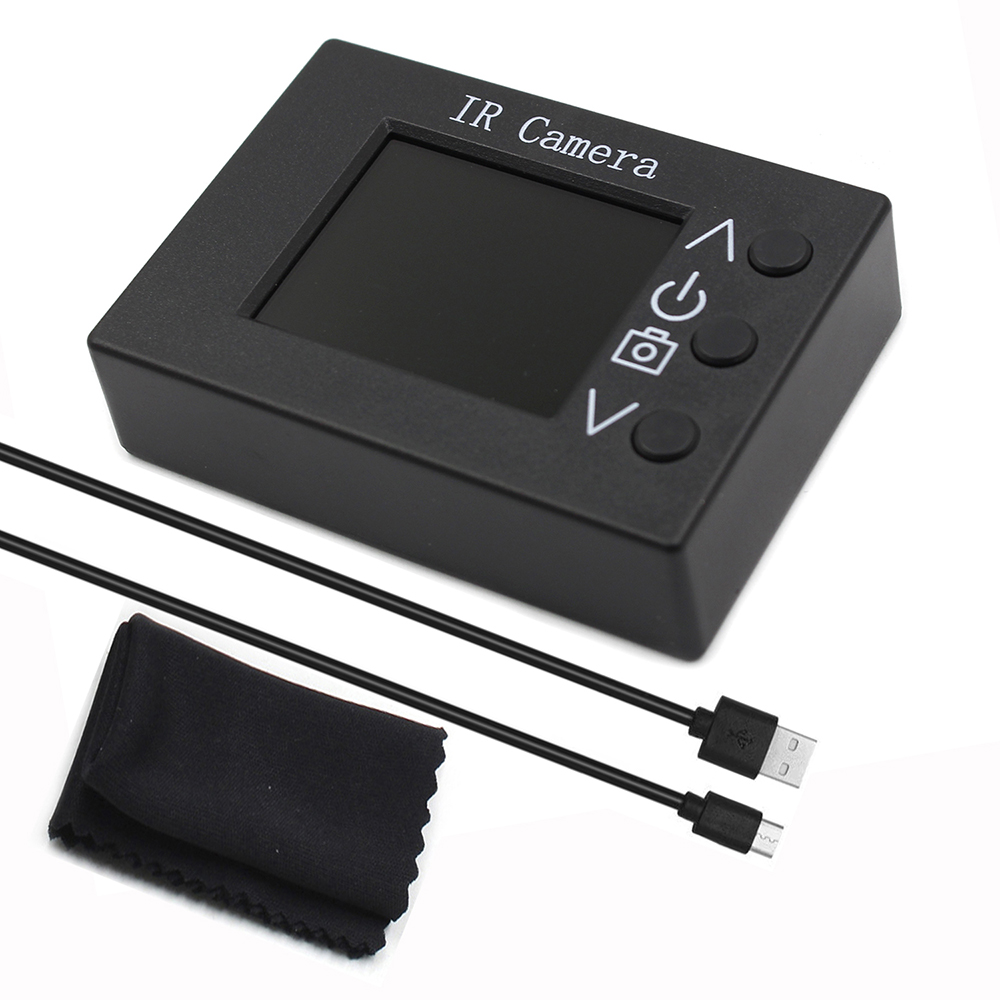

List
1 x Thermal imaging camera
1 x Cloth
1 x USB Type-C cable
1 x Thermal imaging camera
1 x Cloth
1 x USB Type-C cable
