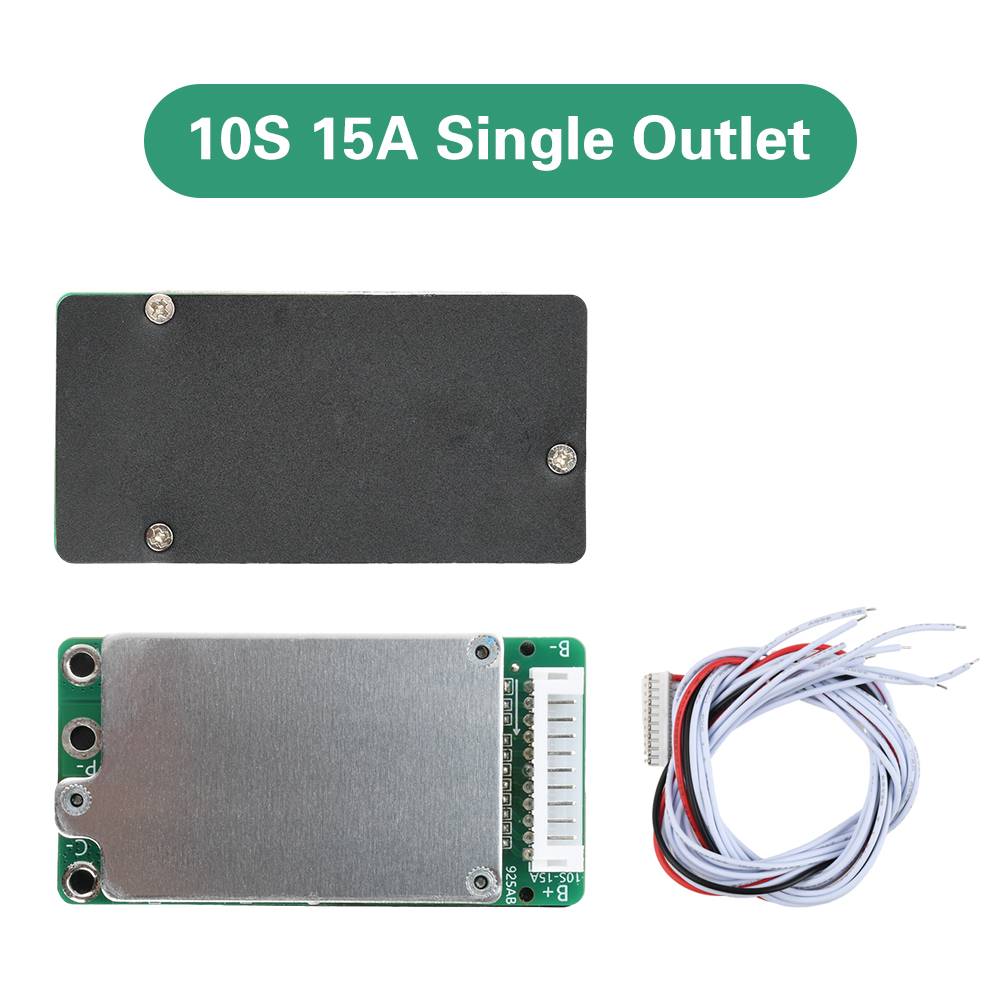

BMS 10S 36V 15A Li-ion Lipolymer 18650 Battery Charge Board Protection Board

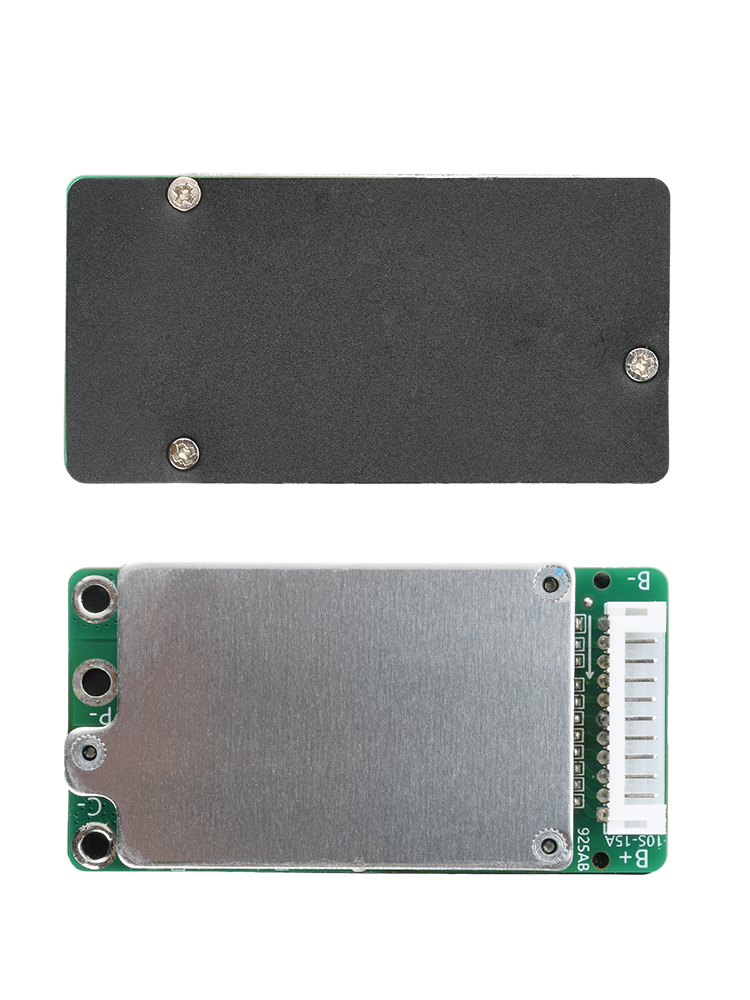

Product View
Detail
Product Features:

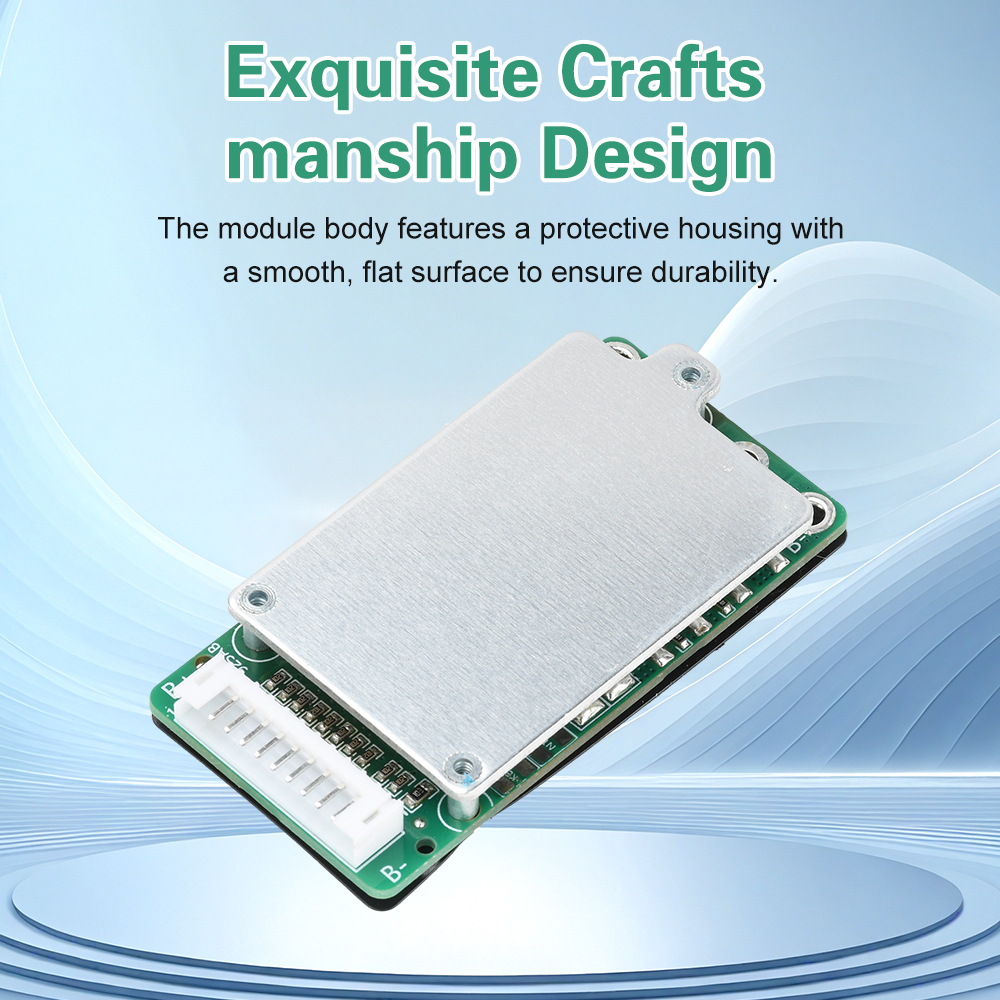

1. Exquisite craftsmanship design: The module body adopts a blue protective shell, with a smooth and flat surface to ensure durability

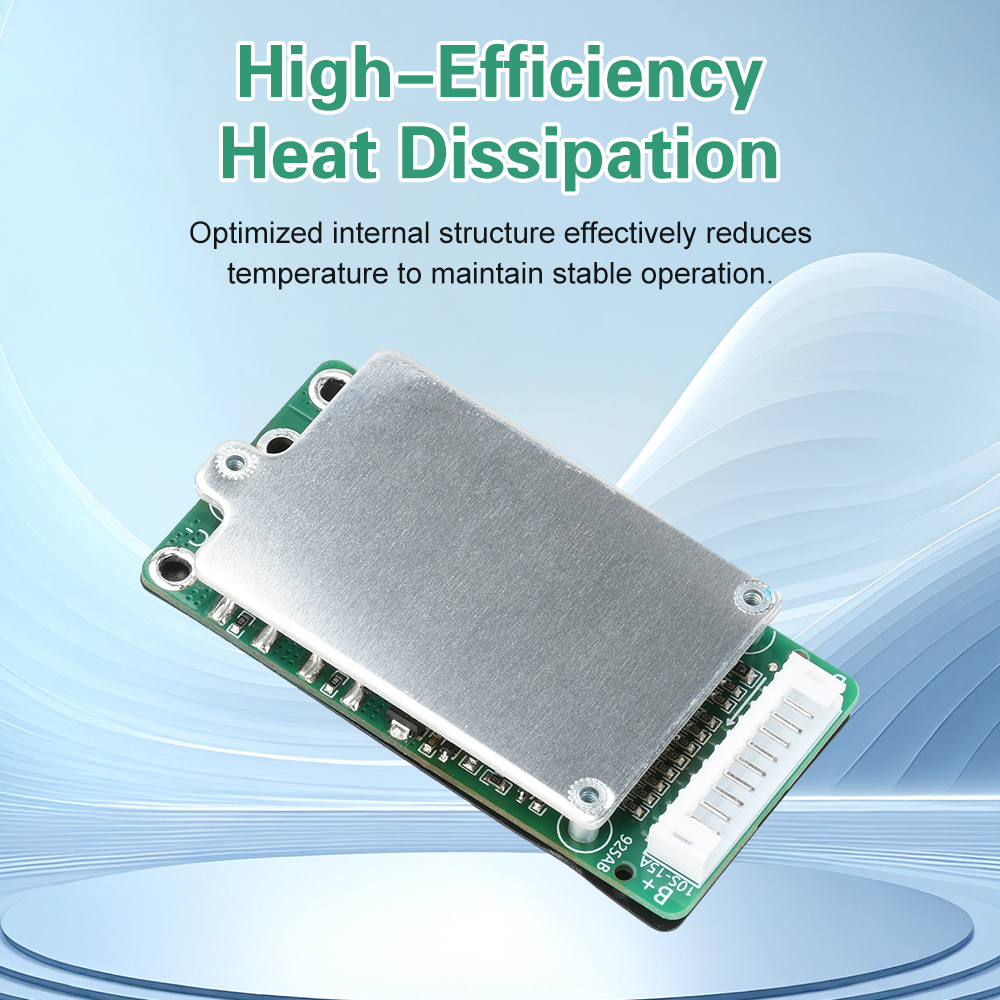

2. Efficient heat dissipation performance: optimized internal structure, effectively reducing temperature and maintaining stable operation

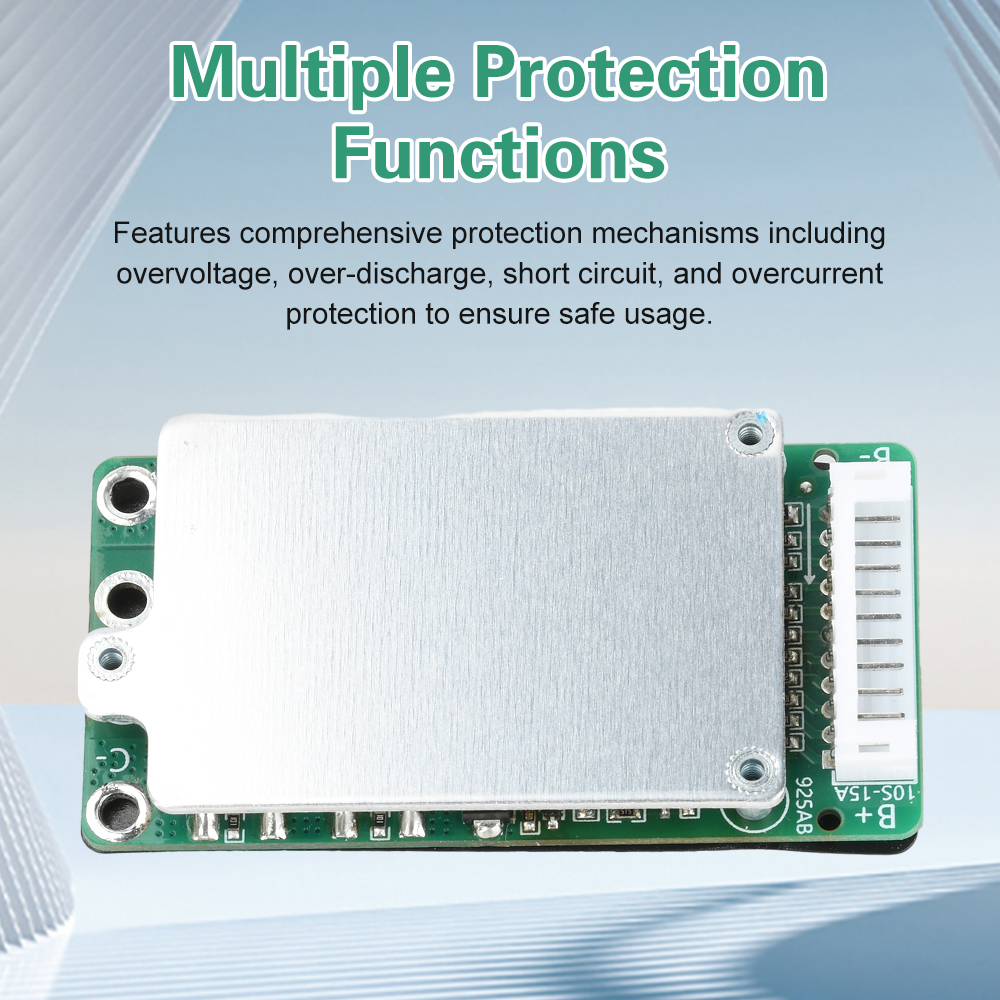

3. Multiple protection functions: equipped with comprehensive protection mechanisms such as overvoltage, overdischarge, short circuit, and overcurrent to ensure safe use

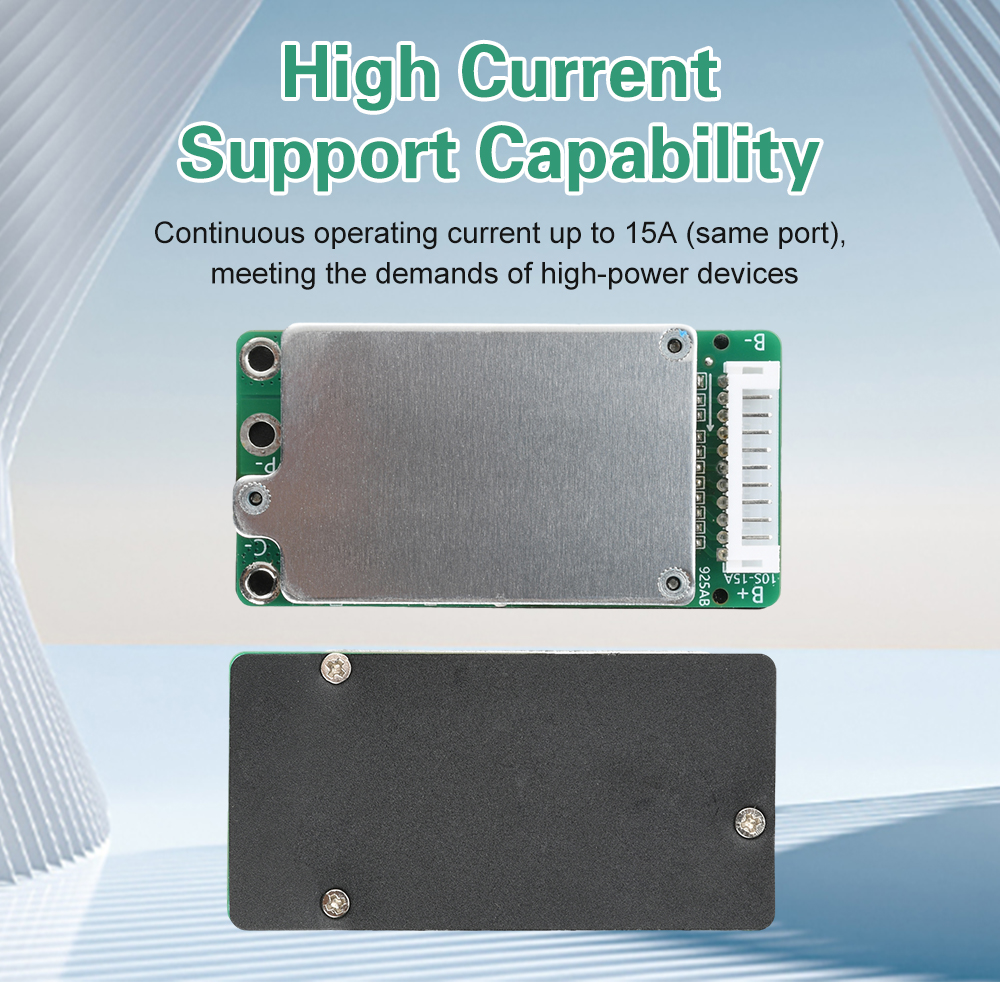

4. High current support capability: The continuous working current can reach 15A (same port), meeting the requirements of high-power equipment

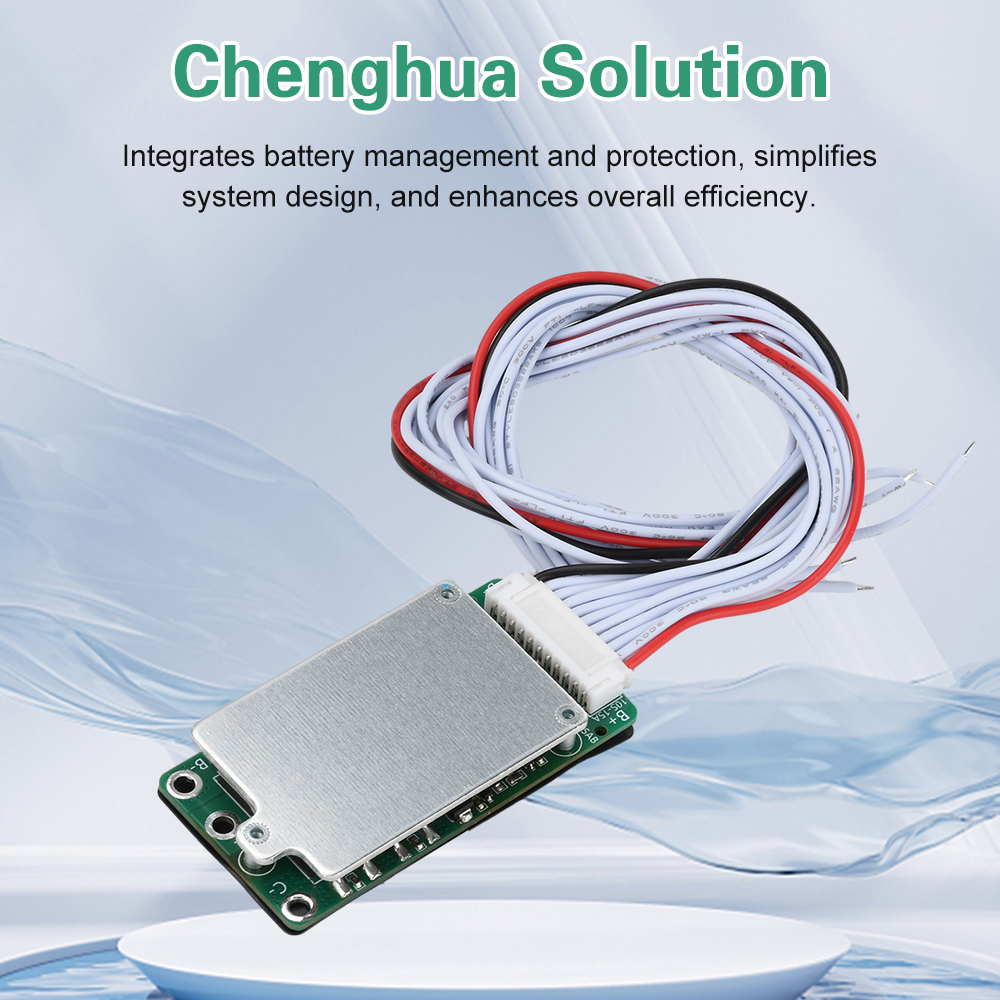

5. Chenghua Solution: Integrating battery management and protection, simplifying system design, and improving overall efficiency
1. Exquisite craftsmanship design: The module body adopts a blue protective shell, with a smooth and flat surface to ensure durability
2. Efficient heat dissipation performance: optimized internal structure, effectively reducing temperature and maintaining stable operation
3. Multiple protection functions: equipped with comprehensive protection mechanisms such as overvoltage, overdischarge, short circuit, and overcurrent to ensure safe use
4. High current support capability: The continuous working current can reach 15A (same port), meeting the requirements of high-power equipment
5. Chenghua Solution: Integrating battery management and protection, simplifying system design, and improving overall efficiency
Product Parameters:
Product Name: 10S Lithium Battery Protection Board
Type: 10S 36V 15A

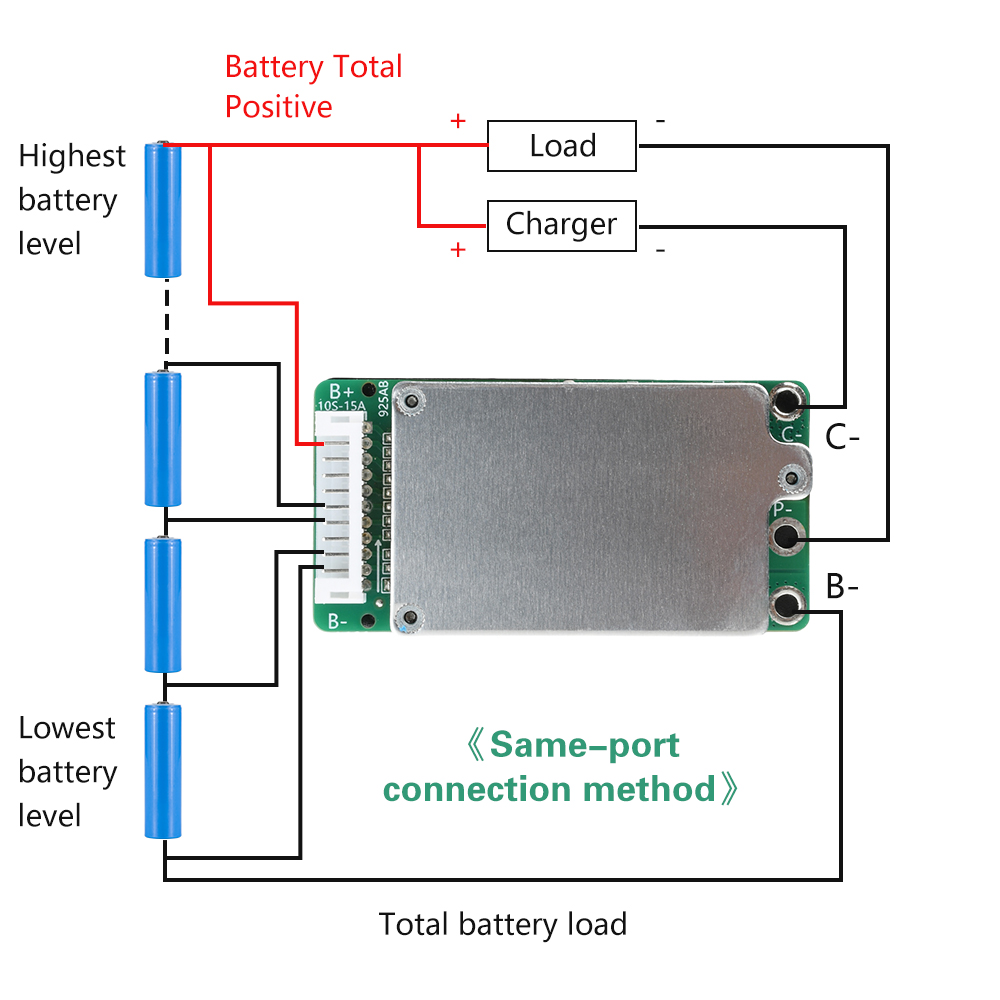

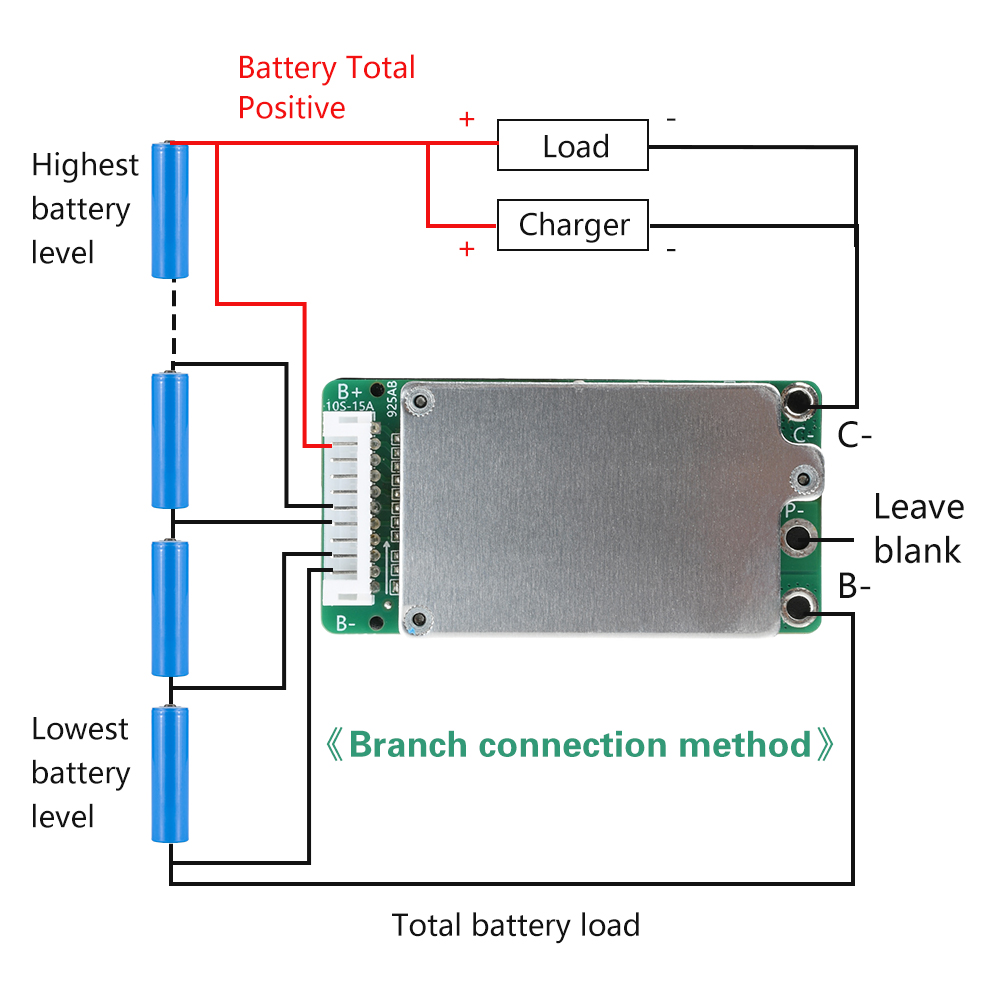

Wiring method: Same port/split port optional
Working power consumption: ≤ 40uA
Main circuit conductivity internal resistance: ≤ 15m Ω
Temperature range: -40 to+80 ° C
Wire breakage protection: Yes
Cable size: 2.0mm spacing/40cm length
Discharge:
Overdischarge voltage of a single battery: 2.7V ± 0.08V
Instantaneous protection current: 80A
Overcurrent recovery conditions: charging recovery/load disconnection
Short circuit recovery conditions: charging recovery/load disconnection
charge:
Overcharge voltage of a single battery: 4.25V ± 0.025V
Continuous charging current: 15A
Charger voltage: 56V-60V (recommended)
Product Name: 10S Lithium Battery Protection Board
Type: 10S 36V 15A
Wiring method: Same port/split port optional
Working power consumption: ≤ 40uA
Main circuit conductivity internal resistance: ≤ 15m Ω
Temperature range: -40 to+80 ° C
Wire breakage protection: Yes
Cable size: 2.0mm spacing/40cm length
Discharge:
Overdischarge voltage of a single battery: 2.7V ± 0.08V
Instantaneous protection current: 80A
Overcurrent recovery conditions: charging recovery/load disconnection
Short circuit recovery conditions: charging recovery/load disconnection
charge:
Overcharge voltage of a single battery: 4.25V ± 0.025V
Continuous charging current: 15A
Charger voltage: 56V-60V (recommended)
Package List:

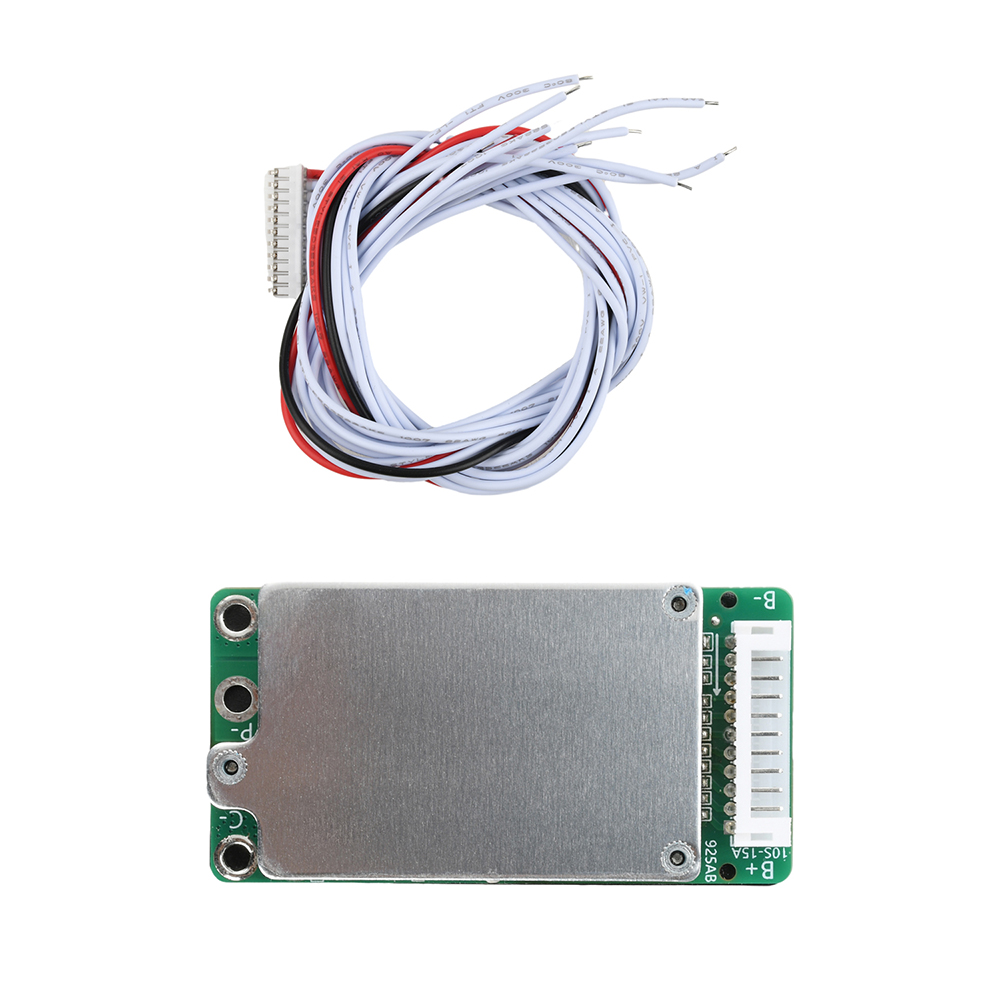

Protection board x1
Collection line x1
Protection board x1
Collection line x1
