Features:
1. High-current discharge capacity: support up to 30A discharge, to meet the needs of high-power equipment
2. Temperature control protection function: with temperature protection, discharge high temperature 75 ℃, charging low temperature -7 ℃ safety and reliability
3. Multi-scenario applicability: applicable to electric cars, scooters, inverters and other electric devices
4. High-precision integrated chip: the core chip has high precision, strong anti-interference ability, stability and durability
5. Multiple safety protection: provide all-round protection functions such as overcharge, overdischarge, overcurrent and short circuit

Parameter:

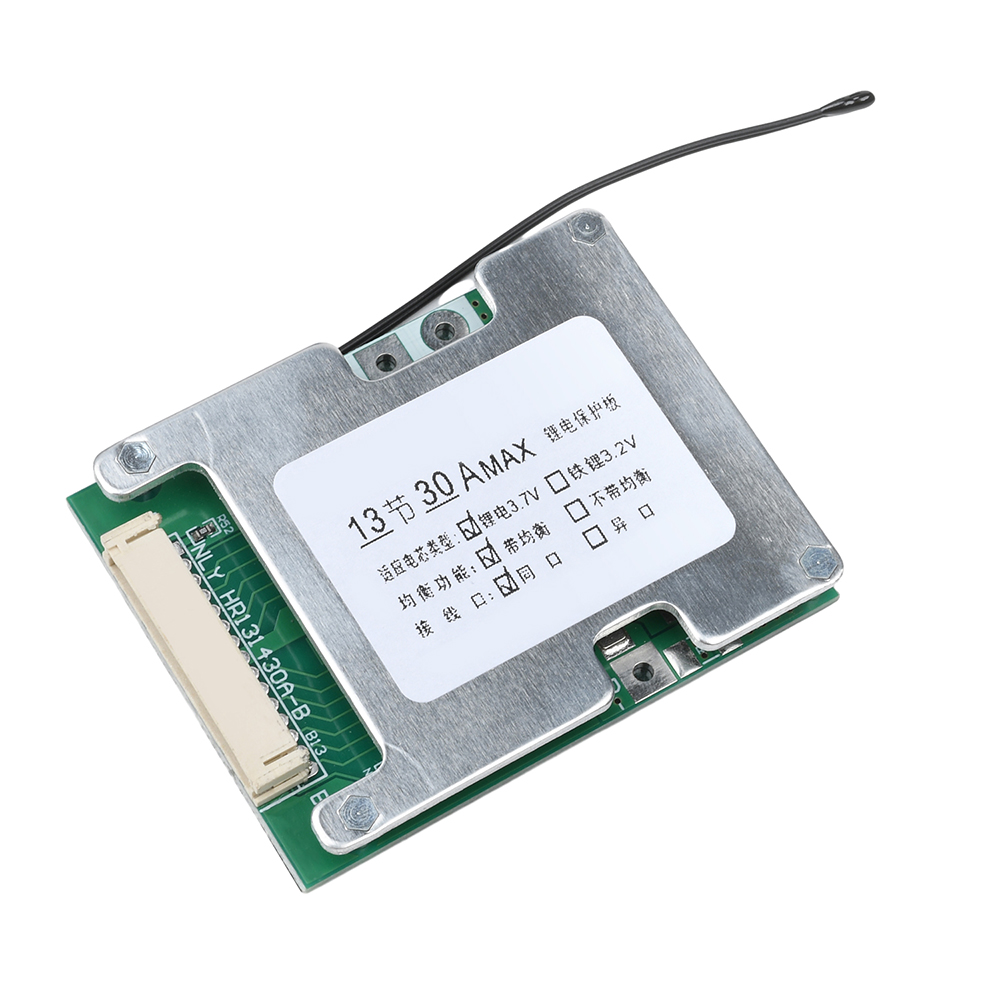

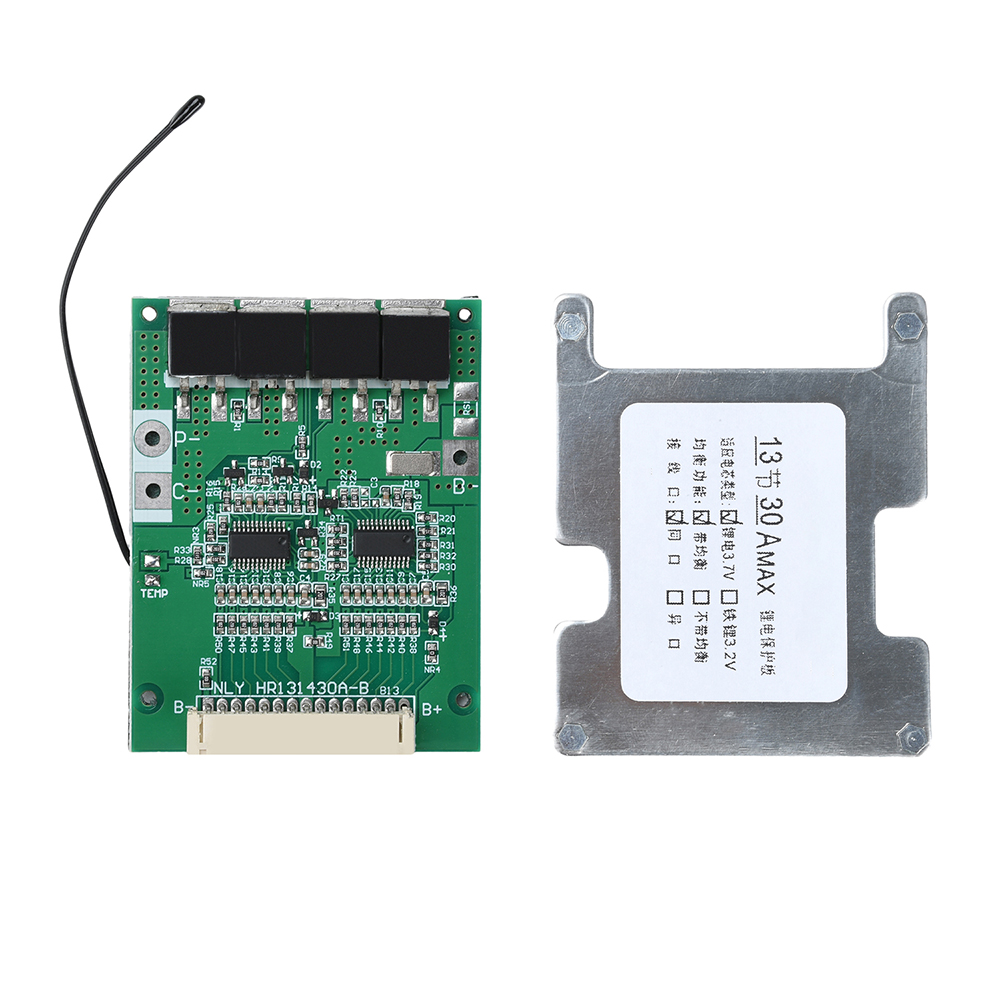

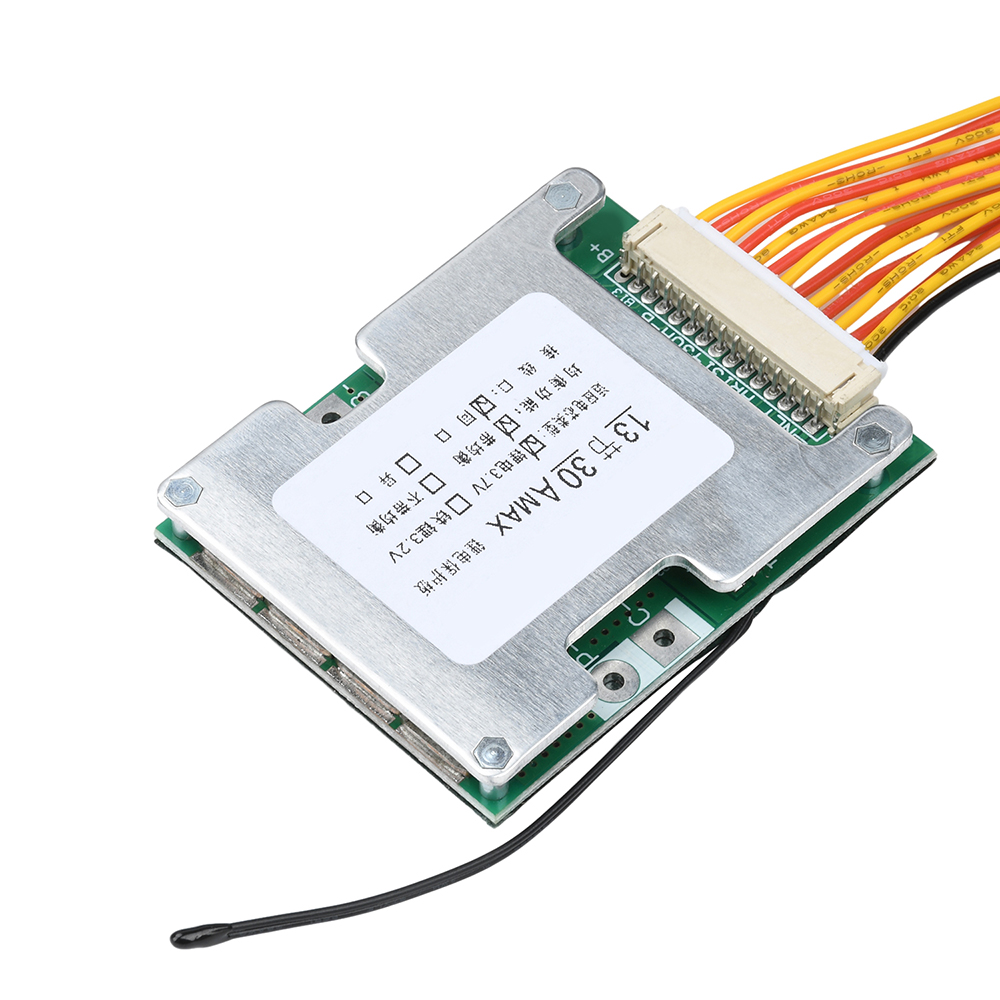

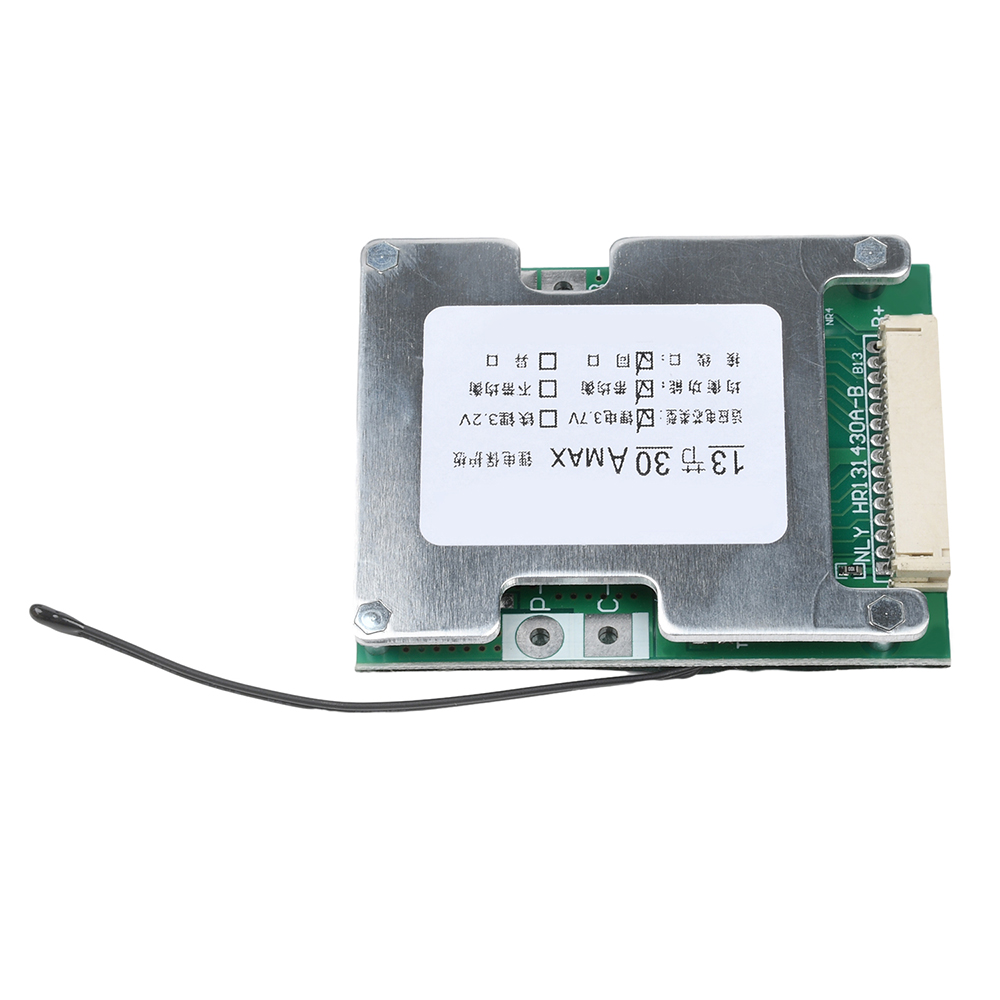

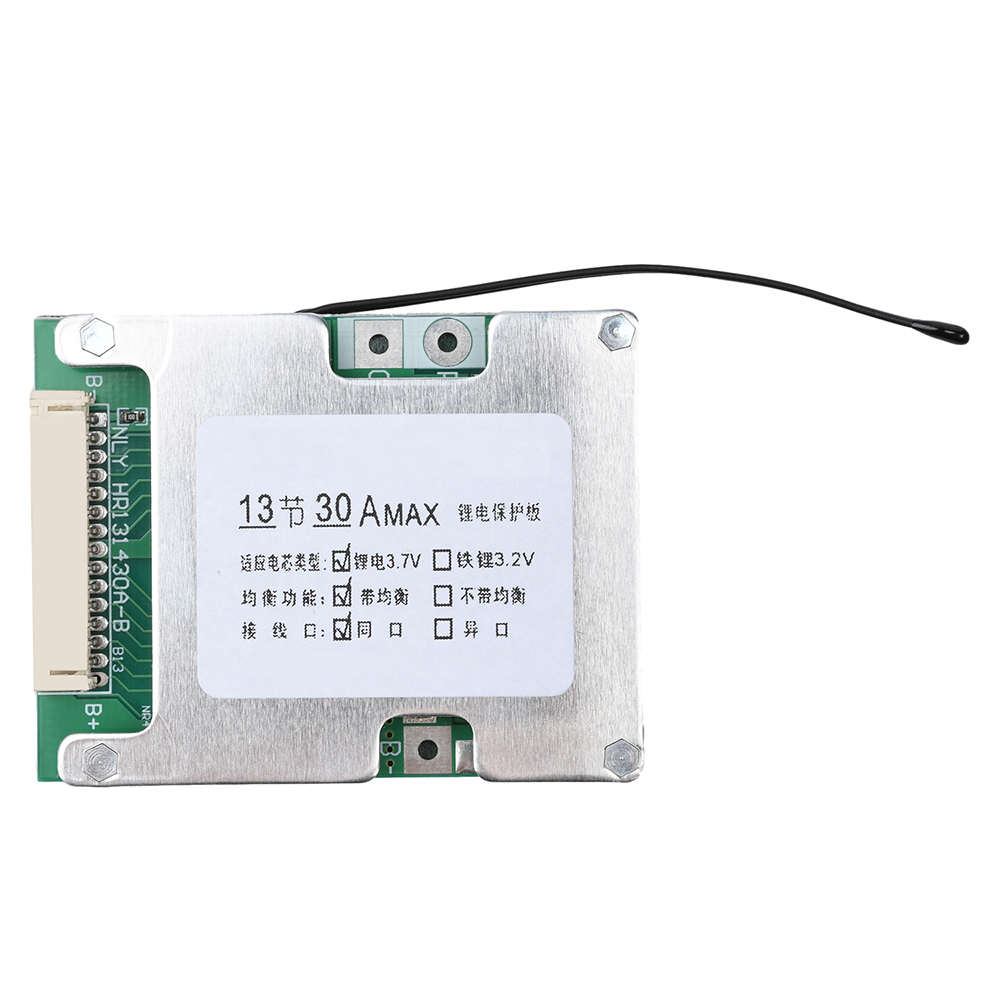

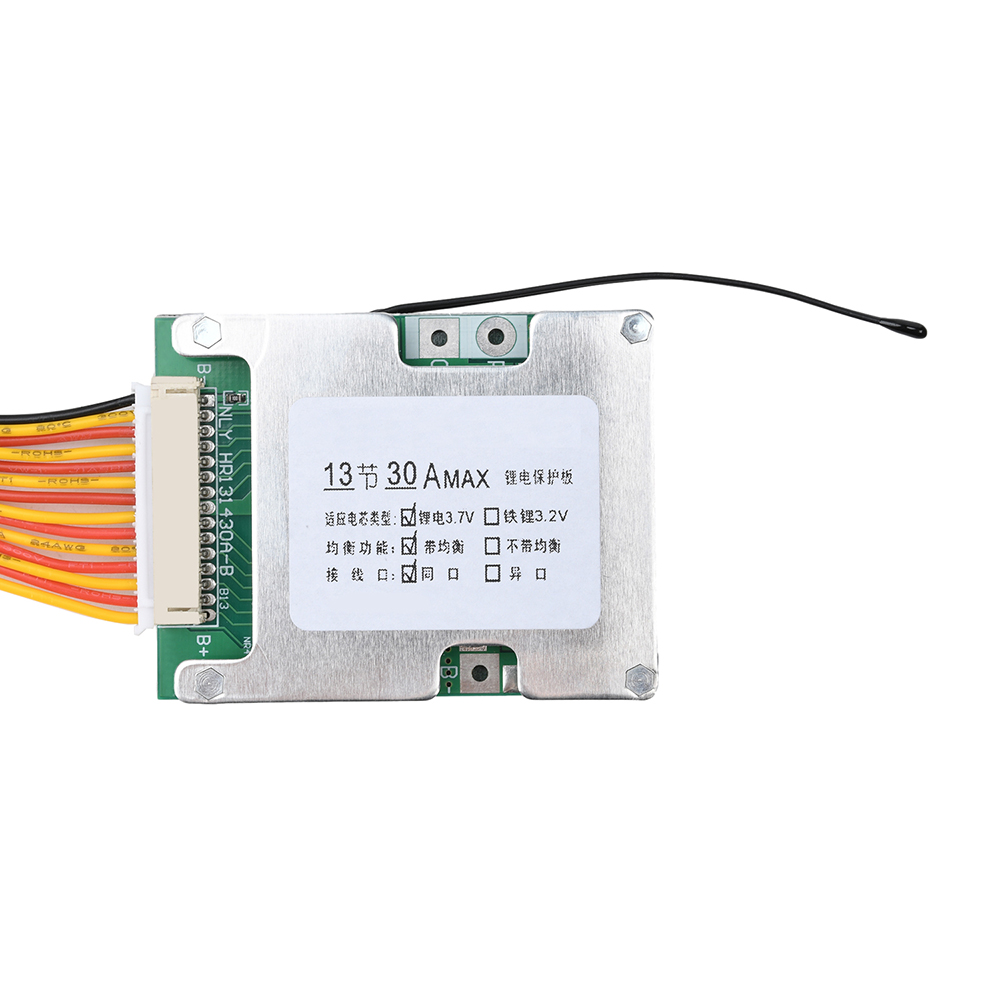

Product name: 13S lithium battery protection board

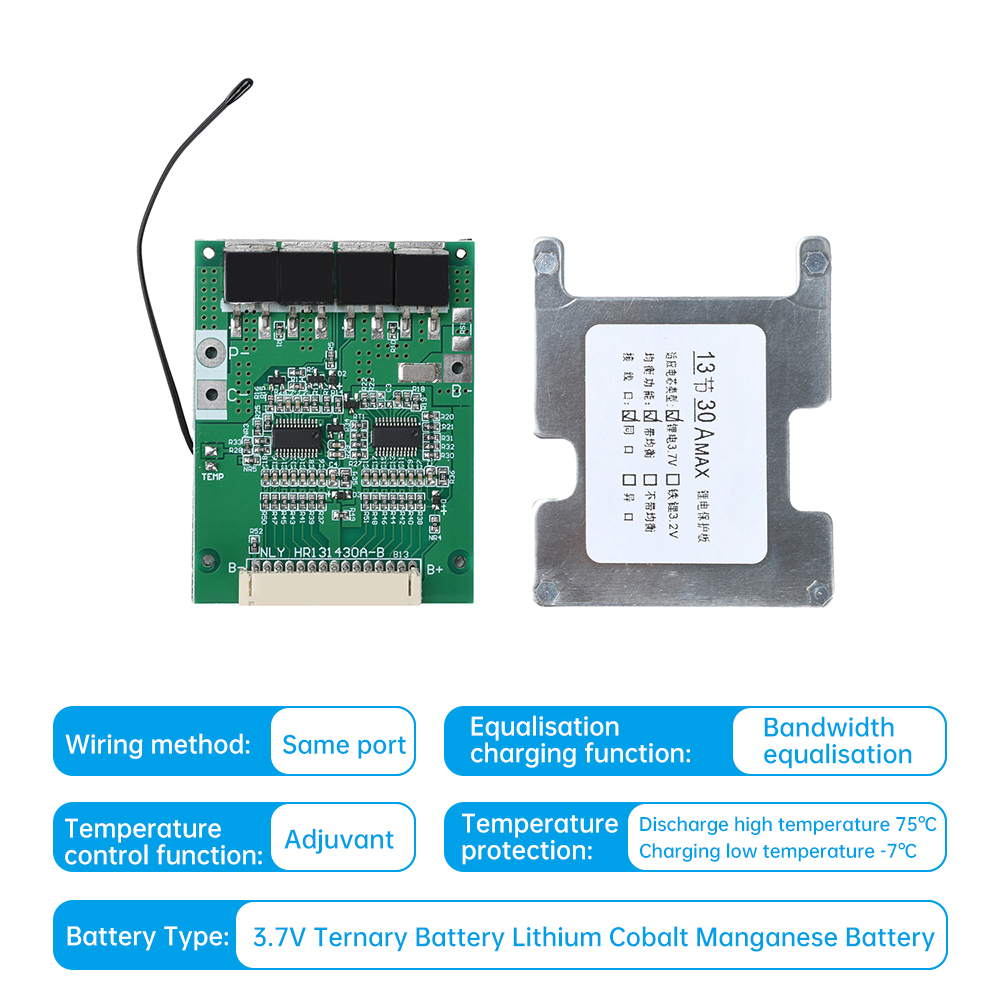

Wiring: the same port
Equalization charging function: with equalization
Applicable voltage power: 48V <1000W
Applicable battery type: 3.7V ternary battery lithium cobalt manganese lithium manganese batteries
Function: Lithium battery - overcharge protection; over discharge protection; over current protection; output short circuit protection
Maximum working current: 30A Max
Maximum continuous working current: 20A Max
Over-discharge protection voltage: 2.6V
Overcharge protection voltage: 4.25V
Charging current: 20A Max
Temperature protection: with this function Discharge high temperature 75℃; Charge low temperature -7C
Application areas: electric car; twisted car; electric power assisted car; scooter; inverter, etc.

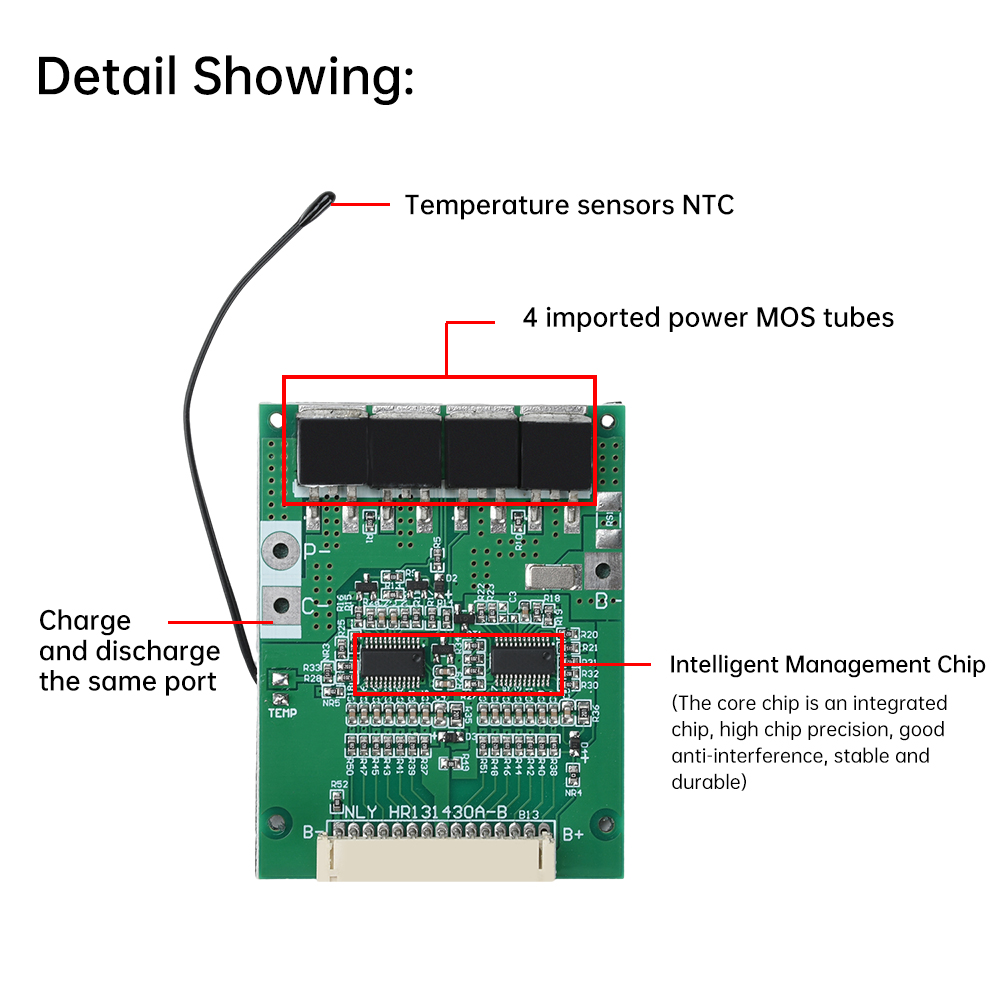

Features: compared with other ordinary models of distributed sampling small chip, the core of this product is an integrated chip, chip precision, anti-interference good, stable and durable!

Precautions:
Do a good job of anti-static, waterproof, dustproof work when wiring; use the process to avoid the occurrence of the protective plate was hit and squeezed.

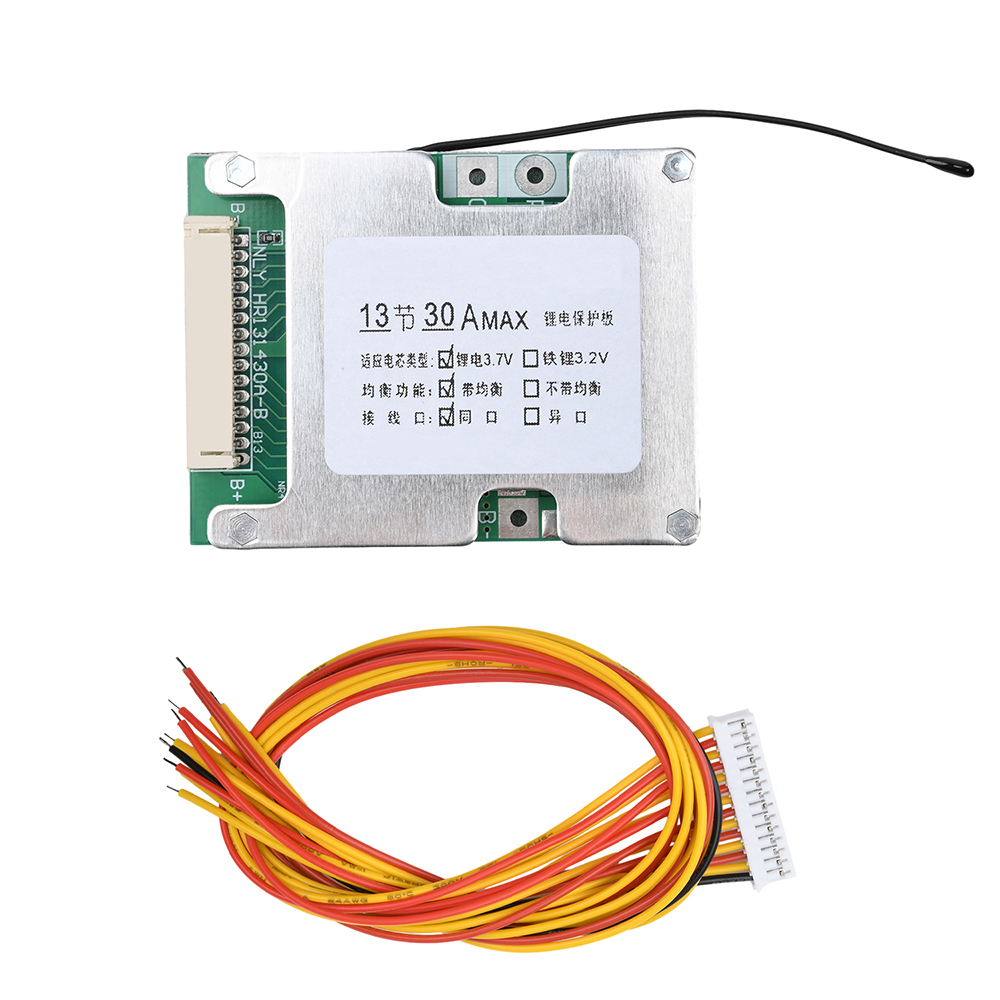

Package include:

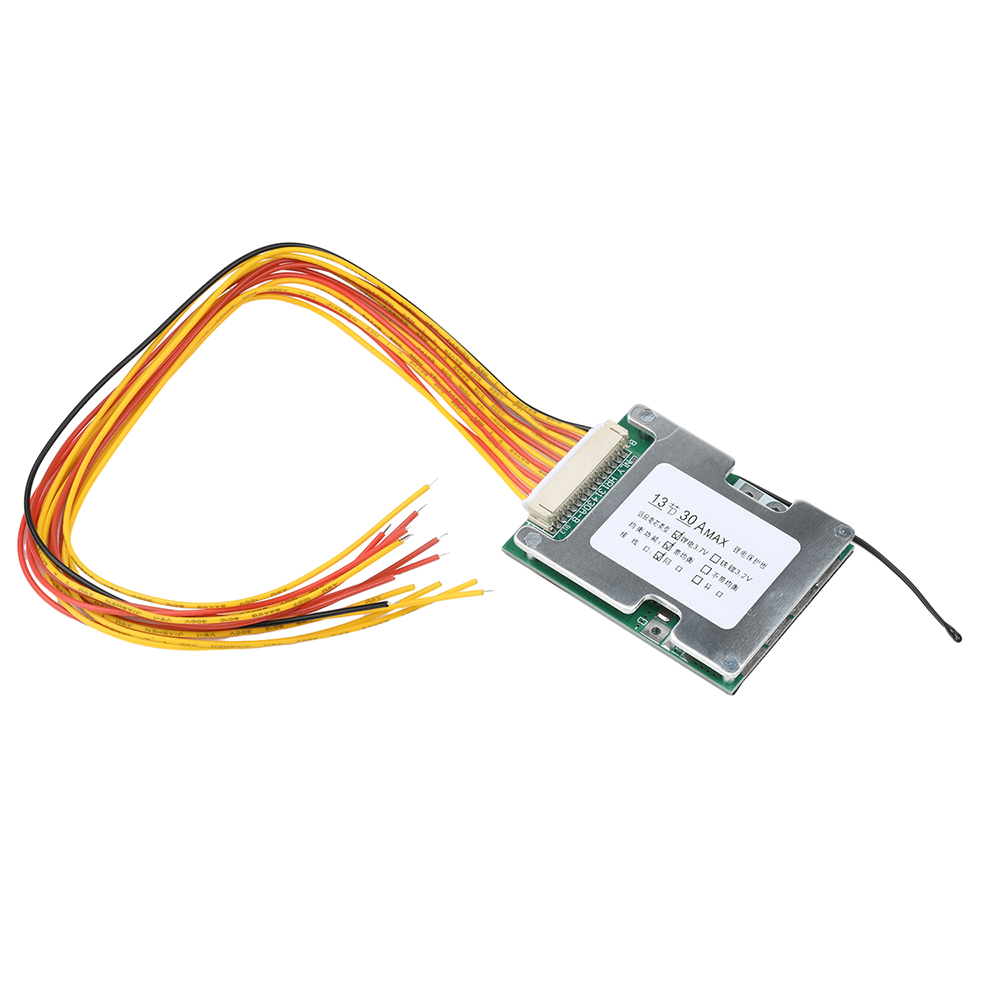

Module x1
Cable x1
