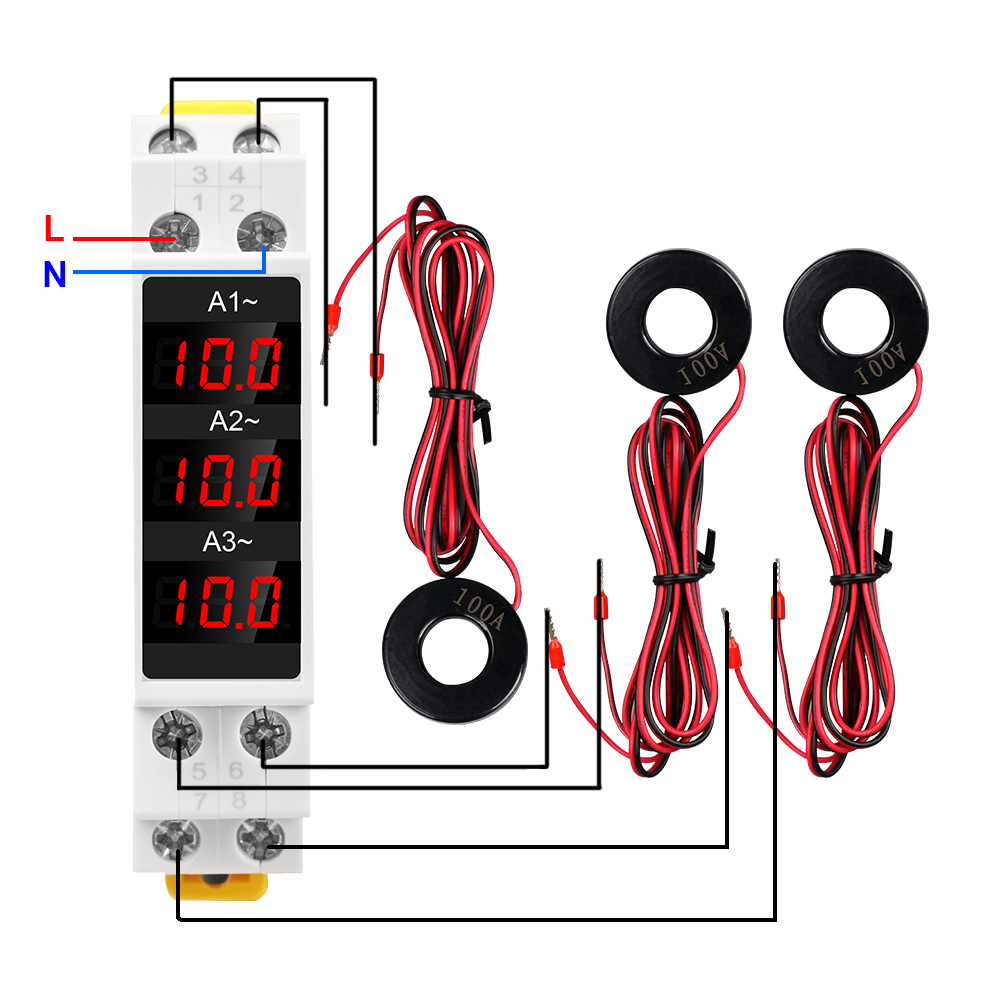

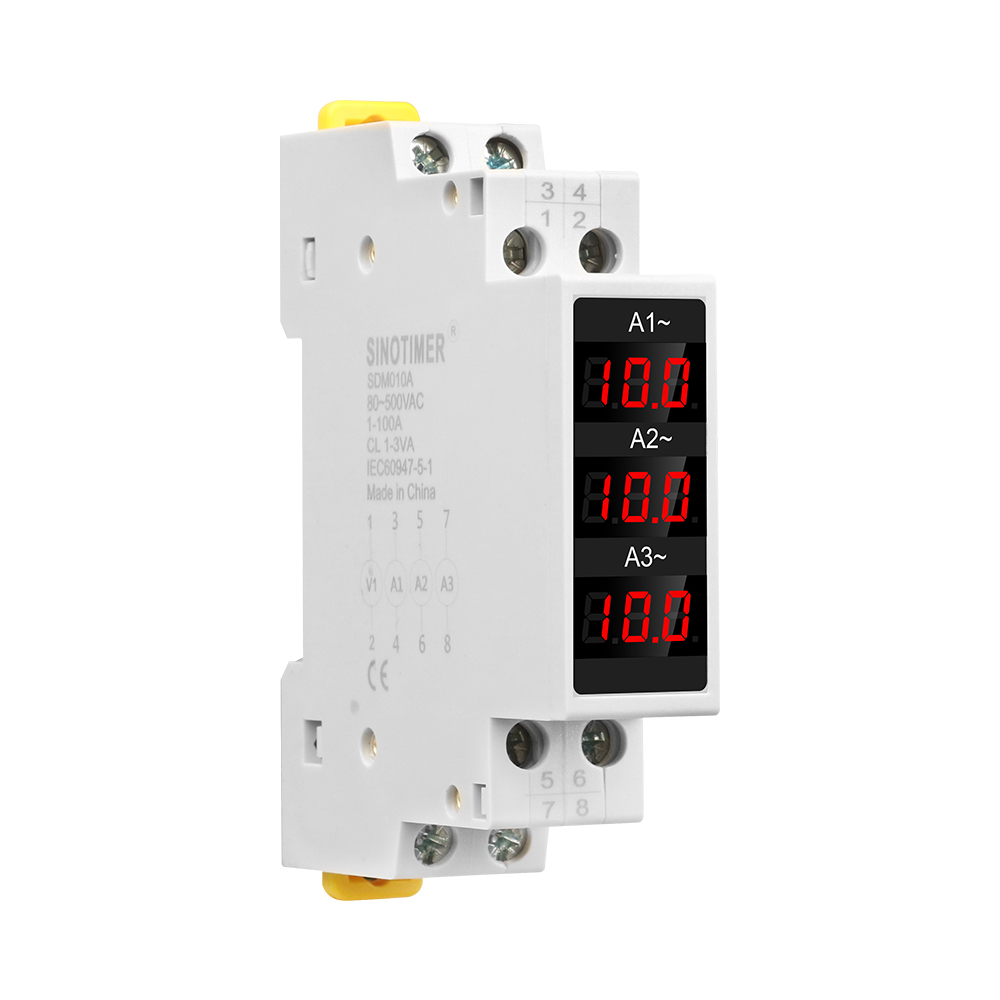

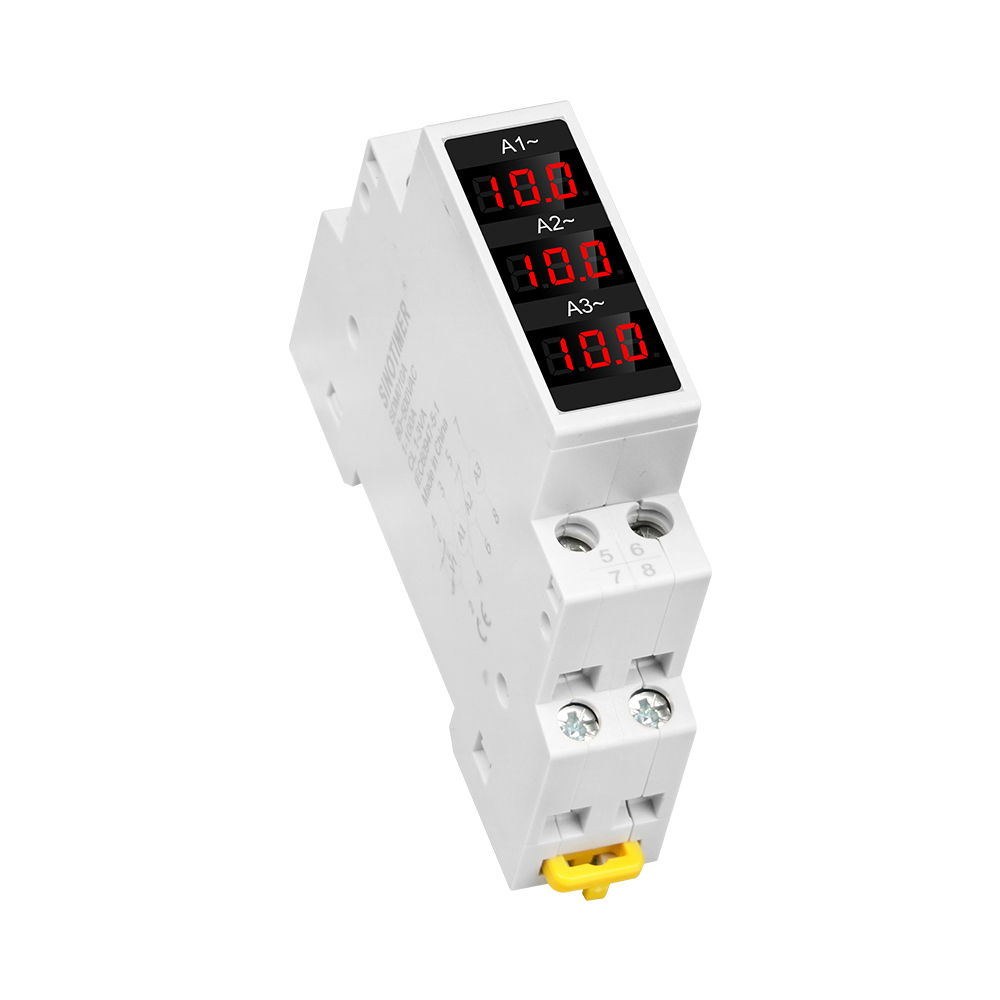

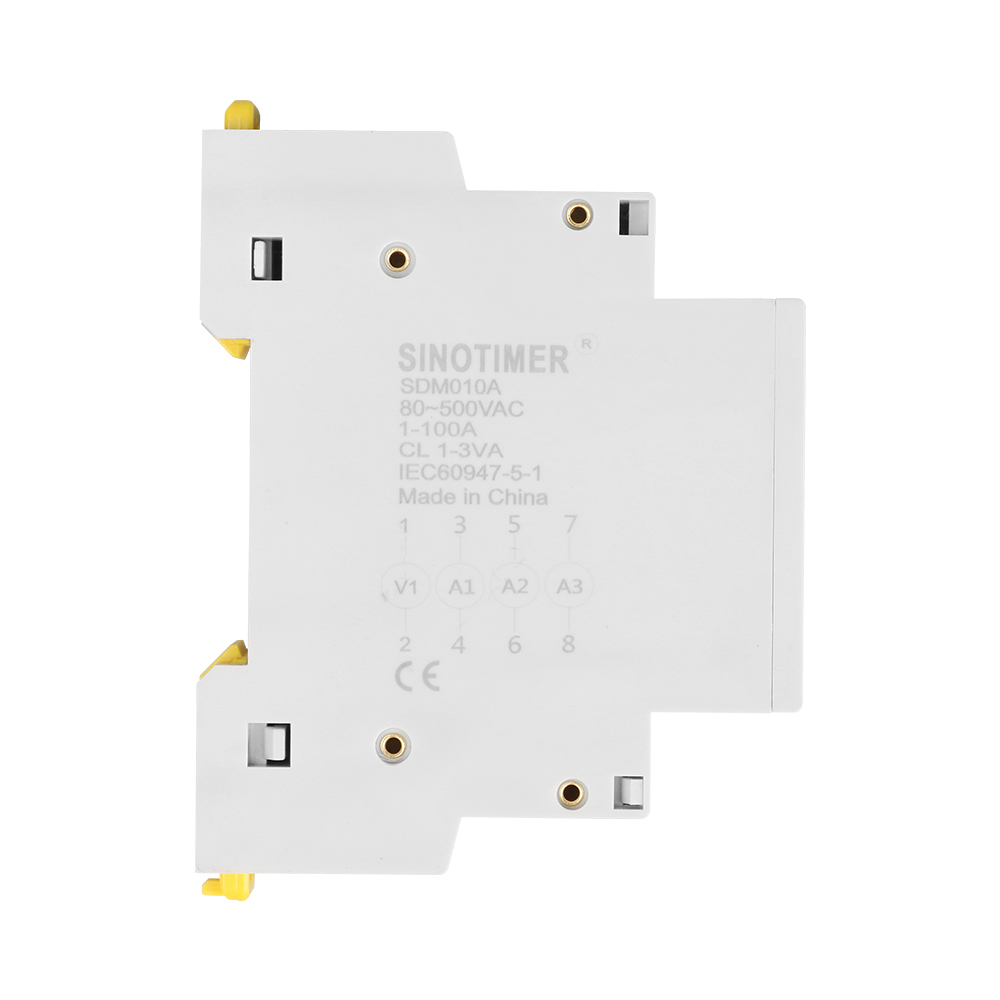

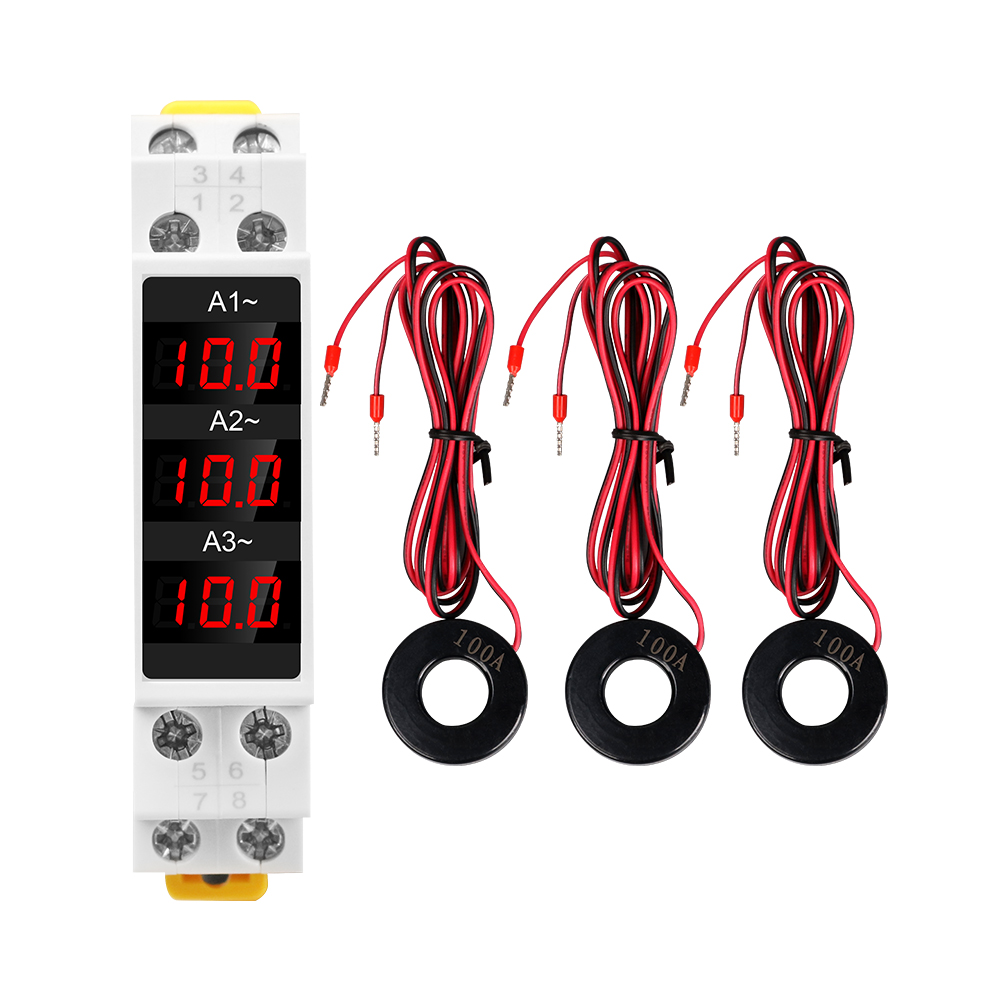

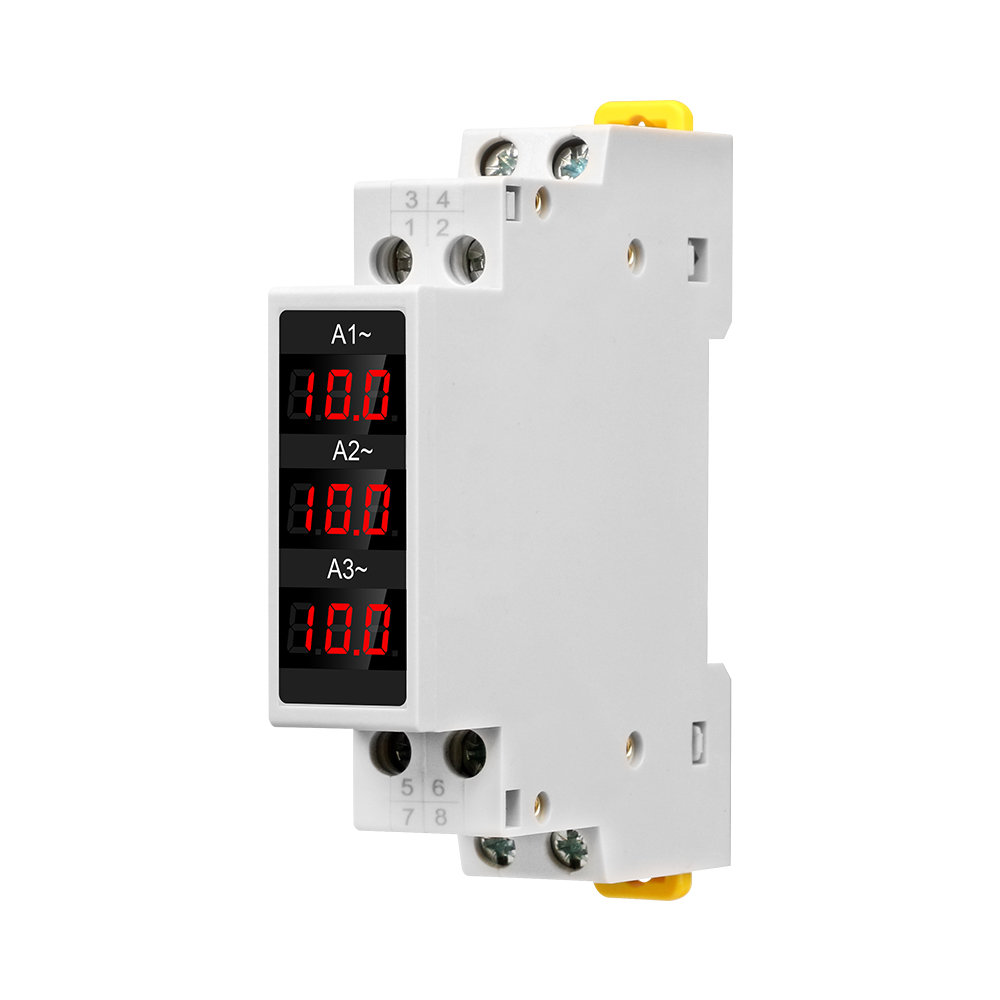

Three-Phase Ammeter

Features:
1. High-quality ABS material flame retardant shell, not easy to deform, durable.
2. High stability, high reliability, low power consumption, and easy rail mounting.
3. It can be used for real-time measurement of AC current of various electric field combinations with high precision.
4. LED liquid crystal display, easy to read, high measurement sensitivity, more intuitive and clear.
5. Widely used in test equipment, voltage regulator, regulator motor equipment and other occasions.

Parameter:
Supply voltage: AC 80~500V
Measuring current range: 1~100A
Accuracy: ±2%
Input circuit power consumption: 1~3VA
Operating Temperature: -25℃~+65℃

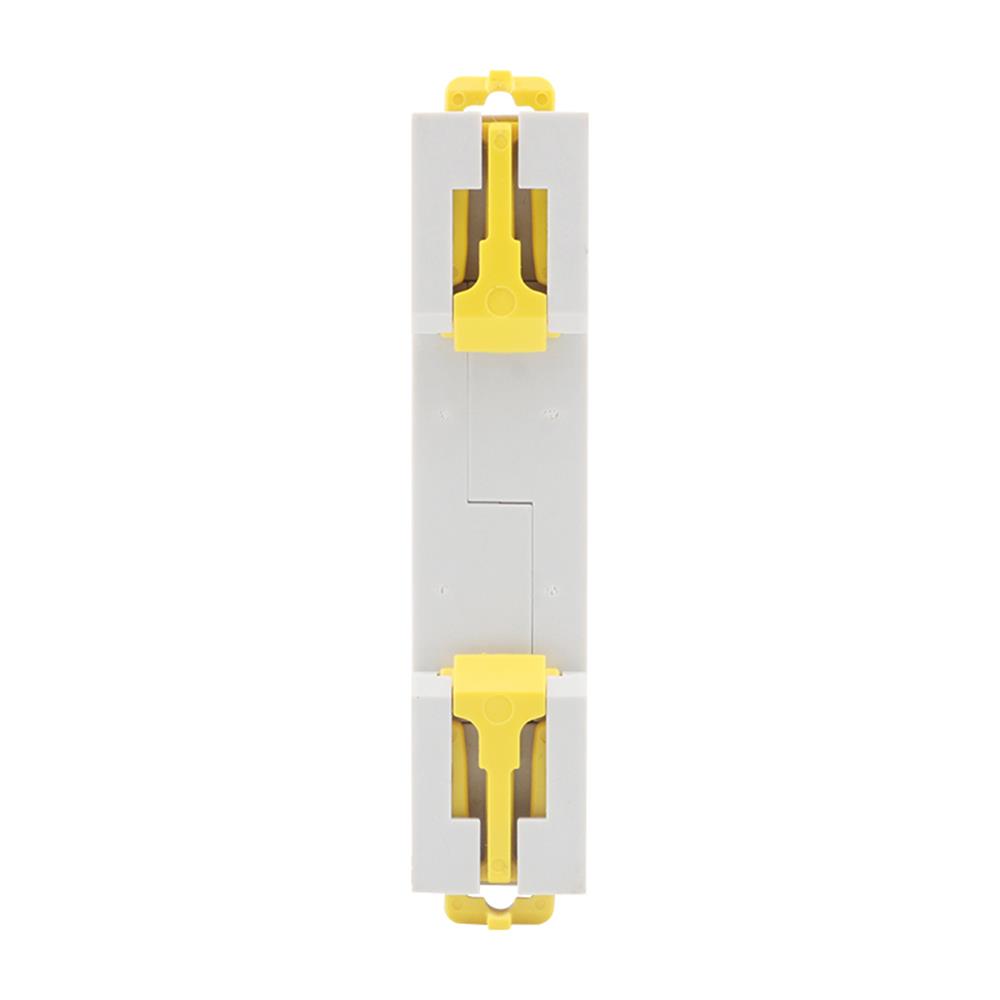

Installation: Din 35mm standard rail
Wire length: 1 meter

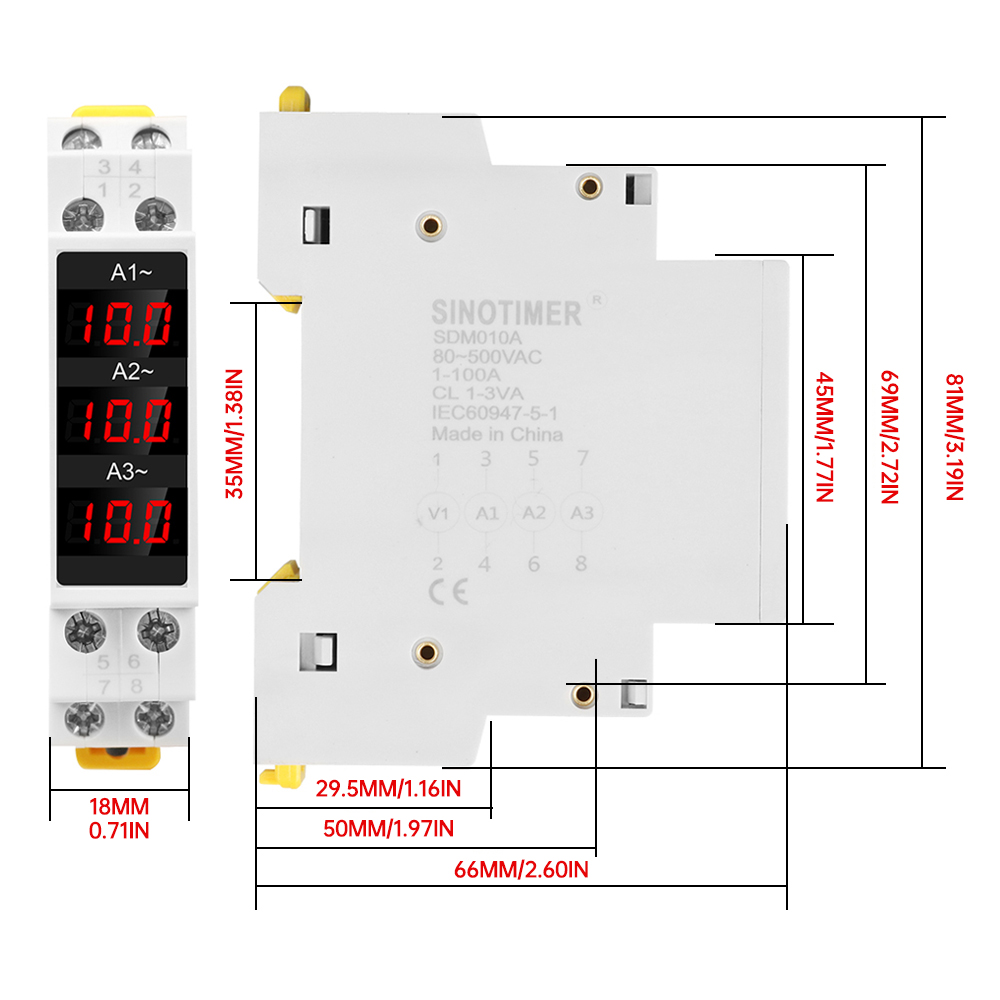

Product size: 81*66*18mm

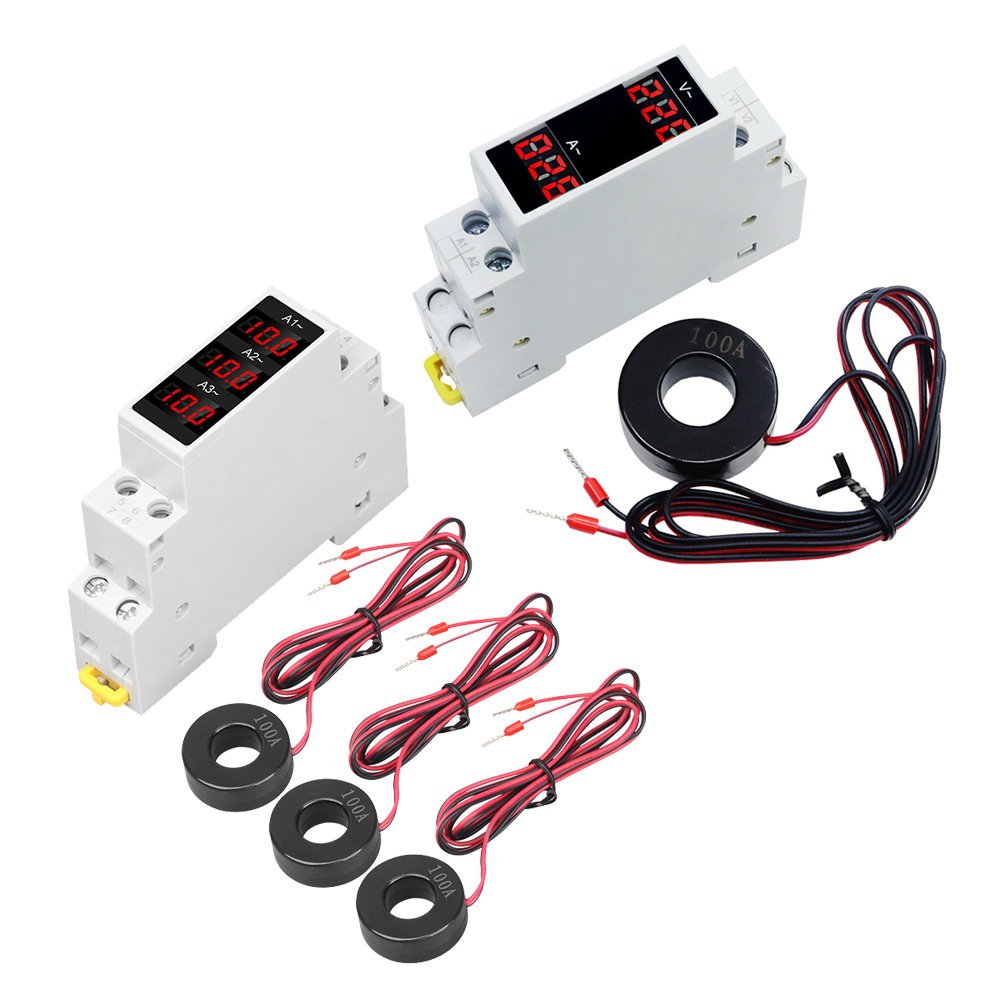

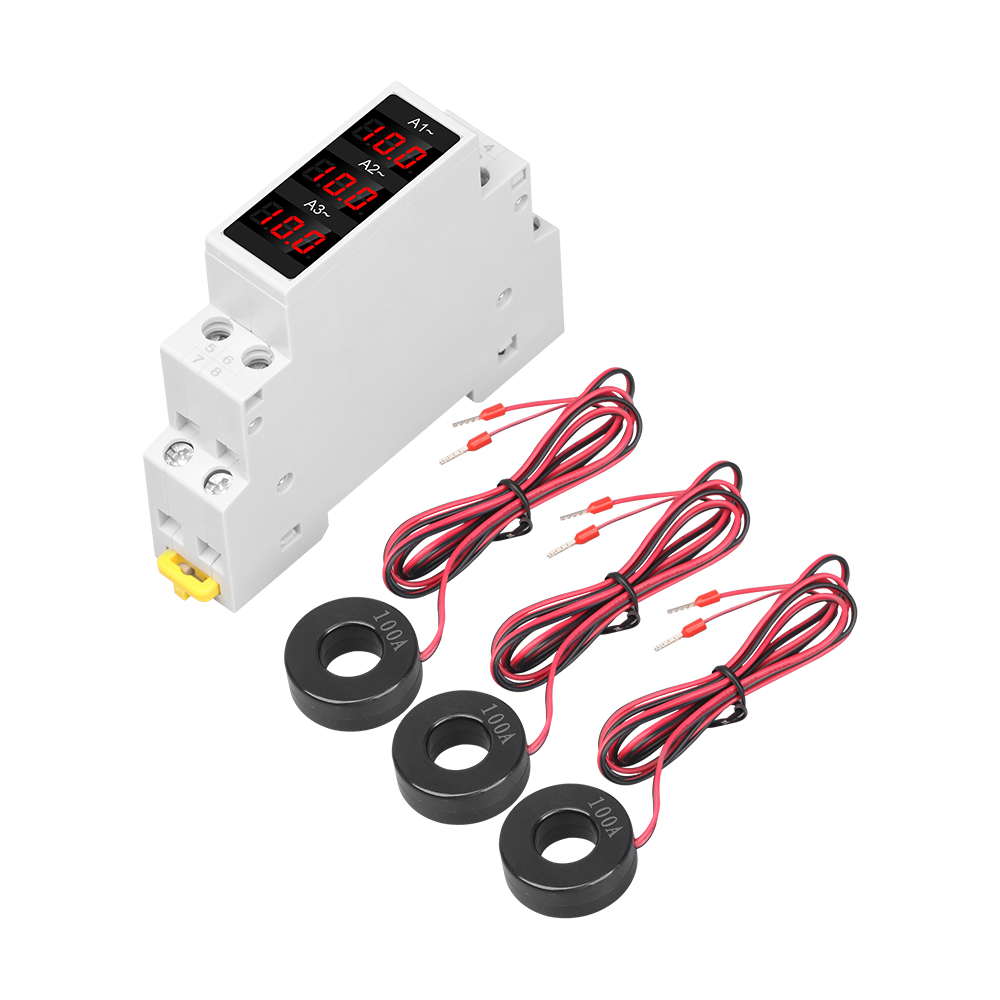

Package include:
Ammeter *1
Transformer *3

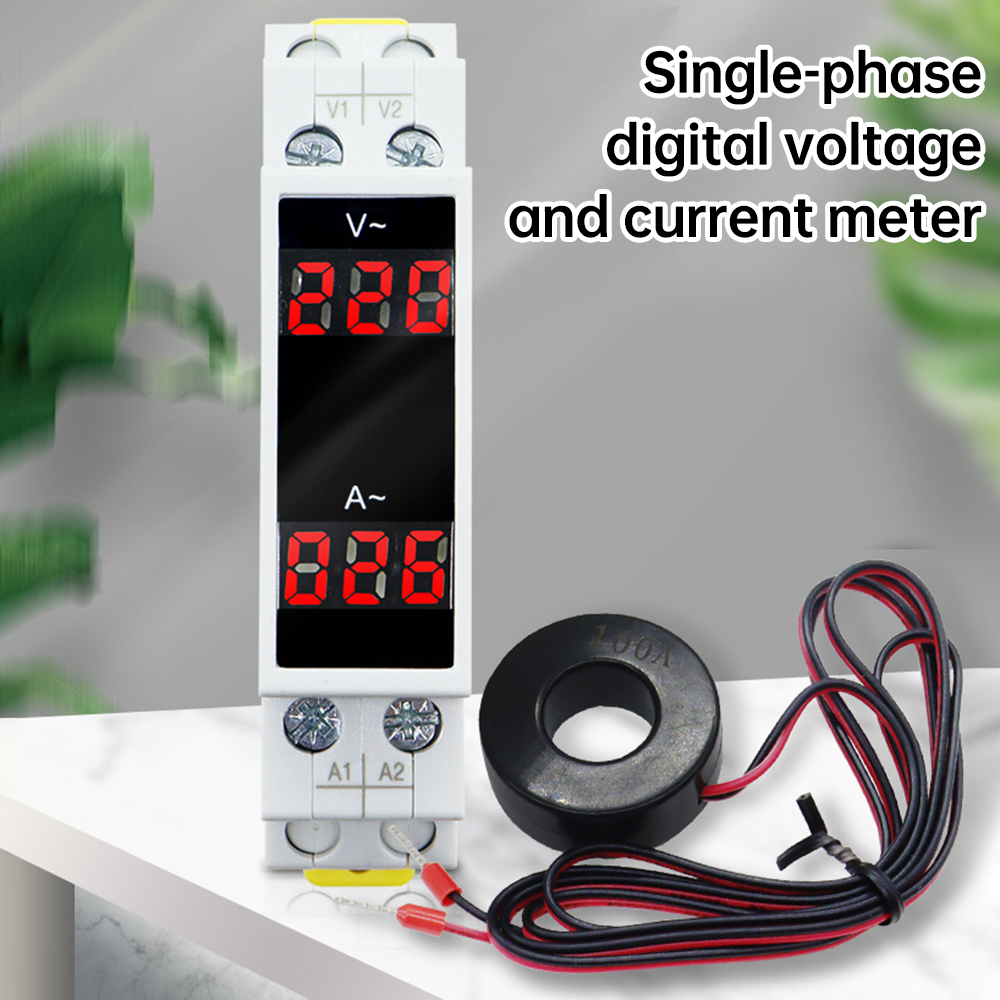

Single-Phase Voltage Current Meter

Features:
1. High quality ABS material flame retardant shell, not easy to deform, and durable.
2. High stability, high reliability, low power consumption, and convenient installation with guide rail.
3. LED liquid crystal display can simultaneously display voltage and current on the same screen, making it more intuitive and clear.
4. It can be used for real-time measurement of AC voltage and current of various electric field combinations, with high accuracy.
5. Widely used in testing equipment, voltage regulators, voltage regulating motor equipment, and other occasions.

Parameter:
Working voltage range: AC 80-500V
Current range: 1-100A
Rated frequency: 50-60Hz
Accuracy: ± 2%
Sampling frequency: approximately 1 time/second
Input circuit power consumption:<2VA
Installation method: DIN35mm standard guide rail
LED light color: red

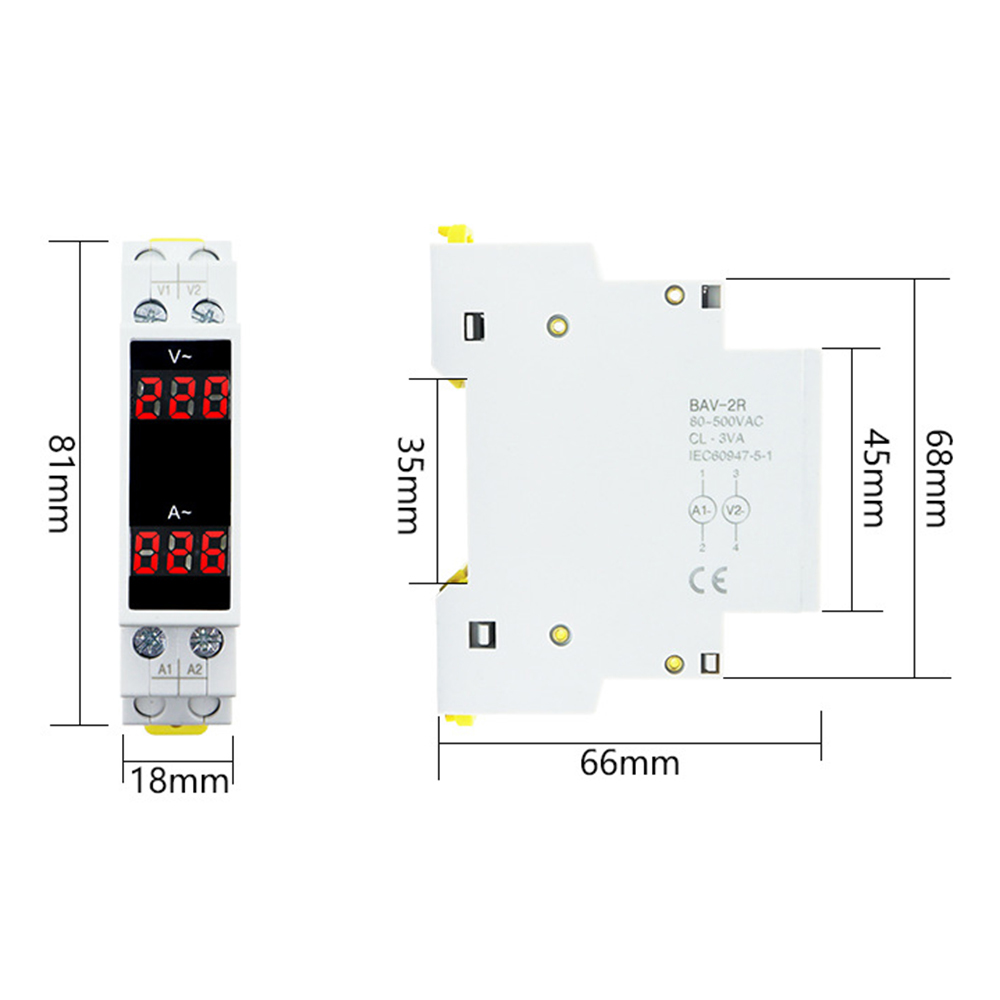

Product size: 81 * 66 * 18mm

Note: The voltage cannot exceed a fixed range and must be a pure sine wave current

Package include:
Voltammeter * 1
Transformer * 1
