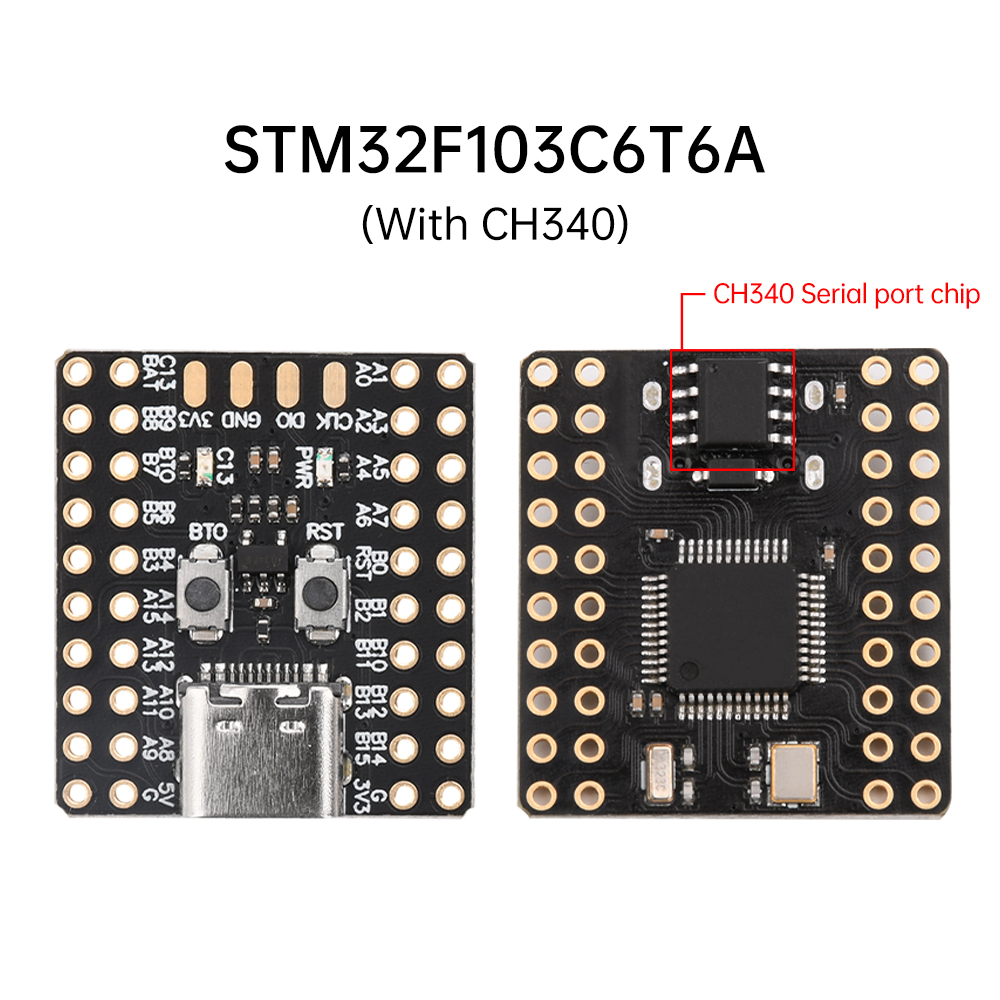

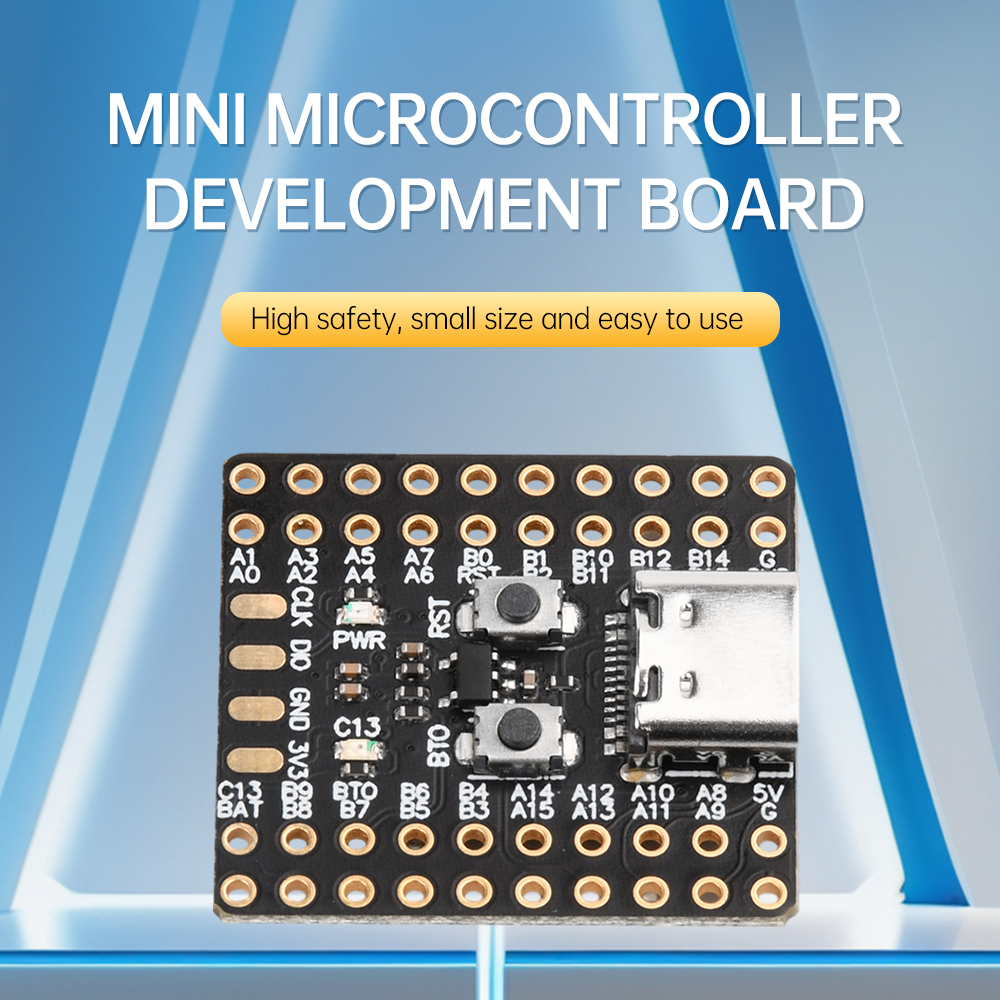

Mini STM32F103C8T6 STM32F103C6T6A CH340 Development Board ARM Minimum System
Product View
Detail

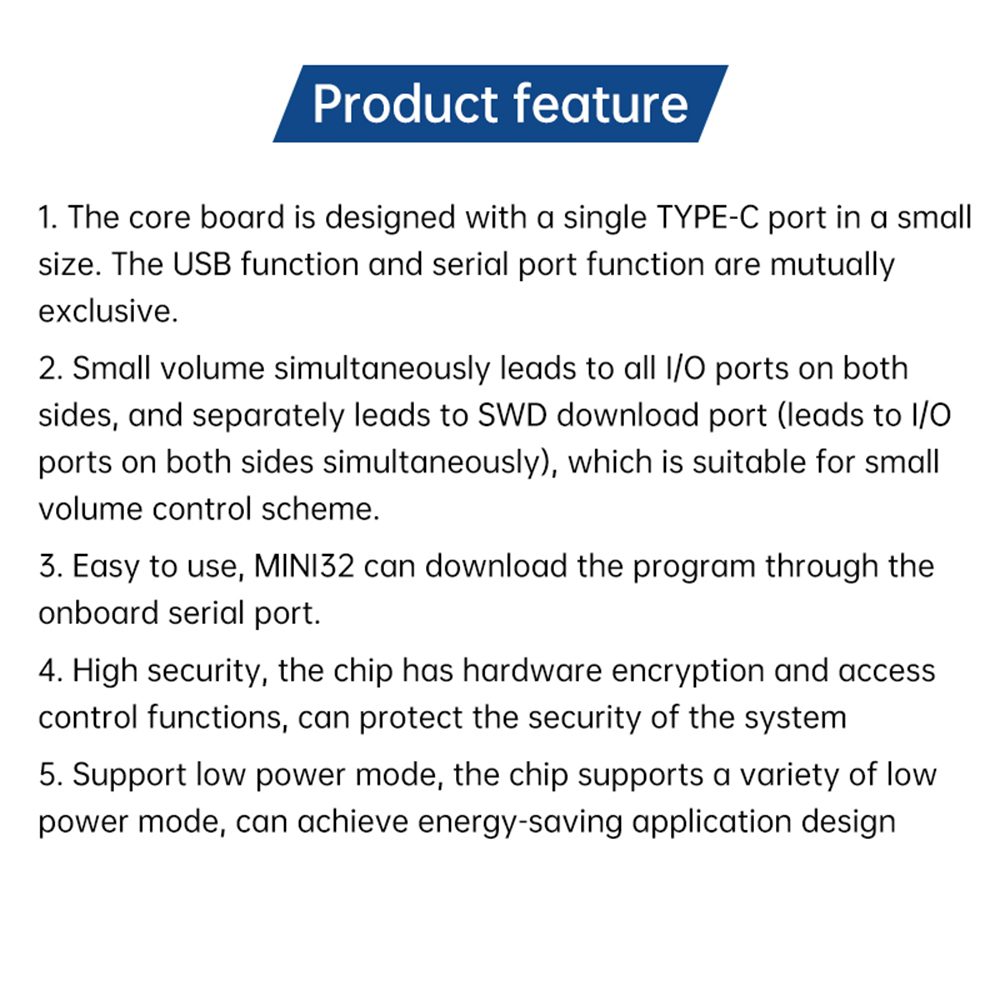

Features

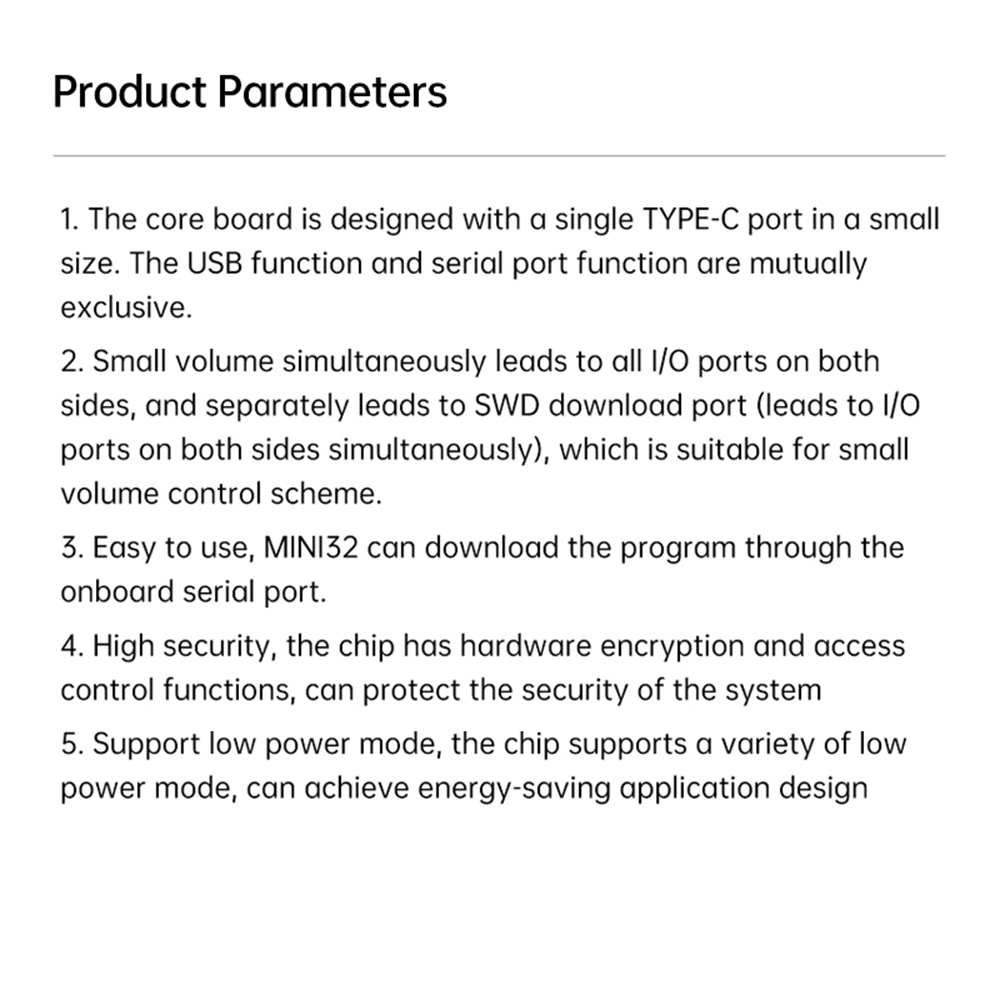

1. This core board for the pursuit of small volume for the single TYPE-C port design, USB function and serial port function for the two optional mutually exclusive design.

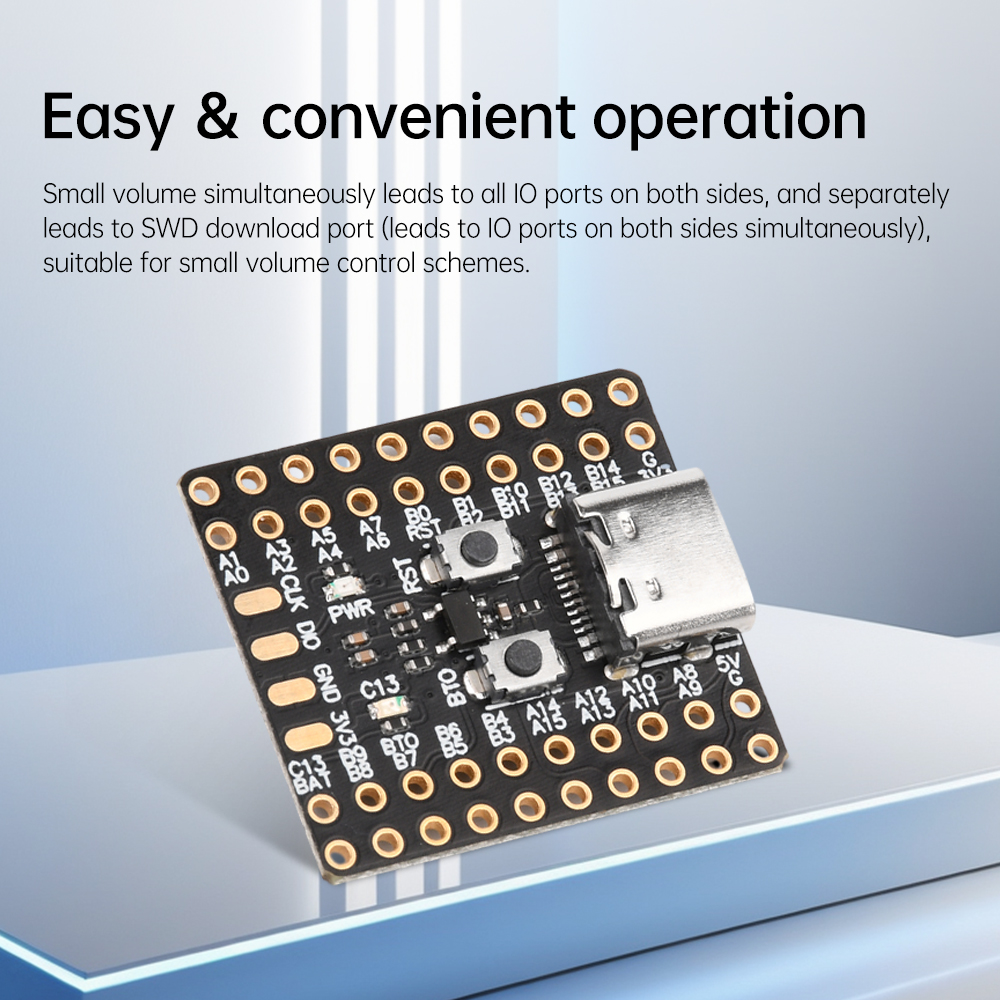

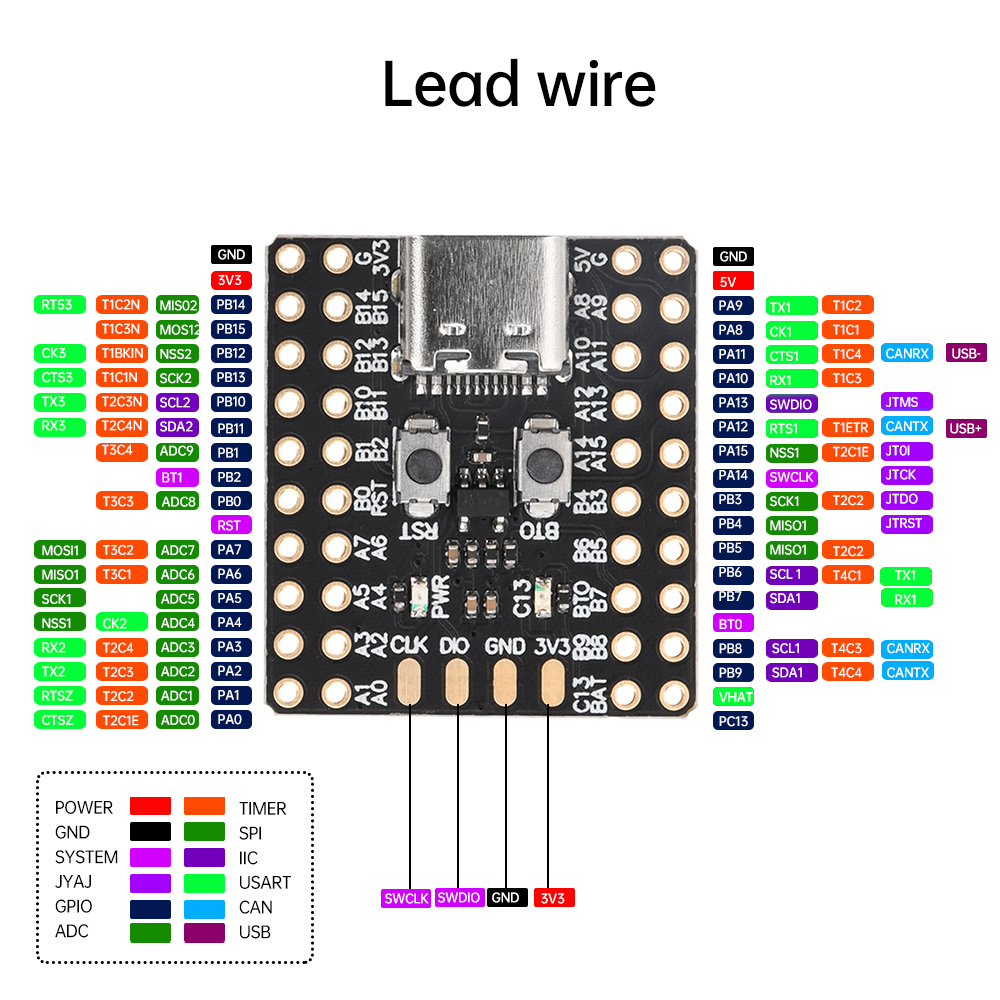

2. Small volume at the same time on both sides of the row of pins lead to all IO ports, and a separate lead to the SWD download port (both sides of the row of pins at the same time lead to IO ports), for small volume control program.
3. Easy to use, MINI32 can download the program through the on-board serial port.
4. High security, the chip has hardware encryption and access control functions to protect the security of the system.

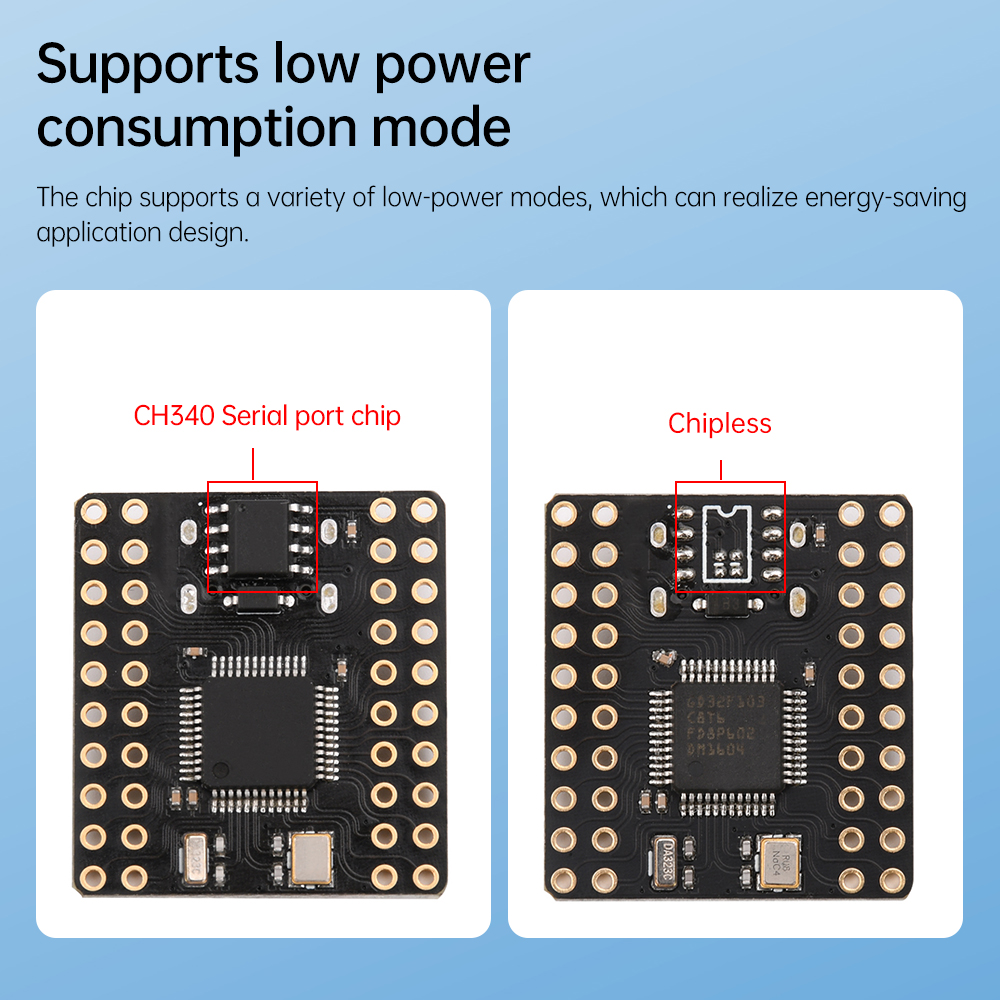

5. Support for low-power modes, the chip supports a variety of low-power modes, which can realize energy-saving application design.
1. This core board for the pursuit of small volume for the single TYPE-C port design, USB function and serial port function for the two optional mutually exclusive design.
2. Small volume at the same time on both sides of the row of pins lead to all IO ports, and a separate lead to the SWD download port (both sides of the row of pins at the same time lead to IO ports), for small volume control program.
3. Easy to use, MINI32 can download the program through the on-board serial port.
4. High security, the chip has hardware encryption and access control functions to protect the security of the system.
5. Support for low-power modes, the chip supports a variety of low-power modes, which can realize energy-saving application design.

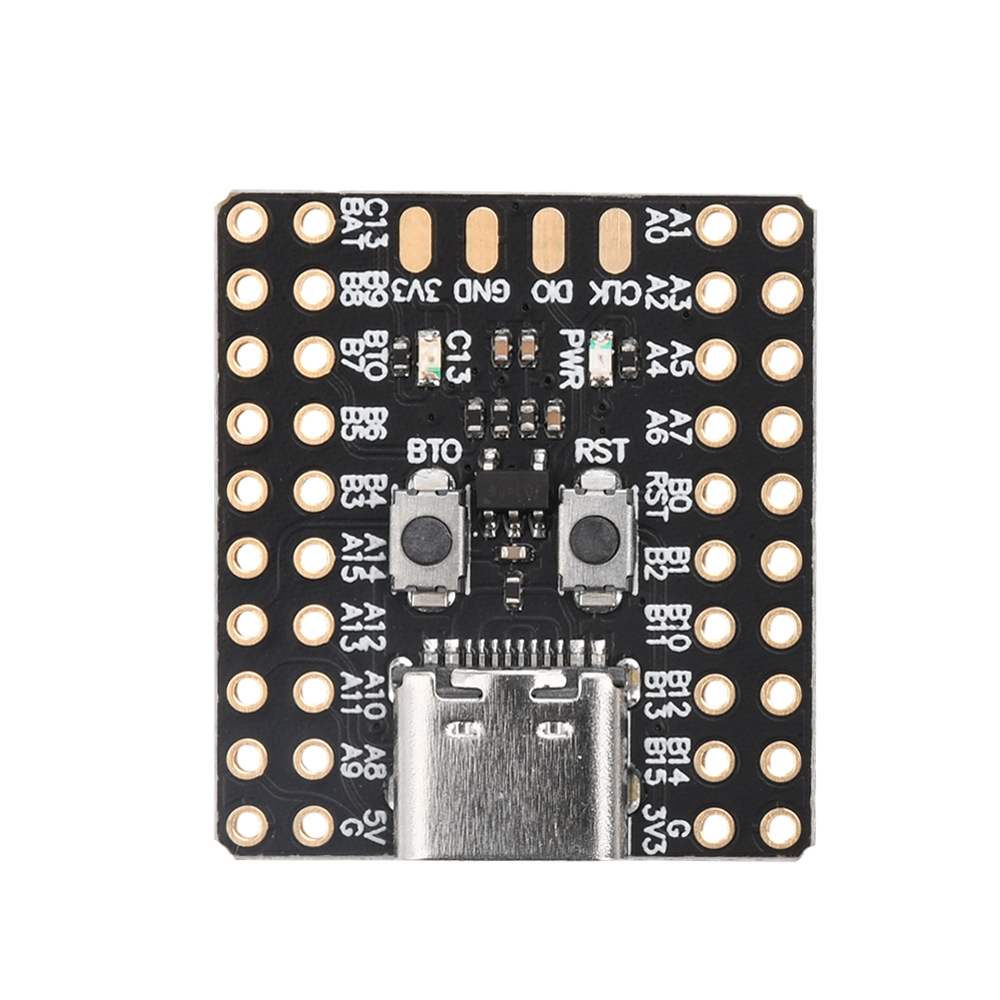

Specification
TYPE-C: power input, USB/serial port (CH340) one of the two options
Buttons: RST (reset button), BTO (BOOT mode selection button)
LED: PWR (POWER power indicator), C13 (user control indicator, PC13 control LED cathode)

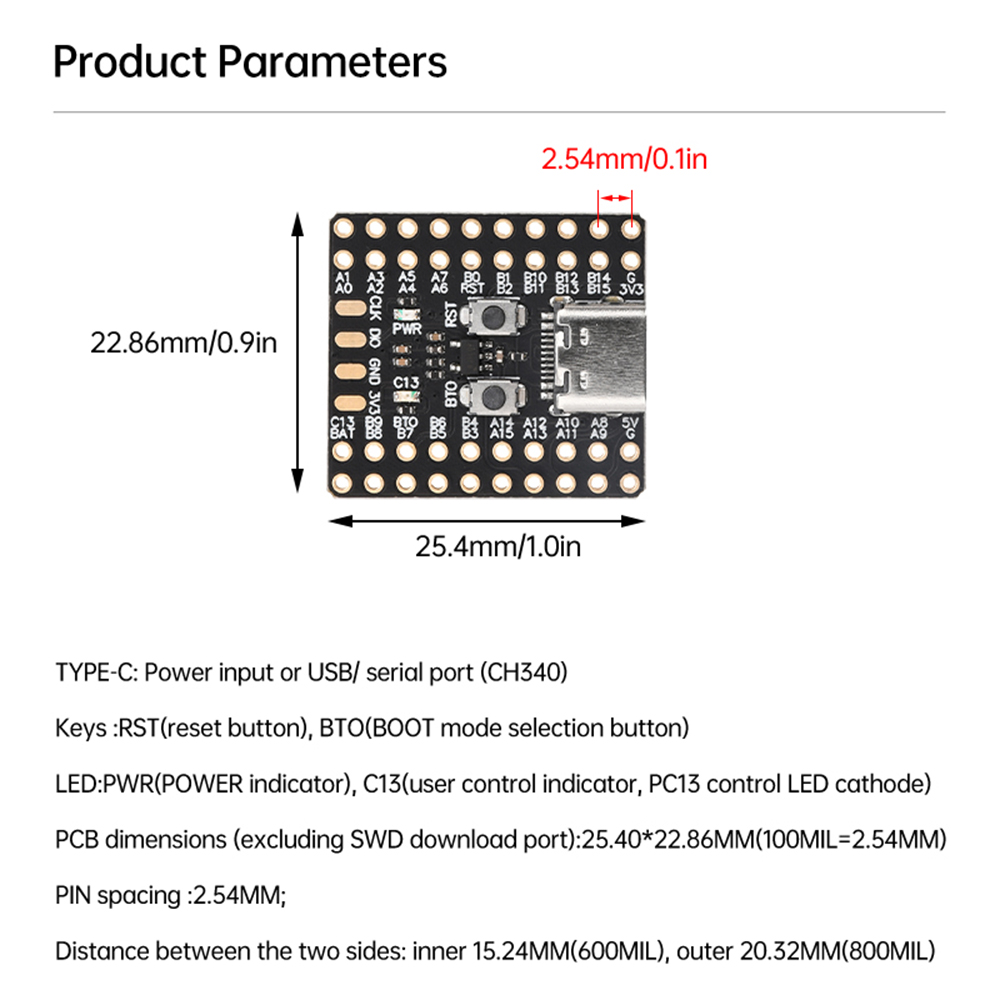

PCB external dimensions (excluding SWD download port): 25.40 * 22.86MM (100MIL = 2.54MM)
PIN spacing: 2.54MM.
Both sides of the row of pins distance: 15.24MM (600MIL) inside, outside 20.32MM (800MIL)
TYPE-C: power input, USB/serial port (CH340) one of the two options
Buttons: RST (reset button), BTO (BOOT mode selection button)
LED: PWR (POWER power indicator), C13 (user control indicator, PC13 control LED cathode)
PCB external dimensions (excluding SWD download port): 25.40 * 22.86MM (100MIL = 2.54MM)
PIN spacing: 2.54MM.
Both sides of the row of pins distance: 15.24MM (600MIL) inside, outside 20.32MM (800MIL)

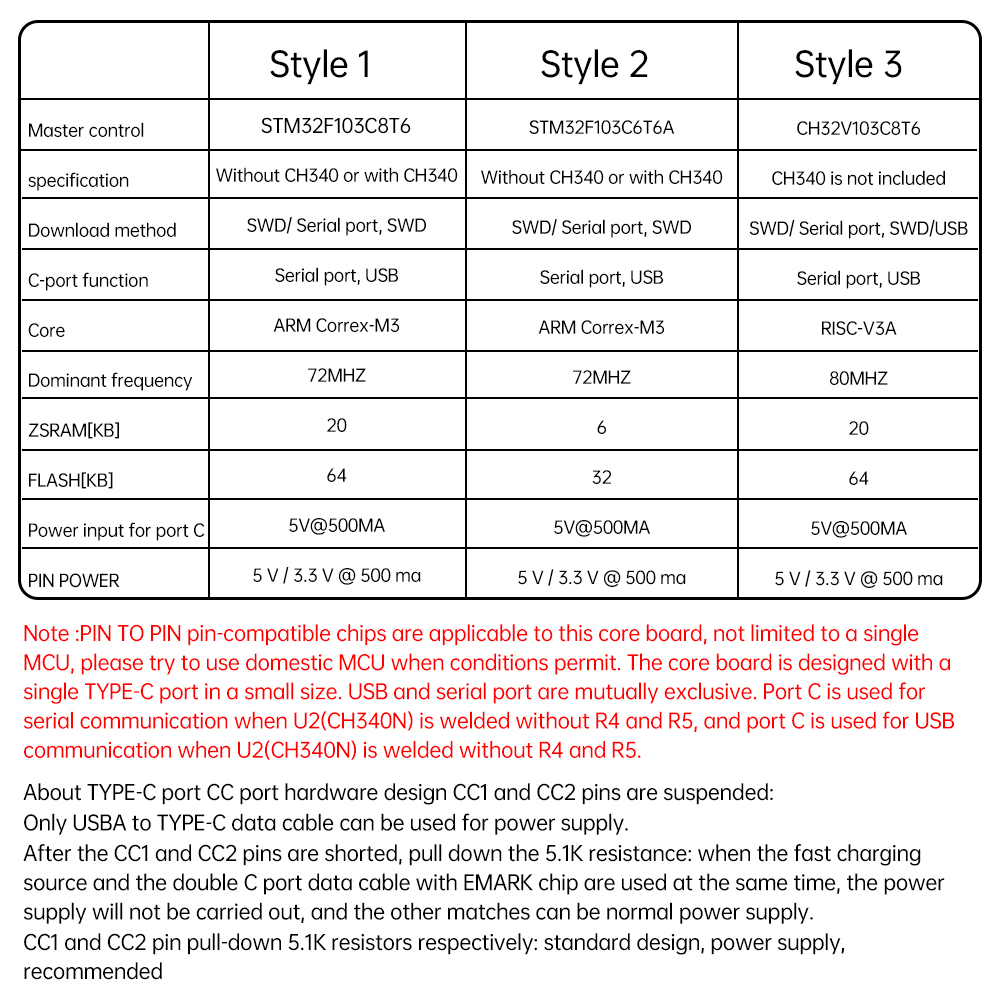

STM32F103C8T6 Specifications
STM32F103C8T6(without CH340)
STM32F103C8T6(with CH340)
Download mode: SWD/Serial, SWD
C-port function: Serial, USB
Kernel: ARM Correx-M3
Main frequency: 72MHZ
SRAM[KB]: 20
FLASH[KB]: 64
Port C power input: 5V@500MA
PIN POWER:5V/3.3V@500MA
STM32F103C8T6(without CH340)
STM32F103C8T6(with CH340)
Download mode: SWD/Serial, SWD
C-port function: Serial, USB
Kernel: ARM Correx-M3
Main frequency: 72MHZ
SRAM[KB]: 20
FLASH[KB]: 64
Port C power input: 5V@500MA
PIN POWER:5V/3.3V@500MA
STM32F103C6T6A Specifications
STM32F103C6T6A(without CH340)
STM32F103C6T6A(with CH340)
Download mode: SWD/Serial, SWD
C-port function: Serial, USB
Kernel: ARM Correx-M3
Main frequency: 72MHZ
SRAM[KB]: 6
FLASH[KB]: 32
Port C power input: 5V@500MA
PIN POWER:5V/3.3V@500MA
STM32F103C6T6A(without CH340)
STM32F103C6T6A(with CH340)
Download mode: SWD/Serial, SWD
C-port function: Serial, USB
Kernel: ARM Correx-M3
Main frequency: 72MHZ
SRAM[KB]: 6
FLASH[KB]: 32
Port C power input: 5V@500MA
PIN POWER:5V/3.3V@500MA
CH32V103C8T6 Specifications
Specification: CH32V103C8T6(without CH340)
Download mode: SWD/Serial, SWD/USB
C-port function: Serial, USB
Kernel: RISC-V3A
Main Frequency: 80MHZ
SRAM[KB]: 20
FLASH[KB]: 64
Port C power input: 5V@500MA
PIN POWER:5V/3.3V@500MA
Note: PIN TO PIN pin compatible chips are applicable to this core board, not limited to a single MCU, conditions allow, please try to use domestic MCU.

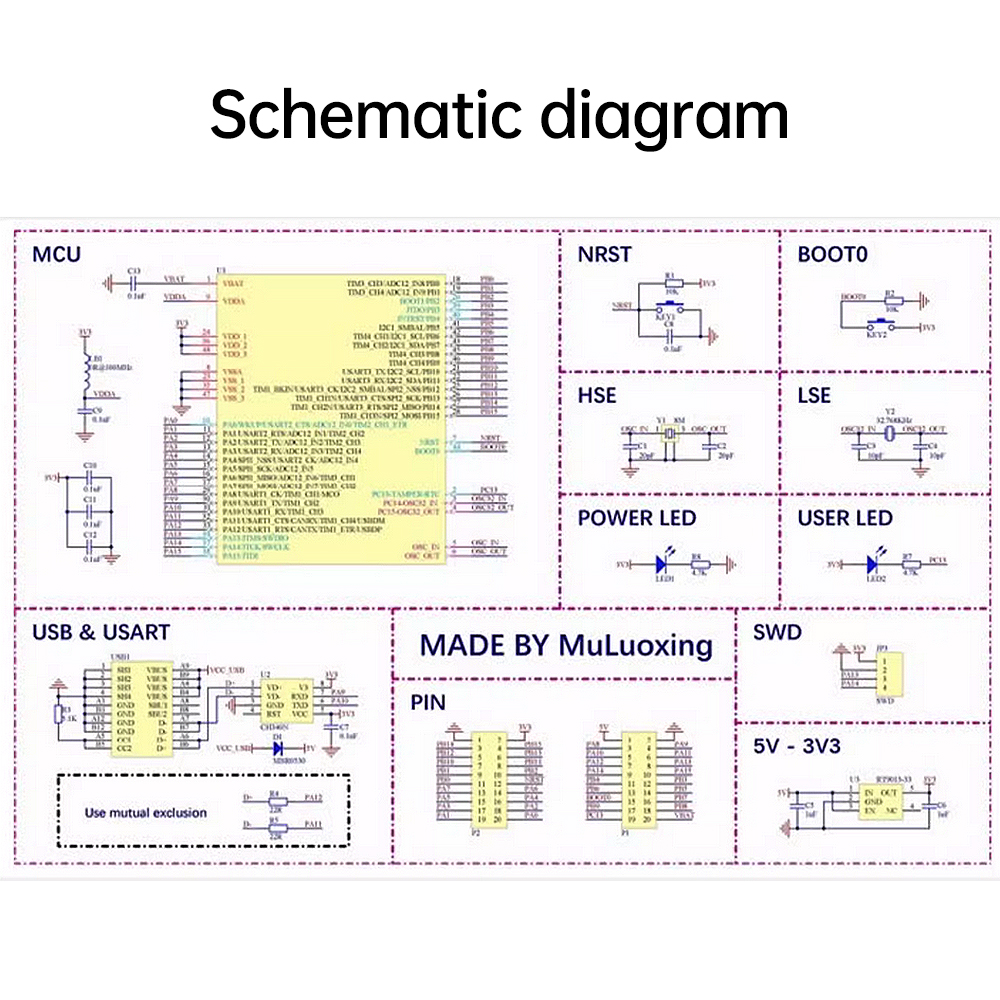

Core board for the pursuit of small size for a single TYPE-C port design, USB function and serial function for the two optional mutually exclusive design, welding U2 (CH340N) does not weld R4 and R5 when the C-port as a serial communication function, do not weld the U2 (CH340N) welded R4 and R5 when the C-port as a USB communication function to use.
About TYPE-C port CC port hardware design
CC1 and CC2 pins are empty: only USBA to TYPE-C port data cable can be used to supply power.
CC1 and CC2 pins are shorted and pulled down 5.1K resistor: when using fast charging source and double C-port data line with EMARK chip at the same time, no power will be supplied, and the rest of the matching can be supplied normally.
CC1 and CC2 pins respectively pull down 5.1K resistor: standard design, can be powered, recommended.
Specification: CH32V103C8T6(without CH340)
Download mode: SWD/Serial, SWD/USB
C-port function: Serial, USB
Kernel: RISC-V3A
Main Frequency: 80MHZ
SRAM[KB]: 20
FLASH[KB]: 64
Port C power input: 5V@500MA
PIN POWER:5V/3.3V@500MA
Note: PIN TO PIN pin compatible chips are applicable to this core board, not limited to a single MCU, conditions allow, please try to use domestic MCU.
Core board for the pursuit of small size for a single TYPE-C port design, USB function and serial function for the two optional mutually exclusive design, welding U2 (CH340N) does not weld R4 and R5 when the C-port as a serial communication function, do not weld the U2 (CH340N) welded R4 and R5 when the C-port as a USB communication function to use.
About TYPE-C port CC port hardware design
CC1 and CC2 pins are empty: only USBA to TYPE-C port data cable can be used to supply power.
CC1 and CC2 pins are shorted and pulled down 5.1K resistor: when using fast charging source and double C-port data line with EMARK chip at the same time, no power will be supplied, and the rest of the matching can be supplied normally.
CC1 and CC2 pins respectively pull down 5.1K resistor: standard design, can be powered, recommended.
List
1 x Core Board
1 x Core Board
