SAA-2N SAA-2 4" 2.8" NanoVNA V2 Vector Network Antenna Analyzer VHF UHF
Product View
Detail
4 Inch SAA-2N NanoVNA Network Antenna Analyzer
Description:
Practically made of high quality material, has a long service life
Portable and compact, easy to use and carry, the EVA storage bag is convenient to store and carry.
4.0 inch TFT LCD touch screen display.
The measuring frequency range is 50 kHz 3 GHz.
High stability, high sensitivity, high accuracy, greatly improved performance.sa
Made of high quality material, practical, easy to use and use, has a long service life.
Properties:
Practically made of high quality material, has a long service life
Portable and compact, easy to use and carry.
4.0 inch TFT LCD touch screen display.
The measuring frequency range is 50 kHz 3 GHz.
High stability, high sensitivity, high accuracy, greatly improved performance.
The EVA storage bag is convenient for storing and carrying.
Specifications:
Main material: PCB + iron
Color: Black
Battery: 1 * lithium battery, 3000mAh (included)
Measurement frequency range: 50KHz-3GHz
Frequency tolerance: £ Œ 2ppm
Frequency stability: £ Œ 0.5 ppm
System dynamic range (calibration): 70 dB (up to 1.5 GHz), 60 dB (up to 3 GHz)
S11 noise floor (calibration): -50 dB (up to 1.5 GHz), -40 dB (up to 3 GHz)
Sampling rate: 100 points / second
Display: 4.0 inches, 320 * 480
USB interface: micro USB
Power supply: USB, maximum charging current 1A
Battery connector: JST-XH 2.54 mm
Maximum sweep points (on the device): 201
Maximum sweep points (USB): 1024
Port 2 return loss (1.5 GHz): 20 dB typ
Port 2 return loss (3 GHz): 13 dB MIN
Item size: 117 * 85 * 25mm / 4.6 * 3.3 * 1.0in
Item weight: 368 g
Package size: 215 * 137 * 85mm / 8.5 * 5.4 * 3.3in
Package weight: 972 g
Note:
Download the VNA-QT software: https://github.com/nanovna/NanoVNA-QT/releases
Packing list:
1 * SAA-2N host
1 * Micro USB data cable
2 * 500mm N-Type-Male-Male-RG142-PUR-HF-Cable
1 * N-type male calibration kit-OPEN
1 * N-type calibration kit for men - SHORT
1 * N-type male calibration kit-LOAD
1 * N type female to female
1 * EVA storage bag
1 * touch screen paddle and lanyard
Practically made of high quality material, has a long service life
Portable and compact, easy to use and carry, the EVA storage bag is convenient to store and carry.
4.0 inch TFT LCD touch screen display.
The measuring frequency range is 50 kHz 3 GHz.
High stability, high sensitivity, high accuracy, greatly improved performance.sa
Made of high quality material, practical, easy to use and use, has a long service life.
Properties:
Practically made of high quality material, has a long service life
Portable and compact, easy to use and carry.
4.0 inch TFT LCD touch screen display.
The measuring frequency range is 50 kHz 3 GHz.
High stability, high sensitivity, high accuracy, greatly improved performance.
The EVA storage bag is convenient for storing and carrying.
Specifications:
Main material: PCB + iron
Color: Black
Battery: 1 * lithium battery, 3000mAh (included)
Measurement frequency range: 50KHz-3GHz
Frequency tolerance: £ Œ 2ppm
Frequency stability: £ Œ 0.5 ppm
System dynamic range (calibration): 70 dB (up to 1.5 GHz), 60 dB (up to 3 GHz)
S11 noise floor (calibration): -50 dB (up to 1.5 GHz), -40 dB (up to 3 GHz)
Sampling rate: 100 points / second
Display: 4.0 inches, 320 * 480
USB interface: micro USB
Power supply: USB, maximum charging current 1A
Battery connector: JST-XH 2.54 mm
Maximum sweep points (on the device): 201
Maximum sweep points (USB): 1024
Port 2 return loss (1.5 GHz): 20 dB typ
Port 2 return loss (3 GHz): 13 dB MIN
Item size: 117 * 85 * 25mm / 4.6 * 3.3 * 1.0in
Item weight: 368 g
Package size: 215 * 137 * 85mm / 8.5 * 5.4 * 3.3in
Package weight: 972 g
Note:
Download the VNA-QT software: https://github.com/nanovna/NanoVNA-QT/releases
Packing list:
1 * SAA-2N host
1 * Micro USB data cable
2 * 500mm N-Type-Male-Male-RG142-PUR-HF-Cable
1 * N-type male calibration kit-OPEN
1 * N-type calibration kit for men - SHORT
1 * N-type male calibration kit-LOAD
1 * N type female to female
1 * EVA storage bag
1 * touch screen paddle and lanyard
2.8 Inch SAA-2 NanoVNA Network Antenna Analyzer
Description:
S-A-A-2 NanoVNA V2 3GHz vector network analyzer is a vector network analyzer with higher measurement frequency developed and produced under the LGPL license agreement and based on the design of OwOComm. SAA-2/NanoVNA V2 uses a similar user interface to NanoVNA, but uses a different technical architecture. SAA-2/NanoVNA V2 does not load the initial calibration data at startup, and does not automatically insert calibration data after the user changes the frequency. The calibration data must be recalibrated or recalled after the second start and frequency change.
Specification:
Frequency Range: 50kHz-3GHz
System Dynamic Range (After Calibration): 70dB (Up To 1.5GHz); 60dB (Up To 3GHz)
S11 Noise Floor (After Calibration): -50dB (Up To 1.5GHz); -40dB (Up To 3GHz)
Scanning Speed: 100 Points/Second
Display: 2.8 inch, 320 x 240
USB Interface: Micro USB
Power Supply: USB, Maximum Charging Current 1A
Battery: 1950mAh Lithium Ion
Battery Connector: JST-XH 2.54mm
Maximum Scan Point (On Device Screen): 201
Maximum Scan Point (USB): 1024
Port 2 Return Loss (1.5GHz): 20dB Typ
Port 2 Return Loss (3GHz): 13dB MIN
VNA-QT Software Compatible System: for Linux, Windows (7+), Mac OS planned
Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3mm measuring deviation due to manual measurement.
S-A-A-2 NanoVNA V2 3GHz vector network analyzer is a vector network analyzer with higher measurement frequency developed and produced under the LGPL license agreement and based on the design of OwOComm. SAA-2/NanoVNA V2 uses a similar user interface to NanoVNA, but uses a different technical architecture. SAA-2/NanoVNA V2 does not load the initial calibration data at startup, and does not automatically insert calibration data after the user changes the frequency. The calibration data must be recalibrated or recalled after the second start and frequency change.
Specification:
Frequency Range: 50kHz-3GHz
System Dynamic Range (After Calibration): 70dB (Up To 1.5GHz); 60dB (Up To 3GHz)
S11 Noise Floor (After Calibration): -50dB (Up To 1.5GHz); -40dB (Up To 3GHz)
Scanning Speed: 100 Points/Second
Display: 2.8 inch, 320 x 240
USB Interface: Micro USB
Power Supply: USB, Maximum Charging Current 1A
Battery: 1950mAh Lithium Ion
Battery Connector: JST-XH 2.54mm
Maximum Scan Point (On Device Screen): 201
Maximum Scan Point (USB): 1024
Port 2 Return Loss (1.5GHz): 20dB Typ
Port 2 Return Loss (3GHz): 13dB MIN
VNA-QT Software Compatible System: for Linux, Windows (7+), Mac OS planned
Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3mm measuring deviation due to manual measurement.

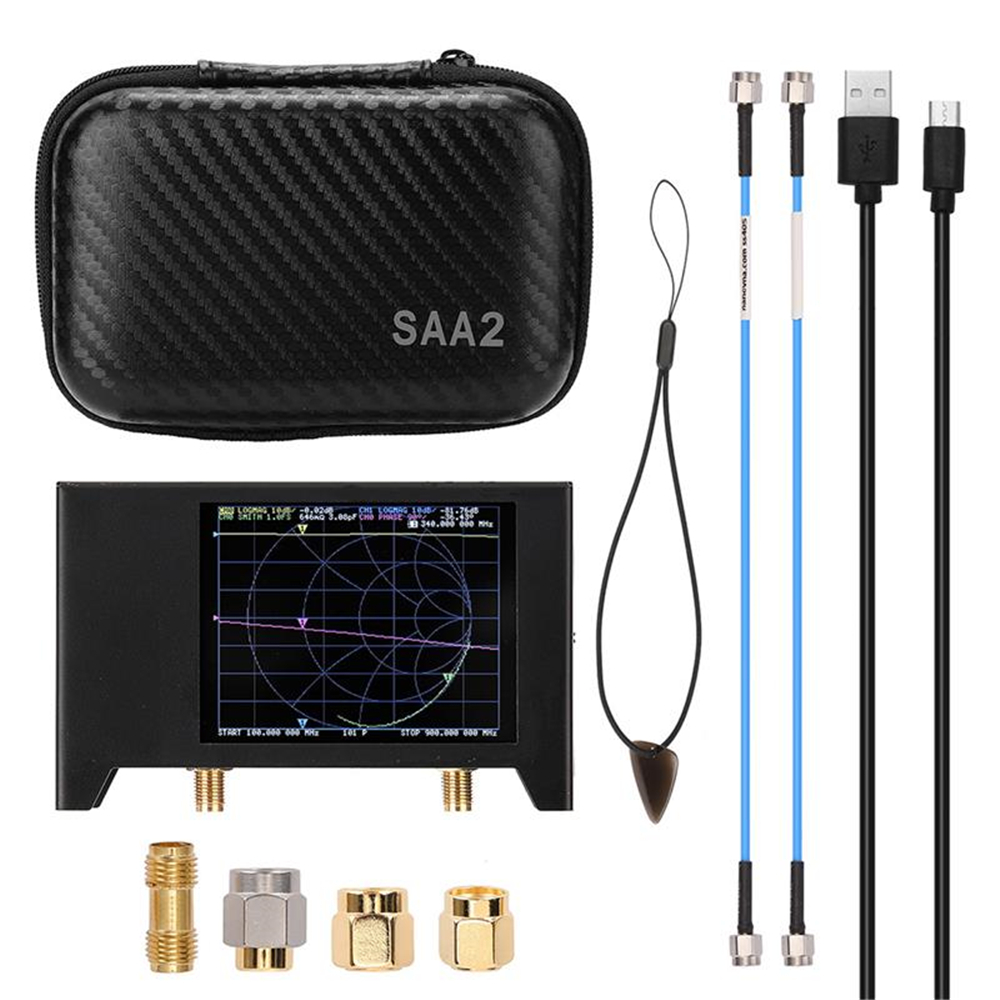

Package included:
1 X S-A-A-2 Host1 X USB Data Cable
2 X 300mm SMA Male to Male SS405 RF Cable
1 X SMA Male Calibration Kit-OPEN
1 X SMA Male Calibration Kit-SHORT
1 X SMA Male Calibration Kit-LOAD
1 X SMA Female to Female Connector
1 X Set of Accessories
Copyright © 2017 DataDaciques
