TPA3116D2 2*120W 100W Wireless Bluetooth 4.0 Digital Amplifier Audio Receiver

Product View

Detail

100W

Description:
Chip Type: TPA3116D2
Supply voltage: dc12-26v
Output Power: 100W
SNR: 100db
Channels: Mono
size: 79 * 54 * 16MM

Package Included :
1 X DC 12V 24V 100W TPA3116DA Mono Channel Digital Power Audio Amplifier Board

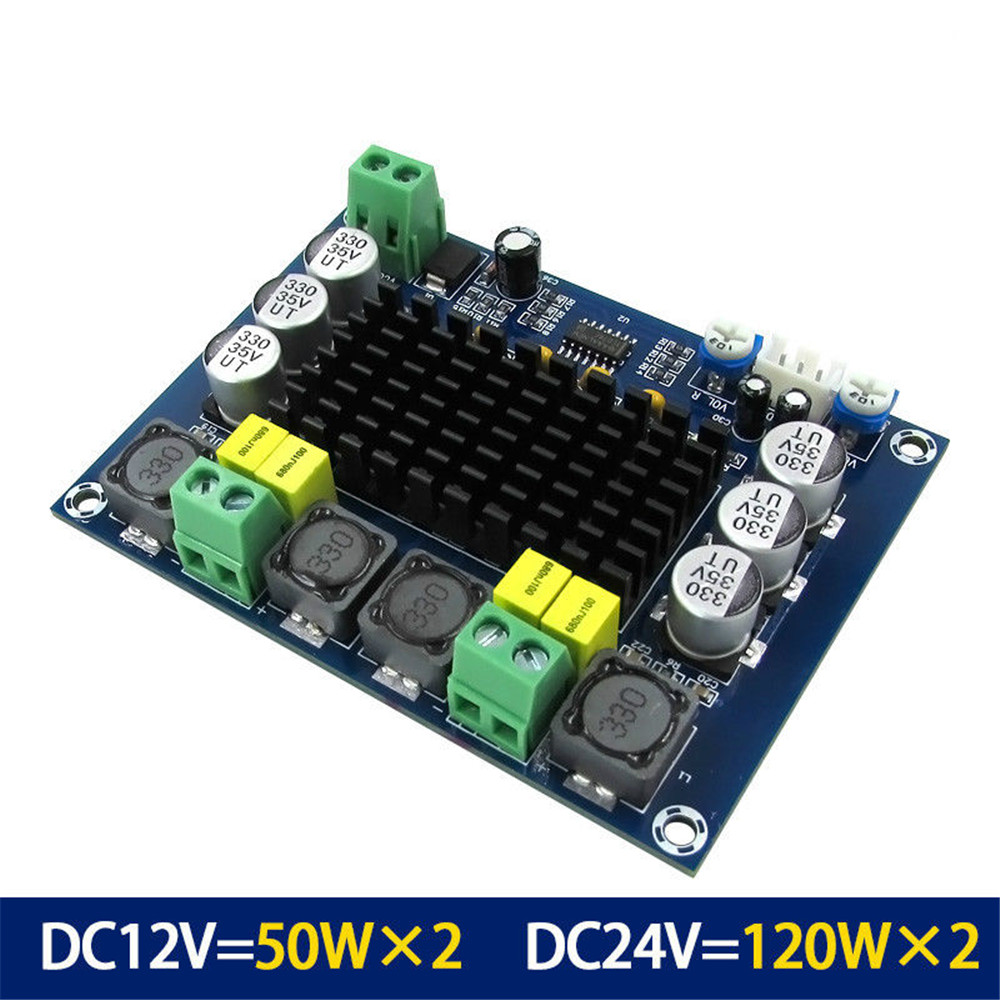

2*120W

Description:
Features:

Onboard front-facing IC to improve the input sensitivity, high-definition sound quality.
Name: TPA3116D2 Digital Amplifier Board
Model: XH-M543
Chip type: TPA3116D2
Working voltage: DC12-26V
Output power: 120*2W MAX
DC12V, 2*50W
DC24V, 2*120W
Signal to noise ratio: 100db
Channel: Dual channel stereo
Size; 92*68*16mm

Package Contents:

1x DC 12V 24V 120W*2 TPA3116 Dual Channel digital Power audio amplifier board

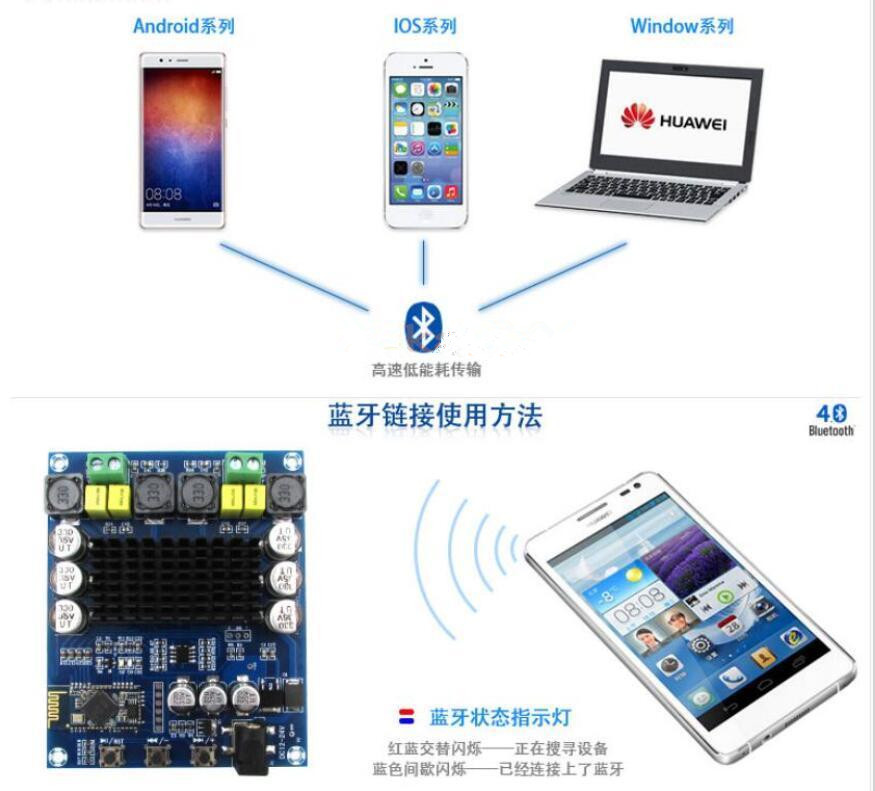

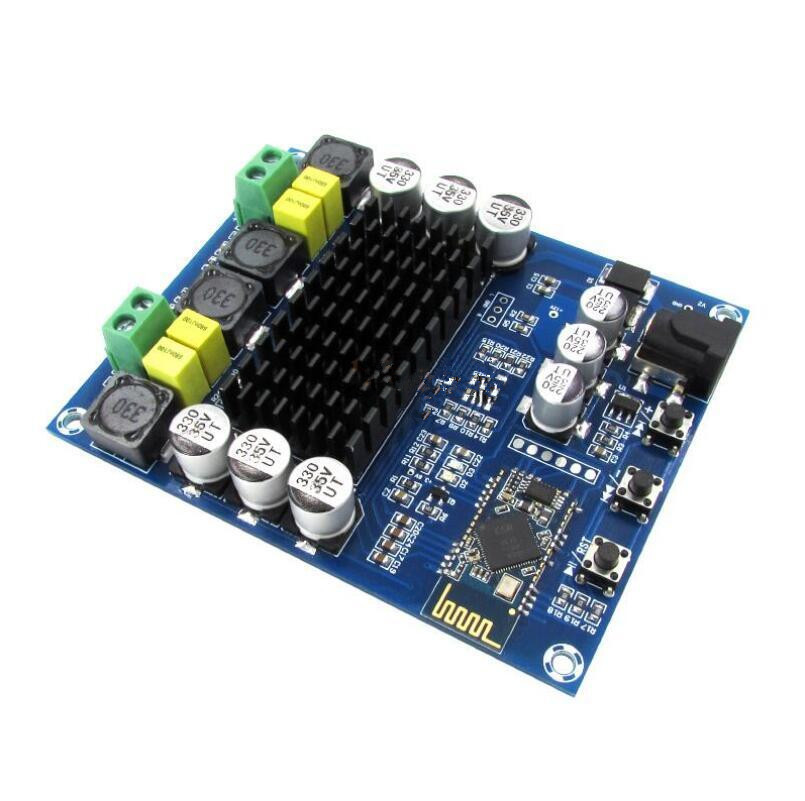

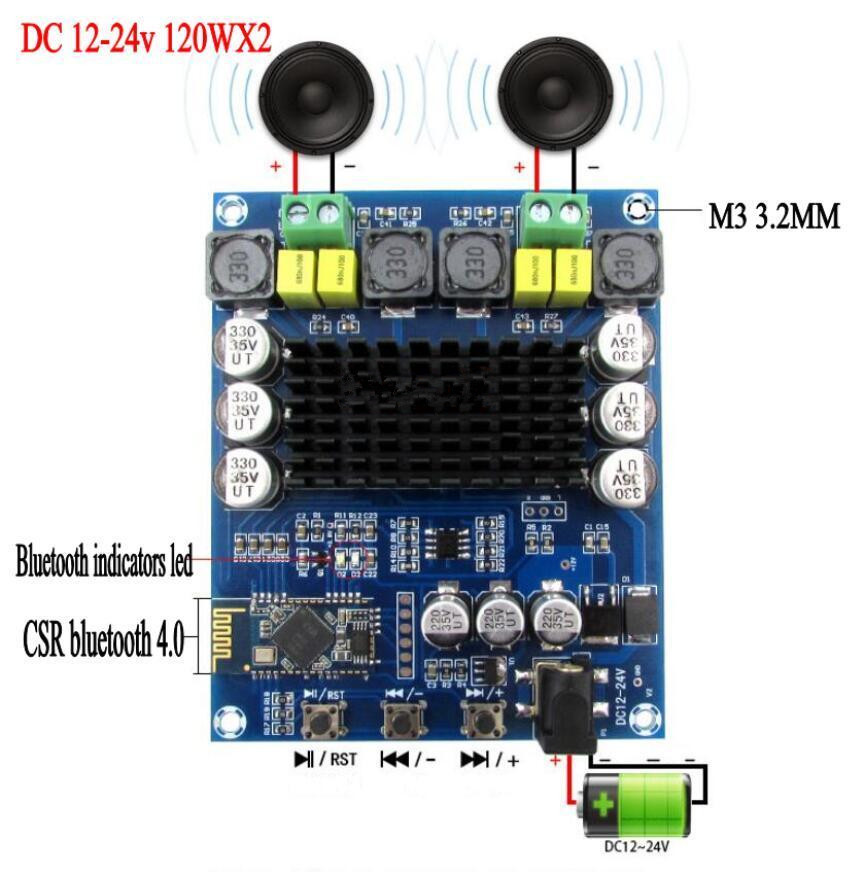

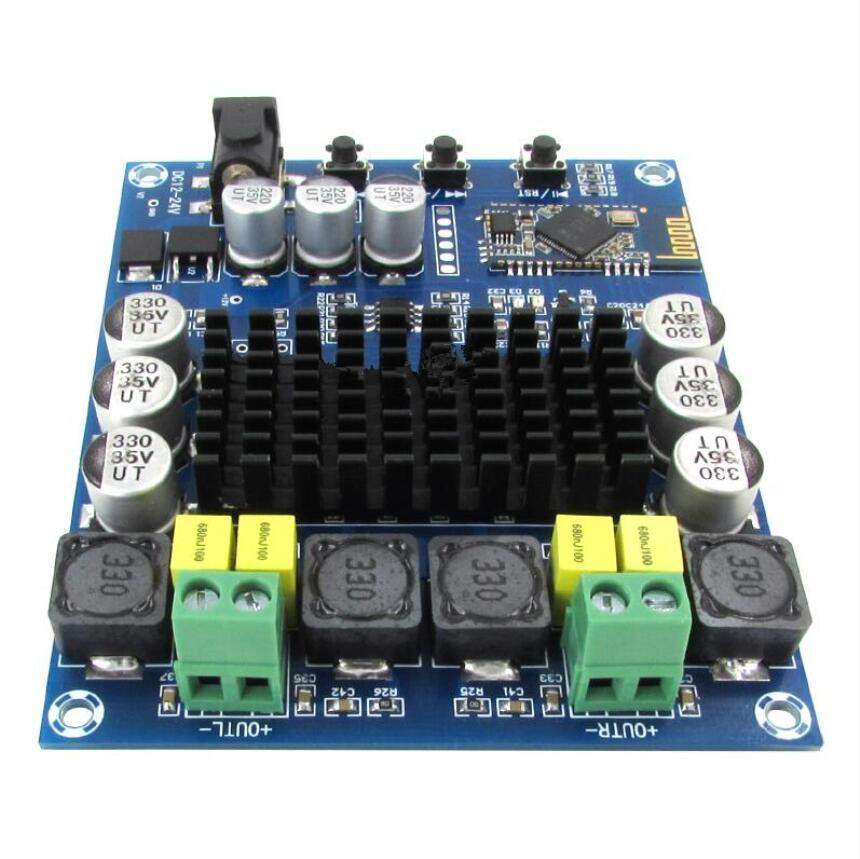

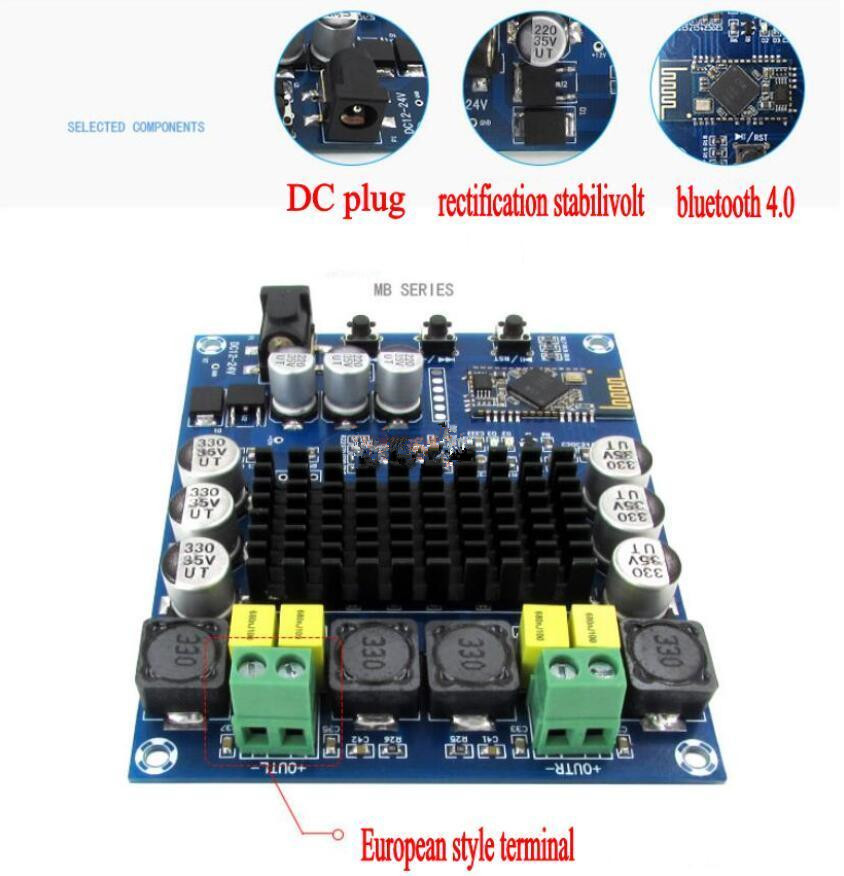

2*120W Bluetooth 4.0

Product Parameters:

Model:XH-M548
Chip Type:TPA3116D2
Bluetooth module:btm835/csr8635(4.0)
Transmission distance:Max 10m
Voltage:DC12-24V
Current:＞3A
Output Power:120Wx2
Efficiency ratio:＞90%
Sound track:Dual track
Size:98*79*16mm

Bluetooth module Parameters:

Specification:Bluetooth V4.0
Modulation Mode:GFSK π/4 DQPSK,8DPSK
Voltage:3.3-4.2V
Suppotr Bluetooth Protocol:HFP V1.6,HSP V1.2,A2DP V1.2,AVRCP V1.4,DI V1.3
Work Current:≤30mA
Standby Current:＜50uA
Temperature range:-40℃ to +80℃
Wireledd Transmission Distance:10m
Transmit Power:Support CLASS1/CLASS2/CLASS3 8dBm Max
Sensitivity:-80dBm＜0.1%BER
Frequency Range:2.4GHz-2.480GHz
External Interface:PIO,SPI,Audio in/out and PCM,USB
Audio Support:AAC,MPA,SBC,Stereo
Distortion Factor:≤0.1%
Module Size:21.9*14.1*1.8mm

Package included:

1 x Bluetooth 4.0 Audio Receiver Digital Amplifier Board
