Features:
1. The use of high-quality materials, product quality is guaranteed

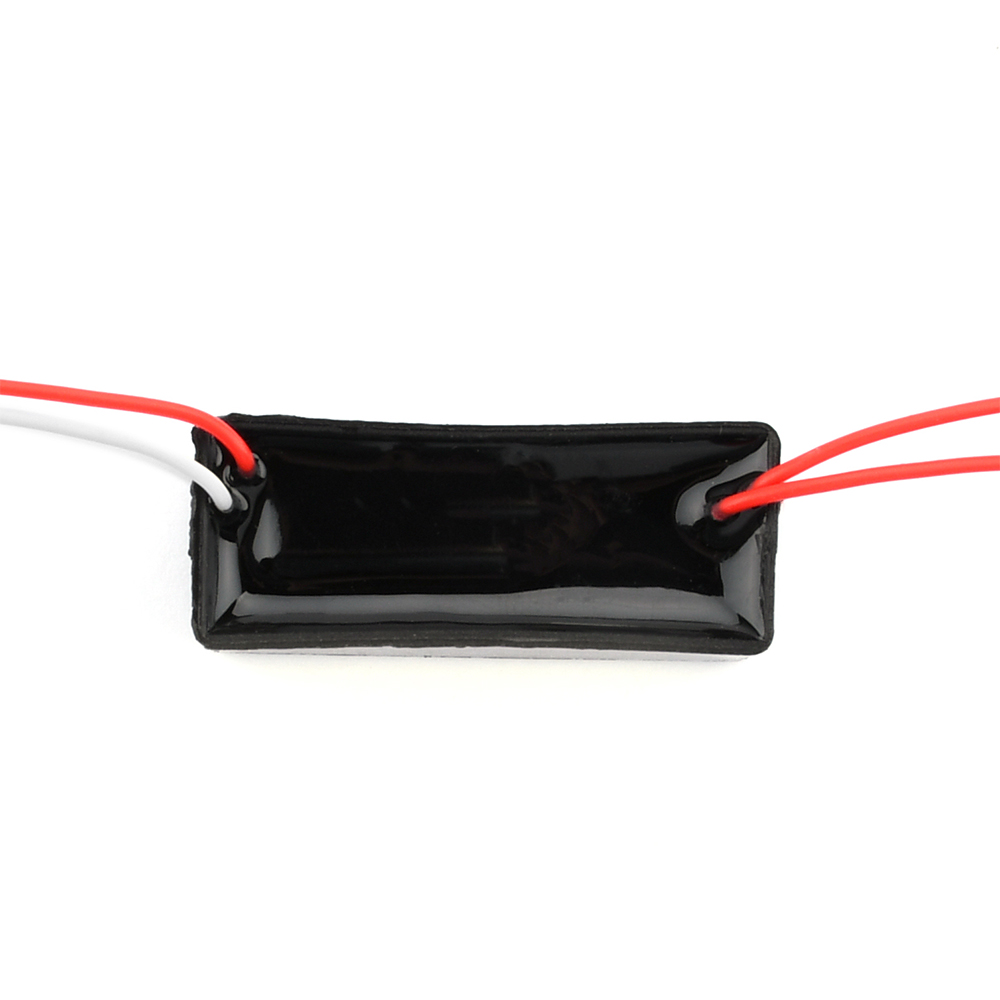

2. Built-in integrated epoxy resin encapsulated circuit board, shockproof, moisture-proof, anti-corrosion, high temperature resistance

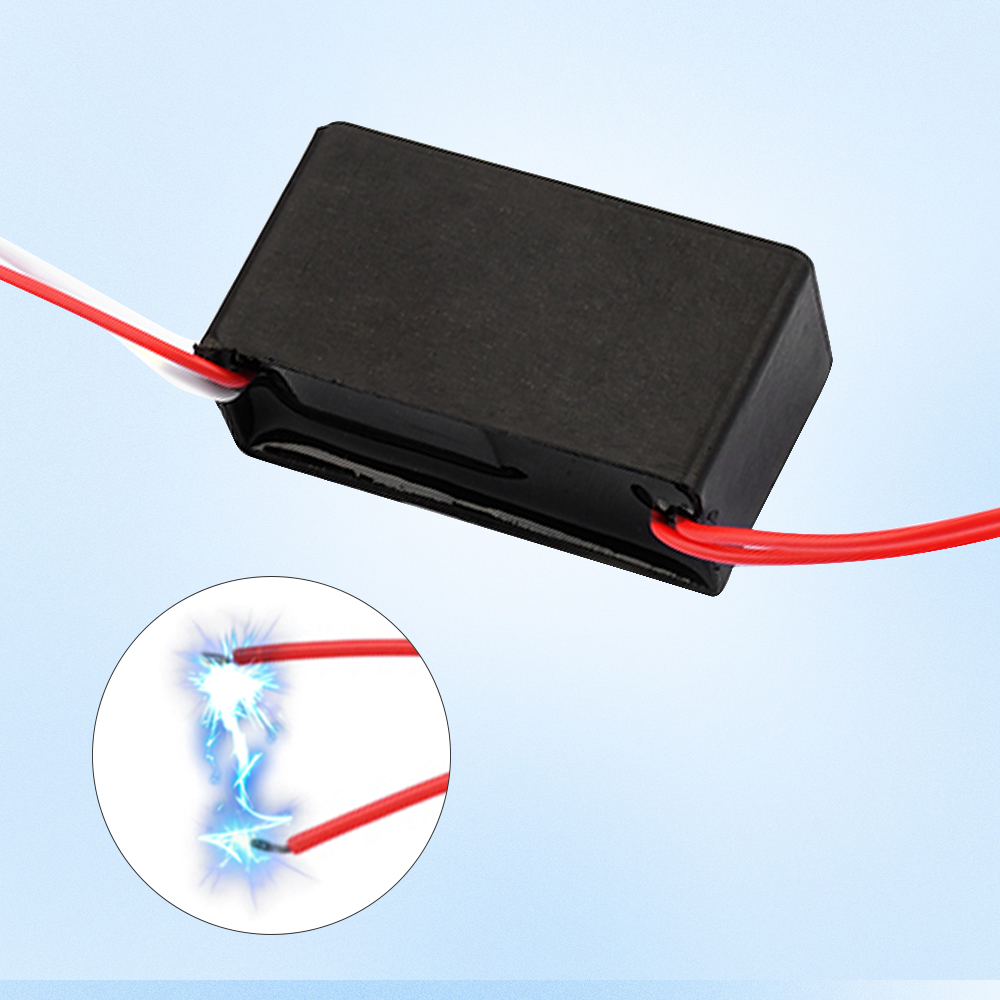

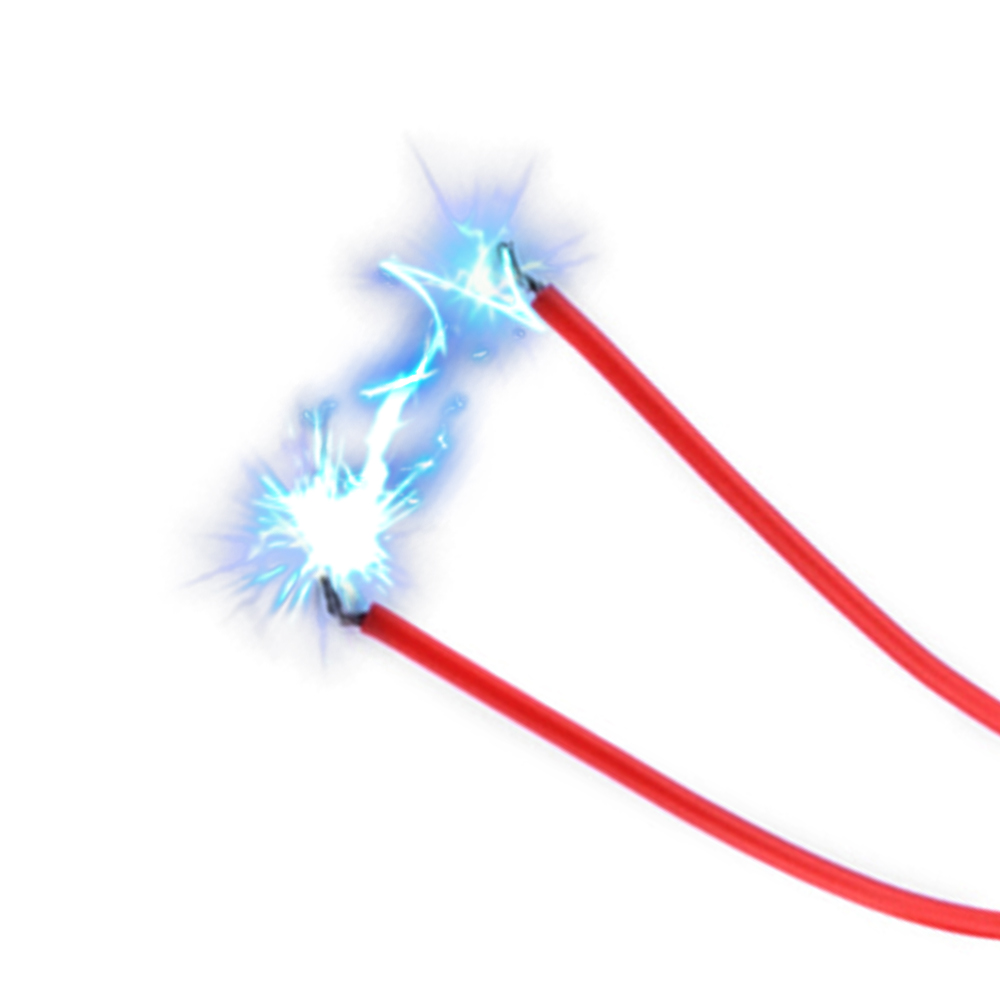

3. By boosting the circuit in the double-layer grid between the high voltage of about 7000VDC (current less than 10 microamps, harmless to humans and animals), pull the arc distance of about 4mm
4. Compact size, exquisite appearance, simple and convenient to use
5. Wide range of applications, suitable for electric mosquito swatters, electrostatic dust removal, electrostatic adsorption, scientific experiments and so on.

Parameter:
Working voltage: DC3-4.8V
Output voltage: 7000VDC

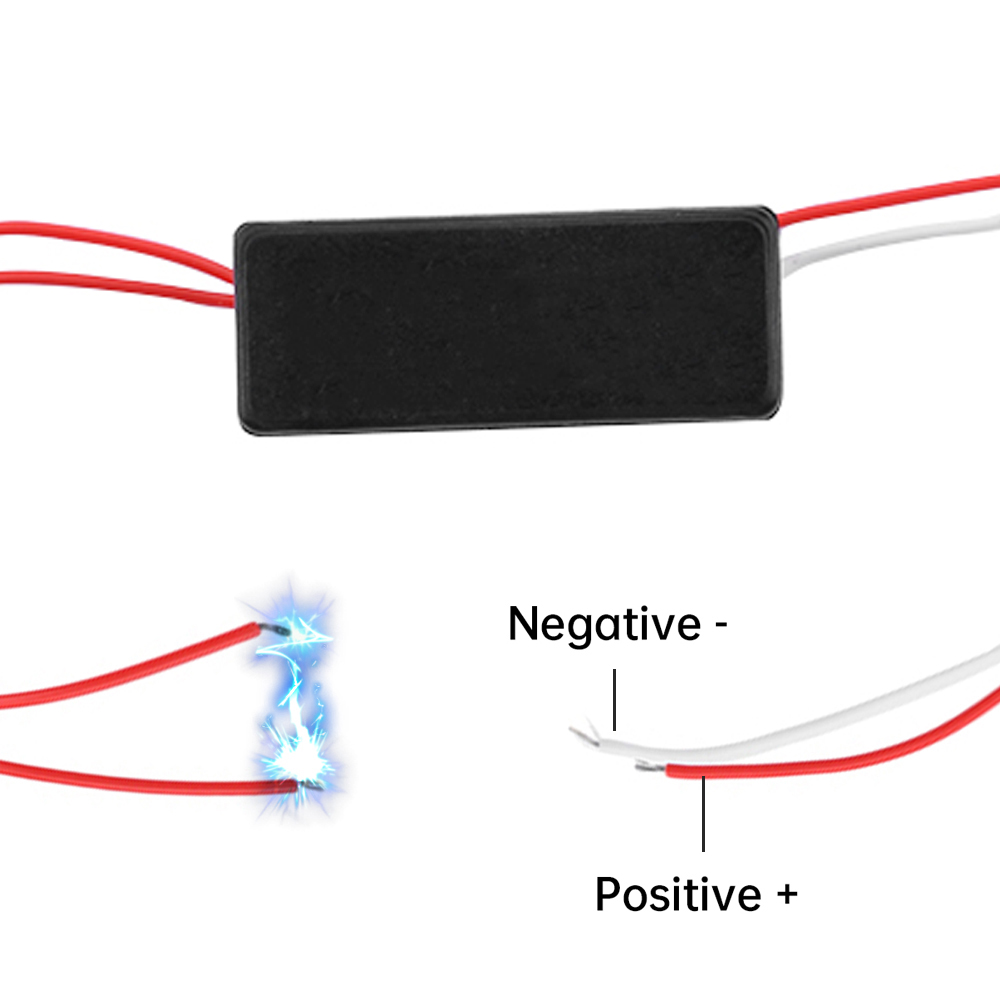

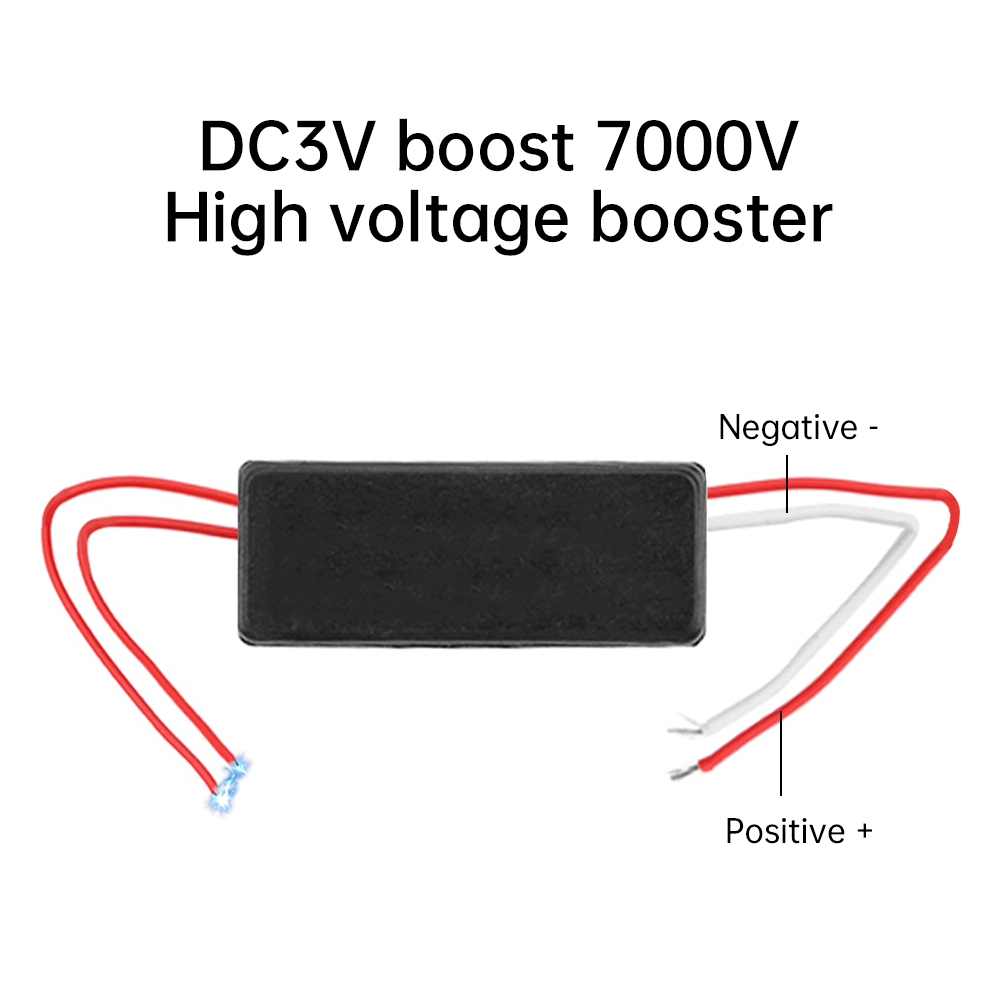

Wiring: powered by 1.5V two batteries on one side of the line is slightly shorter, the input voltage of 3V battery, the red line connected to the positive battery, non-red line connected to the negative battery.
The other side of the line is slightly longer, for the output of high-voltage, respectively, connected to the two ends of the electric mosquito swatter high-voltage net, not divided into positive and negative.

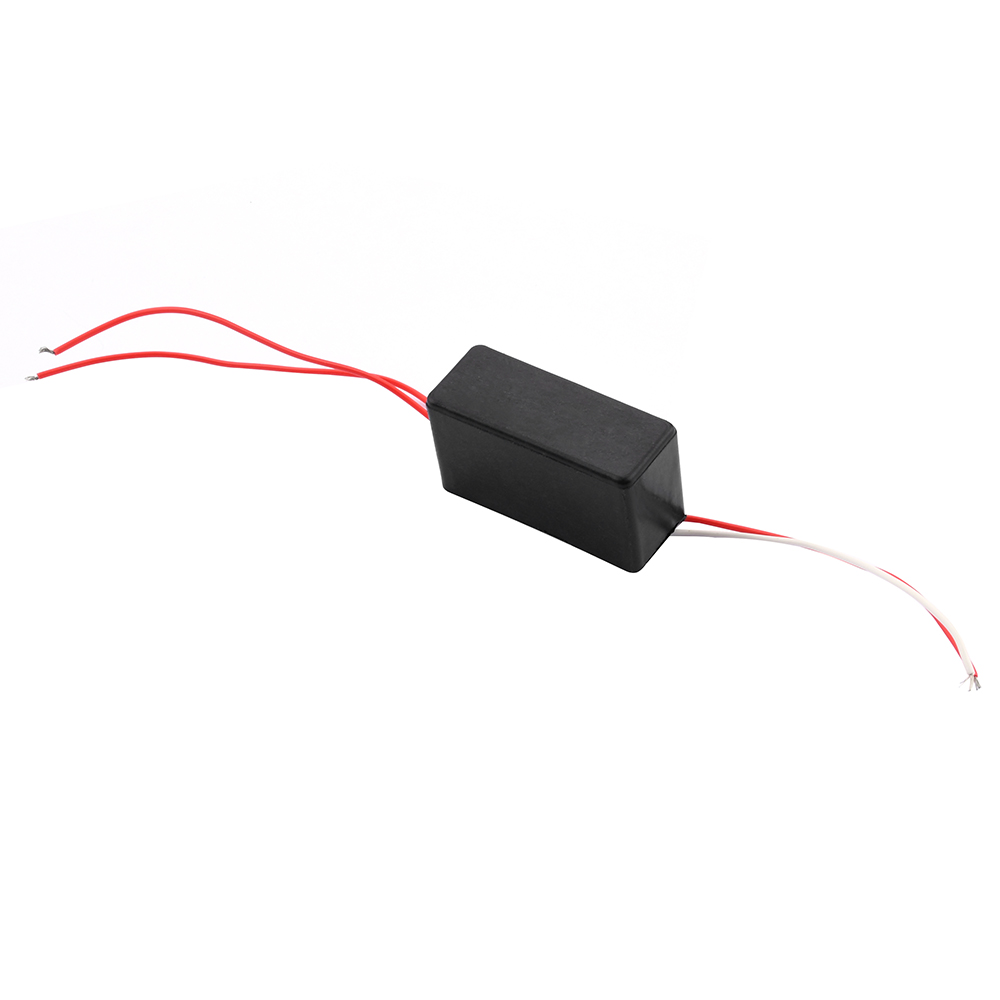

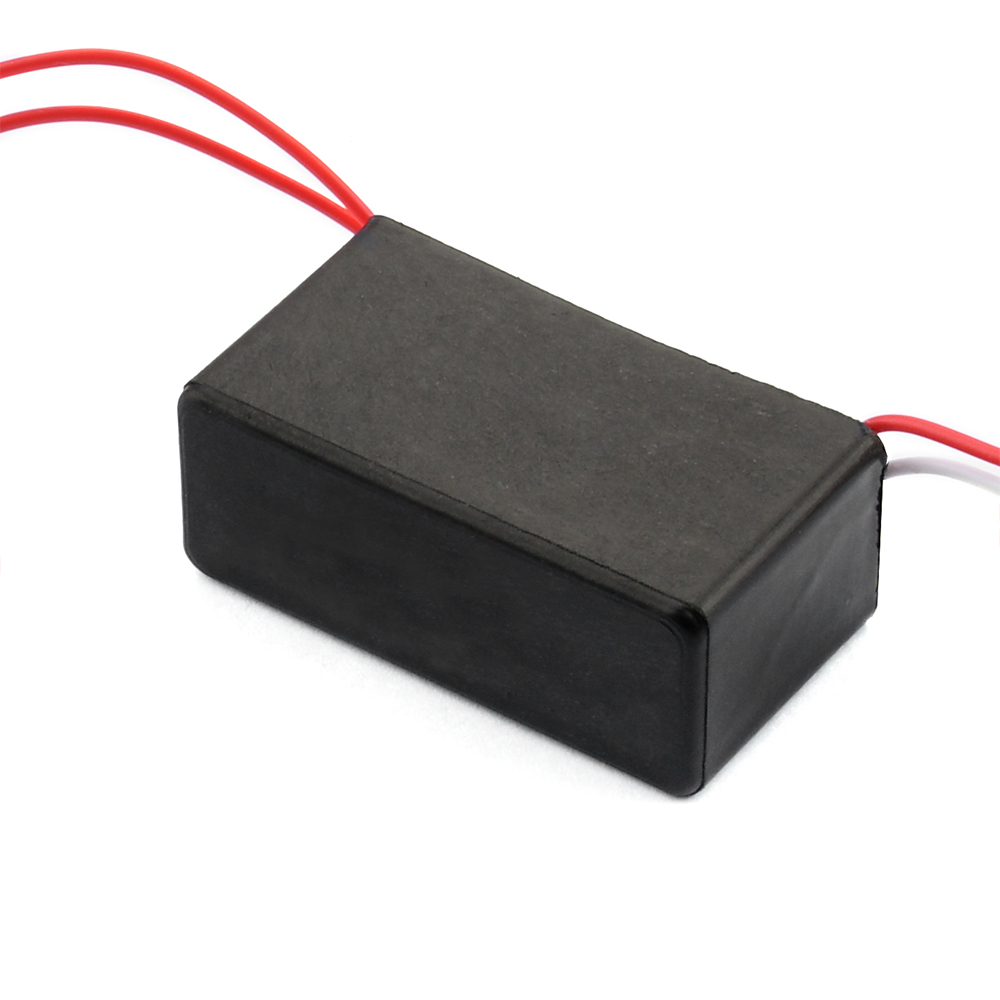

Commodity Description: The product uses epoxy resin encapsulation of the integration of high-voltage generator, by boosting the circuit in the double-layer grid between the generation of 7kVDC or so of high voltage (current less than 10 microamps, harmless to humans and animals), pulling the arc distance of about 4mm, the two grids between the electrostatic field has a strong adsorption, when the mosquitoes and flies and other pests close to the grid, the resulting short-circuit current will be electric death; at the same time, electric mosquito and fly swatters generated by the high-voltage power can also be released a certain amount of negative oxygen ions. Can release a certain amount of negative oxygen ions, both sterilization and disinfection, but also purify the air.

Package include:
High voltage generator*1
