P3/P4/P5 Full Color Indoor/Outdoor Screen Display Module DC/AC LED Matrix Module

Product View

Detail

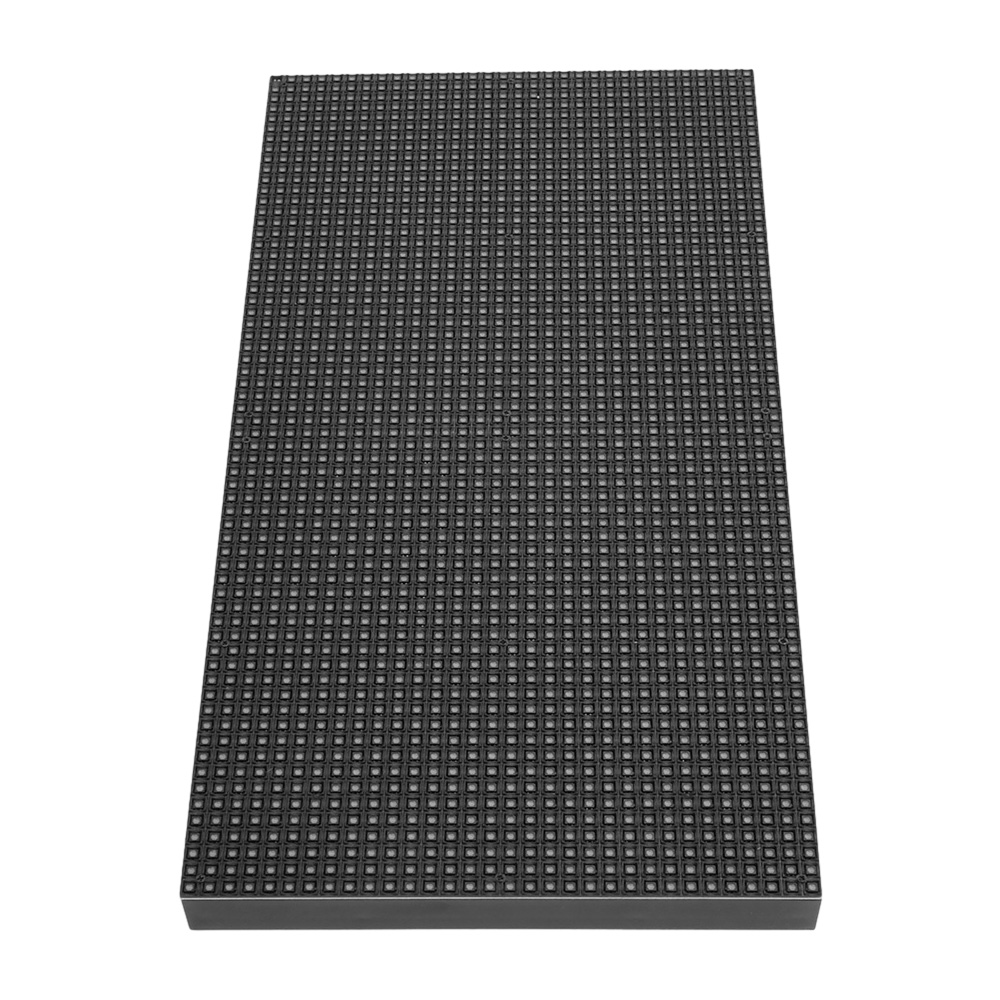

P4-Indoor
Features
1. Economical and practical, with high cost-effectiveness, it is very suitable for small projects and beginners.
2. Constant current driving for uniform luminescence and low power consumption
3. The LED screen adopts a unique and sturdy design, making it easy to carry and install.
4. The display screen adopts LED tube core and lamp beads; High brightness, large viewing angle, and good color consistency; Using a driving IC, the parameter fluctuation coefficient is small; PCB board adopts large-scale integrated circuit design, with good stability
5. LED display screens can be used for various purposes and places. It can be used for advertising, banner displays, demonstrations, video displays, educational purposes, and more.

Specification
Application environment: indoor
Physical point spacing: 4mm
Unit board size: 256X128 (mm)
Resolution: 64 * 32=2048Dots
Visual angle horizontal: ≥ 160 (+10/-10) degrees
Control method: synchronous control
Mean time between failures: ≥ 5000 hours
Drive mode: Sixteen sweeps (constant current)
Service life: 75000~100000 hours
LED packaging method: SMD 2121 LED dedicated (RGB zigzag arrangement)
Red LED wavelength: 618-623nm (band error: ± 2.5n)
Red LED brightness: 200-230mcd
Green LED wavelength: 525-527.5nm (band error: ± 2.5n)
Green LED brightness: 460-530mcd
Blue LED wavelength: 470-472.5nm (band error: ± 2.5n)
Blue LED brightness: 125-145mcd
Brightness: ≥ 1500CD/㎡
Pixel spacing: 4mm
Pixel density: 62500Dots/㎡
Pixel composition: 1R1PG1PB
Unit board size (length * width * thickness): 256.0mm * 128.0mm * 13.26mm
Structural feature: integrated light drive
Input voltage (DC): 4.8-5.5V
Maximum current: 4.7A
Maximum power of unit board: 23.5W
Usage environment: indoor
Working temperature range: -20 to 50 ℃

List
1 x Module

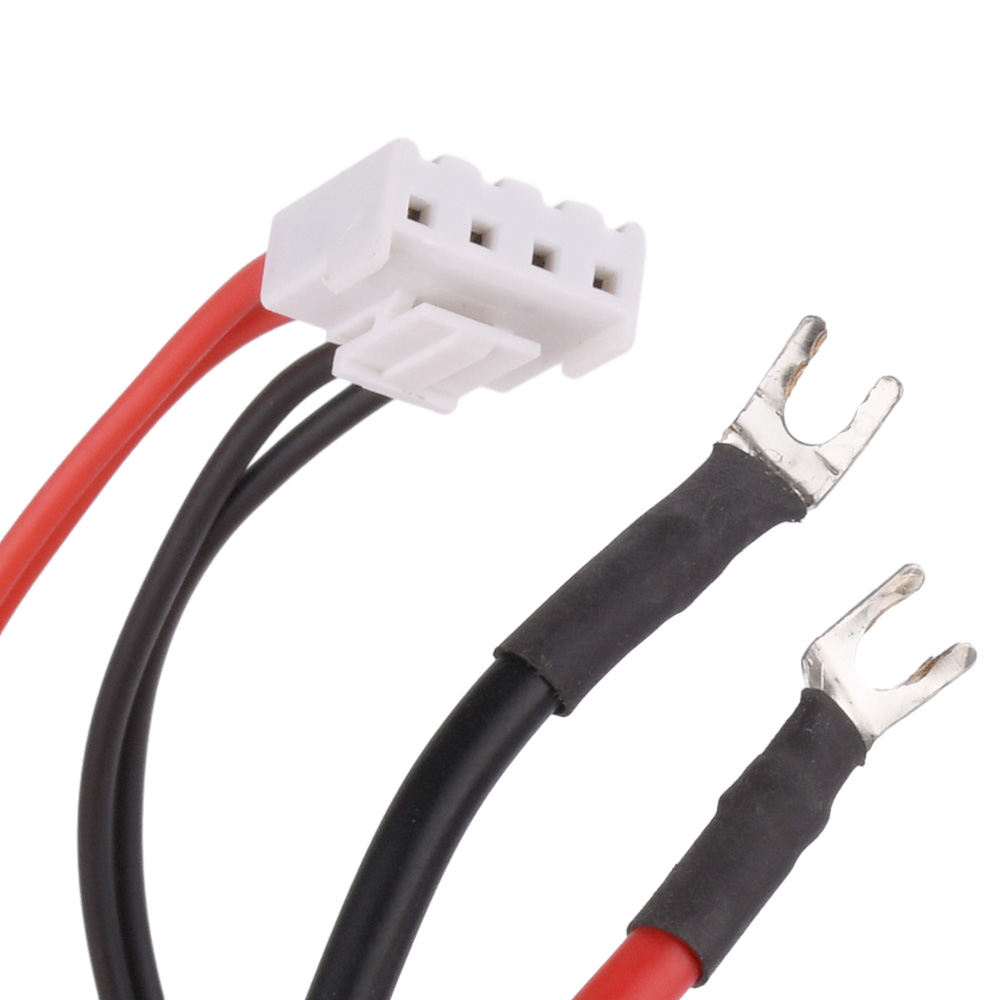

1 x Power cord
1 x Flat cable
4 x Screw

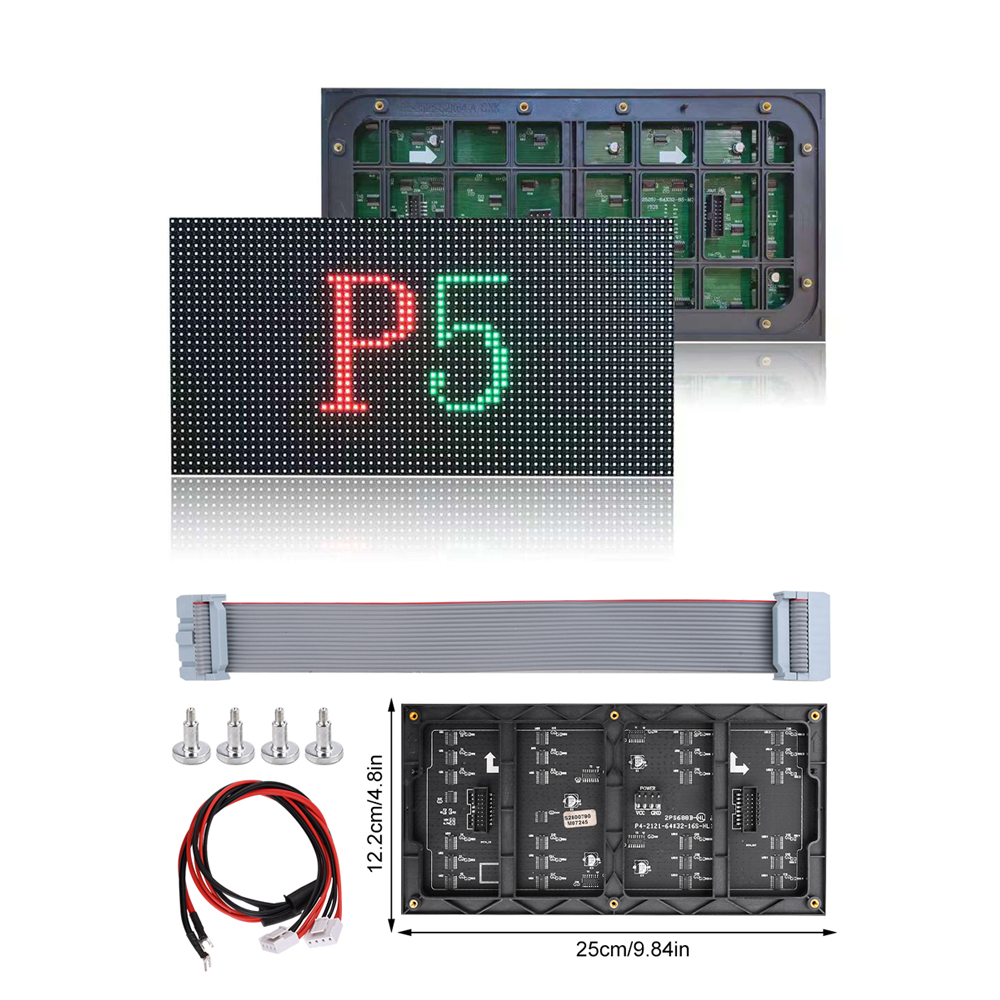

P5-Outdoor

Features
1. Simple to use, only need luminous card and mobile power to light up
2. Sturdy aluminum box, not easy to deform and drop resistance
3. Low power consumption, high energy saving, beyond the standby time
4. Pure copper double electric capacitor, long service life, clear font, high brightness
5. Surface-mounted lamp beads, high brightness, good flatness, strong stability, uniform color distribution

Specification
Operation power supply: AC100-240V 50-60HZ switchable
Module pixel: 65*32

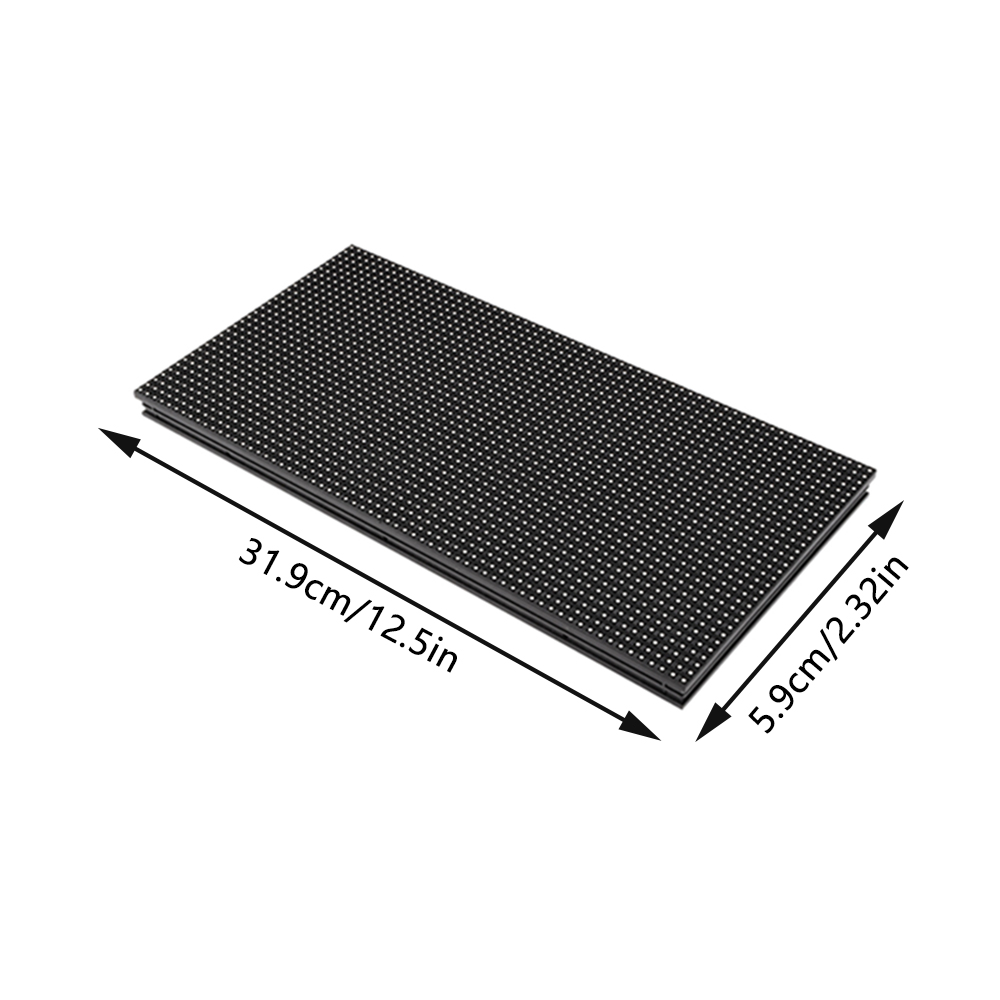

Module size: 320*160mm
Environment: Outdoor
Physical density: 40000 points/square
Viewing distance: 5-100m
Scanning mode: 1/8 sweep
Structural features: light drive in one
Dot spacing: 5mm
Maximum power consumption: 800 w/m2
Average power consumption: 400 w/m2
Calibration scale level: 16 bit
Frame update frequency: 60Hz
Screen refresh frequency: 1920Hz
Controller support input: DVI, HDMI, VGA, RJ45, WIFI, USB
Control distance: Ethernet cable 100 meters, fiber optic 5 km
Support VGA mode: 1024x768, 1280x 1024, 1600x 1200, 1920x1080
Color temperature: 5000-9300 adjustable

List
1 x LED display
1 x Power cord
1 x Cable
4 x Screws

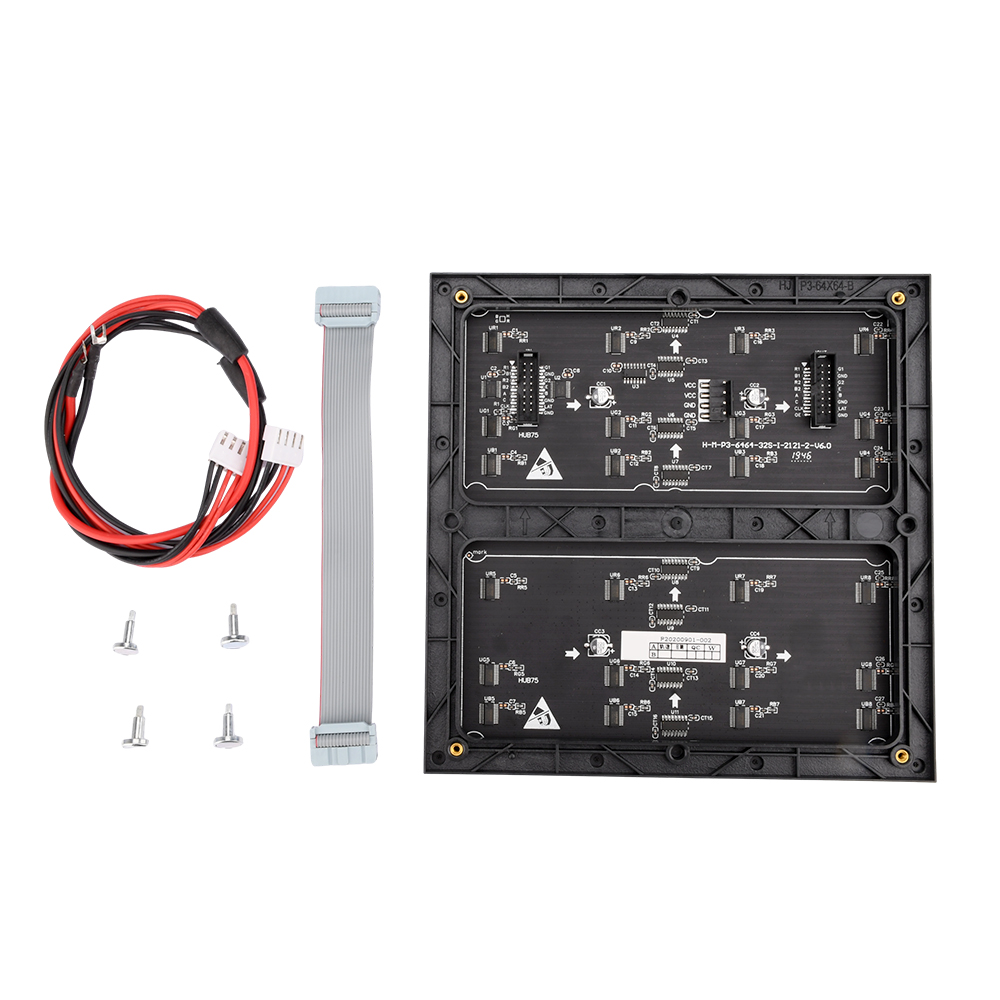

P3-Indoor
Features
1. Economical and cost-effective, perfect for small projects and beginners
2.64x64 pixels, mm pitch, can display text, color images or animation
3.LED screen with unique rugged design, easy to carry and install
4.The display adopts LED tube core and lamp beads; high brightness, large viewing angle, PCB board with large-scale integrated circuit design, good stability
5.LED display can be used in a variety of places, suitable for advertising, banner displays, presentations, video displays, educational purposes and so on.

Specification
Product name: indoor p3 module
Environment: Indoor
Power supply: 220v to 5v
Pixel Pitch: 3mm
Module pixel: 64*64
Module size：192*192mm
LED configuration: SMD2121
Structural features: lamp drive together
Scanning mode: 1/32 sweep
Service life: 75~100,000 times
Viewing angle: 140°
Maximum power consumption: 800w/m2
Screen refresh frequency: 1920Hz
Pixel composition: 1R1G1B

List
1 x Module
1 x Power cord
1 x Cable
4 x Screws
