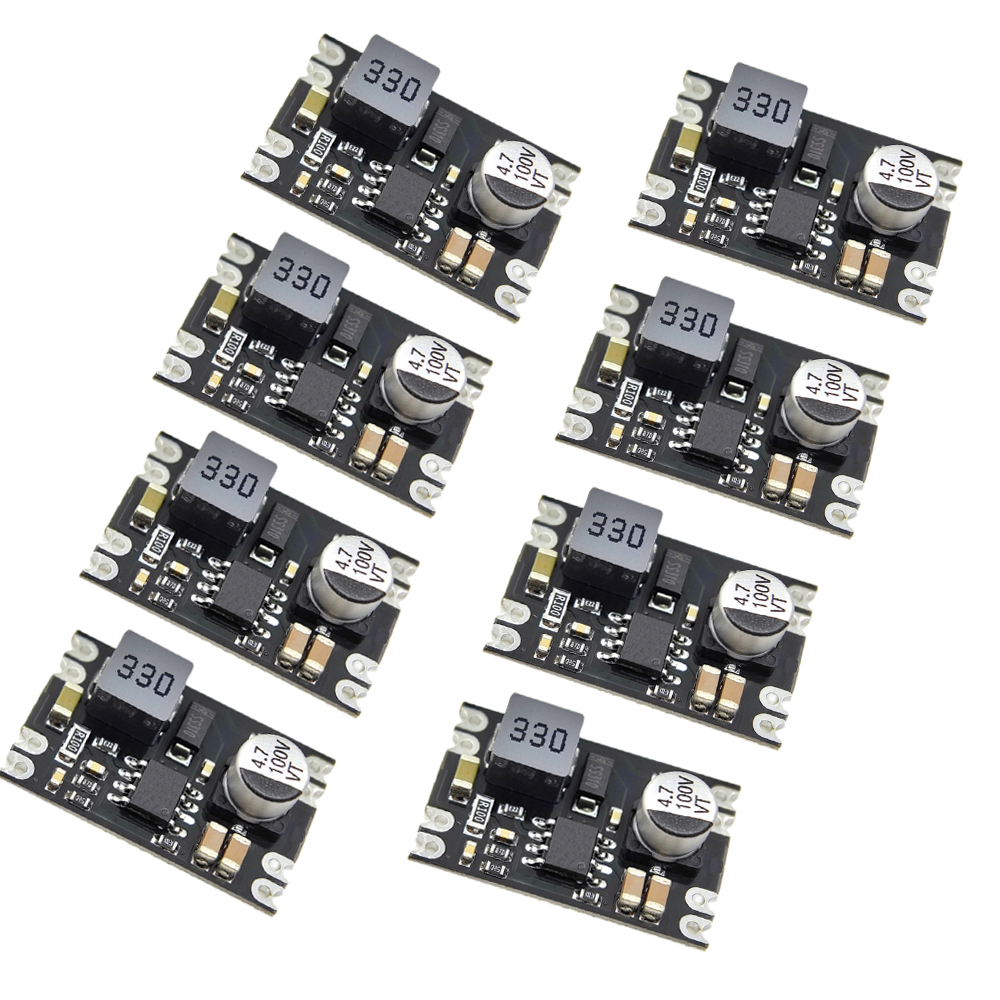

1-10x DC6-100V to DC5/9/12/24V Step Down Voltage Regulator Buck Converter Module
Product View
Detail
Features:
Fixed output 5V 9V 12V 24V,input 6-100V with overheat and overload shutdown protection
Main board half-hole, can be used in SMD, ultra-small size 25.5*16.5*7MM
DC-DC step-down module is a kind of device to convert high DC power into low voltage electrical energy, the input voltage must exceed the output voltage (with pressure difference), such as: 12V to 5V, 24V to 5V.
It adopts microelectronics technology and has high efficiency, small size.
It is easy to operate, easy to install, etc.
Fixed output 5V 9V 12V 24V,input 6-100V with overheat and overload shutdown protection
Main board half-hole, can be used in SMD, ultra-small size 25.5*16.5*7MM
DC-DC step-down module is a kind of device to convert high DC power into low voltage electrical energy, the input voltage must exceed the output voltage (with pressure difference), such as: 12V to 5V, 24V to 5V.
It adopts microelectronics technology and has high efficiency, small size.
It is easy to operate, easy to install, etc.
Specification:
Input voltage: 6V~100V (input must be larger than output)
Output voltage: 5V/9V/12V/24V
Output current: 3A (maximum peak) long time current within 2A
Conversion efficiency: 96% (maximum)
Output ripple: <30mA
Output accuracy: ±0.1V
No-load current: 1mA
Operating temperature: -40°℃~+125°℃
Working humidity: 20%~90%
Size: 25.5*16.5*7mm(L*W*H)
Number of pcb layers: 2 layers
Shutdown function: with shutdown function
Heat dissipation mode: natural heat dissipation
Installation method: welded wire, SMD
Whether with isolation: without isolation
Production process: reflow soldering
Service life: 35000 hours without failure (output current does not exceed the rated value)
Special processes: half-hole motherboard
Operating frequency: 1MHz
Input voltage: 6V~100V (input must be larger than output)
Output voltage: 5V/9V/12V/24V
Output current: 3A (maximum peak) long time current within 2A
Conversion efficiency: 96% (maximum)
Output ripple: <30mA
Output accuracy: ±0.1V
No-load current: 1mA
Operating temperature: -40°℃~+125°℃
Working humidity: 20%~90%
Size: 25.5*16.5*7mm(L*W*H)
Number of pcb layers: 2 layers
Shutdown function: with shutdown function
Heat dissipation mode: natural heat dissipation
Installation method: welded wire, SMD
Whether with isolation: without isolation
Production process: reflow soldering
Service life: 35000 hours without failure (output current does not exceed the rated value)
Special processes: half-hole motherboard
Operating frequency: 1MHz
Package List:
1/5/10 x Module ( according buyer choose)
1/5/10 x Module ( according buyer choose)
