10MHz/403/433/915/1090/1207/1268/1561MHz Band Pass Filter BPF RF/Passive Filter
Product View
Detail
915MHZ RF
Product parameters:
1）Operating frequency: 915±5MHz
2）Insertion loss: 1.5db
3) Out-of-band rejection: 45dB@50MHz
4）Input impedance: 50 ohms
5）Output impedance: 50 ohms
6）Maximum input signal strength: 13dbm (20mw)
7) Input Connector: SMA-K (SMA female)
8) Output connector: SMA-K (SMA female)
9）No power supply required
Product parameters:
1）Operating frequency: 915±5MHz
2）Insertion loss: 1.5db
3) Out-of-band rejection: 45dB@50MHz
4）Input impedance: 50 ohms
5）Output impedance: 50 ohms
6）Maximum input signal strength: 13dbm (20mw)
7) Input Connector: SMA-K (SMA female)
8) Output connector: SMA-K (SMA female)
9）No power supply required
403MHz Passive
1）Operating frequency ：403±2.5MHz
2) Insertion loss: 1.7db
3) Out-of-band rejection: 60dB@50MHz
4）Input impedance: 50 ohms
5）Output impedance: 50 ohms
6）Maximum input signal strength: 20dbm (100mw)
7) Input Connector: SMA-K (SMA female)
8) Output connector: SMA-K (SMA female)
1）Operating frequency ：403±2.5MHz
2) Insertion loss: 1.7db
3) Out-of-band rejection: 60dB@50MHz
4）Input impedance: 50 ohms
5）Output impedance: 50 ohms
6）Maximum input signal strength: 20dbm (100mw)
7) Input Connector: SMA-K (SMA female)
8) Output connector: SMA-K (SMA female)
433MHz Passive
Name：Band Pass Filter
Operating frequency: 433±20MHz
Insertion Loss: 2.8db
Out-of-band rejection: 40dB @ 50MHz
Input Impedance: 50 Ohm
Output Impedance: 50 Ohm
Maximum input signal strength: 13dbm (20mw)
Input Connector: SMA-K (SMA Female)
Output Connector: SMA-K (SMA Female)
Name：Band Pass Filter
Operating frequency: 433±20MHz
Insertion Loss: 2.8db
Out-of-band rejection: 40dB @ 50MHz
Input Impedance: 50 Ohm
Output Impedance: 50 Ohm
Maximum input signal strength: 13dbm (20mw)
Input Connector: SMA-K (SMA Female)
Output Connector: SMA-K (SMA Female)
ADS-B Filter BPF 1090MHZ
1）Operating frequency: 1090±15MHz
2）Insertion Loss: 1.5db
3) Out-of-band rejection: 40dB@50MHz
4）Input impedance: 50 ohms
5）Output impedance: 50 ohms
6）Maximum input signal strength: 13dbm (20mw)
7) Input Connector: SMA-K (SMA female)
8) Output connector: SMA-K (SMA female)
9）No power supply required
1）Operating frequency: 1090±15MHz
2）Insertion Loss: 1.5db
3) Out-of-band rejection: 40dB@50MHz
4）Input impedance: 50 ohms
5）Output impedance: 50 ohms
6）Maximum input signal strength: 13dbm (20mw)
7) Input Connector: SMA-K (SMA female)
8) Output connector: SMA-K (SMA female)
9）No power supply required
1207MHz RF
1）Center frequency: 1207MHz
2）Operating bandwidth: 20MHz
3) Out-of-band rejection: >40db
4) In-band fluctuation: <1.0dB
5) Insertion loss: 1.7dB (typical)
6) Maximum power: 10dBm (10mW)
7）Exterior dimensions: 23*13mm (without connector)
8) Product weight: 3.8g
9) Applicable temperature: -40C°-70C°
1）Center frequency: 1207MHz
2）Operating bandwidth: 20MHz
3) Out-of-band rejection: >40db
4) In-band fluctuation: <1.0dB
5) Insertion loss: 1.7dB (typical)
6) Maximum power: 10dBm (10mW)
7）Exterior dimensions: 23*13mm (without connector)
8) Product weight: 3.8g
9) Applicable temperature: -40C°-70C°
1268MHz RF
1) Center frequency: 1268MHz
2）Operating bandwidth: 20MHz
3) Out-of-band rejection: >40db
4) In-band fluctuation: <1.0dB
5) Insertion loss: 1.7dB (typical)
6) Maximum power: 10dBm (10mW)
7）Exterior dimensions: 23*13mm (without connector)
8) Product weight: 4.5g
9) Applicable temperature: -40C°-70C°
1) Center frequency: 1268MHz
2）Operating bandwidth: 20MHz
3) Out-of-band rejection: >40db
4) In-band fluctuation: <1.0dB
5) Insertion loss: 1.7dB (typical)
6) Maximum power: 10dBm (10mW)
7）Exterior dimensions: 23*13mm (without connector)
8) Product weight: 4.5g
9) Applicable temperature: -40C°-70C°
1561MHz RF
1) Center frequency: 1561MHz
2）Operating bandwidth: 20MHz
3) Out-of-band rejection: >40db
4) In-band fluctuation: <1.0dB
5) Insertion loss: 3.5dB (typical)
6) Maximum power: 10dBm (10mW)
7）Exterior dimensions: 23*13mm (without connector)
8) Product weight: 3.8g
9) Applicable temperature: -40C°-70C°
1) Center frequency: 1561MHz
2）Operating bandwidth: 20MHz
3) Out-of-band rejection: >40db
4) In-band fluctuation: <1.0dB
5) Insertion loss: 3.5dB (typical)
6) Maximum power: 10dBm (10mW)
7）Exterior dimensions: 23*13mm (without connector)
8) Product weight: 3.8g
9) Applicable temperature: -40C°-70C°

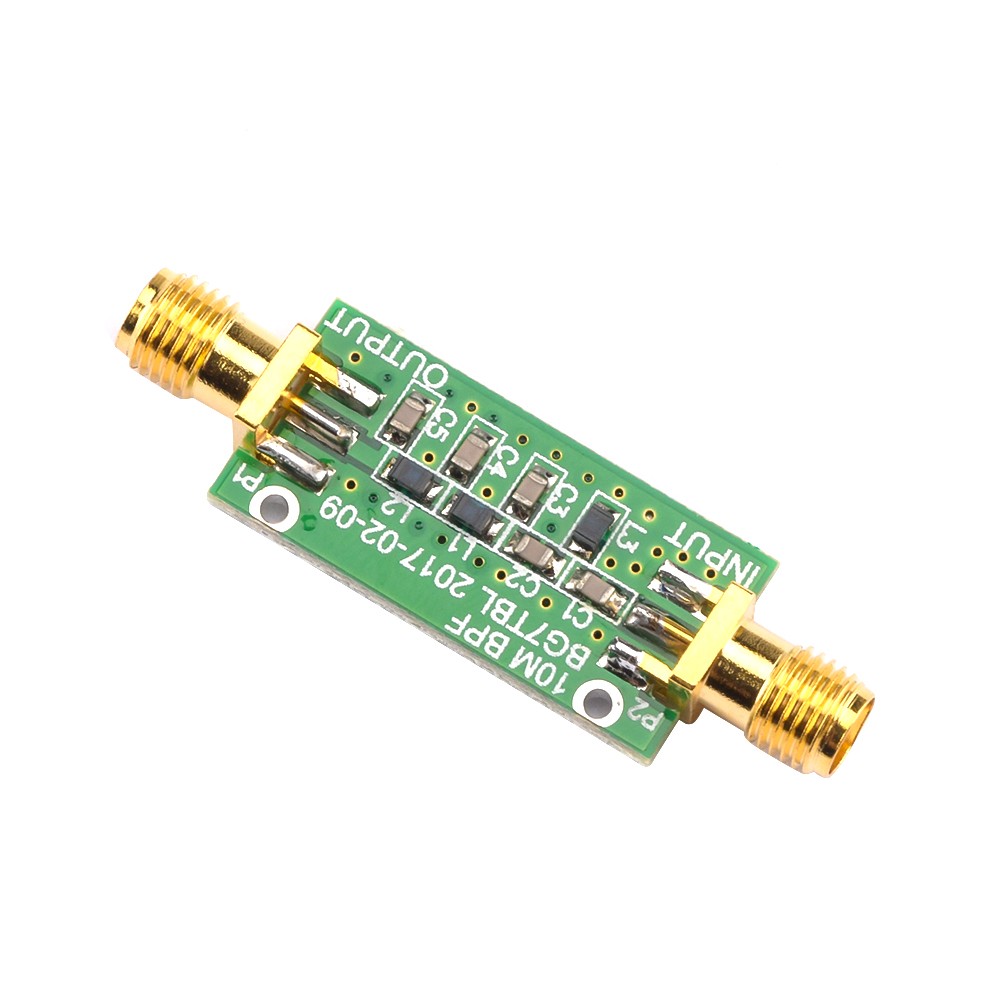

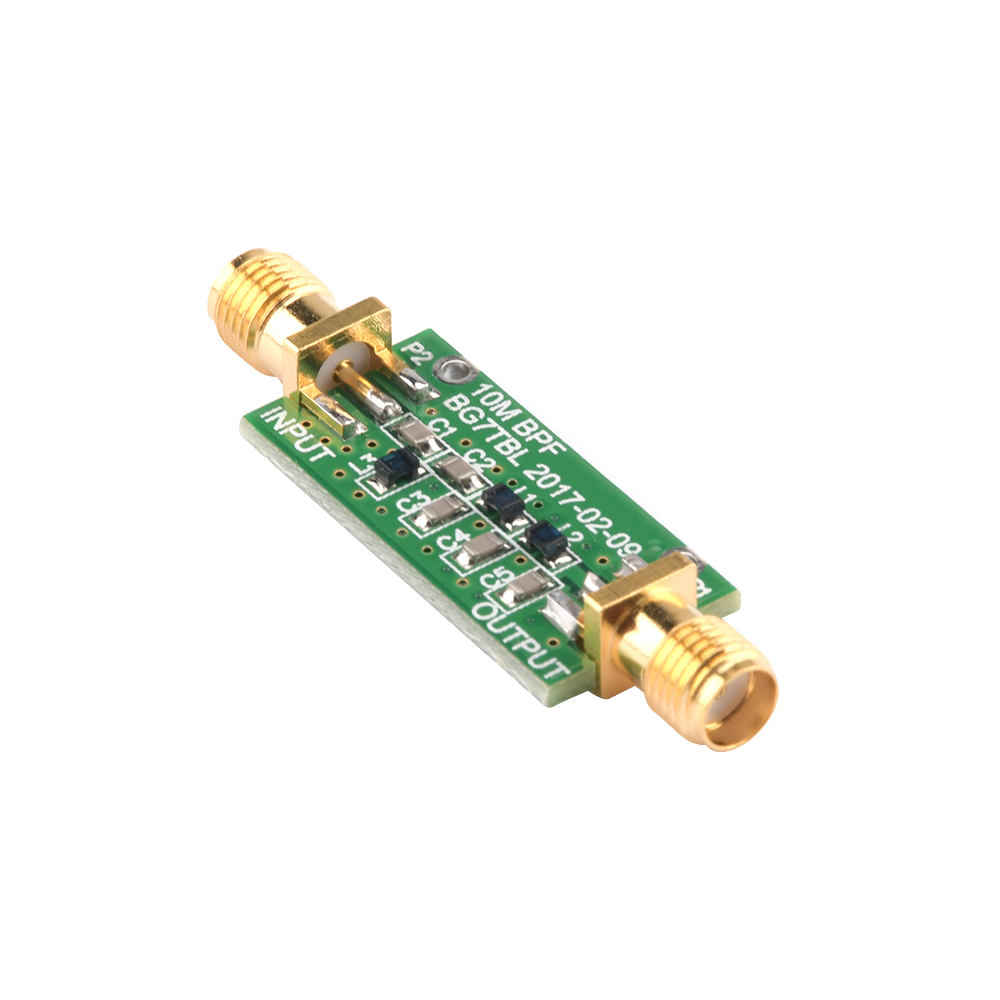

10M 10MHz BPF Bandpass Filter
Low insertion loss
Product Size: 45*15mm
Low insertion loss
Product Size: 45*15mm
List:
Filter *1
Filter *1
