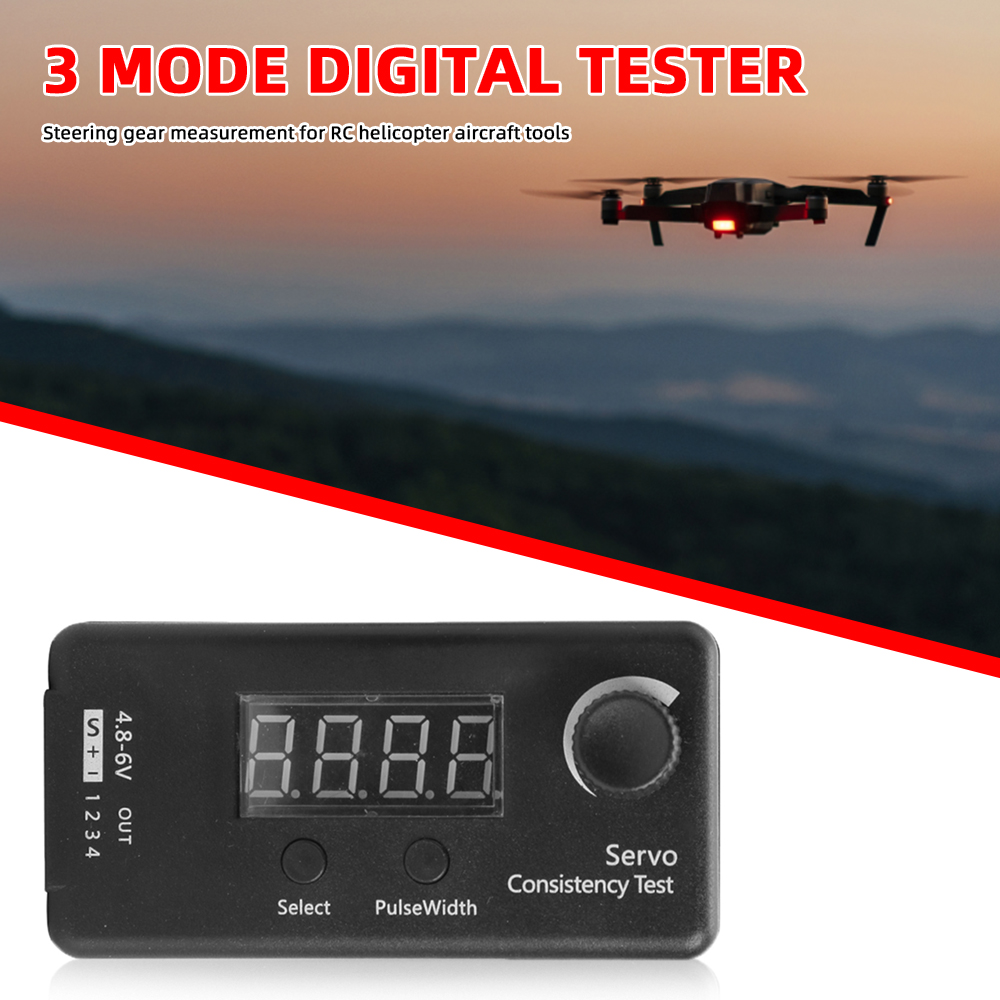

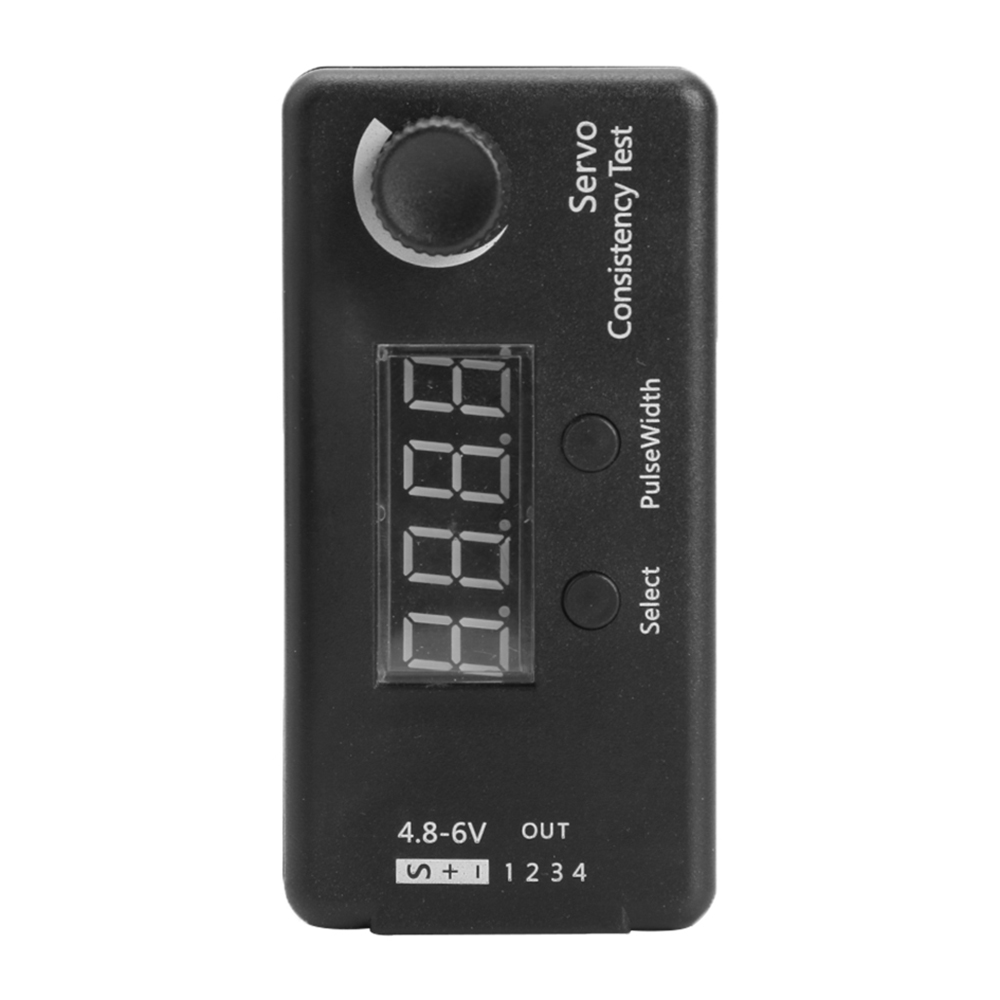

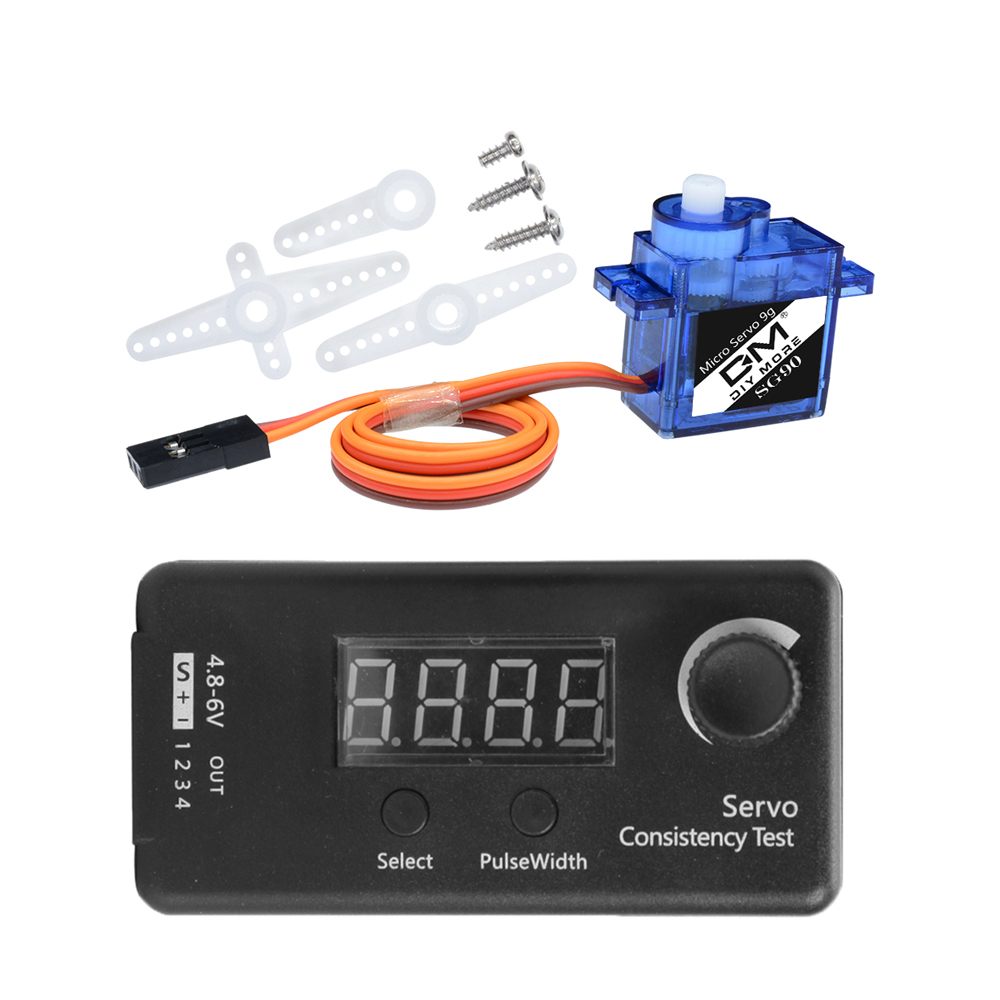

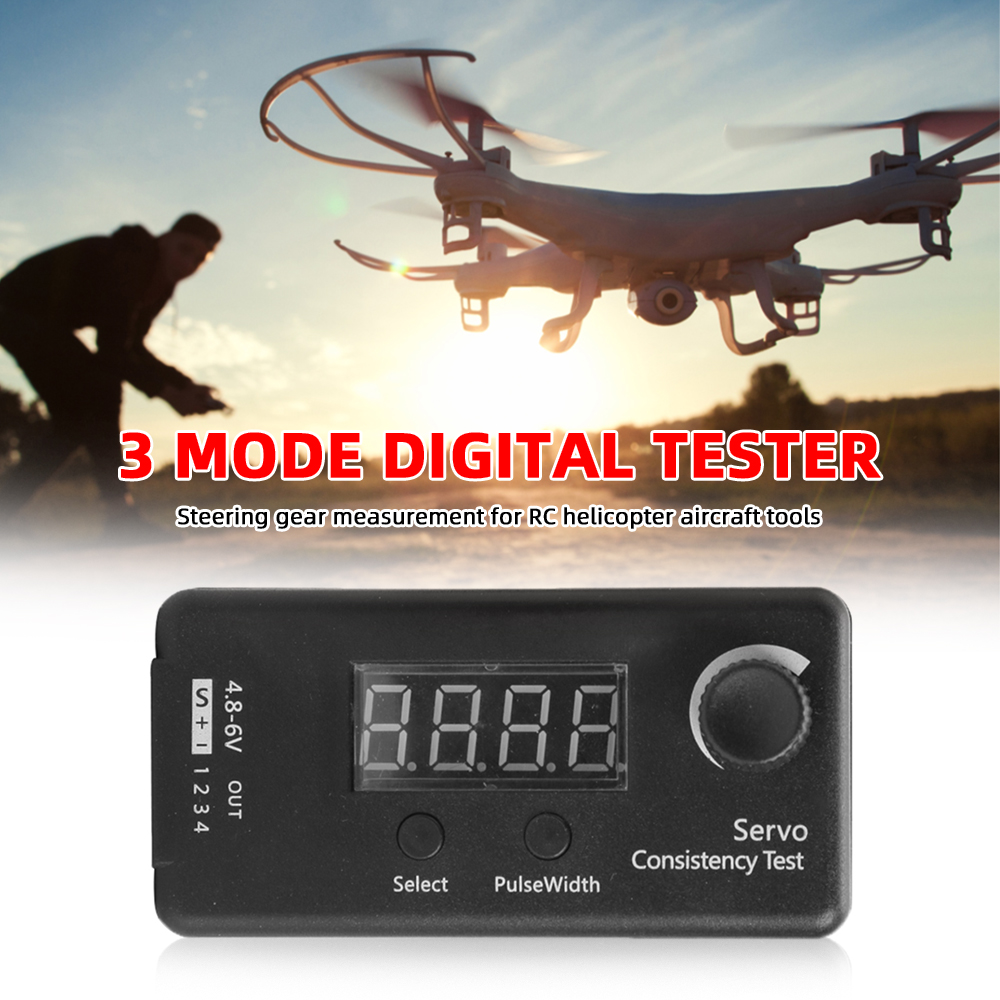

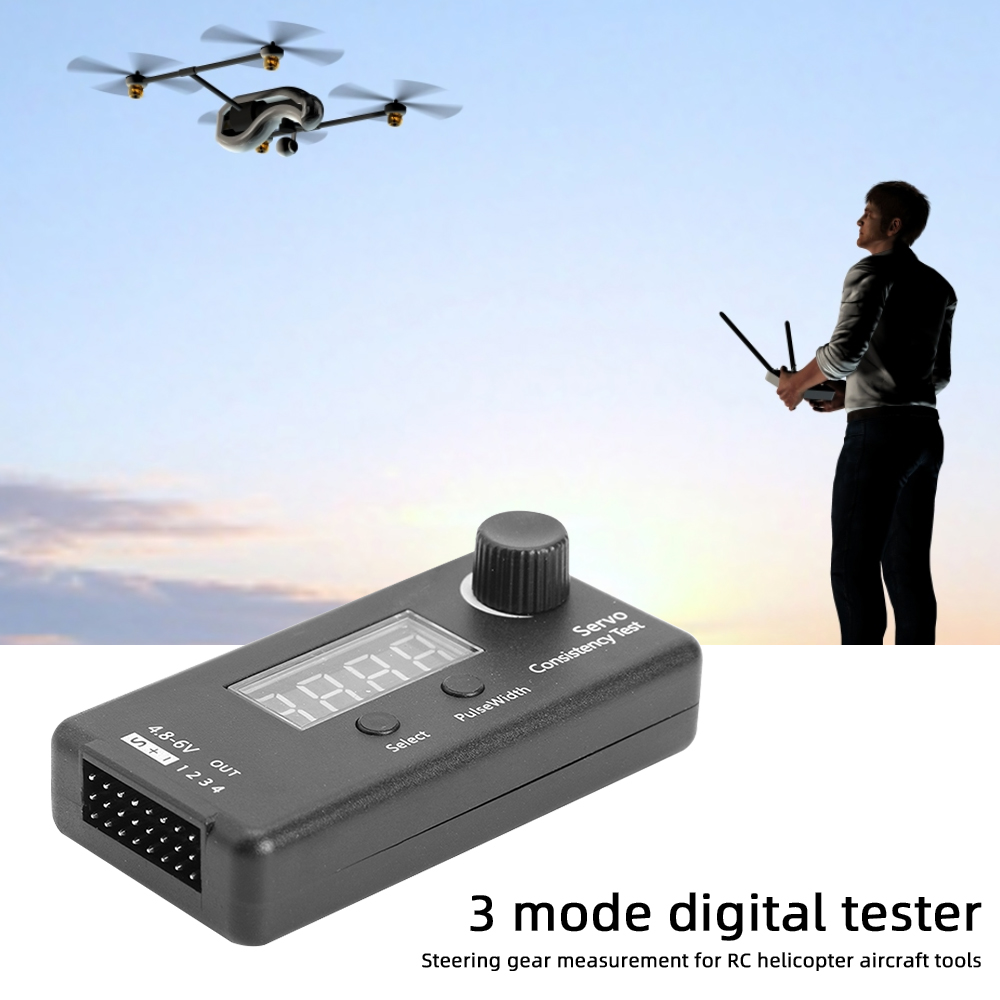

SG90 9G Servo Motor Gear/DC4.8-6V 3 Modes Digital Servo Tester For RC Helicopter
Product View
Detail
Features
1. Can test the control of 4 servos at the same time
2. Accurate testing: The output signal of the servo control servos used for performance comparison can be accurate to 2us (1ms = 1000 microseconds), allowing testing whether the servos can react to subtle changes.
3. PPM signal: A PPM signal test function is available. On the display, the input PPM signal changes while the input PPM signal is synchronised to the servo power-up and automatically enters manual mode (20us 50h) to simulate the servo signal cycle with a frequency of 50 Hz
4. adjustable: rotating the potentiometer reduces or increases the width of the output pulse
5. 3 modes: S-1 manual / s-2 bit / S-3 automatic
1. Can test the control of 4 servos at the same time
2. Accurate testing: The output signal of the servo control servos used for performance comparison can be accurate to 2us (1ms = 1000 microseconds), allowing testing whether the servos can react to subtle changes.
3. PPM signal: A PPM signal test function is available. On the display, the input PPM signal changes while the input PPM signal is synchronised to the servo power-up and automatically enters manual mode (20us 50h) to simulate the servo signal cycle with a frequency of 50 Hz
4. adjustable: rotating the potentiometer reduces or increases the width of the output pulse
5. 3 modes: S-1 manual / s-2 bit / S-3 automatic
Specification
Input voltage: DC4.8-6V
Output signal width: 800-2200us
Key selection (note: key switch function, cyclic mode)
1. S-1 Manual mode (Manual)
2. S-2-bit mode (Neutral)
3. Auto S-3 mode (Auto)
Pulse width keys.
1. 50H CYCLE OF Analogue servo signal 20us Frequency 50Hz
2. 125H CYCLE OF digital servo signal 8us Frequency 125Hz
3. 250 H CYCLE OF digital servo signal 4us frequency 250Hz
Input voltage: DC4.8-6V
Output signal width: 800-2200us
Key selection (note: key switch function, cyclic mode)
1. S-1 Manual mode (Manual)
2. S-2-bit mode (Neutral)
3. Auto S-3 mode (Auto)
Pulse width keys.
1. 50H CYCLE OF Analogue servo signal 20us Frequency 50Hz
2. 125H CYCLE OF digital servo signal 8us Frequency 125Hz
3. 250 H CYCLE OF digital servo signal 4us frequency 250Hz
Note
Please read the operating instructions before use.
If you are a beginner, it is recommended that an experienced adult assists you.
Please read the operating instructions before use.
If you are a beginner, it is recommended that an experienced adult assists you.
List
1 x Servo tester
1 x Servo tester

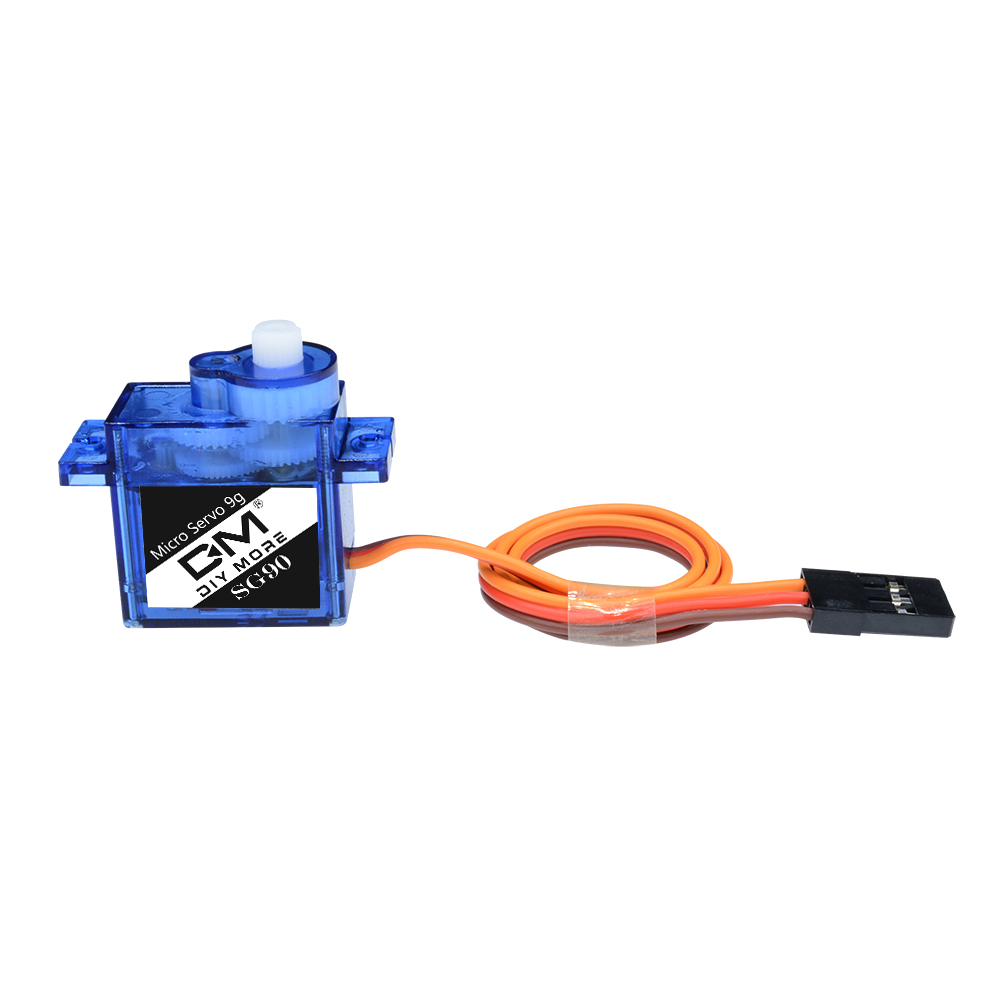

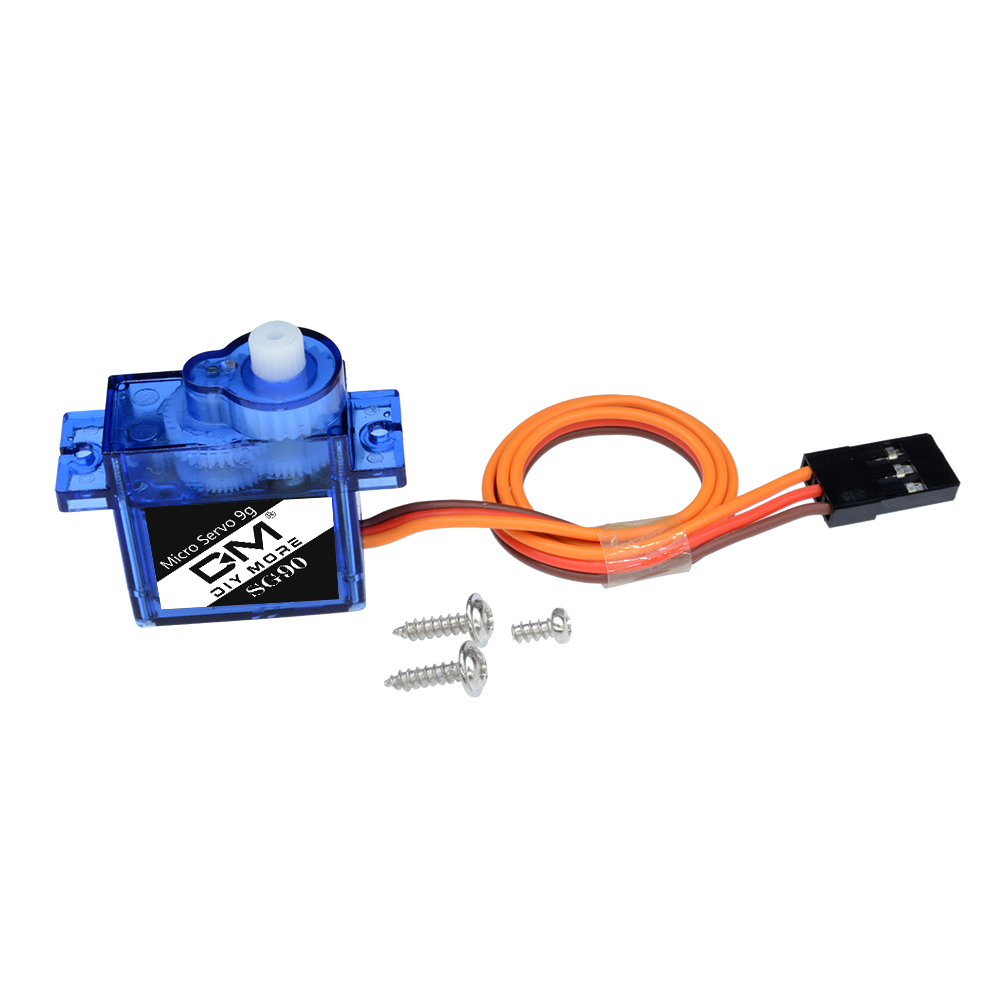

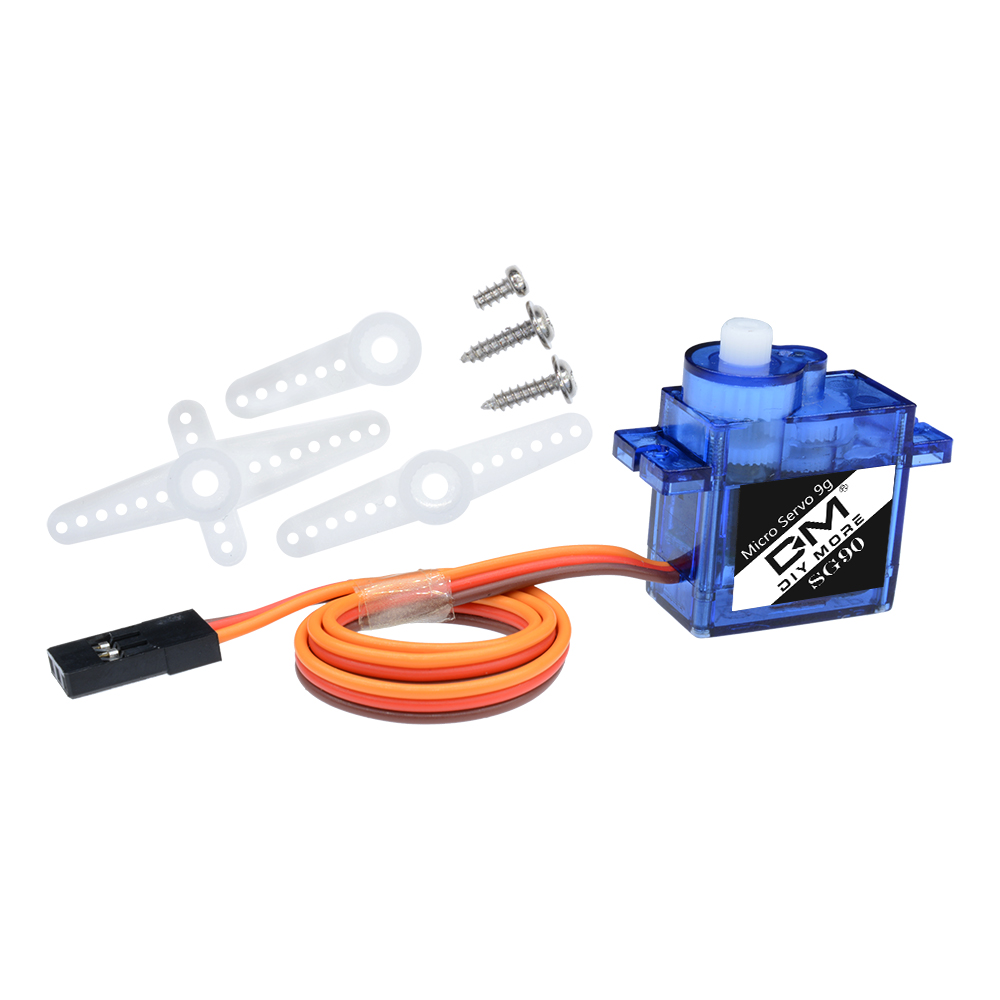

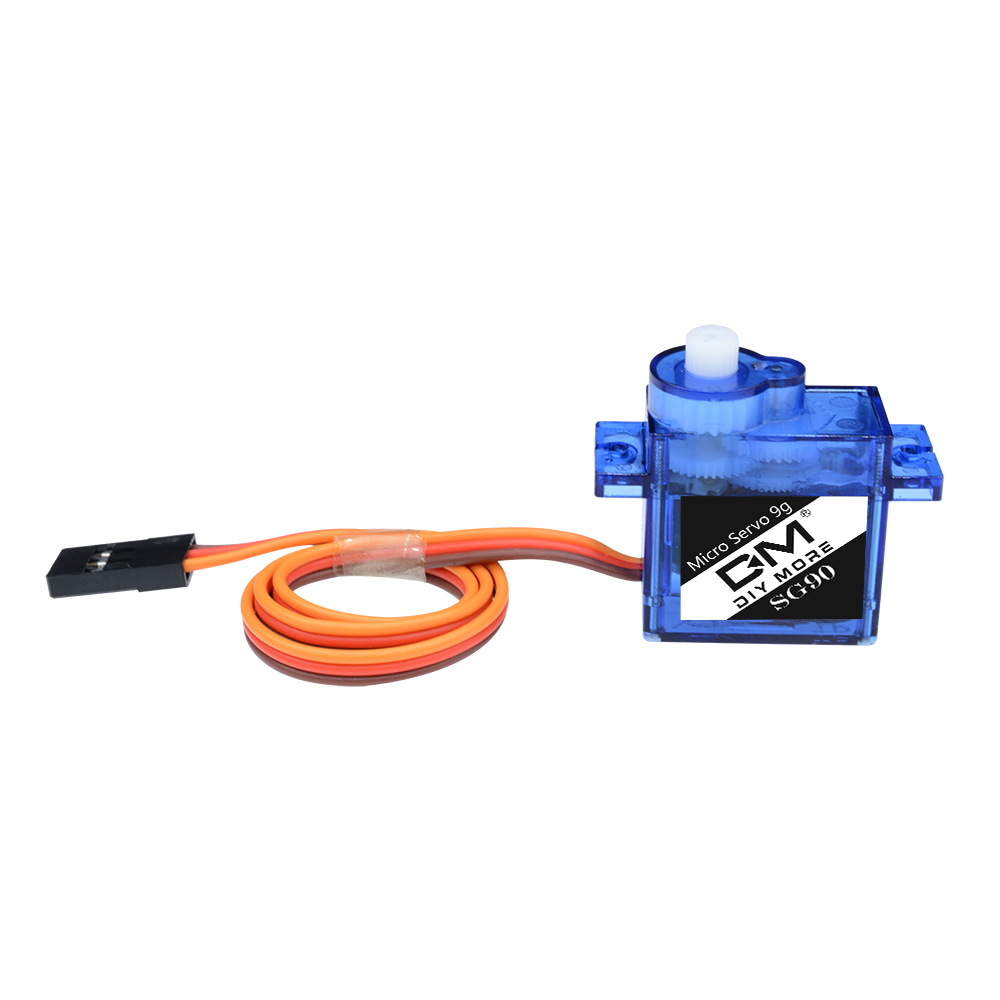

Mini SG90 Servo
Specification
Dimension: 22mm x 11.5mm x 22.5mm
Operating speed: 0.12second/ 60degree ( 4.8V no load)
Stall Torque (4.8V): 17.5oz /in (1kg/cm)
Temperature range: -30 to +60°C
Dead band width: 7usec
Operating voltage: 3.0V~7.2V
Fit for ALL kind of R/C Toys
List
1 x SG90 Servo
Specification
Dimension: 22mm x 11.5mm x 22.5mm
Operating speed: 0.12second/ 60degree ( 4.8V no load)
Stall Torque (4.8V): 17.5oz /in (1kg/cm)
Temperature range: -30 to +60°C
Dead band width: 7usec
Operating voltage: 3.0V~7.2V
Fit for ALL kind of R/C Toys
List
1 x SG90 Servo
