1/4" Water Flow Switch Water Flow Control Sensor for Water Purifier Dispenser
Product View
Detail
Product features
1. High sensitivity and durability.
2. Response: less than 1s.
3. Light weight, reasonable size, stable performance.
4. Low water pressure start, easy to install, safe to use.
5. Widely used: can be used in drinking fountains, water purifiers, vending machines, etc.
1. High sensitivity and durability.
2. Response: less than 1s.
3. Light weight, reasonable size, stable performance.
4. Low water pressure start, easy to install, safe to use.
5. Widely used: can be used in drinking fountains, water purifiers, vending machines, etc.
Basic principle: when the water flows in the preset flow channel, it pushes the magnet to displace, and when it moves to the corresponding reed switch senses the magnetic field, the reed switch conducts; when there is no water flow, the magnet returns to the position under the thrust of the spring, and the corresponding reed switch senses the magnetic field, and then the reed switch is disconnected.

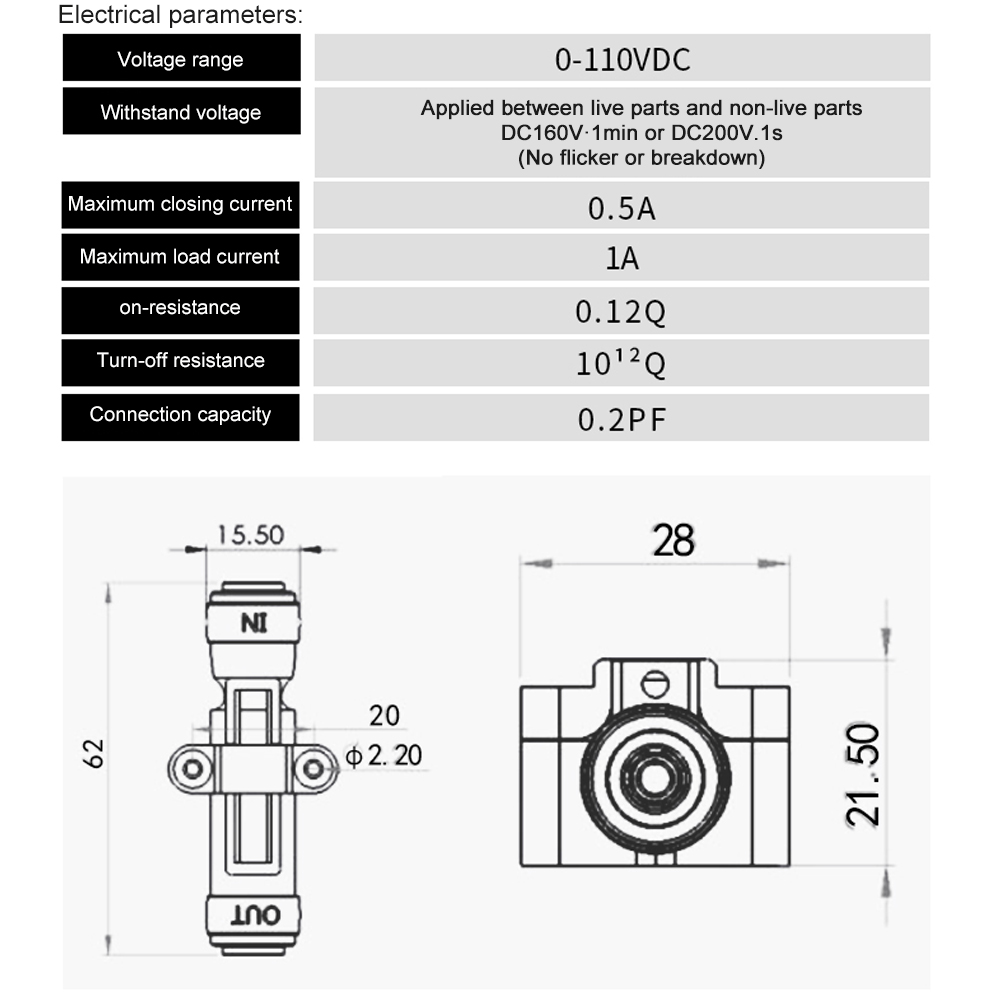

Product Parameter
Model: MW-WS-S2
Connector size: 2 points quick connect (1/4")
Thread: G1/4
Starting flow: S2 type: <300ml/min
Response time: <1S
Switch type: normally (break) open
Wire length: 50cm
Segment type: XH-2
Voltage range: DC0-110V
Maximum closing current: 0.5A
Maximum load current: 1A
Wire connection strength: 20N.10S tension applied axially along the terminal, 20N.10S tension applied vertically along the terminal (no damage to the connection)
Water pressure resistance: hydrostatic pressure at 1.05MPa open for 5 minutes (no leakage and breakage)
Drop performance: from the height of 50cm in any direction to the concrete once (after the test action is normal, no damage)
Applicable environment
Applicable water quality: turbidity <1; Fe+ Co+ Ni<0.3Mg/L
Applicable water pressure: ≤0.8MPa
Applicable water temperature: 5~50°C
Ambient humidity: < 85
Storage temperature: -20~50℃
Delivery list
Water flow sensor*1
Water flow sensor*1
