FNIRSI DSO152 DSO153 Handheld Mini Oscilloscope Portable Digital Oscilloscope
Product View
Detail

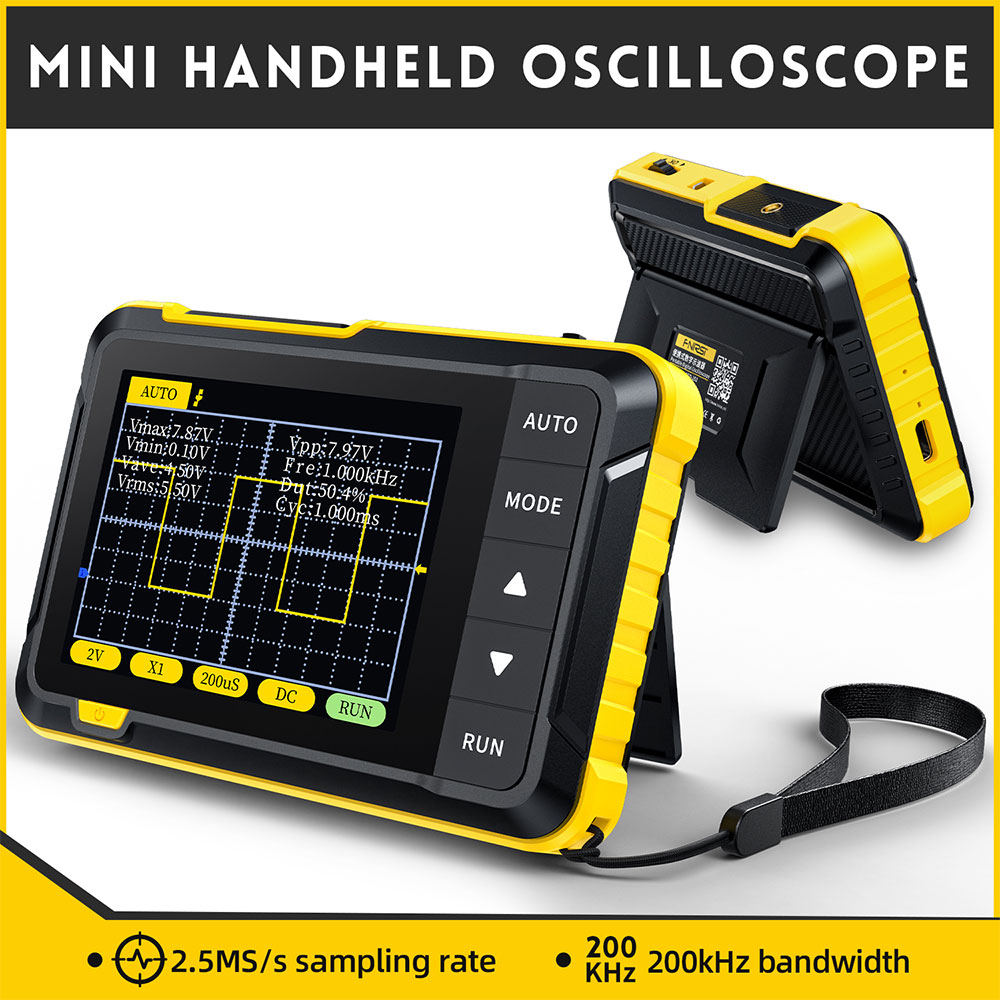

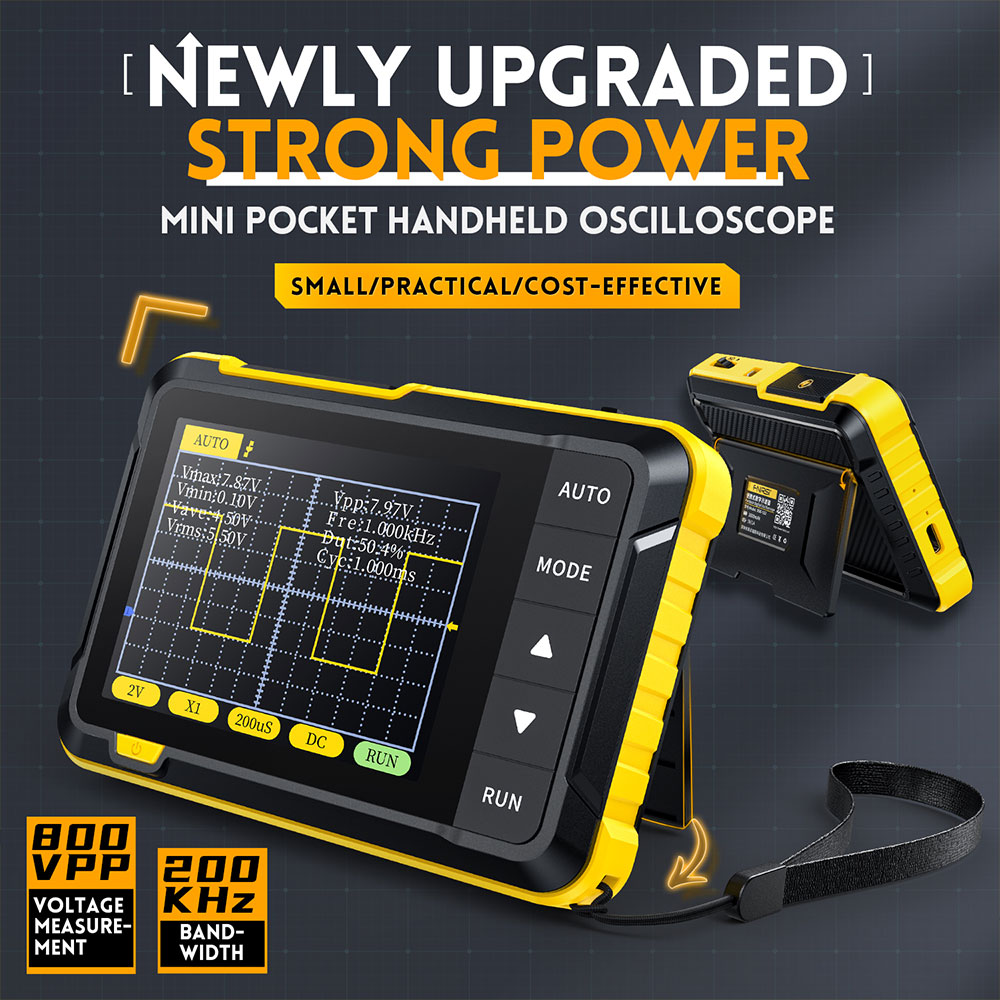

DSO152
Features
1. The oscilloscope has a real-time sampling rate of 2.5MS/s, 200kHz bandwidth
2. With a full range of triggering functions (single, normal, automatic), both for periodic
3. Analog signals and non-periodic digital signals can be used freely
4. Up to ± 400V voltage signal measurement

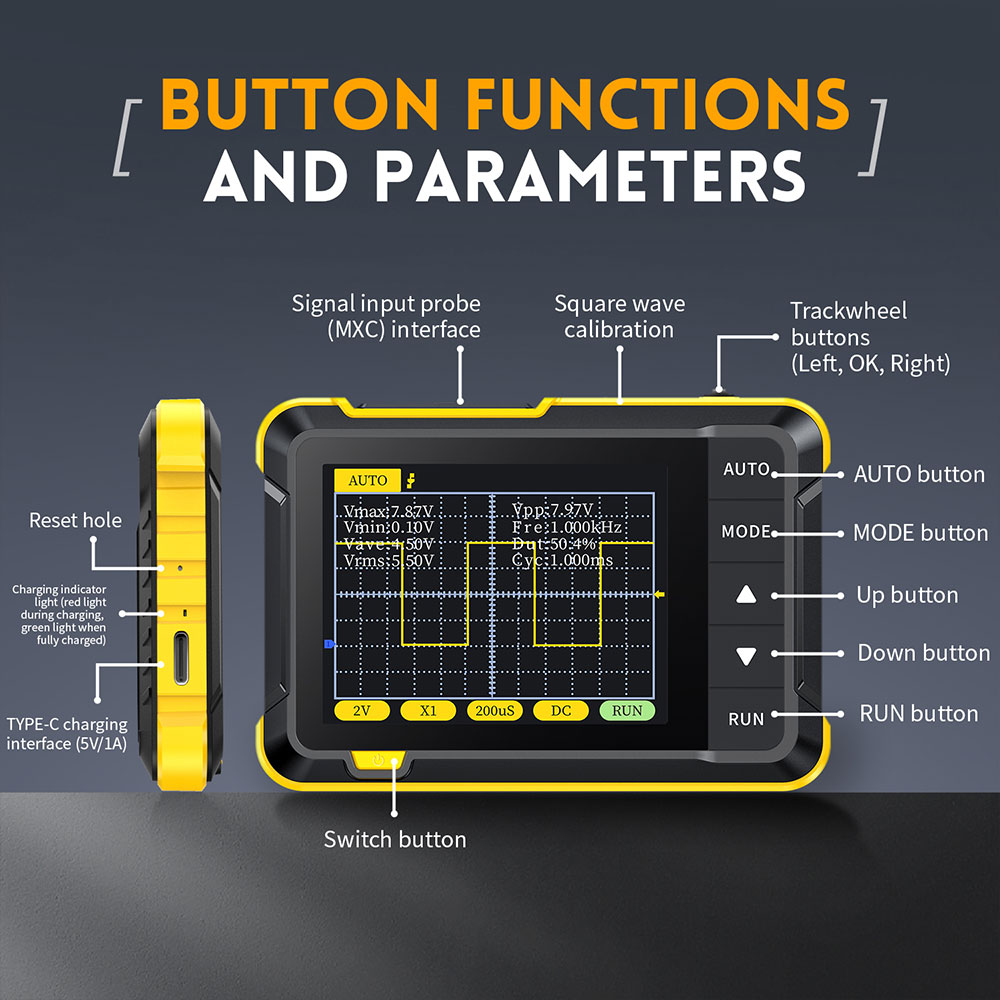

5. Equipped with a highly efficient one-key AUTO, without the need for cumbersome adjustments can be displayed on the measured waveforms
6.1KHz calibration square wave, easy to calibrate the probe.

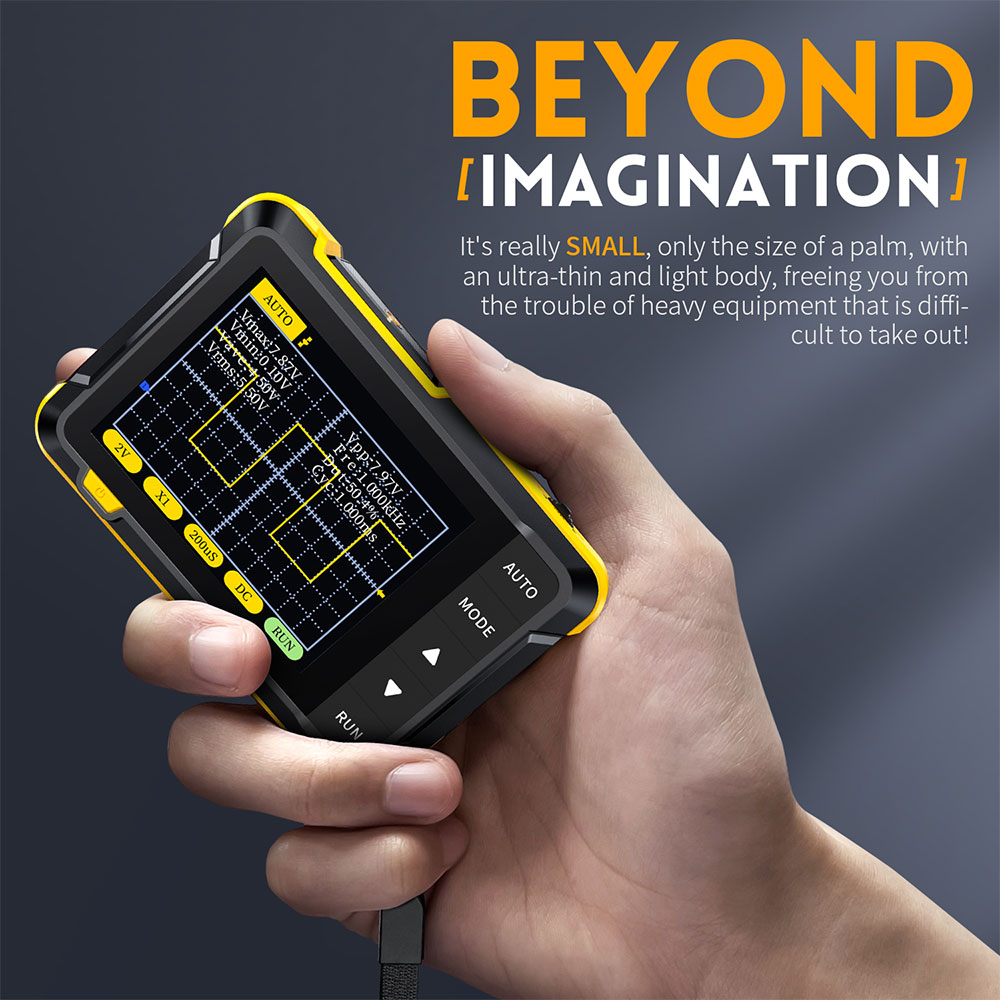

7. Lightweight body, to get rid of equipment heavy belt trouble
8. Applicable to a variety of occasions, carry with you on the job!
2. With a full range of triggering functions (single, normal, automatic), both for periodic
3. Analog signals and non-periodic digital signals can be used freely
4. Up to ± 400V voltage signal measurement
5. Equipped with a highly efficient one-key AUTO, without the need for cumbersome adjustments can be displayed on the measured waveforms
6.1KHz calibration square wave, easy to calibrate the probe.
7. Lightweight body, to get rid of equipment heavy belt trouble
8. Applicable to a variety of occasions, carry with you on the job!
Specification
Model: DSO152
Sampling rate: 2.5MS/s
Bandwidth: 200K
Vertical sensitivity: 10mV/Div-20V/Div (by 1-2-5 way progression)
Time base range: 10μs/Div-50s/Div(in 1-2-5 way progression)
Voltage range: X1:±40V(Vpp:80V), X10:±400V(Vpp:800V)
Trigger mode: automatic/regular/single
Coupling mode: AC/DC
Display: 2.8 inch/PPI:320*240
USB Charging:5V/1A
Interface: Type-C
Li-ion battery capacity: 1000mAh
Calibration Square Wave:Frequency:1K;Duty Cycle:50%
Model: DSO152
Sampling rate: 2.5MS/s
Bandwidth: 200K
Vertical sensitivity: 10mV/Div-20V/Div (by 1-2-5 way progression)
Time base range: 10μs/Div-50s/Div(in 1-2-5 way progression)
Voltage range: X1:±40V(Vpp:80V), X10:±400V(Vpp:800V)
Trigger mode: automatic/regular/single
Coupling mode: AC/DC
Display: 2.8 inch/PPI:320*240
USB Charging:5V/1A
Interface: Type-C
Li-ion battery capacity: 1000mAh
Calibration Square Wave:Frequency:1K;Duty Cycle:50%
List
1 x 152 Host
1 x Instruction Manual
1 x Normal Probe
1 x Type-C cable
1 x Adaptor (not included in standard version, included in upgraded version)
1 x P6100 High Voltage Probe (not included in standard version, included in upgraded version)
1 x 152 Host
1 x Instruction Manual
1 x Normal Probe
1 x Type-C cable
1 x Adaptor (not included in standard version, included in upgraded version)
1 x P6100 High Voltage Probe (not included in standard version, included in upgraded version)

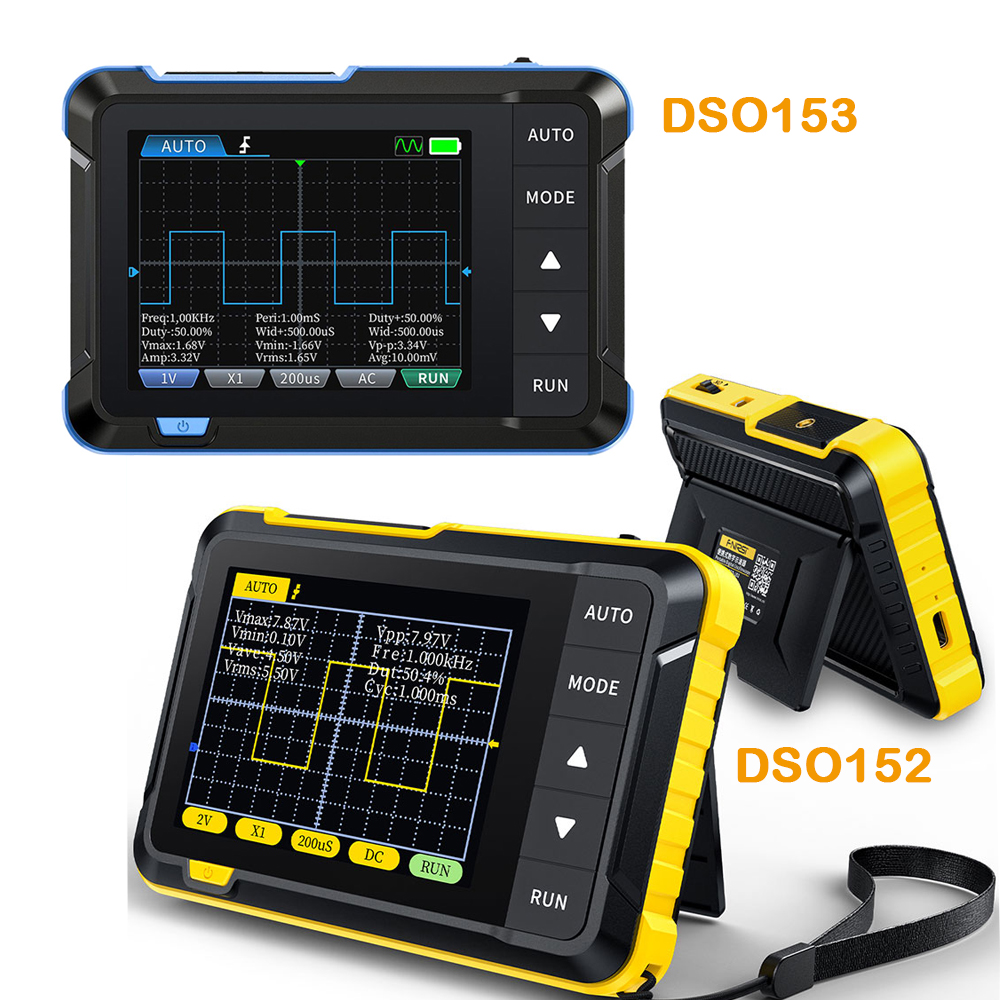

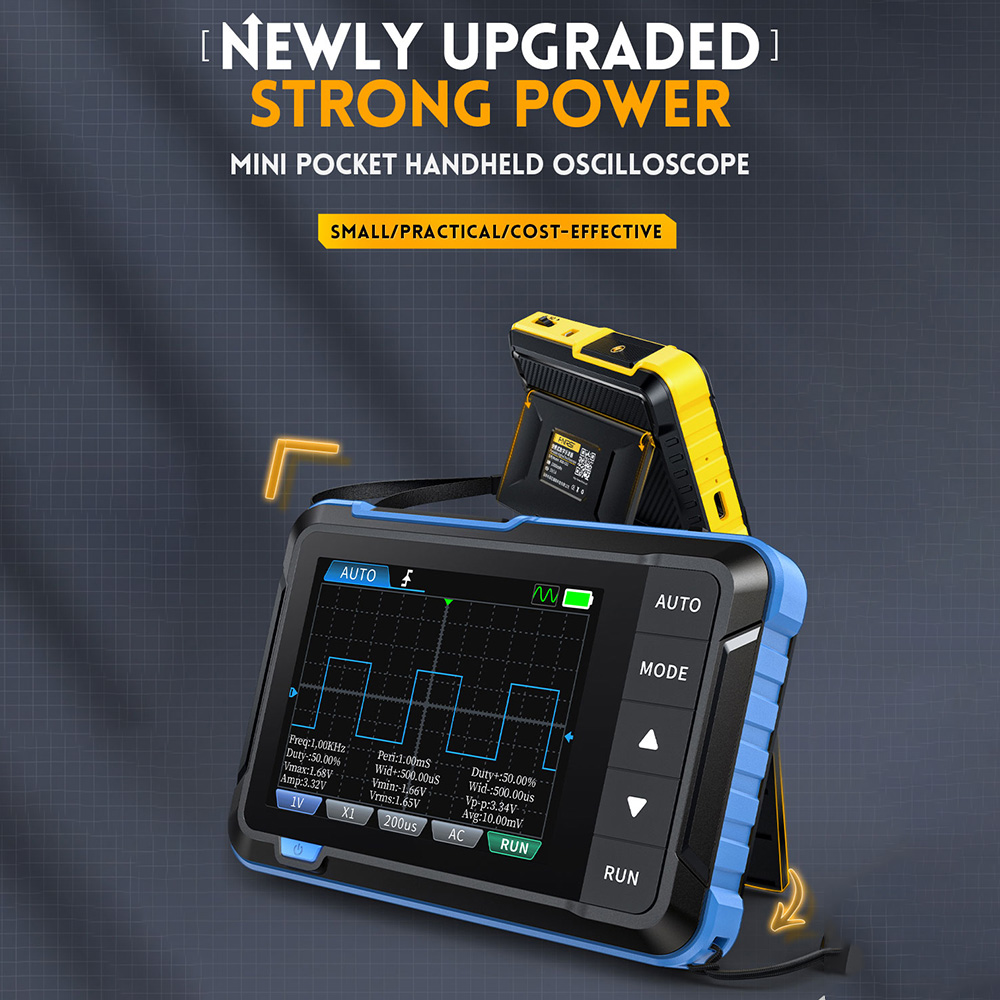

DSO153
Features
1. The oscilloscope has a real-time sampling rate of 5MS/s, a bandwidth of 1MHz, and a full range of triggering functions (single, normal, and automatic).

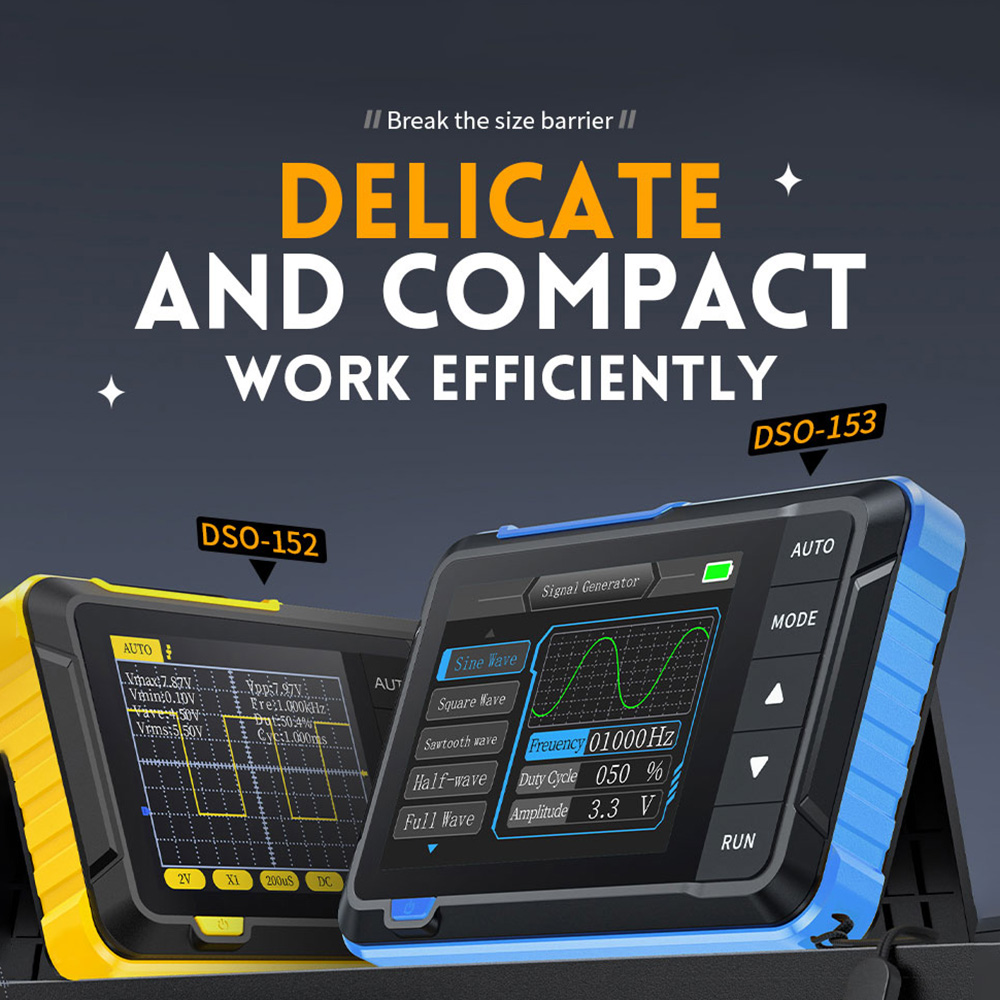

2. It is also equipped with a multi-function signal generator (10KHz). Equipped with a 2.8-inch 320 * 240 resolution high-definition LCD screen, built-in 1000mAh high-quality lithium battery, fully charged can be used for about 4 hours
3. Exquisite and compact, convenient storage

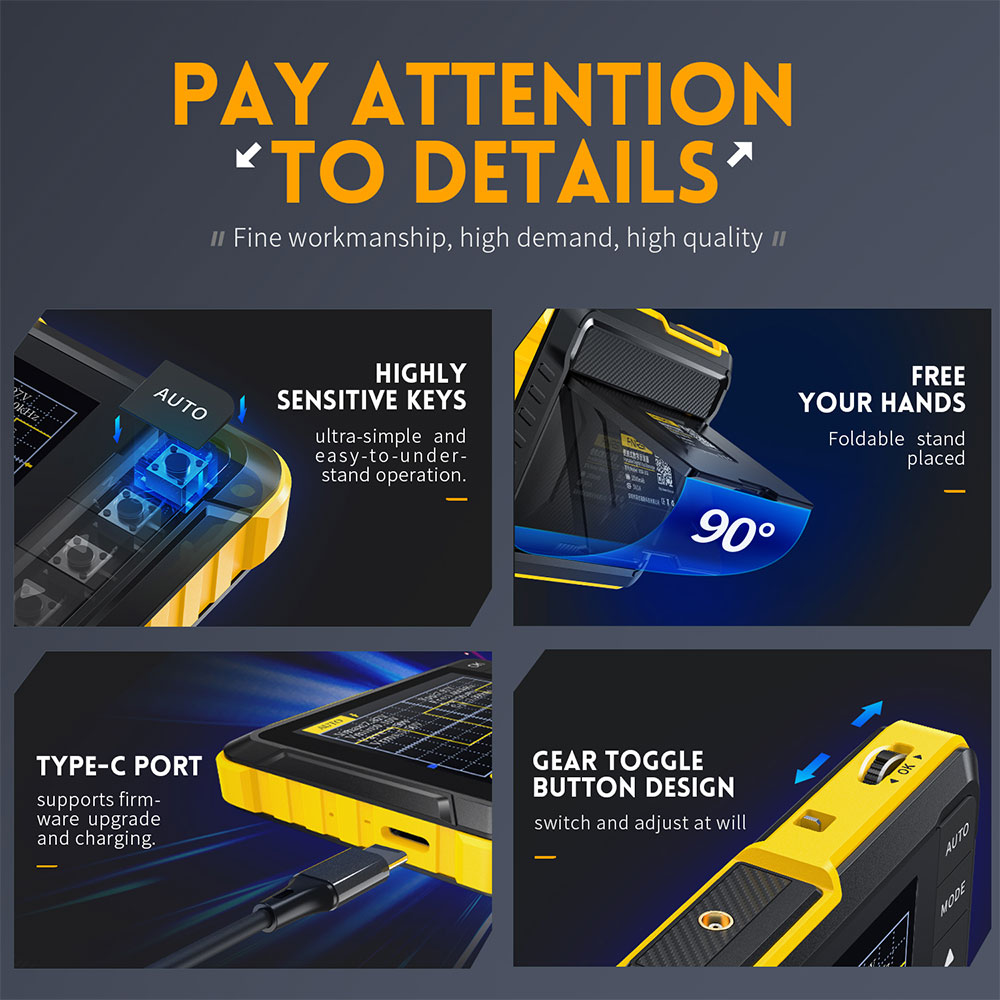

4. Gear toggle button: switching adjustment at will
5.Wide range of applications: suitable for use in a variety of occasions, lightweight and space-saving, can be carried out of the work, maintenance and DIY tool!
1. The oscilloscope has a real-time sampling rate of 5MS/s, a bandwidth of 1MHz, and a full range of triggering functions (single, normal, and automatic).
2. It is also equipped with a multi-function signal generator (10KHz). Equipped with a 2.8-inch 320 * 240 resolution high-definition LCD screen, built-in 1000mAh high-quality lithium battery, fully charged can be used for about 4 hours
3. Exquisite and compact, convenient storage
4. Gear toggle button: switching adjustment at will
5.Wide range of applications: suitable for use in a variety of occasions, lightweight and space-saving, can be carried out of the work, maintenance and DIY tool!
Oscilloscope specifications
Sampling rate: 5MS/s
Bandwidth: 1M
Vertical sensitivity: 10mV/Div~10V/Div
Time base range: 500ns~20S
Waveform pause: √
Trigger mode: complete trigger function (single, normal, automatic), both for the cycle of analog signals and non-periodic digital signals can be used freely
Voltage range: Up to ±400V voltage signal measurement.
Calibration square wave: comes with 1KHz calibration square wave, probe calibration easy and convenient
Sampling rate: 5MS/s
Bandwidth: 1M
Vertical sensitivity: 10mV/Div~10V/Div
Time base range: 500ns~20S
Waveform pause: √
Trigger mode: complete trigger function (single, normal, automatic), both for the cycle of analog signals and non-periodic digital signals can be used freely
Voltage range: Up to ±400V voltage signal measurement.
Calibration square wave: comes with 1KHz calibration square wave, probe calibration easy and convenient
Signal Generator Specifications
Frequency: 0~10KHz
Duty cycle: 0~100% (rectangular and sawtooth wave)
Amplitude: 0.1~3.3V
Waveforms: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, anti-step wave, noise wave, exponential rise, exponential fall, DC signals, multi-audio, Sink pulse, Lorentz wave
Auto shutdown: √
Switch the subject: √
Product basic parameters:
Display: 2.8 inches 320*240
USB charging: 5V/1A
Li-ion battery capacity: 1000mAh
Frequency: 0~10KHz
Duty cycle: 0~100% (rectangular and sawtooth wave)
Amplitude: 0.1~3.3V
Waveforms: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, anti-step wave, noise wave, exponential rise, exponential fall, DC signals, multi-audio, Sink pulse, Lorentz wave
Auto shutdown: √
Switch the subject: √
Product basic parameters:
Display: 2.8 inches 320*240
USB charging: 5V/1A
Li-ion battery capacity: 1000mAh
List
1 x Oscilloscope
1 x Instruction Manual
1 x Type-C charging cable
1 x Lanyard
1 x Alligator Clip Probe
1 x P6100 High Voltage Probe(not included in standard version, included in upgraded version)
1 x Adapter(not included in standard version, included in upgraded version)
1 x Oscilloscope
1 x Instruction Manual
1 x Type-C charging cable
1 x Lanyard
1 x Alligator Clip Probe
1 x P6100 High Voltage Probe(not included in standard version, included in upgraded version)
1 x Adapter(not included in standard version, included in upgraded version)
