NFC RFID NXP PN532 Module V3 Kits Reader Writer For Arduino Android Phone Module
Product View
Detail
Description:
Feature :
1、Gilt PCB and Small dimension and easy to embed into your project
2、Support I2C、SPI and HSU (High Speed UART), Change between those modes
3、Support RFID reading and writing
SupportP2P communication with peers
Support NFC with Android phone
4、Typical Operating Distance have been updated to 5cm~7cm reading distance
5、Work in NFC Mode or RFID reader/writer Mode
6、RFID reader/writer supports:
1) 1k, 4k, Ultralight, and DesFire cards
2) ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)
3) Innovision Jewel cards such as IRT5001 card
4) FeliCa cards such as RCS_860 and RCS_854
7、Plug and play, Arduino compatible
8、Built in PCB Antenna, with 4cm~6cm communication distance
9、On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
10、Work as RFID reader/writer
11、Work as 1443-A card or a virtual card
12、Exchange data with other NFC devices such as smartphone
Interface :

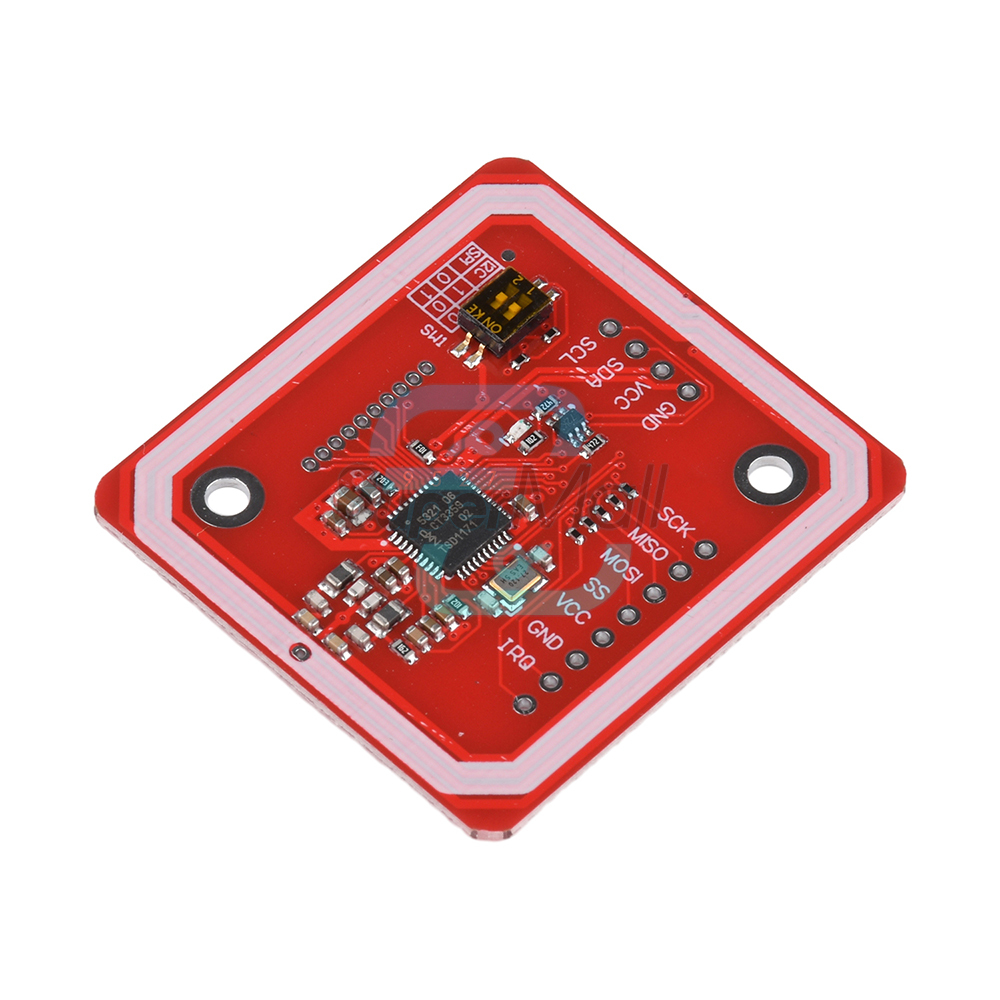

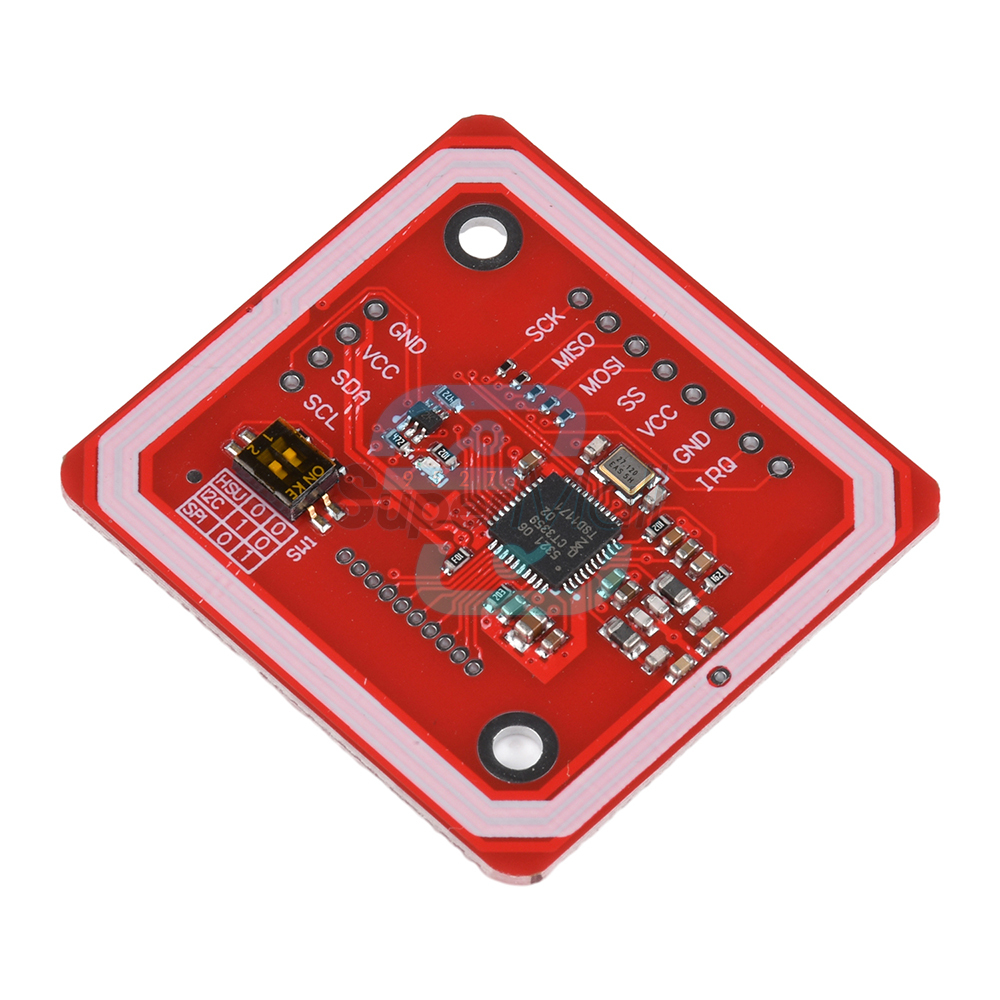

The version 3 can support I2C、SPI and HSU (High Speed UART), there is a switch can help you to change interface between those modes easily.
NFC is a popular technology in recent years. We often heard this work
while smartphone company such as Samsung or HTC introduces their latest high-end phones.
Almost all the high-end phone in the market support NFC.
Near field communication (NFC) is a set of standards for smartphones and similar
devices to establish radio communication with each other by touching them together
or bringing them into close proximity, usually no more than a few centimeters.
For electronics geeks, we also want to use NFC technology to make our own things.
So we build this NFC RFID module. This module is built around NXP PN532.
NXP PN532 is very popular in NFC area. And the company offers much technology document to help developers.
We developed this module based on the official document. And to make things easier, we also build library for this module.

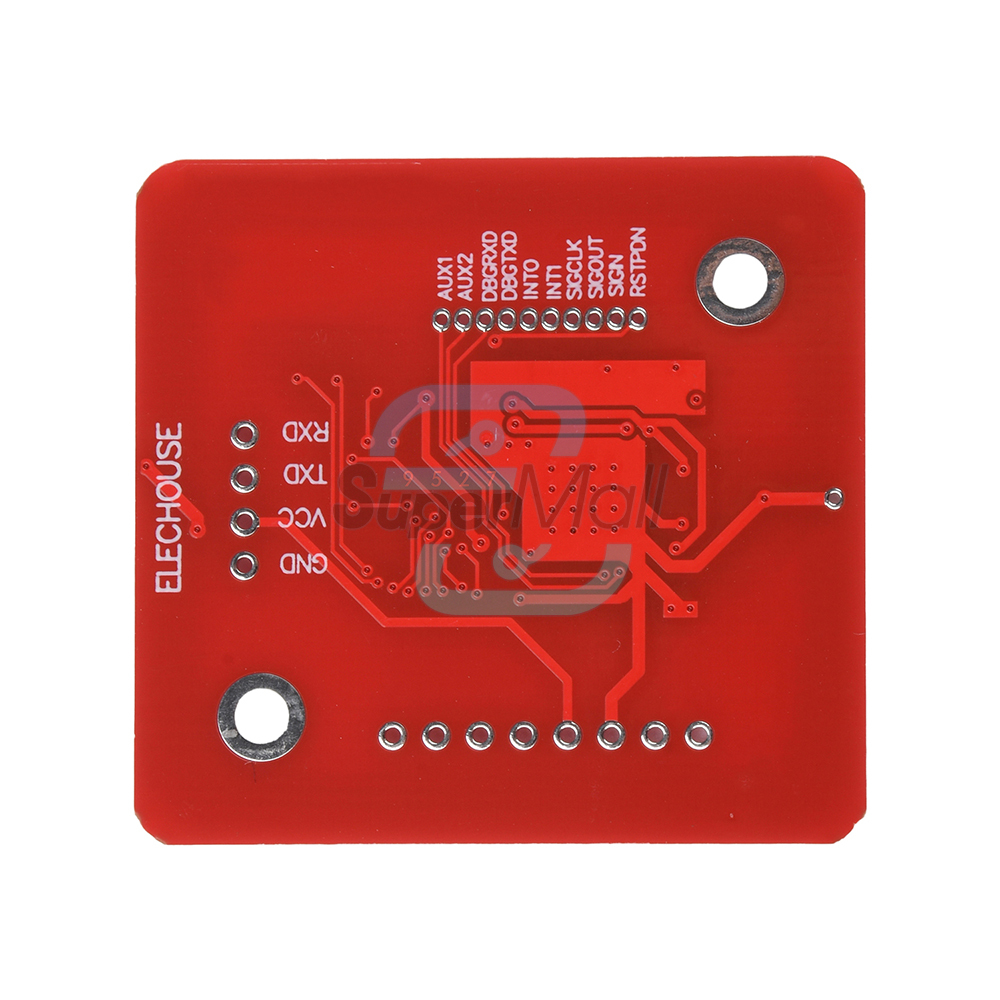

We almost break out all the IO pins of NXP532 on this module. Users could easily connect and play.
On this module, I2C is the data Interface by default. With our Arduino Sensor Shield,
it is very easy to plug and play. However, if users want to use other interface such as UART or SPI,
this module also makes it easy to break out those pins.
Feature :
1、Gilt PCB and Small dimension and easy to embed into your project
2、Support I2C、SPI and HSU (High Speed UART), Change between those modes
3、Support RFID reading and writing
SupportP2P communication with peers
Support NFC with Android phone
4、Typical Operating Distance have been updated to 5cm~7cm reading distance
5、Work in NFC Mode or RFID reader/writer Mode
6、RFID reader/writer supports:
1) 1k, 4k, Ultralight, and DesFire cards
2) ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)
3) Innovision Jewel cards such as IRT5001 card
4) FeliCa cards such as RCS_860 and RCS_854
7、Plug and play, Arduino compatible
8、Built in PCB Antenna, with 4cm~6cm communication distance
9、On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
10、Work as RFID reader/writer
11、Work as 1443-A card or a virtual card
12、Exchange data with other NFC devices such as smartphone
Interface :
The version 3 can support I2C、SPI and HSU (High Speed UART), there is a switch can help you to change interface between those modes easily.

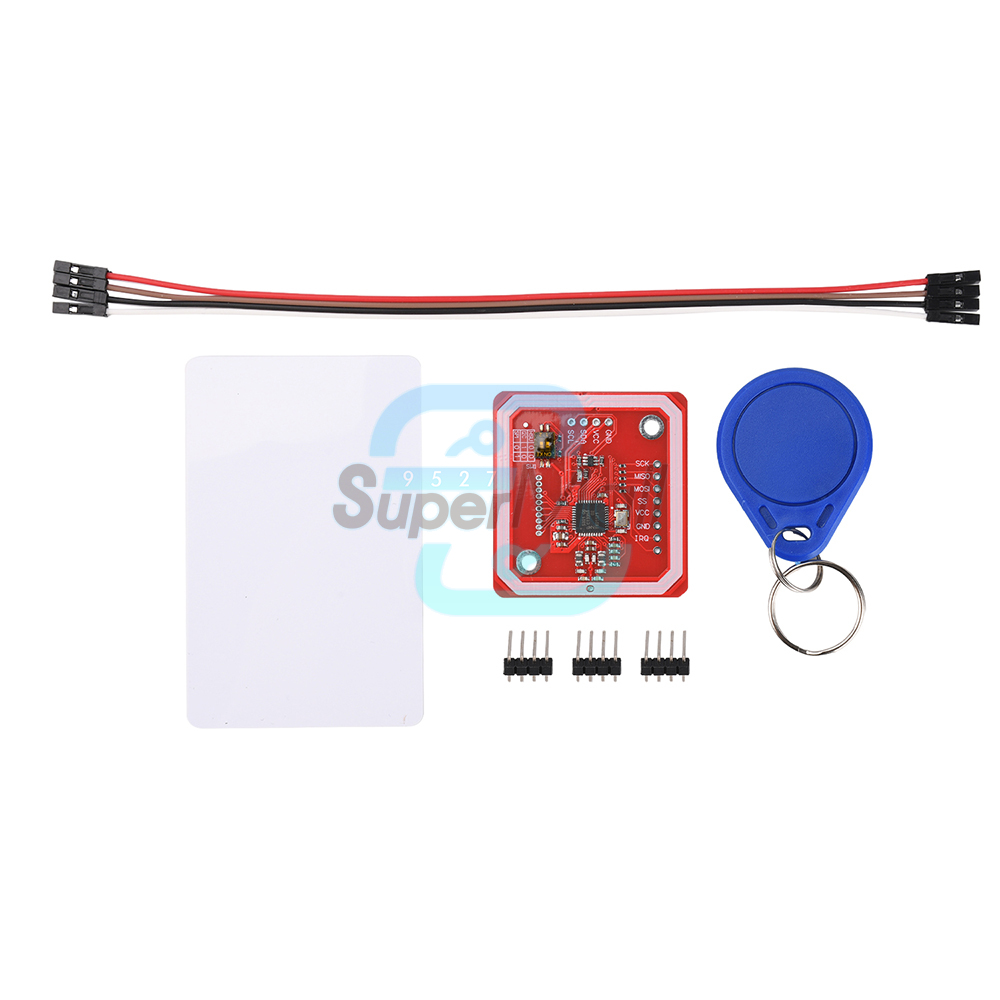

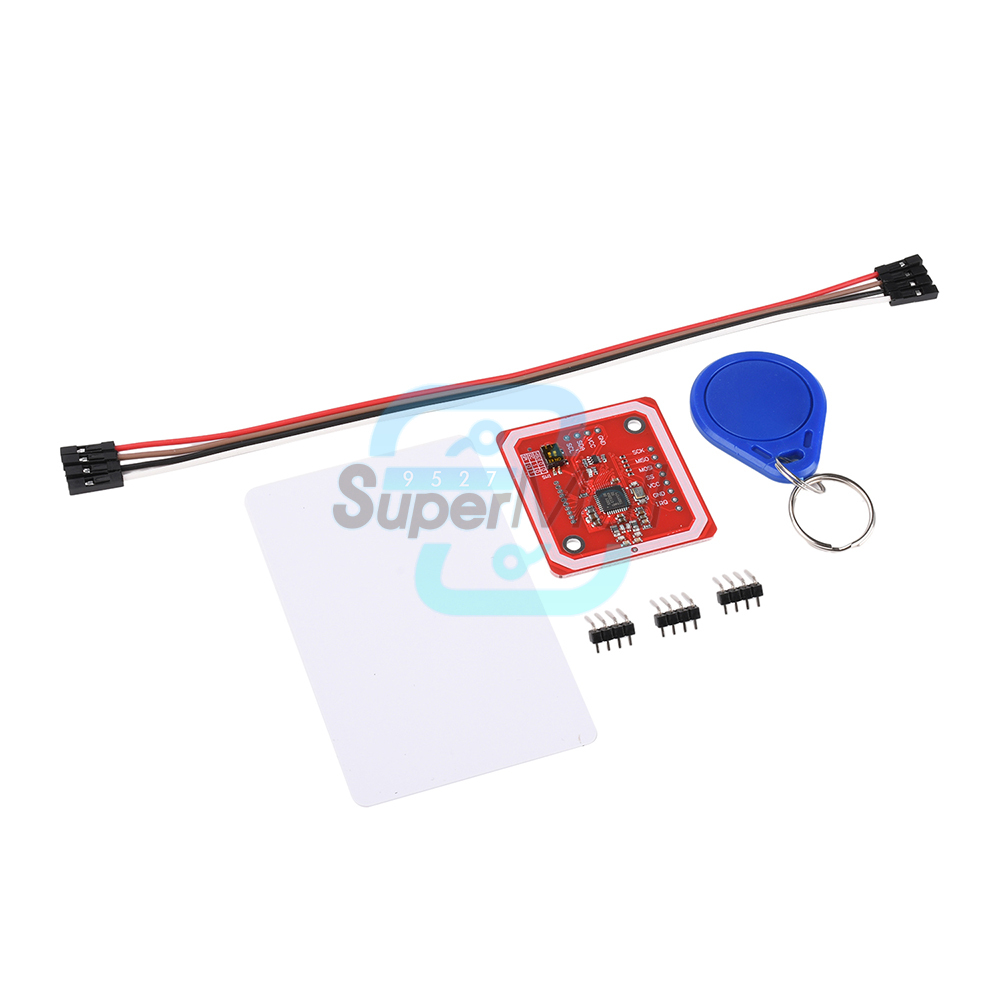

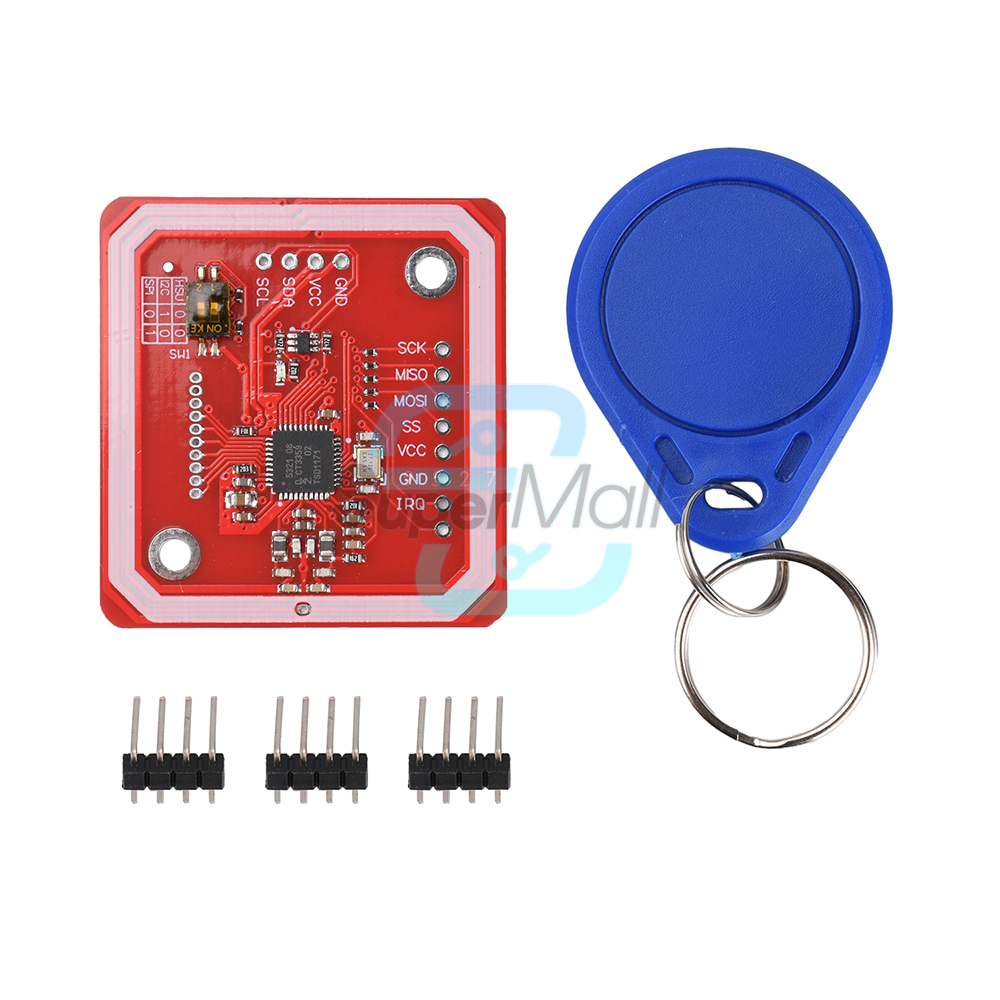

Package Included:
- 1 x 1PCS*PN532 NFC RFID Module
- 1 x 2.54mm spacing 4pin Cable
- 1 x One S50 White Card
- 1 x One S50 Key Card
- 1 x 12P bended male pins
