Product introduction:
Listening to shortwave radio is an exciting hobby, but for urban residents, the reception experience is often disappointing. We can hardly hear any useful signals, even the signals of relatively strong radio stations. The signals are buried in many different types of interference and hum. Why is this happening? In the past two decades, the level of urban radio frequency interference (RFI) has deteriorated dramatically, and various poorly designed electronic devices have spread to all corners of the city. To a large extent the interference is caused by this. LCD TVs, WiFi routers, poorly designed switching power adapters and power cats, electric car chargers, etc. have seriously polluted the short-wave radio spectrum. If there is a suitable place to set up an outdoor long-line antenna, it will have a good reception effect, but when living in a residential area, a building, or a high-rise apartment, there is no roof to set up a long-line antenna. At this time, I need a receiver suitable for balcony installation. Antenna, MLA-30+ is such an antenna. MLA-30+ is a loop magnetic antenna.
The MLA-30+ loop antenna is a very popular broadband antenna. It is an effective antenna for short-wave listeners (SWL) and amateur radio enthusiasts (HAM) to receive medium-wave and short-wave in the environment of limited urban living areas. Frequency coverage: 500kHz to 30 MHz. Excellent directivity can help you reduce noise and improve signal-to-noise ratio, and can dig out weak signals that are submerged by noise during conventional antenna reception.

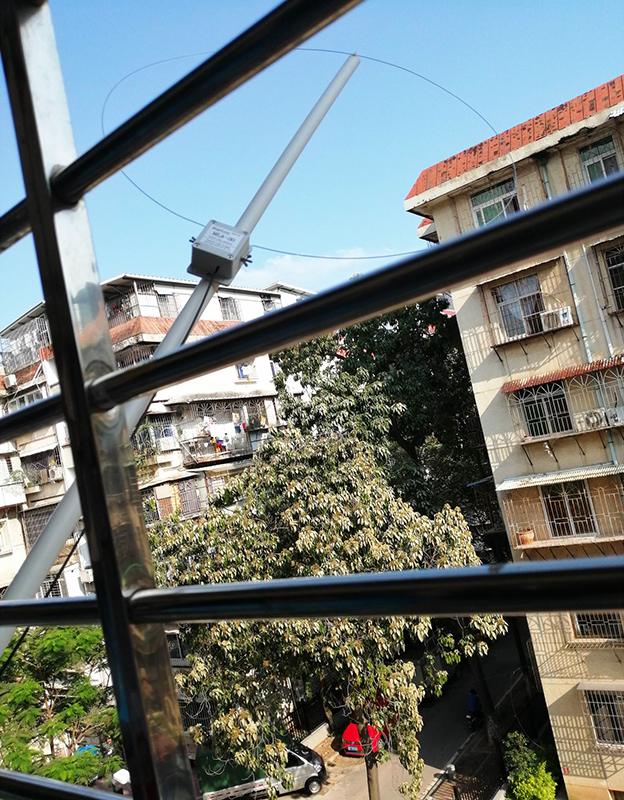

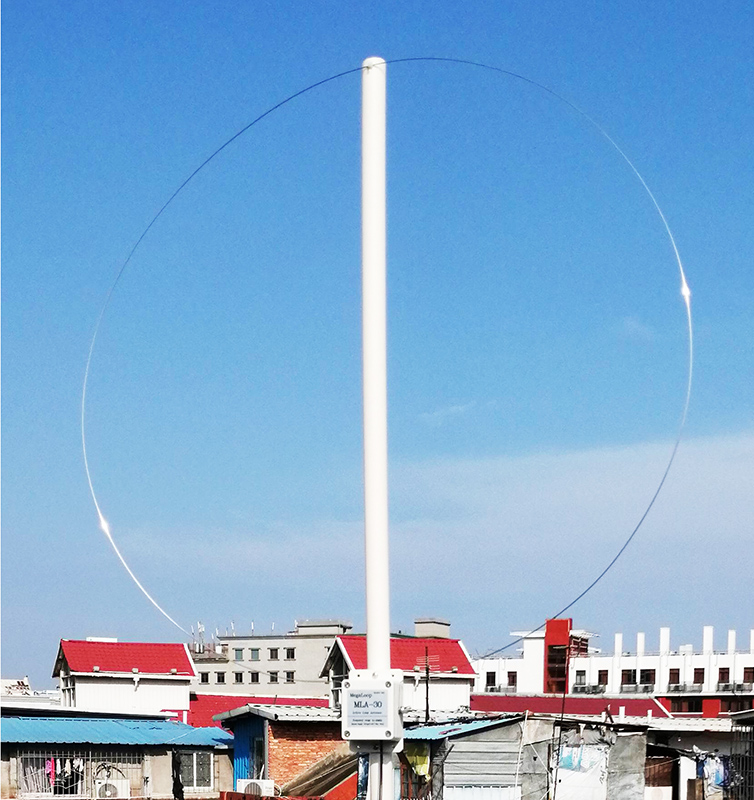

The MLA-30+ loop antenna is easy to set up and can be easily installed on balconies, rooftops and other locations. It is compact and low-key installation without worrying about opposition from neighbors and properties.
Another advantage of the MLA-30+ loop antenna is that it is directional. By rotating the antenna so that the dummy point of the antenna is aligned with the interference signal, the specific near-field interference can be attenuated to the maximum.
Details of MLA-30+ loop antenna:
1. Do not connect it to the transmitter, as it will cause damage to the preamplifier;
2. Compared with long wire antenna, up to 30 dB local radiated noise suppression;
3. The figure-eight pattern provides deep dummy points to further reduce interference;
4. Main coverage range: 500kHz to 30 MH;
5. USB powered, easy to get electricity. The built-in feeder simplifies the installation process;
6. Simple structure, can be easily installed on balcony, roof and other positions;
7. No manual adjustment required *Install low-key, no need to worry about neighbors and property;
8. Modular design, easy to install and maintain;
9. Stainless steel ring vibrator, easy to install and easy to maintain;
10. The rainproof shell can be fixed for outdoor use for a long time.
Note:
You need to prepare a PVC sheathing tube for support, any diameter, you need to pay attention to the need to have a certain strength, any community hardware store can buy it. You can also use existing bamboo poles, wooden poles, etc., be careful not to use metal poles.
Package Included:
1x Antenna amplifier with 10m feeder
1x Stainless steel vibrator
1x Bias power supply
1x USB cable 0.8m
1x 60cm SMA jumper
2x Stainless steel fixing screw
Product Description:

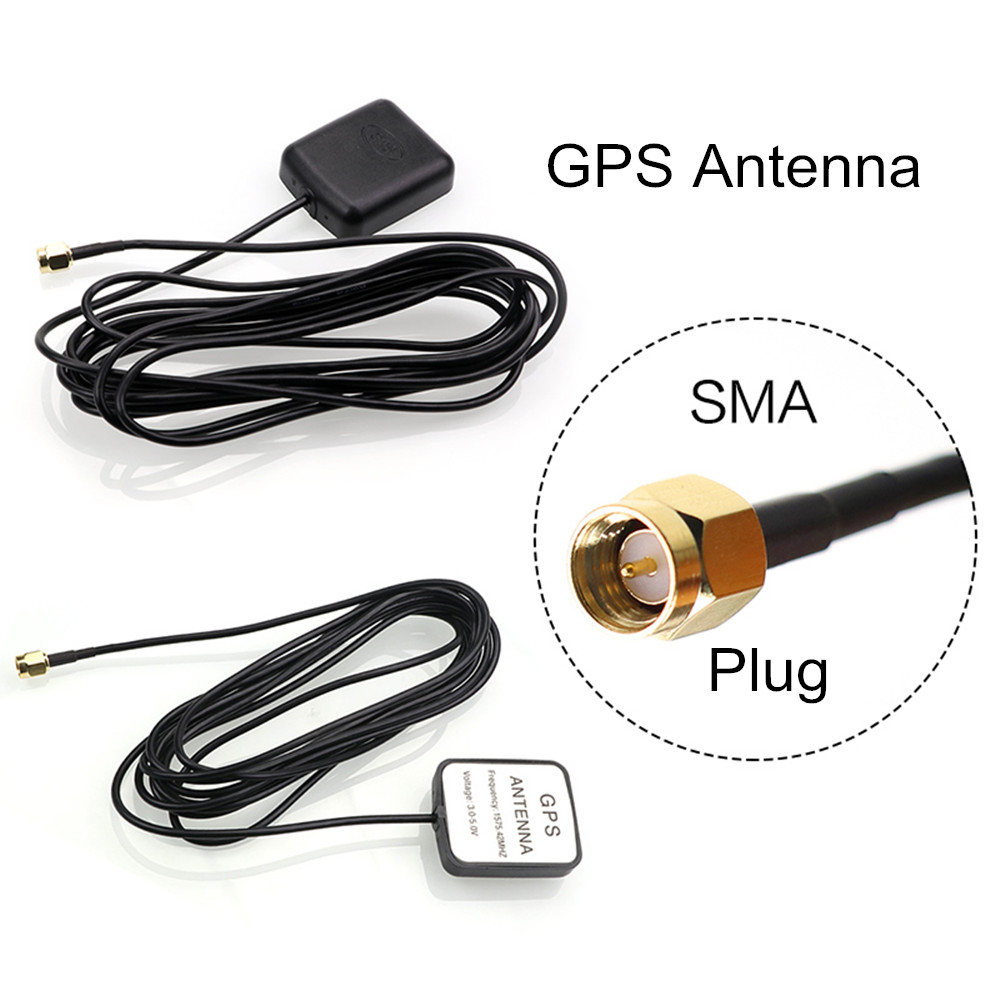

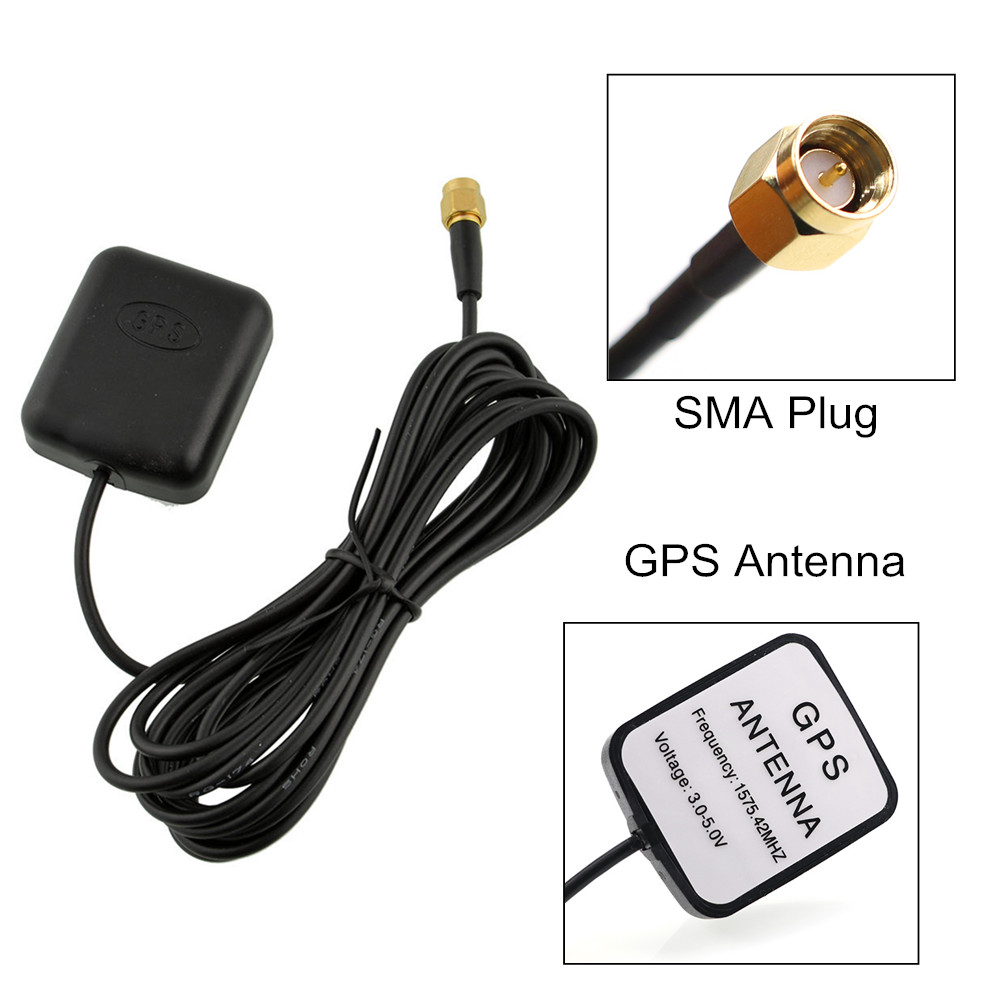

3M Male GPS Active Antenna Aerial Connector Cable
Help your GPS to get stronger signal
Picks up your position rapidly
Easy to install: this antenna has a magnetic base which can adhere to any metal surface
Ready to plug in and use
3M Male GPS Active Antenna Aerial Connector Cable
Help your GPS to get stronger signal
Picks up your position rapidly
Easy to install: this antenna has a magnetic base which can adhere to any metal surface
Ready to plug in and use
Specification:
Connector: Male
Frequency Range: 1575.42MHz
Voltage: 3~5V
DC current: 10mA Max
Polarization: Circular (RH)
LNA Gain (Without cable): 28dB typ.
Noise Figure: 1.5dB typ.
Operating Temperature (Deg.C) -45~+85
Storage Temperature (Deg.C) -50~+90
Humidity: 100%
Weatherproof: Yes
Cable length: 3 meters
Size: 45 x39 x13 mm (main unit)
Package includes:
1x GPS Antenna
Connector: Male
Frequency Range: 1575.42MHz
Voltage: 3~5V
DC current: 10mA Max
Polarization: Circular (RH)
LNA Gain (Without cable): 28dB typ.
Noise Figure: 1.5dB typ.
Operating Temperature (Deg.C) -45~+85
Storage Temperature (Deg.C) -50~+90
Humidity: 100%
Weatherproof: Yes
Cable length: 3 meters
Size: 45 x39 x13 mm (main unit)
Package includes:
1x GPS Antenna
Product introduction:
Listening to shortwave radio is an exciting hobby, but for urban residents, the reception experience is often disappointing. We can hardly hear any useful signals, even the signals of relatively strong radio stations. The signals are buried in many different types of interference and hum. Why is this happening? In the past two decades, the level of urban radio frequency interference (RFI) has deteriorated dramatically, and various poorly designed electronic devices have spread to all corners of the city. To a large extent the interference is caused by this. LCD TVs, WiFi routers, poorly designed switching power adapters and power cats, electric car chargers, etc. have seriously polluted the short-wave radio spectrum. If there is a suitable place to set up an outdoor long-line antenna, it will have a good reception effect, but when living in a residential area, a building, or a high-rise apartment, there is no roof to set up a long-line antenna. At this time, I need a receiver suitable for balcony installation. Antenna, MLA-30+ is such an antenna. MLA-30+ is a loop magnetic antenna.
The MLA-30+ loop antenna is a very popular broadband antenna. It is an effective antenna for short-wave listeners (SWL) and amateur radio enthusiasts (HAM) to receive medium-wave and short-wave in the environment of limited urban living areas. Frequency coverage: 500kHz to 30 MHz. Excellent directivity can help you reduce noise and improve signal-to-noise ratio, and can dig out weak signals that are submerged by noise during conventional antenna reception.
The MLA-30+ loop antenna is easy to set up and can be easily installed on balconies, rooftops and other locations. It is compact and low-key installation without worrying about opposition from neighbors and properties.
Another advantage of the MLA-30+ loop antenna is that it is directional. By rotating the antenna so that the dummy point of the antenna is aligned with the interference signal, the specific near-field interference can be attenuated to the maximum.
Details of MLA-30+ loop antenna:
1. Do not connect it to the transmitter, as it will cause damage to the preamplifier;
2. Compared with long wire antenna, up to 30 dB local radiated noise suppression;
3. The figure-eight pattern provides deep dummy points to further reduce interference;
4. Main coverage range: 500kHz to 30 MH;
5. USB powered, easy to get electricity. The built-in feeder simplifies the installation process;
6. Simple structure, can be easily installed on balcony, roof and other positions;
7. No manual adjustment required *Install low-key, no need to worry about neighbors and property;
8. Modular design, easy to install and maintain;
9. Stainless steel ring vibrator, easy to install and easy to maintain;
10. The rainproof shell can be fixed for outdoor use for a long time.
Note:
You need to prepare a PVC sheathing tube for support, any diameter, you need to pay attention to the need to have a certain strength, any community hardware store can buy it. You can also use existing bamboo poles, wooden poles, etc., be careful not to use metal poles.
Package Included:
1x Antenna amplifier with 10m feeder
1x Stainless steel vibrator
1x Bias power supply
1x USB cable 0.8m
1x 60cm SMA jumper
2x Stainless steel fixing screw
Product Description:
3M Male GPS Active Antenna Aerial Connector Cable
Help your GPS to get stronger signal
Picks up your position rapidly
Easy to install: this antenna has a magnetic base which can adhere to any metal surface
Ready to plug in and use
3M Male GPS Active Antenna Aerial Connector Cable
Help your GPS to get stronger signal
Picks up your position rapidly
Easy to install: this antenna has a magnetic base which can adhere to any metal surface
Ready to plug in and use
Specification:
Connector: Male
Frequency Range: 1575.42MHz
Voltage: 3~5V
DC current: 10mA Max
Polarization: Circular (RH)
LNA Gain (Without cable): 28dB typ.
Noise Figure: 1.5dB typ.
Operating Temperature (Deg.C) -45~+85
Storage Temperature (Deg.C) -50~+90
Humidity: 100%
Weatherproof: Yes
Cable length: 3 meters
Size: 45 x39 x13 mm (main unit)
Package includes:
1x GPS Antenna
Connector: Male
Frequency Range: 1575.42MHz
Voltage: 3~5V
DC current: 10mA Max
Polarization: Circular (RH)
LNA Gain (Without cable): 28dB typ.
Noise Figure: 1.5dB typ.
Operating Temperature (Deg.C) -45~+85
Storage Temperature (Deg.C) -50~+90
Humidity: 100%
Weatherproof: Yes
Cable length: 3 meters
Size: 45 x39 x13 mm (main unit)
Package includes:
1x GPS Antenna
