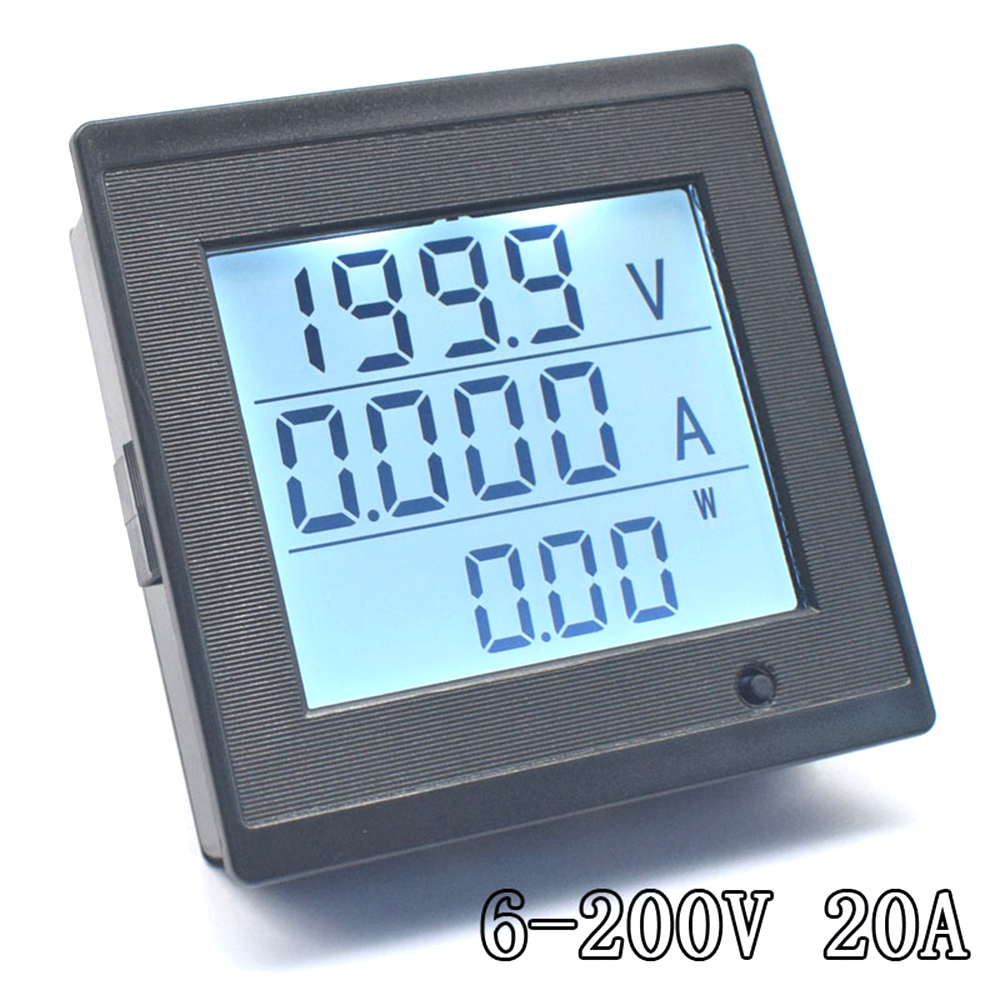

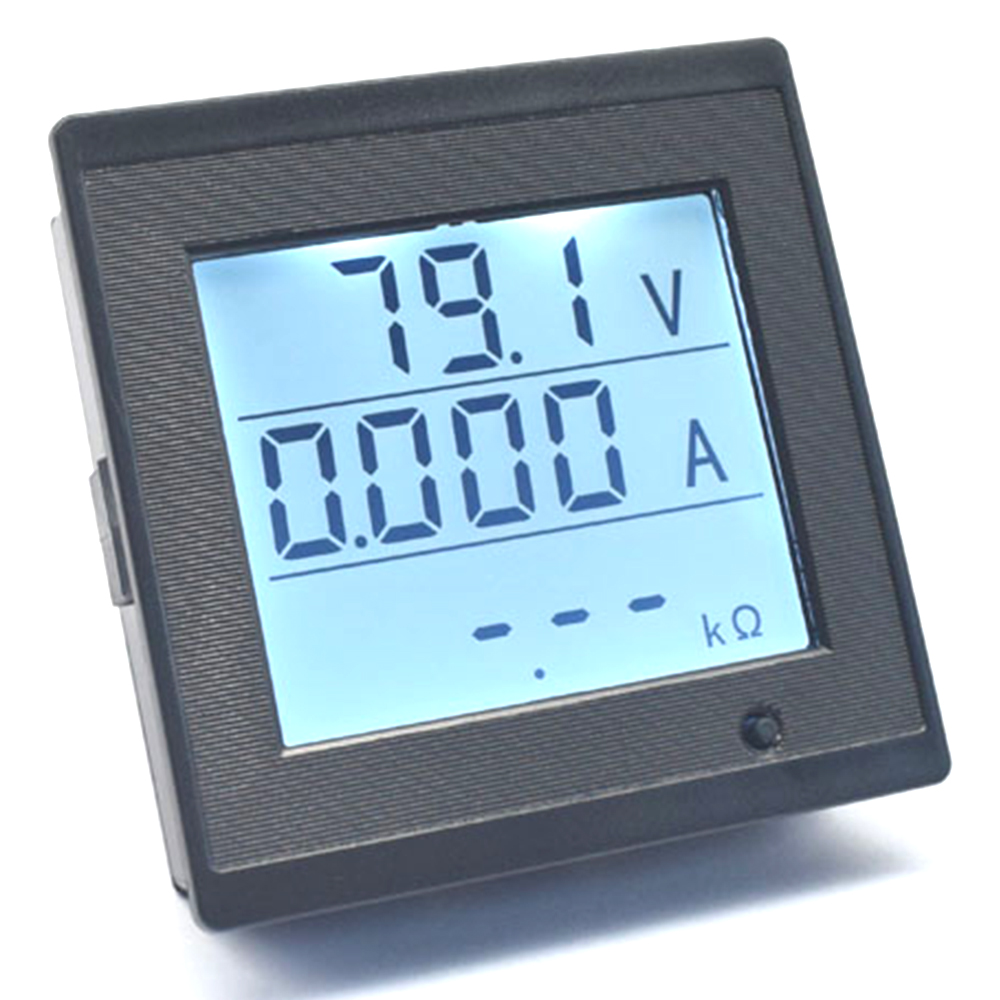

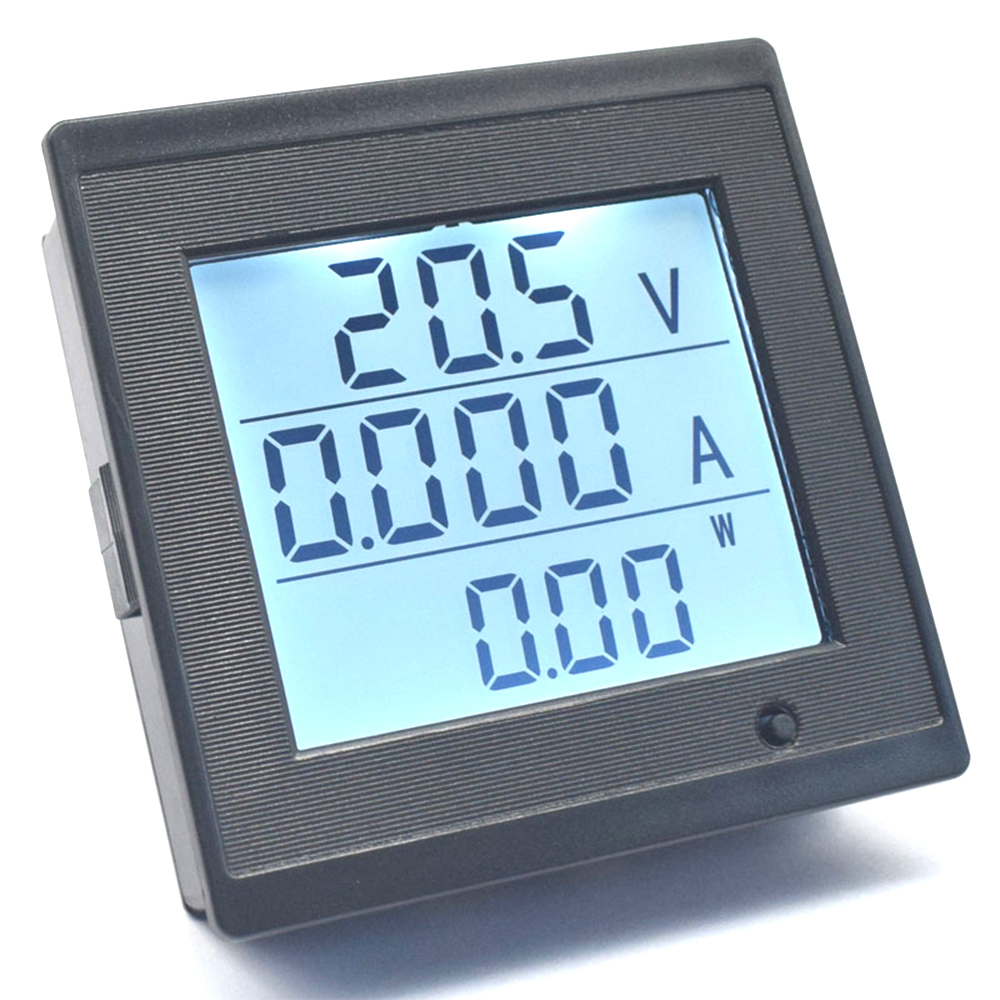

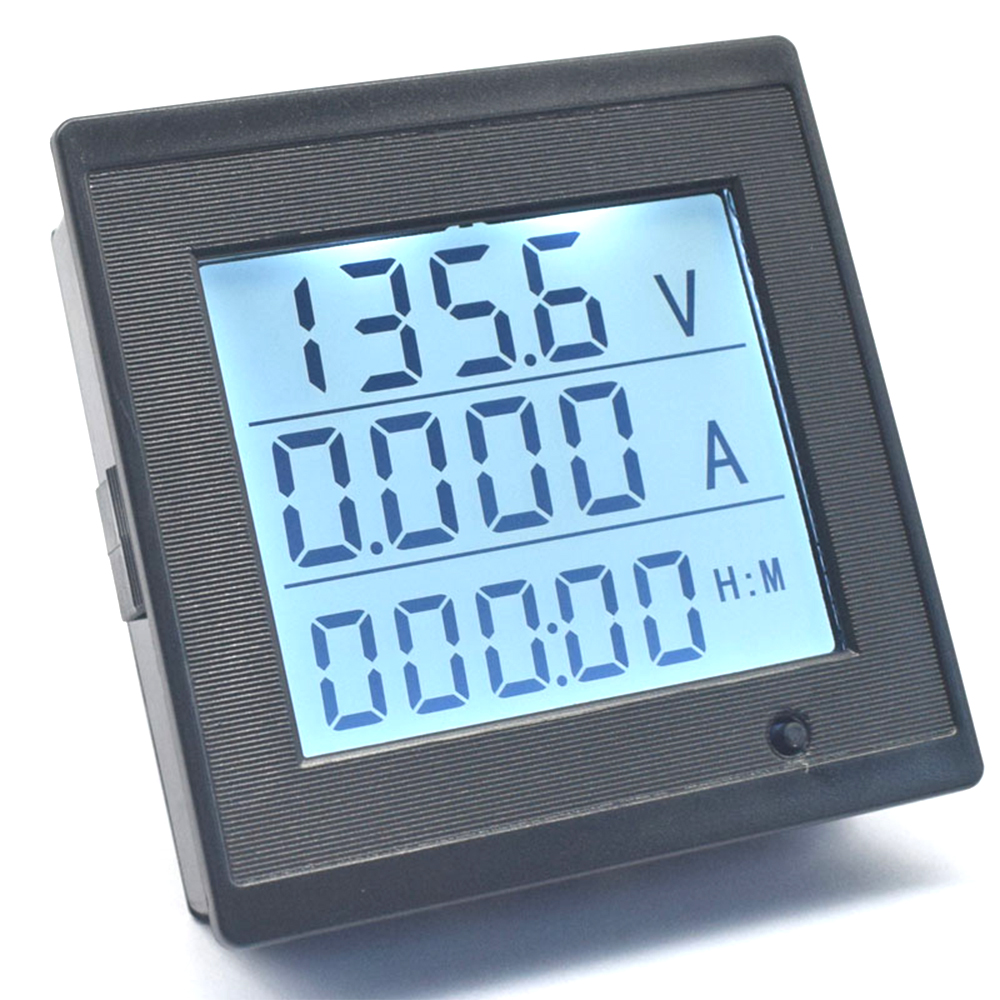

DC6V-200V Digital Voltmeter Ammeter Voltage Current Meter Power Energy Monitor

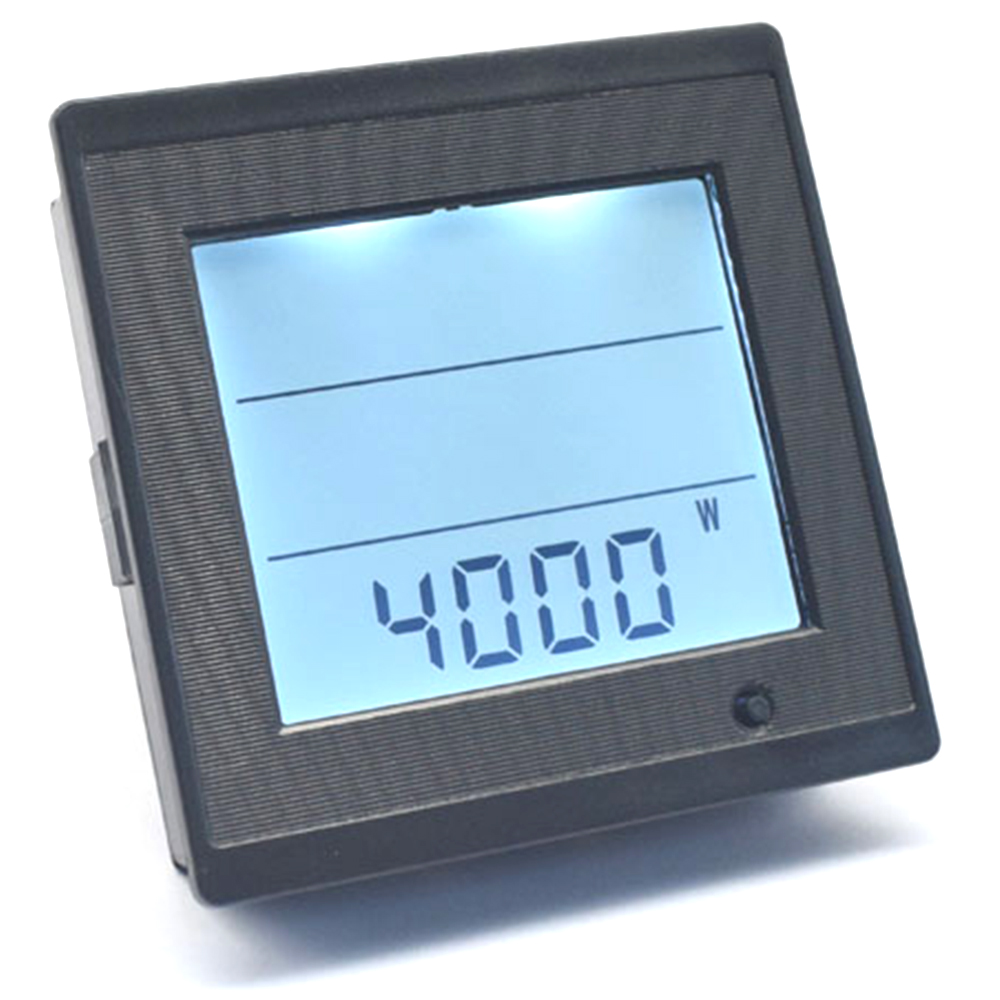

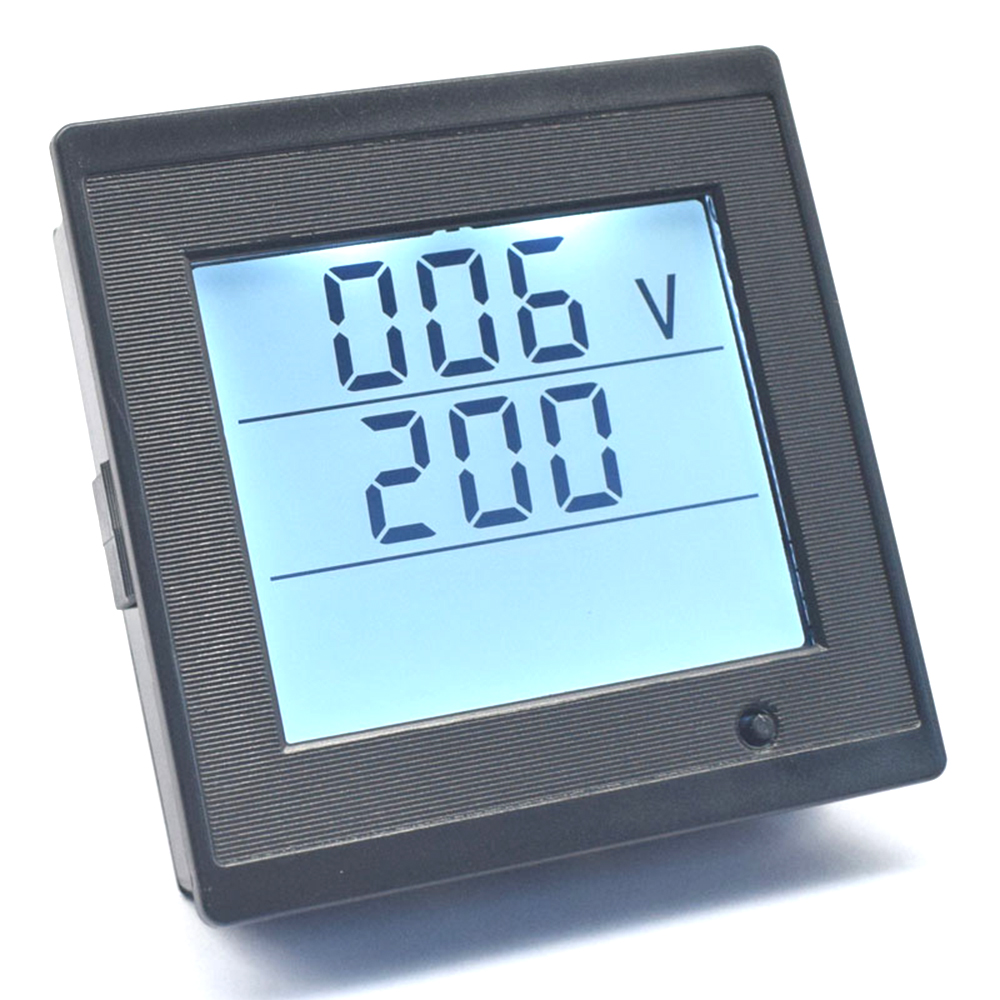

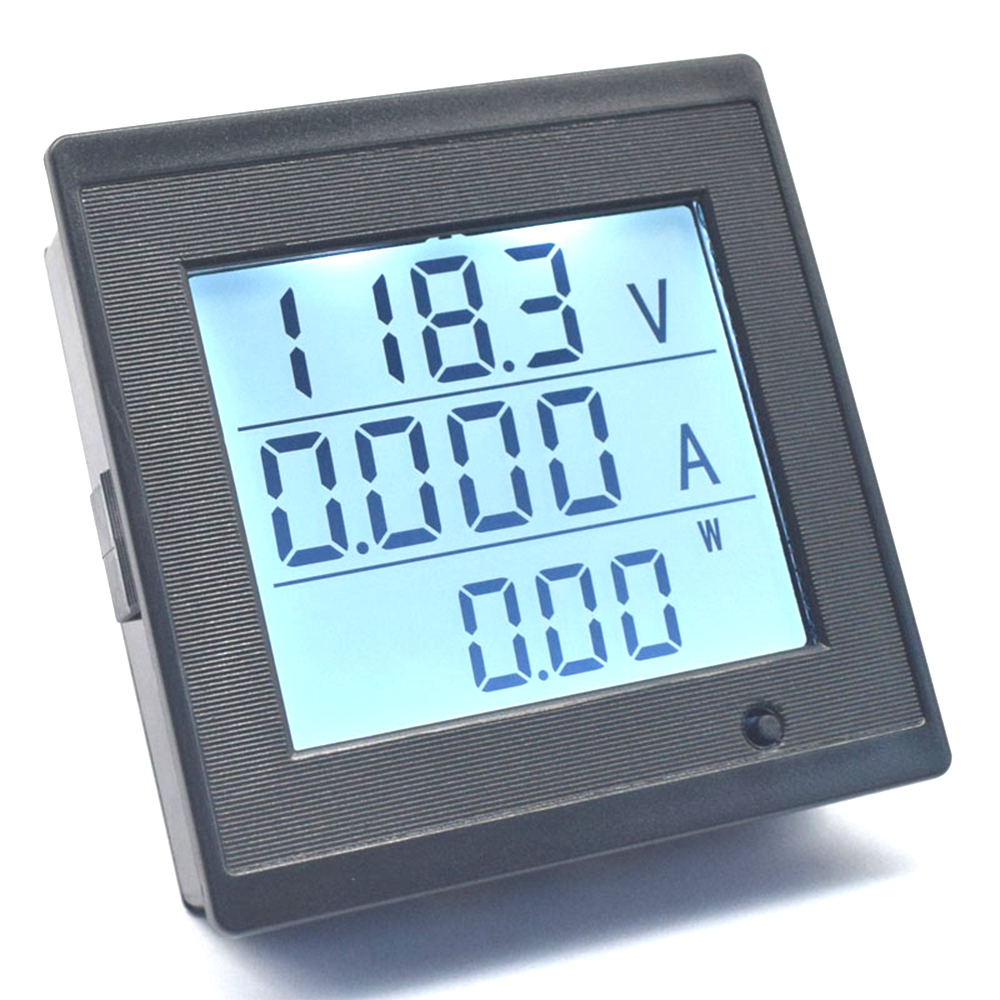

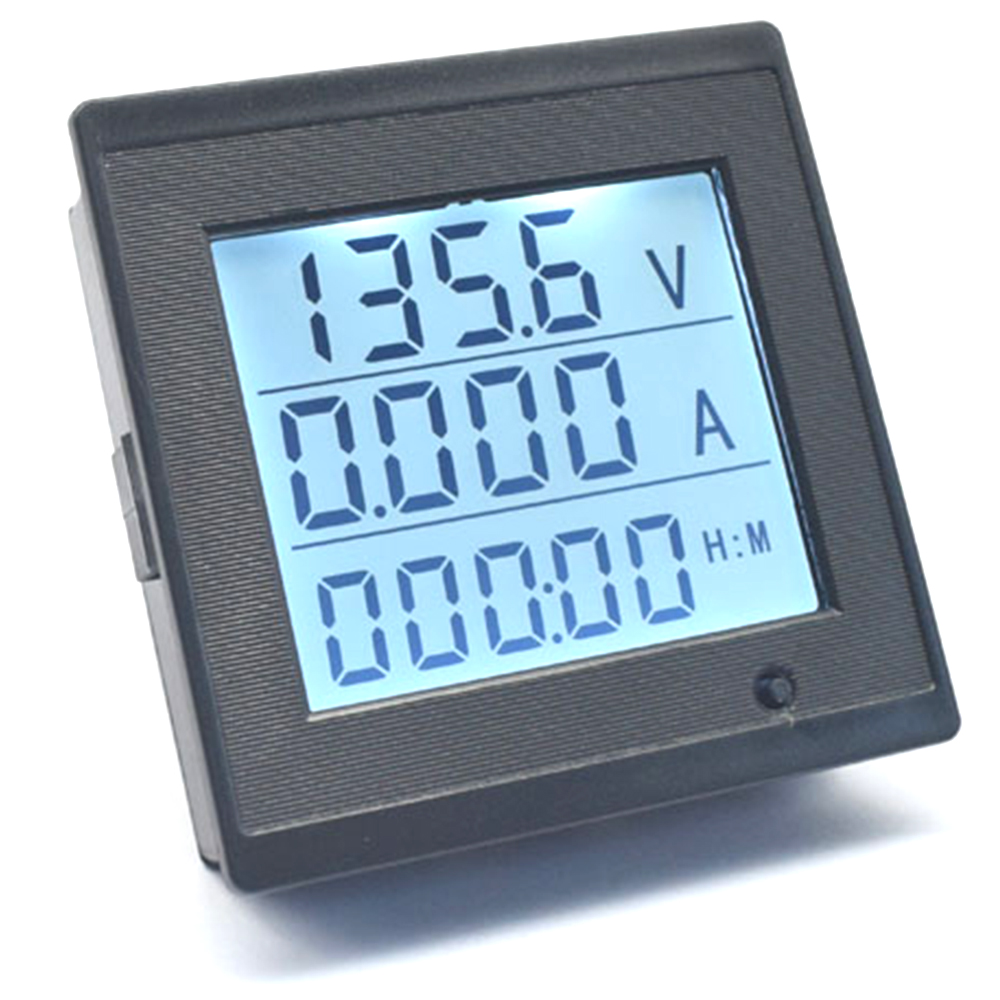

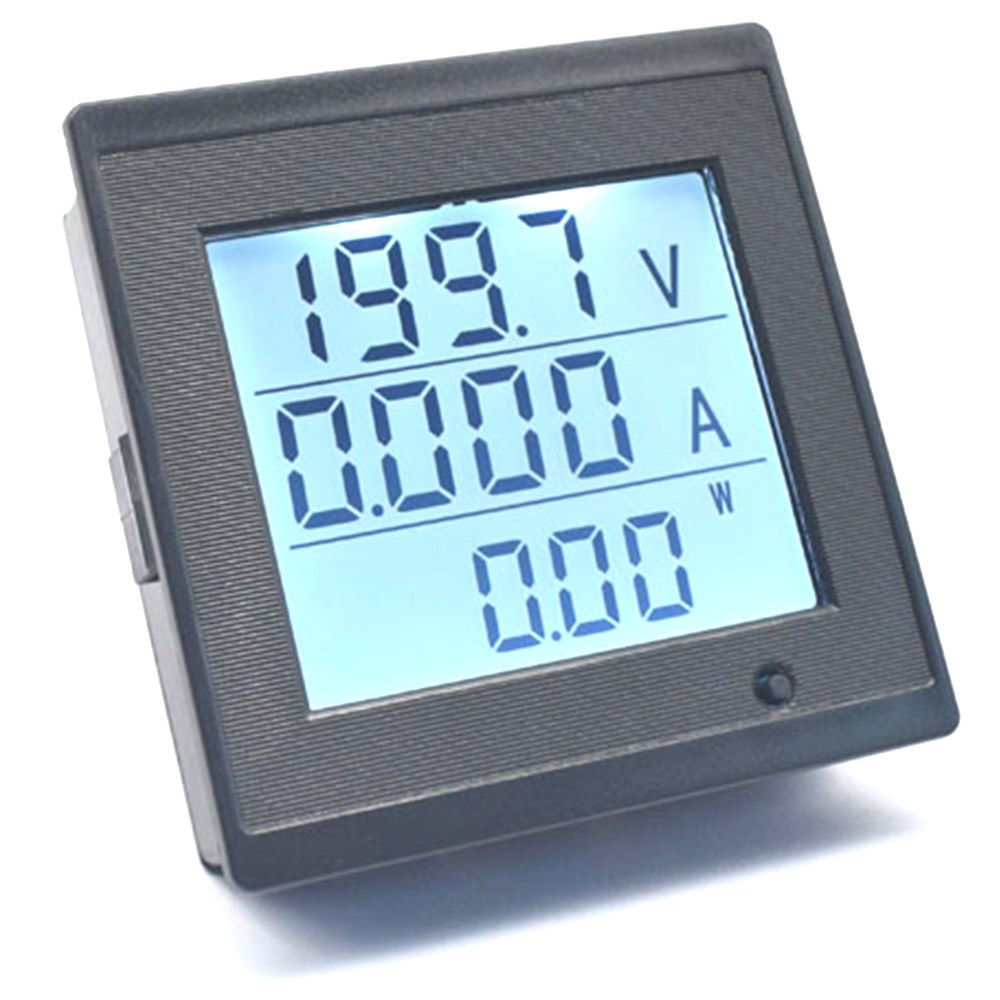

Product View
Detail
Features：
1. Electrical parameter measurement function (voltage, current, power, energy consumption, time, impedance)
2. Voltage alarm function (exceeding the voltage alarm threshold, backlight and voltage flashing prompt)
3. Overload alarm function (over the power alarm threshold, backlight and power flashing prompts)
4. Power, time button zeroing function
5. Power down data saving function
6. Backlight function.
1. Electrical parameter measurement function (voltage, current, power, energy consumption, time, impedance)
2. Voltage alarm function (exceeding the voltage alarm threshold, backlight and voltage flashing prompt)
3. Overload alarm function (over the power alarm threshold, backlight and power flashing prompts)
4. Power, time button zeroing function
5. Power down data saving function
6. Backlight function.
Parameters:
Measuring voltage: DC6-200V
Measuring current: 0-20A
Measuring power: 0-4KW
Measuring energy consumption: 0-99999KW
With load timing: 0-999 hours (overflow to zero)
Measuring impedance: 0-999Ω out of range display -
Overload alarm :settable
Voltage alarm :settable Over-voltage Under-voltage
Wiring type: fence type terminals
Pressing method: Embedded

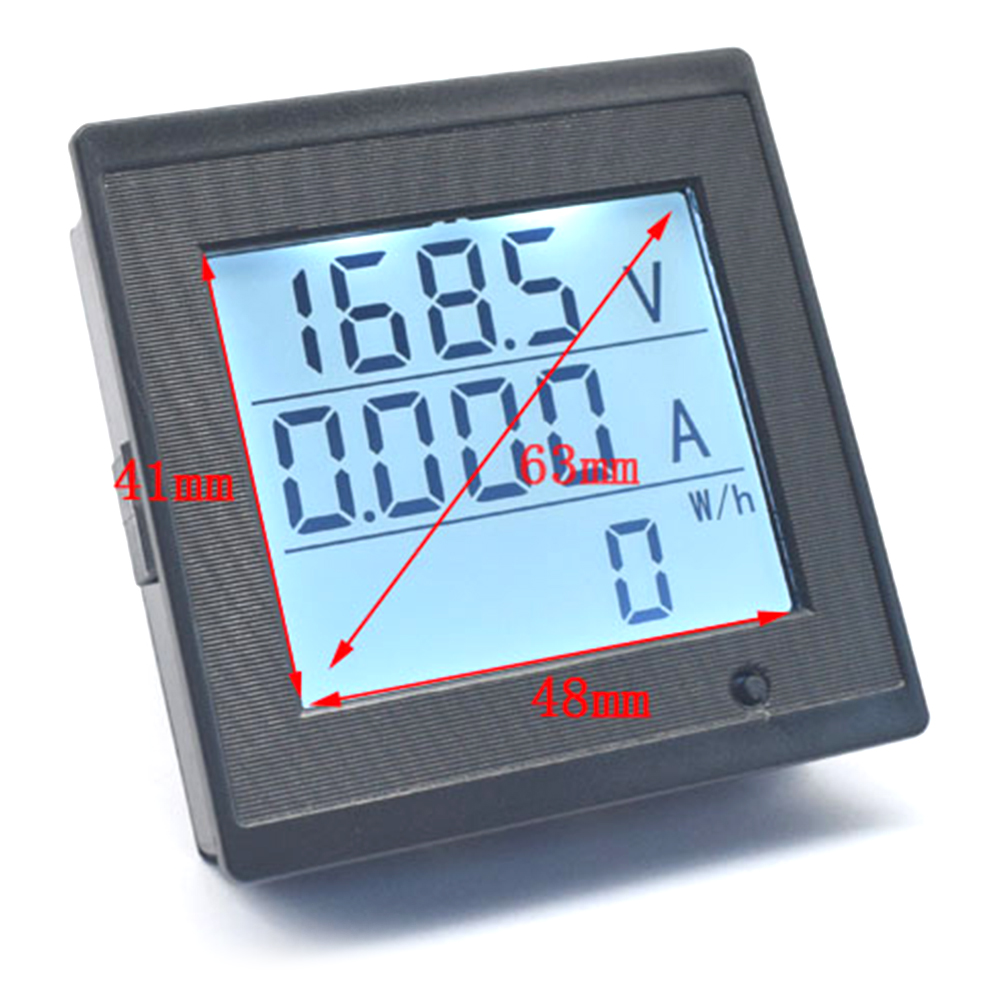

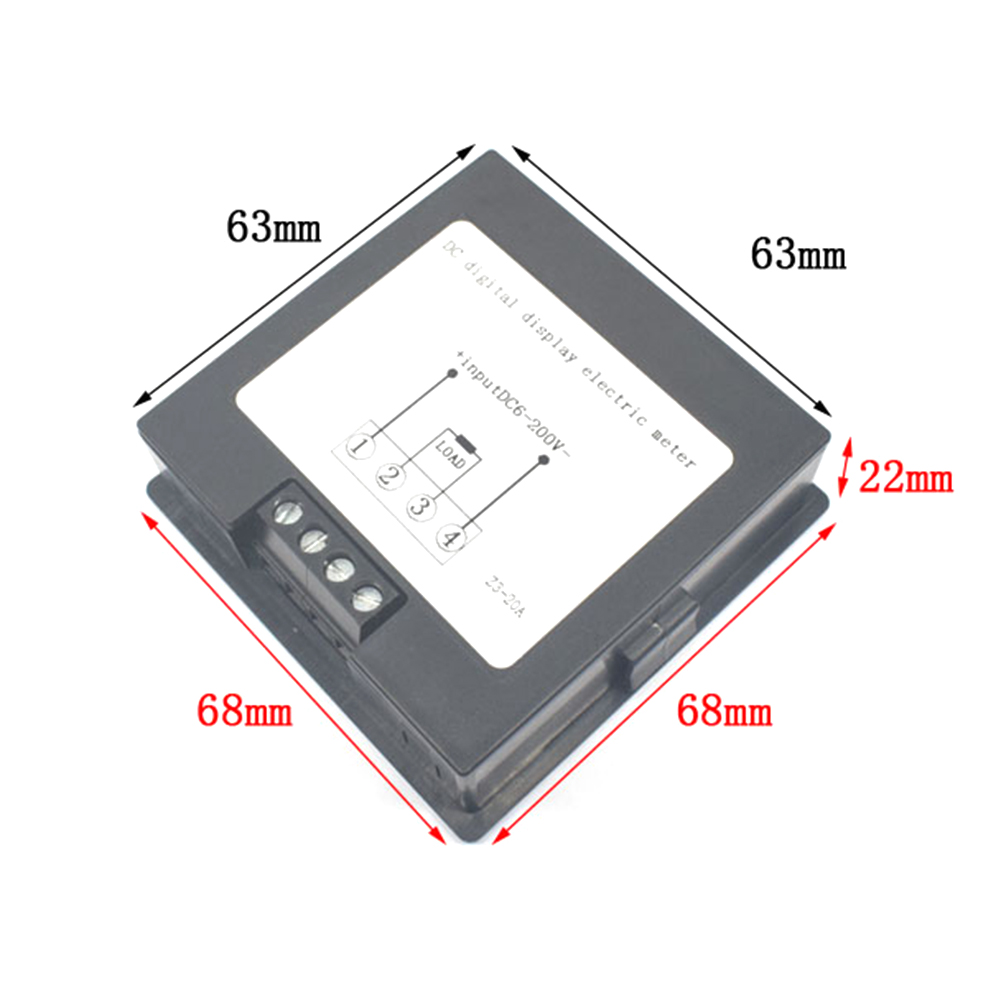

Module size: L*W*H 68mm*68mm*22mm
Product net weight: 58g
Panel opening: L*W 63mm*63mm
Product parameters
Measuring voltage: DC6-200V
Measuring current: 0-20A
Measuring power: 0-4KW
Measuring energy consumption: 0-99999KW
With load timing: 0-999 hours (overflow to zero)
Measuring impedance: 0-999Ω out of range display -
Overload alarm :settable
Voltage alarm :settable Over-voltage Under-voltage
Wiring type: fence type terminals
Pressing method: Embedded
Module size: L*W*H 68mm*68mm*22mm
Product net weight: 58g
Panel opening: L*W 63mm*63mm

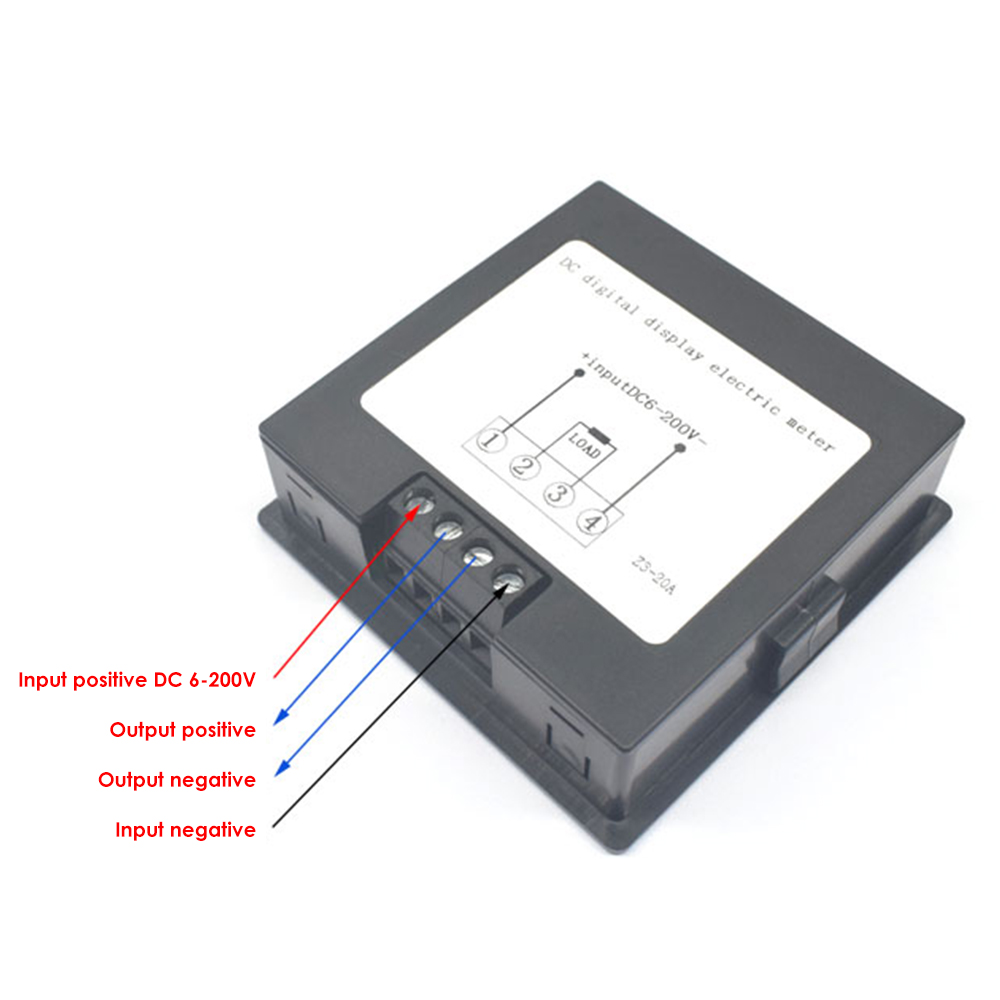

Note: Wiring must be divided into positive and negative, can not input AC power
Measuring voltage: DC6-200V
Measuring current: 0-20A
Measuring power: 0-4KW
Measuring energy consumption: 0-99999KW
With load timing: 0-999 hours (overflow to zero)
Measuring impedance: 0-999Ω out of range display -
Overload alarm :settable
Voltage alarm :settable Over-voltage Under-voltage
Wiring type: fence type terminals
Pressing method: Embedded
Module size: L*W*H 68mm*68mm*22mm
Product net weight: 58g
Panel opening: L*W 63mm*63mm
Product parameters
Measuring voltage: DC6-200V
Measuring current: 0-20A
Measuring power: 0-4KW
Measuring energy consumption: 0-99999KW
With load timing: 0-999 hours (overflow to zero)
Measuring impedance: 0-999Ω out of range display -
Overload alarm :settable
Voltage alarm :settable Over-voltage Under-voltage
Wiring type: fence type terminals
Pressing method: Embedded
Module size: L*W*H 68mm*68mm*22mm
Product net weight: 58g
Panel opening: L*W 63mm*63mm
Note: Wiring must be divided into positive and negative, can not input AC power
Description:
1. Short press the button to switch power, energy consumption, time, impedance.
2. You can turn on or off the backlight by pressing the button two down quickly.
3. Long press for 6 seconds to enter setting mode.
4. Long press for 3 seconds to shift to the next group.
5. button does not release each group stay 2 seconds to automatically jump to the next group.
6. Without any operation, exit after 10 seconds and save the data.
1. Short press the button to switch power, energy consumption, time, impedance.
2. You can turn on or off the backlight by pressing the button two down quickly.
3. Long press for 6 seconds to enter setting mode.
4. Long press for 3 seconds to shift to the next group.
5. button does not release each group stay 2 seconds to automatically jump to the next group.
6. Without any operation, exit after 10 seconds and save the data.
Package Include:
Monitor x1
Monitor x1
