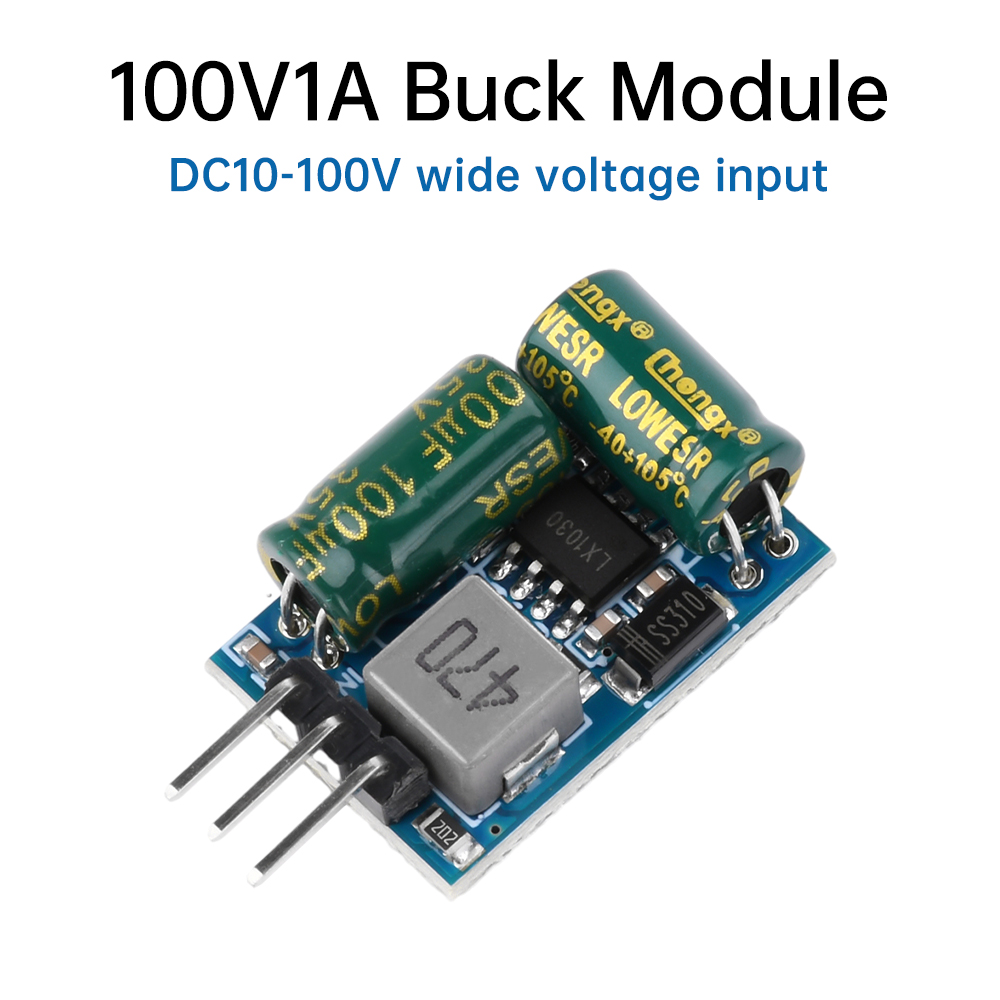

Features:
1.Strict performance testing to ensure product reliability and stability
2. Supports a wide input voltage range of 10V to 100V, applicable to a variety of power input methods
3. High-efficiency conversion process makes the module work with very low heat generation, effectively extending the service life.
4. Provide stable 3.3V or 5V output to ensure the normal operation of equipment.
5. High voltage resistant design ensures safety and stability under extreme conditions.

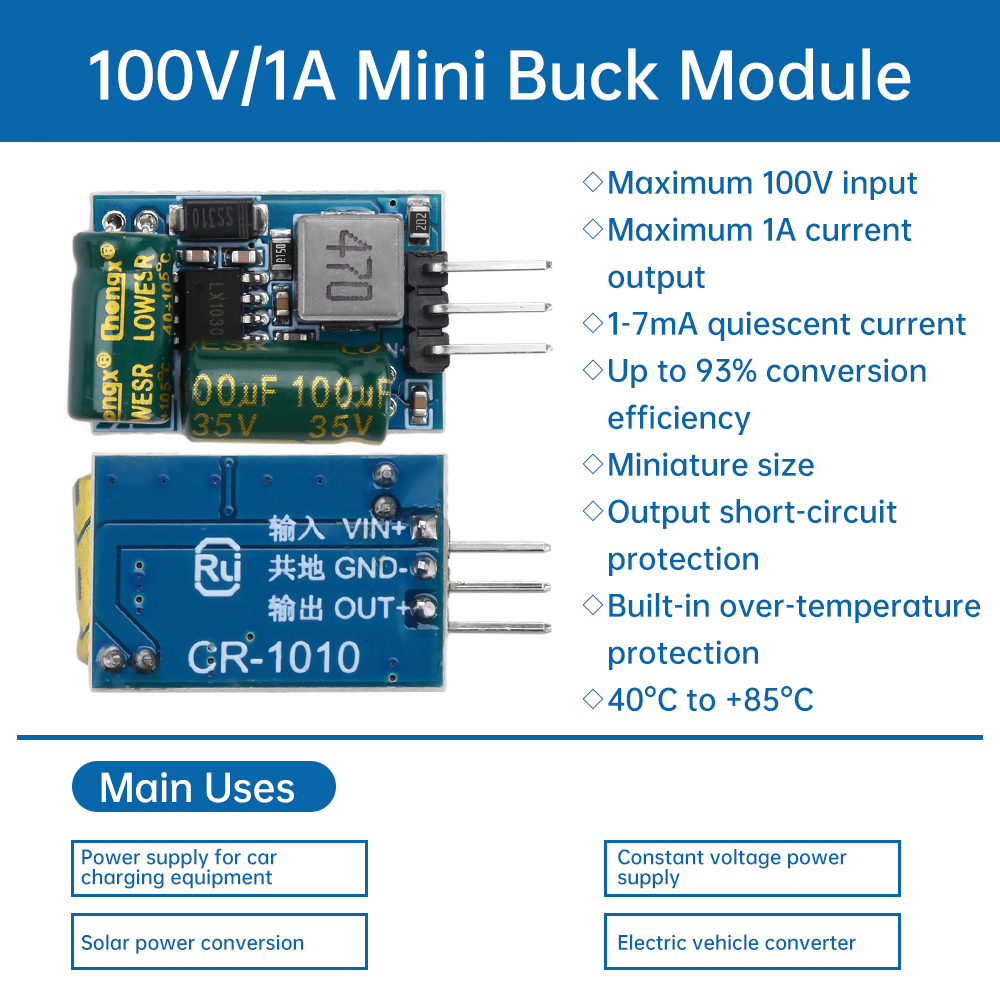

Parameter:
Input voltage: 10-100V
Maximum output current: 1A
Static current: 1-7mA
Up to 93% conversion efficiency
Output short circuit protection
Built-in over-temperature protection
Storage temperature: -40°C+85°C

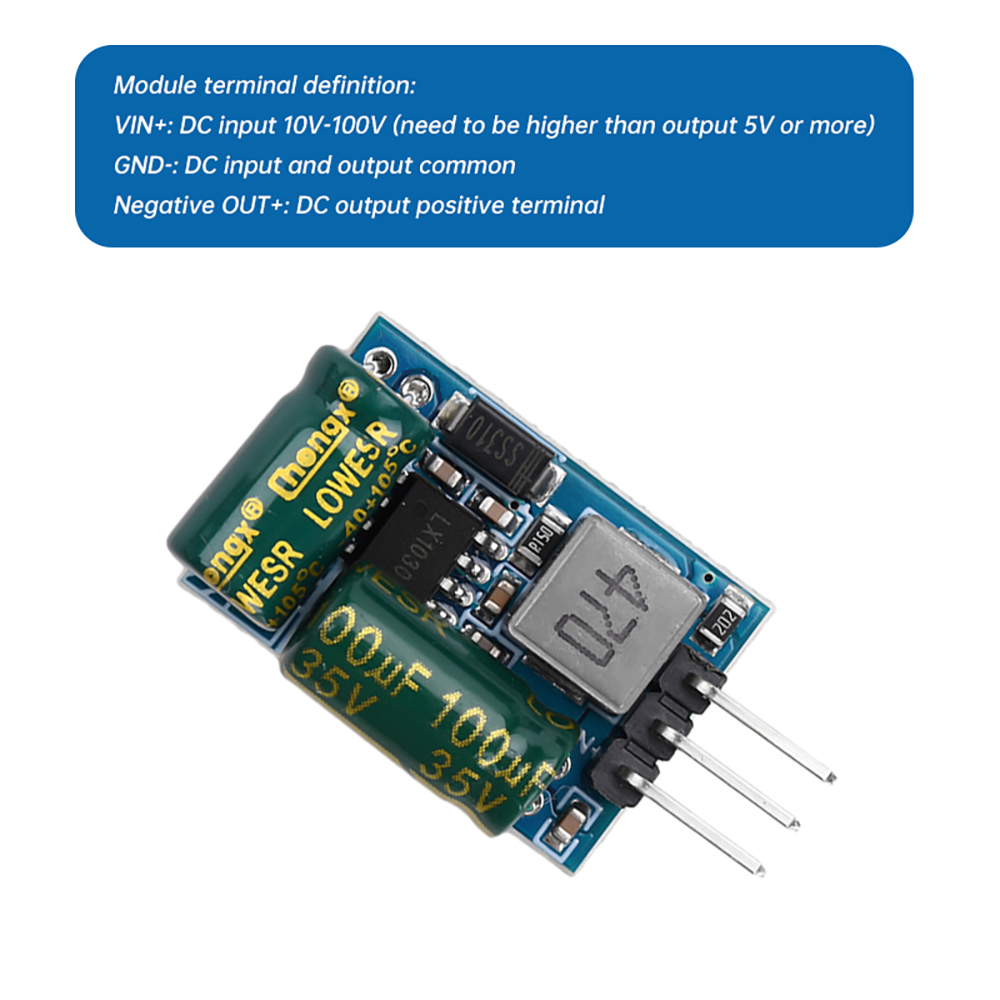

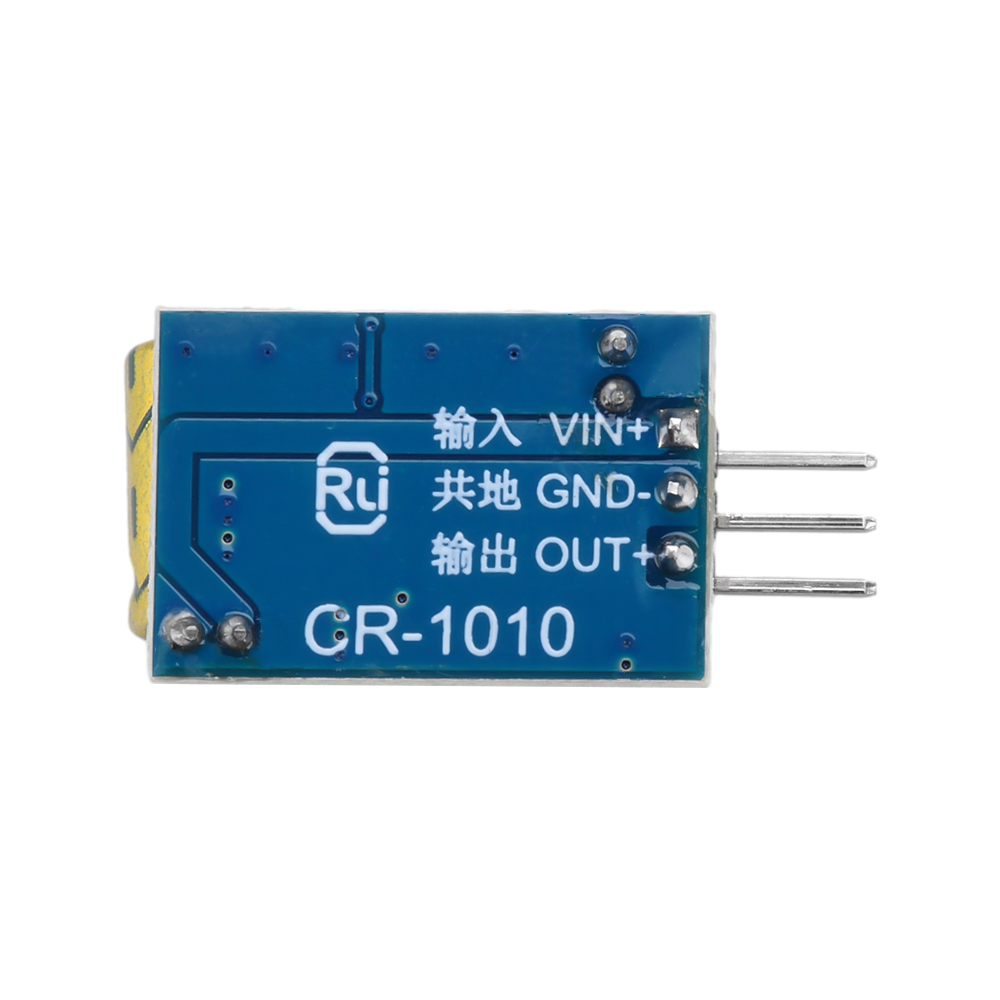

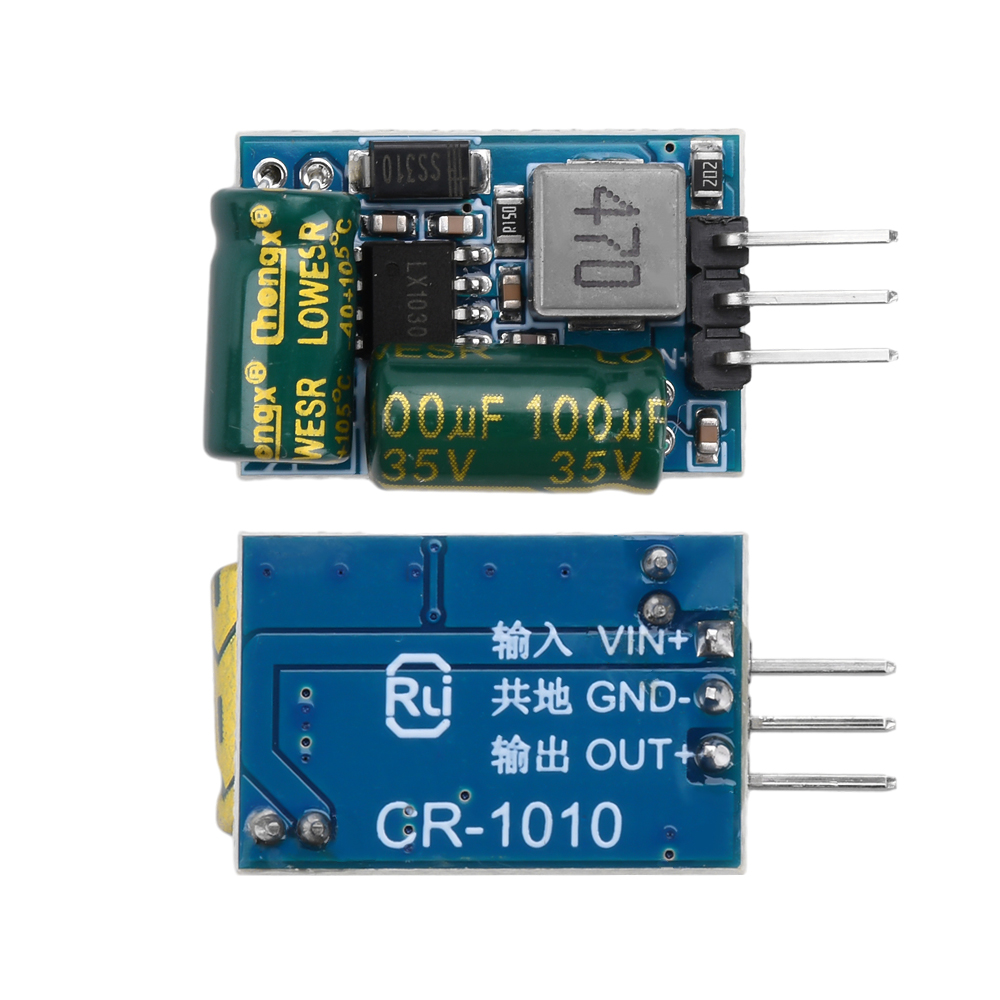

Module terminal definition:
VIN+: DC input 10V-100V (need to be higher than the output 5V or more)
GND-: DC input and output common negative terminal
OUT+: DC output positive use

Notes:
1. The product input should be greater than the output voltage, can maintain a pressure difference of 3.5V or more is best, the input can not be reversed, reverse burn board. Installation can be based on the actual situation will be directly affixed to the board on a fixed object to enhance heat dissipation!
2. Remember! Connect the input first, not the output device. First connect the connection line between the module and the power supply, and then energized. Otherwise, the high voltage is easy to produce the phenomenon of ignition, ignition of the circuit will have damage to the
3. Wiring can not be too thin, to ensure that the wire can withstand the corresponding current 4. This module is a non-isolated power supply

Package include:

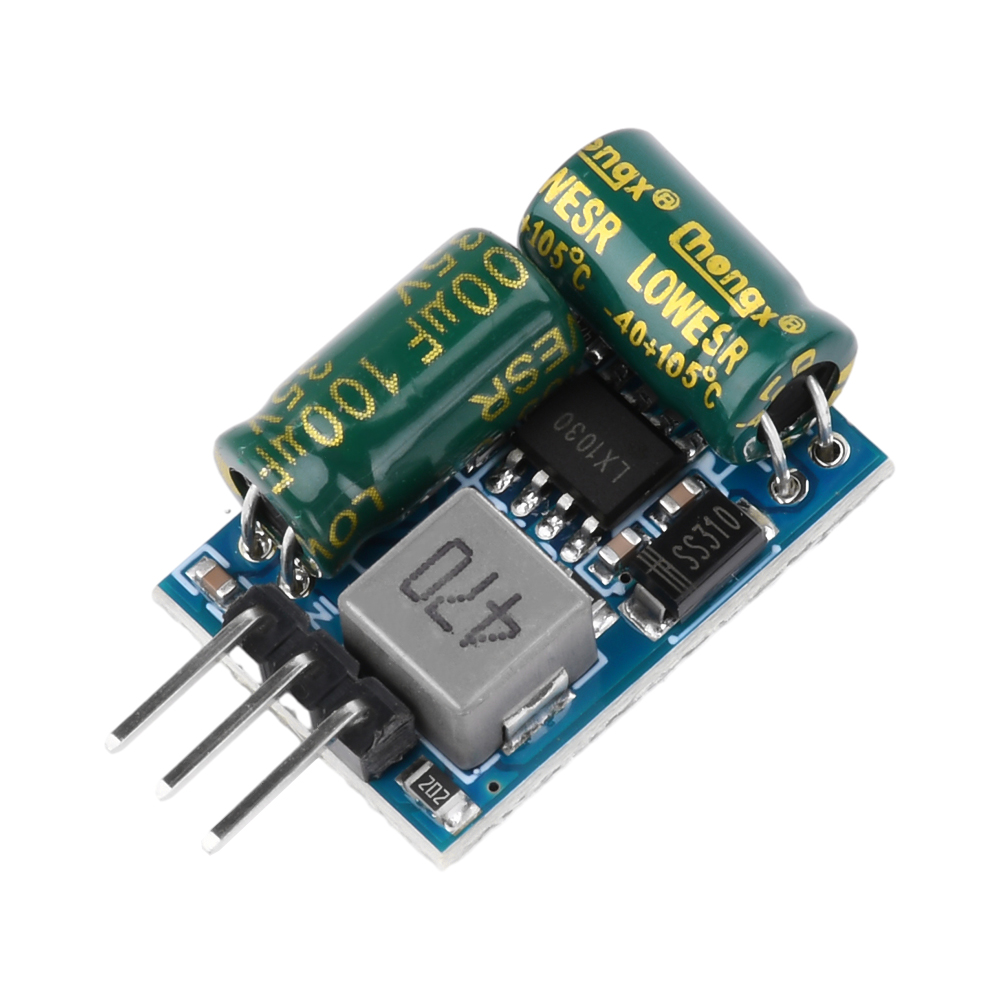

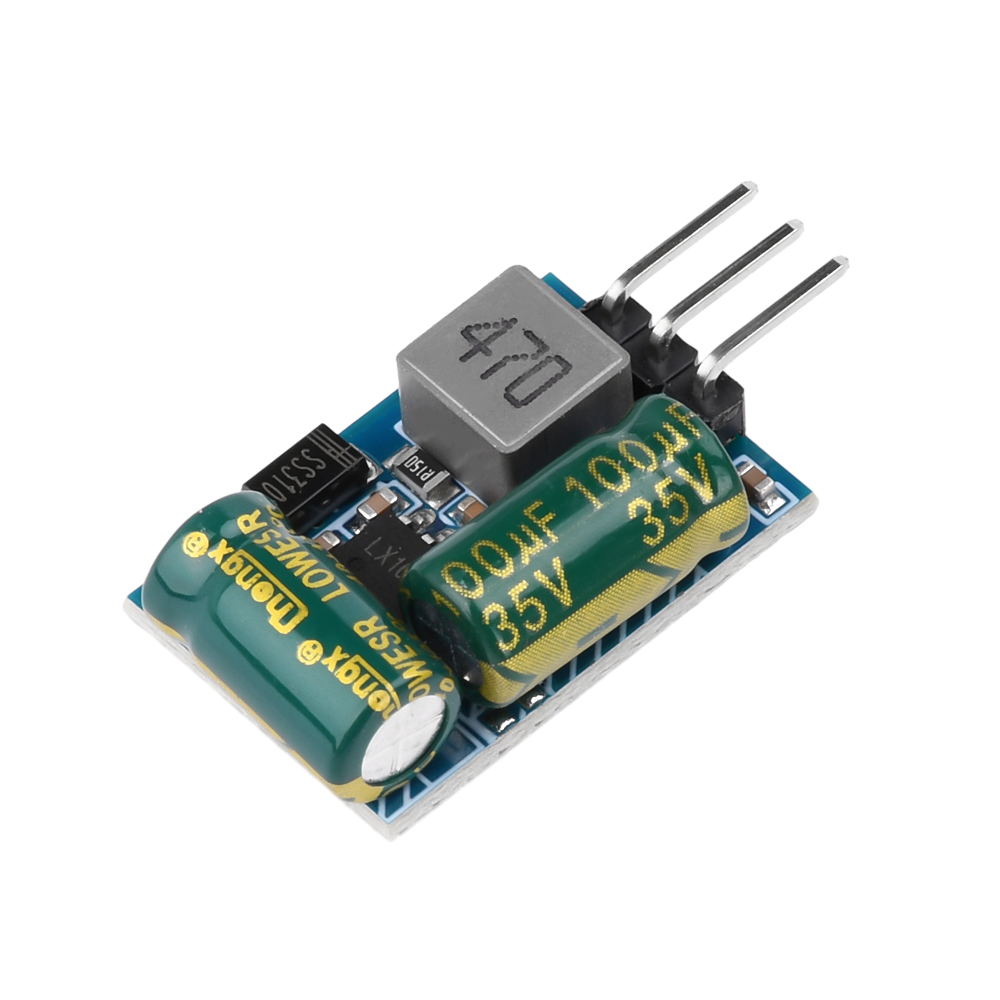

Buck power module *1
