Endschalter Grenztaster Positionstaster Rollenschalter Verschiedene Modelle

Product View

Detail

Description:
(click on the photo below to see more details)
Model Pictures Descriptions

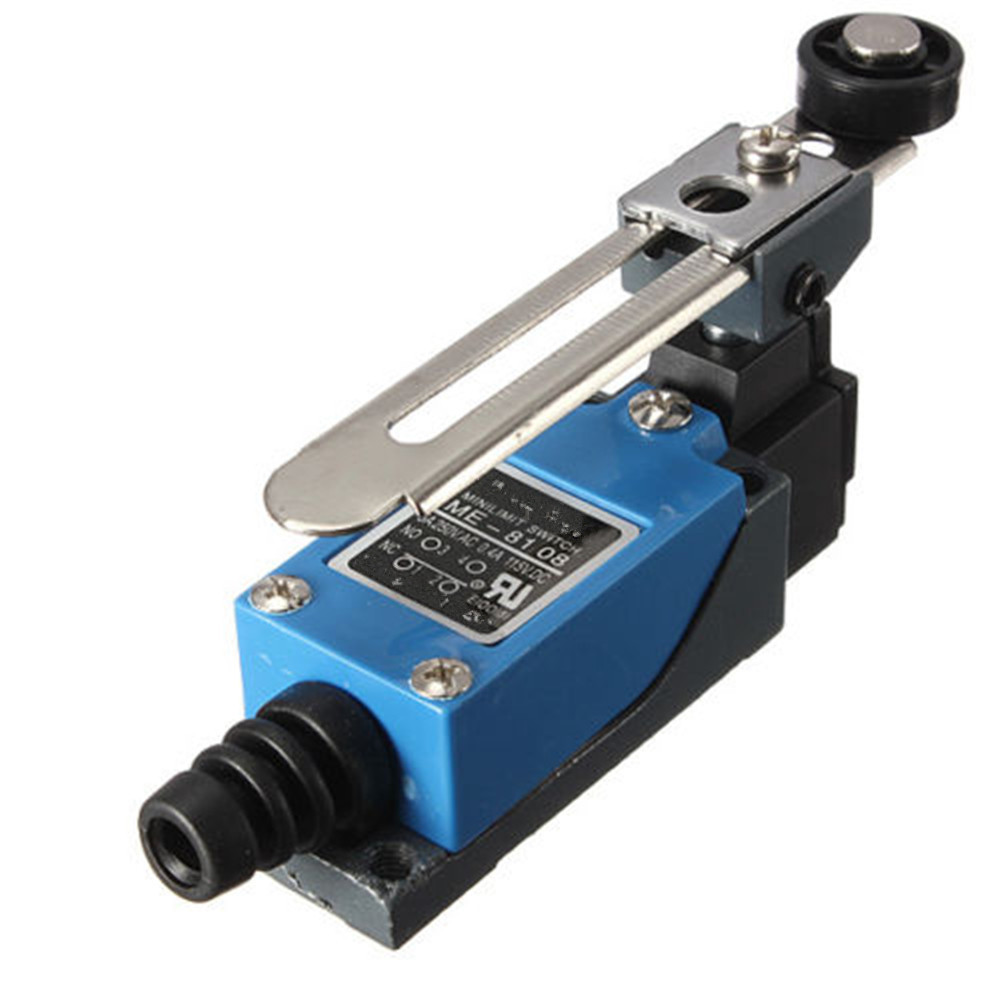

ME-8108 1.Brand new and high quality.
2.Model: ME-8108.
3.Actuator action momentary.
4.Actuator type rotary adjustable lever arm with roller.
5.Contact configuration 2 NC + 2 NO.
6.IP Rating: IP65.
7.Voltage Rating AC380V, 6(2)A, AC250V, 10(4)A.
8.Material: resin, plastic, metal.
Size: 12.5cm x 2.8cm x 5cm.

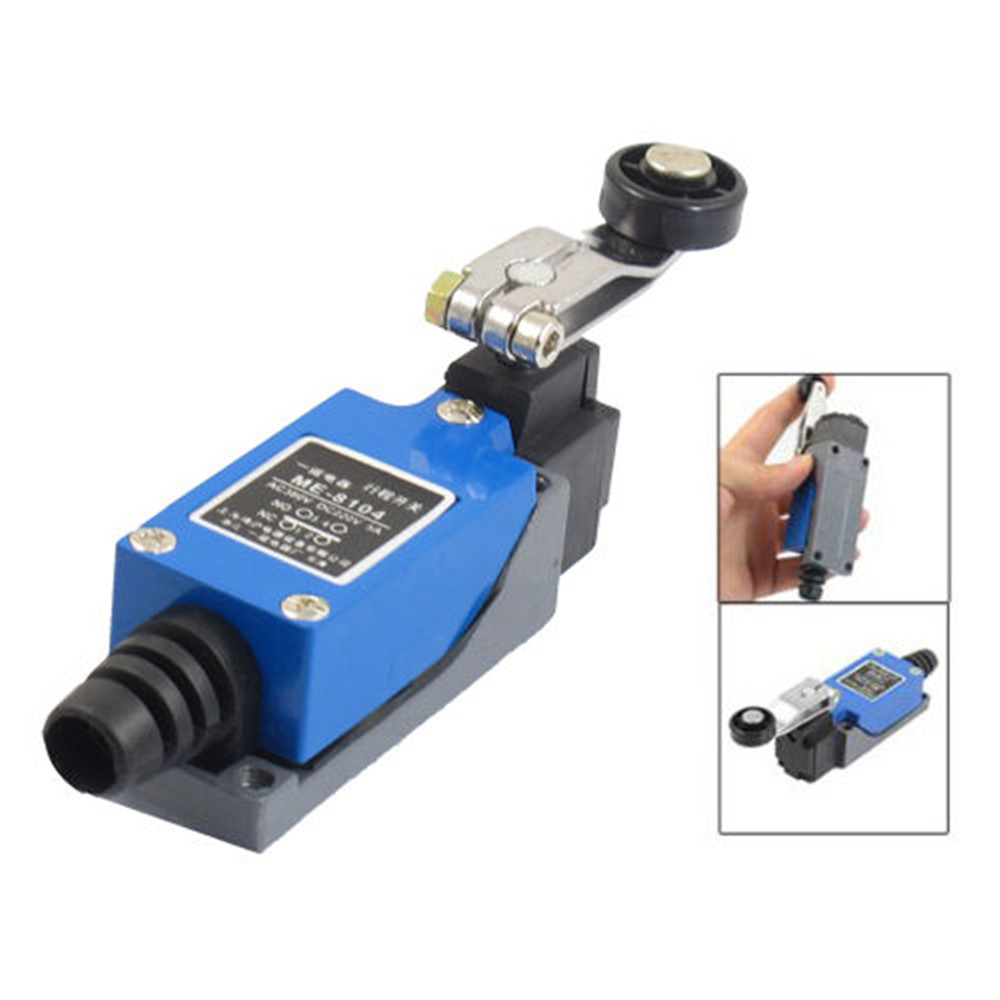

ME-8104 Product Name：Limit Switch
Model：ME-8104
Type:Rotary Lever Arm with Roller
Power:AC 250V, 5A DC 115V, 0.4A
Fixing Thread Diameter:4mm/0.15"
Roller Dimension:1.8 x 0.7cm / 0.7 x 0.3"(D*H)
Lever Arm Length:4.6cm / 1.8"
Overall Size:12.3 x 2.8 x 3.9cm/4.8" x 1.1" x 1.5"(L*W*H)
Color:Black & Blue
Material:Plastic, Metal & Rubber
Weight:80g
ME-9101 Contact Configuration:1NC+ON
Action Type:Inching Jogging Position Limit
Automatic Reset；Yes
Power:5A 250V AC/0.4A 115V DC
Color:Black+Chrome+Blue
Material:Steel+Rubber+Plastic
Weigth:65g
Base Size:64×28×26 mm/2.52×1.10×1.02 Inch
Mounting Size:21×56 mm/0.83×2.20 Inch
Spring Length:Approx 89mm/3.50Inch
ME-8166 Type: Wobble Stick, Automatic Reset
Power: AC 250V, 5A  DC 115V, 0.4A
Mounting Hole Diameter :4.5mm / 3/16"
Hole Center Point Distance: 56mm x 21mm / 2.2" x 0.8" (L*W)
Stick Length: ~70mm / 3 3/16"
Stick Platic Part Length: ~41mm / 1 5/8"
Body Dimension: ~88 x 28 x 25mm / 3.5" x 1.1" x 1" (L*W*T)
Color: Black & Blue
Material: Plastic, Metal & Rubber
Weight: 60g
ME-8107 Main Color: Blue, Black
Total Length: 100mm / 3.9"
Action Type: Momentary
Actuator Type Adjustable Rod Arm
Model: ME-8107
Mounting Hole Spacing: 56 x 21mm / 2.2" x 0.8" (L*W)
Material: Plastic, Metal, Rubber
Contact Type: DPST
Contact Configuration: 1 NC + 1 NO
Product Name: Limit Switch
Net Weight: 85g
Main Body Size: 64 x 28 x 25mm / 2.5" x 1.1" x 1" (L*W*H)
Rating: AC 250V/5A DC 115V/0.4A
Rod Length: 140mm / 5.5"
Cable Entry Diameter: 6mm / 0.24"
Mounting Thread Diameter: 4.5mm / 0.18"

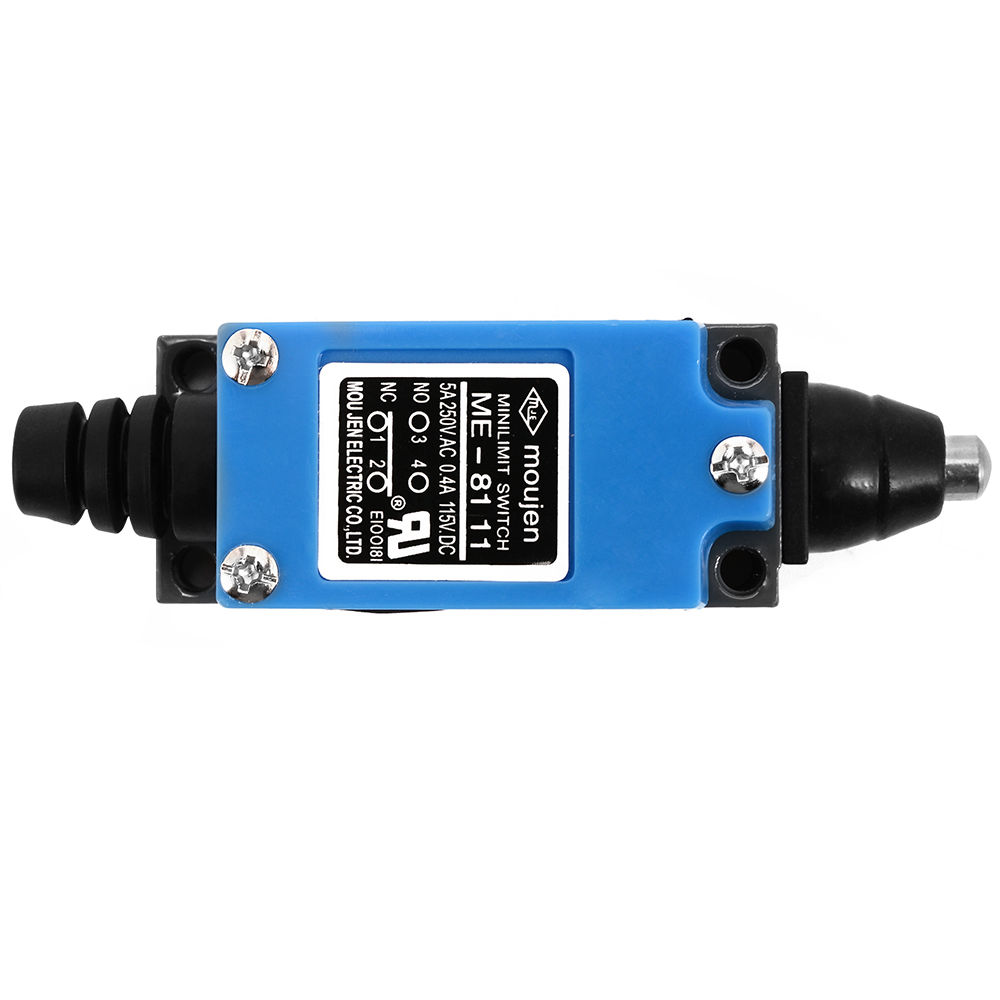

ME-8111 Actuator Type:Standard Pin Plunger, Automatic Reset
Pin Diameter(Approx.):6.8mm / 0.27"
Contact Configuration:2 NC + 2 NO
IP Rating:IP66
Power:AC 250V,5A / DC 115V. 0.4A
Mounting Hole Diameter:4.5mm / 0.18"
Hole Center Point Distance:56mm x 21mm / 2.2" x 0.8" (L*W)
Overall Size:99 x 28 x 25mm / 3.9" x 1.1" x 1" (L*W*T)
ME-8112 Product Name: Limit Switch
Model No. :ME-8112
Actuator Action: Momentary
Actuator Type: Parallel Roller Plunger
Contact Type: 2NC + 2NO(SPDT)
Rated Voltage Current: 6A/380VAC10A/250VAC
Roller Wheel Size: 12.5 x 3.8mm / 0.5" x 0.15"(Dia.*T)
Mount Screw Hole Diameter: 5mm/0.2"
Mount Screw Hole Distance: 21 x 56mm/0.8" x 2.2"(L*W)
Total Size: 113 x 29 x 25mm / 4.4" x 1.1" x 1.0"(L*W*T)
Material: Resin, Plastic , Metal
Net Weight： 121g

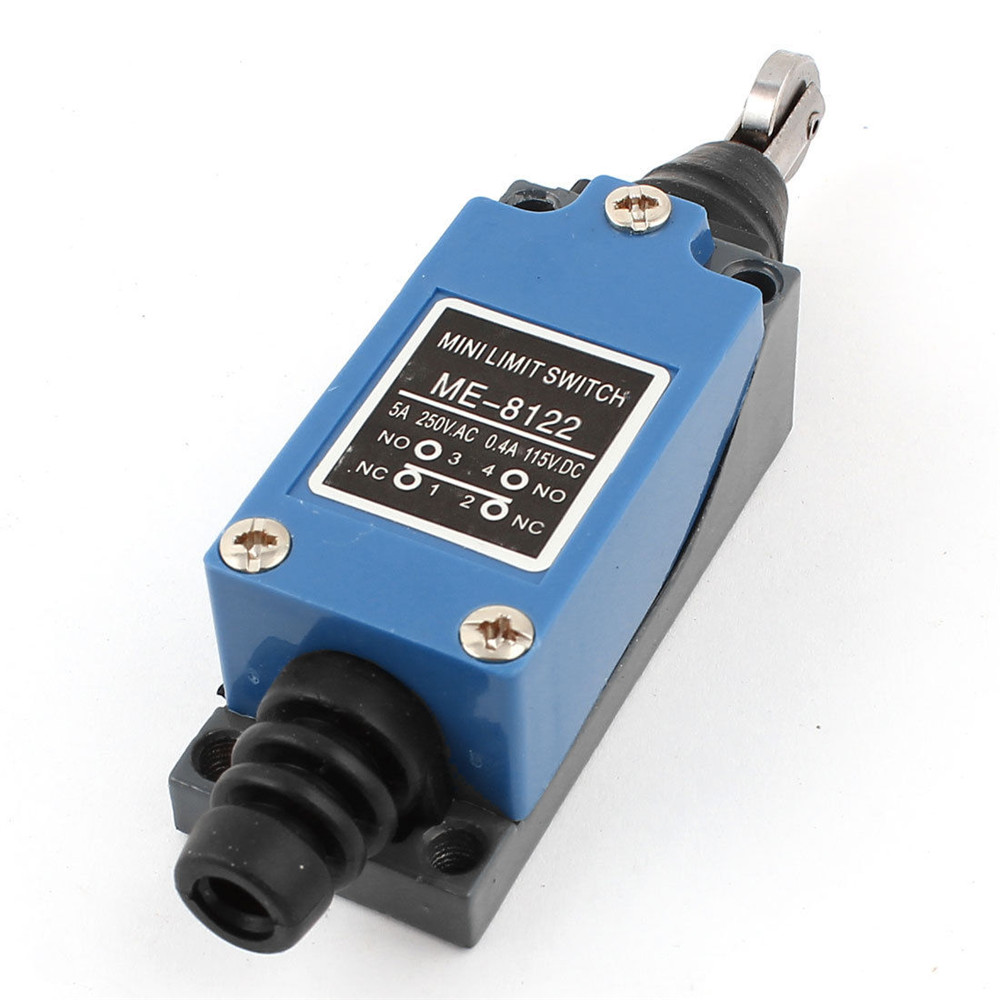

ME-8122 Type: Cross Roller Plunger, Automatic Reset
Power: AC250V, 5A / DC115V, 0.4A
Mounting Hole Diameter: 4.5mm / 3/16"
Hole Center Point Distance: 56mm x 21mm / 2.2" x 0.8" (L*W)"
Roller Diameter: 12mm / 0.47"
Dimension: 110 x 28 x 25mm / 4.3" x 1.1" x 1" (L*W*T)
Color: Black & Blue
Material: Plastic & Rubber
Weight: 64g
Package included:

1*Limit Switch(Depends on the model you choose)

Copyright © 2017 DataDaciques

Product View

Detail

Description:
(click on the photo below to see more details)
Model Pictures Descriptions
ME-8108 1.Brand new and high quality.
2.Model: ME-8108.
3.Actuator action momentary.
4.Actuator type rotary adjustable lever arm with roller.
5.Contact configuration 2 NC + 2 NO.
6.IP Rating: IP65.
7.Voltage Rating AC380V, 6(2)A, AC250V, 10(4)A.
8.Material: resin, plastic, metal.
Size: 12.5cm x 2.8cm x 5cm.
ME-8104 Product Name：Limit Switch
Model：ME-8104
Type:Rotary Lever Arm with Roller
Power:AC 250V, 5A DC 115V, 0.4A
Fixing Thread Diameter:4mm/0.15"
Roller Dimension:1.8 x 0.7cm / 0.7 x 0.3"(D*H)
Lever Arm Length:4.6cm / 1.8"
Overall Size:12.3 x 2.8 x 3.9cm/4.8" x 1.1" x 1.5"(L*W*H)
Color:Black & Blue
Material:Plastic, Metal & Rubber
Weight:80g
ME-9101 Contact Configuration:1NC+ON
Action Type:Inching Jogging Position Limit
Automatic Reset；Yes
Power:5A 250V AC/0.4A 115V DC
Color:Black+Chrome+Blue
Material:Steel+Rubber+Plastic
Weigth:65g
Base Size:64×28×26 mm/2.52×1.10×1.02 Inch
Mounting Size:21×56 mm/0.83×2.20 Inch
Spring Length:Approx 89mm/3.50Inch
ME-8166 Type: Wobble Stick, Automatic Reset
Power: AC 250V, 5A  DC 115V, 0.4A
Mounting Hole Diameter :4.5mm / 3/16"
Hole Center Point Distance: 56mm x 21mm / 2.2" x 0.8" (L*W)
Stick Length: ~70mm / 3 3/16"
Stick Platic Part Length: ~41mm / 1 5/8"
Body Dimension: ~88 x 28 x 25mm / 3.5" x 1.1" x 1" (L*W*T)
Color: Black & Blue
Material: Plastic, Metal & Rubber
Weight: 60g
ME-8107 Main Color: Blue, Black
Total Length: 100mm / 3.9"
Action Type: Momentary
Actuator Type Adjustable Rod Arm
Model: ME-8107
Mounting Hole Spacing: 56 x 21mm / 2.2" x 0.8" (L*W)
Material: Plastic, Metal, Rubber
Contact Type: DPST
Contact Configuration: 1 NC + 1 NO
Product Name: Limit Switch
Net Weight: 85g
Main Body Size: 64 x 28 x 25mm / 2.5" x 1.1" x 1" (L*W*H)
Rating: AC 250V/5A DC 115V/0.4A
Rod Length: 140mm / 5.5"
Cable Entry Diameter: 6mm / 0.24"
Mounting Thread Diameter: 4.5mm / 0.18"
ME-8111 Actuator Type:Standard Pin Plunger, Automatic Reset
Pin Diameter(Approx.):6.8mm / 0.27"
Contact Configuration:2 NC + 2 NO
IP Rating:IP66
Power:AC 250V,5A / DC 115V. 0.4A
Mounting Hole Diameter:4.5mm / 0.18"
Hole Center Point Distance:56mm x 21mm / 2.2" x 0.8" (L*W)
Overall Size:99 x 28 x 25mm / 3.9" x 1.1" x 1" (L*W*T)
ME-8112 Product Name: Limit Switch
Model No. :ME-8112
Actuator Action: Momentary
Actuator Type: Parallel Roller Plunger
Contact Type: 2NC + 2NO(SPDT)
Rated Voltage Current: 6A/380VAC10A/250VAC
Roller Wheel Size: 12.5 x 3.8mm / 0.5" x 0.15"(Dia.*T)
Mount Screw Hole Diameter: 5mm/0.2"
Mount Screw Hole Distance: 21 x 56mm/0.8" x 2.2"(L*W)
Total Size: 113 x 29 x 25mm / 4.4" x 1.1" x 1.0"(L*W*T)
Material: Resin, Plastic , Metal
Net Weight： 121g
ME-8122 Type: Cross Roller Plunger, Automatic Reset
Power: AC250V, 5A / DC115V, 0.4A
Mounting Hole Diameter: 4.5mm / 3/16"
Hole Center Point Distance: 56mm x 21mm / 2.2" x 0.8" (L*W)"
Roller Diameter: 12mm / 0.47"
Dimension: 110 x 28 x 25mm / 4.3" x 1.1" x 1" (L*W*T)
Color: Black & Blue
Material: Plastic & Rubber
Weight: 64g
Package included:

1*Limit Switch(Depends on the model you choose)
