1S 2S 3S 4S 5S 6S 7S 8S NiMH NiCd Battery Charging Module USB Power Protection

Product View

Detail

Description:
1S:
Input voltage: DC 4.5V-5.5V (recommended DC 5V)
Charging voltage about: 1.35V-1.7V
Charging current about: 230mA-240mA


2S:
Input voltage: DC 4.5V-5.5V (recommended DC 5V)
Charging voltage about: 2.7V-3.4V
Charging current about: 230mA-240mA


3S:
Input voltage: DC 4.5V-5.5V (recommended DC 5V)
Charging voltage about: 4.05V-5.1V
Charging current about: 230mA-240mA


4S:
Input voltage: DC 4.5V-5.5V (recommended DC 5V)
Charging voltage about: 5.7V-6.8V
Charging current about: 230mA -240mA


5S:
Input voltage: DC 4.5V-5.5V (recommended DC 5V)
Charging voltage about: 6.75V-8.5V
Charging current about: 230mA-240mA


6S:
Input voltage: DC 4.5V-5.5V (recommended DC 5V)
Charging voltage about: 8.1V-10.2V
Charging current about: 230mA-240mA


7S:
Input voltage: DC 4.5V-5.5V (recommended DC 5V)
Charging voltage: 9.45V-11.9V
Charging current: 190mA- 210mA


8S:
Input voltage: DC 4.5V-5.5V (recommended DC 5V)
Charging voltage about: 10.8V-13.6V
Charging current about: 190mA-210mA

USB power protection
Short circuit protection and zero volt battery activation
battery protection
Operating ambient temperature: -40° to +85°
Storage temperature: -65° to +125°

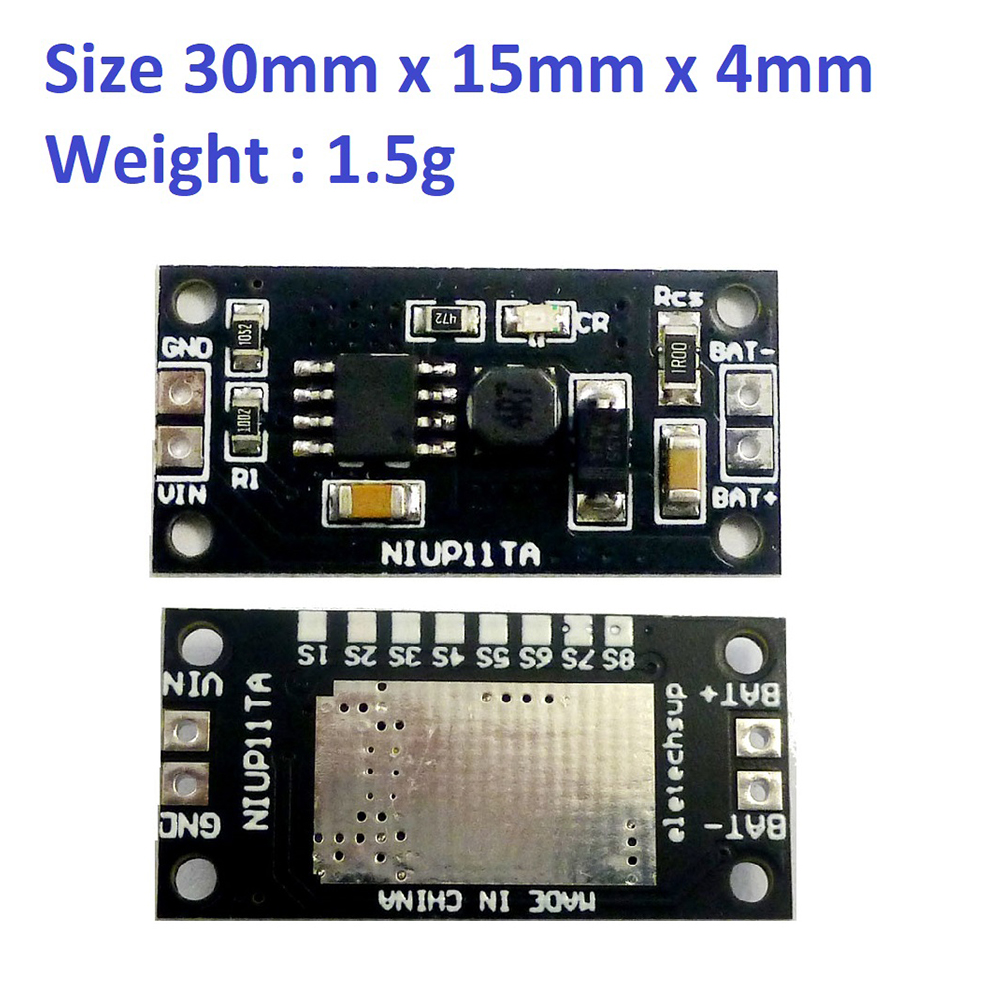

Dimensions 30mm x 15mm x 4mm
Weight: 1.5g

Note: The output voltage cannot be measured with a multimeter without a battery. But it can be observed with an oscilloscope.

Application:
children's toy car
digital camera
solar charging
Audio equipment
digital camera
E-dictionary
portable device

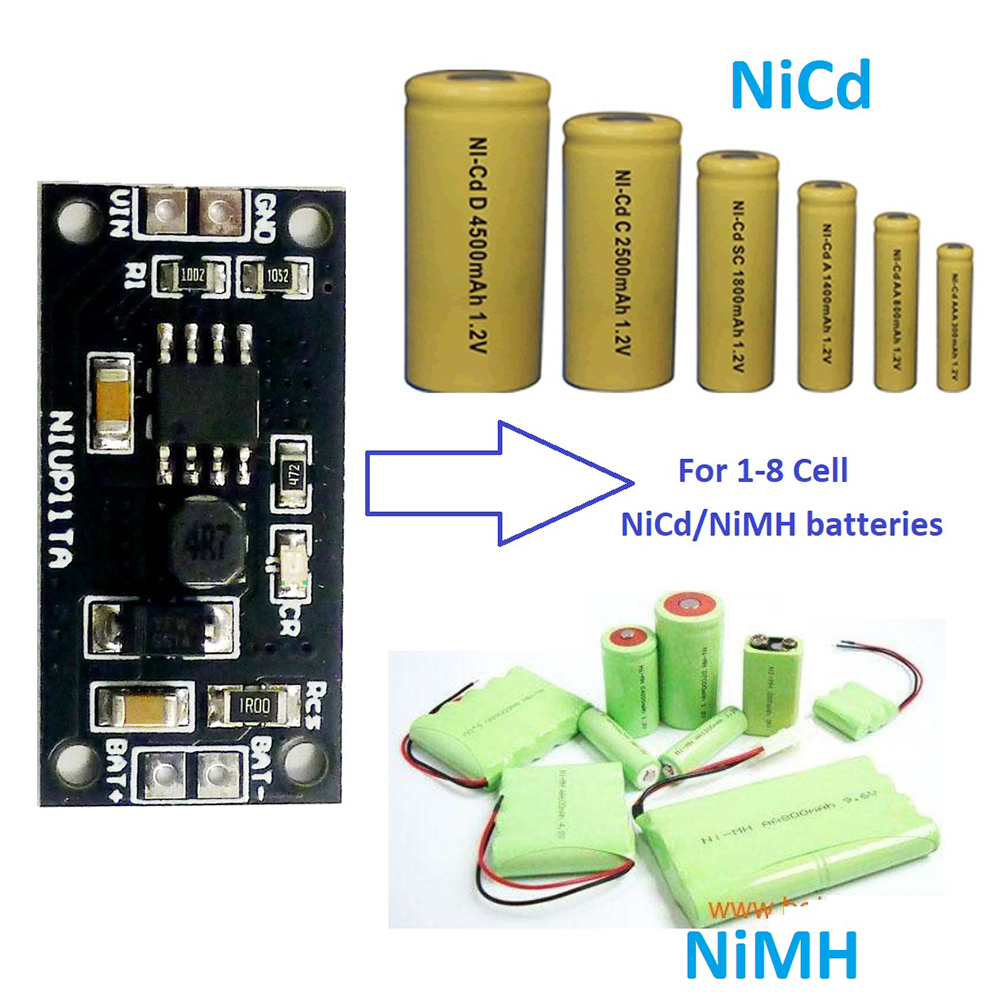

1-8Cell NiMH battery charger
1-8Cell NiCd Battery Charger

list:
1* module
