1/2 M Type K Thermocouple
Temperature Range:0-800°C.
Thread Diameter:6mm / 0.23".
Internal Insulation:Fibreglass.
External Shielding:Metal Shield.
Total Length:1M / 39".
Fork Terminal Spacing: 3.5mm / 0.13".
Color: As Picture Shown.
Designed with two fork terminal, 6mm thread sensor for accurate measurement.
Works well with temperature controller(not included here), wide measurement range of 0-800 degree celsius.
Size:100cm x 1cm x 1cm - 39.37inch x 0.39inch x 0.39inch.
Thread Diameter:6mm / 0.23".
Internal Insulation:Fibreglass.
External Shielding:Metal Shield.
Total Length:1M / 39".
Fork Terminal Spacing: 3.5mm / 0.13".
Color: As Picture Shown.
Designed with two fork terminal, 6mm thread sensor for accurate measurement.
Works well with temperature controller(not included here), wide measurement range of 0-800 degree celsius.
Size:100cm x 1cm x 1cm - 39.37inch x 0.39inch x 0.39inch.
Package Included:
1 x 1M/2M Type K Thermocouple
Heat sink
Size:5.7CM X4.6CM X7.8CM
Material:aluminum
Material:aluminum
Package Included:
1 pc
SSR-40DA
Specification:
Long service life and high reliability.
Highly reliable, compact size designed to offer users maximum simplicity.
Fast switching.
Reduced electromagnetic interference.
Output voltage: AC 24-380V.
Output current: 40A.
Input voltage: DC 3-32V.
Control Method: DC to AC.
Mounting Method: Bolts fixed.
Size:6.5cm x 4.5cm x 2.2cm - 2.56inch x 1.77inch x 0.87inch.
Package Included:
1 x SSR-40 DA Solid State Relay Module
Long service life and high reliability.
Highly reliable, compact size designed to offer users maximum simplicity.
Fast switching.
Reduced electromagnetic interference.
Output voltage: AC 24-380V.
Output current: 40A.
Input voltage: DC 3-32V.
Control Method: DC to AC.
Mounting Method: Bolts fixed.
Size:6.5cm x 4.5cm x 2.2cm - 2.56inch x 1.77inch x 0.87inch.
Package Included:
1 x SSR-40 DA Solid State Relay Module
Normal SSR output
Notes：
1.REX-C100 only K-type thermocouples can be used as input.
2.All input voltages are 220V
3.Normal version output has no alarm function
Parameter:
1. Measurement accuracy: ± 0.5% FS
2. Cold junction compensation tolerance: ± 2 ℃ (can be modified by software within 0 ~ 50 ℃)
3. Resolution: 14 bits
4. Sampling cycle: 0.5 seconds
5. Power supply: AC 100-240V 50 / 60HZ
6. Process value (PV), set value (SV)
7. Output and self-tuning can be via: LED indication
8. PIN control (including ON / OFF, step PID and continuous PID)
9. Self-tuning control
10. Relay output: contact capacity 250V AC 3A (resistive load)
11. Proportional band (P): 0 to full range (ON / OFF control when set to 0 )
12. PID temperature controller detection temperature range: 0 to 999 ° C (probe sensor temperature range 0 to 400 ° C)
13. Insulation resistance:> 50M ohm (500V DC)
14. Insulation resistance: 1500V AC / min
15. Insulation resistance : power consumption <10 VA
16. Operating environment: 0 ~ 50 ℃
17. No corrosive gas environment 30 ~ 85% RH
18. Features short and precise welding,full intelligent function temperature measurement, constant temperature control
1.REX-C100 only K-type thermocouples can be used as input.
2.All input voltages are 220V
3.Normal version output has no alarm function
Parameter:
1. Measurement accuracy: ± 0.5% FS
2. Cold junction compensation tolerance: ± 2 ℃ (can be modified by software within 0 ~ 50 ℃)
3. Resolution: 14 bits
4. Sampling cycle: 0.5 seconds
5. Power supply: AC 100-240V 50 / 60HZ
6. Process value (PV), set value (SV)
7. Output and self-tuning can be via: LED indication
8. PIN control (including ON / OFF, step PID and continuous PID)
9. Self-tuning control
10. Relay output: contact capacity 250V AC 3A (resistive load)
11. Proportional band (P): 0 to full range (ON / OFF control when set to 0 )
12. PID temperature controller detection temperature range: 0 to 999 ° C (probe sensor temperature range 0 to 400 ° C)
13. Insulation resistance:> 50M ohm (500V DC)
14. Insulation resistance: 1500V AC / min
15. Insulation resistance : power consumption <10 VA
16. Operating environment: 0 ~ 50 ℃
17. No corrosive gas environment 30 ~ 85% RH
18. Features short and precise welding,full intelligent function temperature measurement, constant temperature control
Use:
General precision temperature control equipment, such as oven power chemical industry, injection packaging food, incubator, oven, etc. Important temperature control accessories are universal
General precision temperature control equipment, such as oven power chemical industry, injection packaging food, incubator, oven, etc. Important temperature control accessories are universal
Pacakge included:
1*REX-C100
1*REX-C100

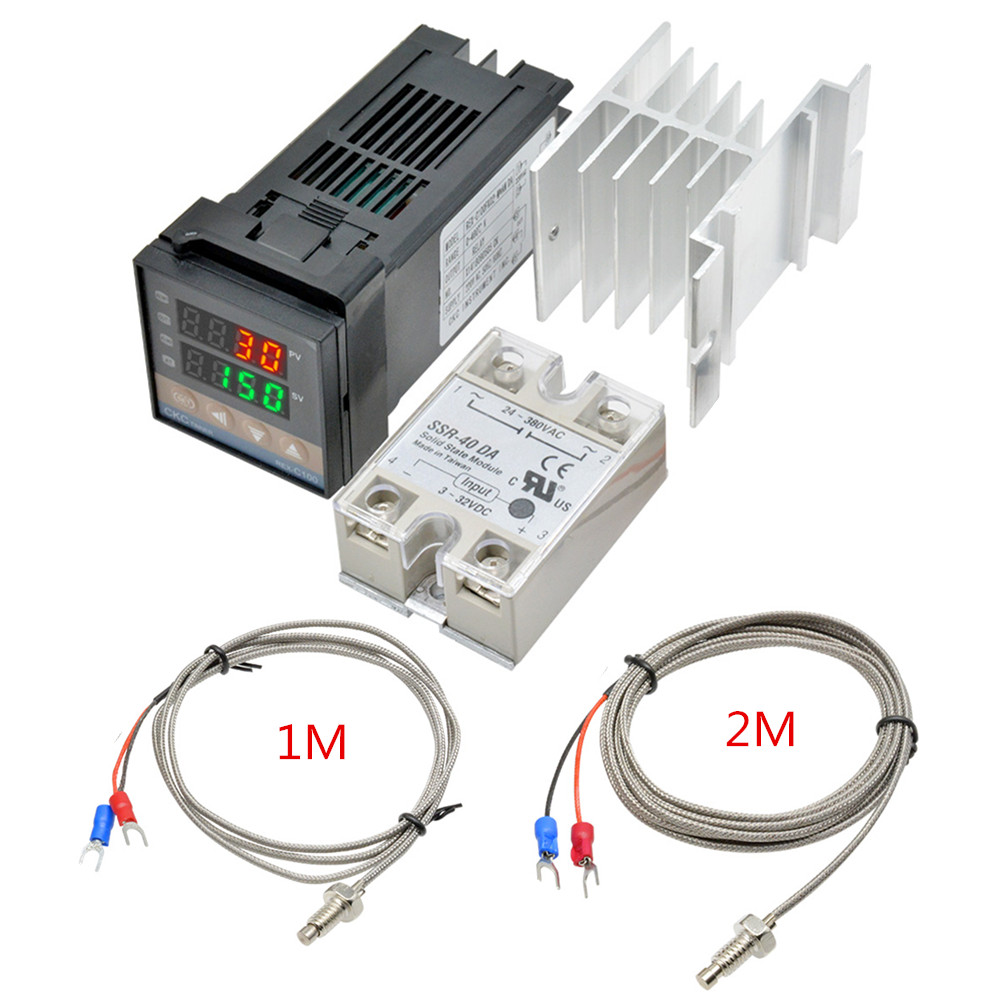

1M/2M set

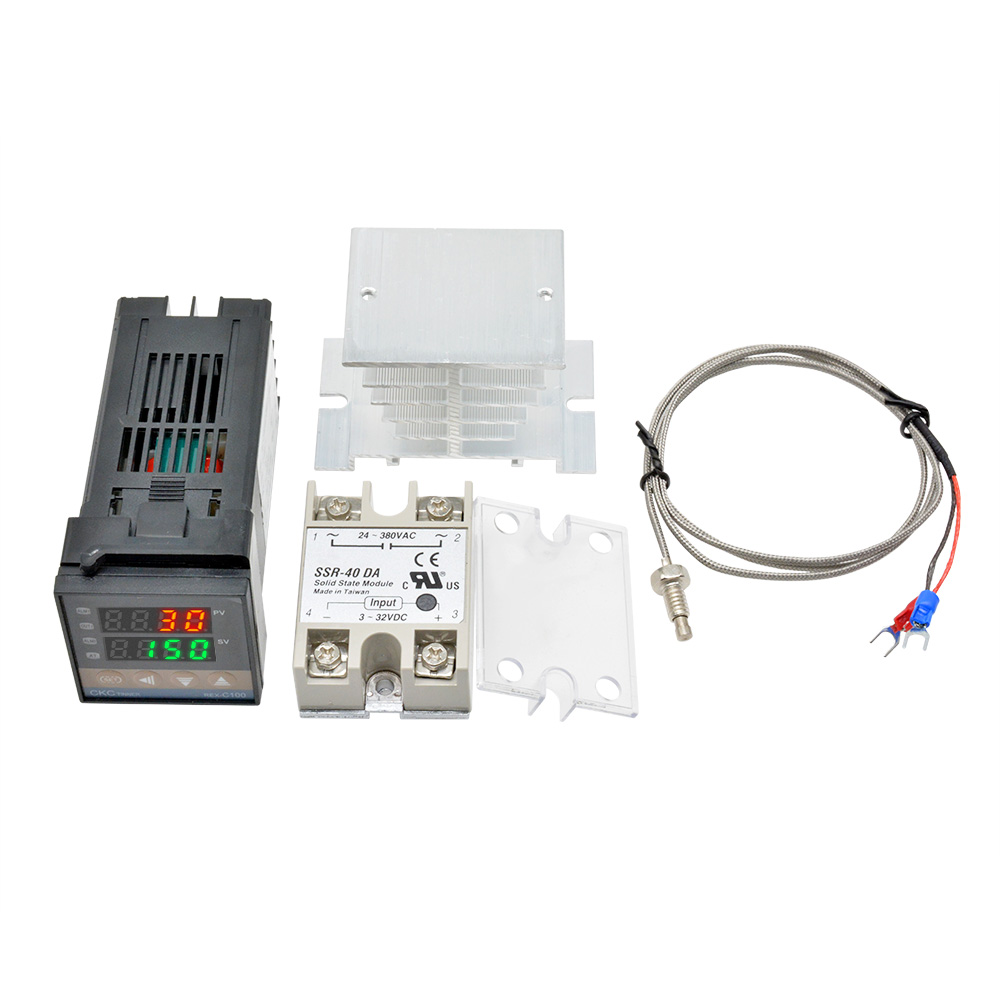

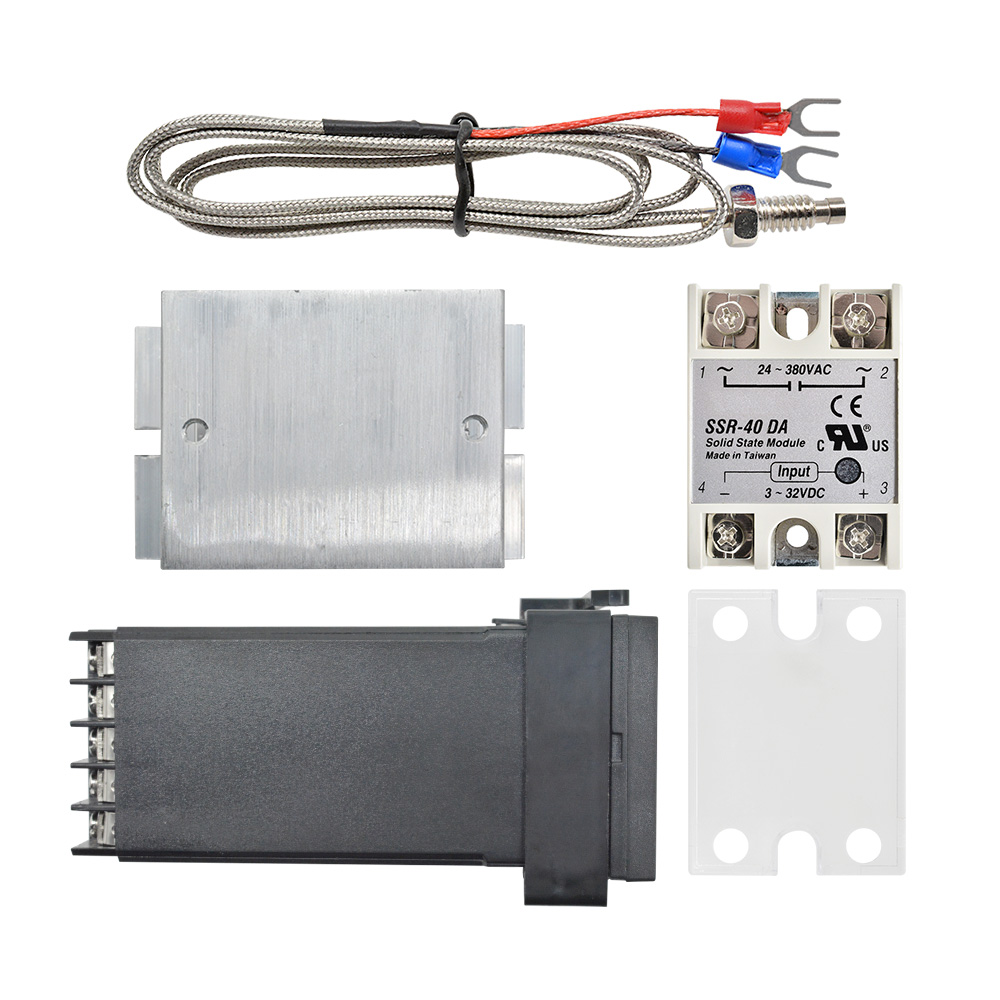

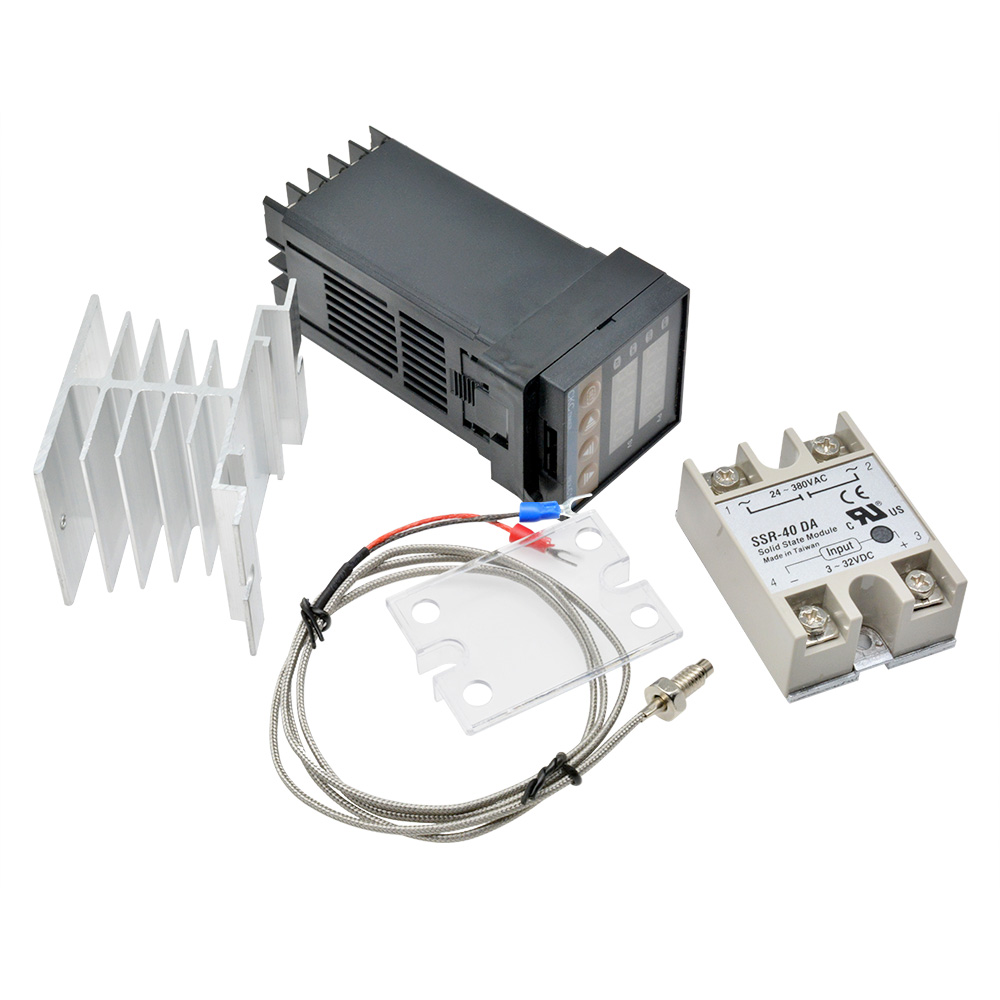

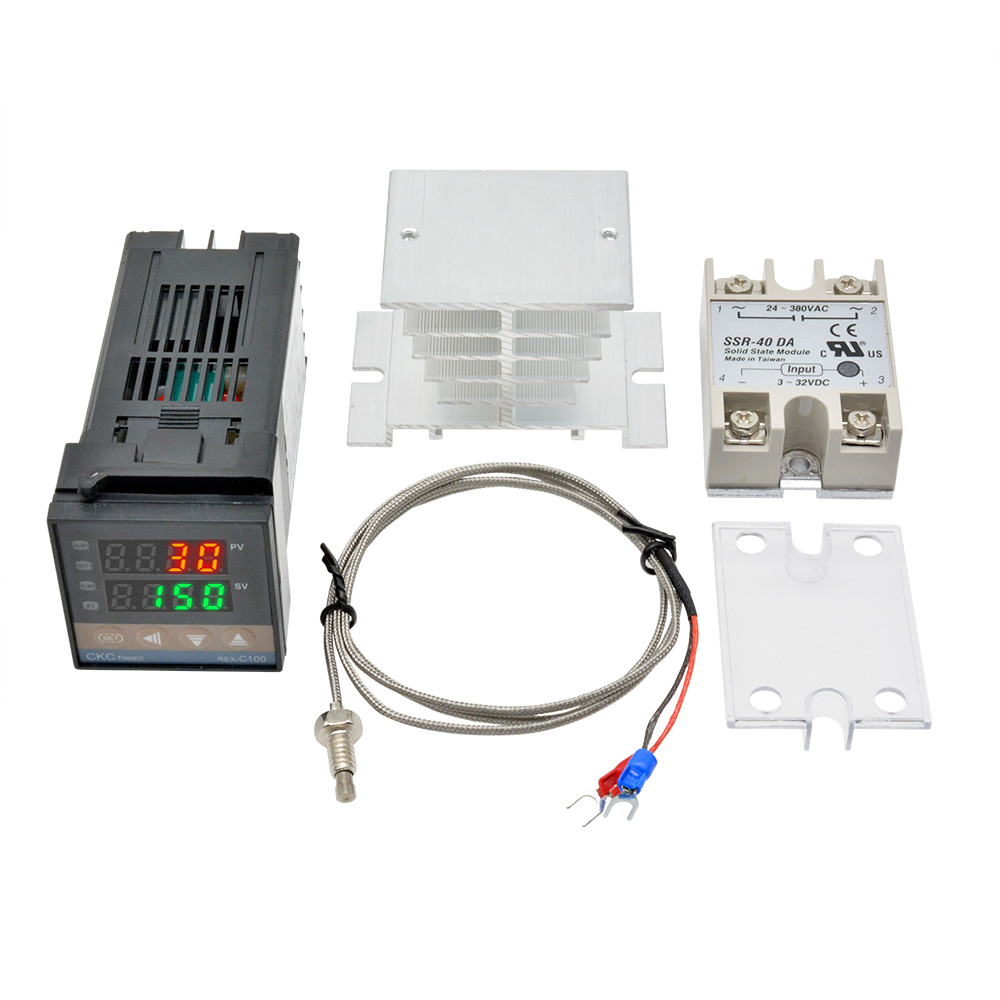

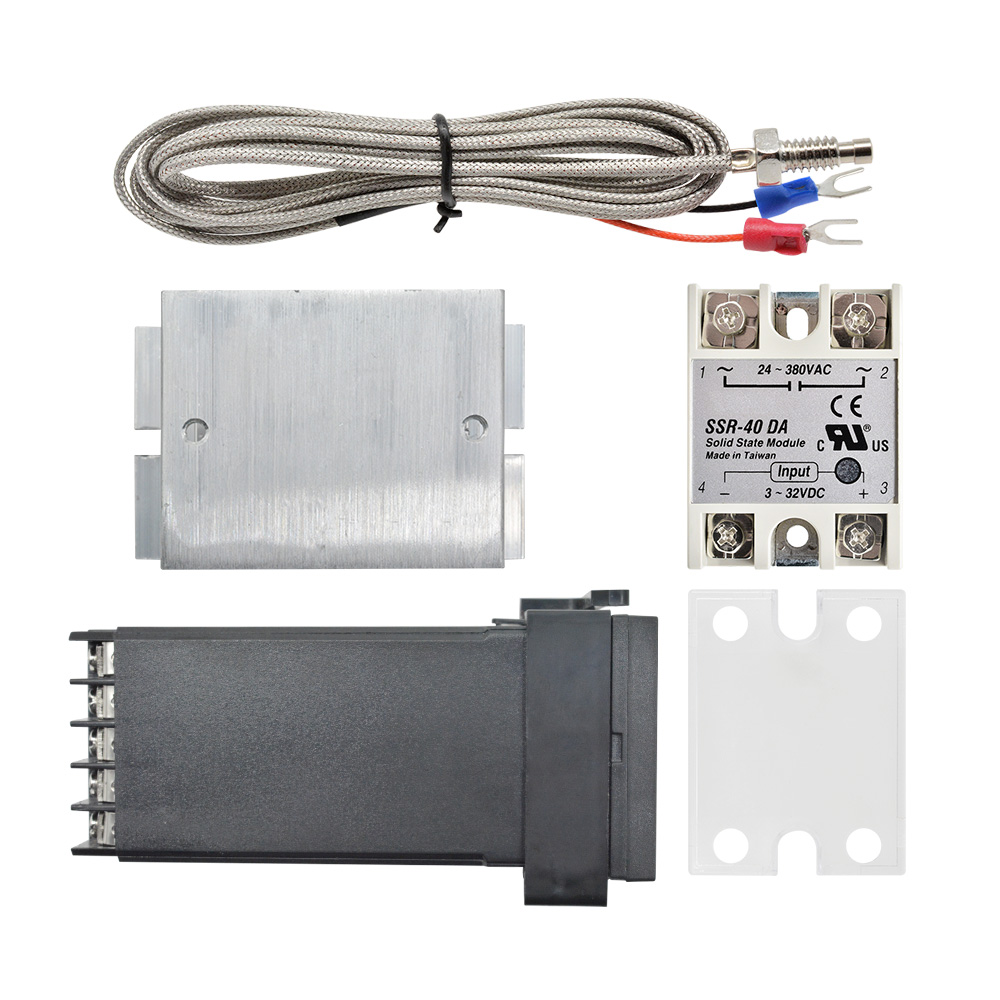

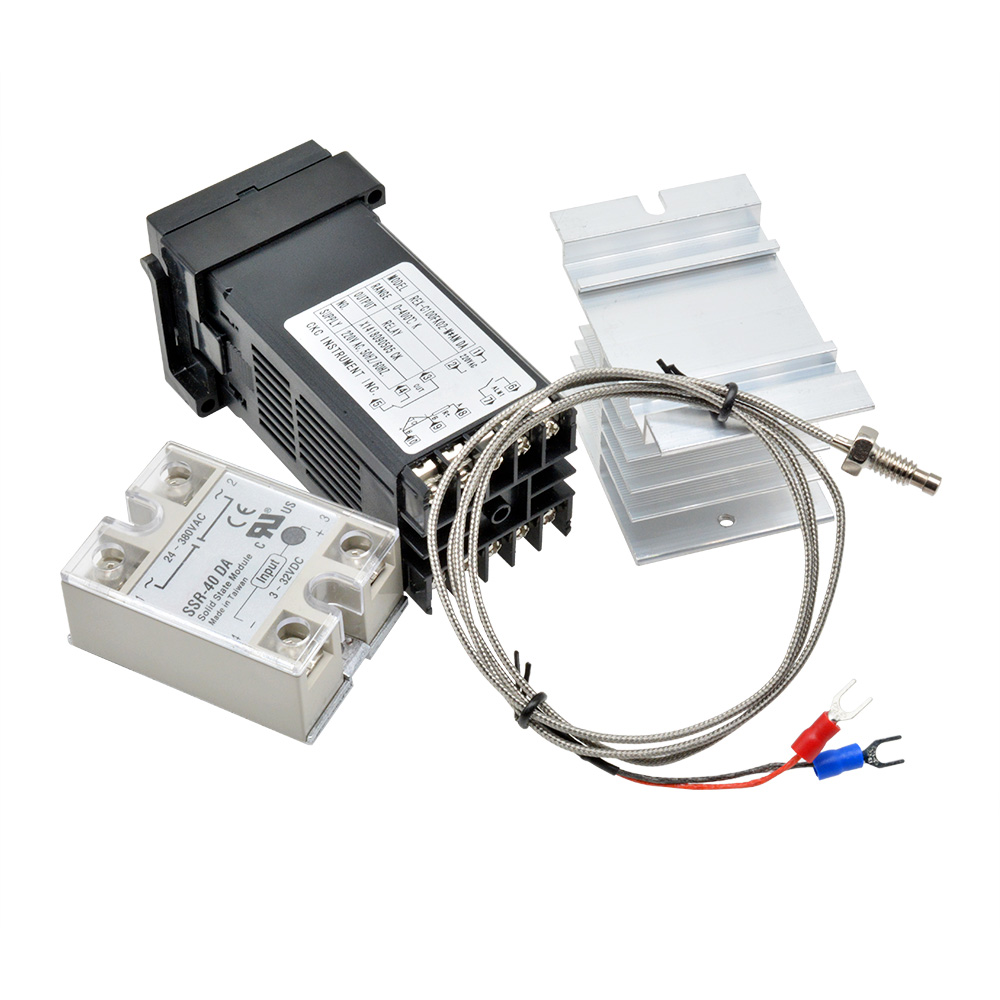

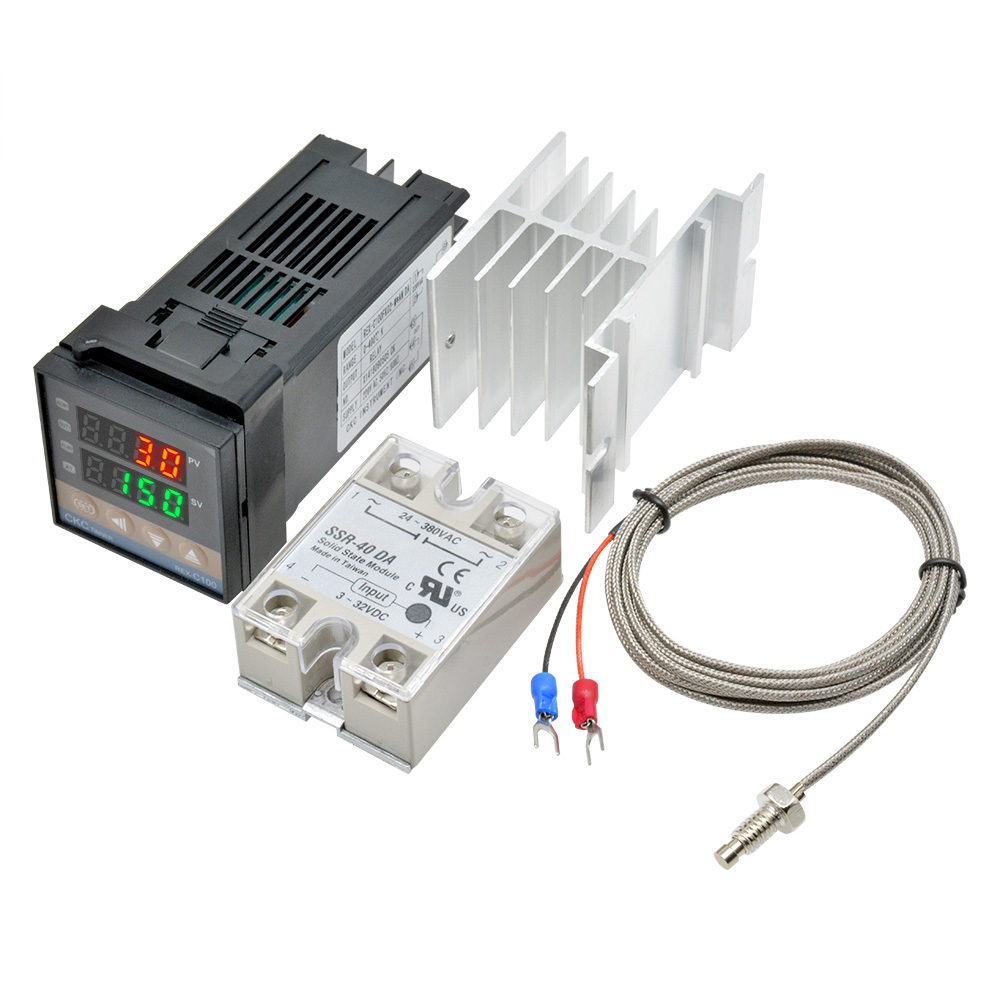

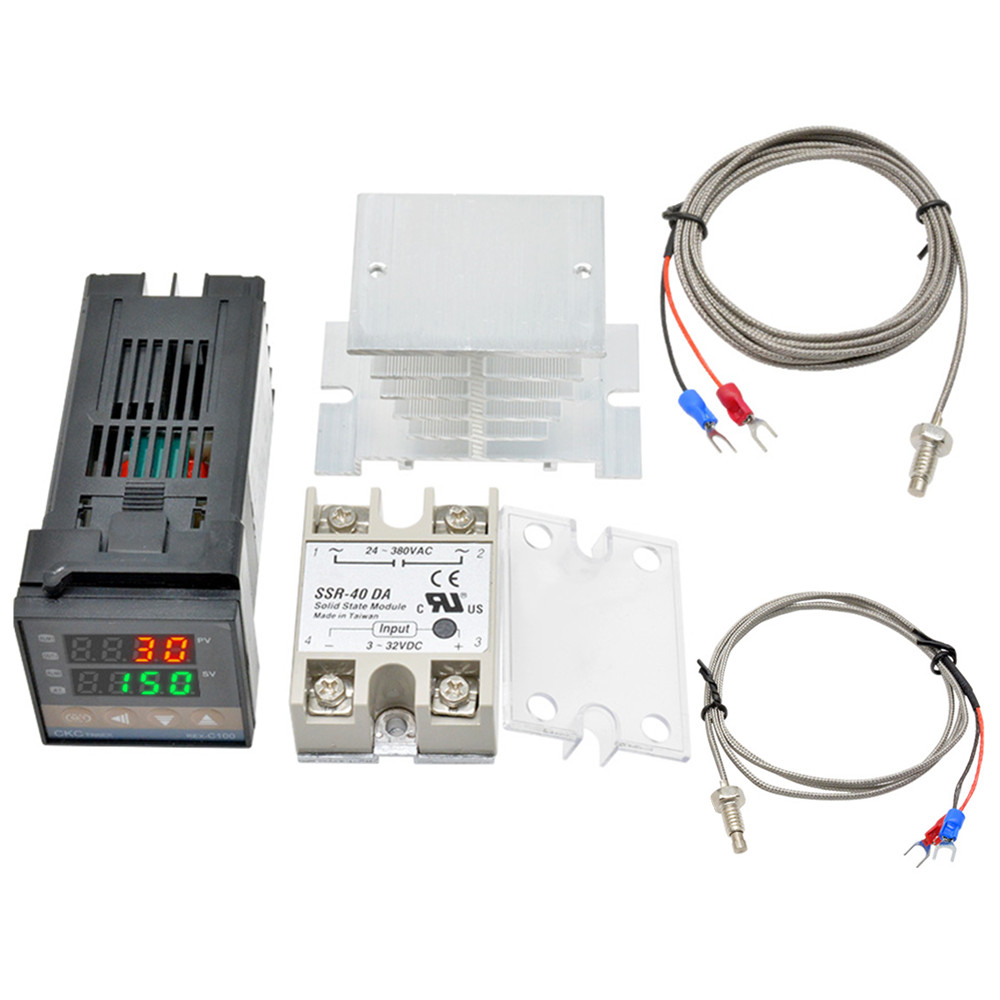

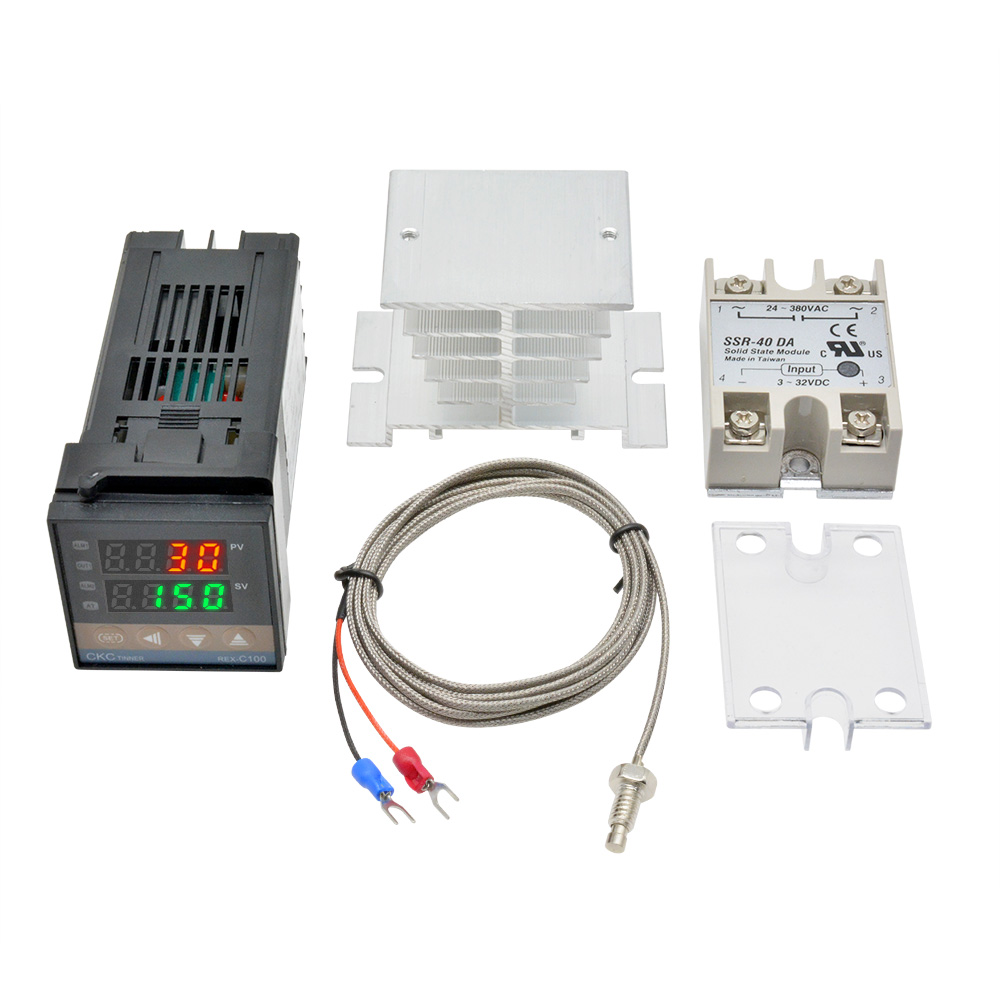

Packing list:
A 1M/2M K type sensor
A Thermostat
A SSR 40DA relay
A Heat Sink
A Clear Plastic Cover
A 1M/2M K type sensor
A Thermostat
A SSR 40DA relay
A Heat Sink
A Clear Plastic Cover
1/2 M Type K Thermocouple
Temperature Range:0-800°C.
Thread Diameter:6mm / 0.23".
Internal Insulation:Fibreglass.
External Shielding:Metal Shield.
Total Length:1M / 39".
Fork Terminal Spacing: 3.5mm / 0.13".
Color: As Picture Shown.
Designed with two fork terminal, 6mm thread sensor for accurate measurement.
Works well with temperature controller(not included here), wide measurement range of 0-800 degree celsius.
Size:100cm x 1cm x 1cm - 39.37inch x 0.39inch x 0.39inch.
Thread Diameter:6mm / 0.23".
Internal Insulation:Fibreglass.
External Shielding:Metal Shield.
Total Length:1M / 39".
Fork Terminal Spacing: 3.5mm / 0.13".
Color: As Picture Shown.
Designed with two fork terminal, 6mm thread sensor for accurate measurement.
Works well with temperature controller(not included here), wide measurement range of 0-800 degree celsius.
Size:100cm x 1cm x 1cm - 39.37inch x 0.39inch x 0.39inch.
Package Included:
1 x 1M/2M Type K Thermocouple
Heat sink
Size:5.7CM X4.6CM X7.8CM
Material:aluminum
Material:aluminum
Package Included:
1 pc
SSR-40DA
Specification:
Long service life and high reliability.
Highly reliable, compact size designed to offer users maximum simplicity.
Fast switching.
Reduced electromagnetic interference.
Output voltage: AC 24-380V.
Output current: 40A.
Input voltage: DC 3-32V.
Control Method: DC to AC.
Mounting Method: Bolts fixed.
Size:6.5cm x 4.5cm x 2.2cm - 2.56inch x 1.77inch x 0.87inch.
Package Included:
1 x SSR-40 DA Solid State Relay Module
Long service life and high reliability.
Highly reliable, compact size designed to offer users maximum simplicity.
Fast switching.
Reduced electromagnetic interference.
Output voltage: AC 24-380V.
Output current: 40A.
Input voltage: DC 3-32V.
Control Method: DC to AC.
Mounting Method: Bolts fixed.
Size:6.5cm x 4.5cm x 2.2cm - 2.56inch x 1.77inch x 0.87inch.
Package Included:
1 x SSR-40 DA Solid State Relay Module
Normal SSR output
Notes：
1.REX-C100 only K-type thermocouples can be used as input.
2.All input voltages are 220V
3.Normal version output has no alarm function
Parameter:
1. Measurement accuracy: ± 0.5% FS
2. Cold junction compensation tolerance: ± 2 ℃ (can be modified by software within 0 ~ 50 ℃)
3. Resolution: 14 bits
4. Sampling cycle: 0.5 seconds
5. Power supply: AC 100-240V 50 / 60HZ
6. Process value (PV), set value (SV)
7. Output and self-tuning can be via: LED indication
8. PIN control (including ON / OFF, step PID and continuous PID)
9. Self-tuning control
10. Relay output: contact capacity 250V AC 3A (resistive load)
11. Proportional band (P): 0 to full range (ON / OFF control when set to 0 )
12. PID temperature controller detection temperature range: 0 to 999 ° C (probe sensor temperature range 0 to 400 ° C)
13. Insulation resistance:> 50M ohm (500V DC)
14. Insulation resistance: 1500V AC / min
15. Insulation resistance : power consumption <10 VA
16. Operating environment: 0 ~ 50 ℃
17. No corrosive gas environment 30 ~ 85% RH
18. Features short and precise welding,full intelligent function temperature measurement, constant temperature control
1.REX-C100 only K-type thermocouples can be used as input.
2.All input voltages are 220V
3.Normal version output has no alarm function
Parameter:
1. Measurement accuracy: ± 0.5% FS
2. Cold junction compensation tolerance: ± 2 ℃ (can be modified by software within 0 ~ 50 ℃)
3. Resolution: 14 bits
4. Sampling cycle: 0.5 seconds
5. Power supply: AC 100-240V 50 / 60HZ
6. Process value (PV), set value (SV)
7. Output and self-tuning can be via: LED indication
8. PIN control (including ON / OFF, step PID and continuous PID)
9. Self-tuning control
10. Relay output: contact capacity 250V AC 3A (resistive load)
11. Proportional band (P): 0 to full range (ON / OFF control when set to 0 )
12. PID temperature controller detection temperature range: 0 to 999 ° C (probe sensor temperature range 0 to 400 ° C)
13. Insulation resistance:> 50M ohm (500V DC)
14. Insulation resistance: 1500V AC / min
15. Insulation resistance : power consumption <10 VA
16. Operating environment: 0 ~ 50 ℃
17. No corrosive gas environment 30 ~ 85% RH
18. Features short and precise welding,full intelligent function temperature measurement, constant temperature control
Use:
General precision temperature control equipment, such as oven power chemical industry, injection packaging food, incubator, oven, etc. Important temperature control accessories are universal
General precision temperature control equipment, such as oven power chemical industry, injection packaging food, incubator, oven, etc. Important temperature control accessories are universal
Pacakge included:
1*REX-C100
1*REX-C100
1M/2M set
Packing list:
A 1M/2M K type sensor
A Thermostat
A SSR 40DA relay
A Heat Sink
A Clear Plastic Cover
A 1M/2M K type sensor
A Thermostat
A SSR 40DA relay
A Heat Sink
A Clear Plastic Cover
