AC Split Core Current Transformer Core CT Open Ratio: 5000/1 Current: 0-630A 20Ω

Product View

Detail

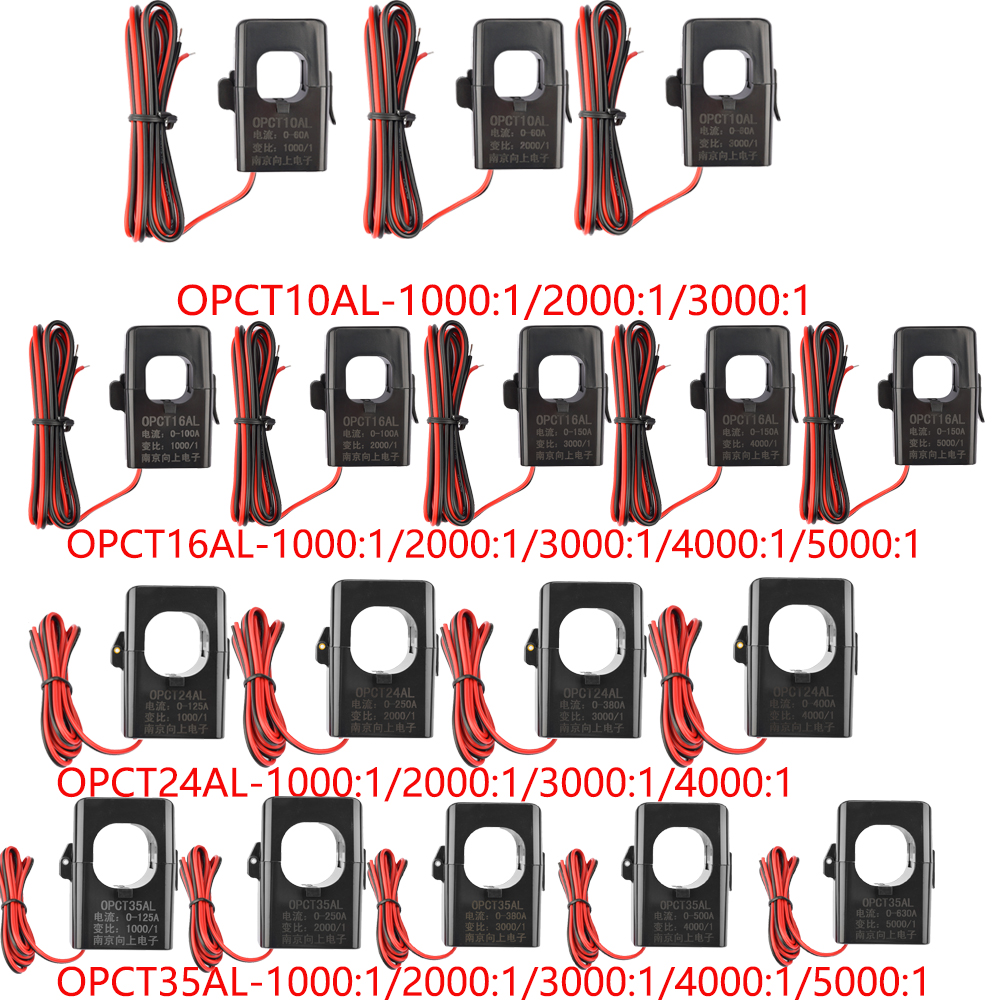

OPCT10AL
Description:

product parameters:
Model: OPCT10AL
Ratio: 1000/1
Normally on current: 0-60A
Accuracy error: 0.5%
product parameters:
Model: OPCT10AL
Ratio: 2000/1
Normally on current: 0-60A
Accuracy error: 0.5%
product parameters:
Model: OPCT10AL
Ratio: 3000/1
Normally on current: 0-60A
Accuracy error: 0.5%

Package Include:
Transformer X1"



OPCT16AL
Product parameters:

Model: OPCT16AL
Ratio: 1000/1
Normally on current: 0-100A
Accuracy error: 0.5%
Line length: 1000mm

Product parameters:
Model: OPCT16AL
Ratio: 2000/1
Normally on current: 0-100A
Accuracy error: 0.5%
Line length: 1000mm

Product parameters:
Model: OPCT16AL
Ratio: 3000/1
Normally on current: 0-150A
Accuracy error: 0.5%
Line length: 1000mm

Product parameters:
Model: OPCT16AL
Ratio: 4000/1
Normally on current: 0-150A
Accuracy error: 0.5%
Line length: 1000mm

Product parameters:
Model: OPCT16AL
Ratio: 5000/1
Normally on current: 0-150A
Accuracy error: 0.5%
Line length: 1000mm

Package include:
Transformer X1"

OPCT24AL

Product parameters:
Model: OPCT24AL
Ratio: 1000/1
Normally on current: 0-125A
Rated load: 20Ω
Rated output: 100mA
Accuracy class: 0.5 class
Outlet length: 1000mm
Product parameters:
Model: OPCT24AL
Ratio: 2000/1
Normally on current: 0-250A
Rated load: 20Ω
Rated output: 100mA
Accuracy class: 0.5 class
Outlet length: 1000mm
Product parameters:
Model: OPCT24AL
Ratio: 3000/1
Normally on current: 0-380A
Rated load: 20Ω
Rated output: 100mA
Accuracy class: 0.5 class
Outlet length: 1000mm
Product parameters:
Model: OPCT24AL
Ratio: 4000/1
Normally on current: 0-400A
Rated load: 20Ω
Rated output: 100mA
Accuracy class: 0.5 class
Outlet length: 1000mm
Package Include:
Transformer X1


OPCT35AL

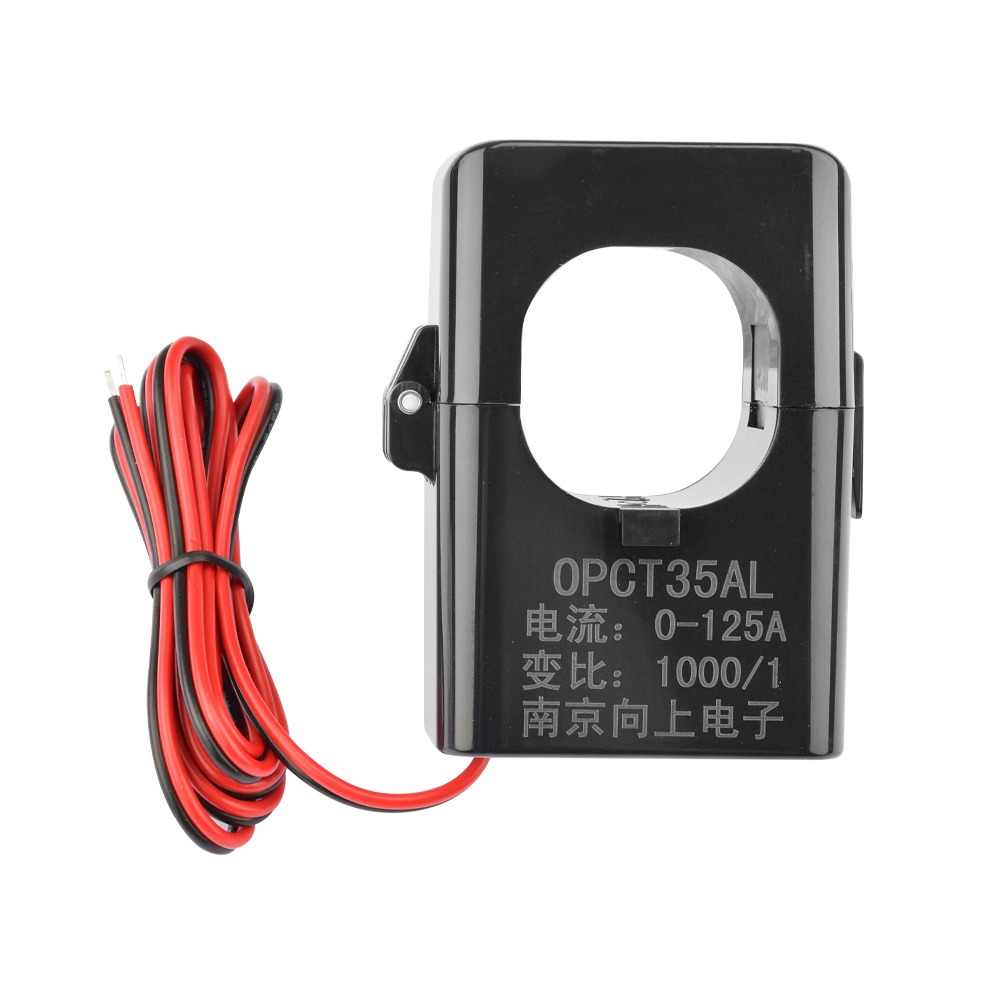

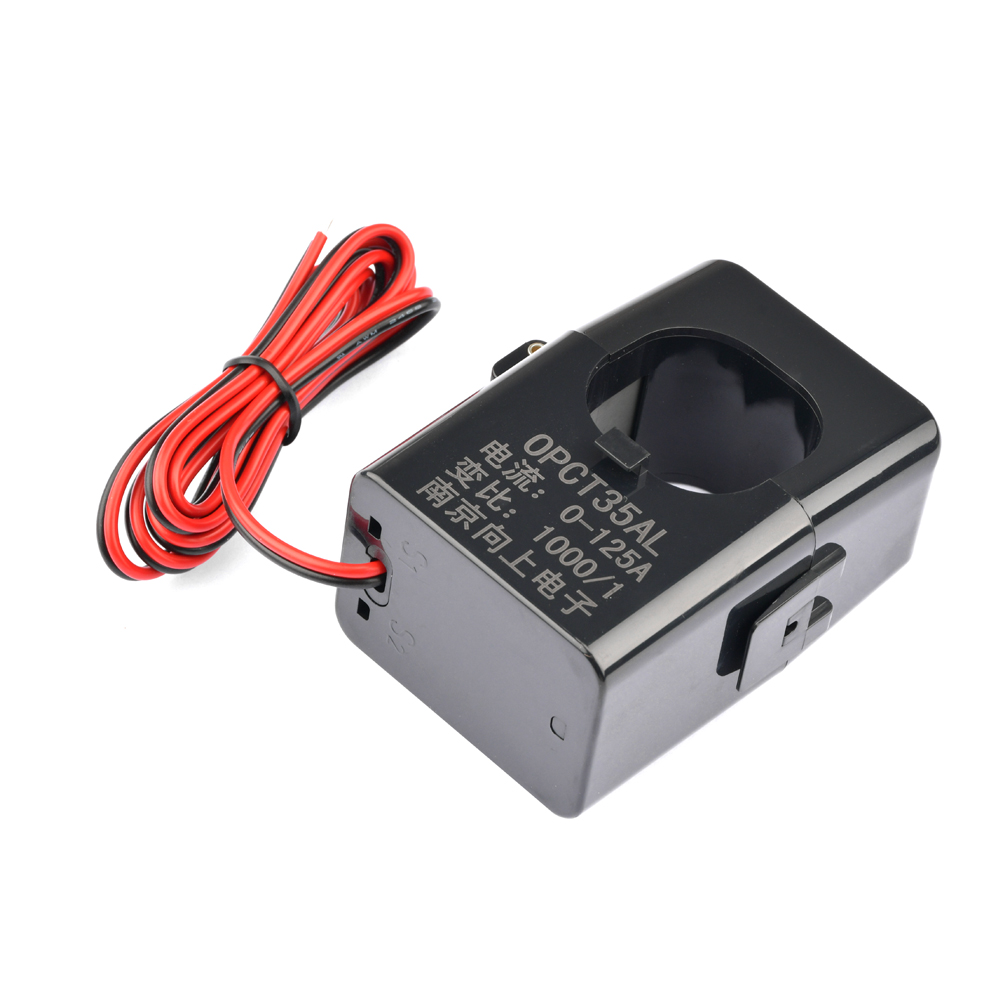

Product parameters:
Model: OPCT35AL
Ratio: 1000/1
Normally on current: 0-125A
Rated load: 20Ω
Accuracy class: 0.5 class
Outlet length: 1000mm
Product parameters:
Model: OPCT35AL
Ratio: 2000/1
Normally on current: 0-250A
Rated load: 20Ω
Accuracy class: 0.5 class
Outlet length: 1000mm

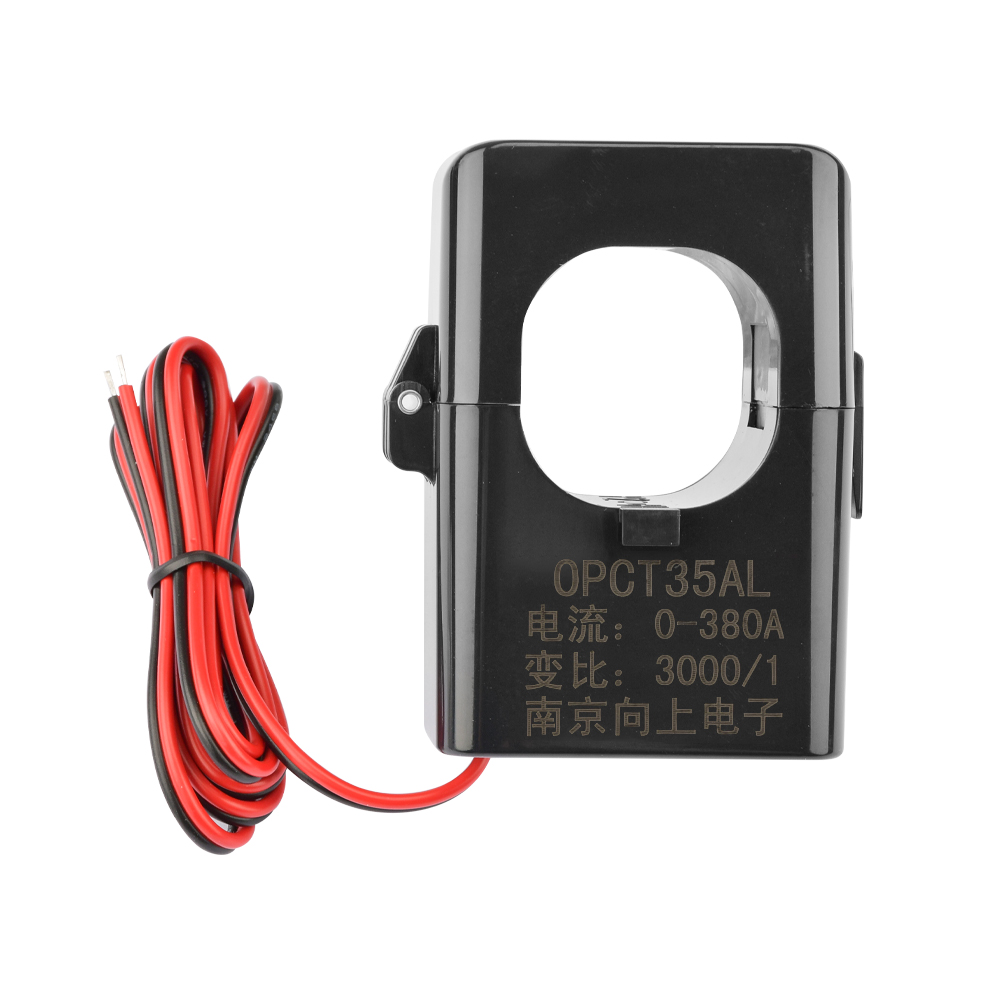

Product parameters:
Model: OPCT35AL
Ratio: 3000/1
Normally on current: 0-380A
Rated load: 20Ω
Accuracy class: 0.5 class
Outlet length: 1000mm

Product parameters:
Model: OPCT35AL
Ratio: 4000/1
Normally on current: 0-500A
Rated load: 20Ω
Accuracy class: 0.5 class
Outlet length: 1000mm
Product parameters:
Model: OPCT35AL
Ratio: 5000/1
Normally on current: 0-630A
Rated load: 20Ω
Accuracy class: 0.5 class
Outlet length: 1000mm

Package Include:
Transformer X1"
