Hello, after placing an order, please leave a message about the pressure model and flow rate you need, thank you!

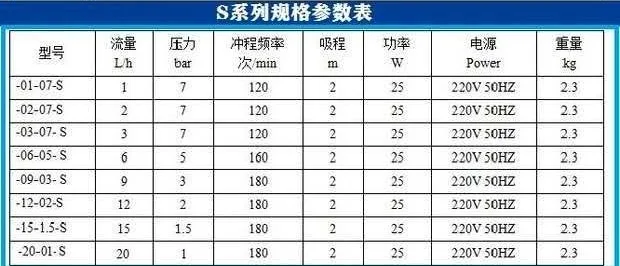

7bar:1L/H,2L/H,3L/H,4L/H
3bar:9L/H
5bar:6L/H
2bar:12L/H
1.5bar:15L/H
1bar:20L/H

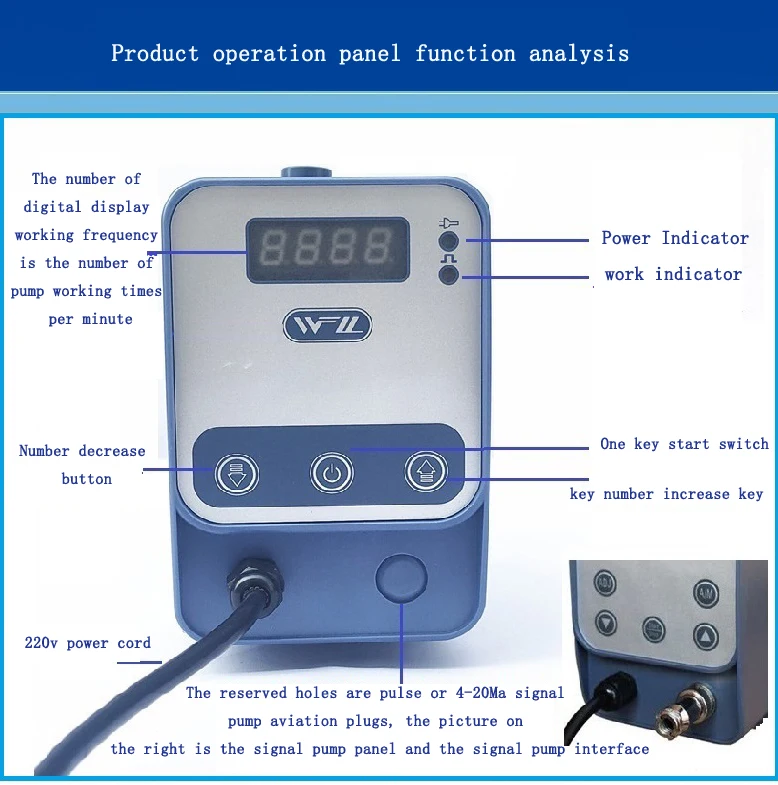

Manual adjustment of the working frequency of the metering pump, optional liquid level probe interface. With power-off reset or power-off hold function

WS series electromagnetic diaphragm metering pump

W series is a microprocessor-controlled digital display

Magnetic metering pump has the characteristics of simple operation and stable operation.

Includes 3 sub-series: WS, WM and WP.

The main parameters

Flow range: 1- 70L/h

Pressure range: 1-7BAR

Application areas: Municipal water treatment and wastewater treatment, chlorine dioxide

Generators, reverse osmosis equipment, food, beverage and pharmaceutical industries.

Cost-effective

Generous appearance, delicate workmanship

Excellent performance at an affordable price

Created a cost-effective electromagnetic diaphragm metering pump.

Reliable diaphragm performance

Design concept and manufacturing process, resulting in a long service life of the diaphragm

Diaphragms are made of pure solid PTFE material and are compatible with most chemicals

Diaphragm service life is more than 5 years

Periodic replacement of the diaphragm is no longer required

Accurate measurement

The repeatability of plus or minus 1% ensures the stability of the dosage

Strong consistency, can meet customer needs in different working conditions

good sealing

Good sealing makes the suction more smooth.
