Air Suspension Load Assist Kit W/ Compressor For Iveco Daily 35c - 55C 1999-2024
.jpg)
MaXpeedingrods Air suspension kit
- [Practical Installation]
Easy to install, no-drill systems, typically takes 1 to 2 hours. Professional installation is recommended
- [Manufacturing Process]
Galvanised Heavy duty bracket, with Natural Rubber and Hi-tensile steel offers high load-bearing 7800kg capacity and long life
MaXpeedingrods Air suspension kit
.jpg)

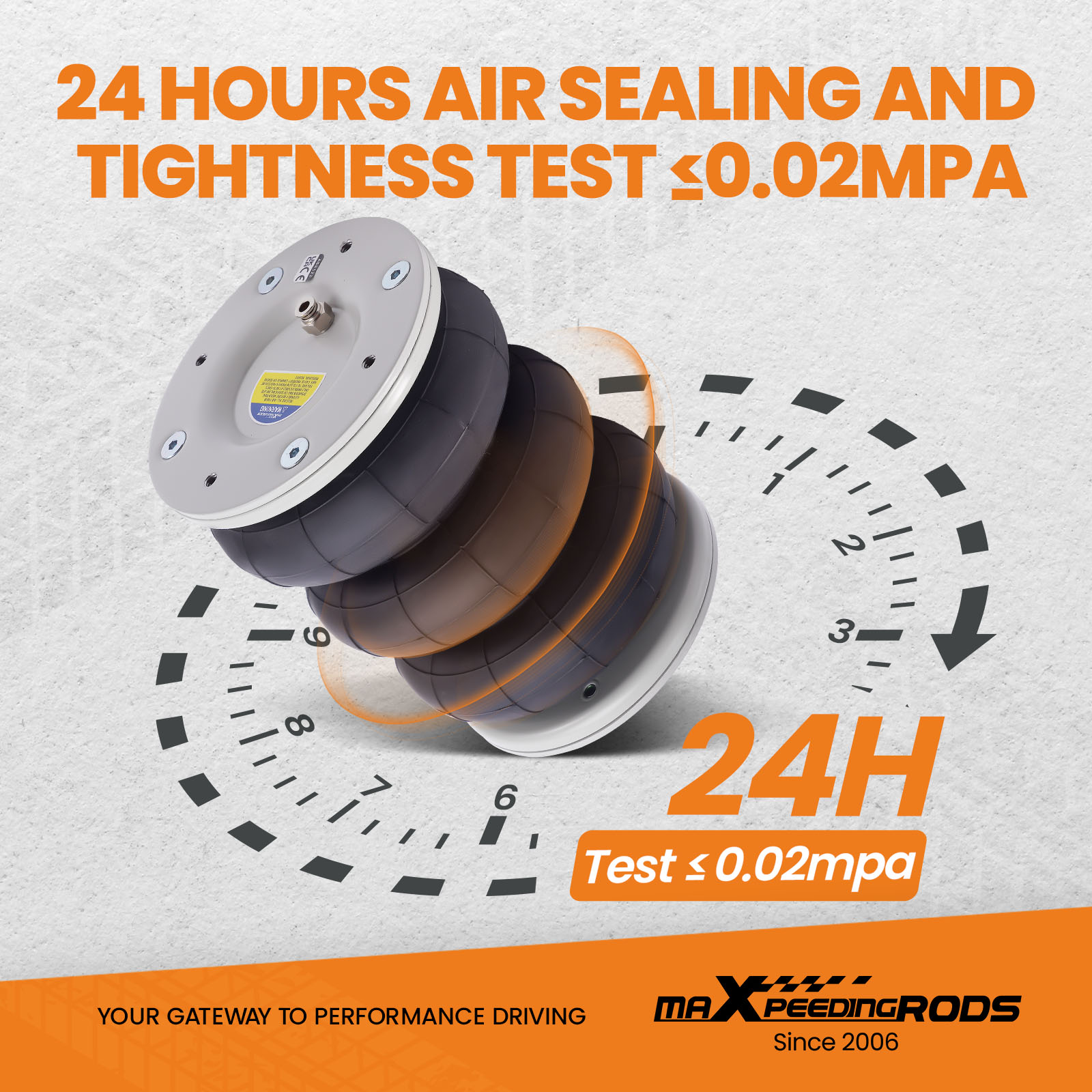

Air Tightness Test
Air spring bags past 24 hours air tightness test ≤2.0Mpa. Ensure no air leakage
.jpg)

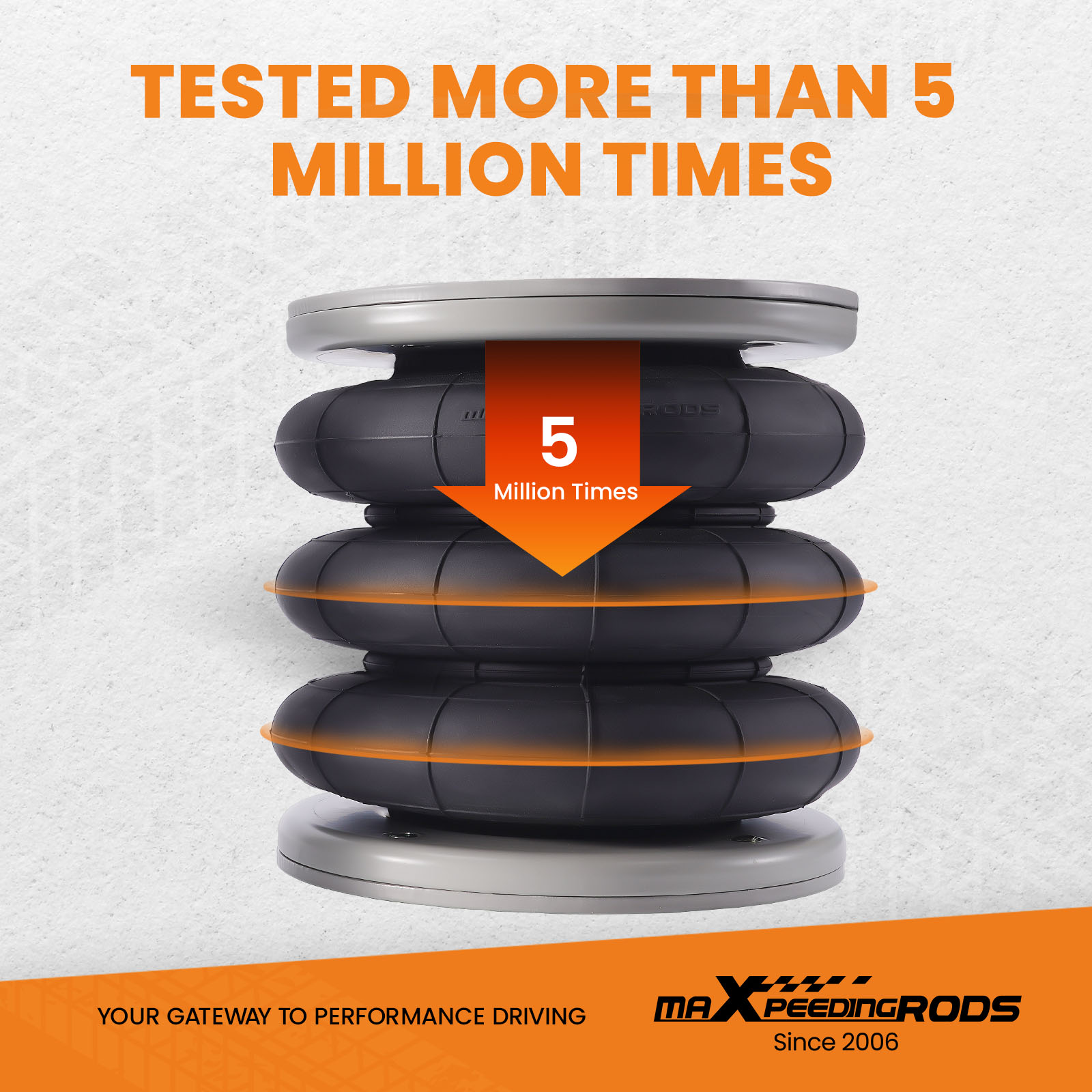

Stress Test
Air spring bags past stress test over 5000000 times. Ensure high load-bearing capacity and long life
.jpg)

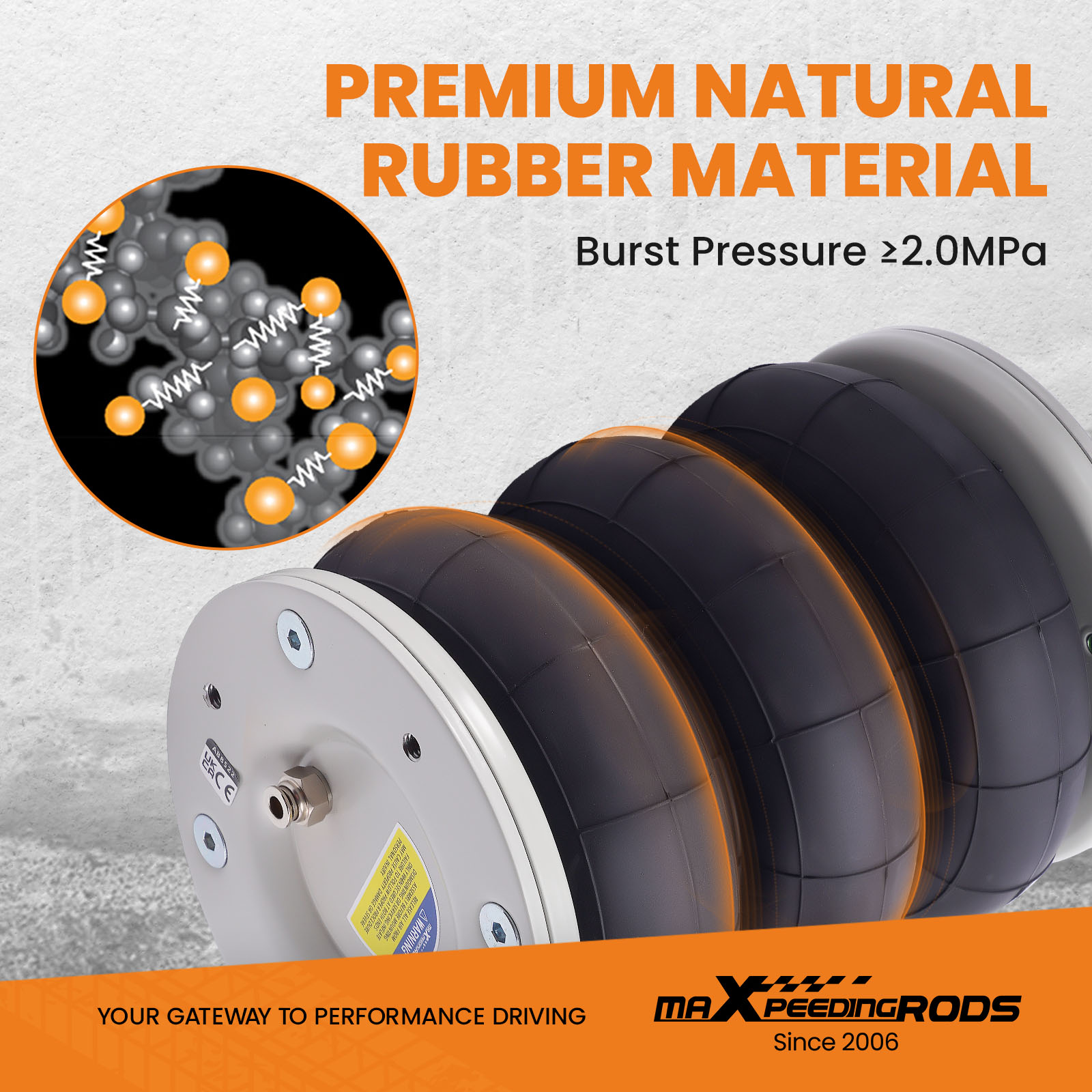

High quality material
Air spring bags are made of High quality heavy duty rubber, using Natural Rubber and Hi-tensile steel
.jpg)

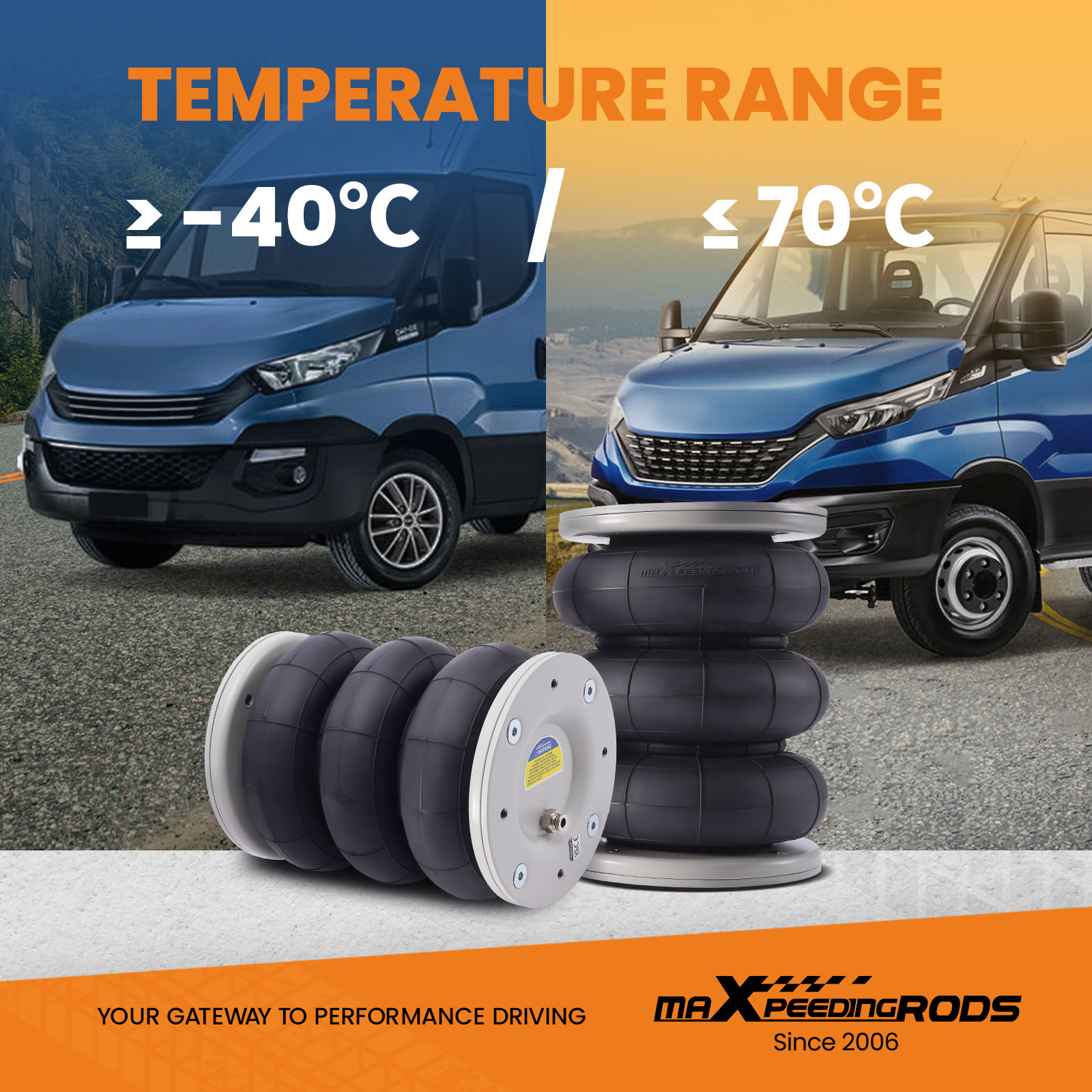

Works well in complicated climate
Air spring bags work well in temperature ≤+70° , ≥-40°, easily handle complicated climate
Specifications
| Condition | Brand New |
| Placement on Vehicle | Rear Left and Right |
| Capacity | 17196 LB / 7800 KG |
| Stroke | 280 mm |
| Design height | 239.5 mm |
| Max. Extended | 320 mm |
| Min. Compressed | 40 mm |
| Air Compressor inlcuded | Yes |
| Power | 150 W |
| Output Voltage | 12 V |
| Temperature | ≤+70° , ≥-40° |
| Operating Pressure | ≤2.0Mpa |
| Unloaded | Min 10 PSI |
| Loaded | 75 PSI |
| Maximum Current | 10 A |
| Maximum Working Voltage | 10 bar (1 MPa ) |
.jpg)
Appliation
For Iveco Daily 35c 40c 45c 50c 55C 1999-2024
For Iveco Daily 30-8 / 49-12 1985-1999
Body type: Panel van, tipper, motorhome, camper, box van.
Notice: for RWD
Chassis type: All standard type of chassis

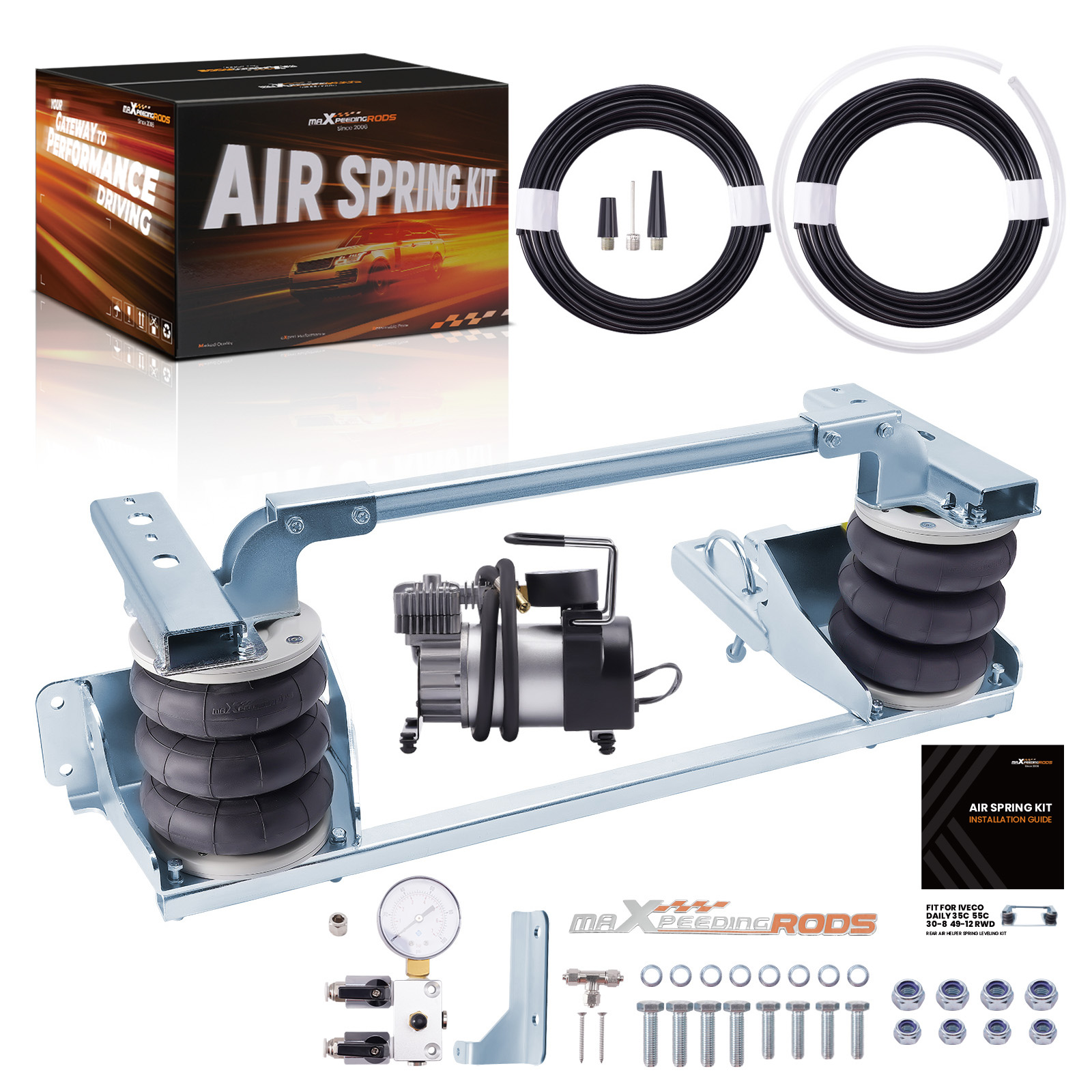

Package Includes:
2x Natural Rubber & Hi-tensile steel Air spring
4x Galvanised Heavy duty Mounting bracket
1x 12V Air suspension compressor
1x Panel guage
2x Crossbar
1x Air line 20m
Mounting bolts and Air fittings
Notice:
- Professional installation is recommended
- Contact us please for whatever we can help
Why choose MaXpeedingrods?
.jpg)
Unique Identifiacation Code
Every MaXpeedingrods Air Spring bags with unique ID Code to trace the raw materials or process batches better quality control.
.jpg)
Air Tightness Test
Every MaXpeedingrods Air Spring bag pasts water air tightness test. Ensure no air leakage
.jpg)
Fatigue Testing
Every MaXpeedingrods Air Spring bag pasts withstand 500,000 times fatigue tests, far exceeding industry standards, more durable and safer
.jpg)
100% Air Pressure Test
Every MaXpeedingrods Air Spring bag pasts 24 hours air tightness test ≤2.0Mpa.
.jpg)
.jpg)
