Condition: BRAND NEW IN ORIGINAL PACKAGING

Warranty: 1 YEAR MANUFACTURER

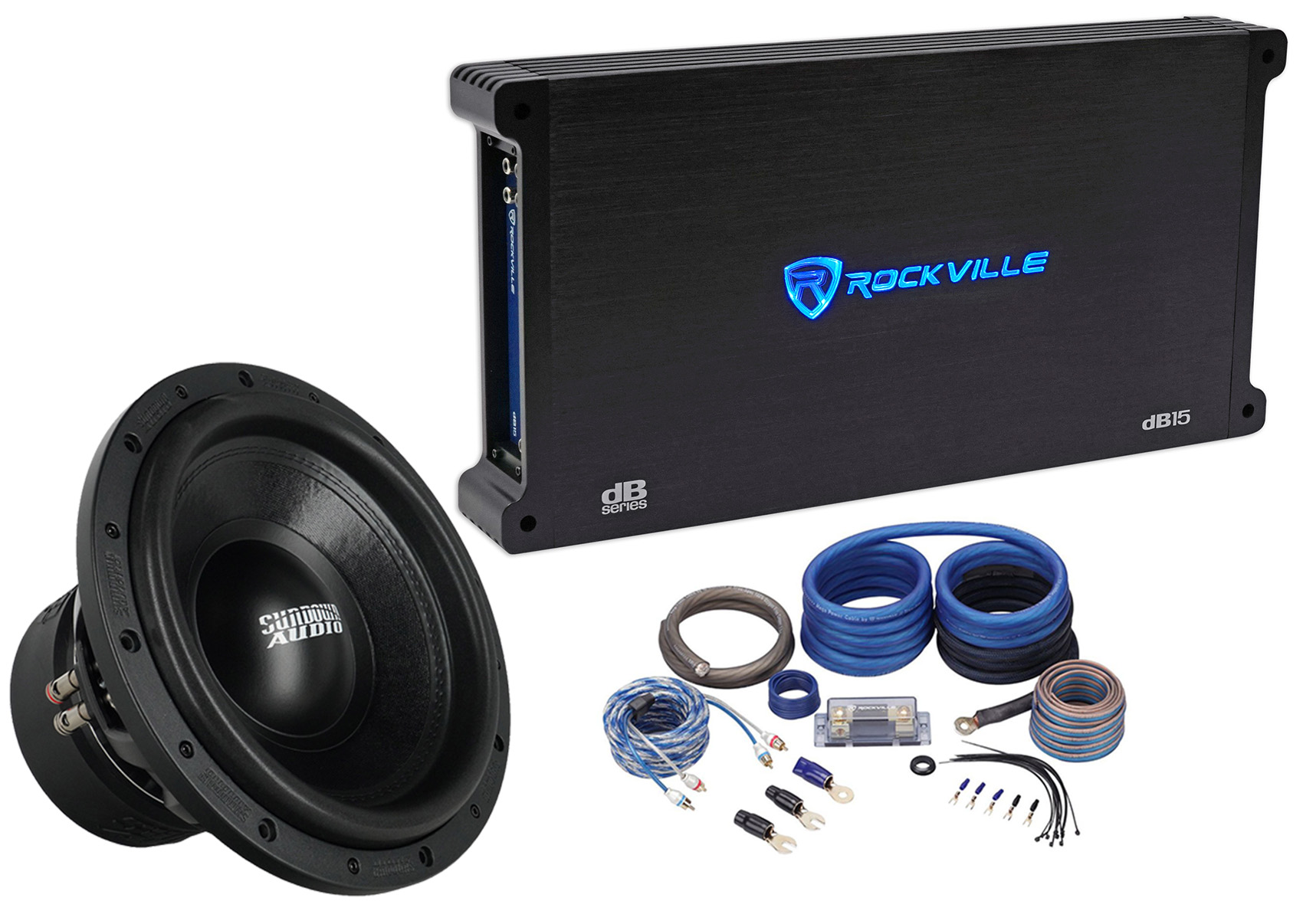

Package Includes:

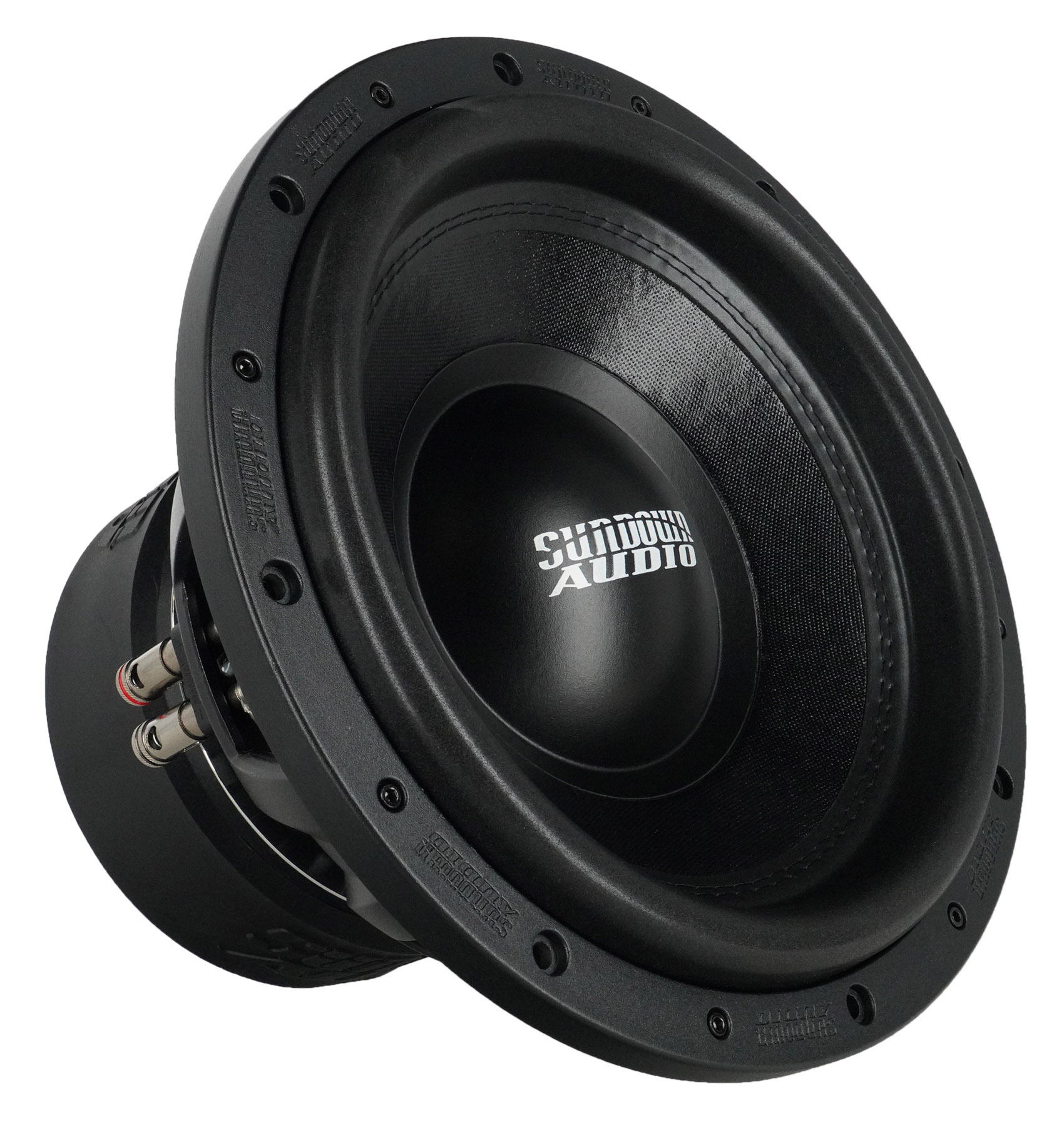

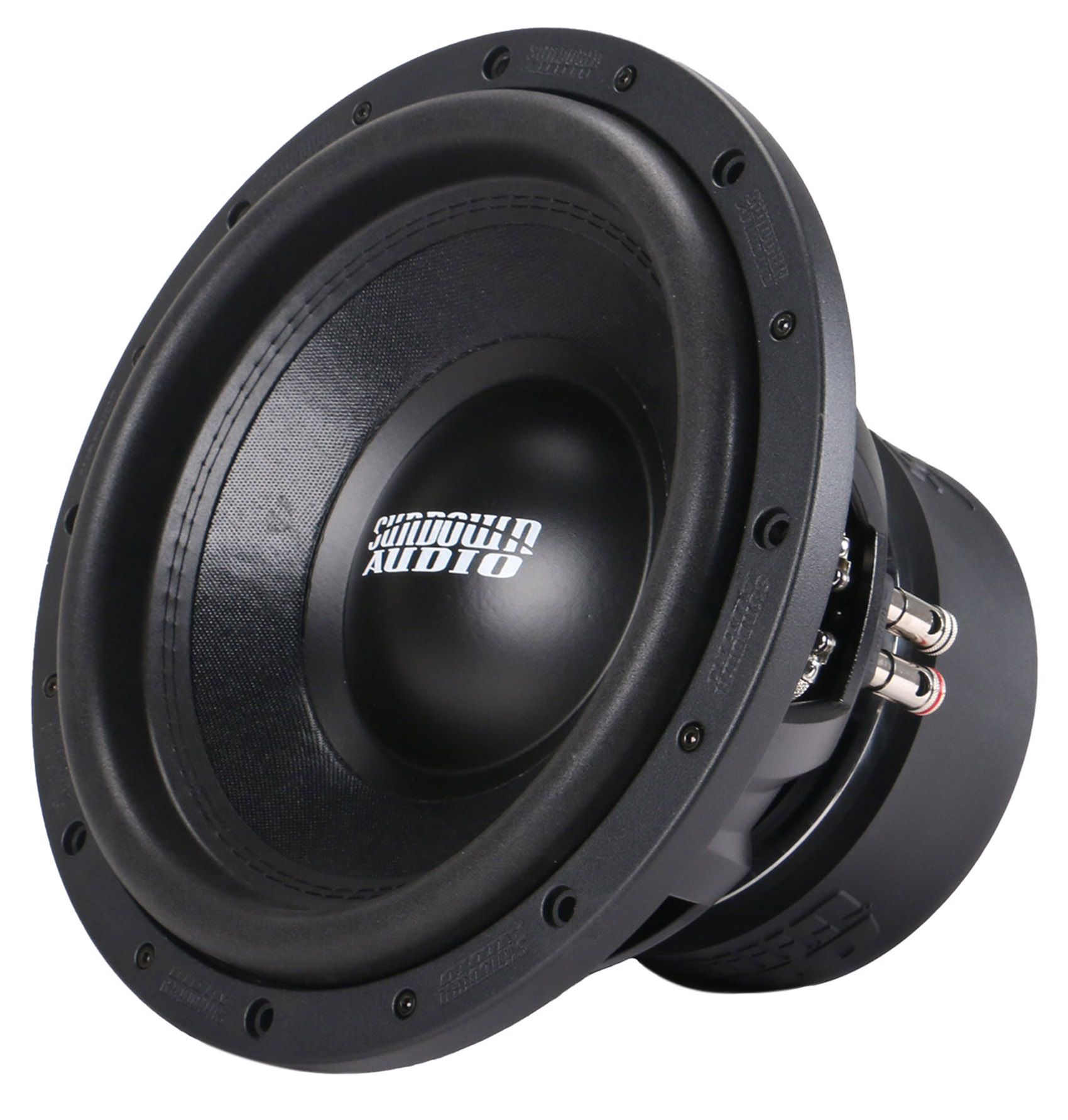

• (1) Sundown Audio SA-12 V.3 D4 12" 1500w RMS Car Subwoofer DVC 4-Ohm SA Series Sub
• (1) Rockville dB15 6000 Watt Peak/1500w RMS Mono 2 Ohm Amplifier Car Audio Amp
• (1) Rockville RWK0CU 0 AWG Gauge 100% Copper Complete Amp Installation Wire Kit OFC

---

Description:

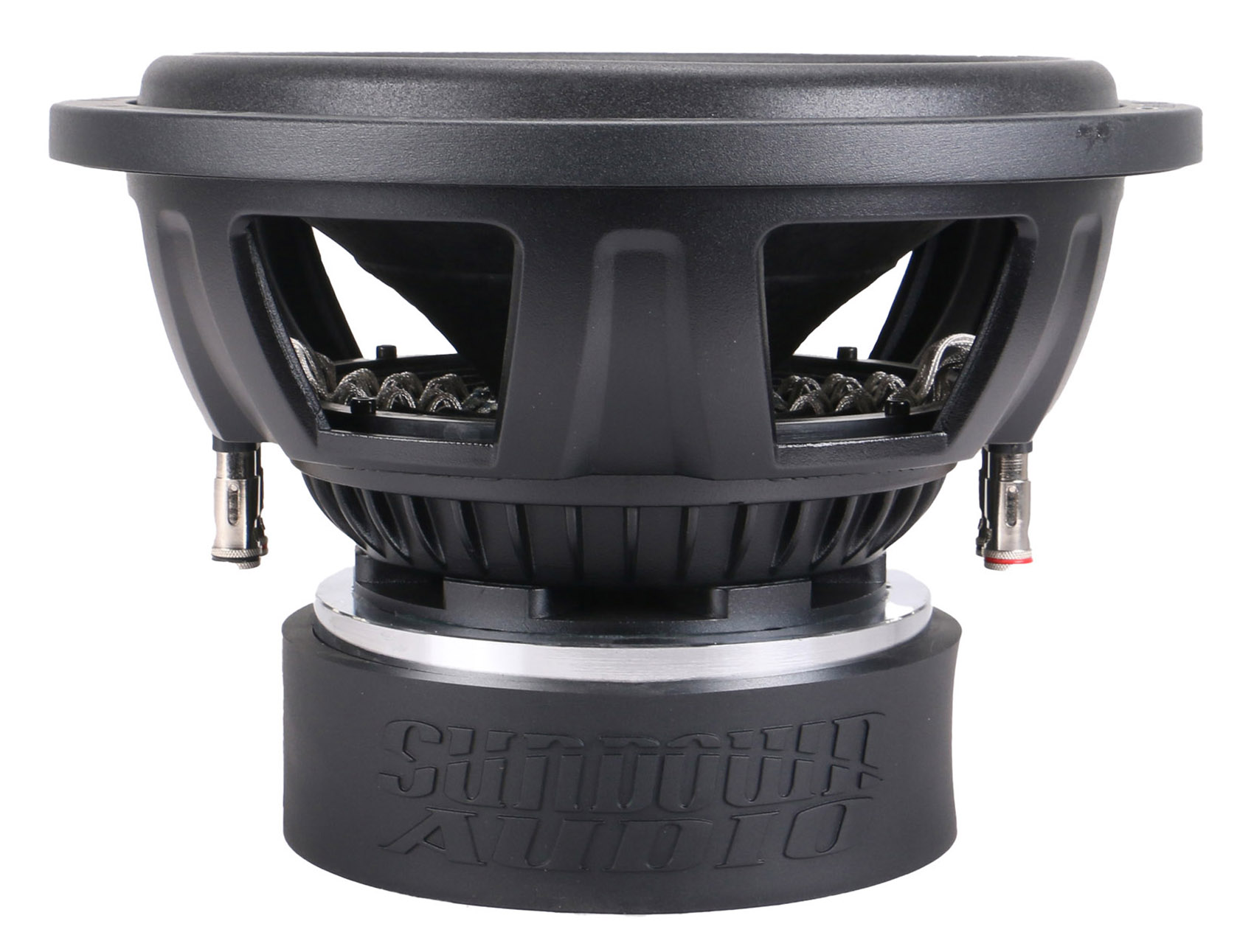

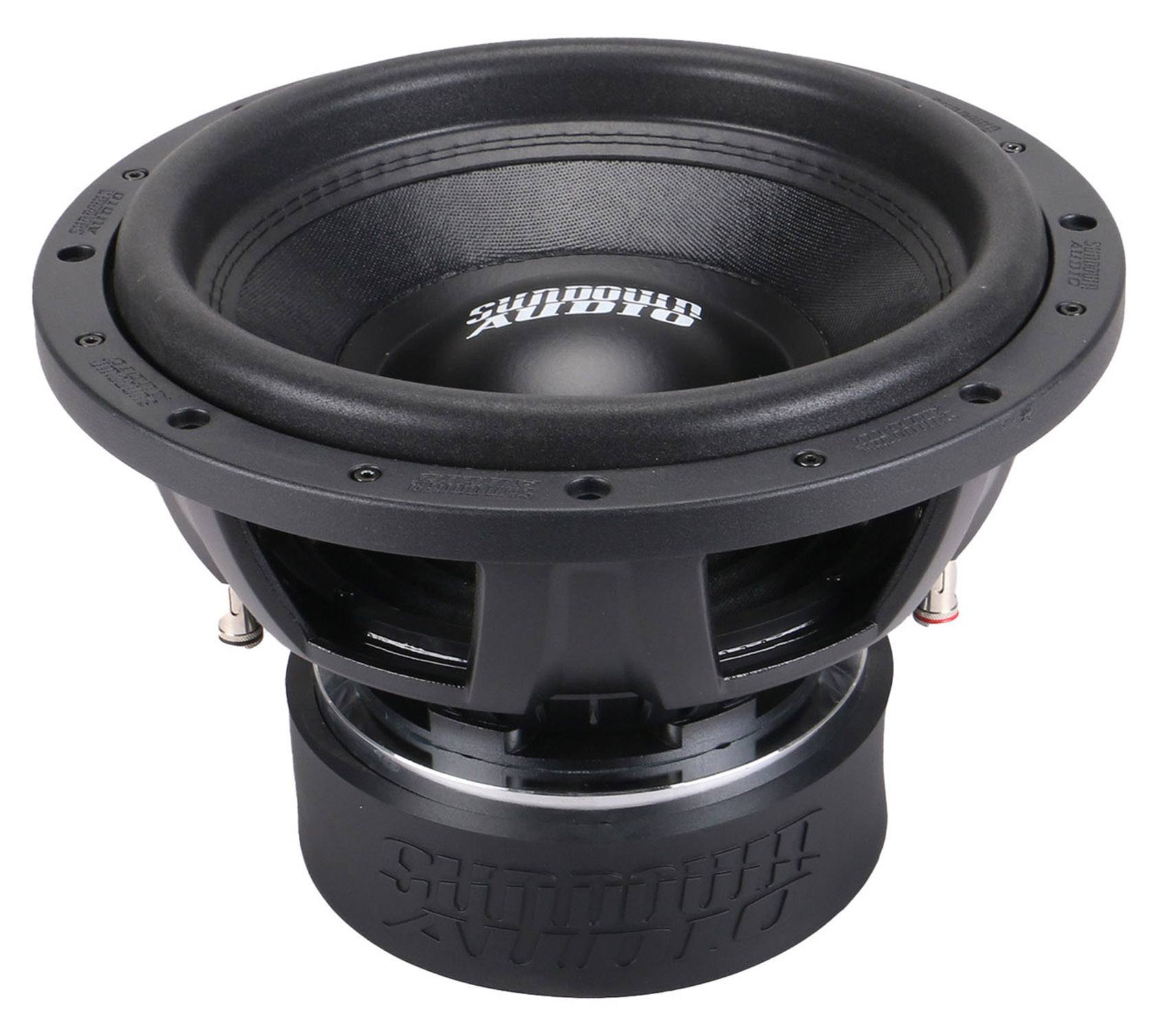

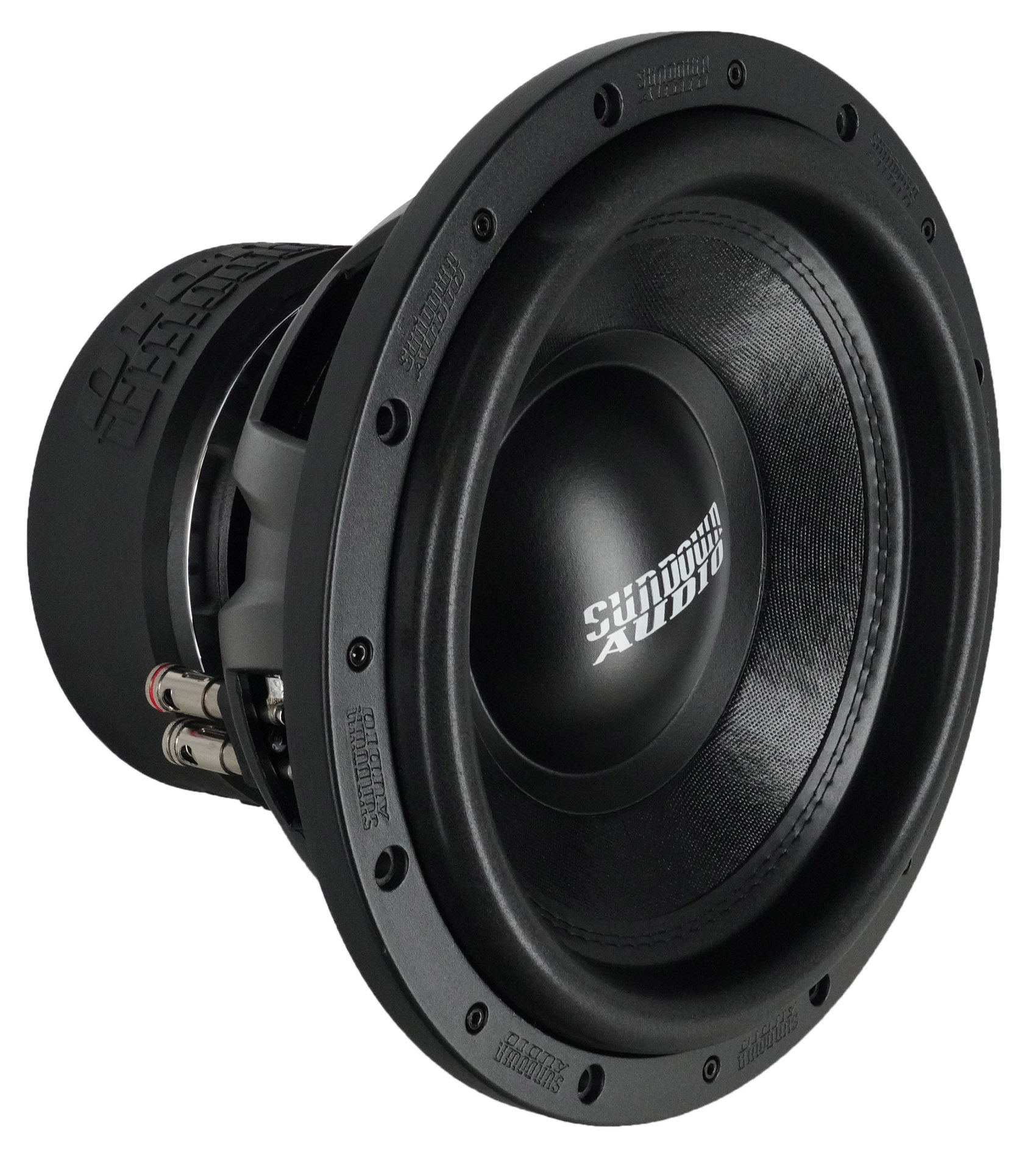

This SA-10/12 v.3 series is the next generation upgrade to the v.2 series. We stuck with the 2.75” coil diameter and added another 5mm of length for additional linear x-max (22mm now). We are able to perfectly balance the mass, motor force, and suspension stiffness for the intended power level. Compared to the v.2 the v.3 features taller cones and wider spiders to enhanced linearity and coil stability to the next level. We also utilized full 3D FEA to further optimize the spider packs for this generation.

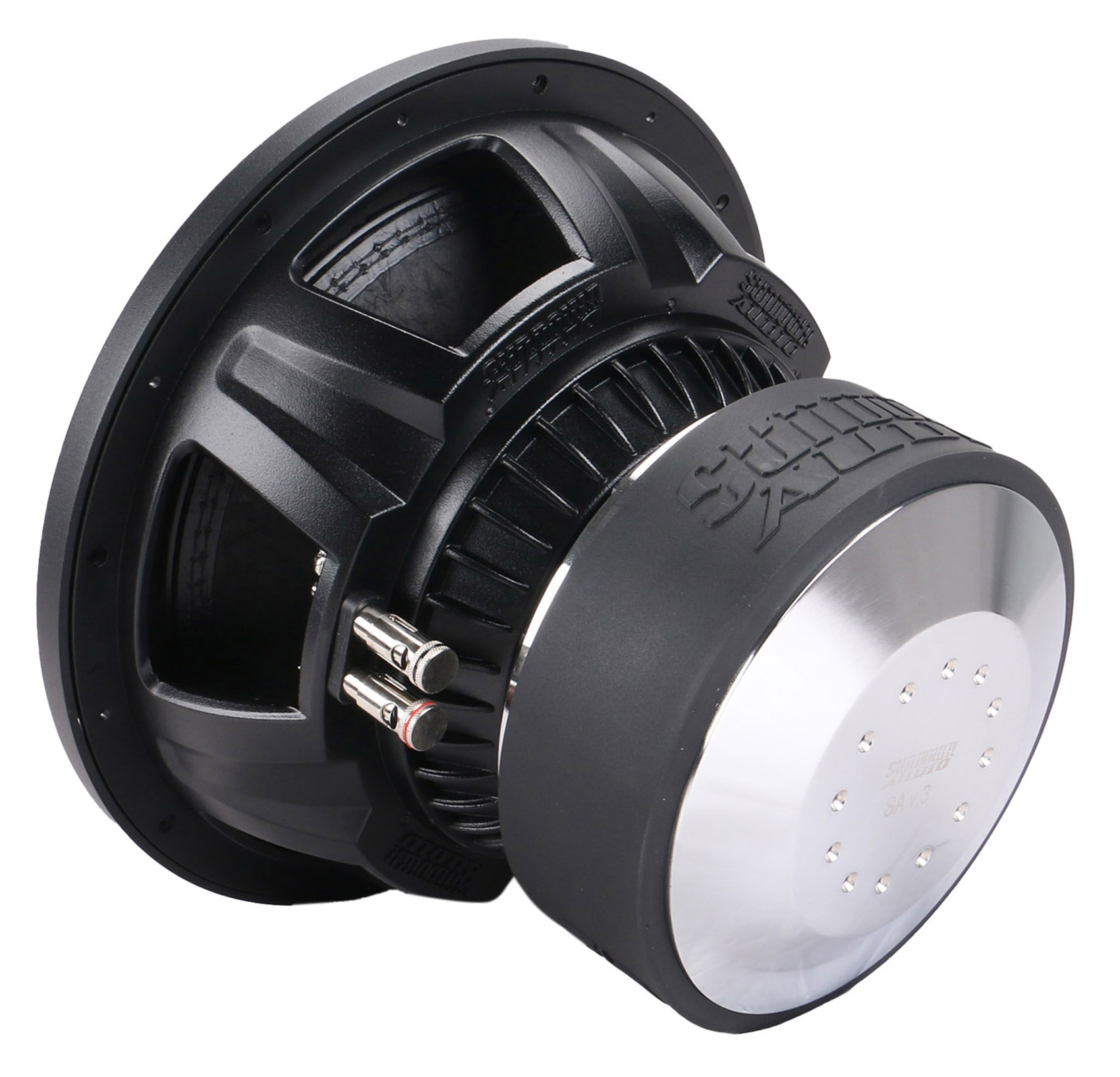

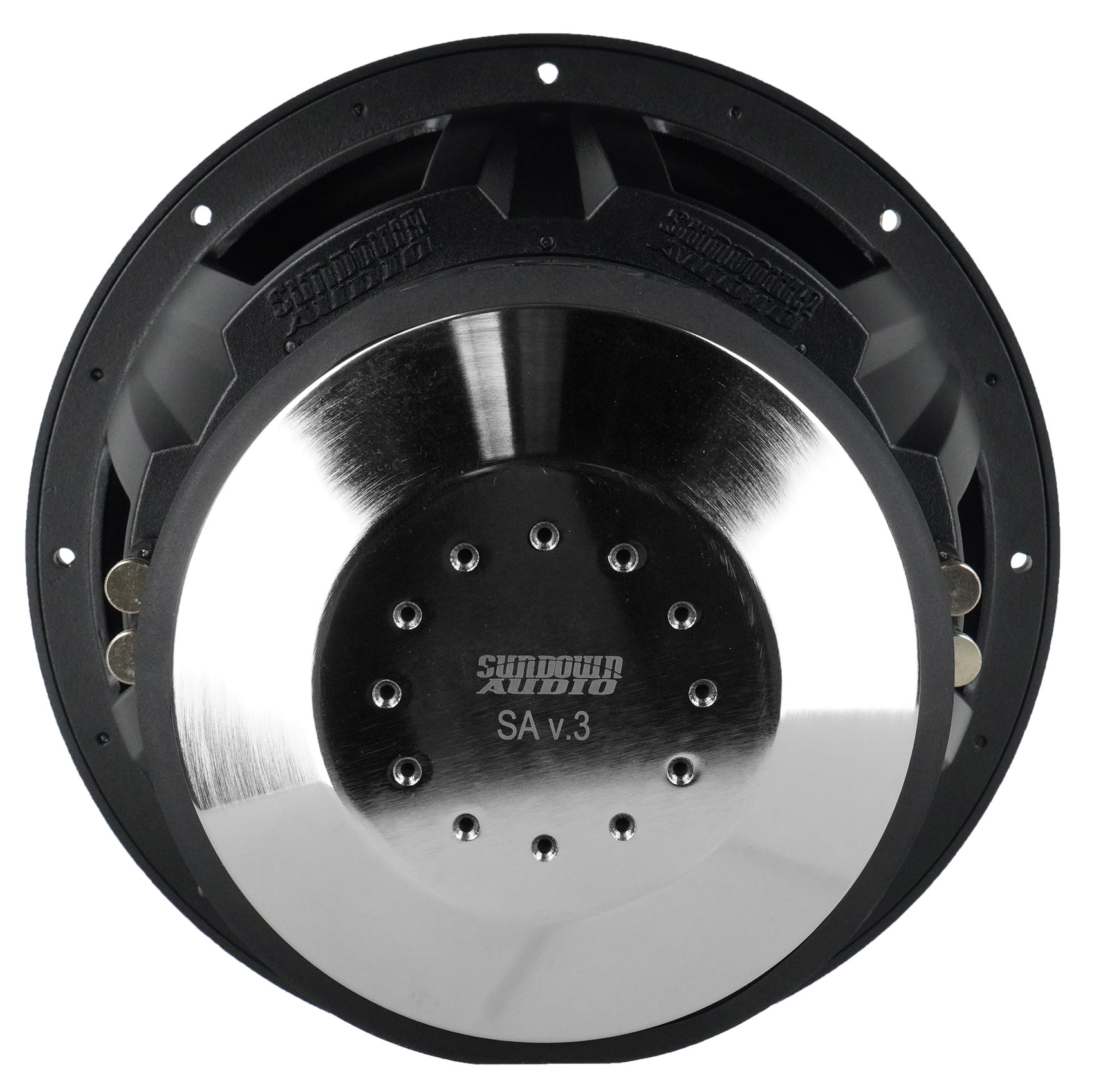

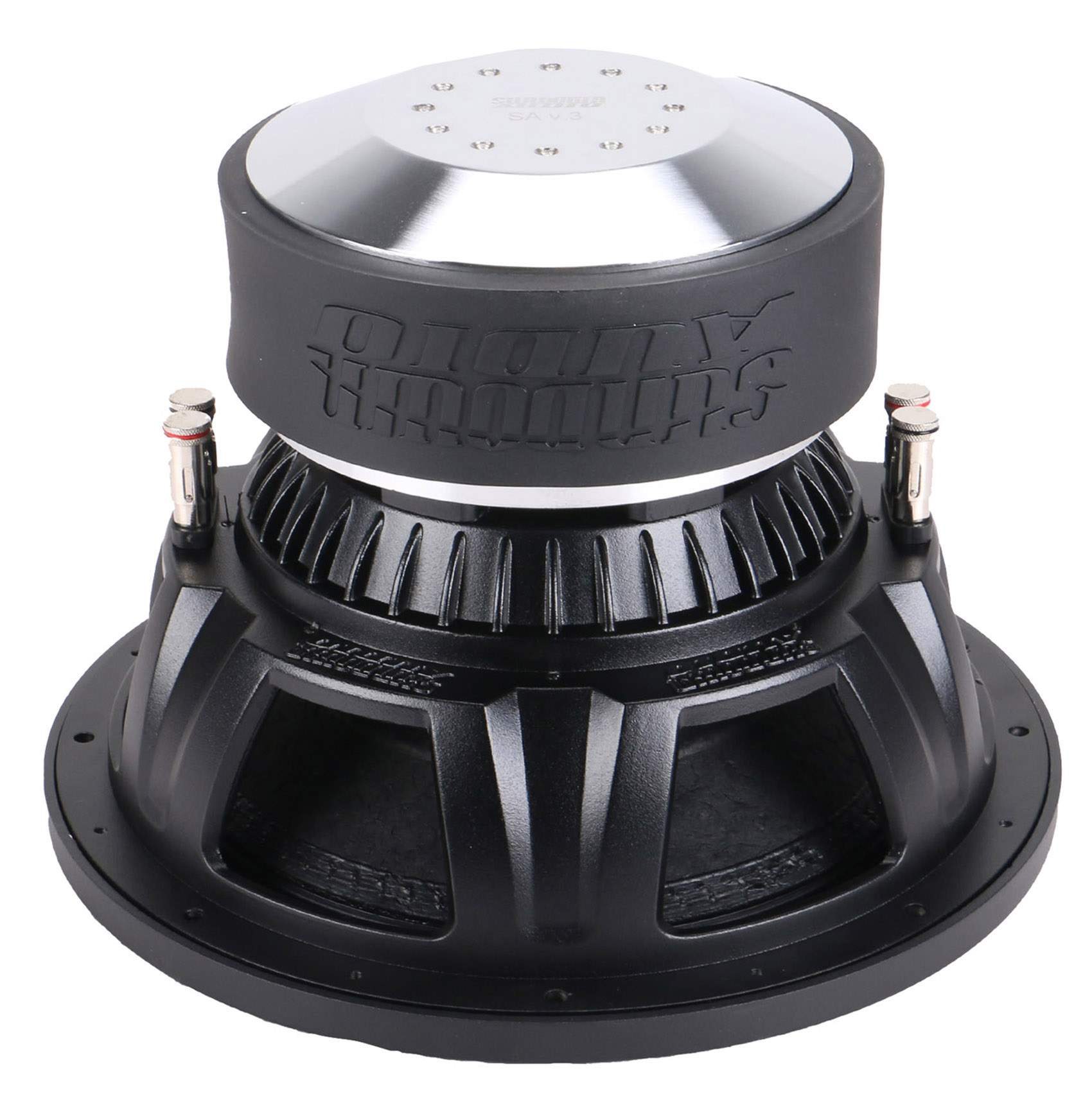

The motor also features a large magnet shorting ring (faraday ring) & pole cap faraday ring to reduce distortion and deliver smoother response across the entire acoustic spectrum. With the v.3 upgrade we integrated a completely "locked-in" faraday ring that is physically held in place by the T-Yoke. The motor & coil setup is mated to an extremely robust multi-layer spider with fully tied-on & doubled-up “XL” tinsel leads. A competition-grade paper cone, strong foam surround, and custom-tooled aluminum frame (same frame as the bigger brother U v.2 series) are used to complete this masterpiece. On top of the ~22mm of one-way linear excursion we have an x-mech limit of 41mm one-way before coil bottom making it nearly "bottomless." The new motor was designed as a "little brother" to the U v.2 series so you will also note the updated venting system with a solid pole piece from the back and channeled pole on the inside.

Features:

• 1500 Watts RMS / 3000 Watts Peak
• Dual 4 ohm
• Vented magnetic gap & solid pole piece with vent channels
• Aluminum 2.75” voice coil former for superior heat dissipation
• Innovative high velocity, cast aluminum vented frame spacer ring
• Magnet ID faraday ring & pole cap faraday ring for smooth acoustic response
• High-temperature copper voice coil wire

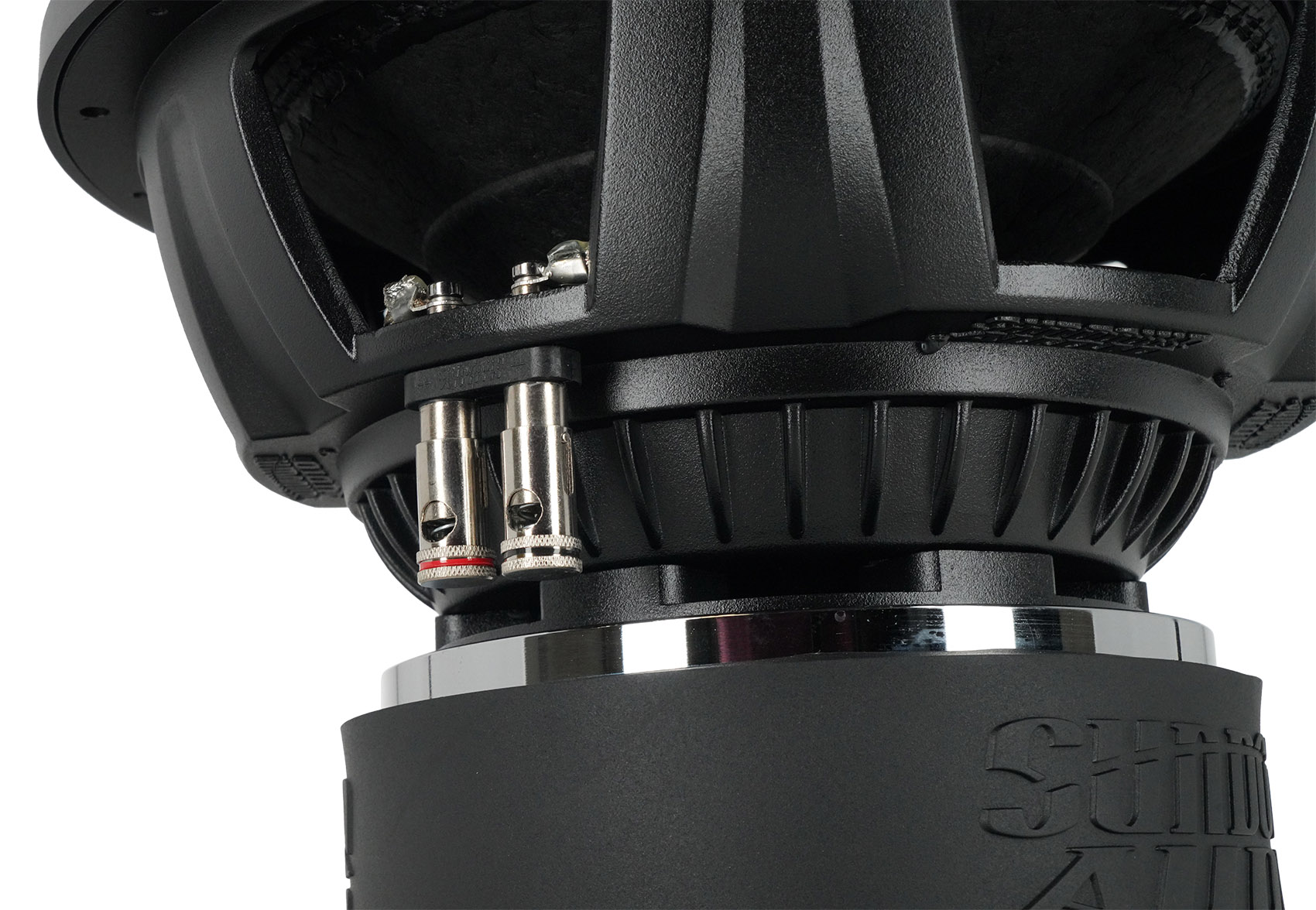

• Spring-loaded terminals
• Stitched-on double “XL” tinsel leads

Specifications:

• RE (Ohms): 6.06
• FS (Hz): 35
• VAS (L): 19.22
• Qes : 0.516
• Qms : 2.396
• Qts : 0.424
• Le (mH): 4.6357
• BL (NA): 22.99
• Mms (Grams): 372.752
• Cms (uM/N): 48.017
• Sens (dB @ 1w/1m): 84.9
• Xmax: 22mm

Subwoofer Measurements:

• Displacement (Inches): 0.18
• Depth (Inches): 8.4"
• Cutout (Inches): 11.2"
• Motor Diameter (Inches): 7.8"

Ported Enclosure Specs:

• Ported Enclosure Size: 1.75cu ft
• Recommended Port Area: 26sq in
• Recommended Port Tuning: 35hz

Sealed Enclosure Specs:

• Sealed Enclosure Size: 1.0cu ft

4th Order Enclosure Specs:

• 4th Order Sealed Side: .75cu ft
• 4th Order Ported Side: 2.25cu ft
• 4th Order Port Area: 15sq in
• 4th Order Port Length: 6"

---

All About Your dB15:

How To Set the Gain on Your Car Subwoofer Amplifier:

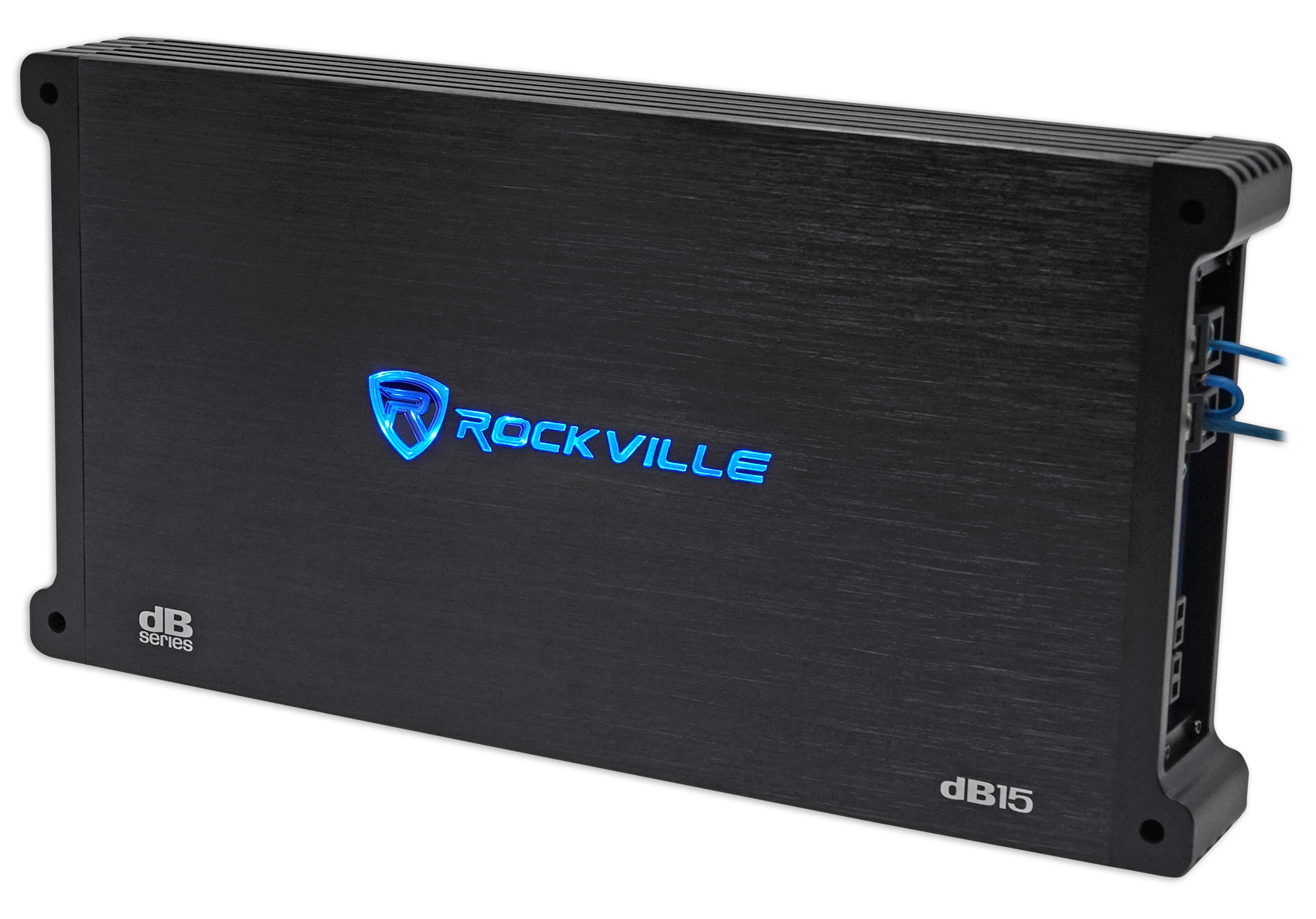

Description:

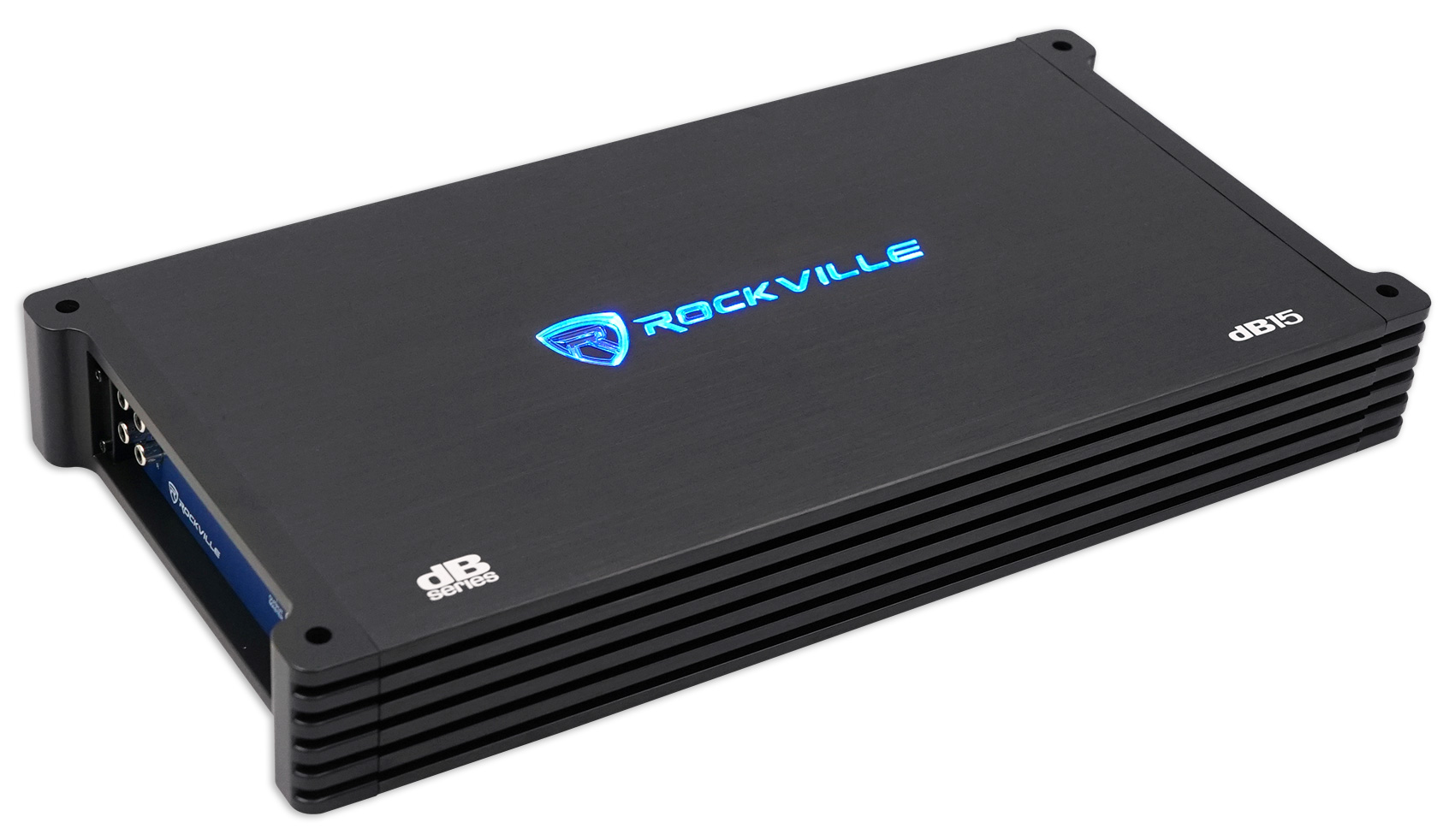

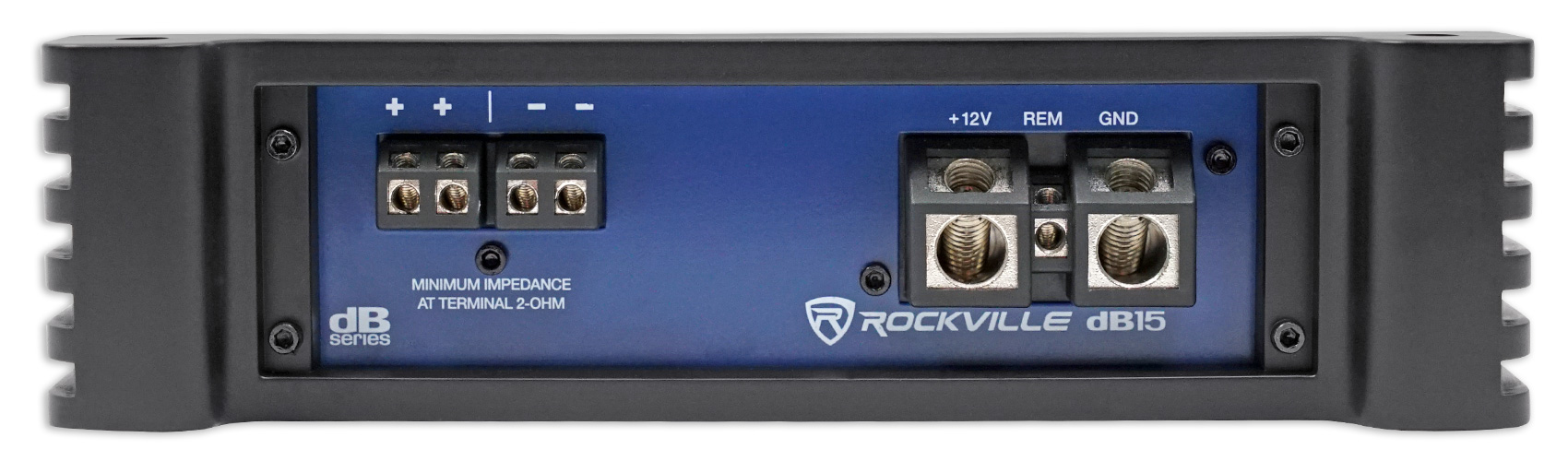

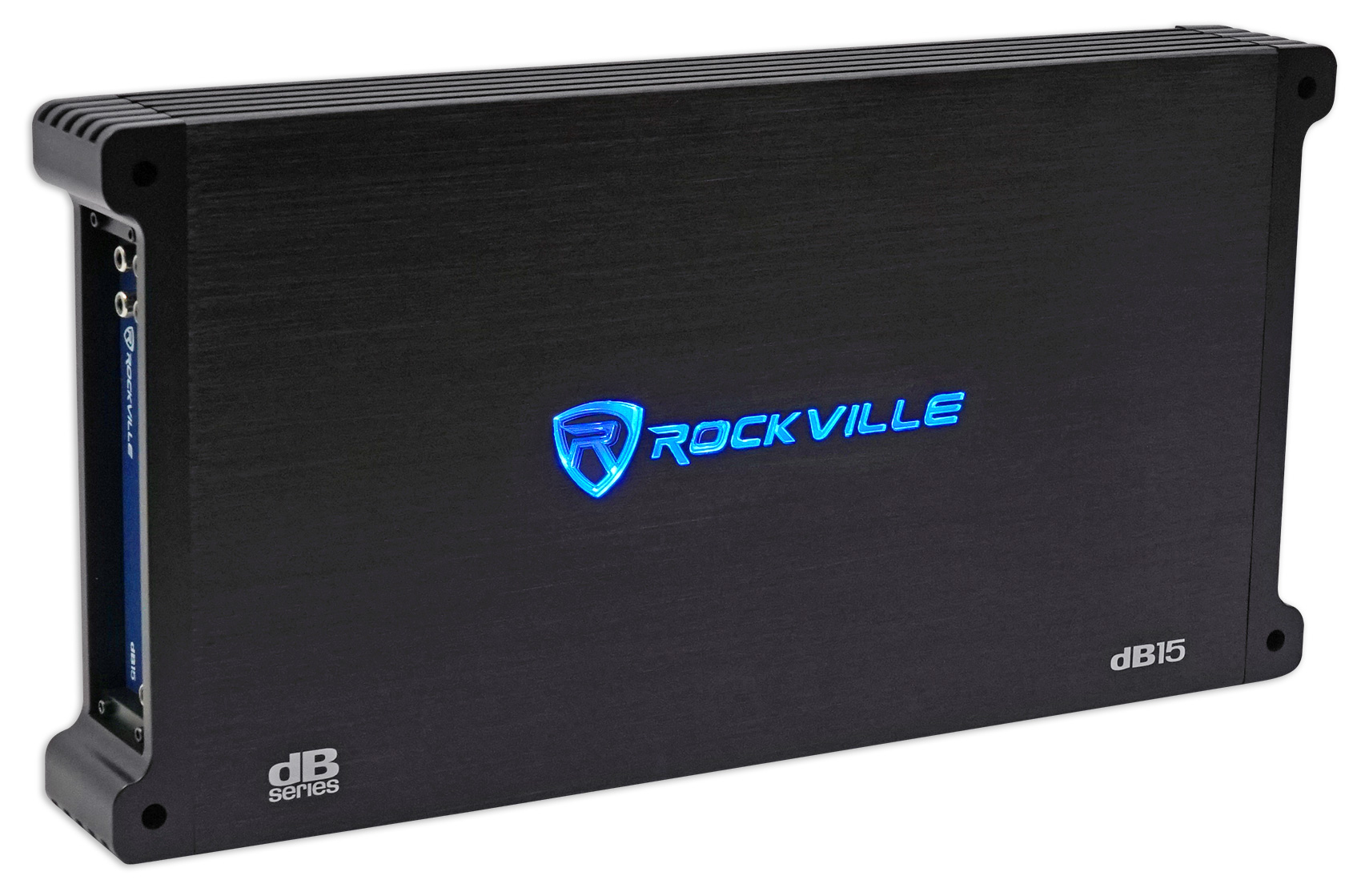

The dB15 is a mono amplifier with 6,000 watts peak output and 1500 watts Dyno-Certified power. Here at Rockville we offer the best value in car audio. We therefore want to make it easy for you to compare our products to any brands on the market. The peak rating can be used to compare with brands who use peak ratings such as Boss and Power Acoustik while the Dyno Certified RMS rating can be used to compare with top brands such as Kicker, Rockford, Alpine, etc.

One of the tricks to determine the real power of a car amplifier is to multiply the fuse rating by 10 to determine the true RMS power. This formula almost always works within 20 %. The dB15 features a fuse with a rating of 150 Amps. Although we rate these conservatively at 1500 watts Dyno Certified @ 2 ohms, this amplifier puts out more power than this!

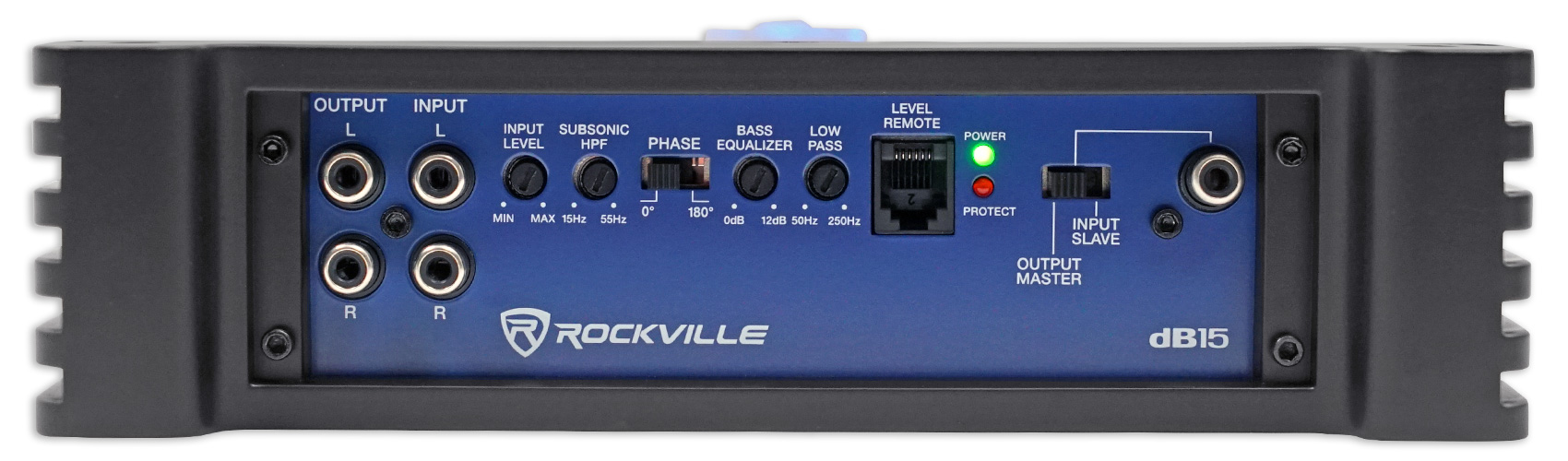

This amp has a fully adjustable 12dB/Octave crossover with differential circuitry. Other features include a subsonic filter, a fully adjustable bass equalizer, mute and delay soft start technology, a phase control switch, and a dashboard subwoofer control for added convenience. The dB15 is protected by a full IC controlled circuit and has professional peak limiter circuitry guaranteeing distortion free music playback at all levels.

The RCA input accepts both balanced and un-balanced inputs. If there is potential inference in the car, the balanced input signal is less susceptible to noise.

The dB amps by Rockville use the top parts and components recommended by Rockville's very own engineer. These amps are the best sounding out of any series we have ever created. They perform more efficiently resulting in even dB of sound. We created them to be 2 ohm stable just like the world's most famous amps by Rockford Fosgate, Kicker, etc. If you compare our amp to the most famous amps you will find our amp can compete and, in my opinion, surpass the performance of anything in its class.

Each and every amplifier we manufacture is tested twice. Once at the semi-finished PCB stage of production, and then another test is done at the final assembly. We also run age tests on them. After this is all done, we hire a 3rd party independent company unaffiliated with our factory or with us to go to the factory and inspect 20% of all the production items. We test the power, the controls, and over 20 other tests. We guarantee these amps will satisfy you. We are so confident in your satisfaction of this amplifier that we will offer you a 30 Day money back guarantee. If this amp does not perform as well as you expected we will send you a pre-paid shipping label and give you all of your money back. This means if for any reason you want to return the amplifier back for a full refund within 30 Days, you can! (Amp must be complete along with the box).

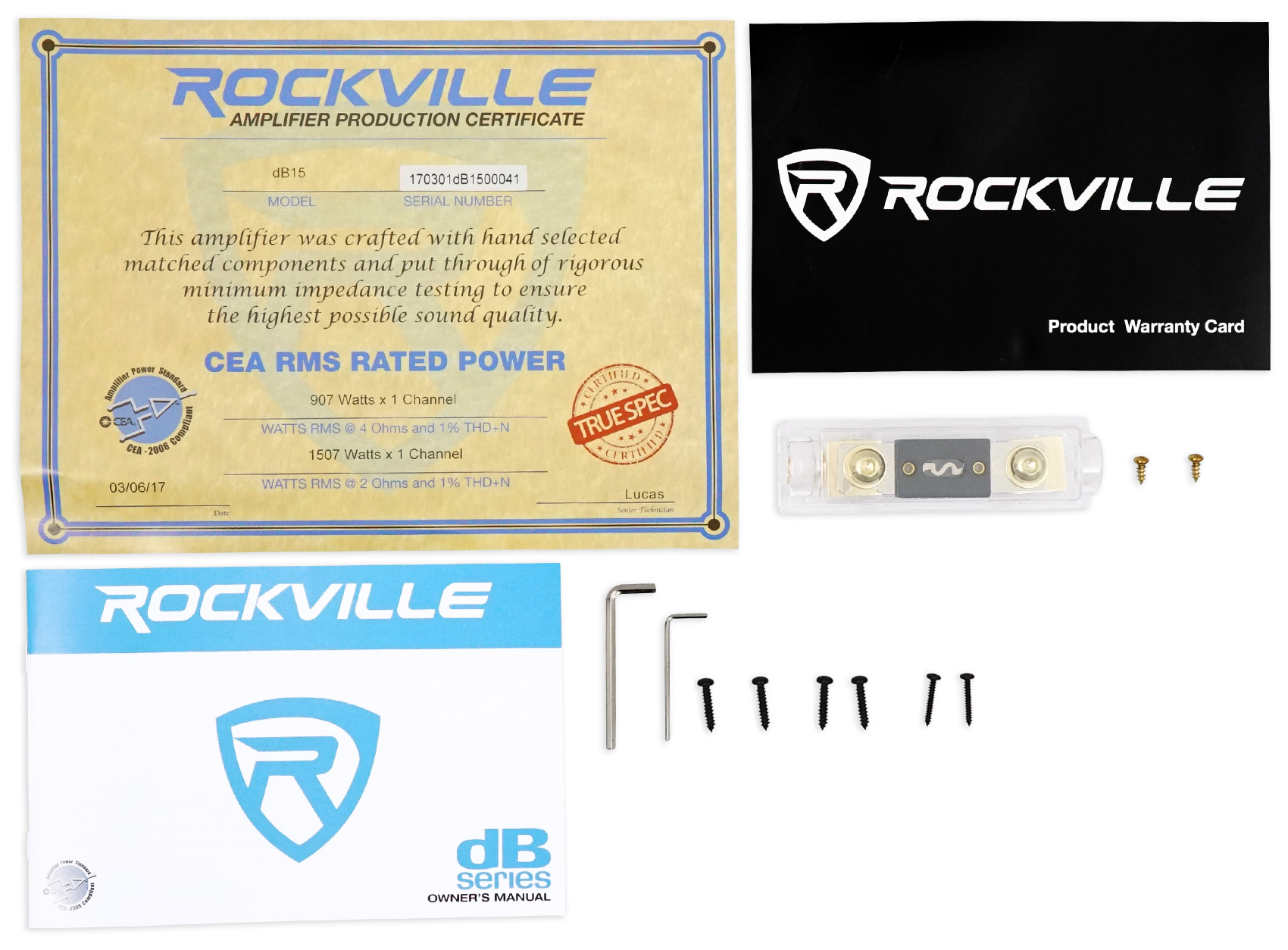

Includes:

• Amplifier
• Bass Remote
• Birth Sheet with tested power
• Owner's Manual
• Mounting Screws
• Warranty

Features:

• Rockville dB15 6000 Watt Peak/1500 Watt Dyno-Certified RMS Mono 2 Ohm Amplifier Car Audio Amp
• Dyno Certified RMS Power Ratings: (Certified Dyno Test / Less than 1 % THD) (Use these ratings when comparing with top brands such as Kicker, Rockford Fosgate, etc)
  - 2 Ohm: 1500 Watts x 1 Channel <1% THD+N
  - 4 Ohm: 900 Watts x 1 Channel <1% THD+N
• Peak: (Use these ratings when comparing with the top budget brands such as Boss, Power Acoustik, etc)
  - 2 Ohm: 6000 Watts x 1 Channel
  - 4 Ohm: 3600 Watts x 1 Channel
• High-Speed MOSFET Power Supply
• Optical Coupler Class "D" Technology
• Fully Adjustable 12dB / Octave Crossover with Differential Circuitry
• Low Pass Filter: 50Hz - 250Hz
• Subsonic Filter: 15Hz - 55Hz
• Phase Control Switch
• Full IC-Controlled Protection Circuitry
• Remote Dashboard Subwoofer Control
• Fully Adjustable 12dB Bass Equalizer
• Mute and Delay Soft Start System
• RCA Preamp Line Output
• 8 Volt Preamp Circuitry
• Status Mode LED Indicator
• Minimum THD at Rated Power: <0.1%
• S / N Ratio: >90dB
• Under Voltage Protection at 10V
• Over Voltage Protection at 16V
• Frequency Response: 15Hz - 250Hz
• Damping Factor: >150 @ 100Hz
• 150 Amp Fuse
• Dimensions: (W x H x L)9" x 2.4" x 17.8"

Fits Subwoofers Such As:

Brand	Product
Kicker	43CWR152 COMPR15
	44CVX122 Comp VX CVX
	44L7S102 L7S102 SoloBaric
	44L7S122 L7S122 SoloBaric
	44DL7S122 Dual Solo-Baric
Rockford Fosgate	Punch P3D2-12
	Punch P3D2-15

---

Videos of RWK0CU:

Description:

We challenge anyone to put this wire to a resistance test against any other wire on the market with the same gauge. If our cable does not meet or exceed any other cable, even if it costs 3 times more, we will be happy to call tag the item and refund you in full. Why are we so confident? This cable is 100% copper. You cant have a cable with more copper than 100 %. So the only way a cable would out-perform this one is if it were being advertised as a 0 AWG but they are giving you more wire than advertised. No brands selling 100 % copper cables actually do this.

We guarantee that this kit will compete with the most expensive amp kits on the market from Kicker, JL Audio, or any other top brands.

Maximum Power!

Looking for a wire kit that has 100% true specifications? A wire kit that uses 100% copper 0 gauge cable? Then look no further than the Rockville True-Spec RWK0-CU 0 Gauge Amplifier Wiring Installation Kit. This package includes everything you'll need to get your amplifier system powered-up correctly and at peak efficiency.

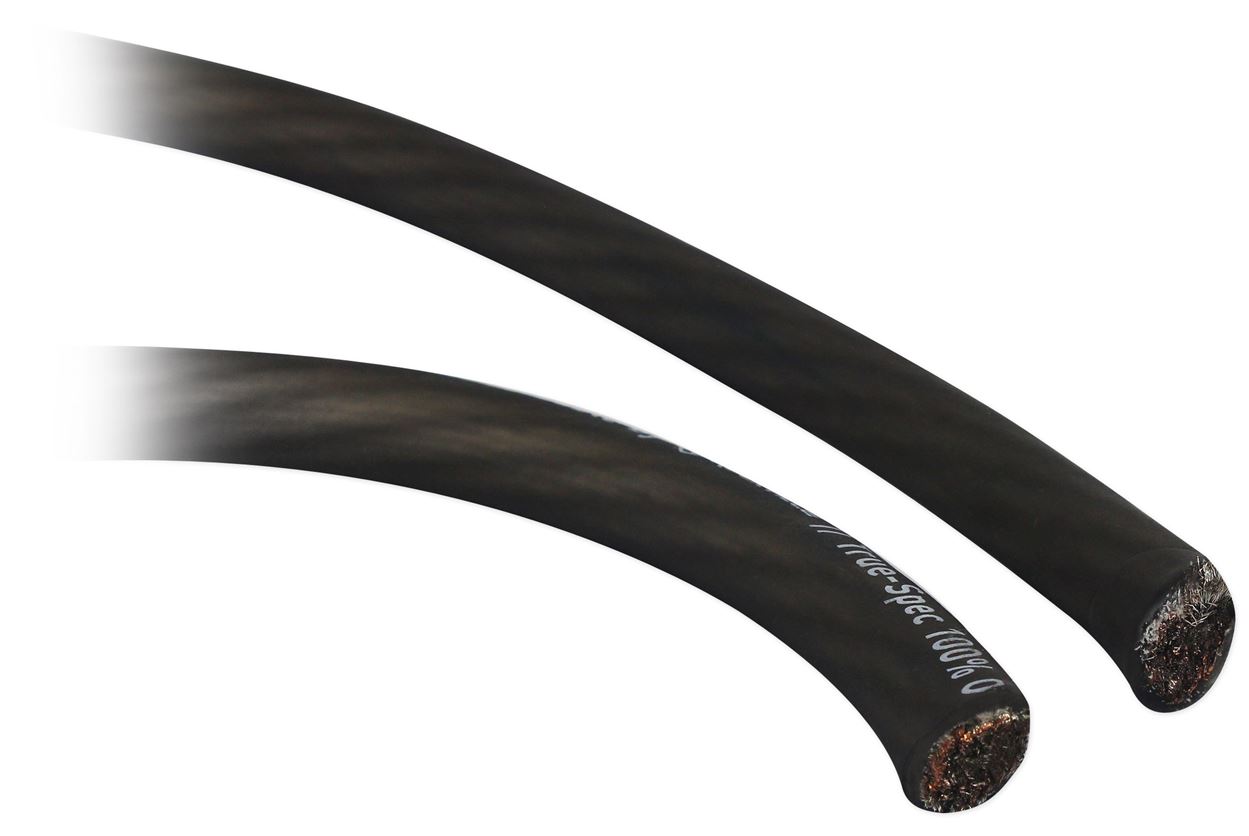

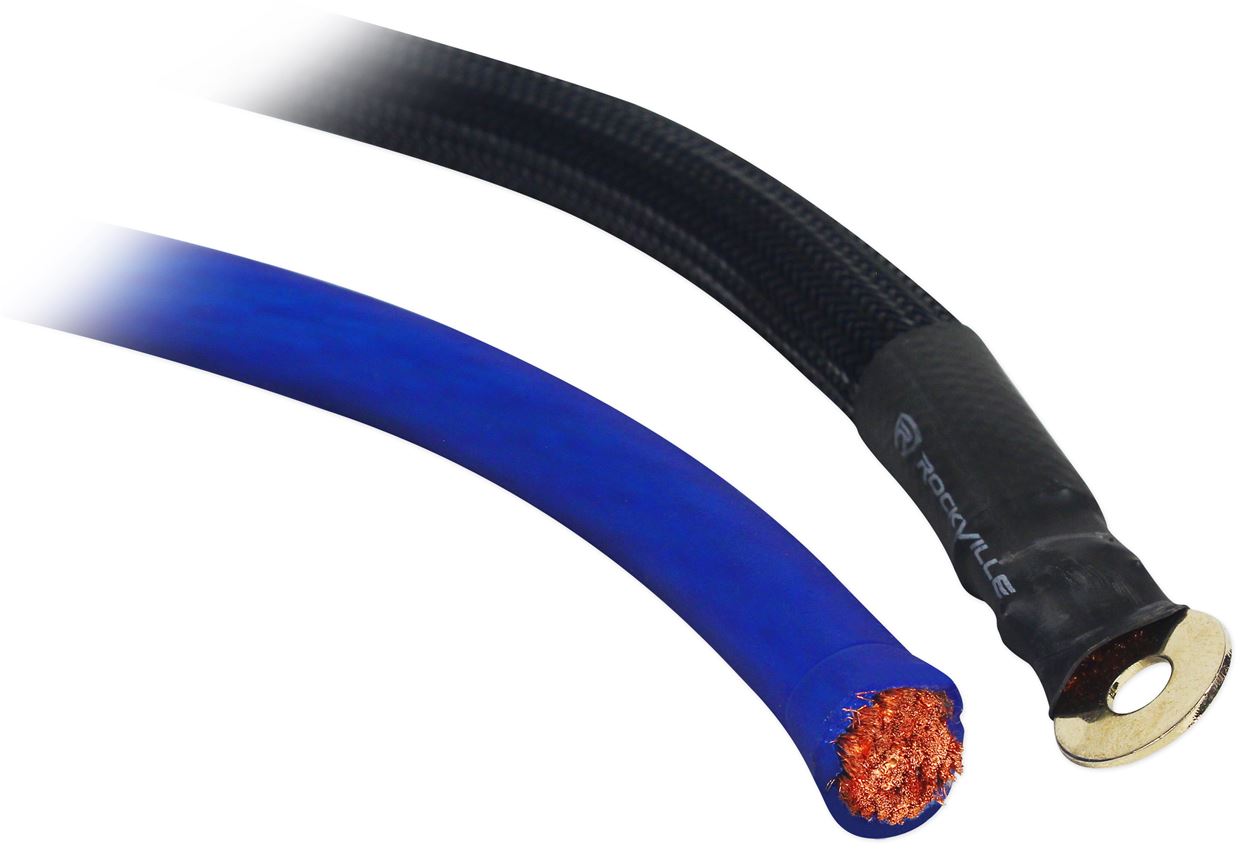

The power and ground cables aptly named "Mega Power Cable" are a no compromise power cable. Rockville's engineering team over-built and designed the cables using thousands of strands of only true 100% oxygen-free, silver-tinned copper strands. The use of a proprietary special twisting process reduces "surface skin impedance loss" so that Mega Power cables have zero signal and power loss, delivering full power from your battery system to your amplifier even at lengths of 20 feet! The increased current flow and higher amperage carrying capacity will increase your amplifiers efficiency and keep your amplifier running cooler. The SuperFlex outer insulating jacket jacket makes installation and cable routing simple and easy. The 100% copper stranded wire is extremely tolerant of the hostile conditions found under the hood in vehicles and compensates for vibration, heat expansion and flexibility. This flexible and well shielded wire is crucial for getting through all of the nooks and passageways within the confines of a vehicle interior.

Some manufactures use all aluminum or mix a little copper with aluminum to give their cables the appearance of a "heavy-duty" cable. But not Rockville, our True-Spec 100% oxygen free, silver tinned copper eliminates corrosion, increases current transfer x 10, and won't discolor over time.

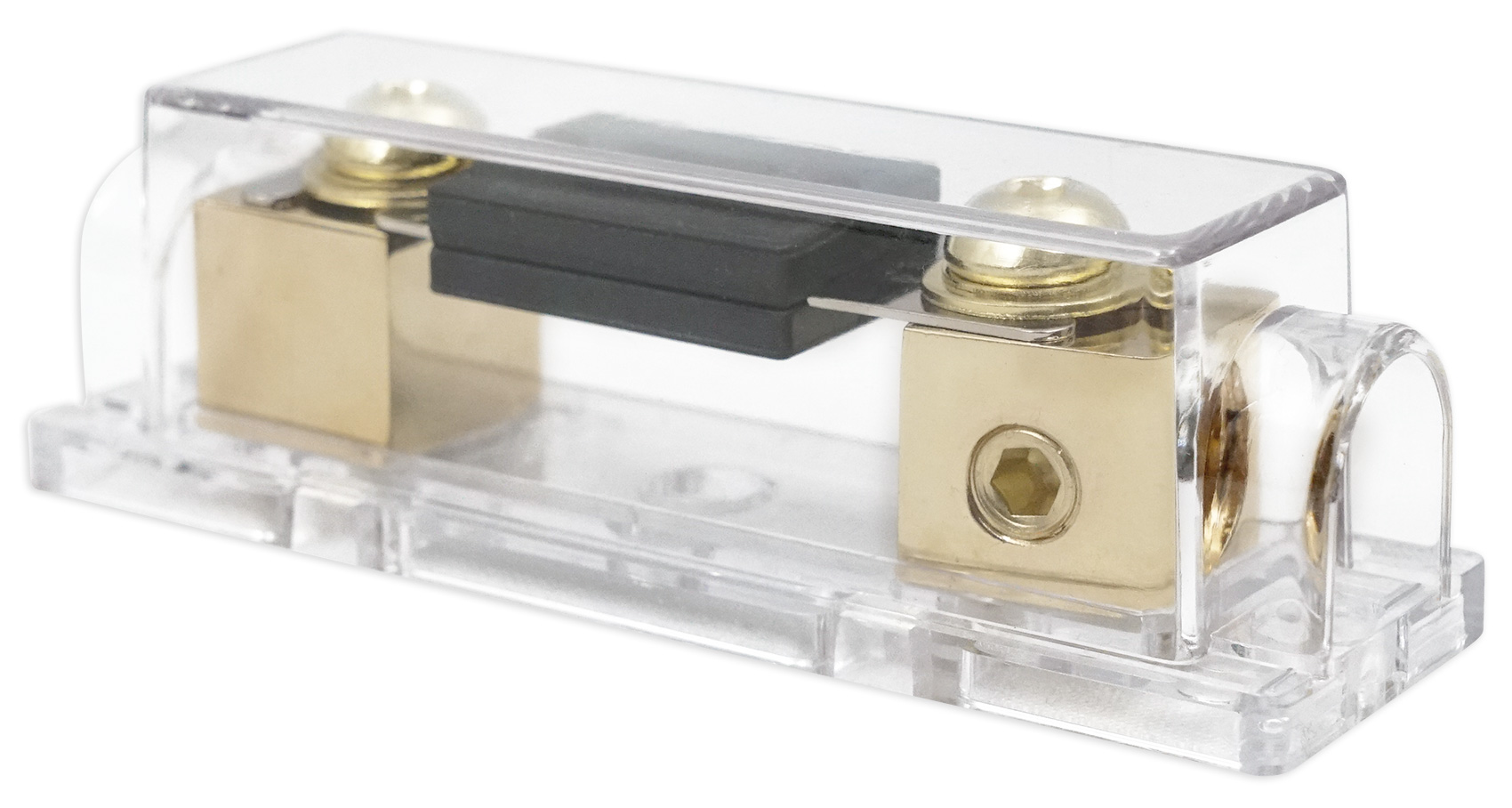

The superior quality and materials of the Rockville 100% True-Spec amplifier installation kit is realized in the included accessories and cable workmanship. Included is a precision CNC cut full size ANL fuse housing, machined from solid brass and then 14K gold plated for superior signal transfer and complete with a matching gold plated 250-amp ANL fuse. The power cable is wrapped in 6 feet of durable nylon braided tubing to protect it from heat and chafing in the engine compartment. All installation accessories such as the ring terminals and spade connectors are nickel plated for superior signal transfer and durability.

CRYSTAL SQ AUDIO PLANAR SPEAKER CABLE

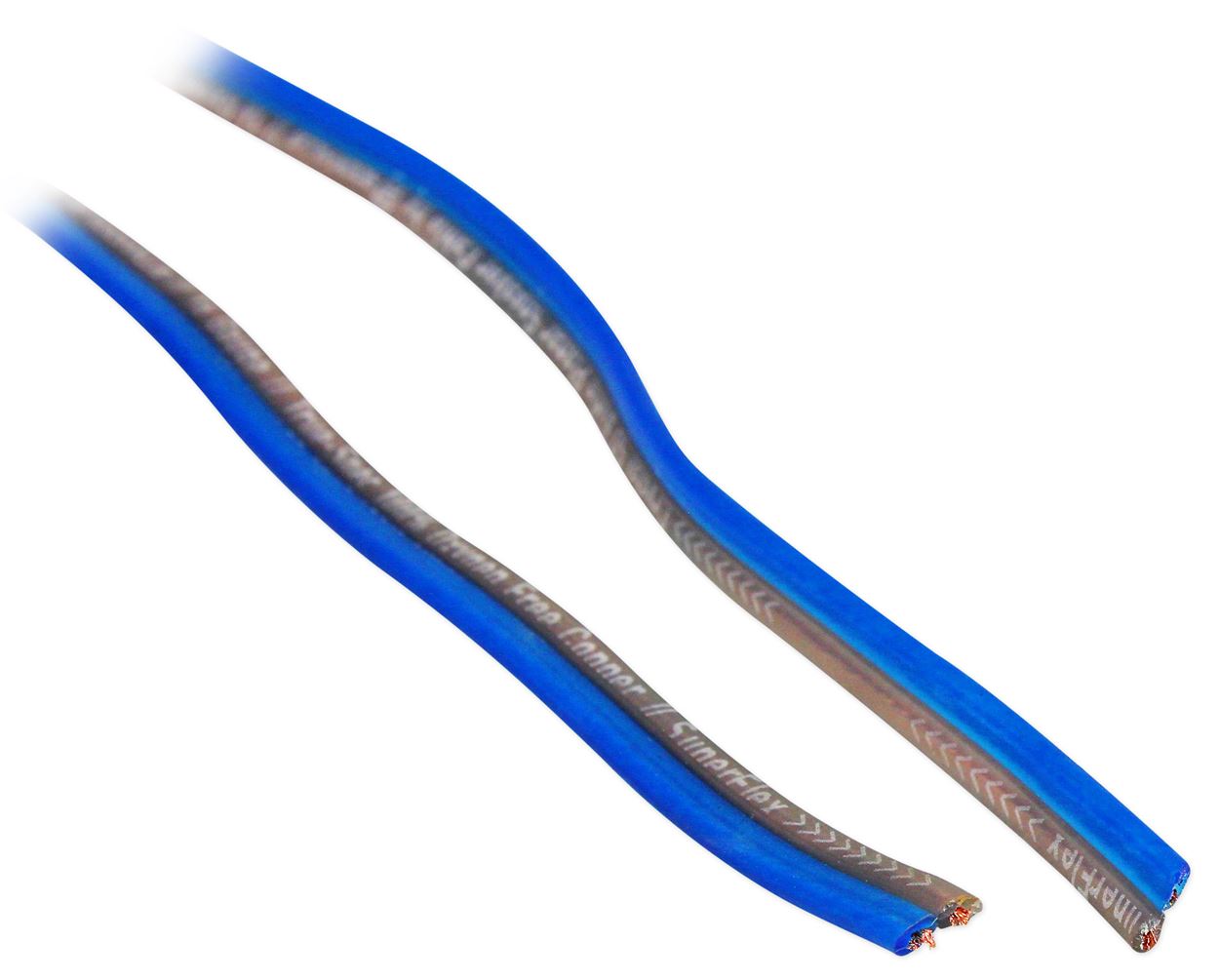

The speaker cable included in the Rockville True-Spec is also manufactured from 100% copper and woven in to a flat planner design and coated in our Super-Flex insulation so that it fits under and around your vehicles trim and carpet smoothly and without bulking up. With crystal clear sound quality these speaker cables deliver true audio fidelity from your car audio amplifier to your speakers. The 12 gauge speaker cable included in the 0 gauge kit can handle over 3000 watts of power without heating up or degrading signal quality.

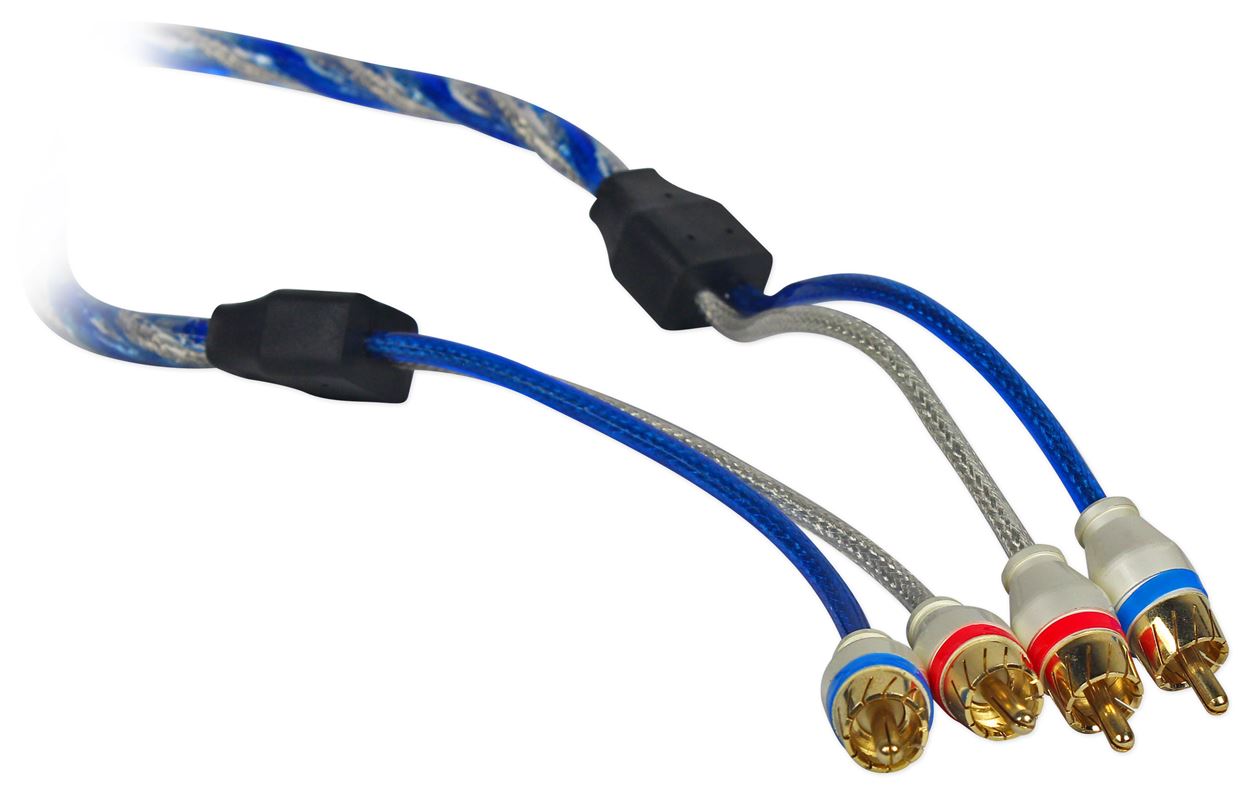

CRYSTAL SQ RCA AUDIO INTERCONNECT CABLE

Designed and engineered to be the best sounding, best performing and best looking RCA cables available today. Each channel in the RCA cable is triple shielded first with dielectric internal insulators and then with a 98% coverage woven shield. All cables are manufactured of 100% oxygen free copper and feature twisted pair technology for superior noise rejection and pure sonic signal flow. The RCA plugs are shielded metal and feature a spiral cut outer ground ring with center split pin for precise and tight audio connections. The result of all this technology is noise free-noise rejection signal transfer for optimum sound quality. You will hear the difference these RCA signal transfer cables will make.

Amplifier Kit Key Features:

• 0 Gauge Power Amplifier Installation Kit
• Designed specifically for car audio systems over 1000 watts RMS to 3000 Watts
• Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
• The solid brass gold plated ANL Fuse Holder offers ideal protection for high powered systems
• Strand Count: 4704
• BC-5W2 Compliant

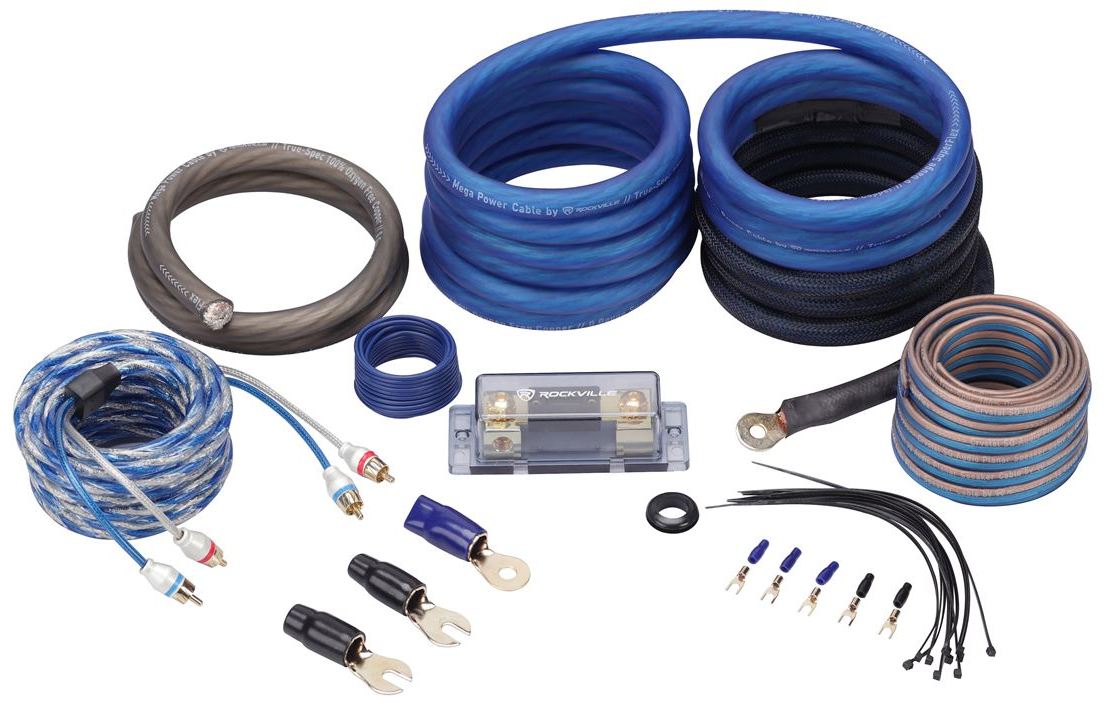

Kit includes:

• 17 ft. Frosted Blue 0 gauge power wire with seamless crimp ring terminal
• 3 ft. Frosted Gray 0 gauge ground wire

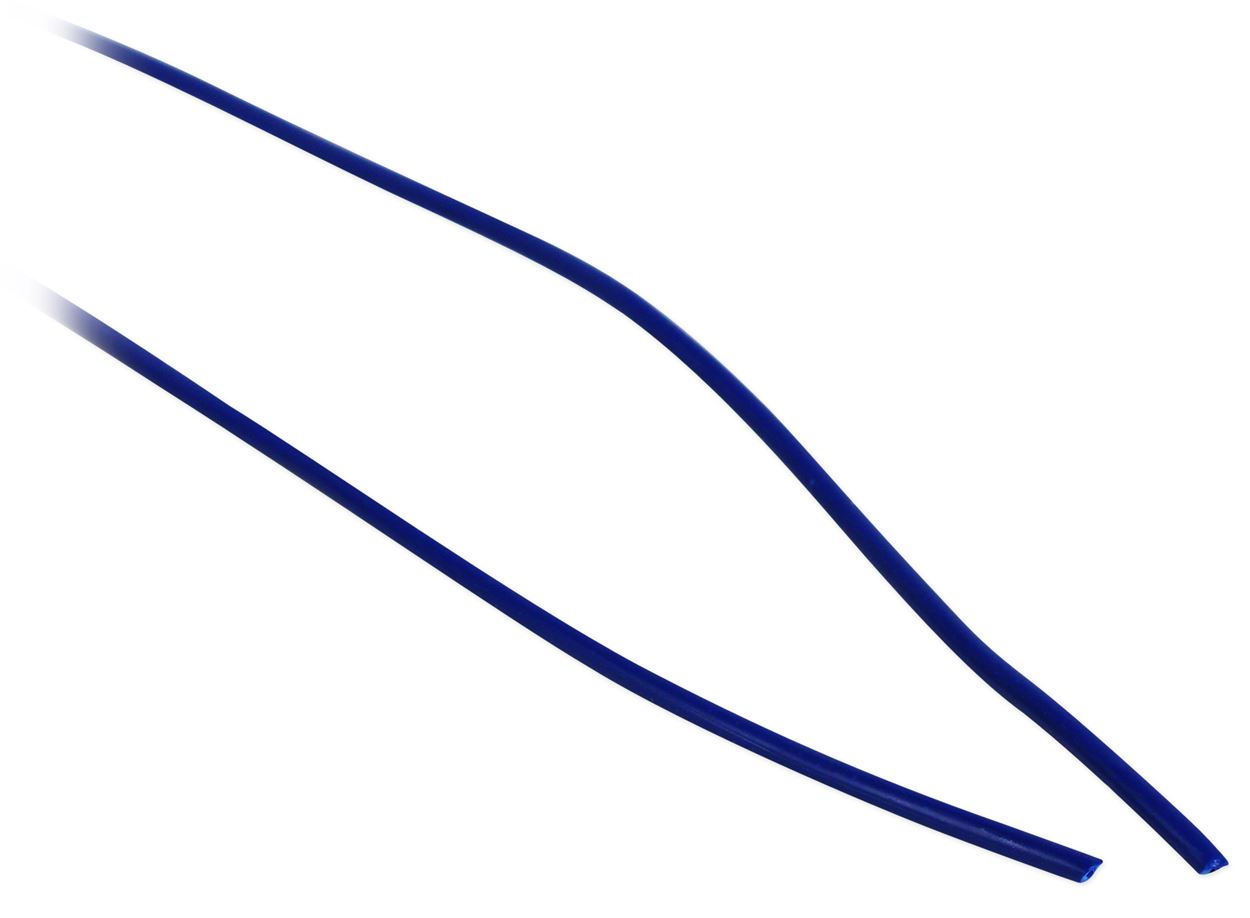

• 17 ft. Blue 18 gauge remote lead wire
• 25 ft. Frosted Clear/Blue 12 gauge flat speaker wire
• 17 ft. Triple shielded twisted pair RCA cables
• One ANL Fuse Holder with 250 amp ANL fuse
• One 1/2" black rubber firewall grommet
• Two 0 gauge spade terminals
• Two black 12 gauge nickel-plated spade lugs
• Three blue 12 gauge nickel-plated spade lugs
• One black 0 gauge ring terminal
• Ten 6" black zip ties
