24 Ways Adjust Damper Coilover For Subaru BRZ First generation ZN6/ZC6 2012-2020

Introduction

MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

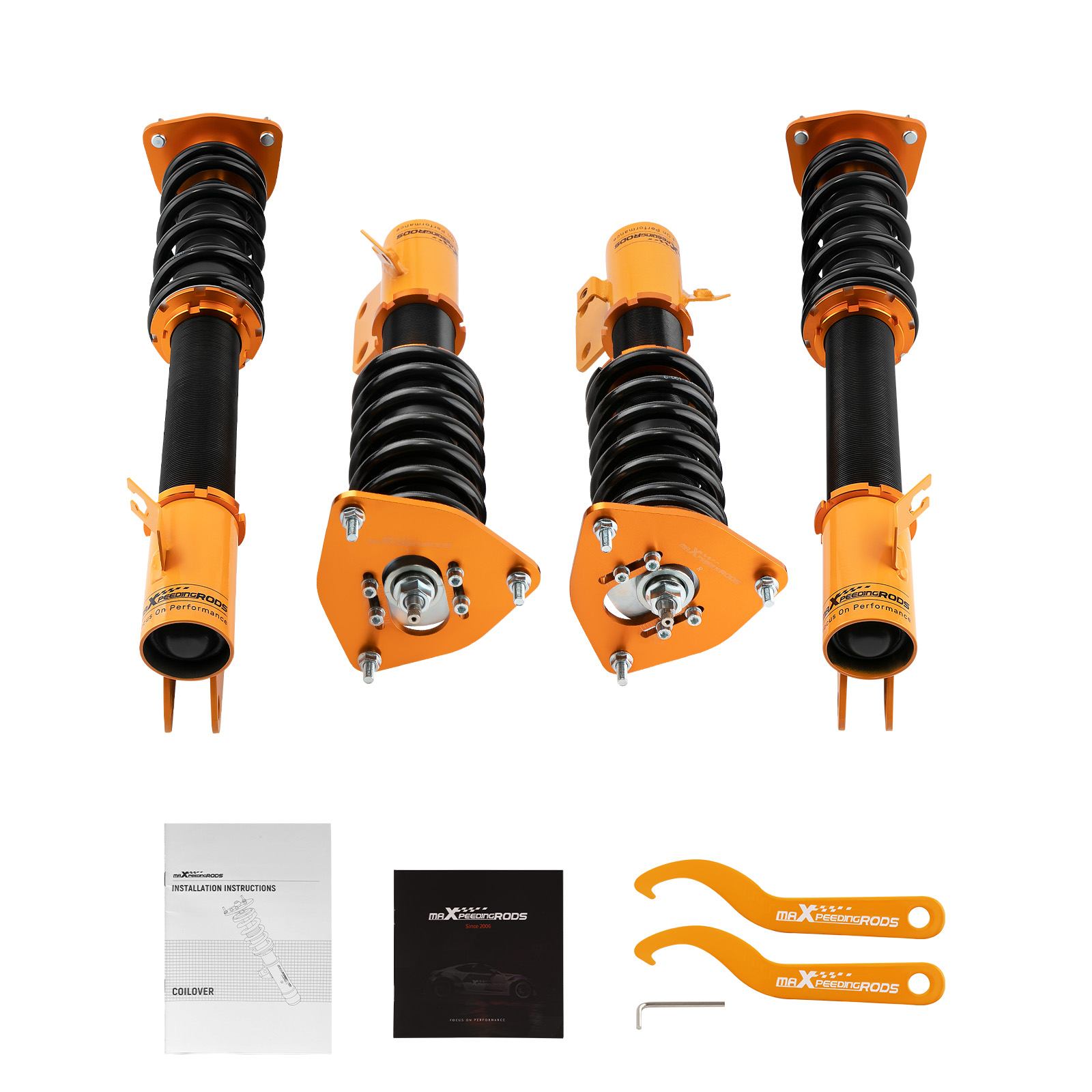

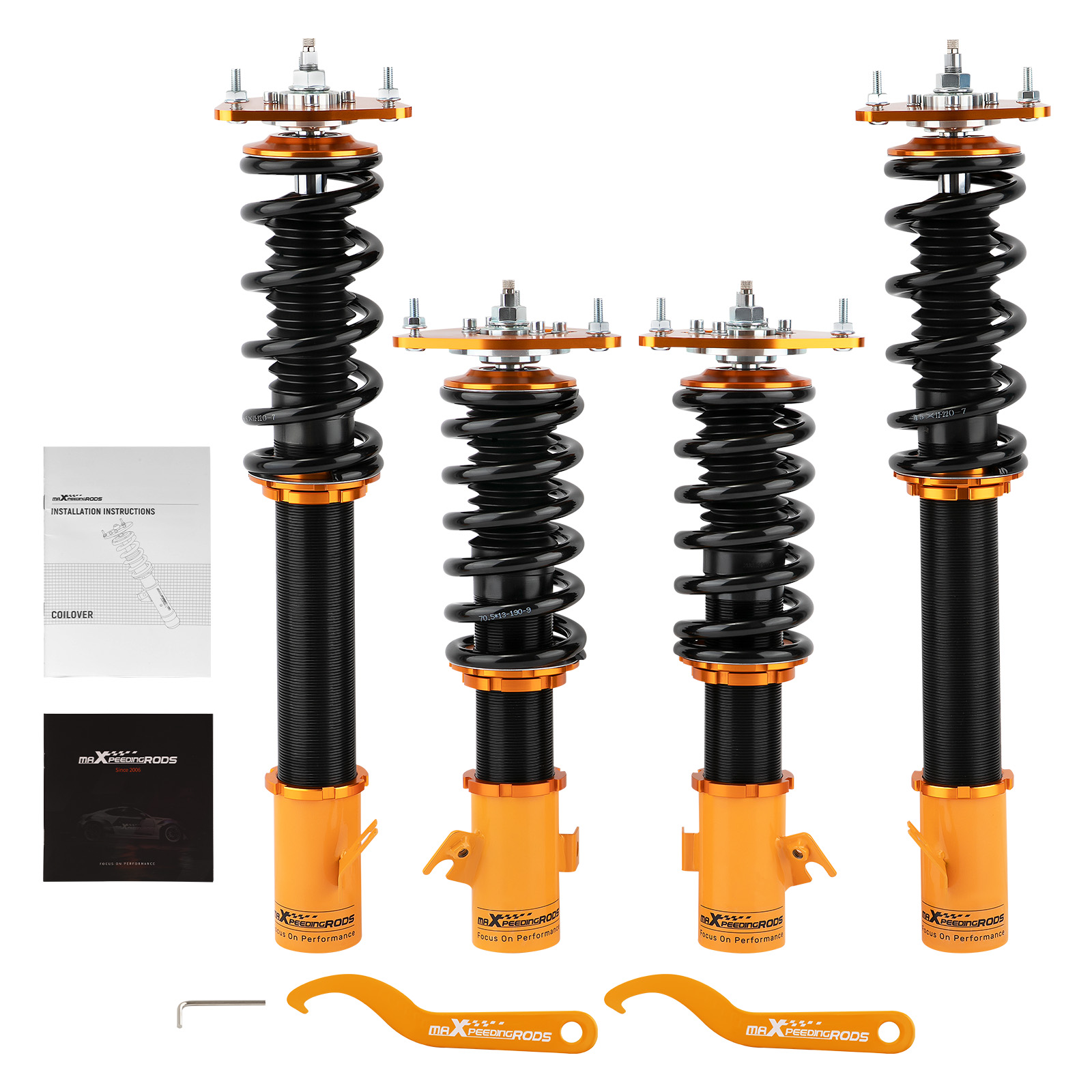

Package included

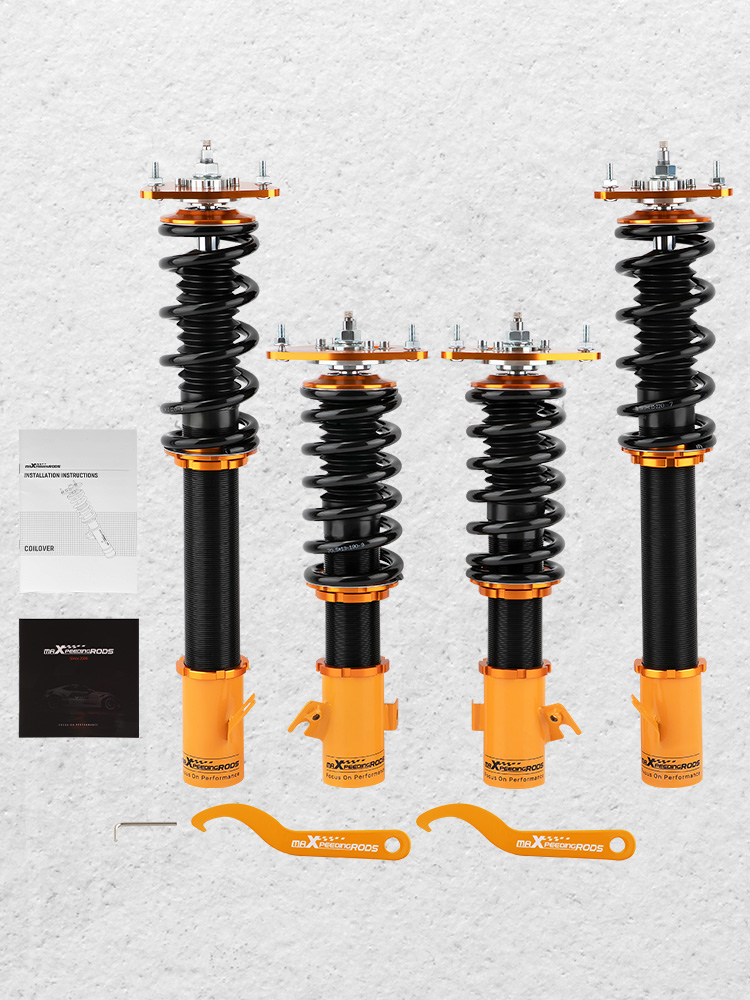

Complete coilovers 2 front and 2 rear

Application

For SUBARU IMPREZA WRX 2000.08-2007.06 GDA GD9 GGA
For SUBARU IMPREZA WRX STI 2000.10-2004.06 GDB (RIM P.C.D.=100)
For Subaru Forester SG 2003-2008
For SAAB 9-2X 2005-2007 GGA GGE

Note:

The coilovers kit will "Lower your car" and does not keep to the original ride height.

Standard Technical Specifications

Front top mount	Pillow ball with camber plate
Rear top mount	Pillow ball
Damping adjustable	Available, 24 levels of rebound damping force
Camber adjustable	Available, front only
Height adjustable	Yes, lowering 25-75mm depending on the vehicle models
Spring Rate Front	9 kg/mm (504 lbs/in)

Spring Rate Rear	7 kg/mm (392 lbs/in)
Front spring inner diameter	70.5 mm
Rear spring inner diameter	70.5 mm
Spring length Front	190 mm
Spring length Rear	250 mm
Spring Preload advised	7-10 mm

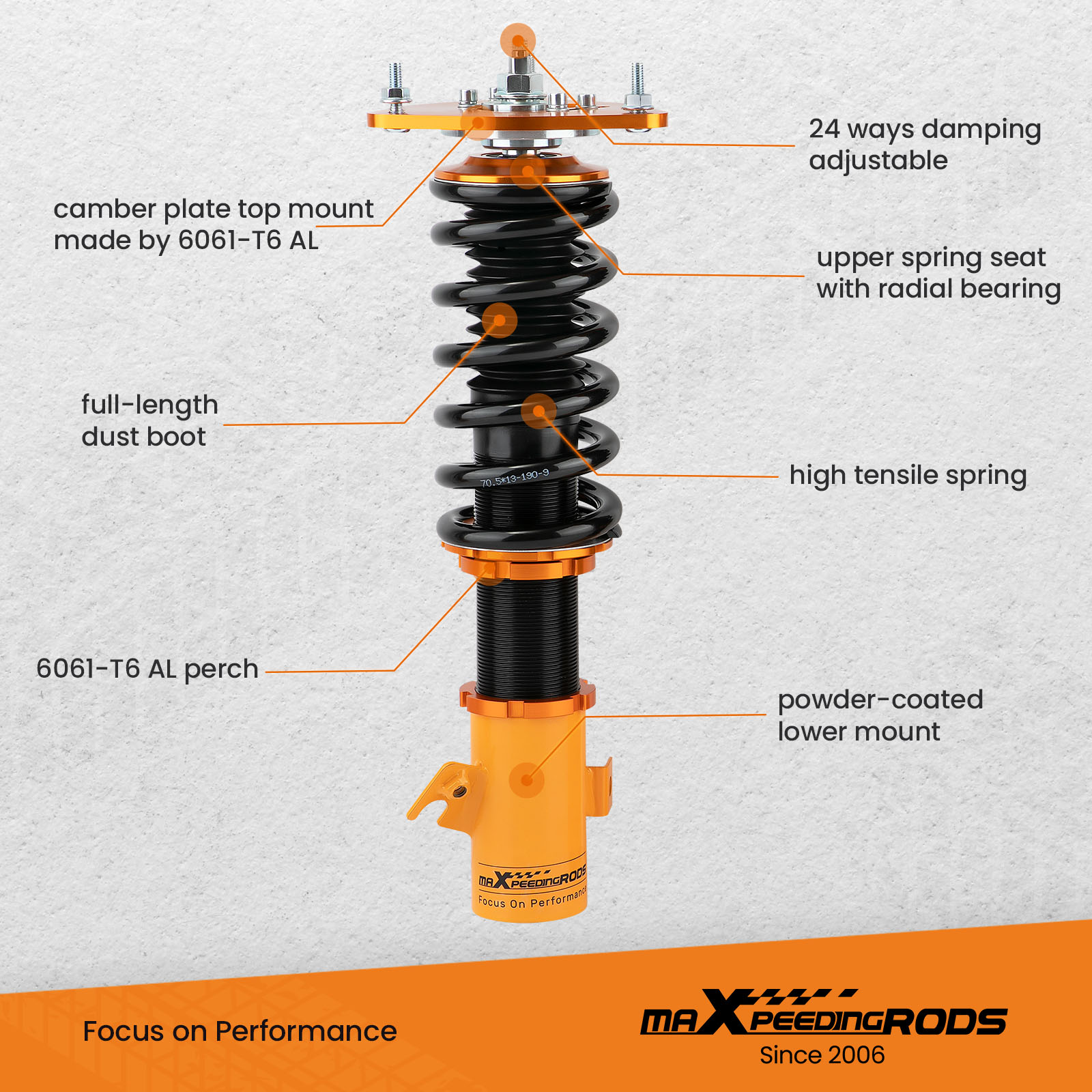

Feature

Lowered height adjustment from 25-75mm which allow lower center of gravity and also add a more aggressive stance.
A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Pillow ball top mount - It improves the steering feel and response.

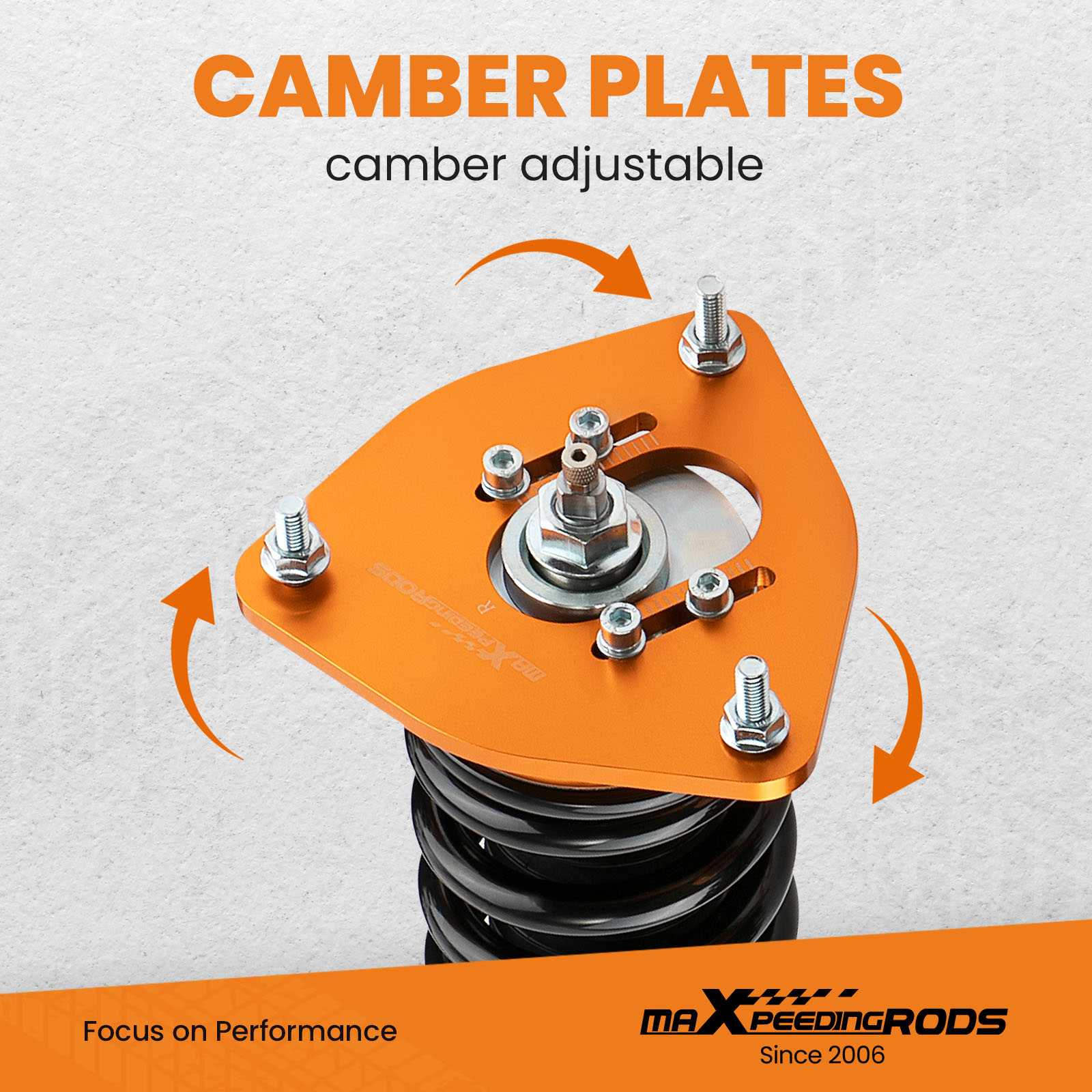

Camber plate top mounts help to eliminate the need for a separate camber kit.
Twin-Tube structure allows sufficient stroke within the shock absorber.
Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
Separate height adjustment does not affect damper stroke.
Height can be adjusted with coilovers installed on the vehicle.

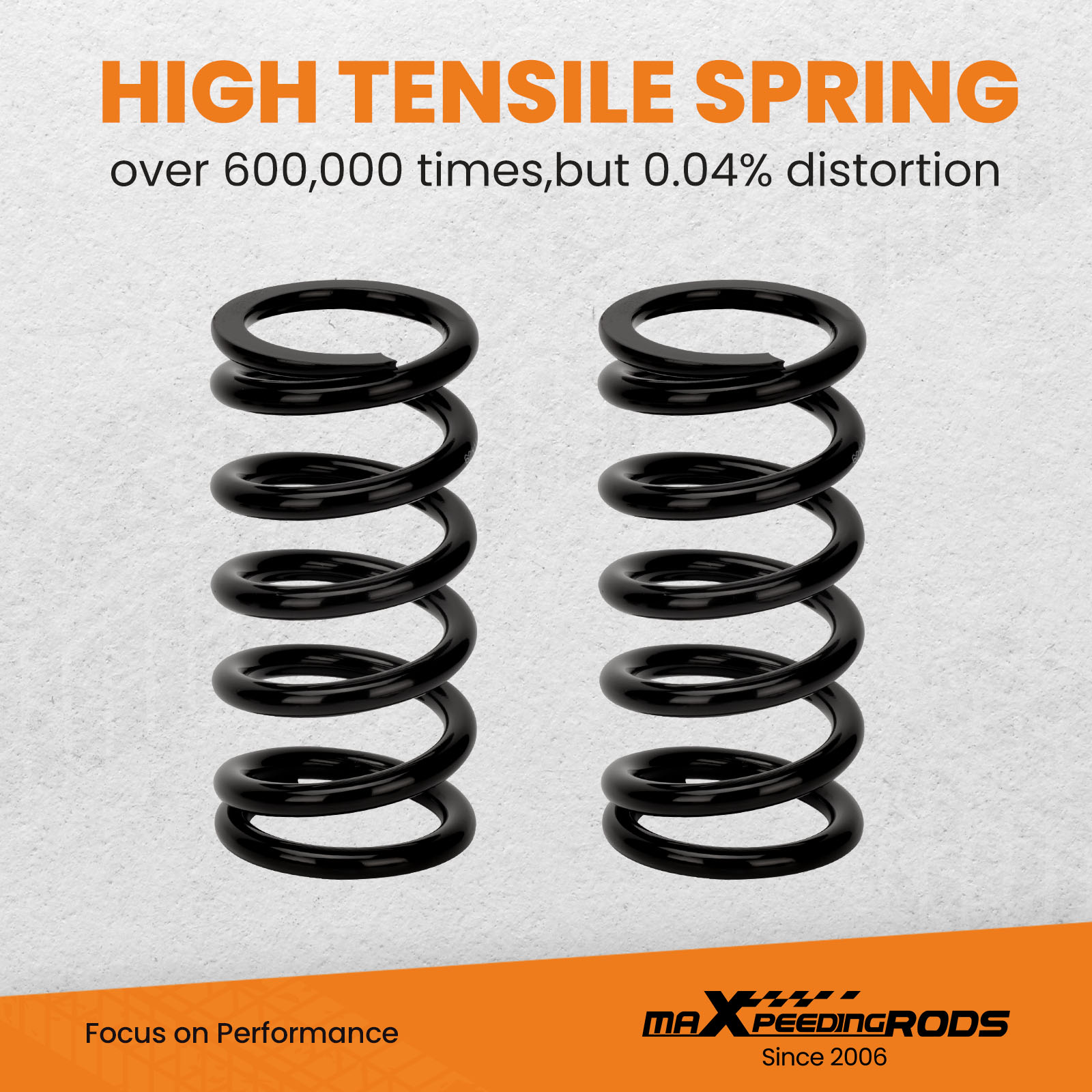

High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
Height Adjustment tools included.
Full rebuildable.
