• VIRGINIZE A TESTED UNIT
• PROGRAM YOUR VIN AND VEHICLE MODEL YEAR INFORMATION
• PROGRAM YOUR EHS NUMBER THAT IS STAMPED ON THE SIDE OF YOUR VALVE BODY
• FLASH THE CONTROL UNIT WITH YOUR VEHICLES REQUIRED SOFTWARE
• ECU SCN CODE YOUR CONTROL UNIT
• WE RELEASE THE TRANSPORT PROTECTION AND ACTIVATE YOUR UNIT

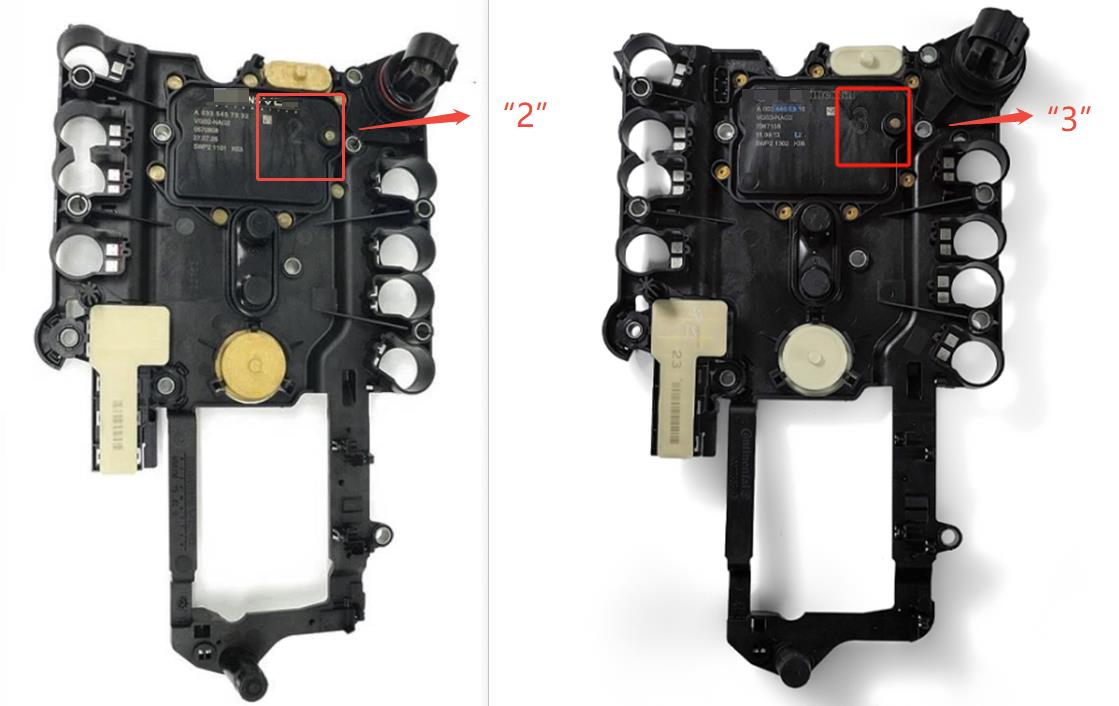

Transmission Control Unit TCM / TCU Siemens VDO / Continental
Part number:

· A 0335456632

· A 0335456732

· A 0335457232

· A 0335457332

·

Error:



· Y3/8Y1 WORKING PRESSURE CONTROL SOLENOID

· Y3/8Y2 K1 CLUTCH SOLENOID

· Y3/8Y3 K2 CLUTCH SOLENOID

· Y3/8Y4 K3 CLUTCH SOLENOID

· Y3/8Y5 B1 BRAKE CLUTCH SOLENOID

· Y3/8Y6 B2 BRAKE CLUTCH SOLENOID

· Y3/8Y7 B3 BRAKE CLUTCH SOLENOID

· Y3/8Y8 TORQUE CONVERTER LOCKUP SOLENOID

· Y3/8S1 SELECTION RANGE SENSOR

· Y3/8N1 TURBINE SPEED SENSOR

· Y3/8N2 INTERNAL SPEED SENSOR

· Y3/8N3 OUTPUT SPEED SENSOR

· Y3/8N4 FULLY INTEGRATED TRANSMISSION CONTROL

ErrorS:

· 0641 Component Y3/8n4 (Fully integrated transmission control (VGS) control

unit) defective

· 0642 The voltage supply of the speed sensors is faulty. (Undervoltage)

· 0705 Component Y3 / 8S1 (selection area sensor (VGS)) is defective

· Check 0706 Component Y3/8S1 (Range Sensor (VGS) Selection)

· 0717 The signal from component Y3 / 8n1 (turbine speed sensor (VGS)) not available

· 0718 Component Y3 / 8n1 (Turbine Speed Sensor (VGS)) Defective

· 0722 The signal from component Y3 / 8N3 (Output speed sensor (VGS)) not available

· 0723 Component Y3/8N3 (Output Speed Sensor (VGS)) is defective

· 0748 The internal electrical test of component Y3/8y2 (K1 clutch control solenoid valve (VGS)) failed

· 0778 The internal electrical test of component Y3/8y5 (B1 Brake Control Solenoid Valve (VGS)) failed

· 0798 The internal electrical test of component Y3/8y7 (B3 Brake Control Solenoid Valve (VGS)) failed

· 2216 check component Y3/8S1 (selection range sensor (VGS)) The adjustment sequence occurred outside of the valid range

· 2716 The internal electrical test of component Y3/8y4 (K3 clutch control solenoid valve (VGS)) failed

· 2725 The internal electrical test of component Y3/8y6 (B2 brake control solenoid valve (VGS)) failed

· 2734 The internal electrical test of component Y3/8y3 (K2 clutch control solenoid valve (VGS)) failed

· 2759 The internal electrical test of component Y3/8y8 (torque converter lockup clutch control solenoid valve (VGS)) failed

· 2766 Too high speeds have occurred on components Y3 / 8n2 (internal speed sensor (VGS))

· 2767 The signal from component Y3 / 8n2 (Internal speed sensor (VGS)) not available

· 2768 Component Y3 / 8n2 (internal speed sensor (VGS)) is defective

· 2810 The internal electrical test of component Y3 / 8y1 (working pressure control solenoid valve (VGS)) failed

Other diagnostic error:

· 0604 , 0605 , 0607 ,060A , 060C , 0613 , 061B , 062F , 0633 , 0641 ,

· 0651 , 06A3 , 0701 , 0711 , C300 , 1610 , 1629 , 1631 , 1632 , 1633 , 1634 ,

· 1636, 1638 , 1639 , 1693 , 1710 , 1711 , 1712.

---
