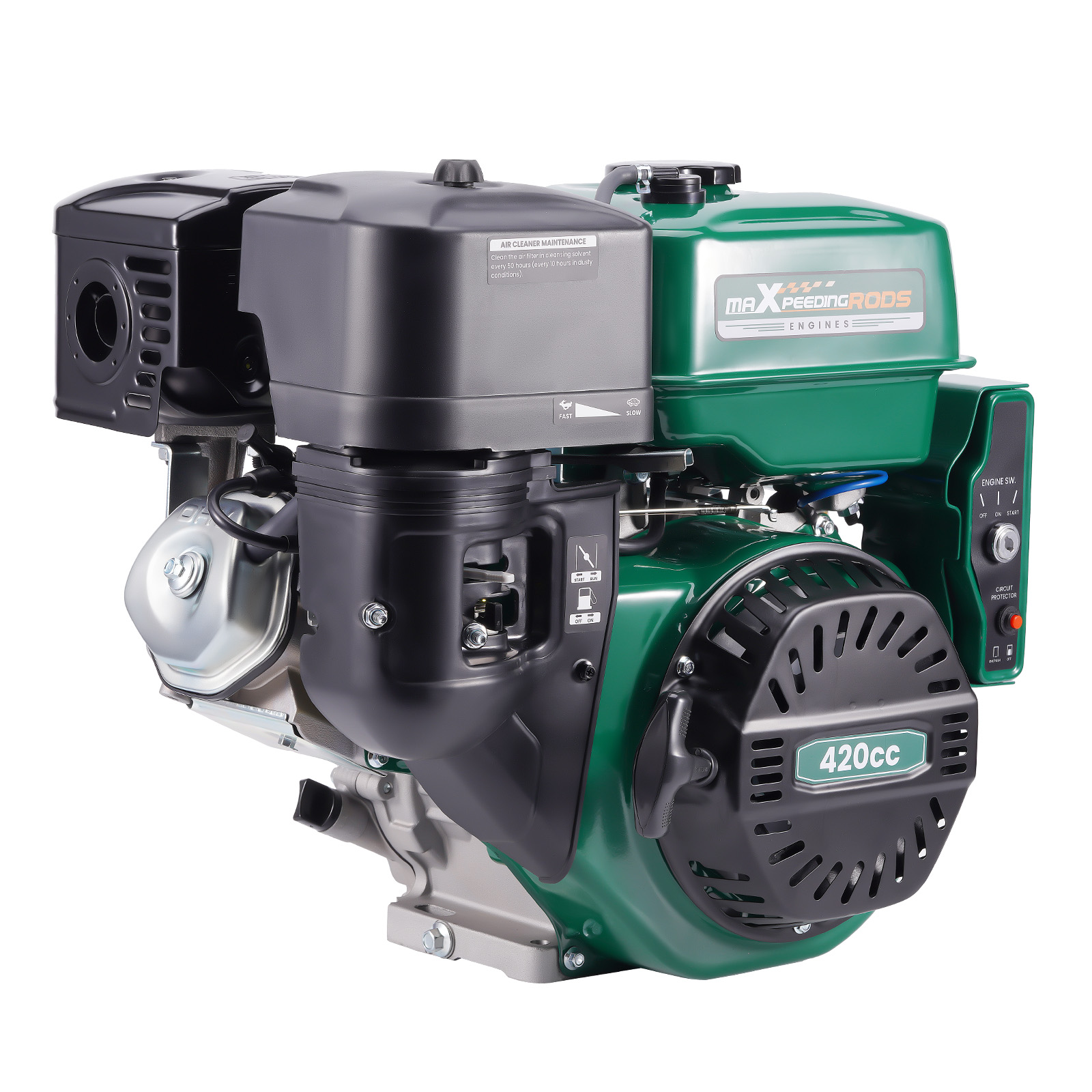

AutoPowerKing
WHY CHOOSE US
420cc Electric Start Gasoline Engine Motor Horizontal 4-Stroke 15HP Lawn Mowers420cc Electric Start Gasoline Engine Motor Horizontal 4-Stroke 15HP Lawn Mowers420cc Electric Start Gasoline Engine Motor Horizontal 4-Stroke 15HP Lawn Mowers420cc Electric Start Gasoline Engine Motor Horizontal 4-Stroke 15HP Lawn Mowers420cc Electric Start Gasoline Engine Motor Horizontal 4-Stroke 15HP Lawn Mowers
420cc Electric Start Gasoline Engine Motor Horizontal 4-Stroke 15HP Lawn Mowers 420cc Electric Start Gasoline Engine Motor Horizontal 4-Stroke 15HP Lawn Mowers 420cc Electric Start Gasoline Engine Motor Horizontal 4-Stroke 15HP Lawn Mowers 420cc Electric Start Gasoline Engine Motor Horizontal 4-Stroke 15HP Lawn Mowers 420cc Electric Start Gasoline Engine Motor Horizontal 4-Stroke 15HP Lawn Mowers
420cc Electric Start Gasoline Engine Motor Horizontal 4-Stroke 15HP Lawn Mowers

  • Most

    Competitive Price

  • Manufacturer

    We know our products

  • Easy Return

    Quick, Simple

  • Guaranteed Fitment

    Always the correct part

Description





Typical Application for:
Our engines can be used in a variety of applications such as go-karts, compressors, lawn mowers, water pumps, pressure washers and more.

Technical Data:

Model: MXR420E
Engine type: Single cylinder, 4 Stroke, Forced Cooling, OHV
Bore x Stroke(mm): 90x66
Displacement: 420cc
Compression: 8.0 : 1
Starting method: Recoil/Electric(Battery not included)
Ignition method: Transistorized ignition
Horse Power(HP):15
Fuel Type: Gasoline
Oil Type: SAE 10W-30
Fuel Tank capacity(L): 6
Oil capacity(L): 1.1
Dimensions L*W*H (mm): 500*445*500
Package size L*W*H(mm): 510*465*510
Net weight (kgs): 32.5
Gross Weight(kgs): 35
Shaft Orientation: Horizontal

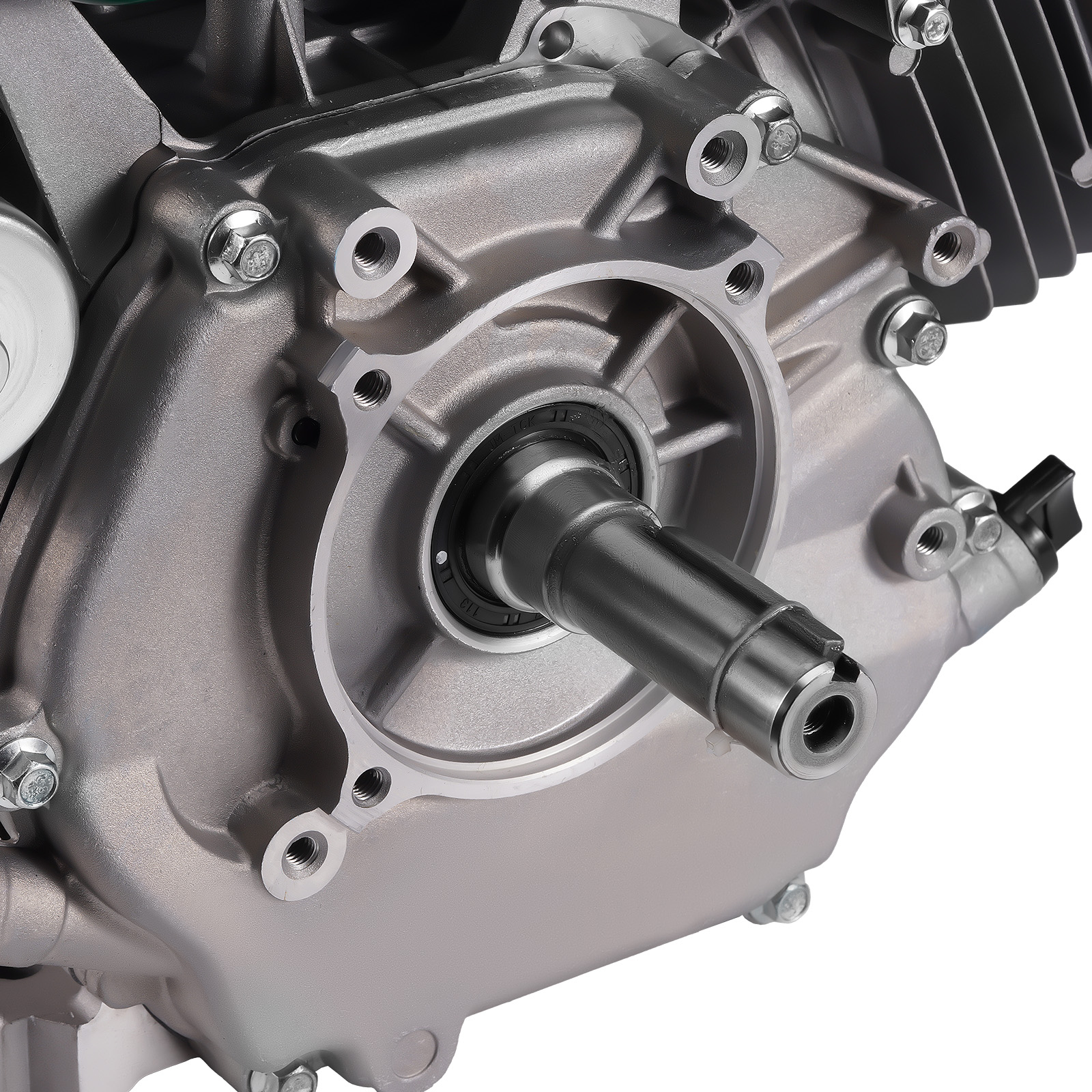

Shaft Diameter(inch): 1
Shaft Keyway(inch): 1/4
Shaft length(inch): 3.48
Shaft End: 3/8" Size 24 UNF - Drilled and Tapped
EPA Certified: Yes



*Please double check the diameter of driver shaft and the Length of Drive Shaft / Crankshaft !!!



Feature



Powerful Engine: Our gasoline engine is a 4-stroke 420cc OHV engine, which provides you with strong power and ensures that your work can be completed quickly and easily.
High Fuel Efficiency: OHV design for improved power output and fuel efficiency.
Smooth Performance: Ball bearing supported crankshaft for greater stability and precision engineered components result in lower vibration.
Easy to Use and Maintain: Ergonomic, easy to grip recoil rope design, simple throttle control, easily accessible spark plug.
Low oil sensor:  shuts down engine when oil reaches a level that is too low for safe operation.

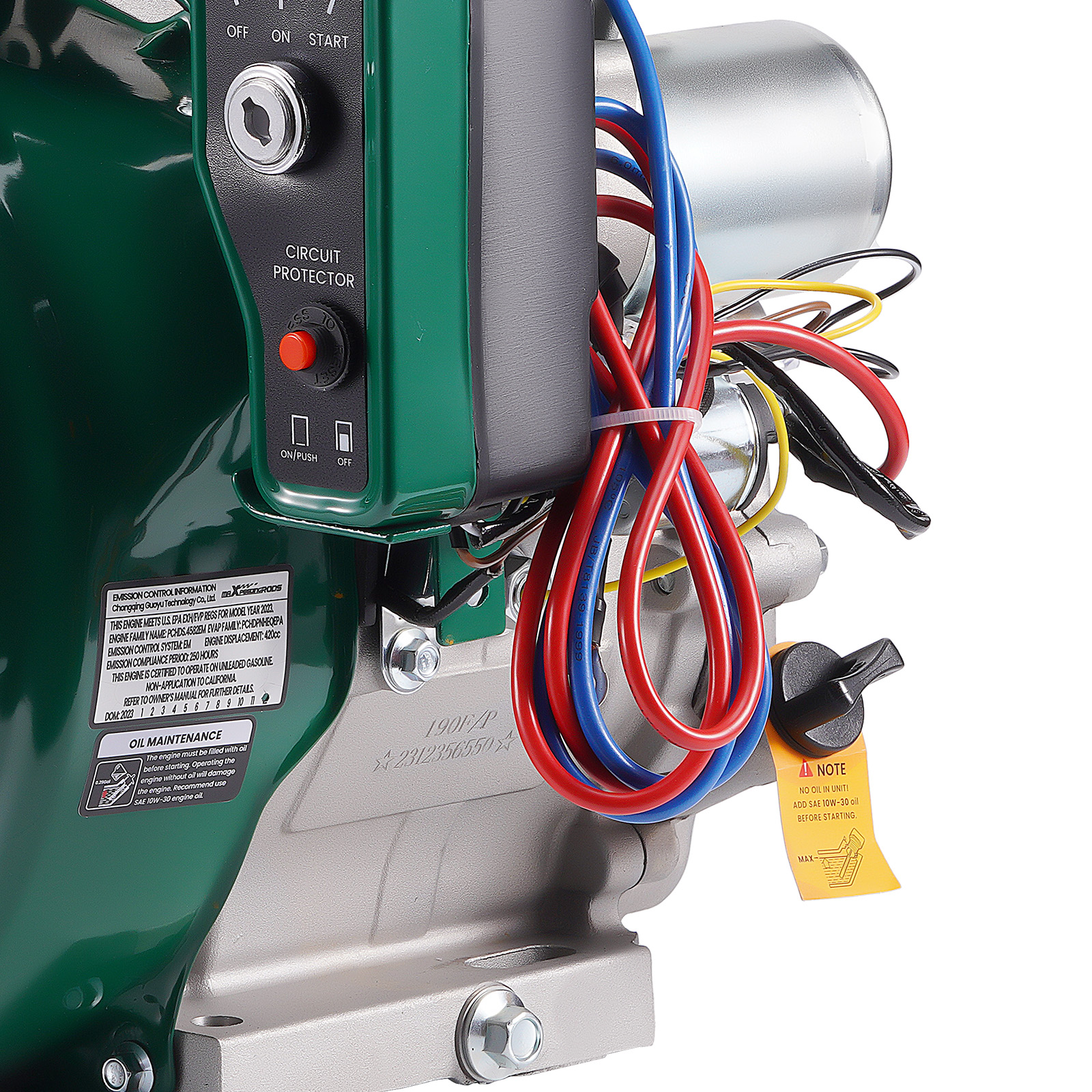

Double Start: Our engine is specially designed with Electric Start. Just turn the key, you could easily get the engine start; also with a recoil start, give you a double start secure.(Battery not included)



Package included

1x Gasoline Engine
1x Spark Plug Socket Wrench
1x Oil Funnel
1x Owner's Manual



Notice:

1. Do not pull the pull rope to start the machine without refilling oil. Starting the engine without refilling oil can cause permanent damage to the internal engine components.
2. All engine functionally tested in the factory and may contain minimum residual oil or fuel odor, which is a normal phenomenon.
3. Installation Manual Is NOT Included; Professional Installation Is Highly Recommended.

*An engine's exhaust contains toxic carbon monoxide, which you cannot see or smell. Breathing carbon monoxide can KILL YOU IN MINUTES. To avoid carbon monoxide poisoning, follow the manufacturer's instructions when operating a engine.

【Electric Start】Our gasoline engine is specially designed with electric start, just turn the key, you can start the engine easily and quickly. And also comes with a recoil start, giving you dual start options. 【Powerful Engine】Our gasoline engine is a 4-stroke 420cc OHV engine, which provides you with strong power and ensures that your work can can be used in a variety of applications such as go-karts, mini bike, log splitters, compressors, lawn mowers, water pumps, pressure washers and more. 【Low Oil Automatic Shut--off】Low oil sensor shuts down engine when oil reaches a level that is too low for safe operation, improving the safety of engine use and extending the service life.
