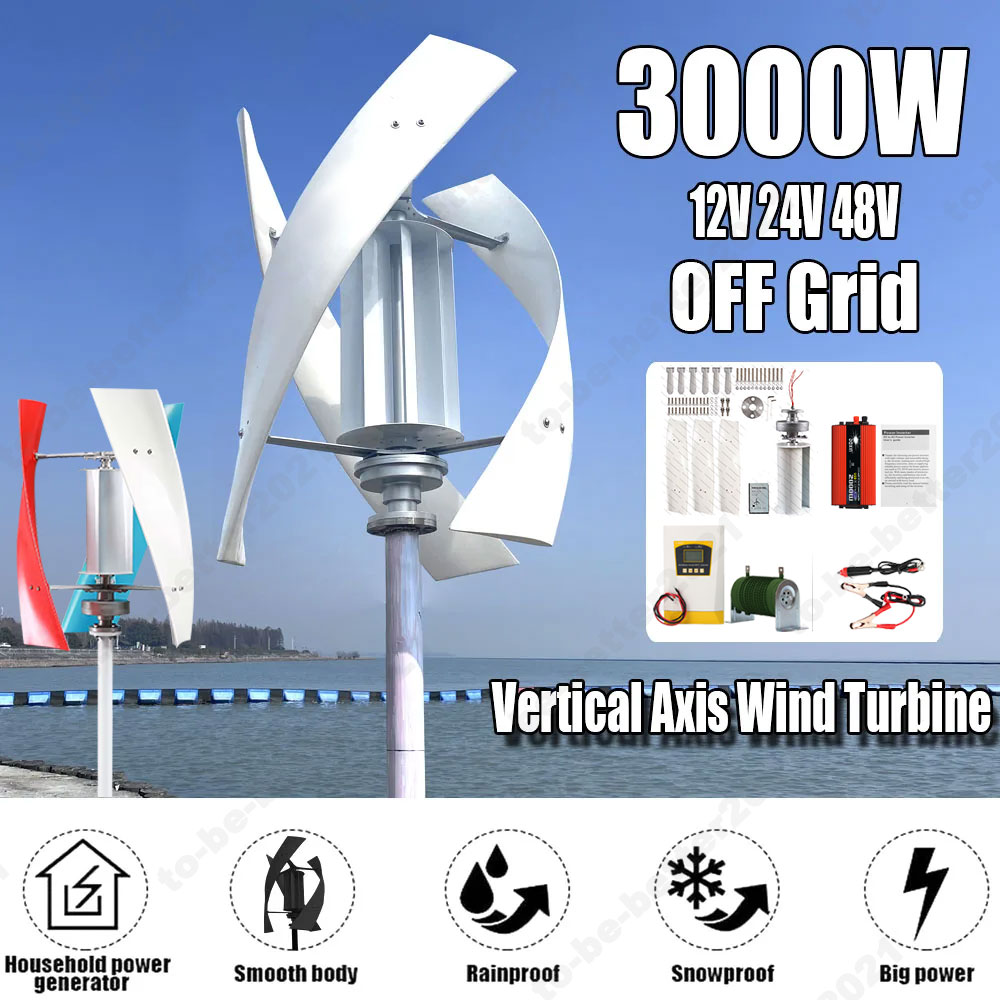

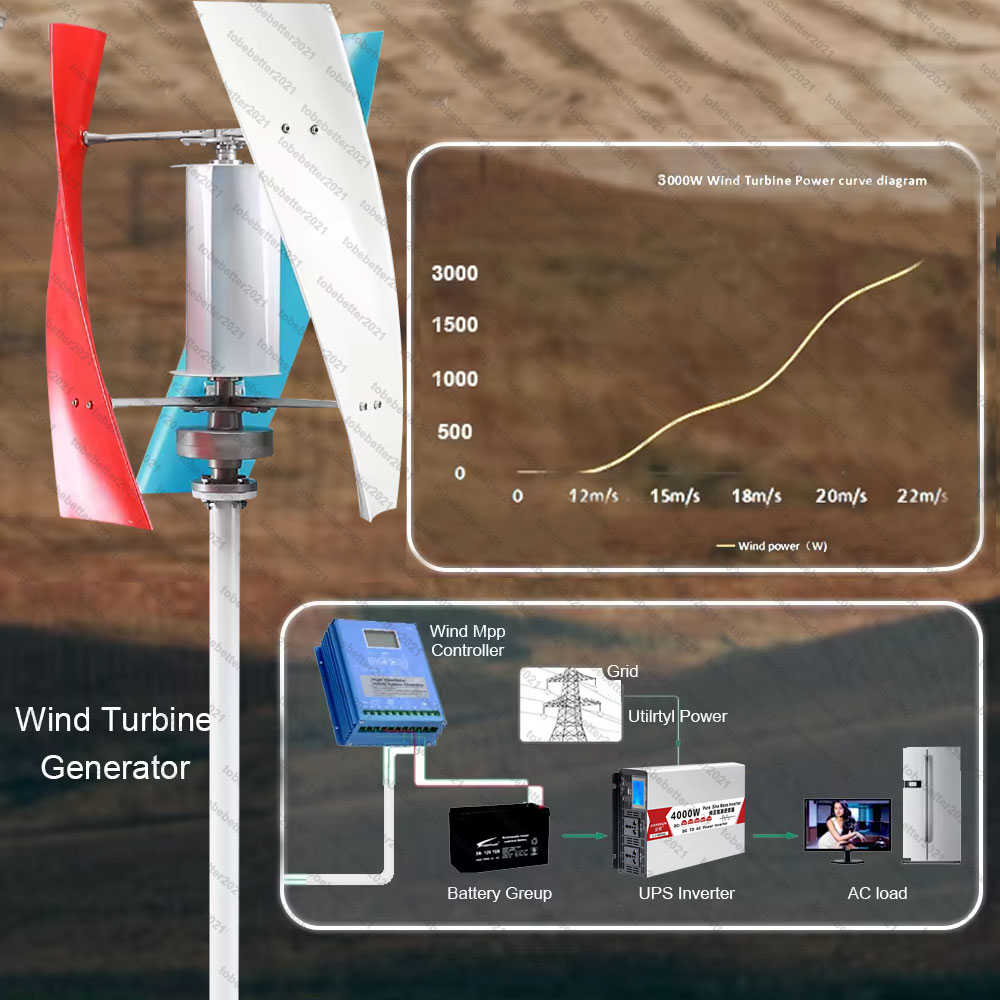

3000W Wind Turbine Descriptions:

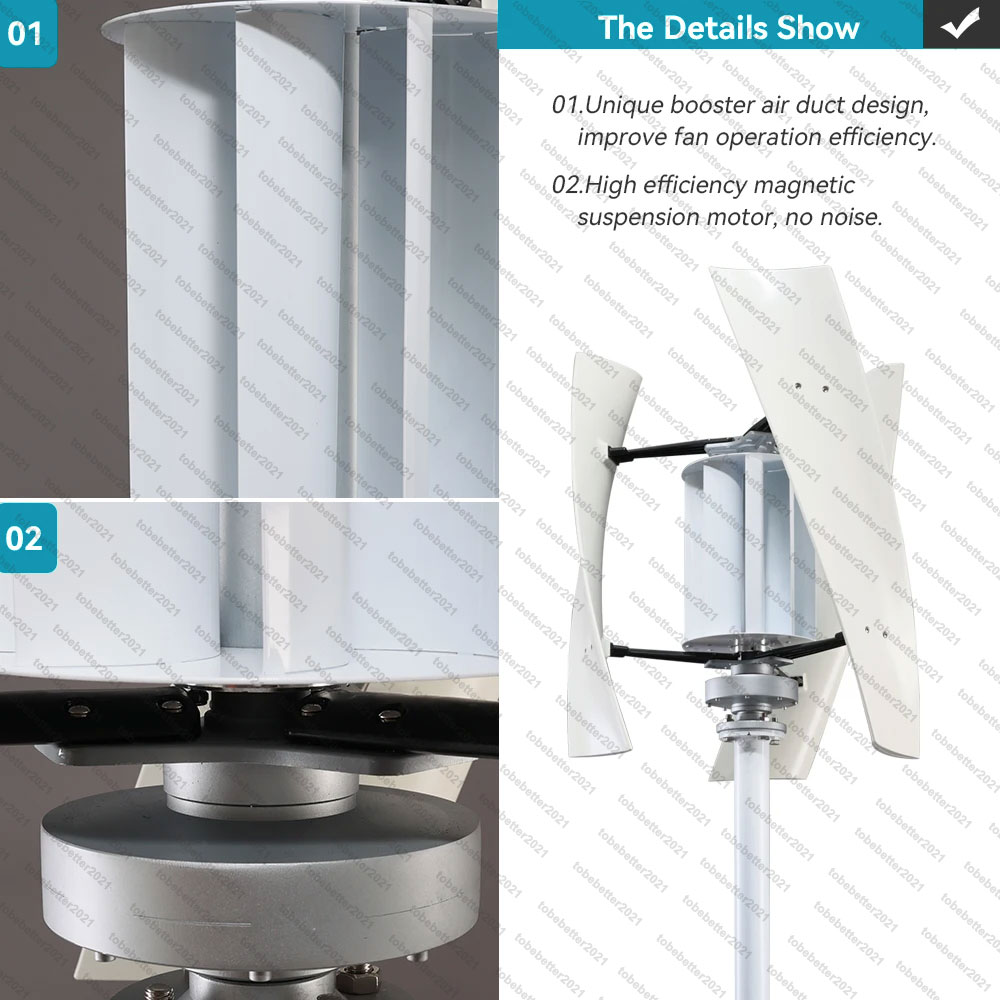

The wind turbine is equipped with a bearing power booster

(propels the blades when the wind is very light and further

boosts them when the wind is strong)

With intermediate shaft

Specification：

Condition: New

Control system: Electromagnetism

Starting wind speed: 1.3m(12inch)/s

Switched on wind speed: 2.5m(98inch)/s

Rated wind speed: 11m(433inch)/s

Max. instantaneous wind speed: ≤40m(1575inch)/s

The instantaneous maximum wind speed: ≤45m(1772inch)/s

Blades quantity: 3 (with different colours)

Diameter of the blades: 0.6m/24inch

Height of the blades: 0.8m/31inch

Speed regulation: Automatic

Rated voltage: 12V/24V/48V

Rated power: 2500W

Max power: 3000W

Protection class of the generator: IP67

Working environment temperature: -40℃+60 ℃

Protection against overspeed: Electromagnetic brake

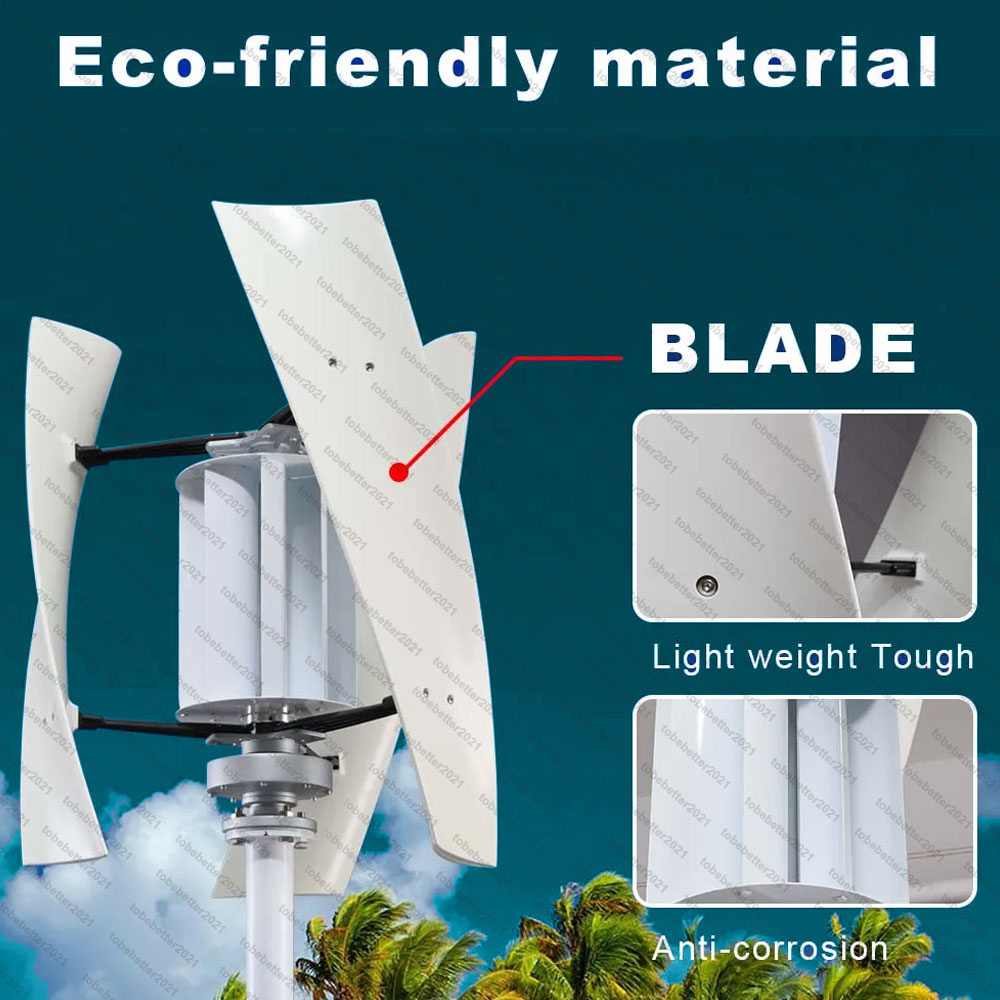

Blade material: Glass fibre

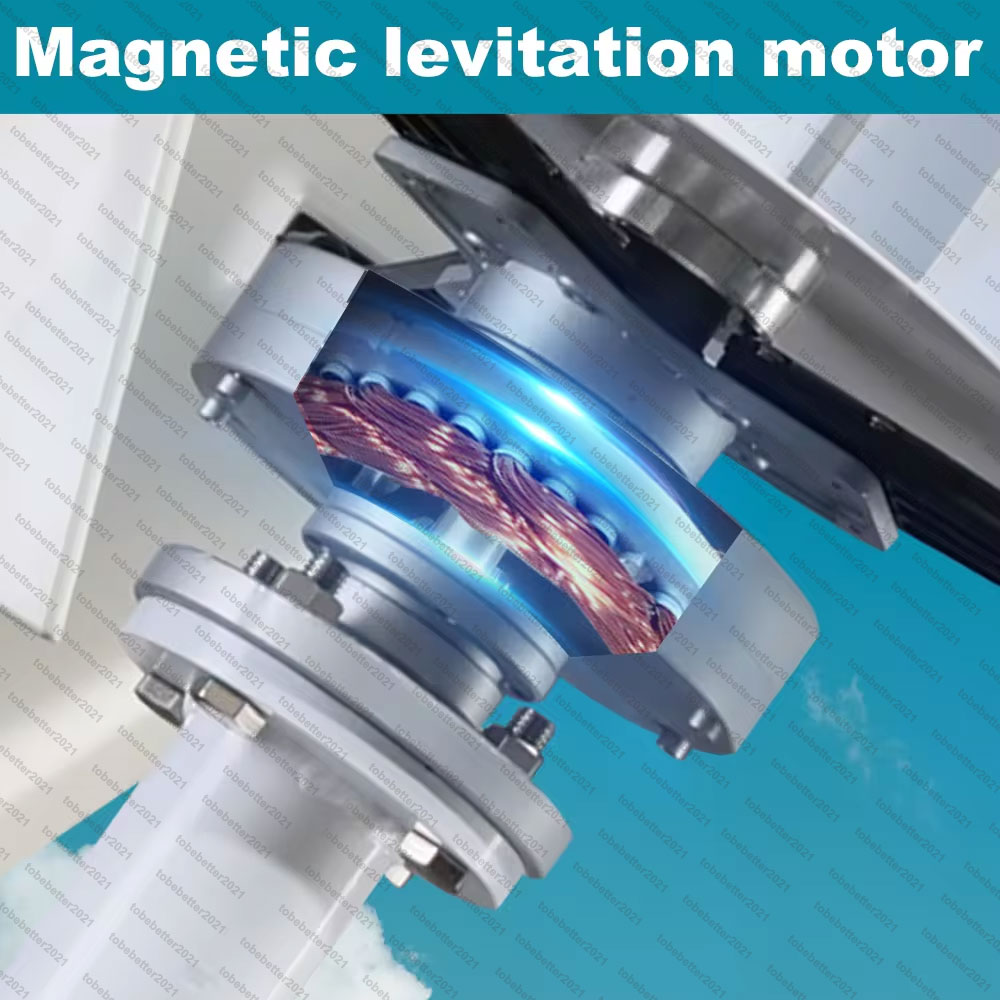

Generator: Magnetic levitation generator

Installation instructions: Not included in the scope of delivery

Key features

Great durability:

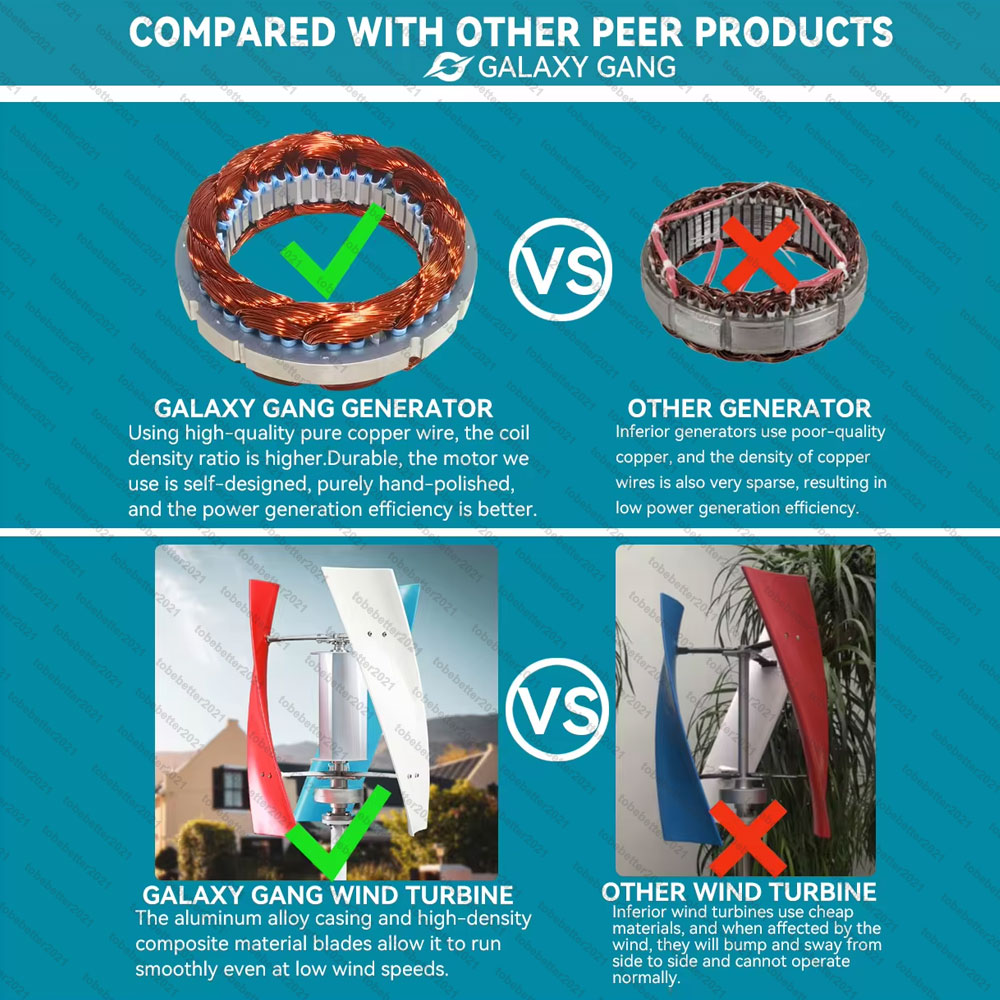

The wind turbine with the coreless permanent magnet generator and three high-strength

fibreglass blades is more durable and has a long service life.

Smooth running:

The spiral blades are aerodynamically designed to make the rotor run smoothly and reliably,

resulting in stable power generation. The double bearing and low vibration ensure more

stable operation.

Low noise:

Thanks to the design principle of aeroplane wings and rotation in a horizontal plane,

noise can be reduced to a level that cannot be measured in the natural environment.

Generation of electricity at lower wind speeds:

Due to its compact shape, low starting wind speed and large wind-facing surface,

the wind turbine can generate electricity even at lower wind speeds.

Strong wind resistance:

The horizontal rotation results in low wind pressure so that it can withstand a super typhoon.

Protection against maximum speed:

When the wind turbine reaches the maximum speed of 300rpm, it will automatically slow down.

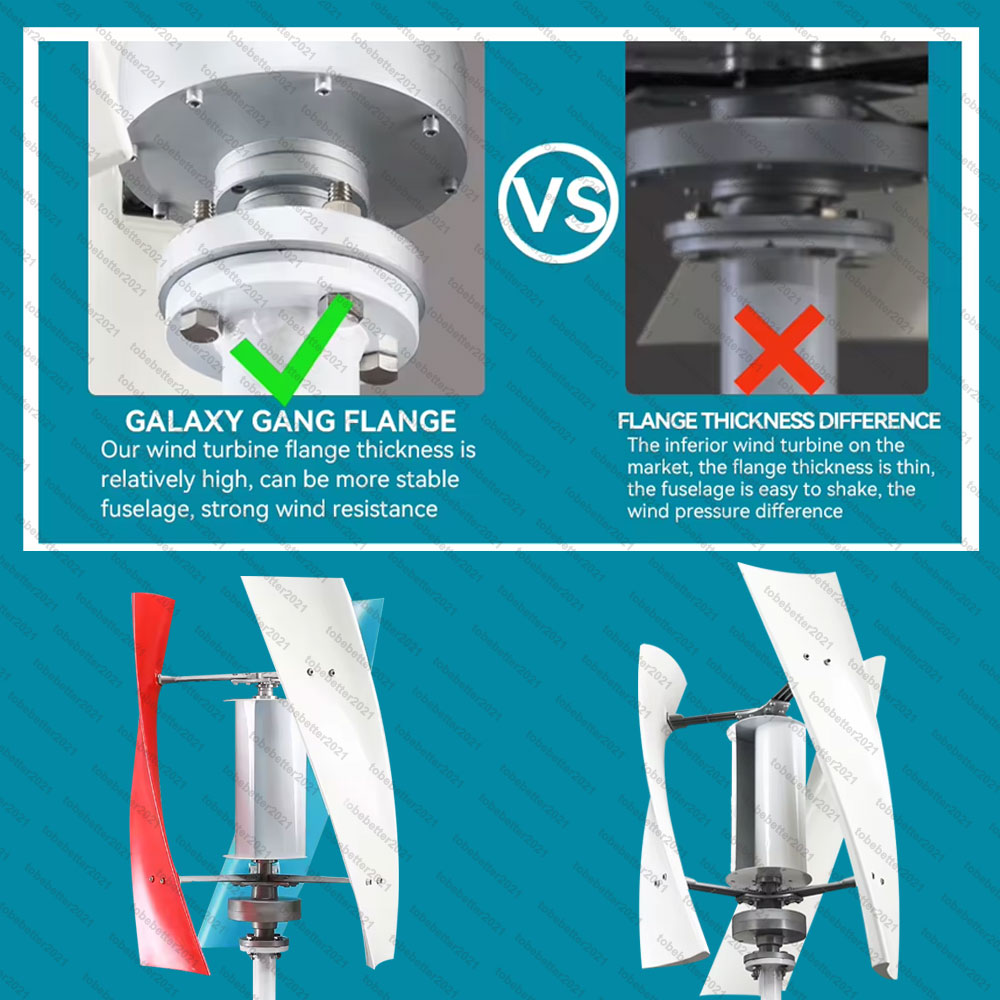

Easy to install:

Everything you need for installation is included. The wind turbine with a user-friendly

and practical flange design is easy to install.

Low starting wind speed:

The starting wind speed is lower than other wind turbines, and the rise of power

generation is smooth, so it can generate more power than others within a certain range.

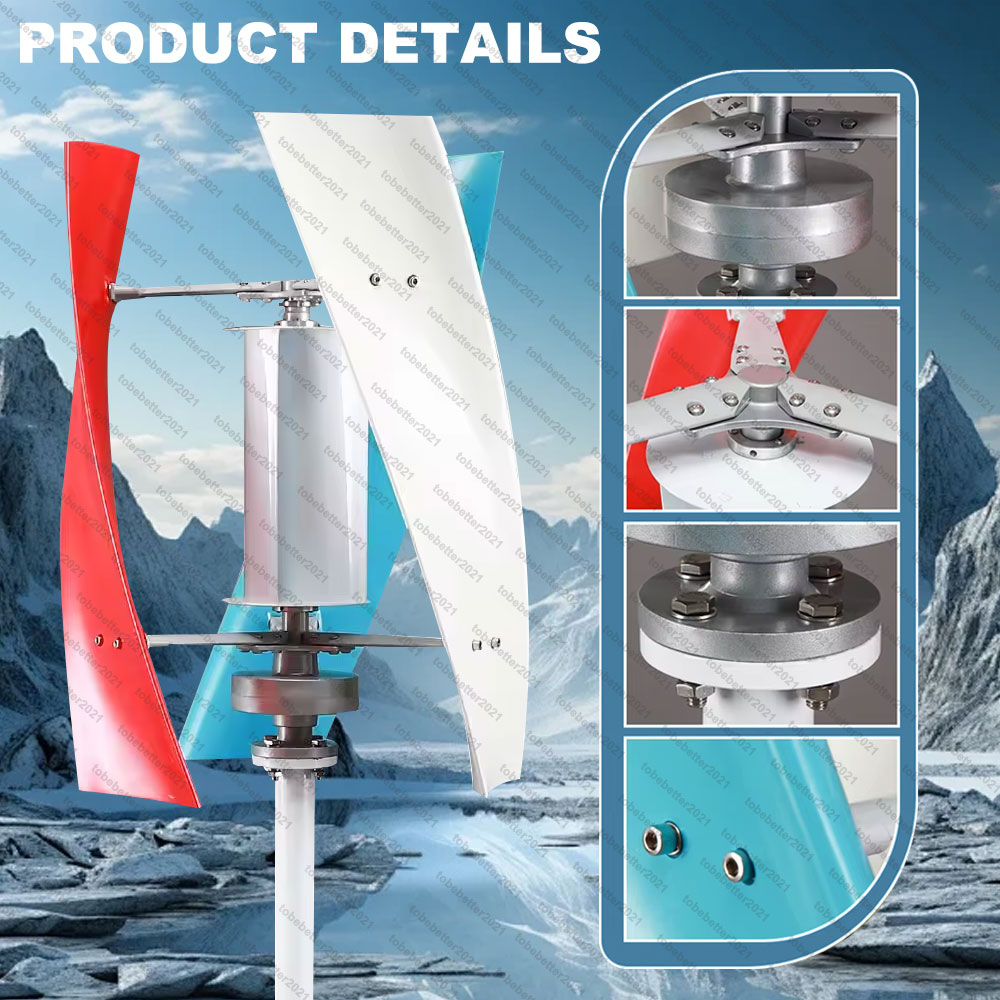

Details

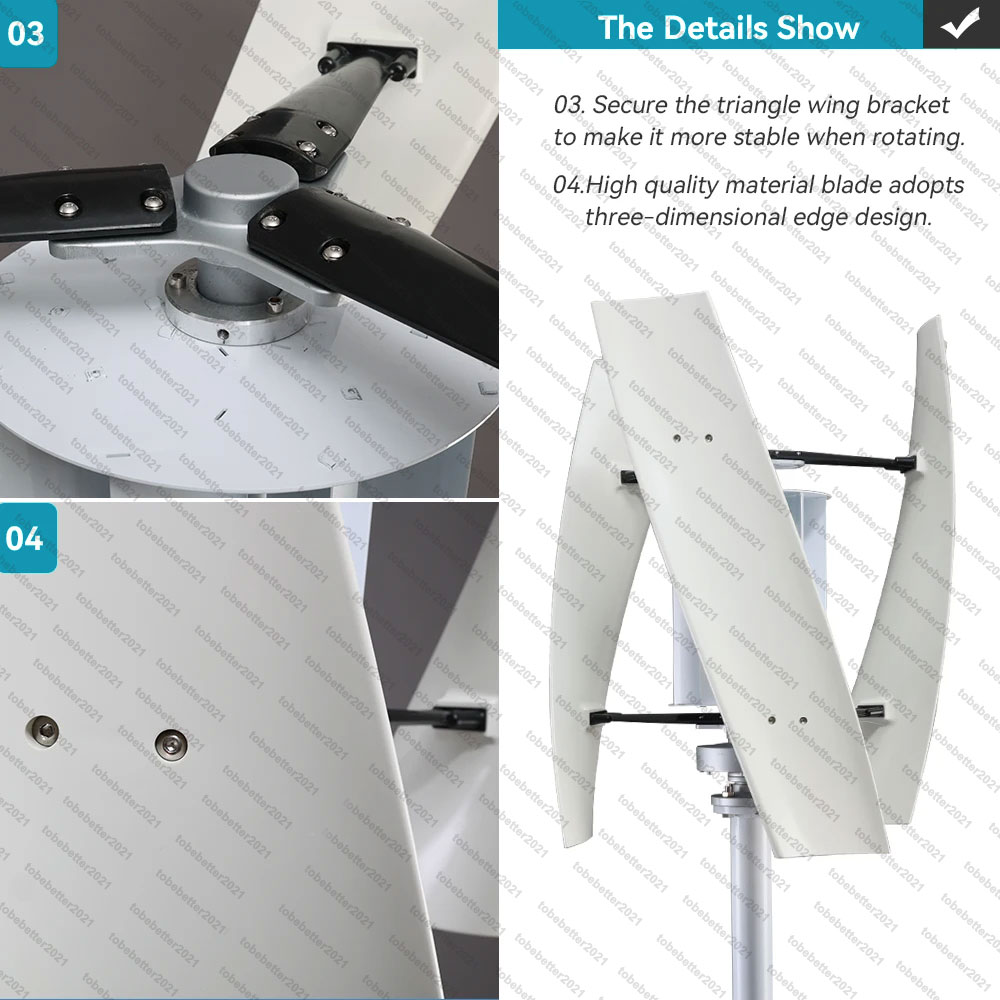

Vertical rotor blades:

The main force point of the wind turbine is concentrated on the blade edge,

so that blade shedding, breaking or flying out can be effectively avoided.

Three-phase AC permanent magnet generator:

The wind turbine with an intelligent tracking microprocessor with low torque

and high power can efficiently regulate current and voltage.

It greatly increases wind energy utilisation and annual electricity production.

Aluminium main pole:

The main pole is made of aluminium with high hardness and can be fully recycled,

so it is inconvenient to break and environmentally friendly.

Package included：

1x power booster

1 x wind turbine

1 x control unit

3 x blades

1 x bag of screws for connecting the main body

1 x bag of screws for connecting the blades of the bracket

Other Accessory for Assembly

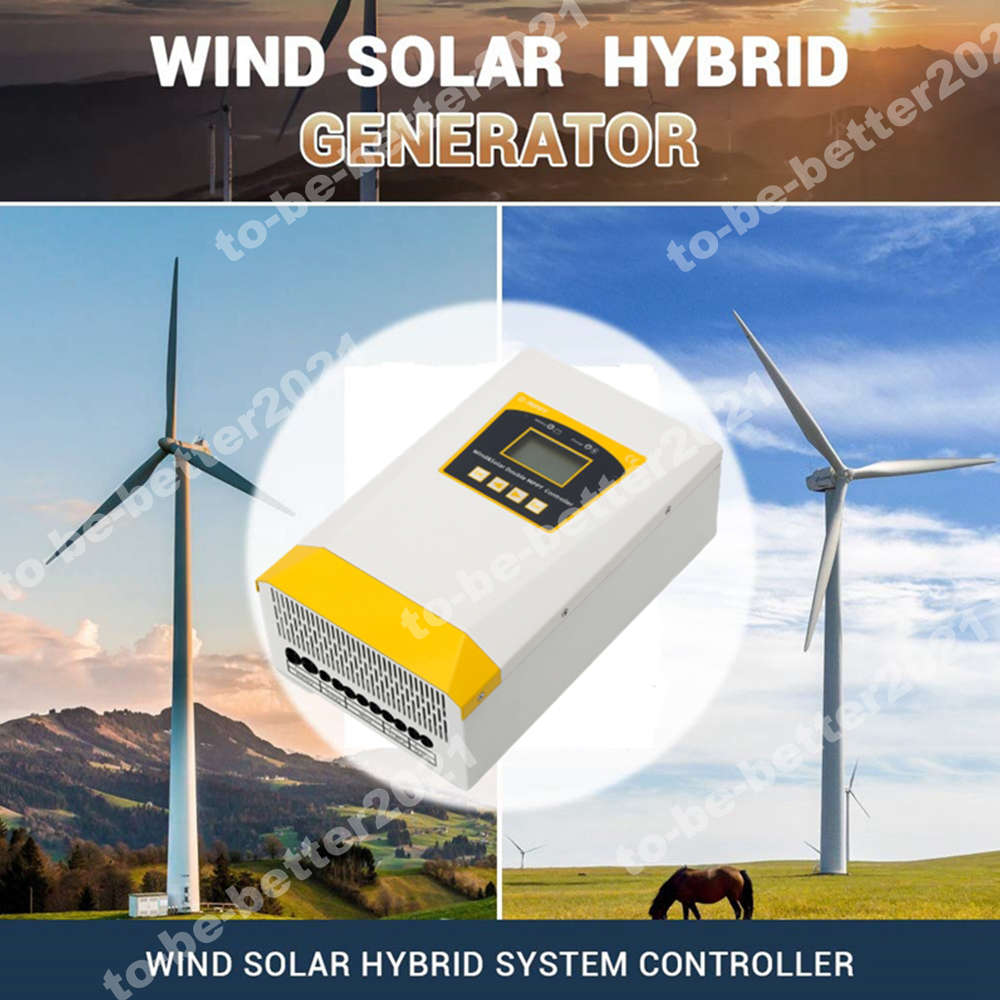

3000W Hybrid Controller Descriptions：

Rated wind power

600W/12V,800W/24V,1000W/48V

Rated PV power

1000W/12V,1500W/24V,2000W/48V

Product introduction

This kind of wind-solar hybrid charge controller is specially designed for small off-grid wind

Generation and solar hybrid system. Appearance is elegant, operations are simple. It also makes the

Expiration, in which wind generator and solar panels charge batteries safely and efficiently.

Functions and Features

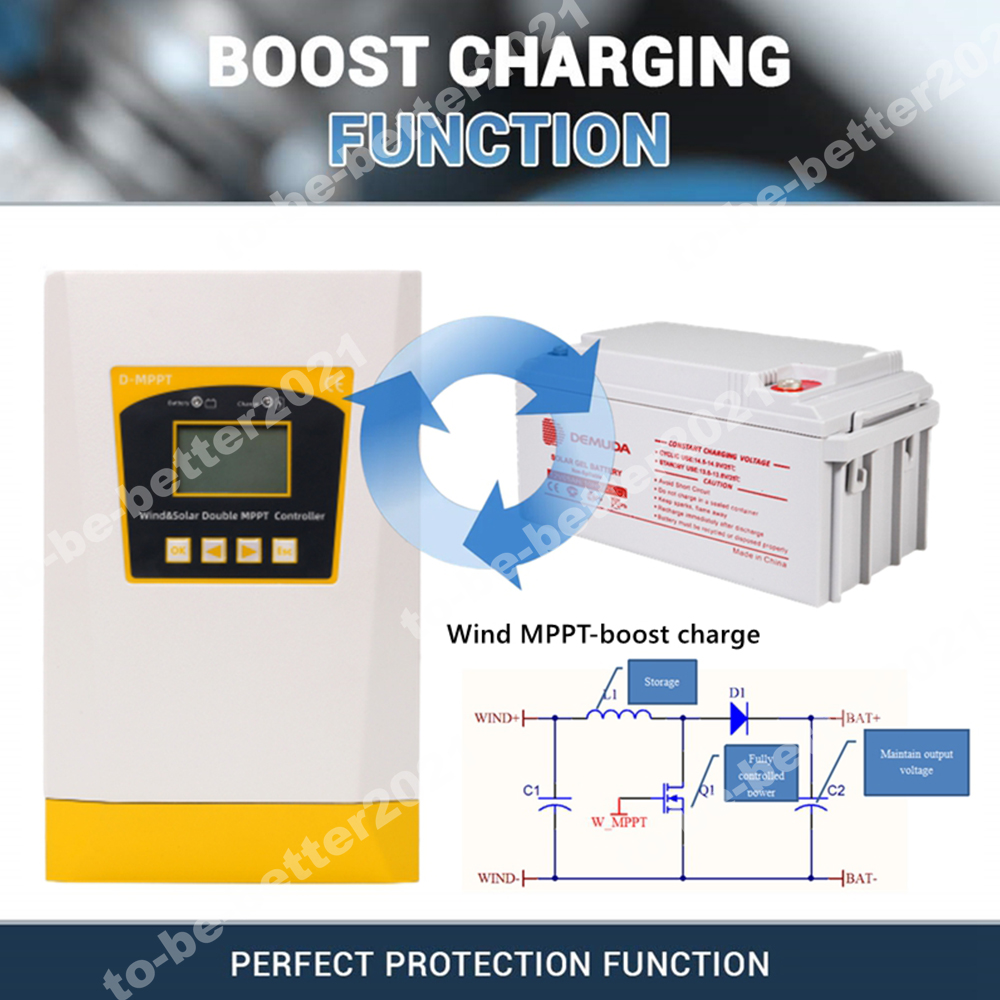

Wind generator MPPT boost charging function, improved charging efficiency .

External dump load resistant to strong wind, work more stable. Solar MPPT charging,

solar intelligent separation charging, high efficiency charging.

Dual power supply function: battery and solar power supply. LCD shows parameters such as voltage

and current of wind, solar and load.

Some parameters can be set by users.

DC output with three output modes. Battery module type can be selected and parameters can be set;

The controller has a built-in dust net that is easy to replace and clean to ensure the service life of the controller.

The inner circuit board of the controller is sprayed with conformal coating to prevent

Prevent dust, moisture and static electricity

Solar energy protection:As in the night, the voltage of the battery can be higher than the solar panel.

Thecontroller protects the battery from charging the solar panel.

Battery protection: if the battery polarity is reversed, the controller will not work and there will be no display.

The fuse protects the internal circuit.

If the battery does not work properly after it is connected properly, you only need to replace the fuse.

Battery open circuit protection: after long time use, the battery may be open circuit or bad connection.

The controller can protect itself from damage. Check the connection regularly

Over-voltage Over-current : When it is strong wind or over-voltage, the controller will

automatically start the braking function to protect the wind generator and the battery.

The controller will automatically break the circuit when the output is overvoltage.

Lightning Protection: Lightning protection refers to the last level of protection required for equipment.

Special lightning protection devices and other components of the multi-level lightning protection

system are required for lightning-prone areas. If the user requires this function, it must be paid additionally.

Package included：

1 x 3000W Hybrid Controller

2000W Power Inverter Descriptions:

Specifications:

Type: Pure Sine Wave Inverter

Output Voltage Waveform: Pure sine wave

Power: 2000W Peak / 800W Continuous

Output voltage: 220V

Input voltage: 12V/24V/48V

Output frequency: 50Hz

Socket: Universal

In the Box:

1 x Pure Sine Wave Inverter

1 x User manual

Peak power 2000W

Continuous power 800W

Weight: 2 kg

Features:

- Aluminum-magnesium alloy shell, light weight, good thermal conductivity.

- Digital Battery Volts Display

- Pure sine wave, intelligent filter, does not interfere with electrical appliances,

protects electrical appliances.

With high conversion efficiency (up to 95%), the low power consumption of the

product can greatly extend battery life.

- You can use electrical equipment, including TV / LED lights / LCD displays, especially

inductive load appliances such as refrigerators, freezers, induction cookers.

- Pure sine wave inverter.

- 8-bit intelligent protection: overload protection, high voltage protection, low voltage protection,

overheating protection, reverse connection protection, short circuit protection, overcurrent protection,

surge protection, intelligent chip control.

- Intelligent temperature control fan means the inverter is quiet. When the temperature is ≤45 ℃,

the fan is not spinning; when the temperature is ≥45 ℃, the fan starts working.

- Buzzer reminder. Once any protection of the inverter is triggered, the inverter will immediately

disconnect, the inverter enters the protection mode, with a buzzer reminder.
