Product Specifications: Q8 E-Bike
| Category | Specification / Description |
|---|---|
| Model | Q8 |
| Color | Black |
| Frame | 25-inch High Carbon Steel Frame |

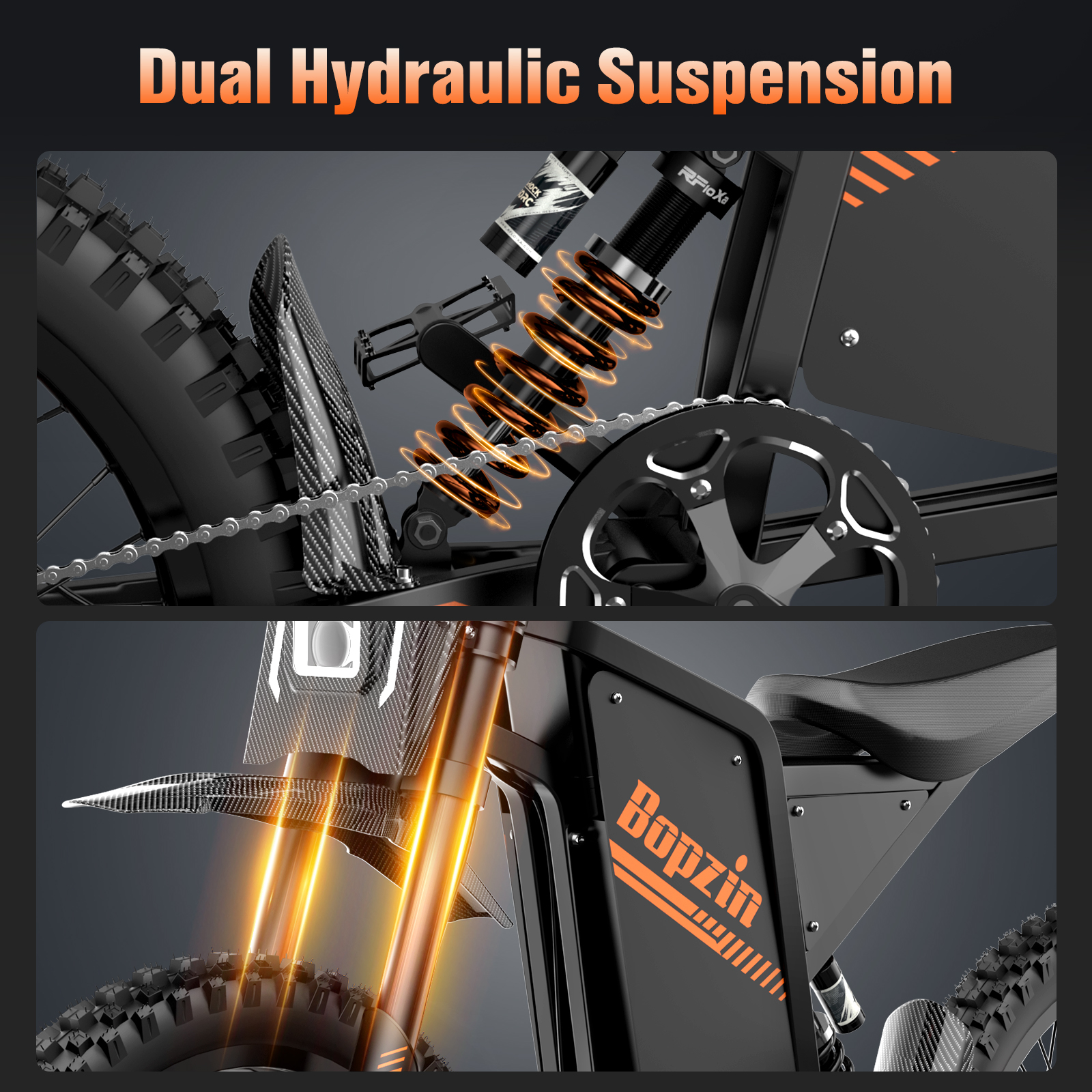

| Suspension | Front and Rear Hydraulic Suspension |

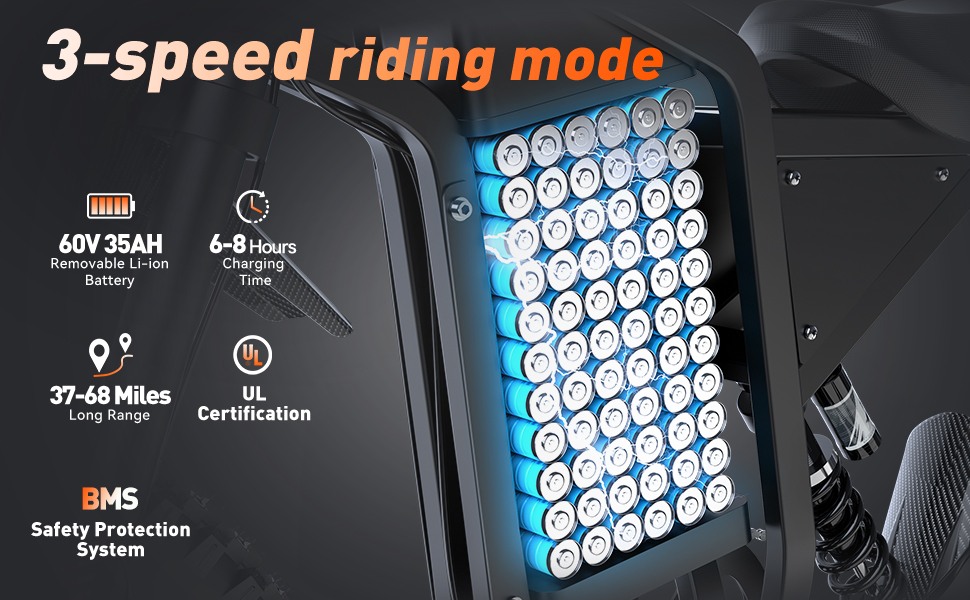

| Battery | 60V 35Ah Lithium Battery |

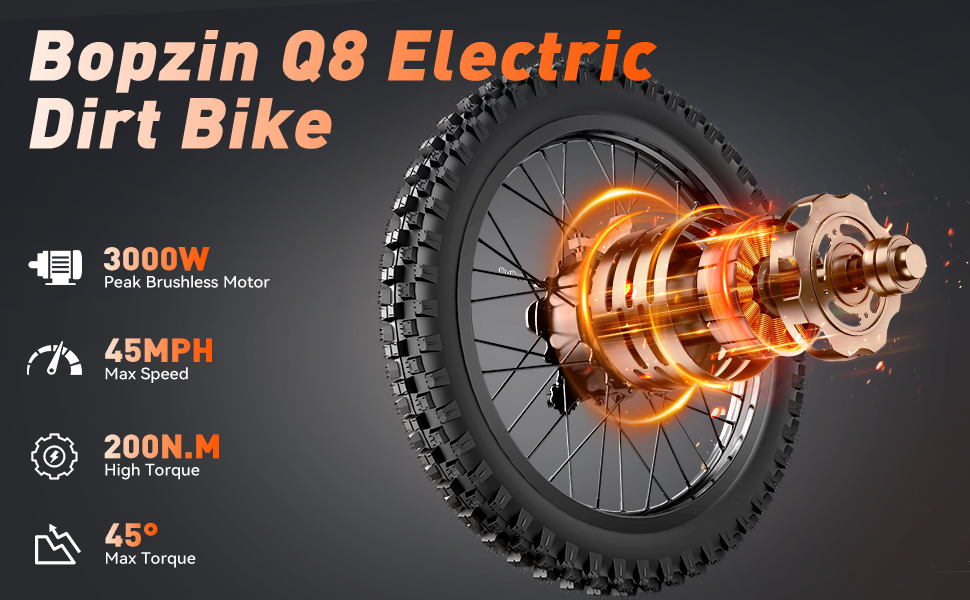

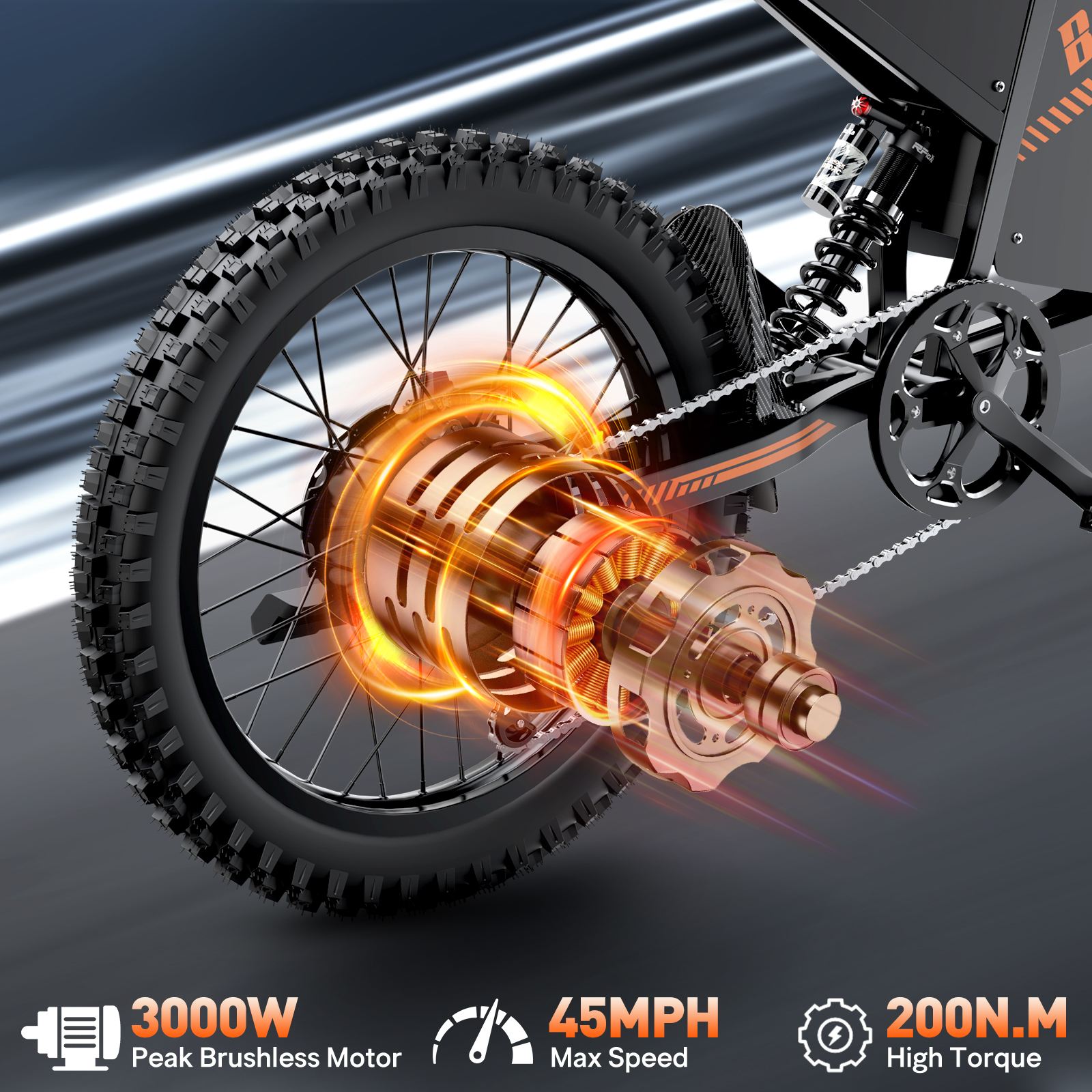

| Motor | 60V High-Speed Brushless Motor |
| Transmission | Single Speed |
| Display | LCD Instrument Panel (with USB charging port) |
| Drive Modes | Pure Electric / Pedal / Pedal Assist (PAS) |

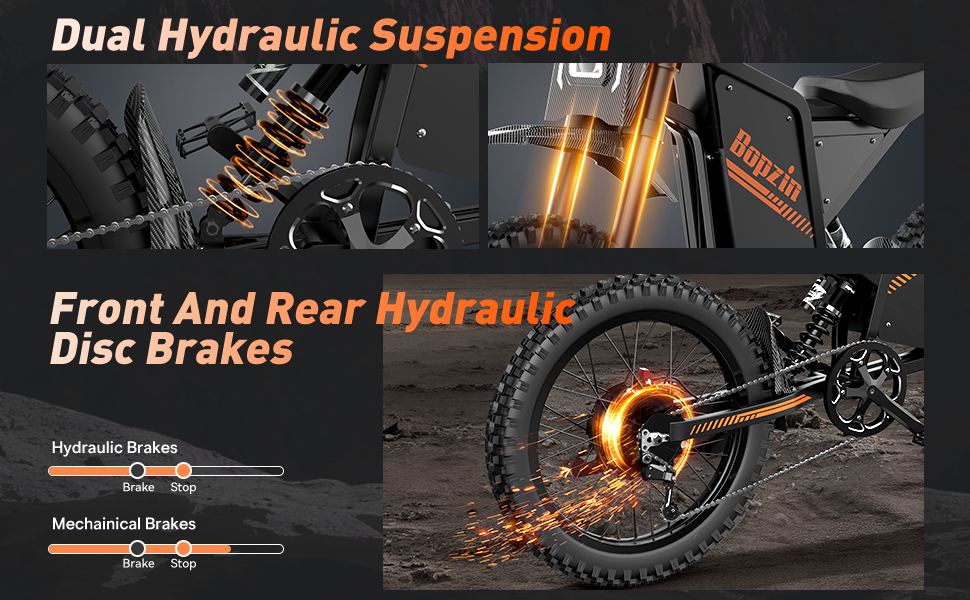

| Brake System | Front & Rear Hydraulic Disc Brakes |

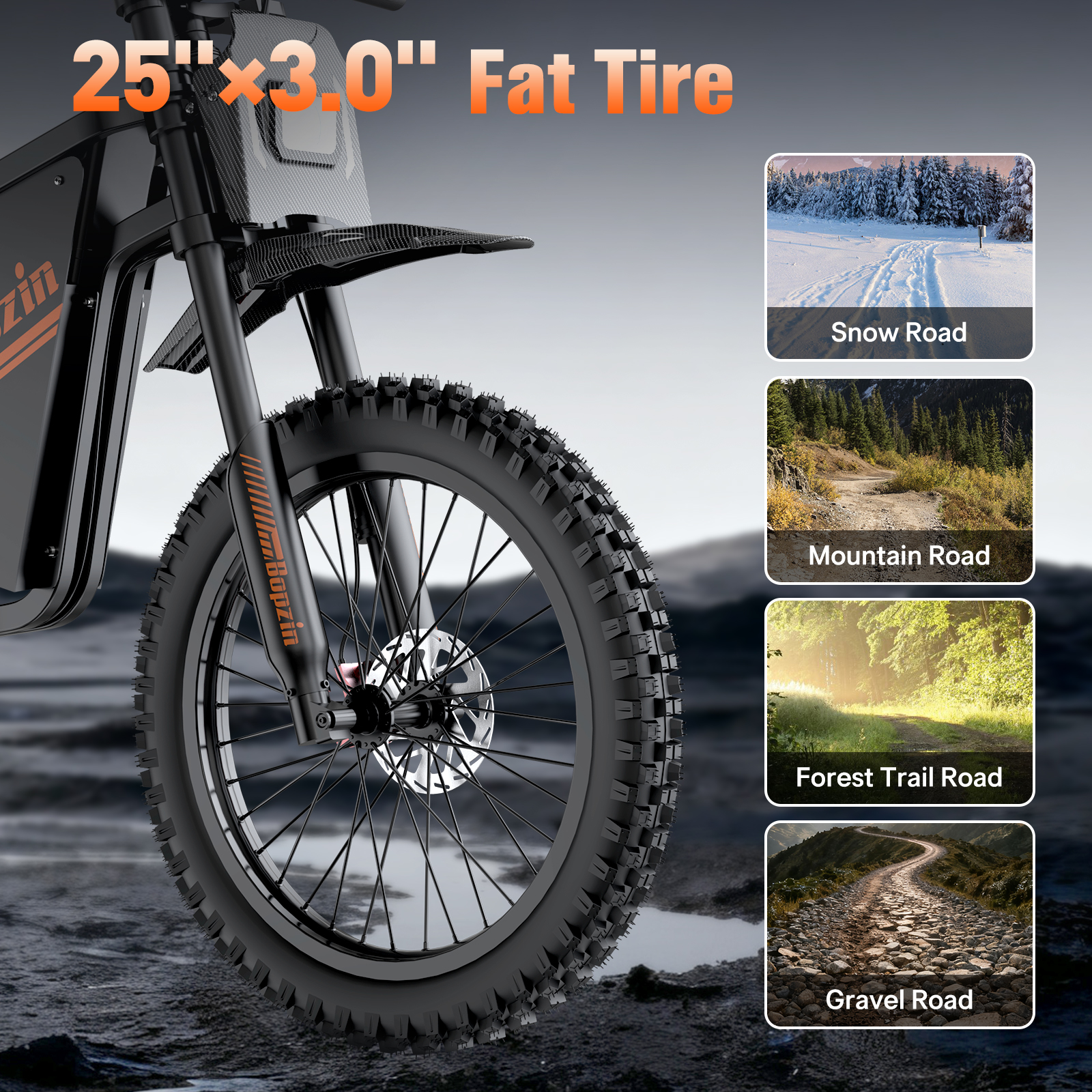

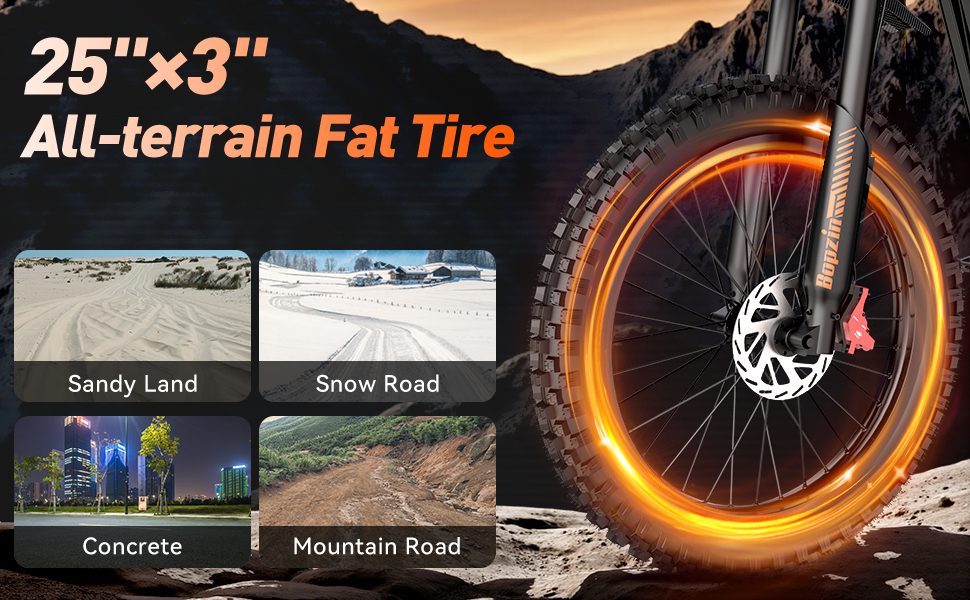

| Tires | 25*3.0 Inch Wide Tires |
| Rims | High Carbon Steel Spoke Rims |
| Fenders | Front and Rear Plastic Fenders |
| Package Dimensions | Approx. 153*31*87 cm |

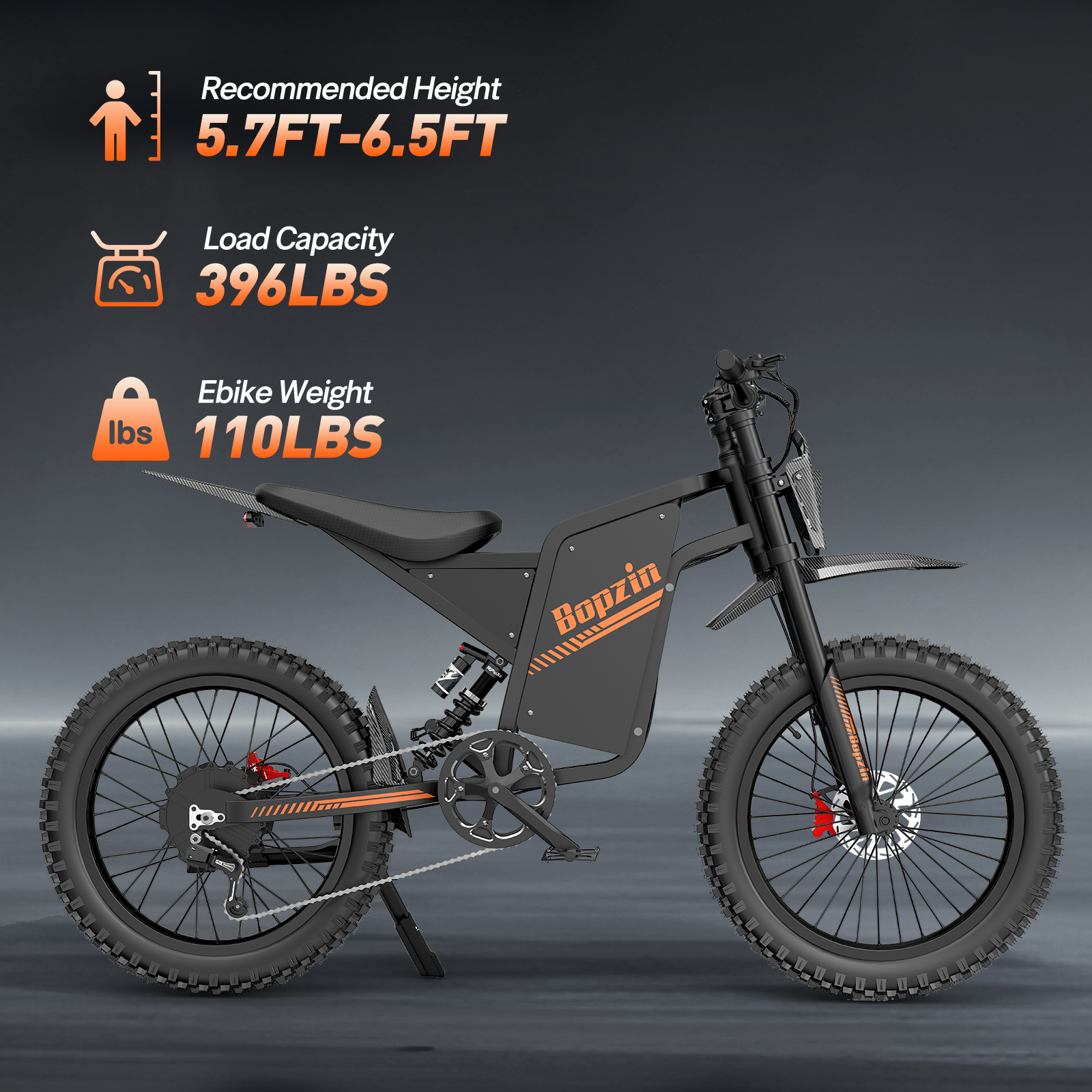

| Net Weight | Approx. 50 kg |
| Max Load Capacity | 180 kg |
| Recommended Rider Height | Around 170 cm |
| Reflectors | On front wheel, rear wheel, and integrated into rear taillight |
| Max Speed (Display) | Approx. 43 mph (Miles Per Hour) |
| Range | Electric-Only Mode: 60-90 km PAS Mode: 80-110 km |
| Charging Time | 6-8 hours |
| USB Port | Integrated into display/control area |
| Removable Battery | Yes |
| Foldable Frame | No |

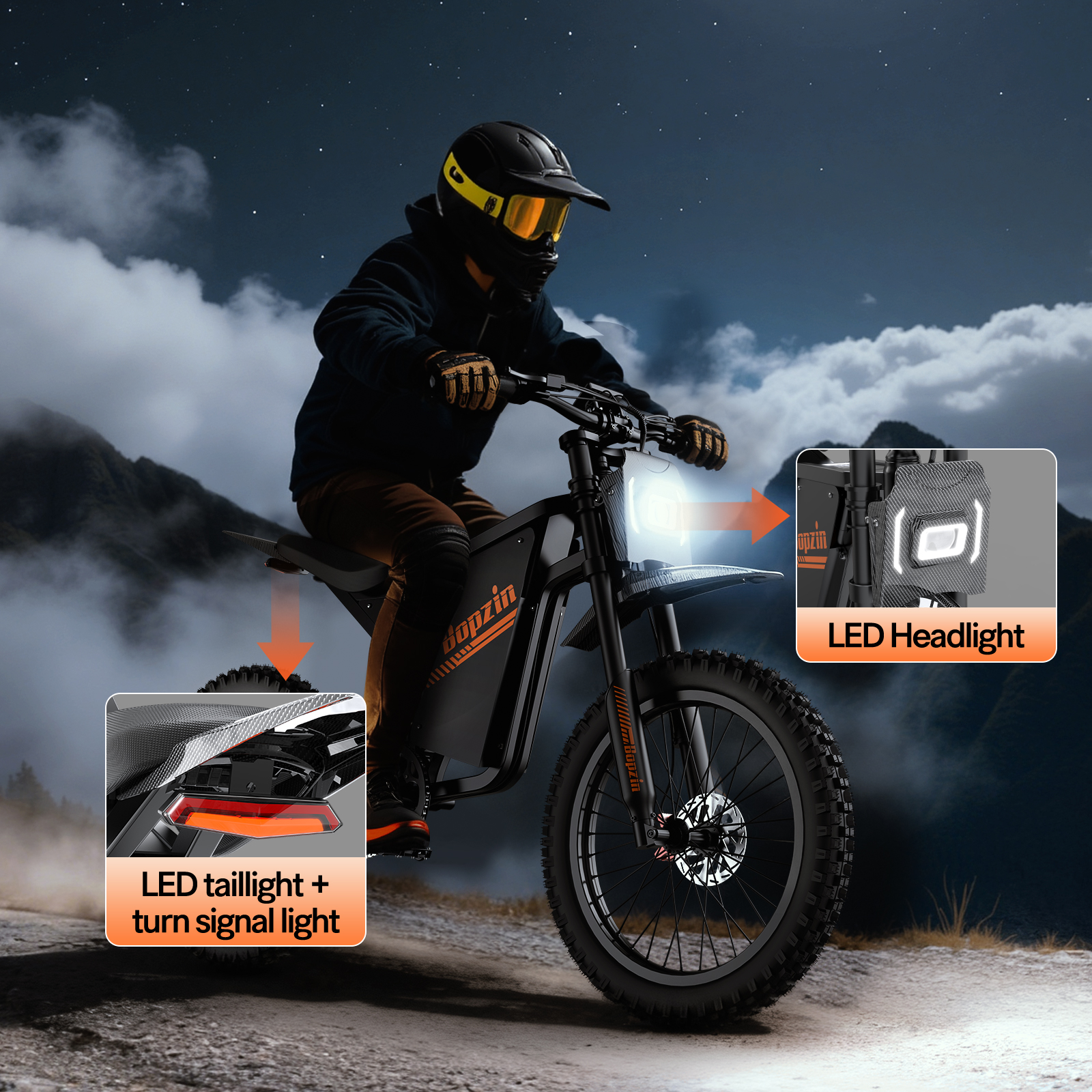

| Lighting System | Front Headlight / Rear Taillight / Front & Rear Turn Signals |

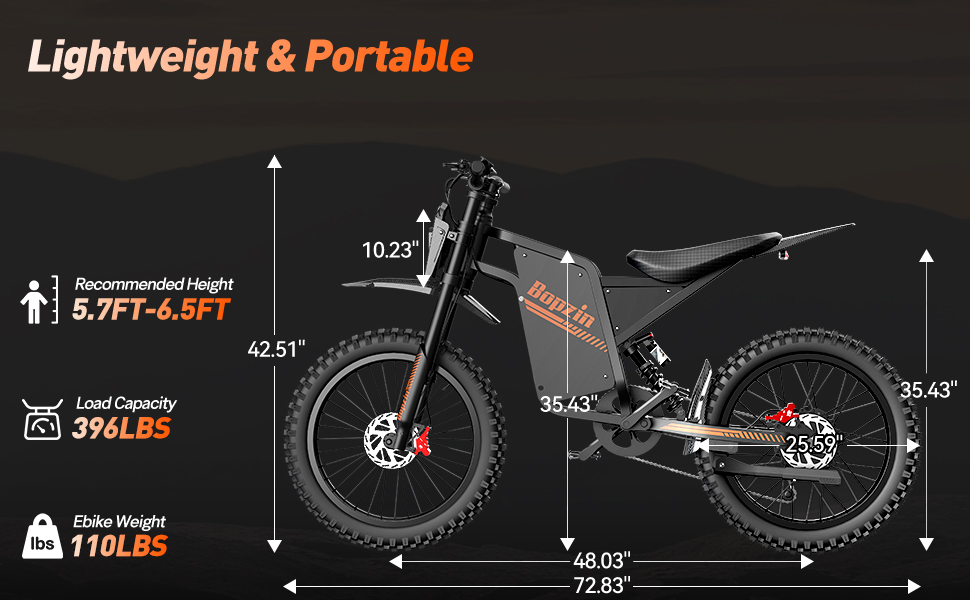

| Handlebar Height (from ground) | Approx. 105 cm |
| Seat Height (from ground) | Approx. 85 cm (adjustable range not specified) |
| Front Basket | Not Included |
| Rear Seat | Not Included |
| Controller | Lithium-specific Sine Wave Controller |
| Operating Voltage | 60V |
| Controller Current Limit | 45A |
| Standard Charger | Lithium-specific Charger, Output 67.2V 5A |
What's in the box?
Electric Bike, Charger, Mudguard, Installation Tools, User Manual
