Features:

Condition: 100% new

Color: Black & Silver

Material: Plastic & Metal

Size: As pictures show

Placement on vehicle: Left or Right

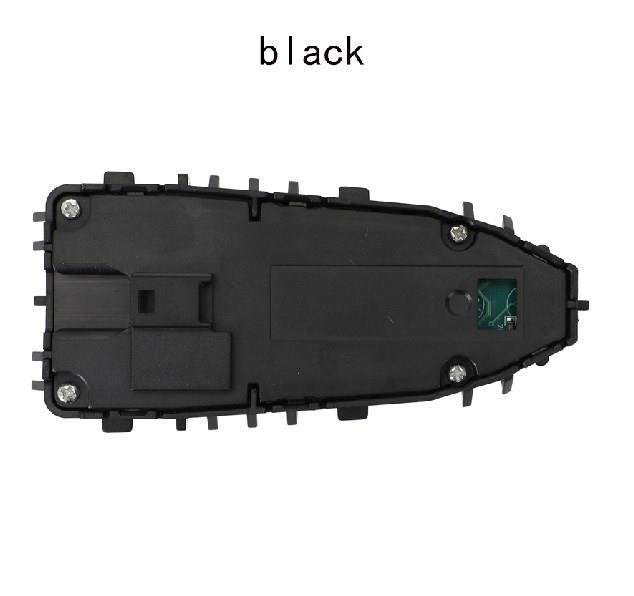

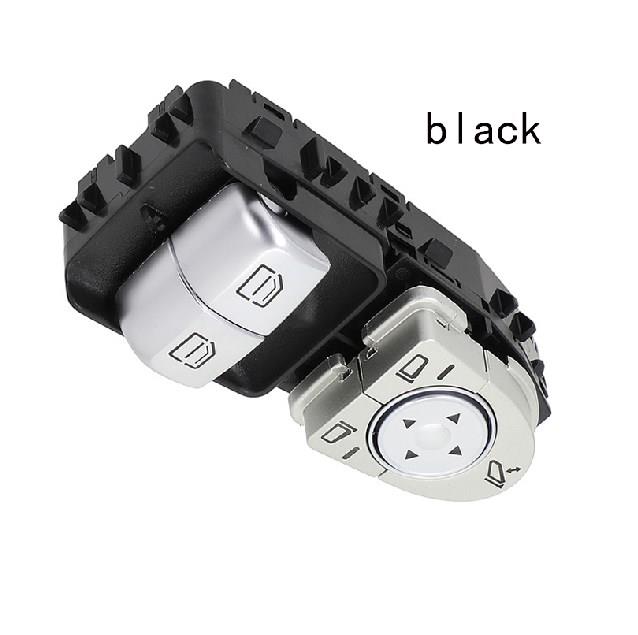

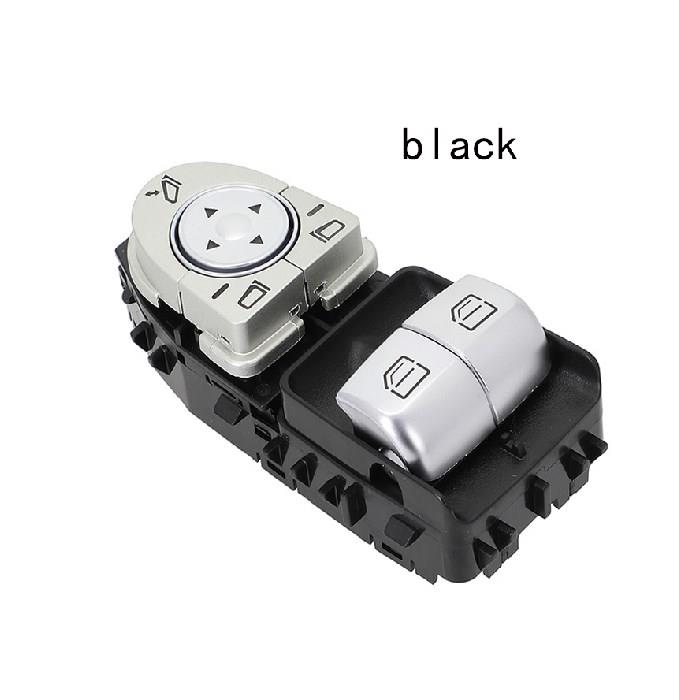

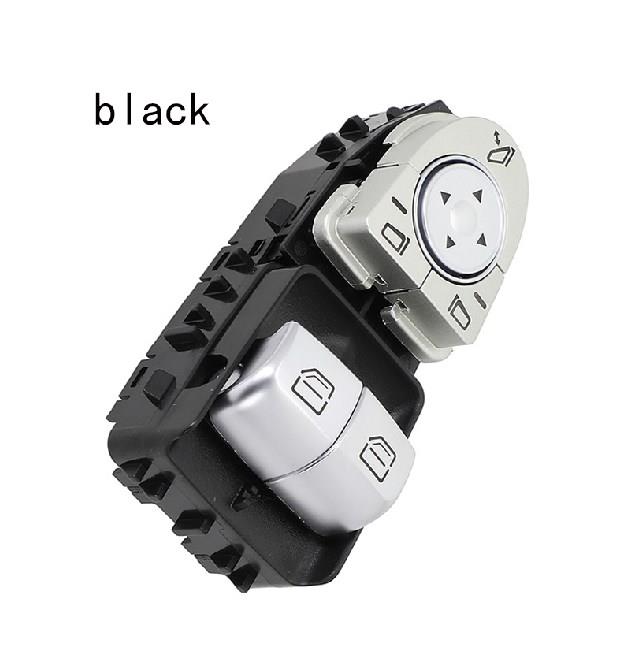

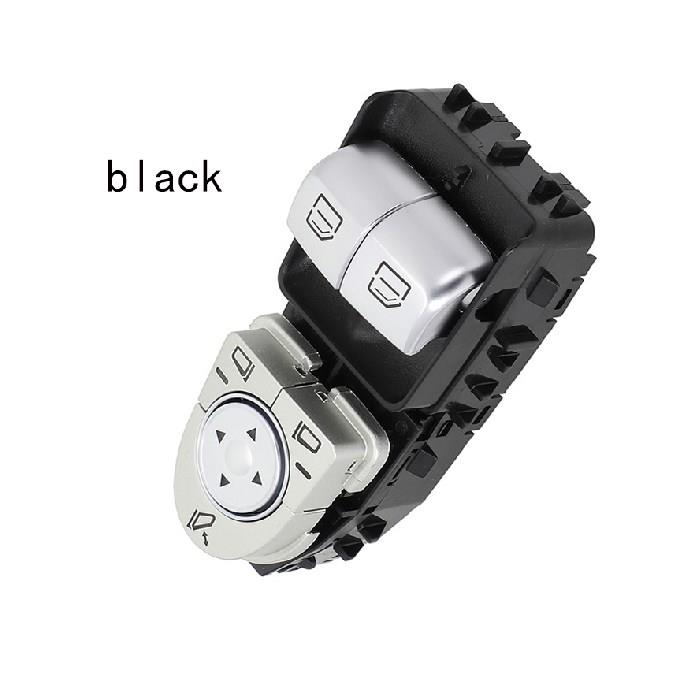

Item included: Power Window Control Lifter switch

In the case that the lifter bracket is in good condition, the motor is broken and the motor can be replaced.  There are 4 (or 3) fixed screws on the lifter to be screwed off, install the new motor in the original position and tighten the screws!

Because some models of the motor are reverse mounted, if you press the switch to rise and the glass is lowered, you can exchange the two wires!



When the window lifter motor is bad glass will appear in the following situations:

1. Raise the window when you turn on the lift switch window does not have any response.

2.The motor feels powerless when raising the windows, and even can't raise and lower the windows.

3.It will cause the glass to tilt to one end in the process of raising the window, and the window with anti-clamping may be automatically lowered when it rises to a position.


Common Faults:

1. All power windows can not be raised and lowered

Possible causes of malfunction: disconnection of the main control switch power line (blown fuse, poor contact of the window relay contact, wire disconnection, poor contact of the plug), poor main control switch hitch, etc.

Need to do: Check whether the main control switch power line is disconnected; check whether the main control switch iron is good; check whether the lock switch can conduct.

2. Part of the power windows can not be raised and lowered

Possible causes: window glass is stuck, window motor damage, window control switch failure, circuit breakage or poor contact with the plug, poor contact with the lock switch (by the lock switch control of the power windows can not be raised and lowered), and so on.

Need to do: Check whether the window glass is moving too much resistance; check whether the window motor can operate normally; check whether the window control switch can be turned on and off normally; check whether the related wiring is disconnected or the plug is in good contact; check whether the lock switch is in bad contact.
