Top mounts: Pillow ball top mount with camber plate
Adjustable camber plate: Only front
Damping: 24 levels rebound damping adjustable
Spring rate Front: 7 kg/mm (392 lbs/in)
Spring rate Rear: 7 kg/mm (392 lbs/in)
Spring length Front: 200mm
Spring length Rear: 160mm
Adjustable height: lowering 1-3 inch
Coilover overall length Front: 345mm-465mm
Coilover overall length Rear: 385mm-420mm
Shock type: Twin tube
Spring preload: 7-10 mm
Color: Golden
Package included

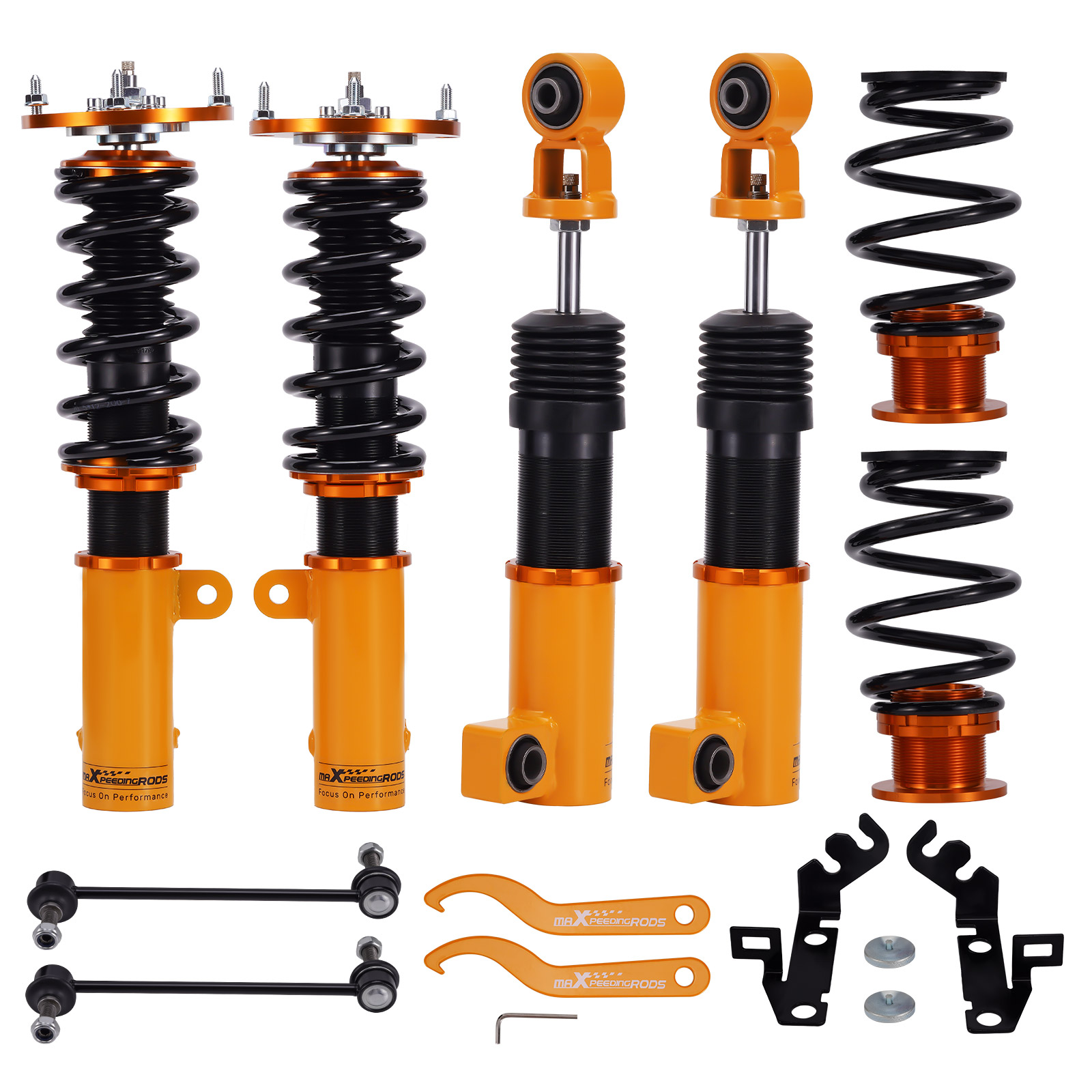

2 piece front + 2 pieces rear + 2 sway bar end links + 2 spanners + hardwares as pictures show
Dimension
Size: 63*51*21 cm
Weight: 24.38 kg
Feature
* Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
* A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
* Twin-Tube structure allows sufficient stroke within the shock absorber.
* Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
* Separate height adjustment does not affect damper stroke.
* Height can be adjusted with coilovers installed on the vehicle.
* High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
* Height Adjustment tools included.
* Camber plate top mounts help to eliminate the need for a separate camber kit.
* Pillow ball top mount - It improves the steering feel and response.
* Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
* Full rebuildable.
Notice
* Professional installation & alignment suggested.
* Please check our store for other auto parts you may be interested in.
