24 Ways Damper Adjustment Coilover For Honda Civic FD6 FA4 Acura CSX 2006-2011

Introduction

MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

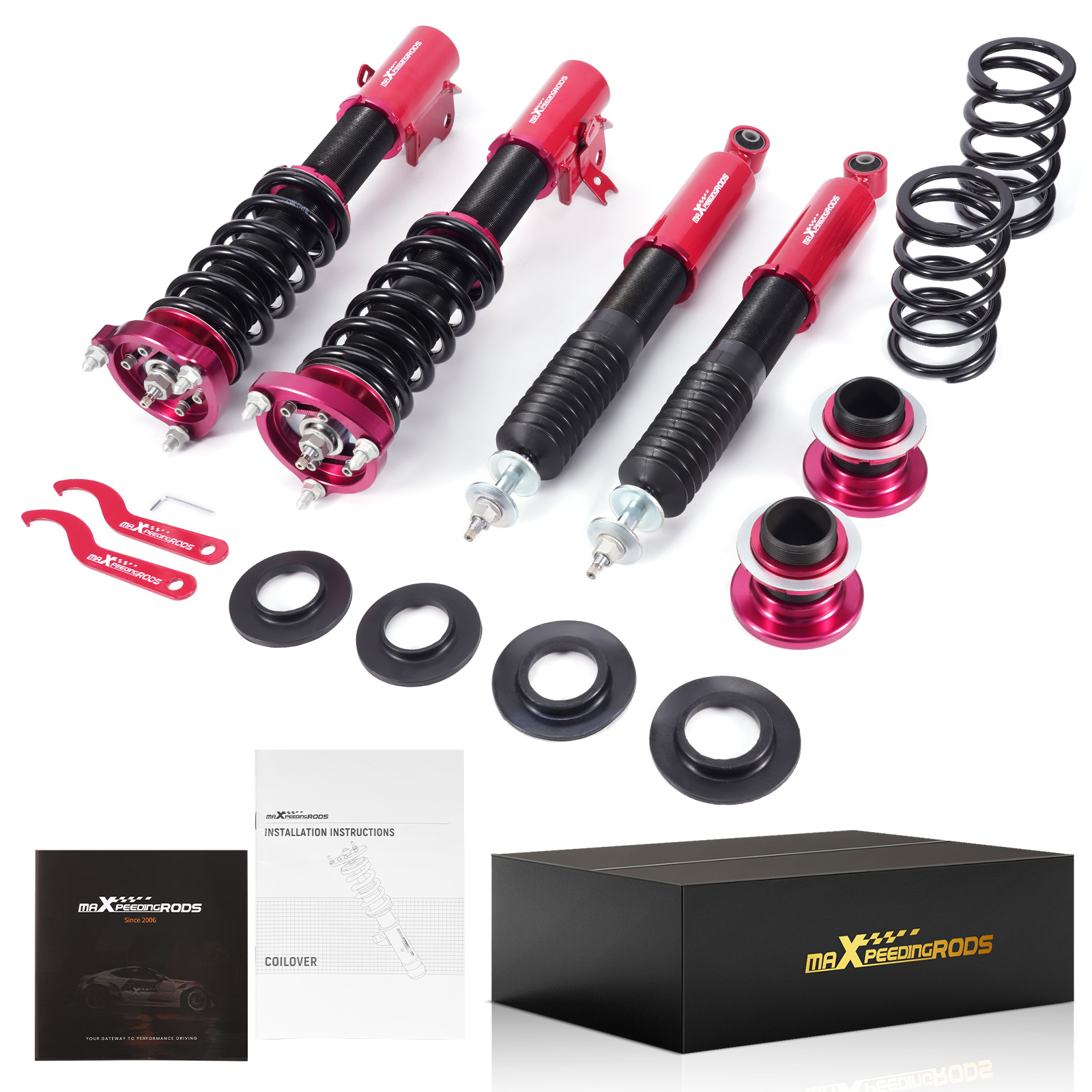

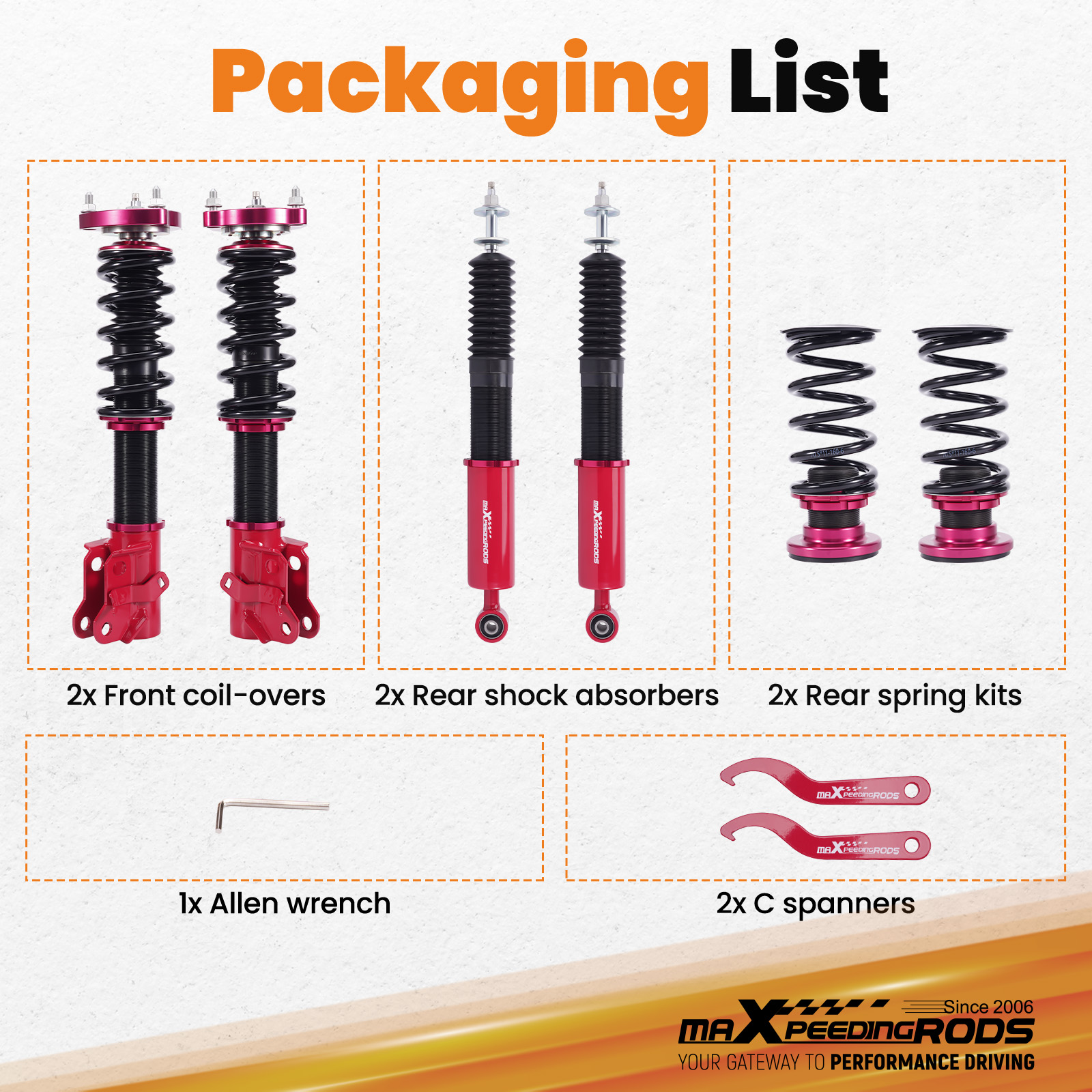

Package included

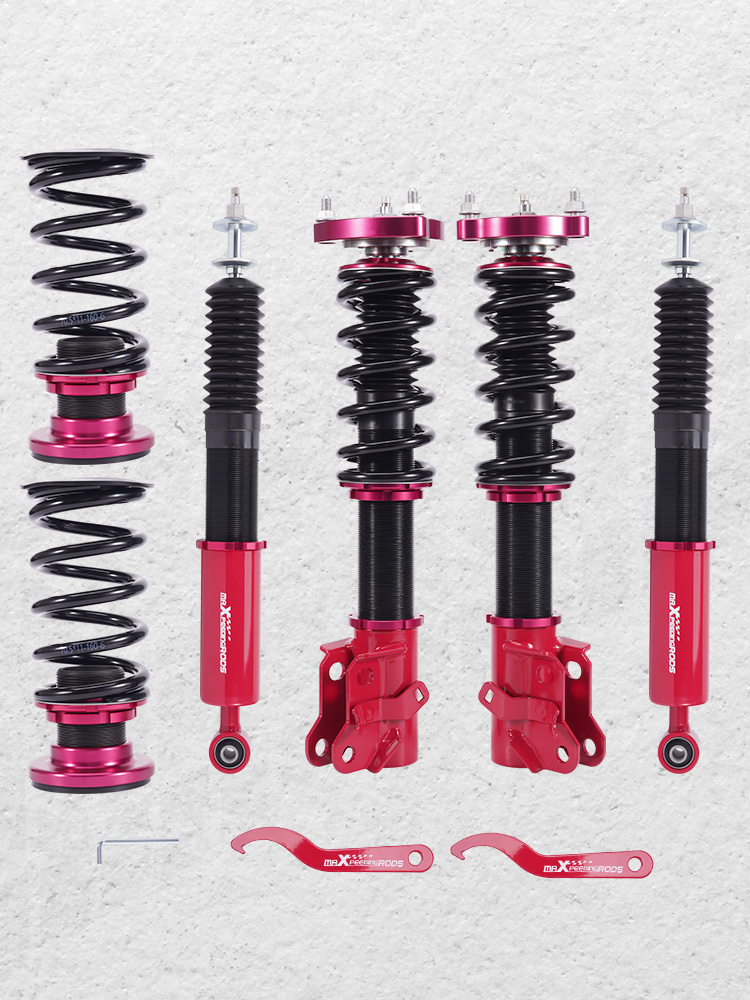

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of wrenches for height adjustment

Application

For HONDA CIVIC & Si VIII 2-door coupe (FG1/FG2) 2006-2011
For HONDA CIVIC & Si VIII 4-door sedan (FA1/FA2/FA3/FA4/FA5, North America only) 2006-2011
For HONDA CIVIC & Si VIII 4-door sedan (FD1/FD2/FD3/FD4/FD6/FD7, International model) 2006-2011
For Acura CSX 4-door sedan（Canada）2006-2011

Note:

Not for the Mugen trim level.
The coilovers kit will "Lower your car" and does not keep to the original ride height.

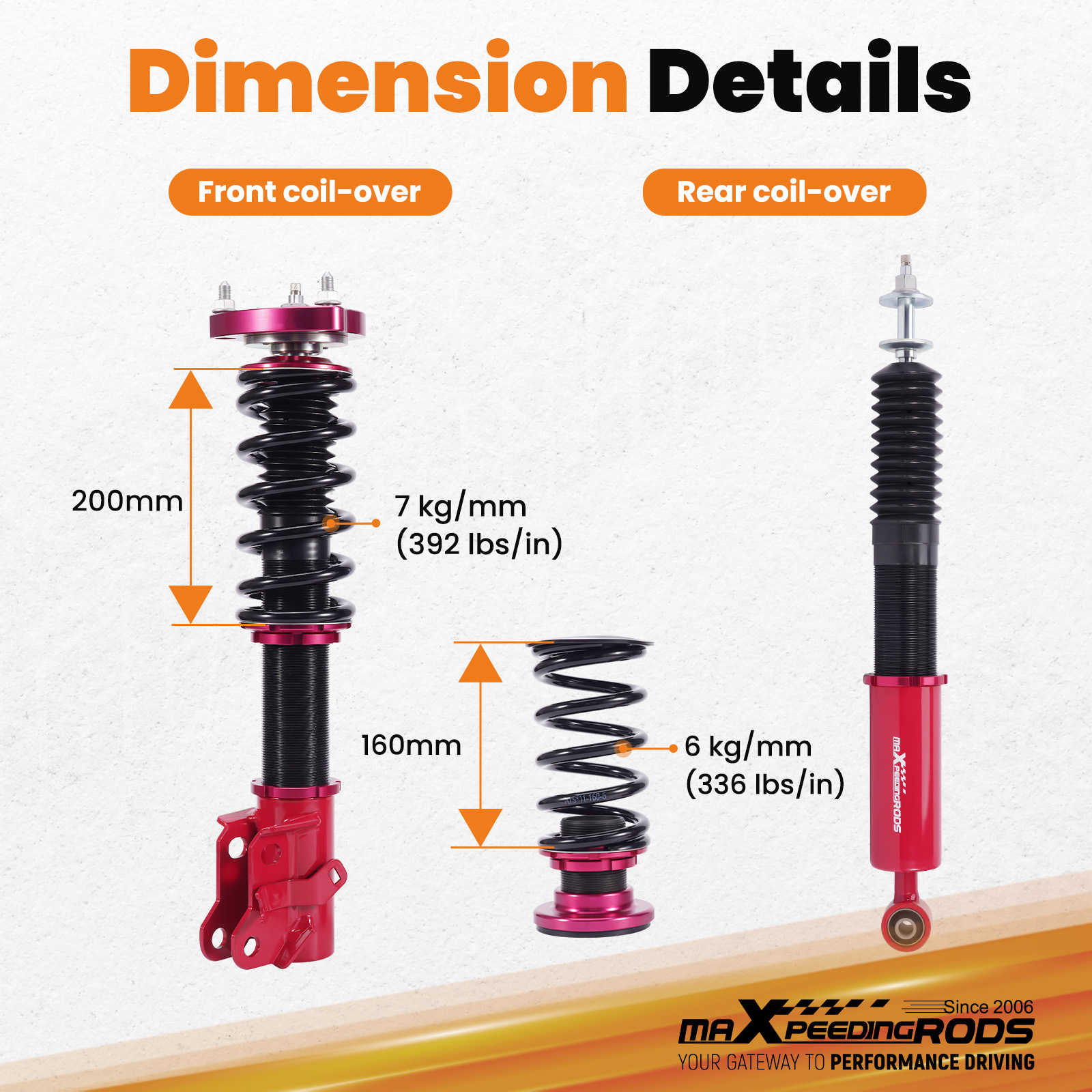

Standard Technical Specifications

Damping adjustable	Available, 24 levels of rebound damping force
Shock type	Twin tube
Spring rate Front	7 kg/mm(392 lbs/in)
Spring rate Rear	6 kg/mm (336 lbs/in)
Front spring inner diameter	70.5mm

Rear spring inner diameter	70.5mm
Spring length Front	200mm
Spring length Rear	160mm
Spring Preload advised	7-10 mm
Height adjustable	Yes, lowering 1-3 inches depending on the vehicle models

Feature

Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
A 24 rebound dampening adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Twin-Tube structure allows sufficient stroke within the shock absorber.
Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
Separate height adjustment does not affect damper stroke.
Height can be adjusted with coilovers installed on the vehicle.

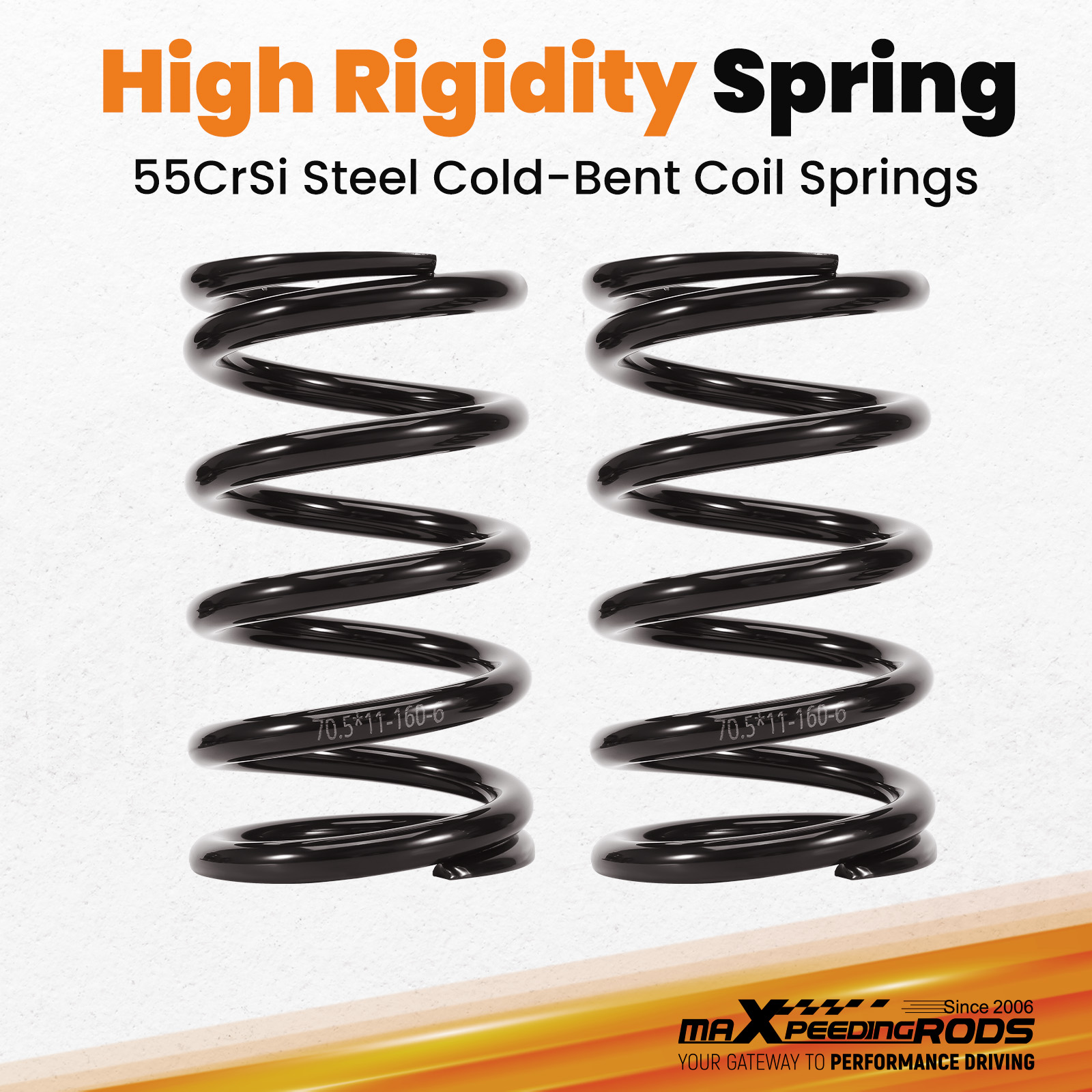

High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
Height Adjustment tools included.

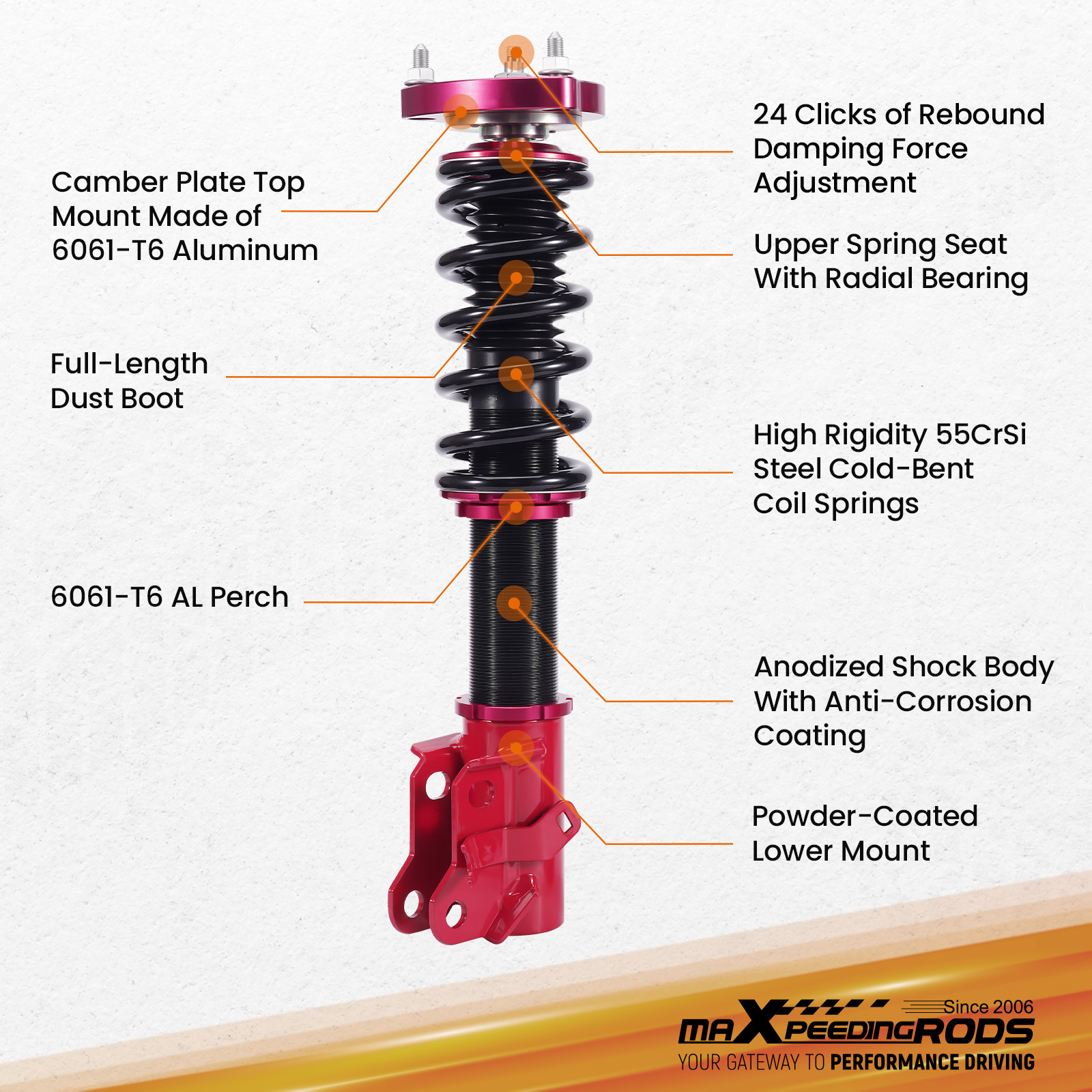

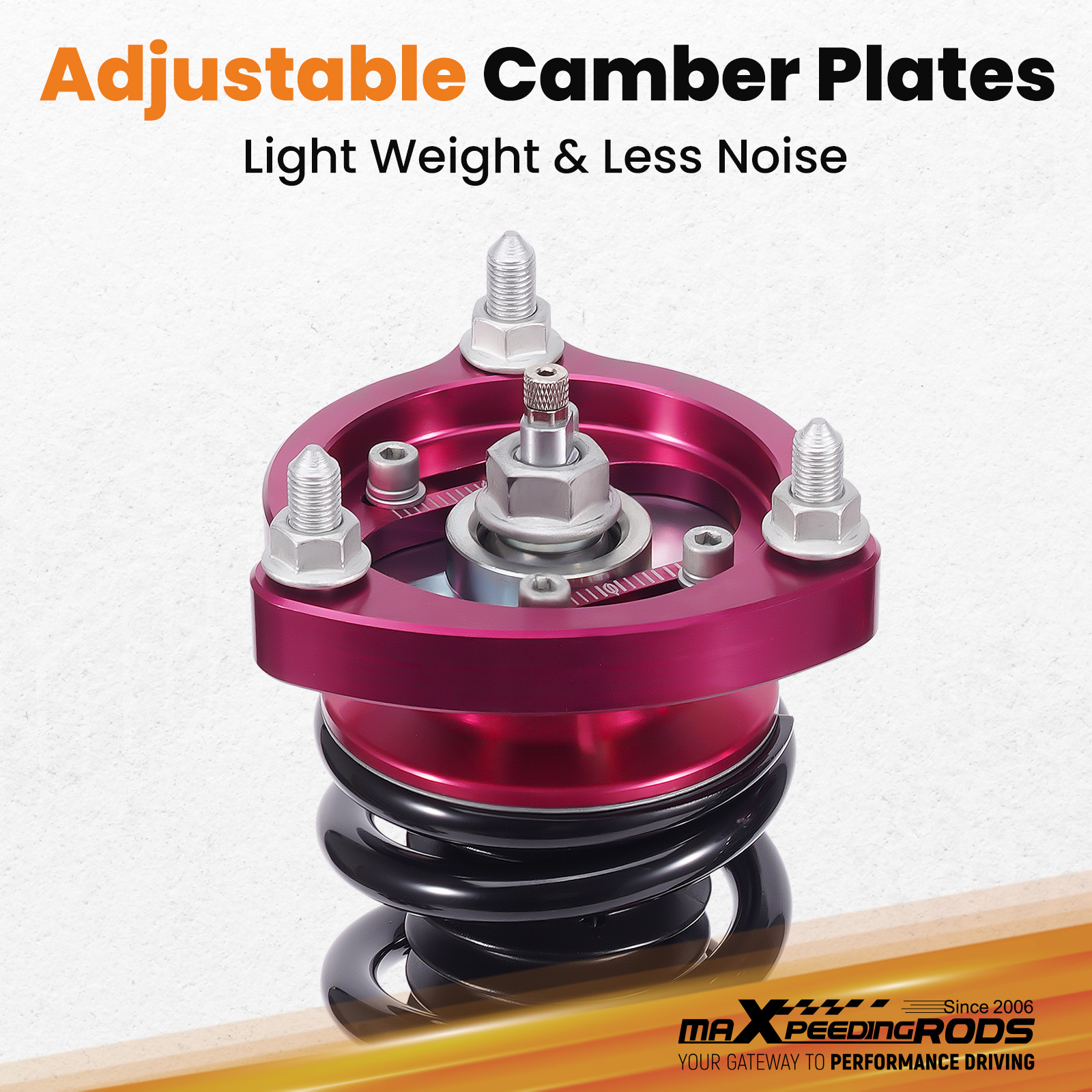

Camber plate top mounts help to eliminate the need for a separate camber kit.（Front Only)
Pillow ball top mount - It improves the steering feel and response.
Full rebuildable.
