Coilover Suspension Kit for Honda Civic Si VIII FG1 FG2 Coupe 06-11 Adj. Height

Introduction

MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.

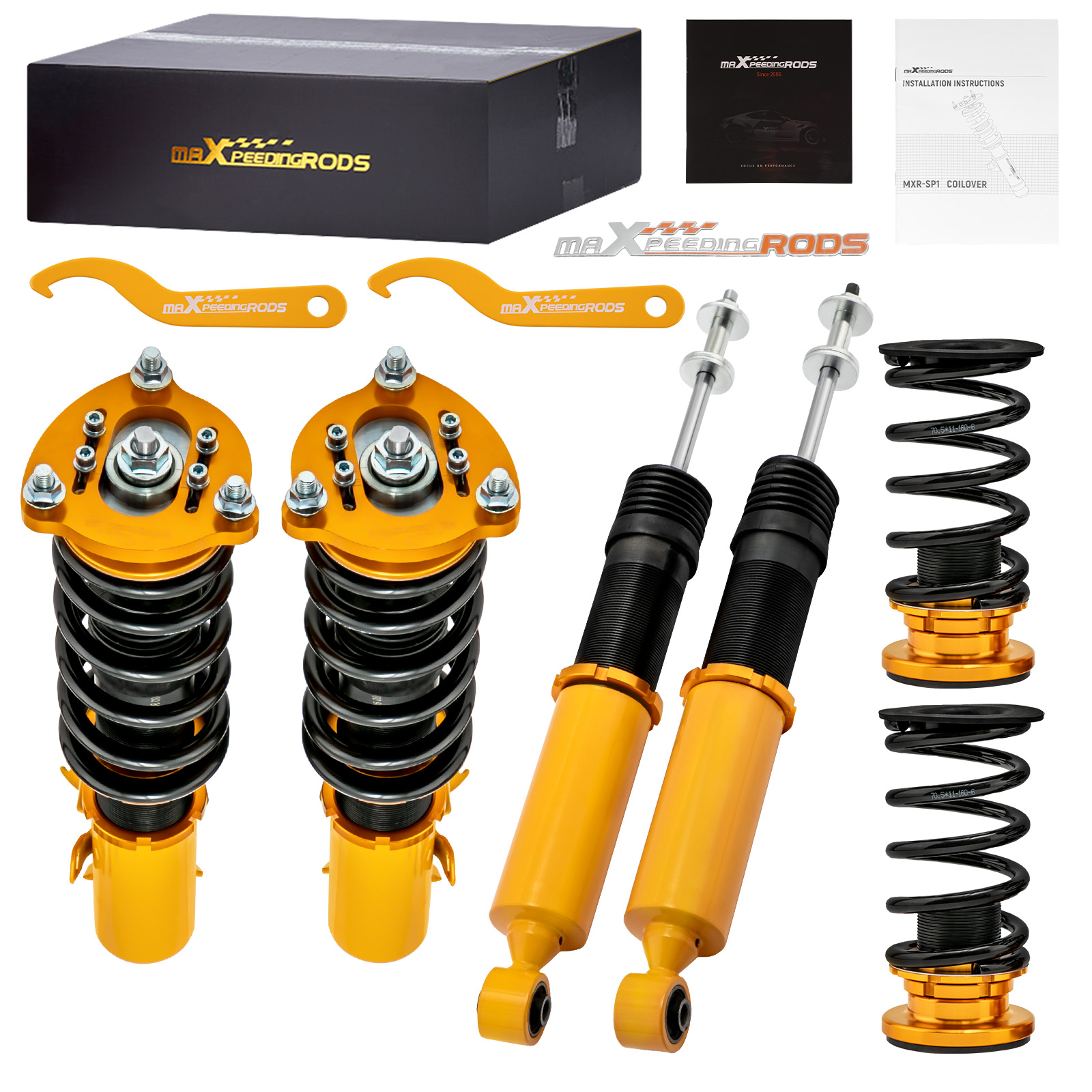

Package included

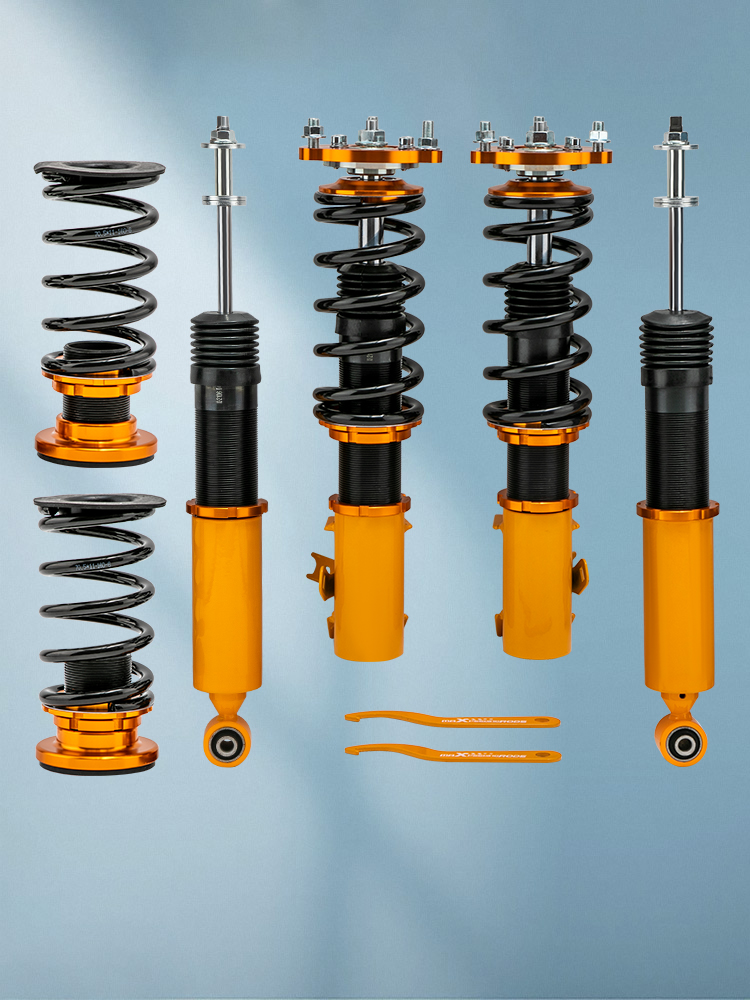

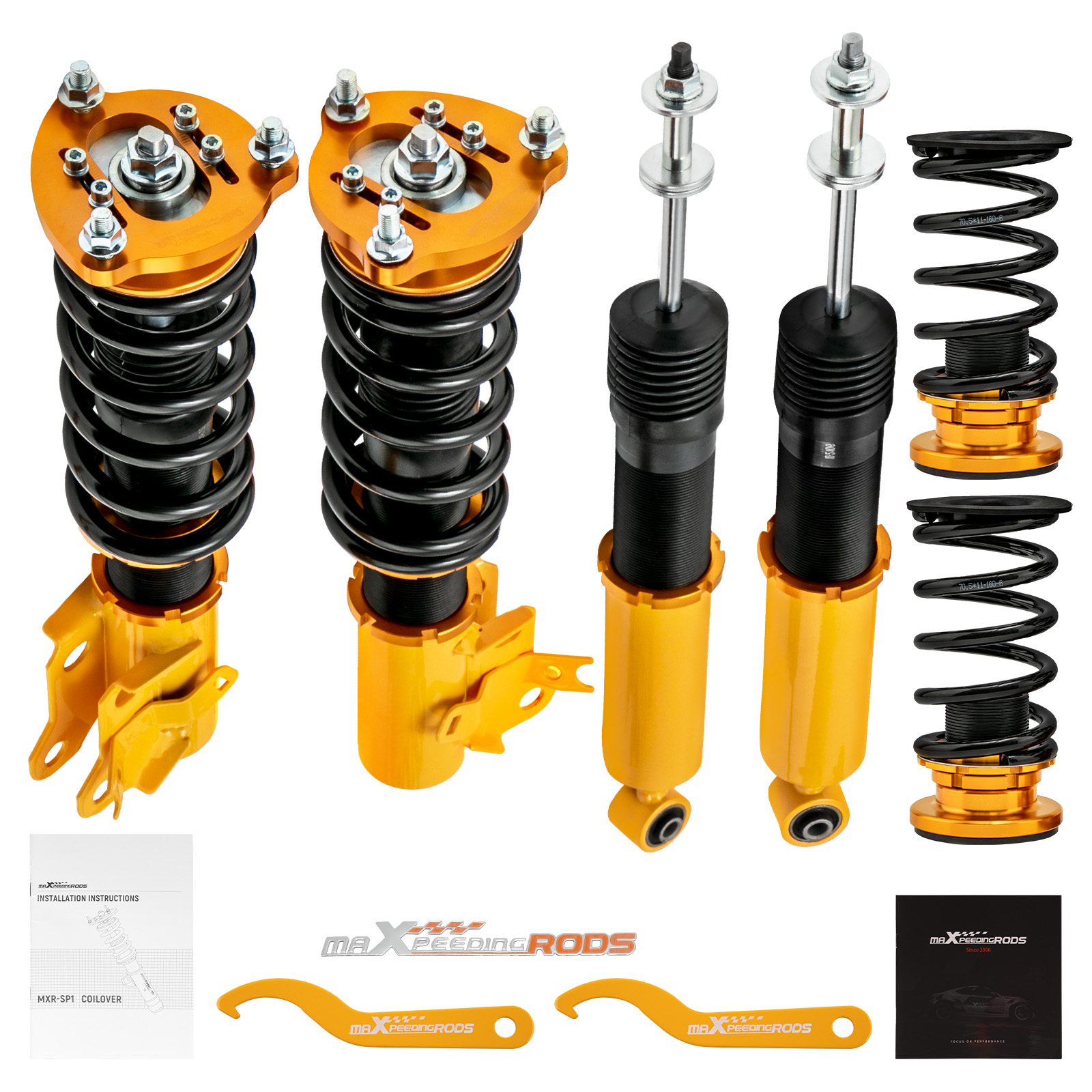

Complete coilovers 2 front and 2 rear
A pair wrench for height adjustment.

Application

For HONDA CIVIC & Si VIII 2-door coupe (FG1/FG2) 2006-2011
For HONDA CIVIC & Si VIII 4-door sedan (FA1/FA2/FA3/FA4/FA5, North America only) 2006-2011
For HONDA CIVIC & Si VIII 4-door sedan (FD1/FD2/FD3/FD4/FD6/FD7, International model) 2006-2011
For Acura CSX 4-door sedan（Canada）2006-2011

Note:

Not for the Mugen trim level.
The coilovers kit will "Lower your car" and does not keep to the original ride height.

Standard Technical Specifications

Top mounts	Pillow ball top mount with camber plate front
Damping adjustable	No adjustable damper force
Spring rate Front	7 kg/mm(392 lbs/in)
Spring rate Rear	6 kg/mm (336 lbs/in)

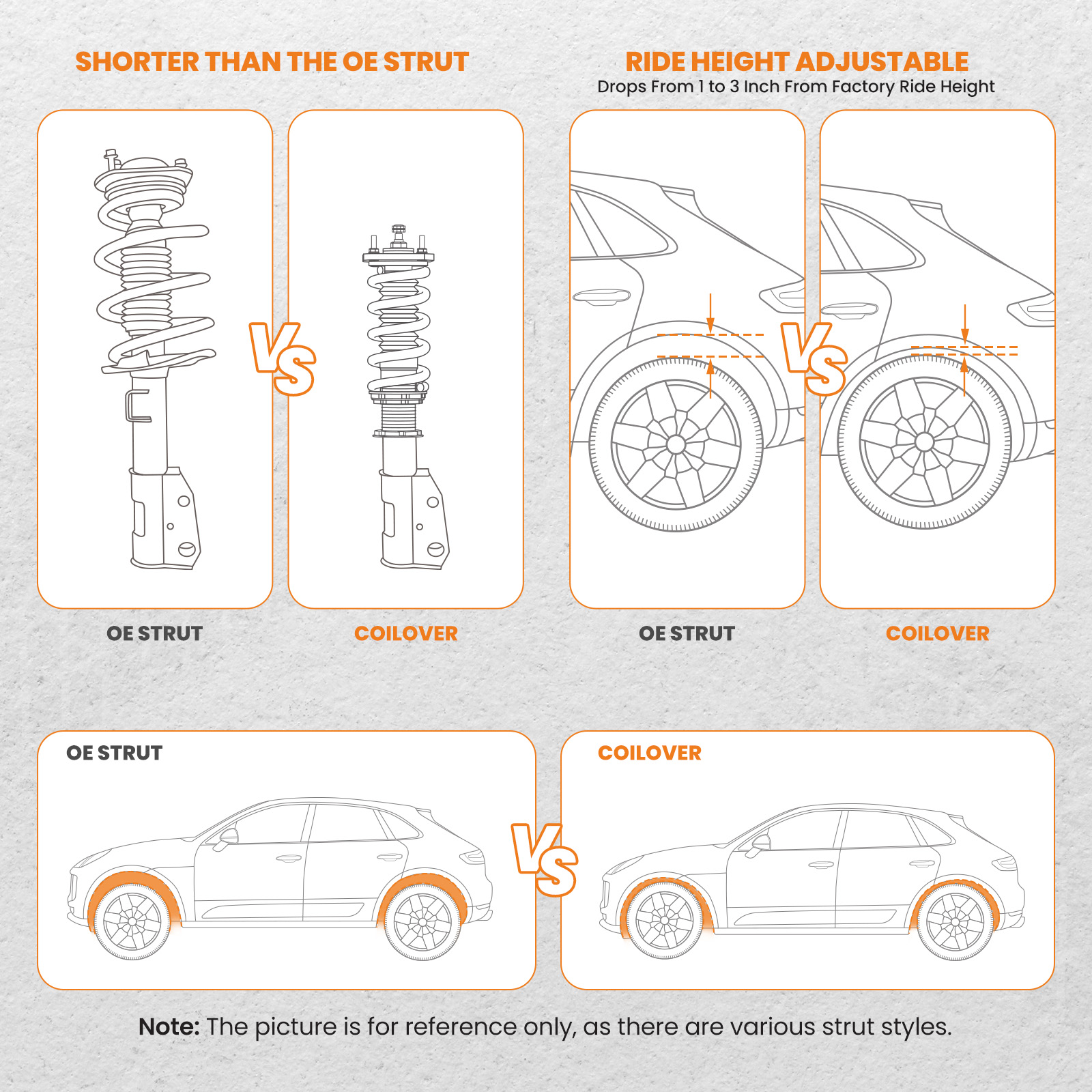

Adjustable Height	Yes lowering 1" to 3"
Spring Preload advised	7-10 mm
Shock type	Twin tube

Feature

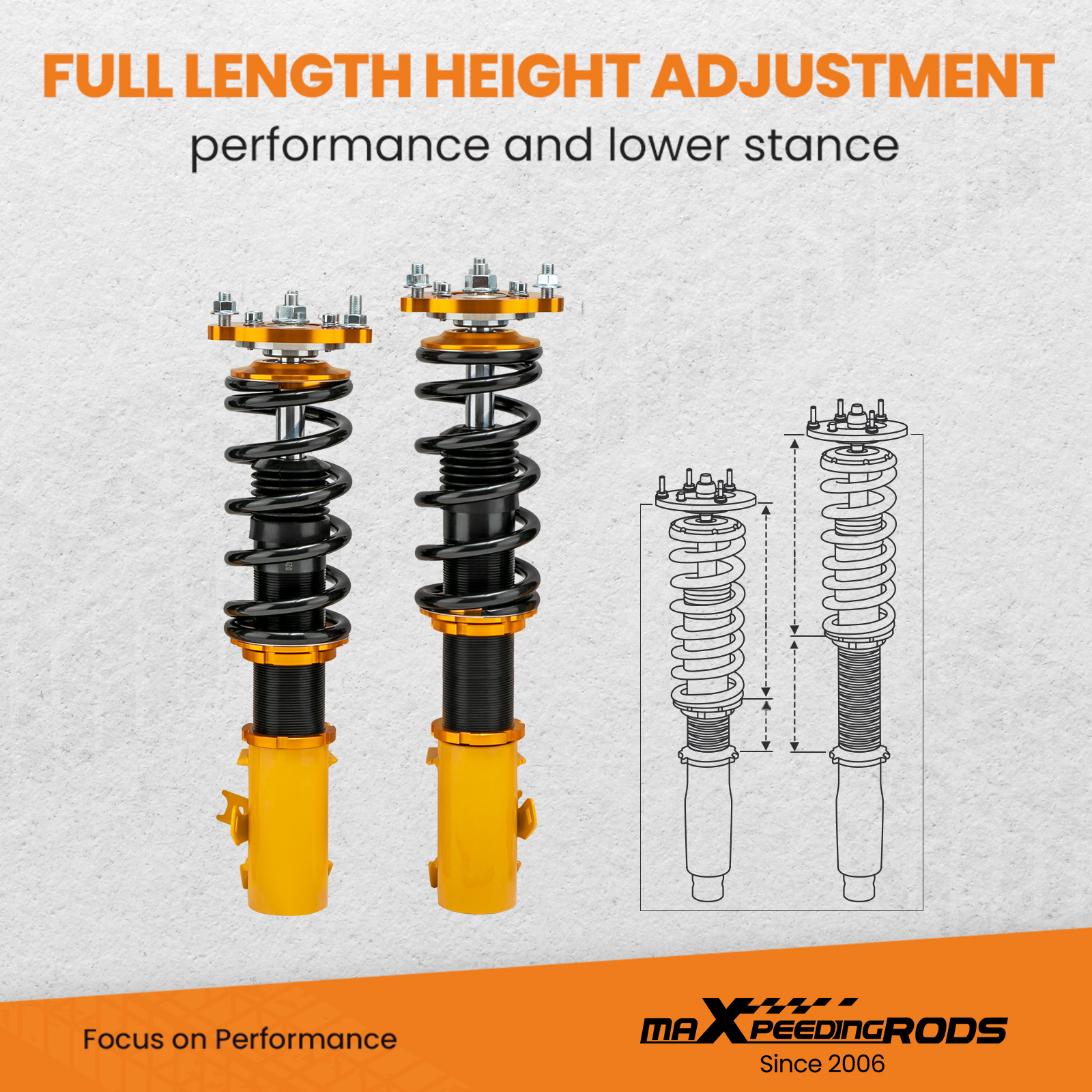

Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
Twin-Tube structure allows sufficient stroke within the shock absorber.
Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
Separate height adjustment does not affect damper stroke.
Height can be adjusted with coilovers installed on the vehicle.
High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
Height Adjustment tools included.

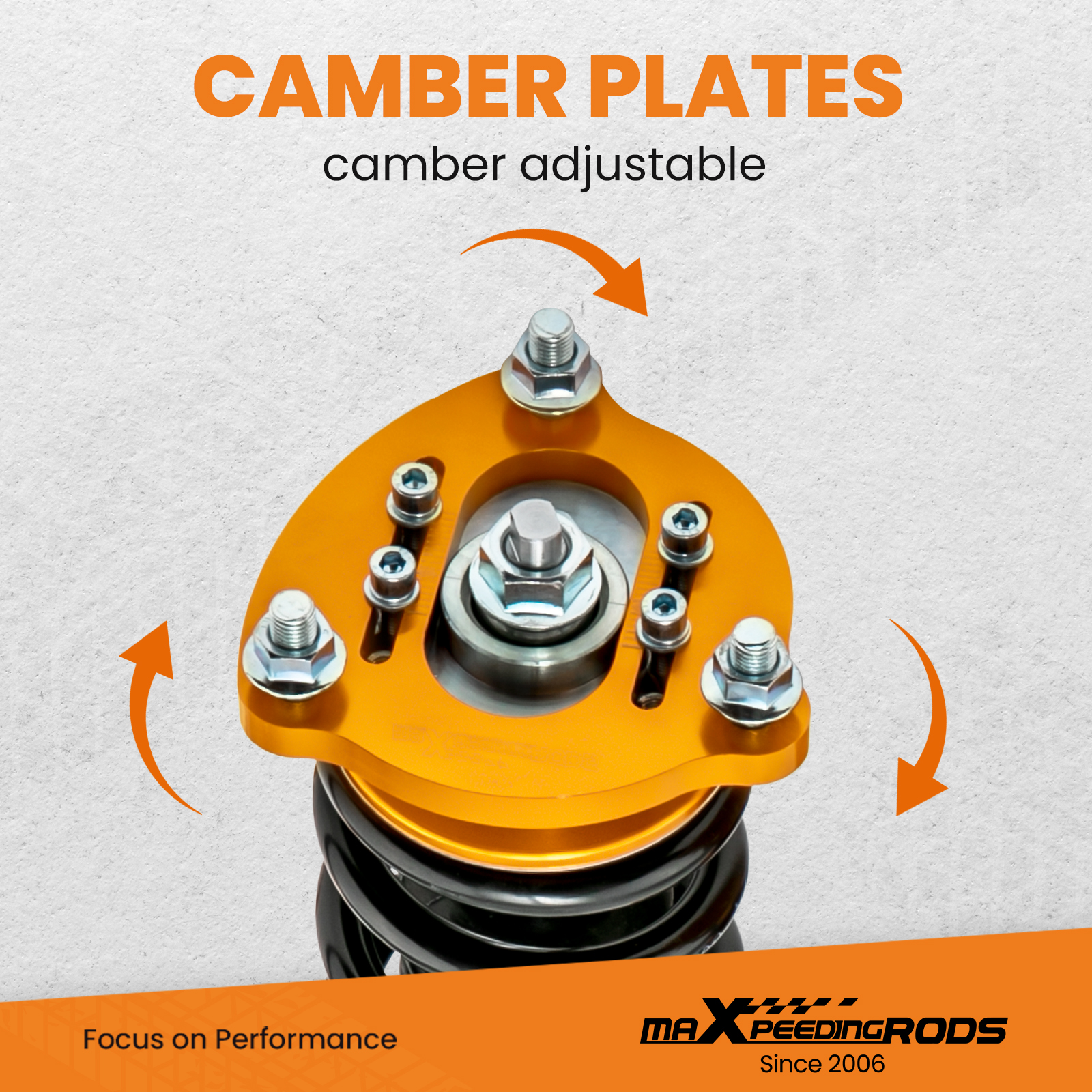

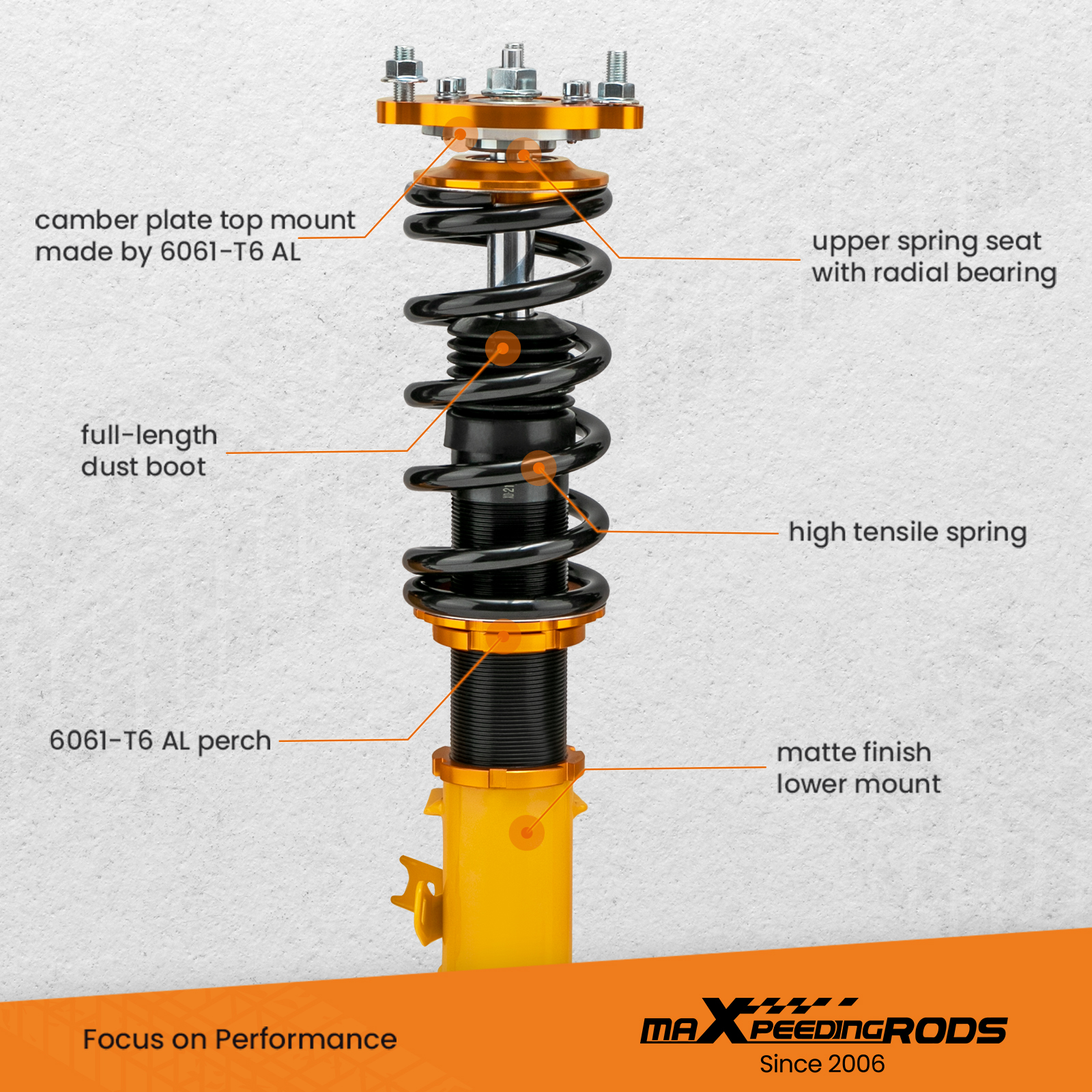

Camber plate top mounts help to eliminate the need for a separate camber kit.（Front Only)

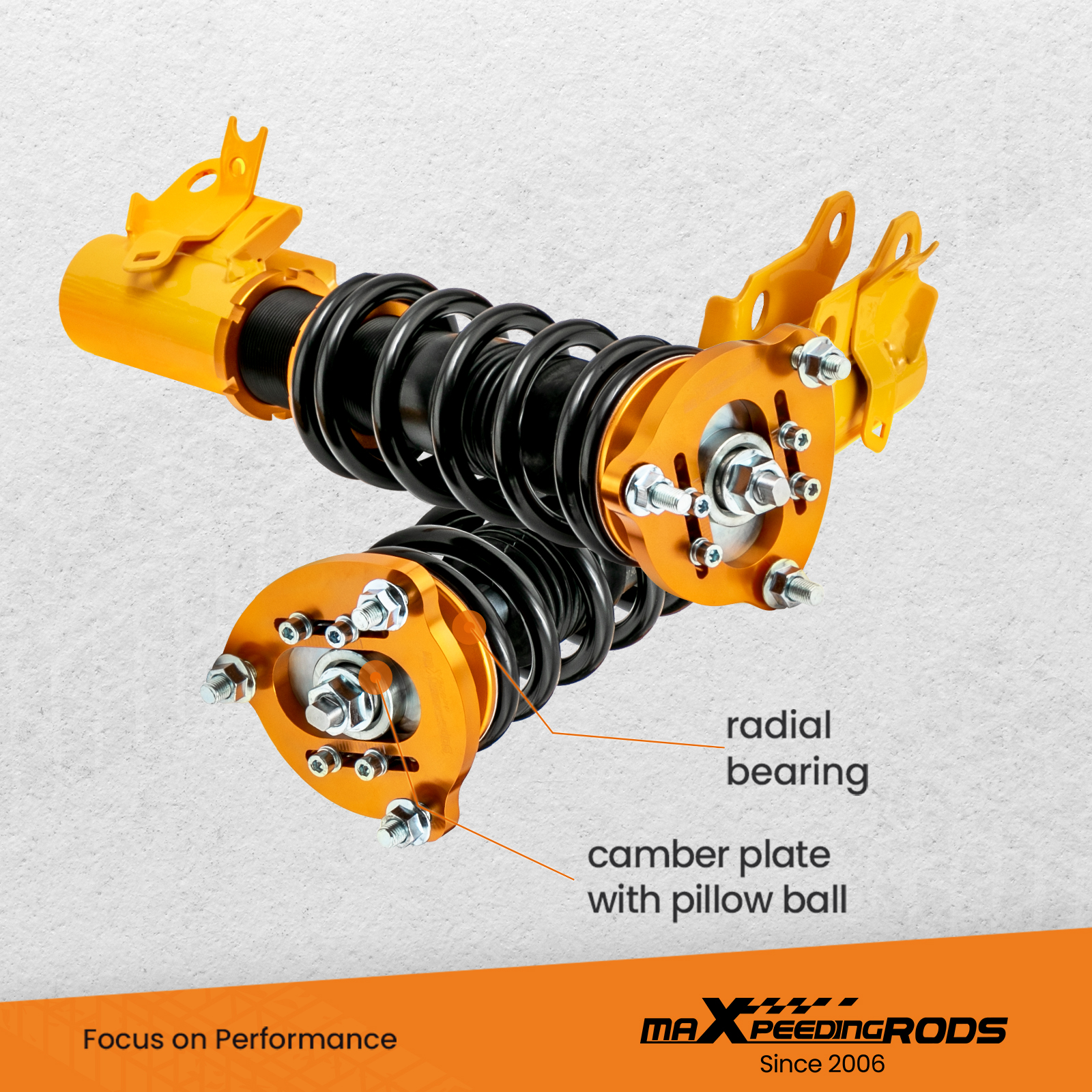

Pillow ball top mount - It improves the steering feel and response.
Full rebuildable.
