Features

1. Enhanced Nitrogen Reservoir Design
 The expanded inner diameter of the nitrogen cylinder optimizes gas chamber volume and thermal dissipation surface area, ensuring stable damping performance under prolonged high-intensity operation.

2. Dual-Mode Adjustability
 A precision-engineered 10-stage rebound and compression damping adjustment mechanism provides extended parameter adaptability, balancing terrain-specific stiffness control with ride comfort optimization.

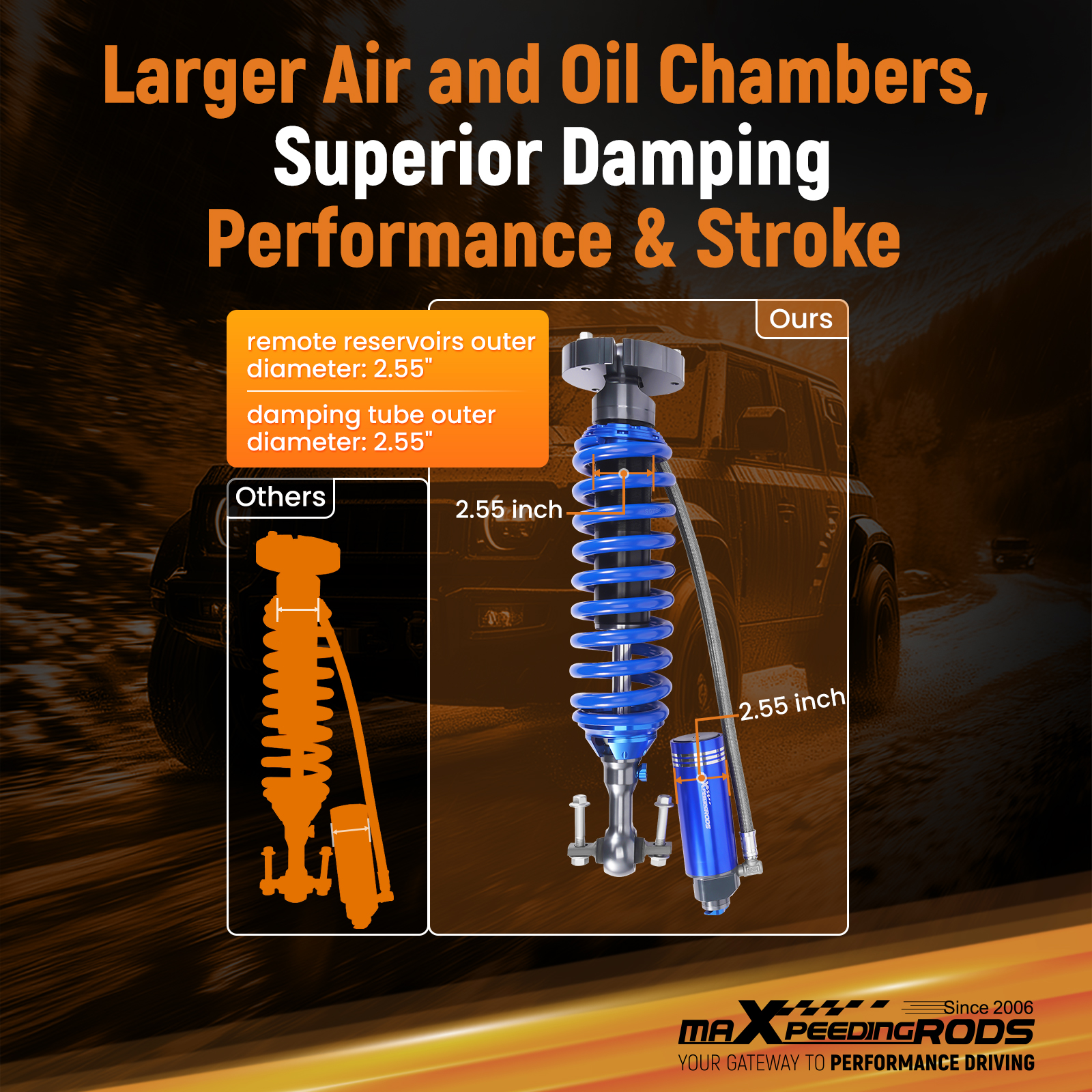

3. Oversized Damping Architecture
 The enlarged inner diameter of the damping tube enhances fluid dynamics efficiency, while the reinforced rebound disc configuration improves vibration absorption capacity for superior impact management.

4. Advanced Surface Engineering
 High-frequency quenching and hard chrome plating processes on the piston rod surface deliver enhanced wear resistance. T6 heat-treated 6063 forged aluminum maintains structural integrity while achieving weight reduction.

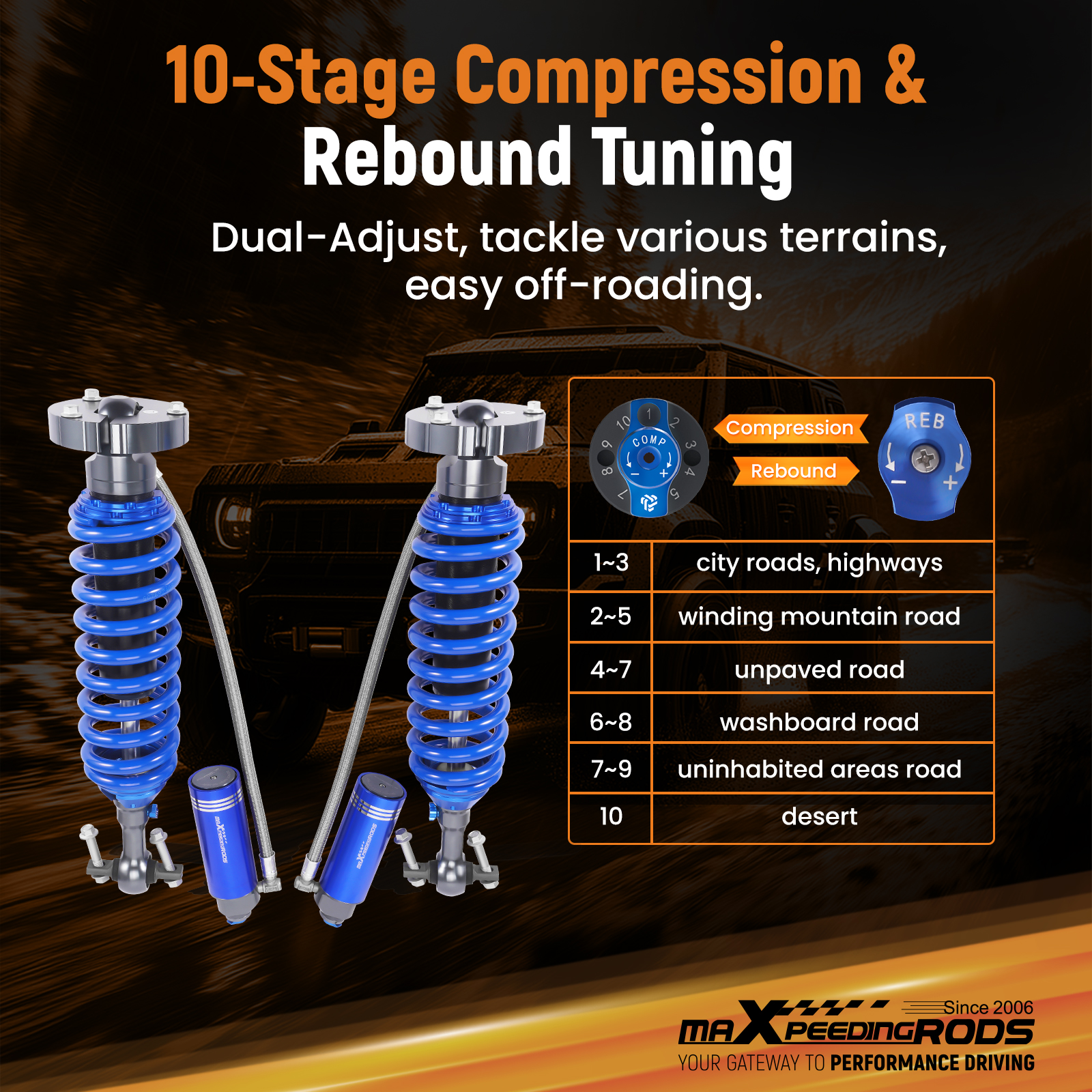

5. Dual Compression/Rebound Damping Adjustment
 The X3 Series features synchronized compression and rebound damping tuning capabilities, with terrain-specific recommendations provided for optimal setting combinations across diverse operating conditions (e.g., high-speed gravel, rock crawling, paved-road cruising).

Application

For F150 4WD 2015-2020

Specification

- Height adjustable: lift 0-2 inches
- Body Outer Diameter (mm)：65*250
- Body Material:45# steel
- Top Mount:OEM
- Bottom Mount:BAR PIN
- Compressed Length (mm):134
- Extended Length (mm):134
- Reservoir Outer Dimensions:Φ65×160
- Reservoir Inner Dimensions:Φ57×160
- Reservoir Type:remote
- Shaft Size (mm):260
- Travel (mm): 134
- Type: shock

Package included

Front shocks*2
Instructions*1
