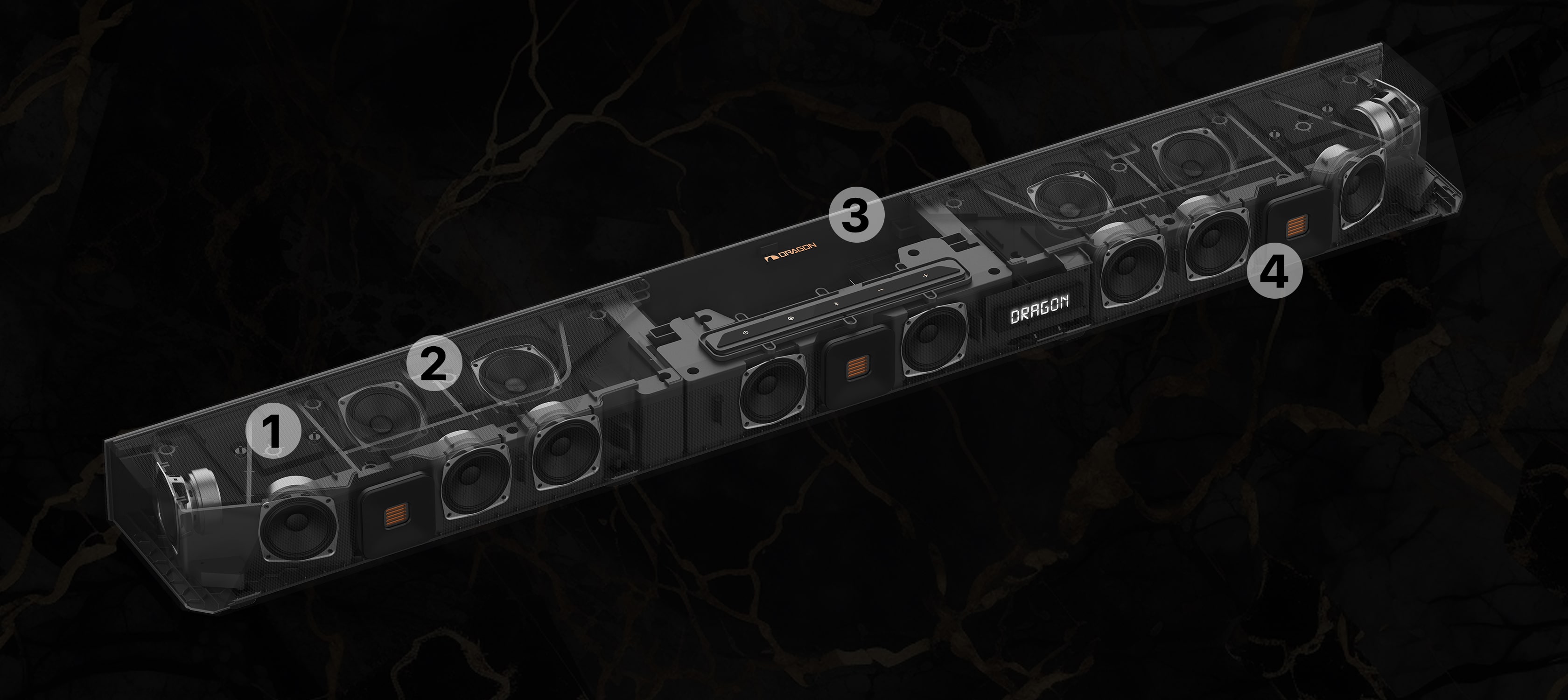

Dedicated Chambers
Each speaker channel boasts a dedicated enclosure for perfect air movement, ensuring impeccable sound separation and audio reproduction. -
Dual-angled Upfiring Speakers
Inclined at 10° and 20° angles, overhead sound objects are rendered precisely for a true perception of a X.X.6 multi-altitude soundscape. -
DTS:X Pro and Dolby Atmos
DTS:X Pro is the commercial version of DTS:X that unlocks extra surround and height details. Feel every dimension of Dolby Atmos with spatially moving objects above and around one’s private space. -
Air Motion Transformer (AMT) Tweeters
The tweeter’s unique pleated diaphragm design enables hyper-accurate frequency response.

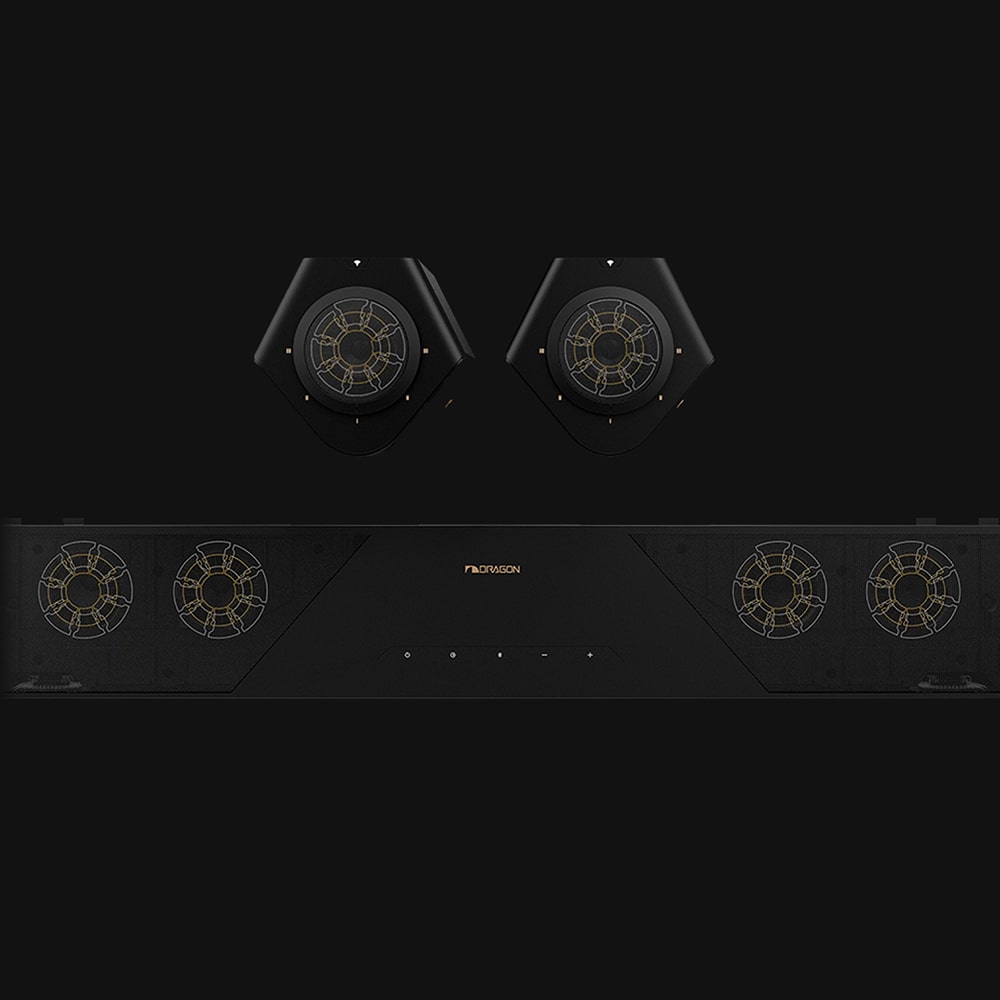

Wireless Quad Subwoofers
Quadrupling the Impact and BASS Felt
Each wireless enclosure packs a pair of 8” subwoofers in a dual-opposing configuration, unlocking maximum kinetic energy in a compact footprint with limitless placement options.

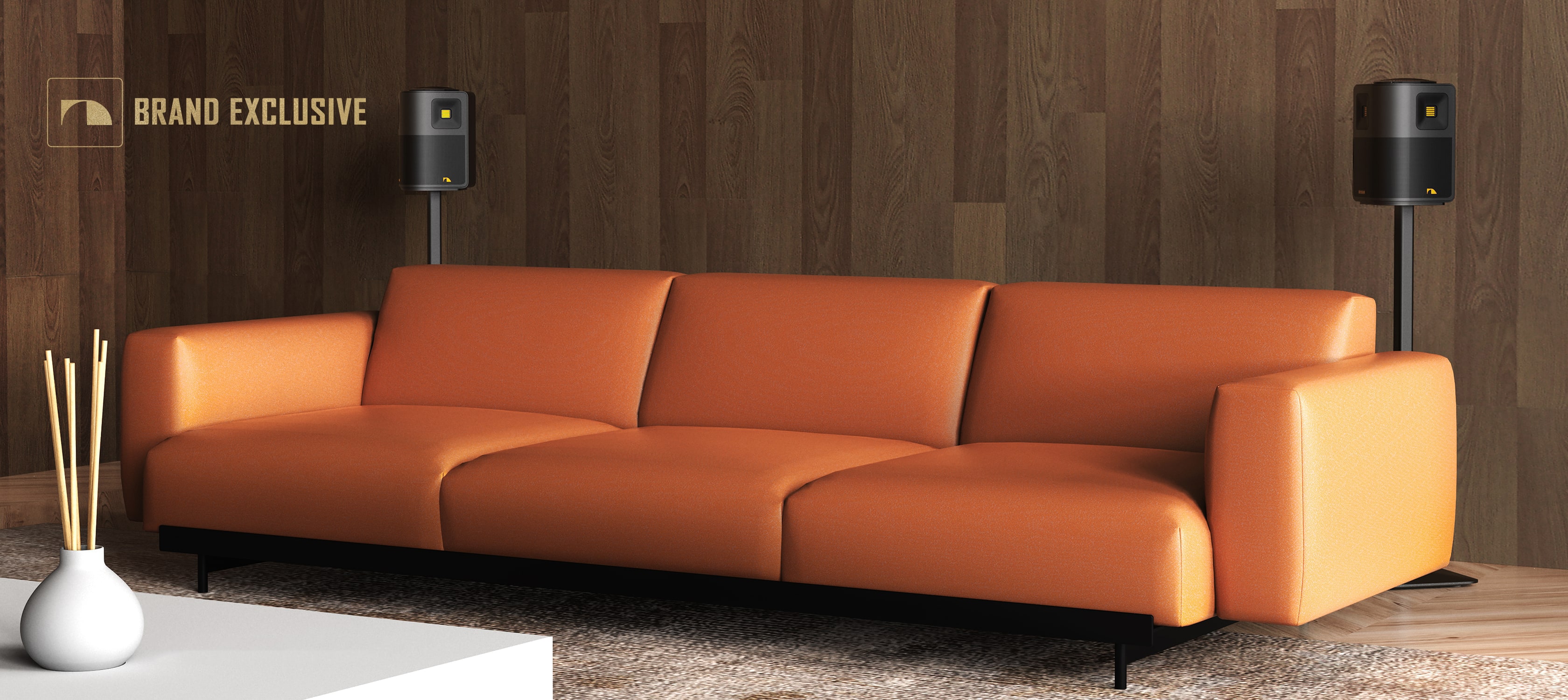

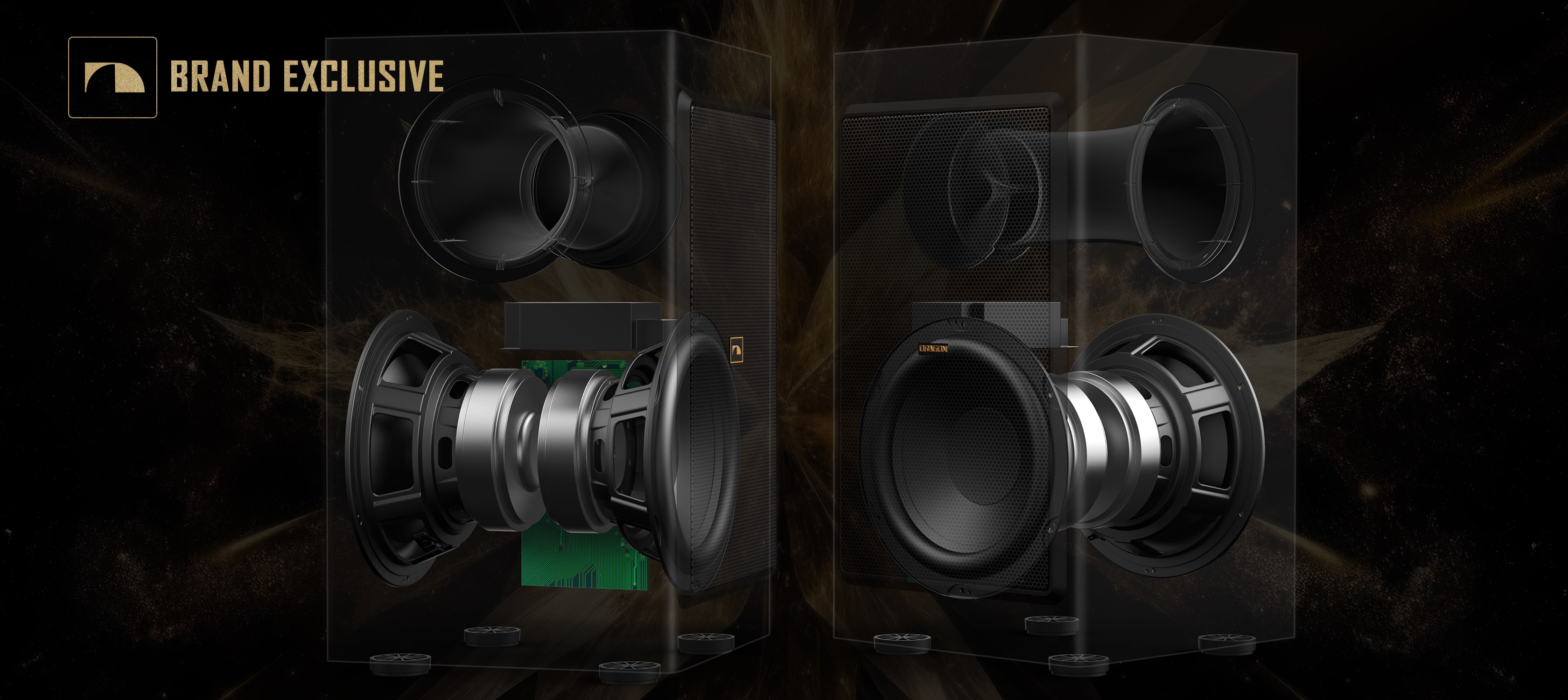

Omni-Motion Reference Surrounds
Unprecedented 3D Realism in Every Direction
Weighing almost 9 pounds each, these wireless surrounds integrate side, rear, and height channels together to deliver a level of multi-directional sound quality that far exceeds any competition.
6 Upfiring Speakers: Extra 3D Surround and Height Details Unlocked
6 x 3" upfiring speakers depict the true X.X.6 perception of a multi-altitude soundscape.
PerfectHeight Mechanism: Most Optimal Height Effects Angle to the Listener
Rotate rear upfiring drivers up to 180° for height effects to be directed to the sweet spot.
AHD Technology: Height Effects Tailored to Listening Environment
Adaptive Height Dispersion (AHD) Technology focuses, expands and intensifies the height soundscape.
Dolby Atmos and DTS:X Pro: Extra 3D Surround and Height Details Unlocked
Feel every dimension with Dolby Atmos and DTS:X Pro, the commercial version of DTS:X.
Bluetooth with aptX HD
Enjoy 24-bit high-resolution wireless audio streaming with Qualcomm aptX HD. Get up to 4x more wireless range with Bluetooth 5.0.

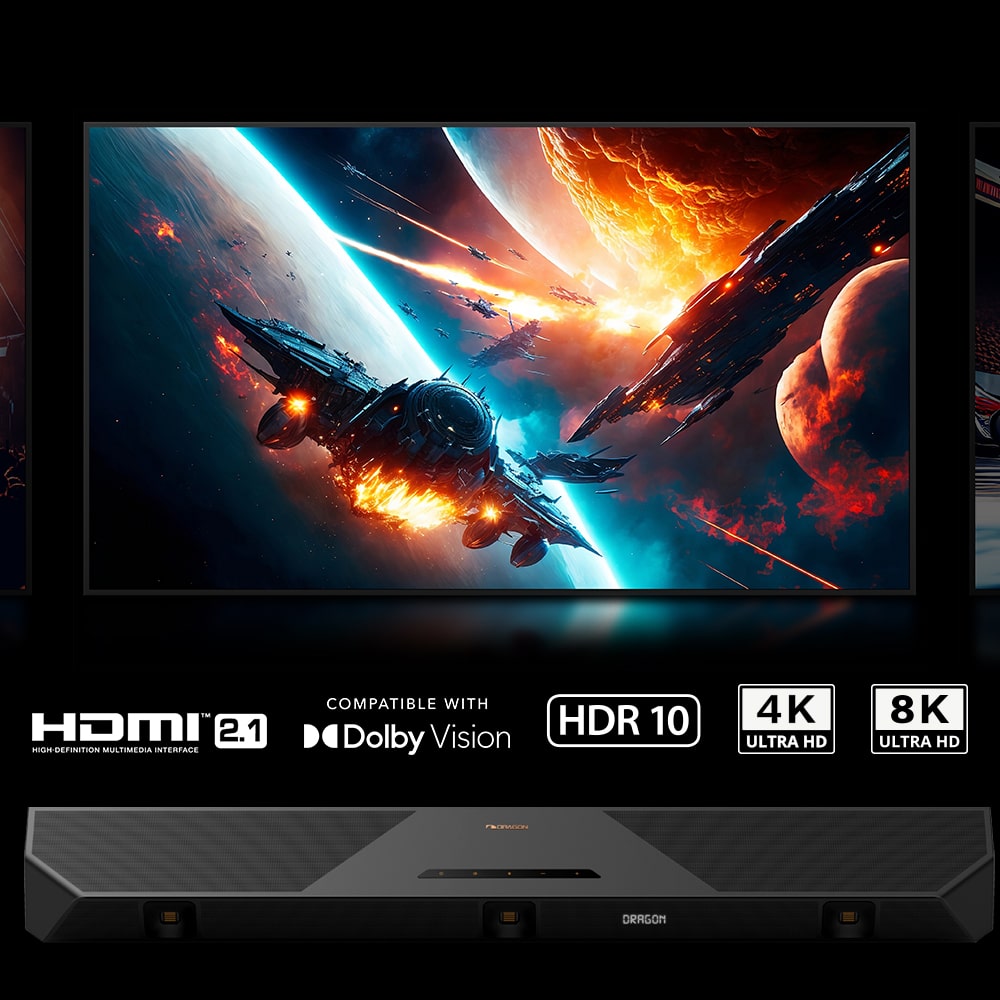

Limitless Connectivity
Experience the best audio and video resolution possible with HDMI eARC and 3 HDMI inputs (w 4K120/8K Dolby Vision and 4K HDR pass-through).

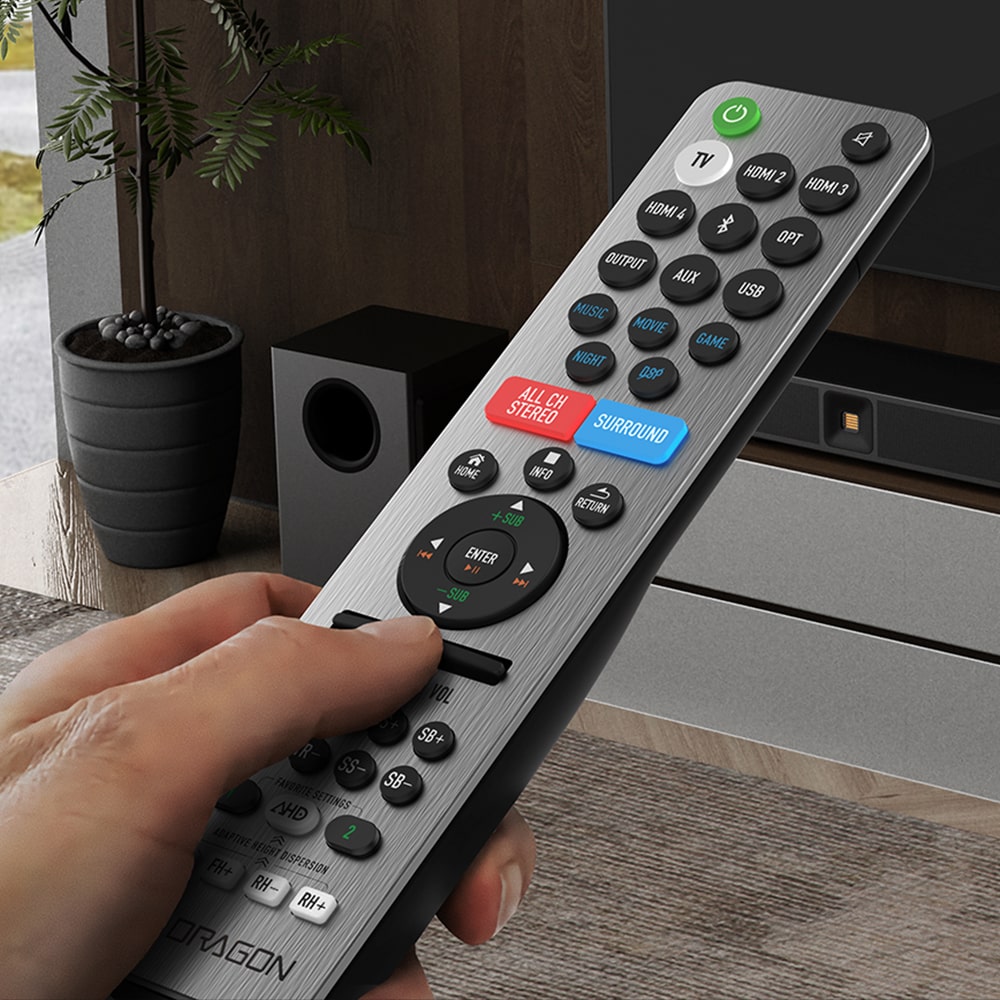

Bluetooth and IR Remote
The full-featured, aluminum-brushed 43-key backlit remote enables seamless control from any corner of the room, no line of sight required.

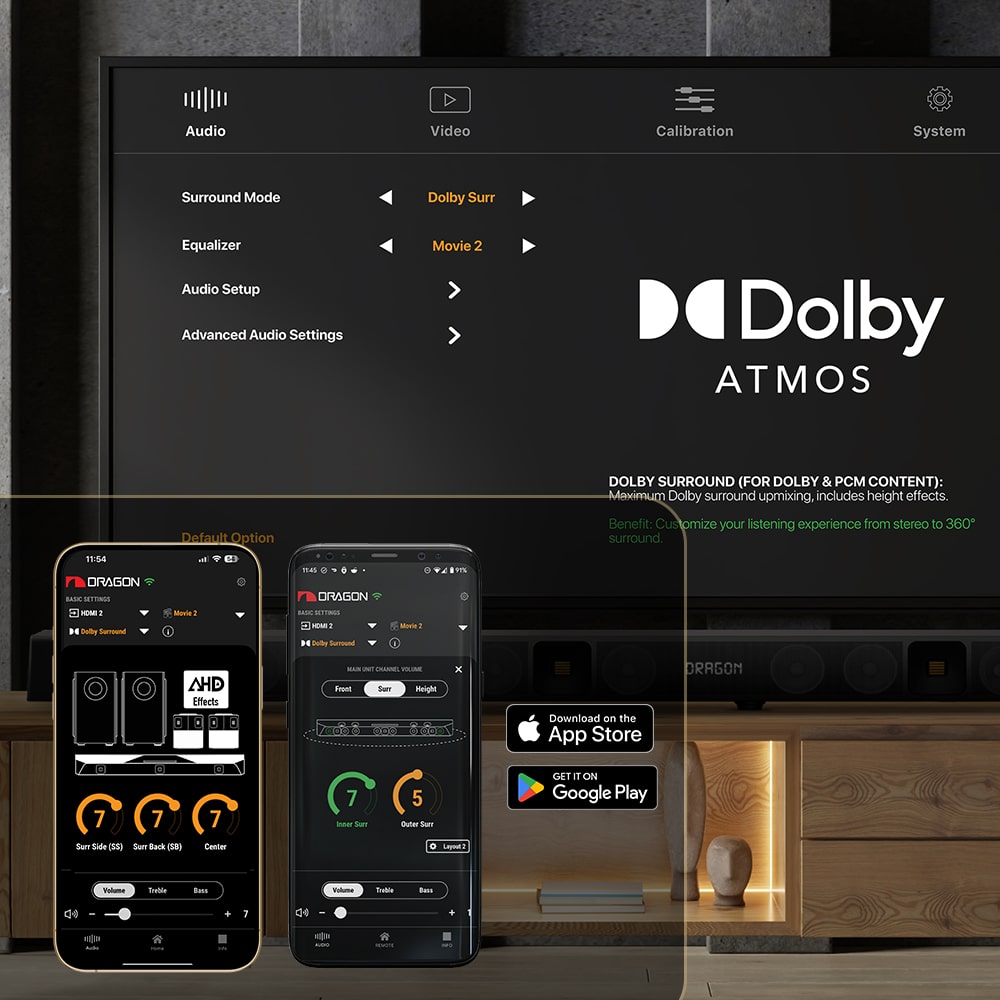

On-Screen Display & Remote App
Meticulously crafted features at your fingertips that prioritize seamless navigation and effortless usability to perfectly align with your needs.
Nakamichi DRAGON 11.4.6 Home Surround Sound System
1.Hardware Specifications |
|
|---|---|
| 1 x 58" Main Unit | 10 x 3” Drivers 4 x 3” Dual-Angled Upfiring Speakers 3 x 1.5” Air Motion Tweeters |
| Quad Wireless Subwoofers | 2 x 8” Subwoofer drivers (Each) |
| 2 x Omni-Motion Reference Surround Speakers | 2 x 1.5" Air Motion Tweeters (Side and Rear Surround) 2 x 3.5" Drivers (Side and Rear Surround) 1 x 3" Rotatable Up-firing driver |
| Total Speaker Drivers | 31 |
2.Audio Performance |
|
|---|---|
| Audio Channels | Up to 11.4.6 |
| Loudness | 125dB Sound Pressure Level (SPL) |
| Total Peak Power | 3000W |
| Overall Frequency Response | 20Hz - 40kHz |
3.Connectivity |
|
|---|---|
| Input | 3 x HDMI 2.1 In, Optical In, Aux In |
| Output | HDMI 2.1 (eARC) Out, Optical Out, Aux Out |
| Bluetooth | Version 5.0 with aptX™ HD |
| USB | Type-A (Firmware Upgrade Only) |
| Power Input | 100 - 240V, 50/60Hz (Main Unit) 110 - 240V, 50/60Hz (Subwoofers) 110 - 240V, 50/60Hz (Surround Speakers) |
4.HDMI |
|
|---|---|
| HDMI Format | HDMI 2.1 supports up to 4K120Hz/8K60Hz |
| Number of Inputs & Outputs | 3 Inputs / 1 Output (eARC) |
| Dolby Vision Pass-through | Yes |
| HDR Pass-through | HDR/HDR10+ |
| Other Features Pass-through | VRR/ALLM/FRL |
| HDMI CEC | Yes |
| 4K Video Upscaling | Yes |
5.Audio Format |
|
|---|---|
| Surround Formats | Dolby Atmos, DTS:X PRO |
| CODEC Support | Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS:X, DTS-HD Master Audio, DTS Digital Surround, LPCM 7.1, LPCM 5.1, PCM 2.0 |
| Audio Enhancement | Channel Volume Control Quad Subwoofer Setup Height Effects Setup Audio Calibration |
6.Display |
|
|---|---|
| Main Unit | 2-Line Dot Matrix Display |
| On Screen Display (OSD) | Yes |
7.Control |
|
|---|---|
| Remote Control | 45-Key LED Backlit Bluetooth and IR compatible |
| On-Screen Display (OSD) | General Functions + Calibrations |
| Smart App | Wireless Remote Control App Supports iOS and Android |
8.Size and Weight (L x W x H) |
|
|---|---|
| Main Unit | 58.1 x 7.7 x 4.4 inch / 32.1 lbs |
| Omni-Motion Surround Speakers | 9.0 x 8.3 x 10.7 inch / 8.8 lbs (Each) |
| Wireless Subwoofers | 12.5 x 11.2 x 20.9 inch / 34.4 lbs (Each) |
| Box Packaging | 62.6 x 15.1 x 20.1 inch / 149 lbs |
