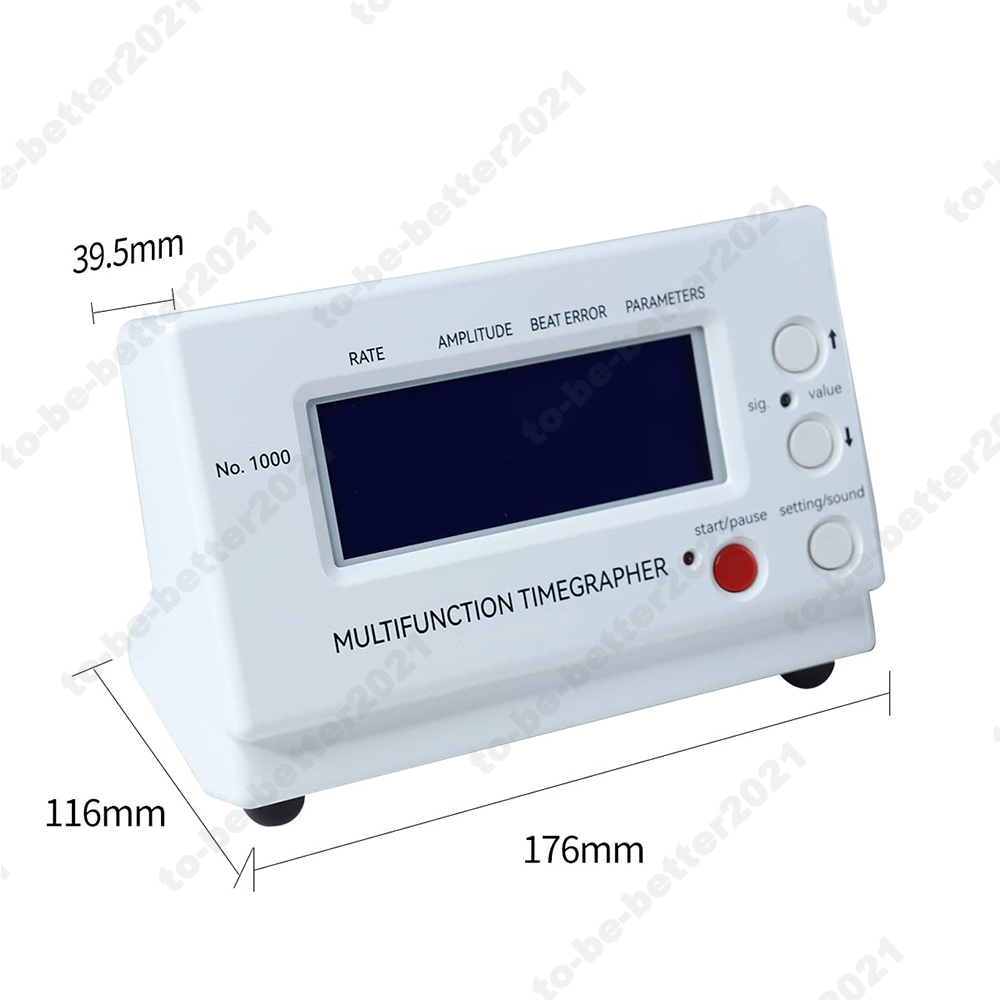

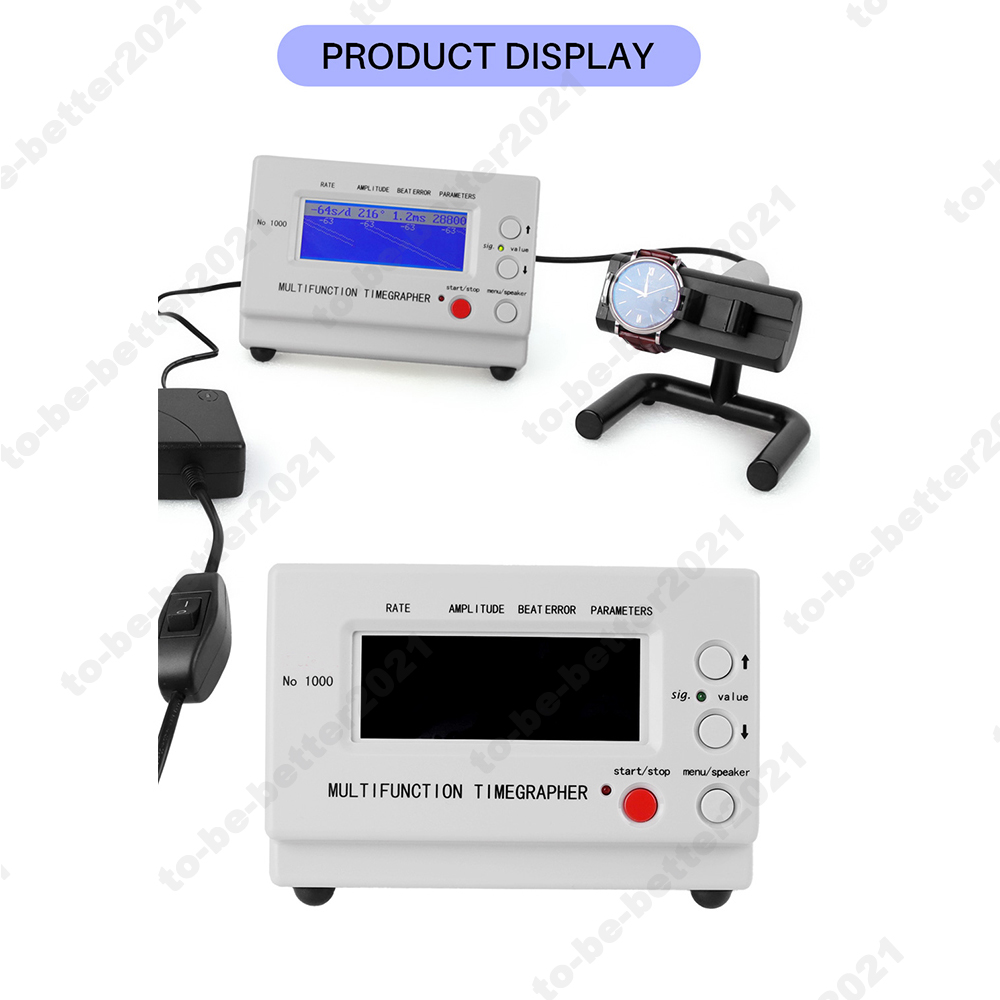

NO.1000  Description:

Features:

Easy to use for mechanical watch collection. This watch tester automatically calculates rate, amplitude, and beat error using readings from the microphone stand.

LCD screen displayed.According to different watches, the instrument will automatically adjust optimal signal level during testing.

The LCD screen shows the readings in real time with 2 dotted lines moving across the screen to provide a visual representation of the “tic tock” from your watch

Portable size, easy to install and operate.

Daily difference measurement: error measurement range is + 999 seconds / day, accuracy is 1 seconds / day.

Swing measurement: in digital display, the resolution is 1 degrees, and the measurement range is 100 - 360 degrees.

Polarization (frequency error) measurement: the value is displayed in milliseconds.

6 kinds of testing position can be adjusted. Amplitude level is between 275 and 315; Rate Deviation Range: ±999 s/d with precision ± 1 s/d'

The frequency diagram of the watch can be displayed in the LCD screen.

The instrument will automatically calculate the rate, amplitude, beat error and display them by data in real time.

The sampling period can selected by 2 , 4 , 6 , 8 , 10, 20, 30 , 60 seconds, and the average of corresponding period will be regard as the precise value of the watch.

Specifications:

Condition: 100% Brand New

Material: Plastic

Color: White

Package Size: Approx.  9.17 x 8.23 x 7.72 inches

Plug type: US

Voltage: 90-240V

Utomatic beat settings: 12000, 14400, 18000, 19800, 21600, 25200, 28800, 36000, 43200

Manual beat settings:

3600, 6000, 7200, 7380, 7440, 7800, 9000, 9100, 10800, 11880, 12000, 12342, 1248, 12600, 13320, 13440, 13500, 14000, 14040, 14160, 14200, 14280, 14400,

14520, 14580, 14760, 14850, 15000, 15360, 15600, 16200, 16320, 16800, 17196, 17258, 17280, 17786, 17897, 18000, 18049, 18514, 19332, 19440, 19800,

20160, 20222, 20944, 21000, 21031, 21306, 21600, 25200, 28800, 32400, 36000, 43200

Warm notice:

This is a basic model, when testing high-end watches, there are two models of "movement" that cannot be automatically tested, it requires manual input of the movement.such as Omega coaxial 2500 /Coaxial 8500;

we suggest to use it for basic normal watches, for high-end watches, please kindly consider other advanced models;

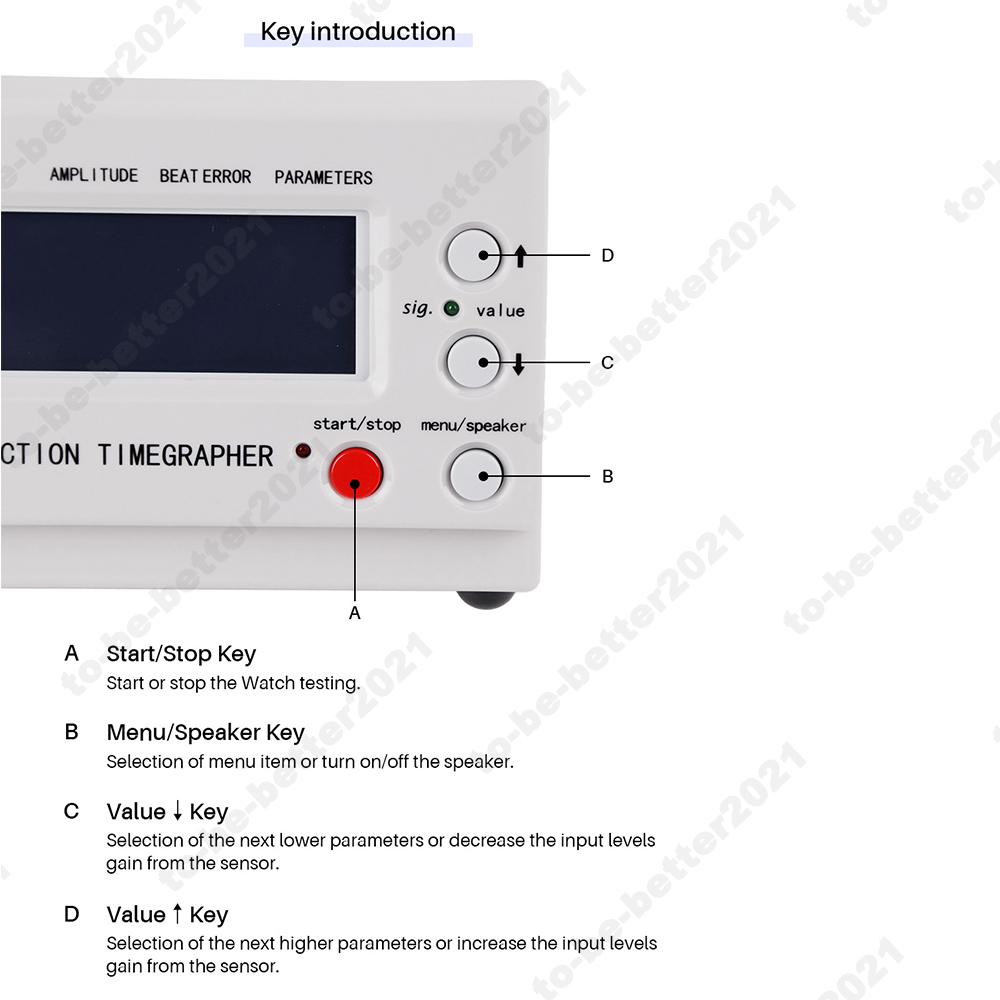

If you accidentally pressed the red pause/start button, please press the red button again when you use it, or it will not work;

This mechanical watch tester is to collect the very weak vibration signal generated by the watch through the pickup. Therefore, please ensure the clockwork (swing) is 220 ~ 320 ° on the watch.

The design of the pickup is very delicate, it is extremely sensitive to sound and electromagnetic radiation. please kindly keep away from external interference during test, such as, mobile phones and chargers,

TVs, stereos, computers, LED lights, ultrasonic cleaners, induction cookers, microwave ovens, other sources of high radiation or noise

This tester is for mechanical movement watch, quartz movement watch can not be tested;

It takes time to respond if multiple watches are exchanged and tested, we suggest to shut down and restart in this case;

Package List:

1 * Manual

1 * Timegrapher

1 * Timegrapher Sensor

1 * Plug

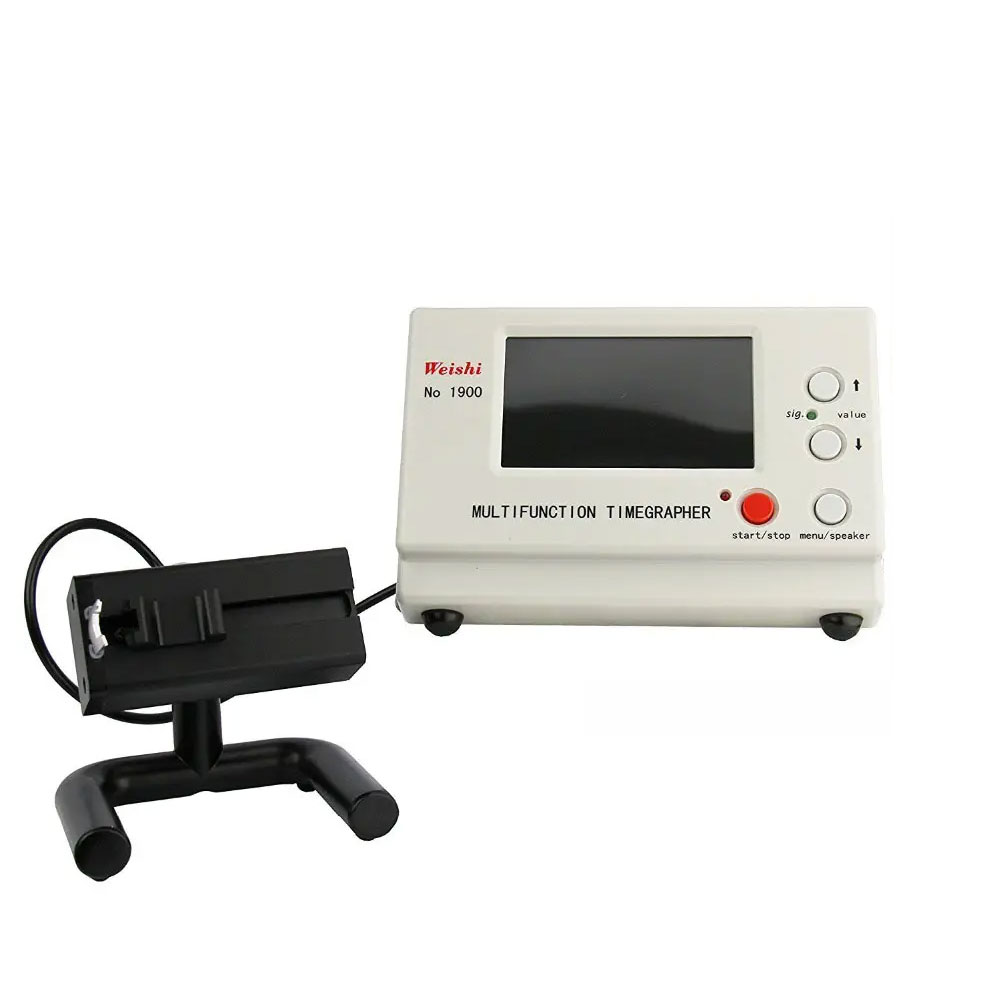

No.1900 Description:

Features:

The frequency diagram of the watch can be displayed on the LCD screen;

According to different watches, the instrument will automatically adjust the optimal signal level during the test;

The instrument will automatically calculate the rate deviation, amplitude, be-at error, and display them by the data in real time; select "±99.9s/d" at item rate ranges for result display, which can make the accuracy of rate deviation up to 0.1s/d;

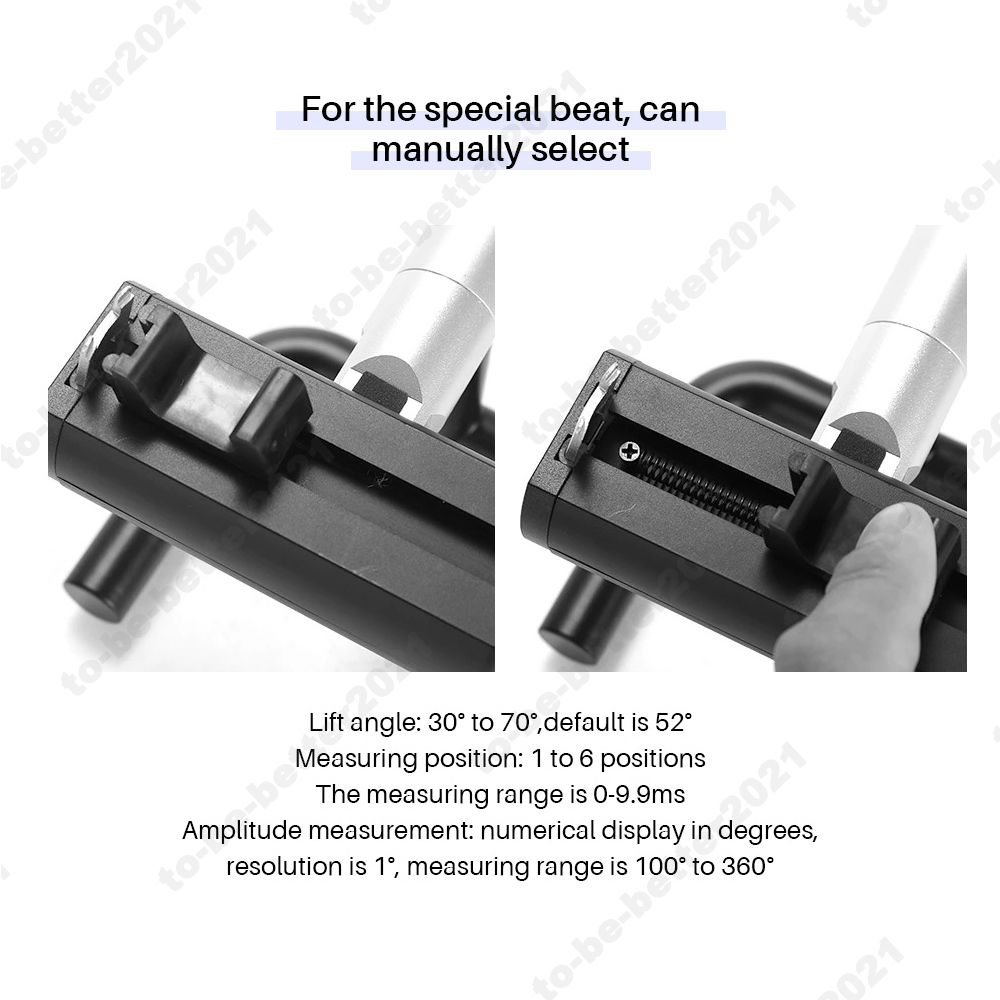

For the conventional be-at, the instrument can automatically respond; for the special be-at, can manually select;

The sampling period can be selected by 2 seconds, 4 seconds, 6 seconds, 8 seconds, 12 seconds, 20 seconds, 30 seconds, 60 seconds, and the average value of corresponding period will be regarded as the precise value of the watch;

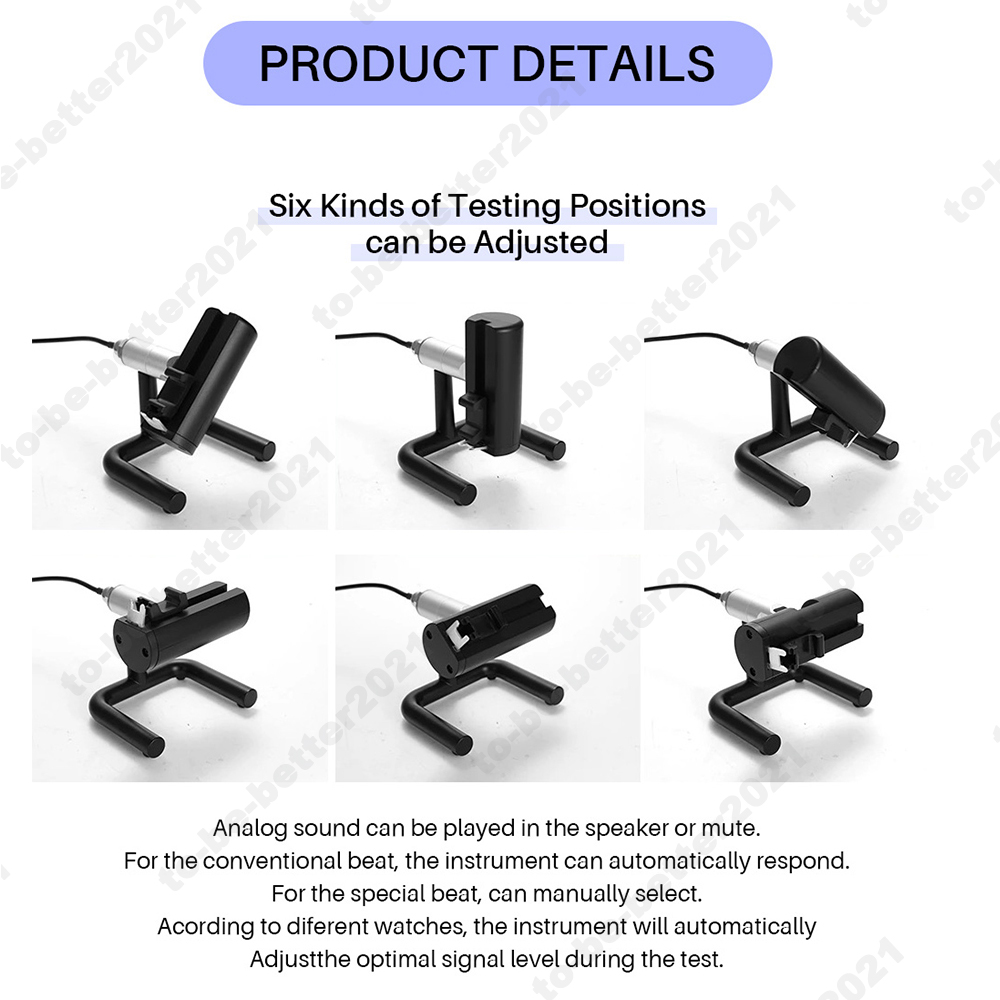

Six kinds of testing positions can be adjusted, and the simulation sound can be played in the speaker or mute;

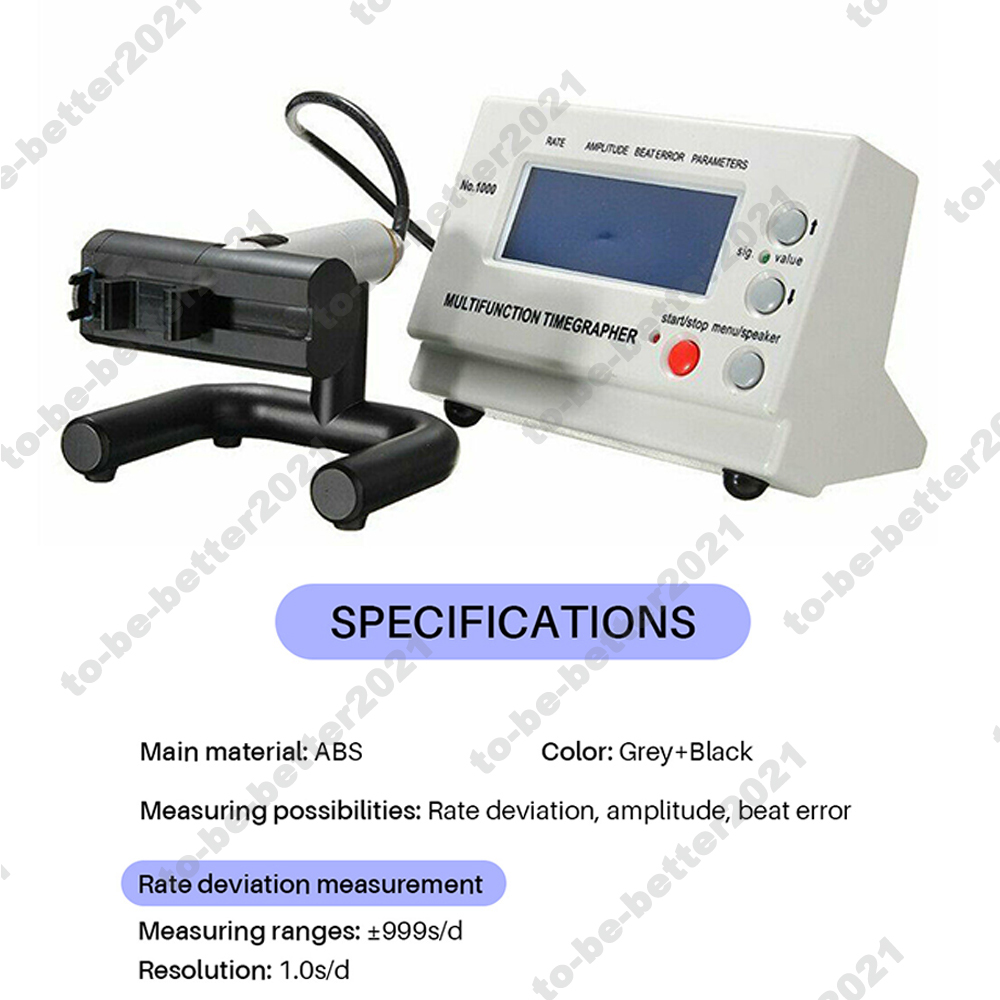

Specifications:

Main material: ABS;

Color: grey+black;

Measuring possibilities: rate deviation, amplitude, be-at error of mechanical watches and diagram recording of the be-at noise;

Rate deviation measurement: How fast/slow the watch runs in seconds per day.If it is wildly out of these ranges, you should bring it to a watchmaker to get it checked out.

Excellent -  +/- 7 s/d, Acceptable - +/- 20 s/d;

Measuring ranges: ±999s/d or ±99.9s/d;

Resolution: 1.0s/d or 0.1s/d;

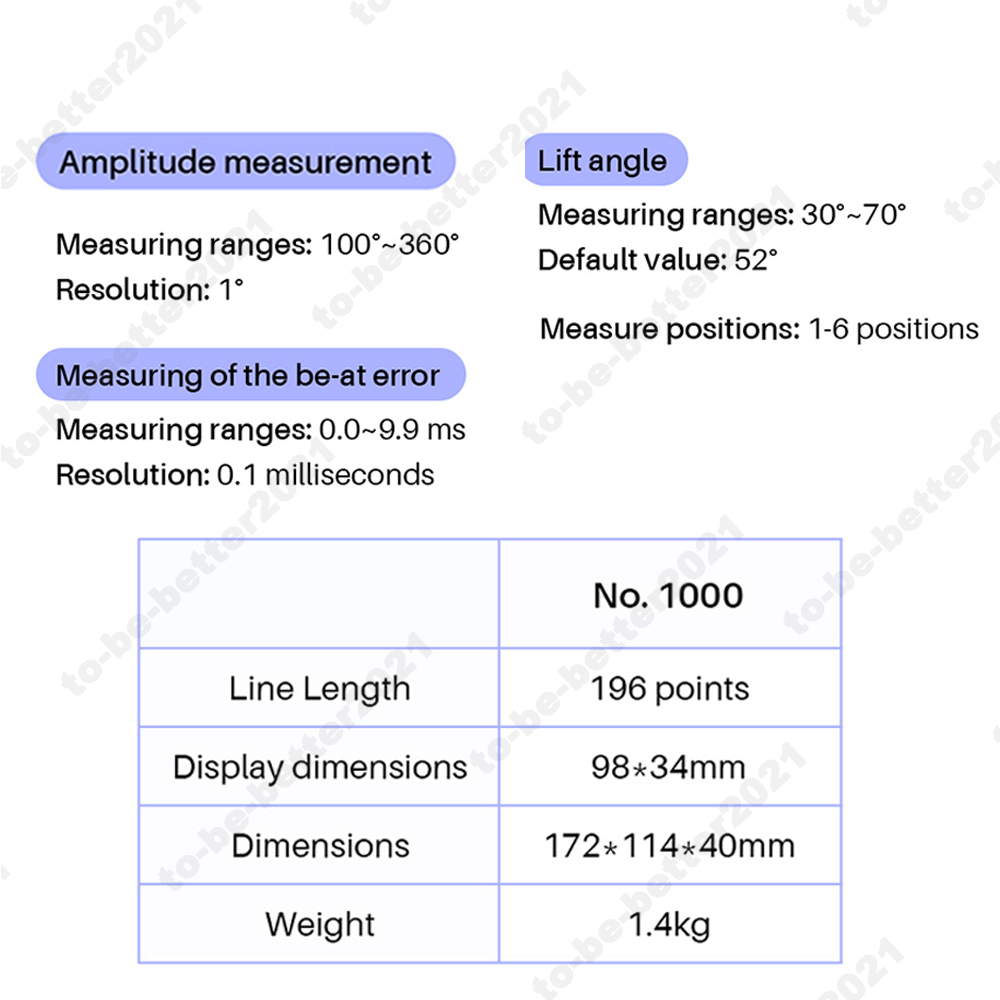

Amplitude measurement:It’s the amount of rotation in the swing of the balance wheel; A healthy movement should, at full wound, have a high amplitude;

A low amplitude generally indicates problems that needs to be fixed prior to regulation, like obstruction due to foreign elements, oil drying up, etc, but anything above 250 degrees can still be considered healthy amplitude;

Measuring ranges: 100°~360°;

Resolution: 1°;

Measuring of the be-at error:It’s the time difference between the “tick” and the “tock”.

Excellent : 0.0 - 0.5 milliseconds, Acceptable : 0.6 - 1 milliseconds;

Measuring ranges: 0.0~9.9 ms;

Resolution: 0.1 milliseconds;

Lift angle: This should be set manually prior to using the timegrapher, the reason you need to input this into the Timegrapher is so that you can calculate the amplitude.

And you can find the exact number from the official specs of a movement. Most modern watches have a lift angle of 52 degrees;

Measuring ranges: 30°~70°;

Default value: 52°;

Measure positions: 1-6 positions;

Line length: 480 points;

Measuring times periods: 2/4/6/8/12/20/30/60 seconds;

Language: Chinese, English, Japanese;

Display: color LCD graphic monitor, 480*272 pixels;

Working environment: 10℃~40℃;

Relative humidity: 0~80% RH;

Item size: 185 * 120 * 40mm / 7.3 * 4.7 * 1.6in;

Item weight: 337g / 11.9ounce;

Package size: 230 * 210 * 195mm / 9.1 * 8.3 * 1.6in;

Package weight: 1379g / 3.0lb.

Package list:

1 * Timegrapher

1 * Timegrapher Sensor

1 * Plug

1 * User Manual

NO.3000  Description:

Specifications:

1.Mechanical watch tester measuring

2.Rate deviation,Amplitide,Beat Error

3.The best mechanical watch testing product

Main Technical Parameters

1.daily rate : -999 s/d ~ +999 s/d, allowable tolerance: ±1 s/d

2.Amplitude : 100o ~ 360o, allowable tolerance : ±1o

3.beat error : 0 ~ 9.9 ms, allowable tolerance : 0.1 ms

4.power supply : single - phase AC 110 ~ 240V ±10%, power consumption :  about  10 W

5.Weight : 1.9kg.

Function:

1. The  Timegrapher NO. 3000 is a precise  mechanical watches test instrument, it is  used for multi-testing by watch  manufacturers and watch technician.

2. The frequency diagram of the watch can be displayed in the LCD screen.

3. According to different watches, the instrument will automatically adjust   optimal signal level during testing.

4. The instrument will automatically calculate the rate, amplitude, beat  error,  and display them by data in real time.

5. For the conventional beat, the instrument can automatically response; for   the special beat, can manually select.

6. The sampling period can selected by 2 seconds, 4 seconds, 6 seconds, 8   seconds, 10 seconds, 20 seconds, 30 seconds, 60 seconds, and the average of   corresponding period will be regard as the precise value of the watch.

7. Six kinds of testing position can be adjusted, and the simulation sound  can  be play in the speaker or mute

Parameter:

Beat Numbers (Frequency Numbers)

1.Automatic

The following  beat numbers are selected by  automatic selection mode:

12000,14400,18000,19800,21600,25200,28800,36000,43200

(If the tested beat is not in automatically selection, the instrument will   display the closest beat number, but the test result is not correct. At this   time, use the manual mode to select the relative beat.)

2.Manual selection

It can selected  out the beat number that  Automatic select

can not identify and rare beat number.

The following beat are selected by Manual selection mode:

3600,6000,7200,7380,7440,7800,9000,9100,10800,11880,12000,

12342,12480,12600,13320,13440,13500,14000,14040,14160,14200

,14280,14400,14520,14580,14760,14850,15000,15360,15600,16200,

16320,16800,17196,17258,17280,17786,17897,18000,18049,18514,

19332,19440,19800,20160,20222,20944,21000,21031,21306,21600,

25200,28800,32400,36000,43200

Lift Angle

The lift angle  is 52° for many common movements,  therefore the lift angle value of  instrument for factory is set to 52°.

This  value is required to calculate  the amplitude and must be selected according to  the watch movement. The lift  angle can be set to between 30°and 70°

Period

The measuring period selectable:2s,4s,8s,10s,20s,30s,60s

Use to recalculate the average values of the test result.

Package list:

1 * Timegrapher

1 * Timegrapher Sensor

1 * Plug

1 * User Manual
