Condition: BRAND NEW IN ORIGINAL PACKAGING

Warranty: 1 YEAR MANUFACTURER

Package Includes:

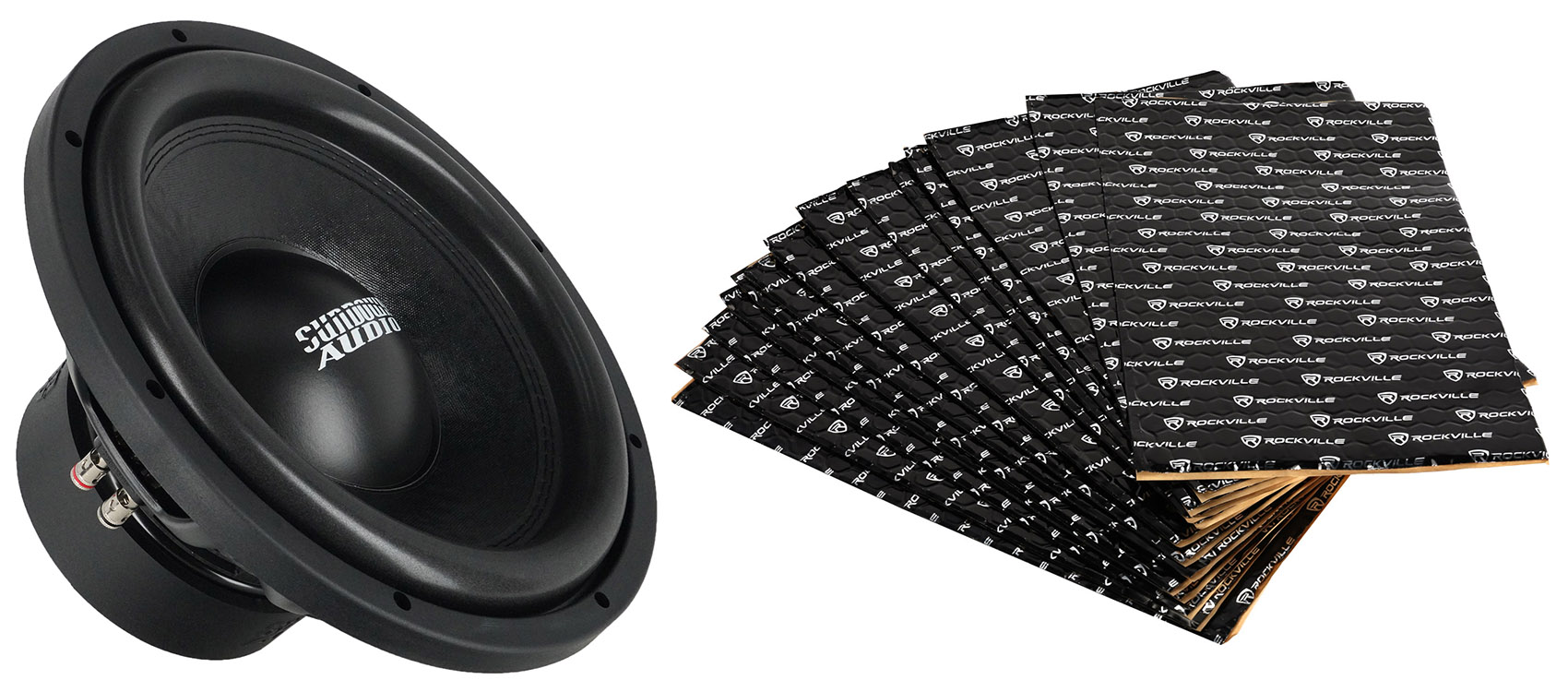

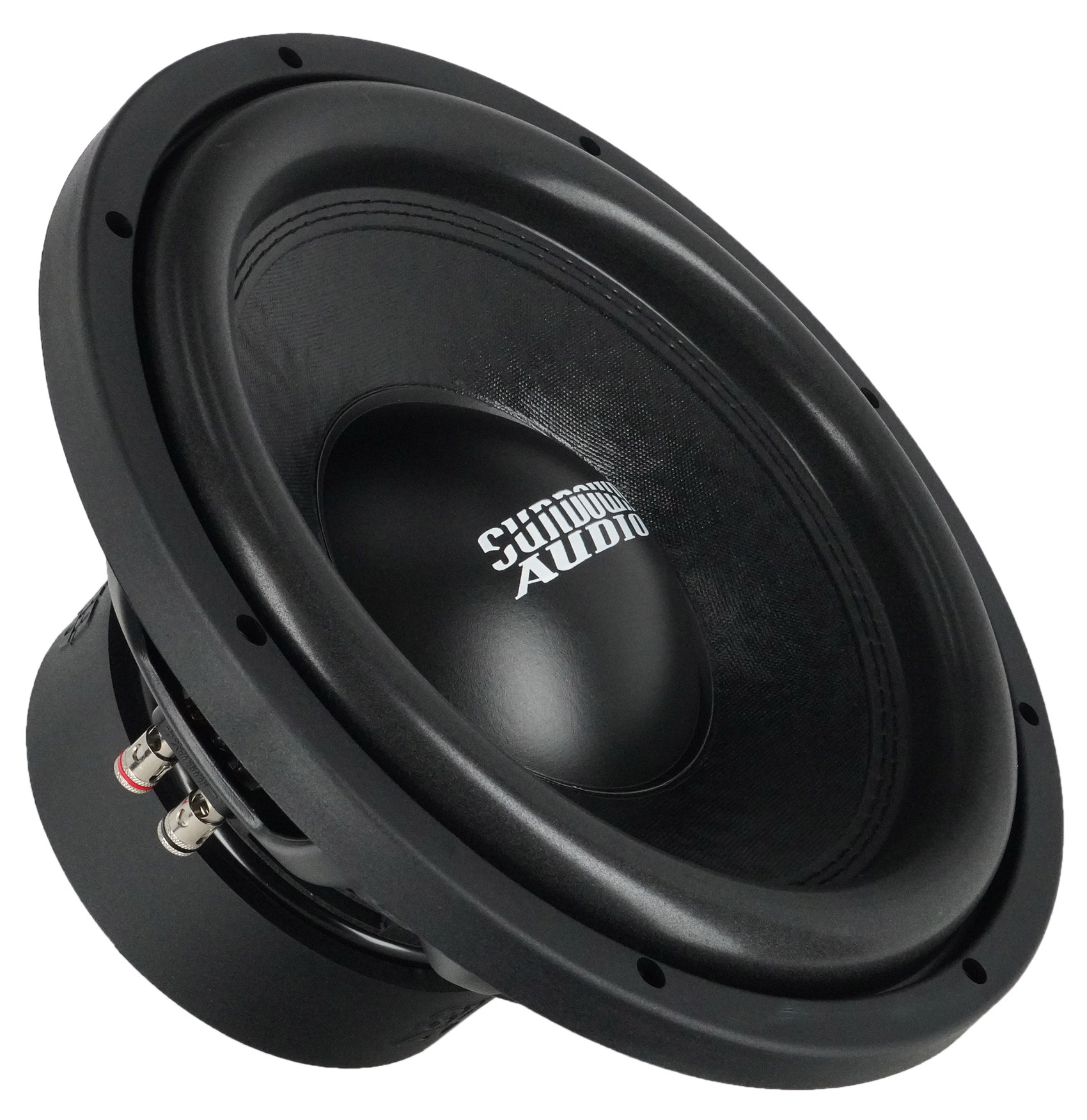

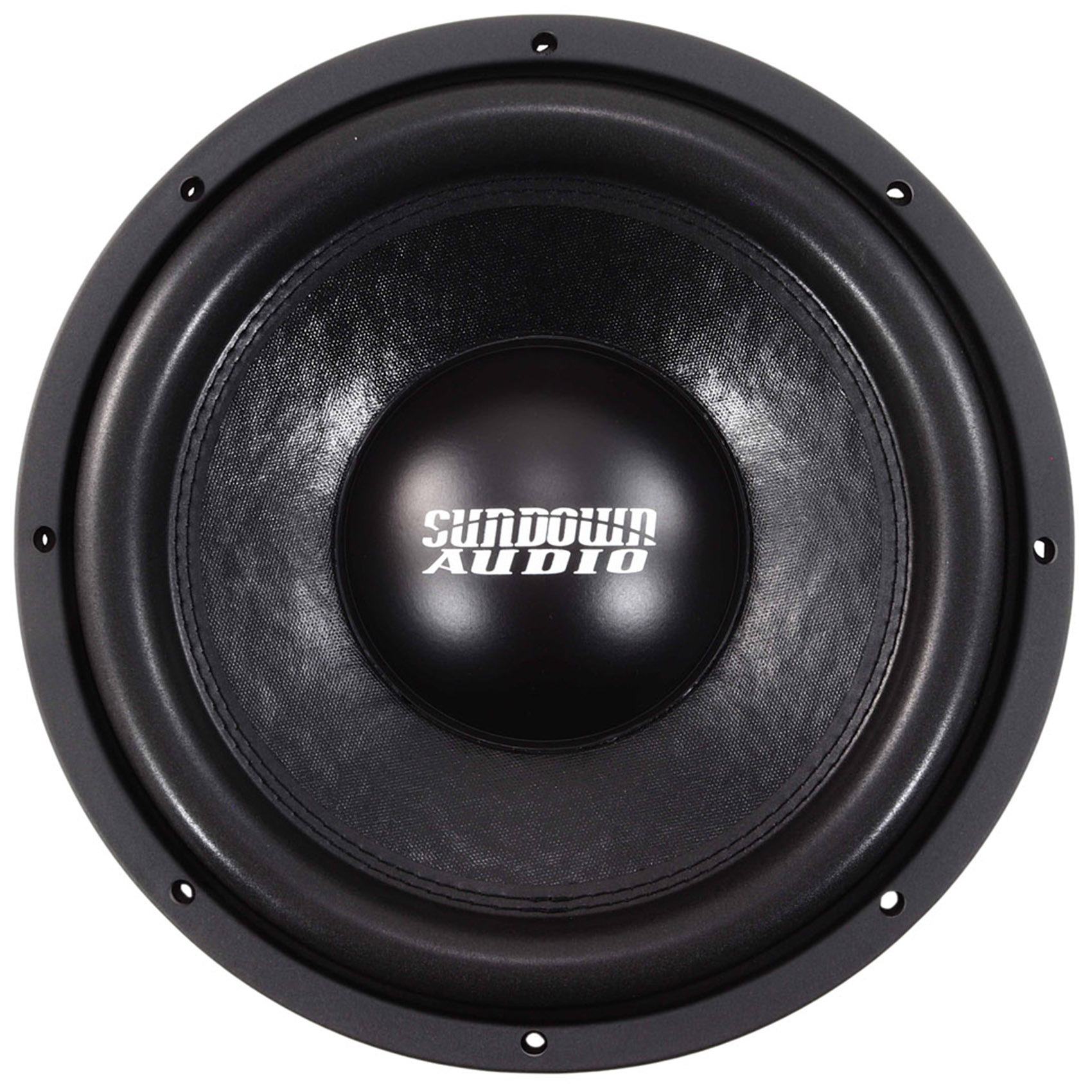

• (1) Sundown Audio E-12 V.4 D4 12" 750w RMS Car Subwoofer DVC 4-Ohm Sub SW-EV412D4
• (1) Rockville RockMat 15-25 15 Sq Ft 2.5MM 100 MIL Sound Vibration Deadener Car Kit

---

Description:

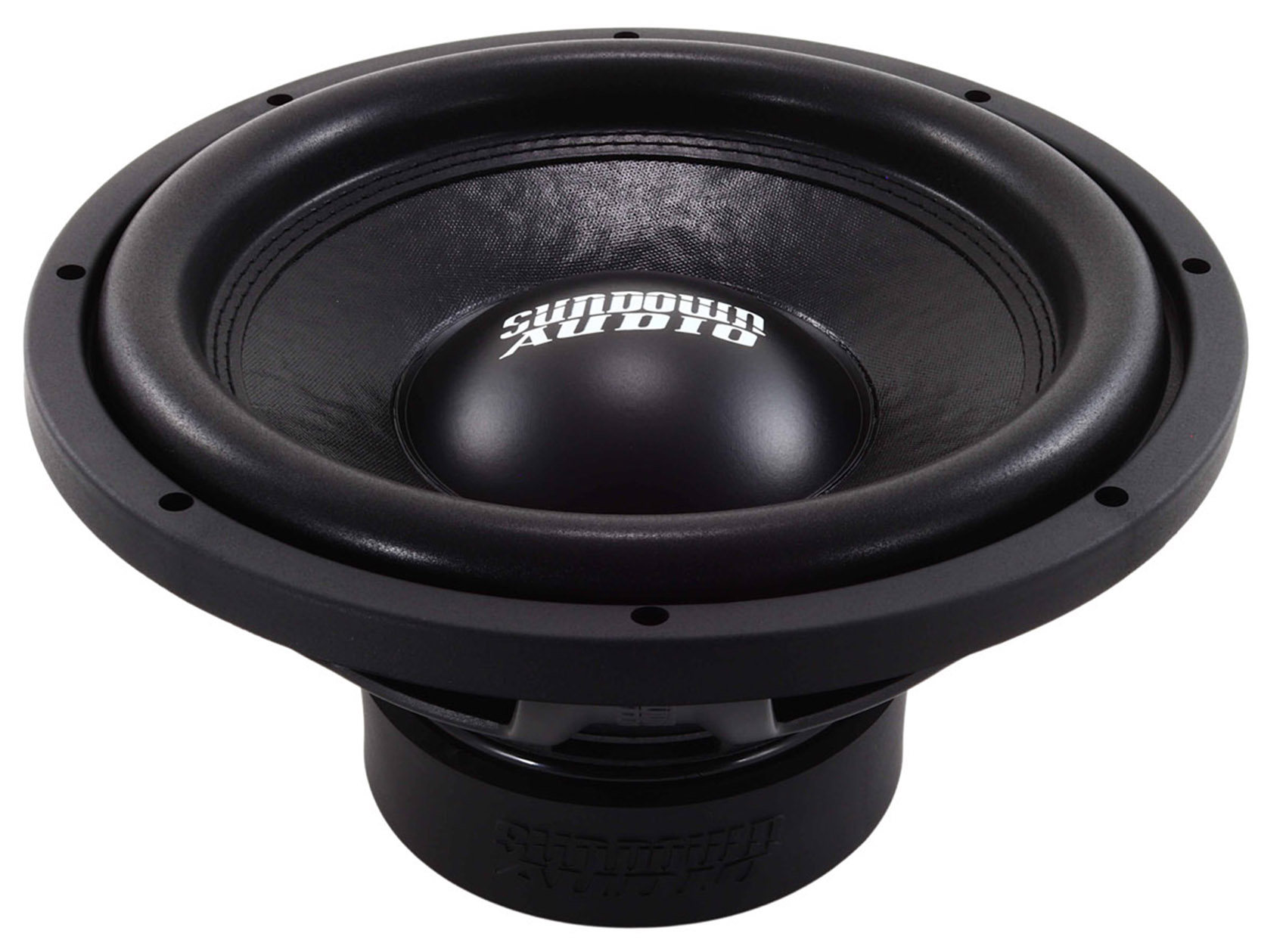

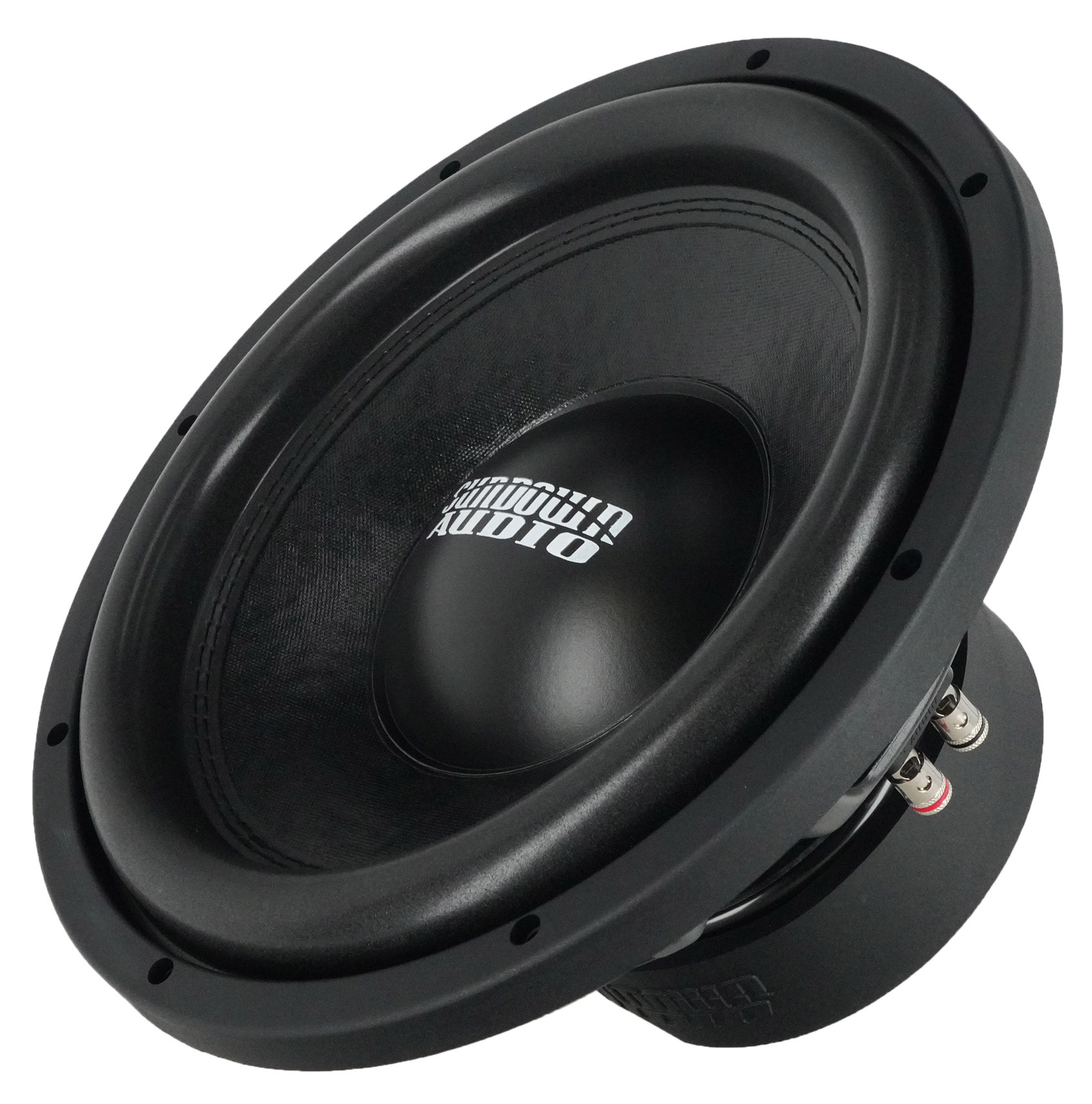

Through relentless research in our North Carolina Headquarters, Sundown optimized a 2.5” voice coil and a truly unique motor design to get the deepest possible bass response out of a 12” subwoofer.

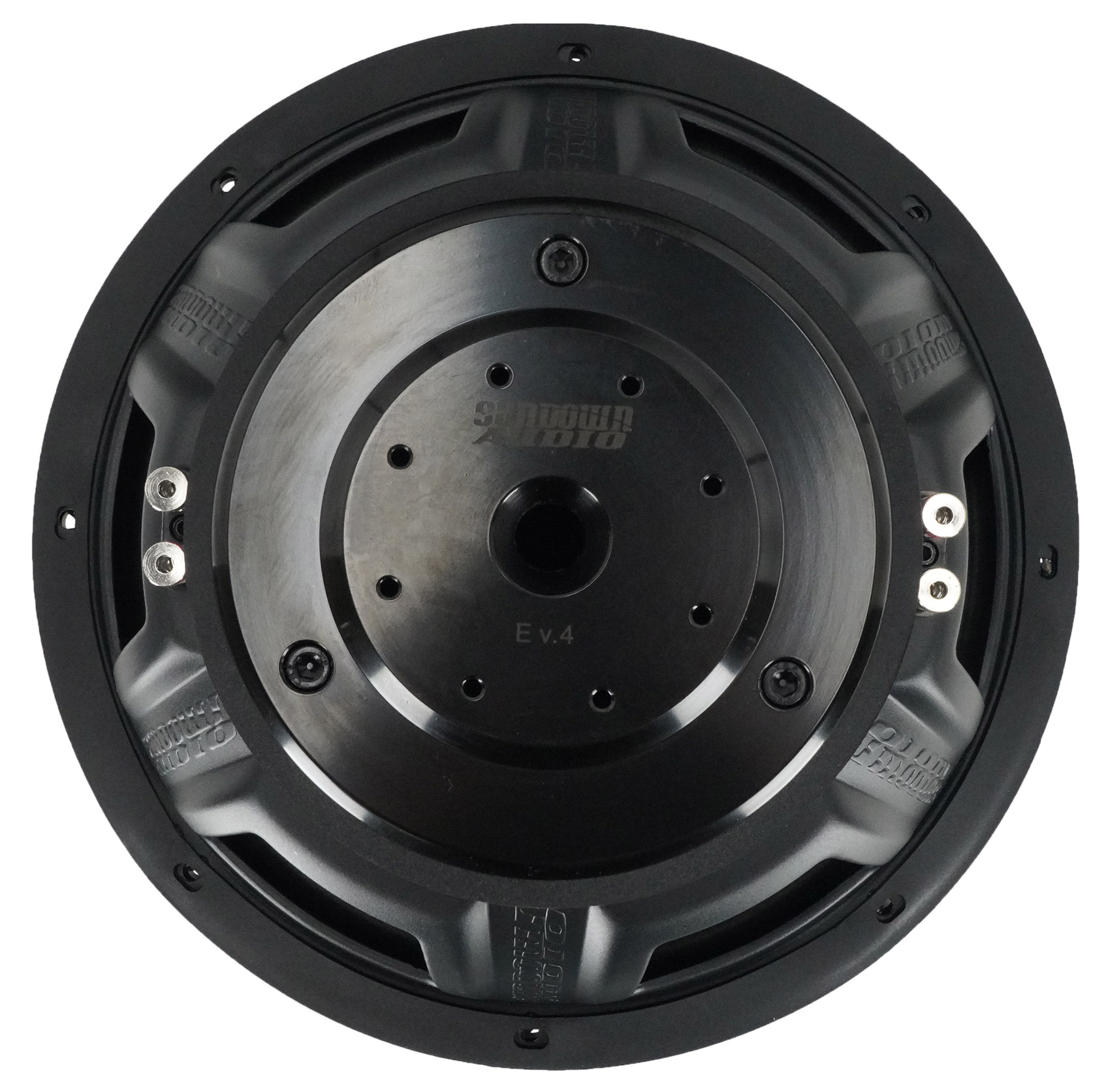

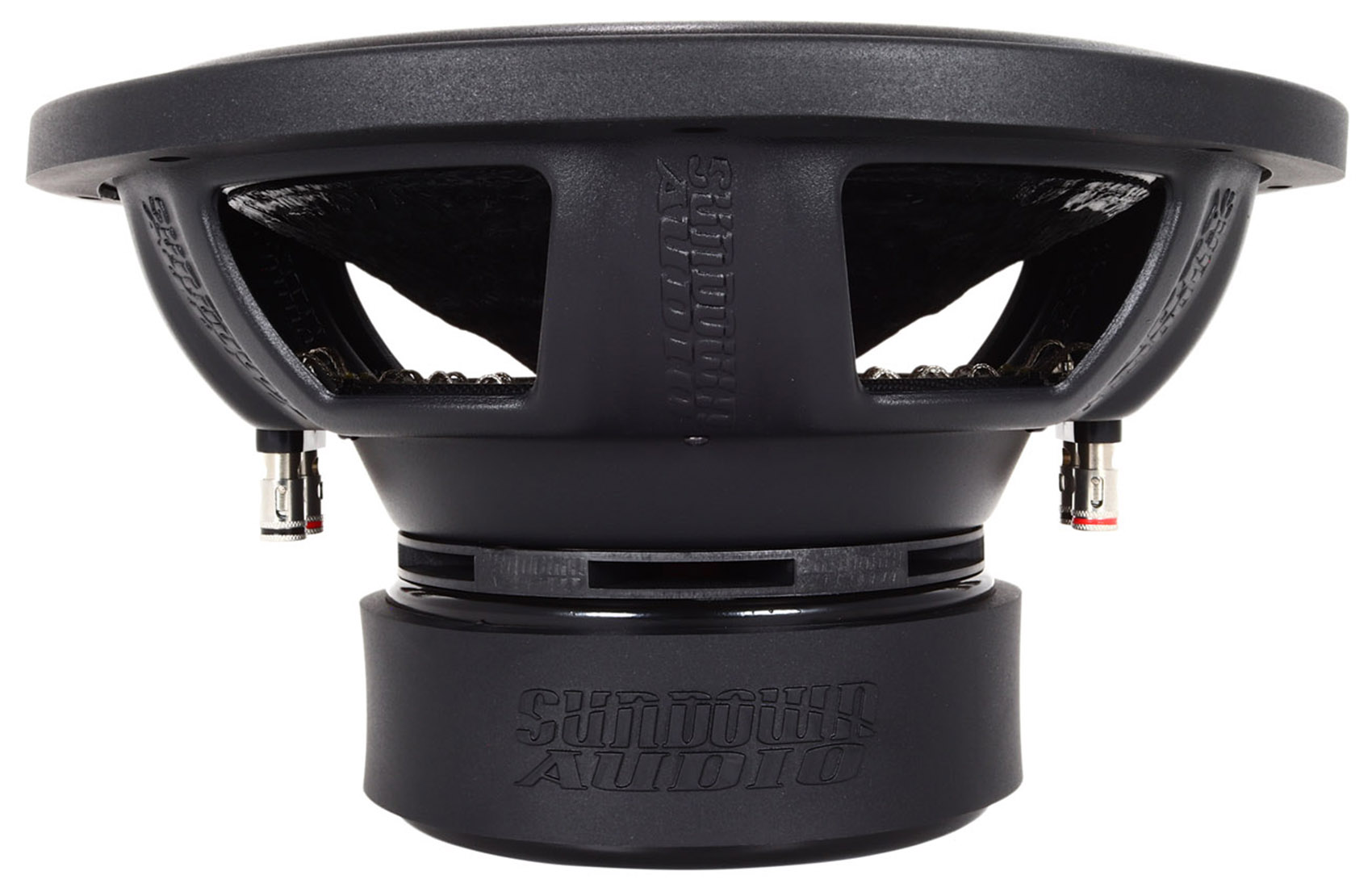

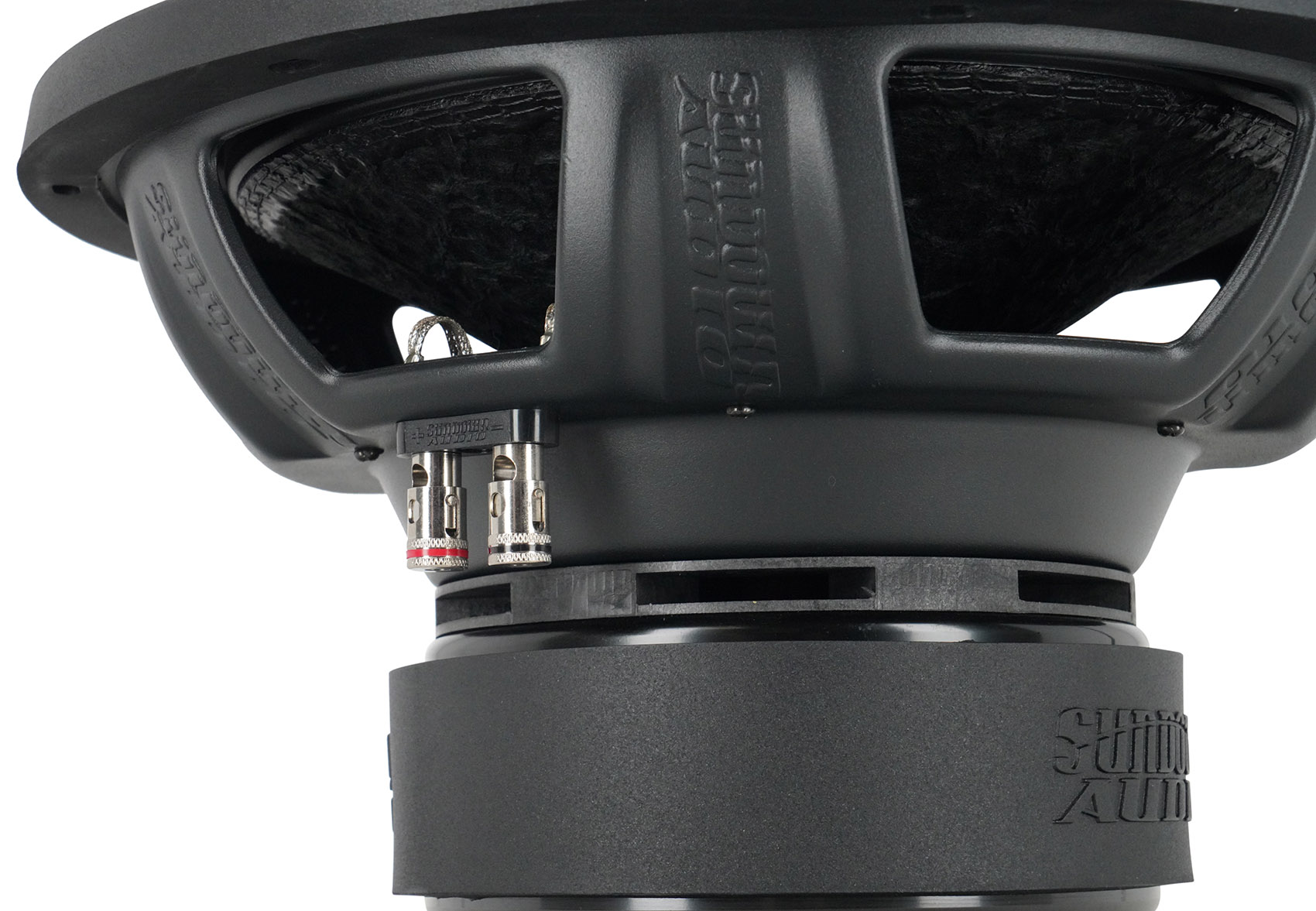

The subwoofer showcases a distinctive motor design, featuring a heavily vented magnetic gap and solid pole piece, enabling exceptional thermal power handling. The spider itself is a high strength poly-cotton blend designed to handle the full capacity of the motor. To provide an additional level of ruggedness the spider is bolted down and glued to the frame. Its motor geometry allows for a remarkable 14mm one-way linear Xmax, delivering excursion equivalent to far larger cones.

Features:

• 750 Watts RMS / 1500 Watts Peak
• Dual 4 ohm
• Optimized for ported enclosures
• Class-leading 14mm Xmax
• Double-stacked magnet
• Vented magnetic gap & pole piece for superior cooling
• High strength stamped steel frame
• High temp 4-layer copper voice coil wire
• High-quality push terminals
• Stitched-on Mini-XL tinsel leads

Specifications:

• RE (Ohms): 6.1
• FS (Hz): 36.6
• VAS (L): 1.284
• Qes: 0.715
• Qms: 5.857
• Qts: 0.637
• Le (mH): 5.671
• BL (NA): 19.574
• Mms (Grams): 212.808
• Cms (uM/N): 99.701
• Sens (dB @ 1w/1m): 84.964
• Xmax: 14MM

Subwoofer Measurements:

• Displacement (Inches): .08cu ft
• Depth (Inches): 6.5"
• Cutout (Inches): 11.125"
• Motor Diameter (Inches): 6.37"

Ported Enclosure Specs:

• Ported Enclosure Size: 1.75cu ft
• Recommended Port Area: 26sq in
• Recommended Port Tuning: 35hz

Sealed Enclosure Specs:

• Sealed Enclosure Size: Not Recommended

4th Order Enclosure Specs:

• 4th Order Sealed Side:.75cu ft
• 4th Order Ported Side: 2.25cu ft
• 4th Order Port Area: 24sq in
• 4th Order Port Length: 6"

---

RockMat Series Overview:

Description:

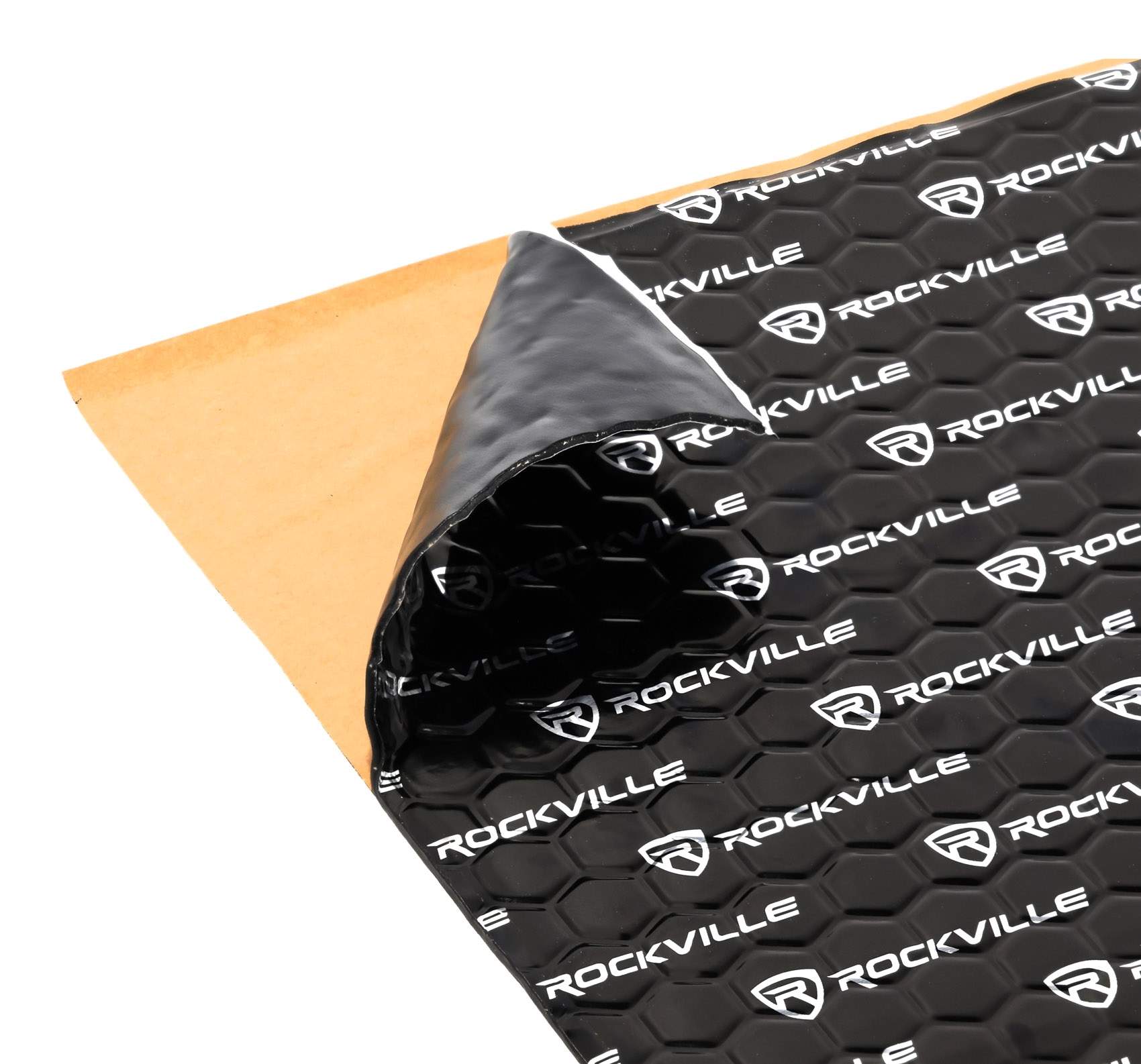

Introducing the Rockville RockMat 15-25: Your Ultimate Sound Deadening Solution

The Rockville RockMat 15-125 is designed for those who demand the best in sound quality and vehicle comfort. This model, with a thickness of 2.5MM (100 Mil), includes 15.5 square feet across 14 sheets, shipped flat for easier installation.

100% Virgin Butyl Rubber: RockMat uses only the highest quality butyl rubber, ensuring superior sound deadening without the foul smells associated with cheaper alternatives.

Enhanced Aluminum Coating: Now 20% thicker than our first generation, this heat-resistant coating not only protects the material but also enhances its longevity under extreme conditions, adding extra mass to eliminate unwanted vibrations.

Superior Design for Easy Installation:

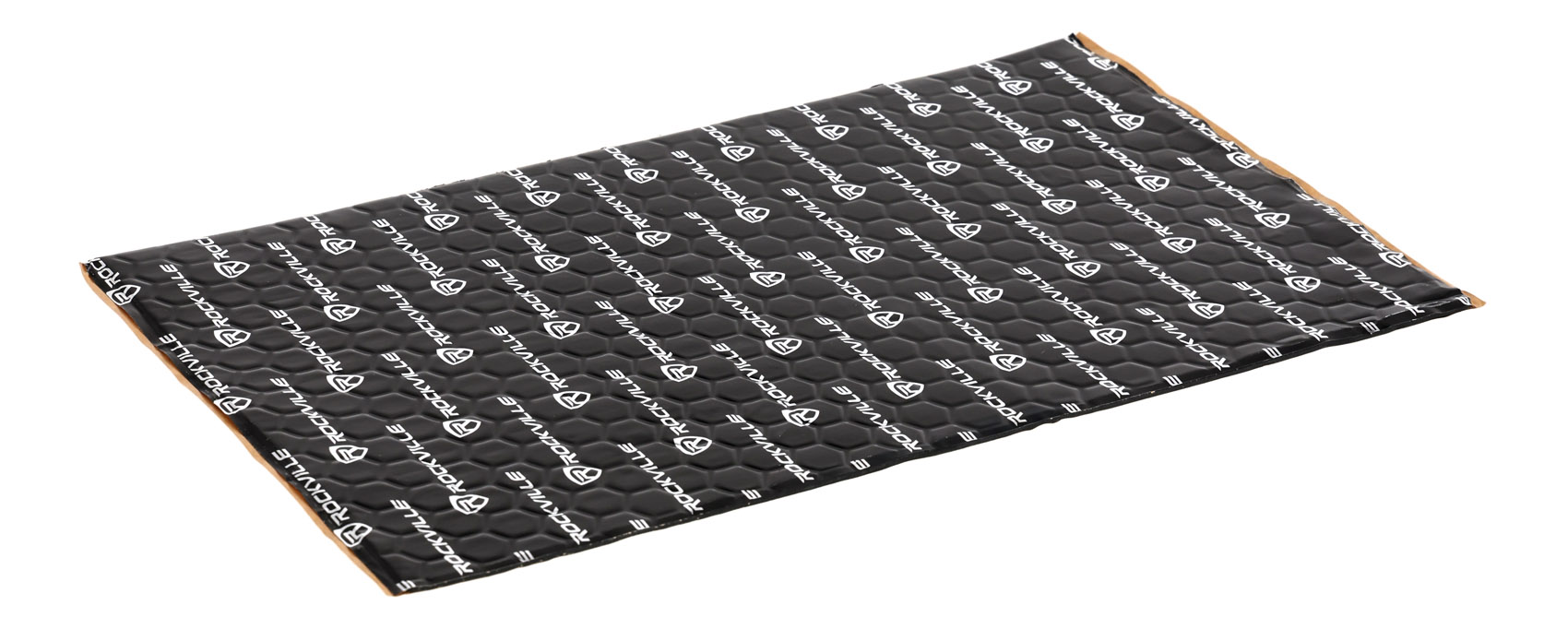

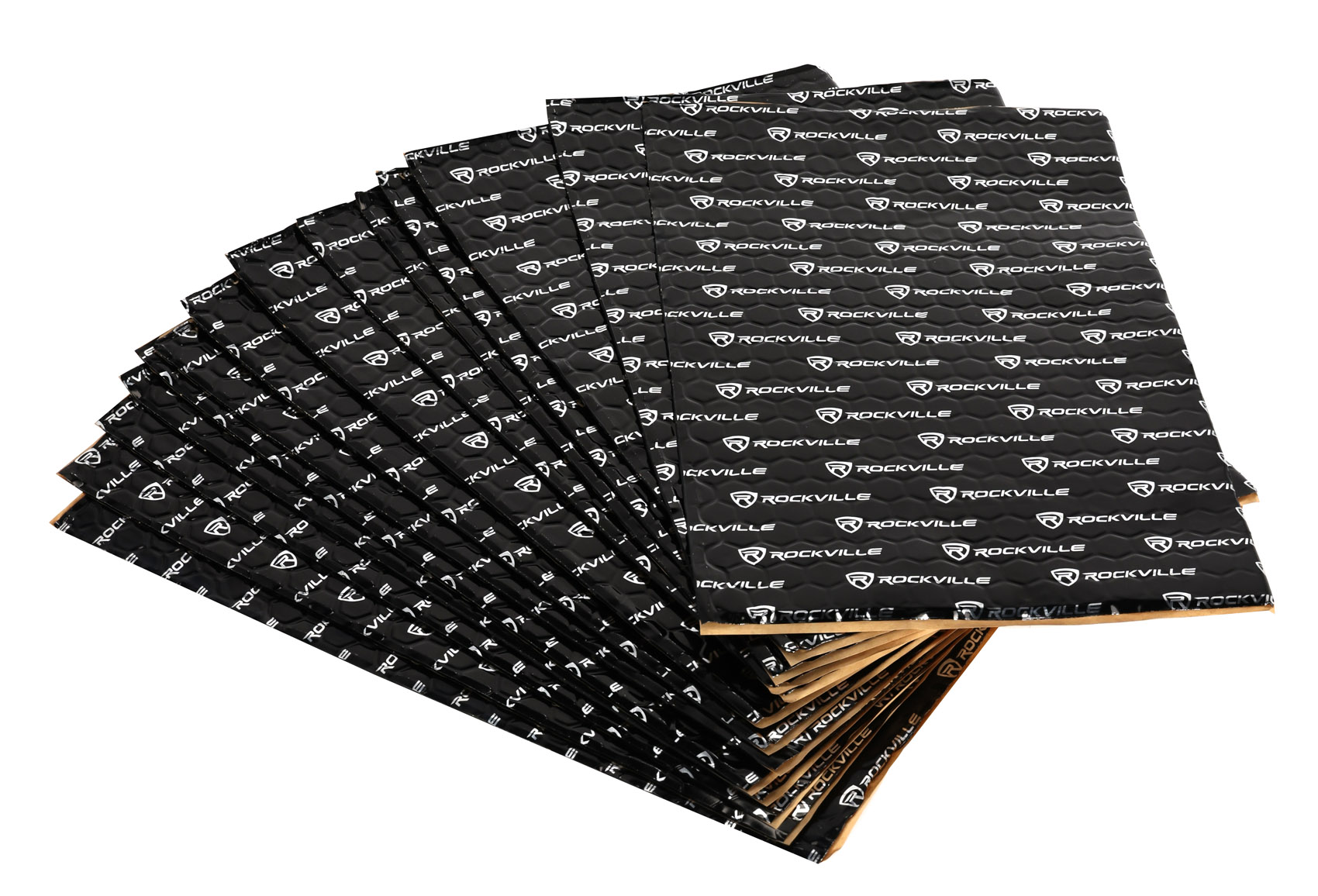

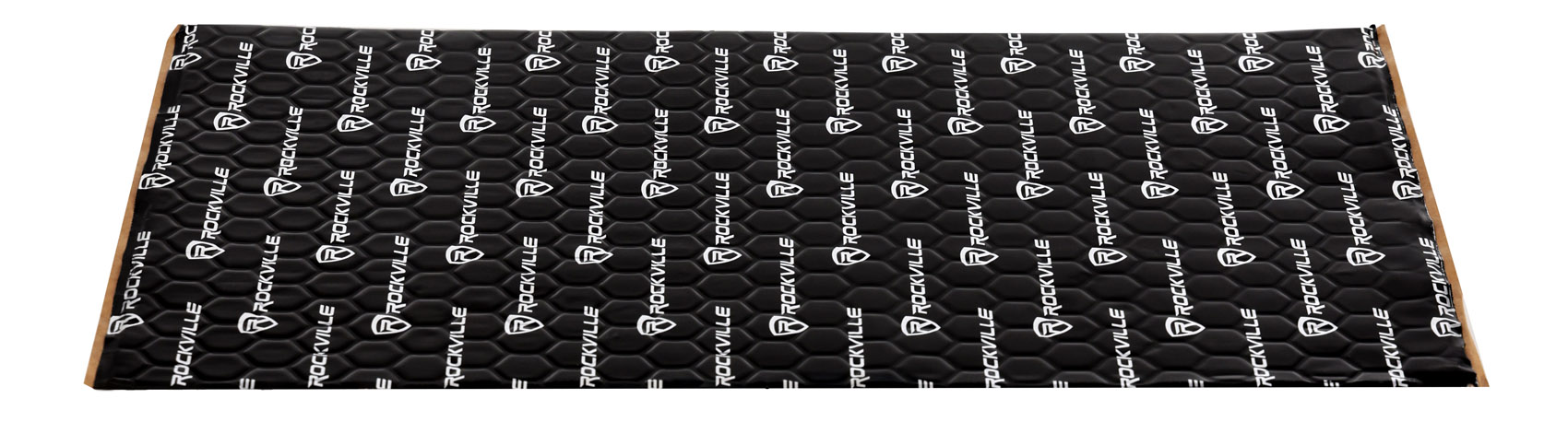

• Strategically Sized Sheets: Each of the 14 sheets measures 16"x10", optimized for ease of handling and installation.

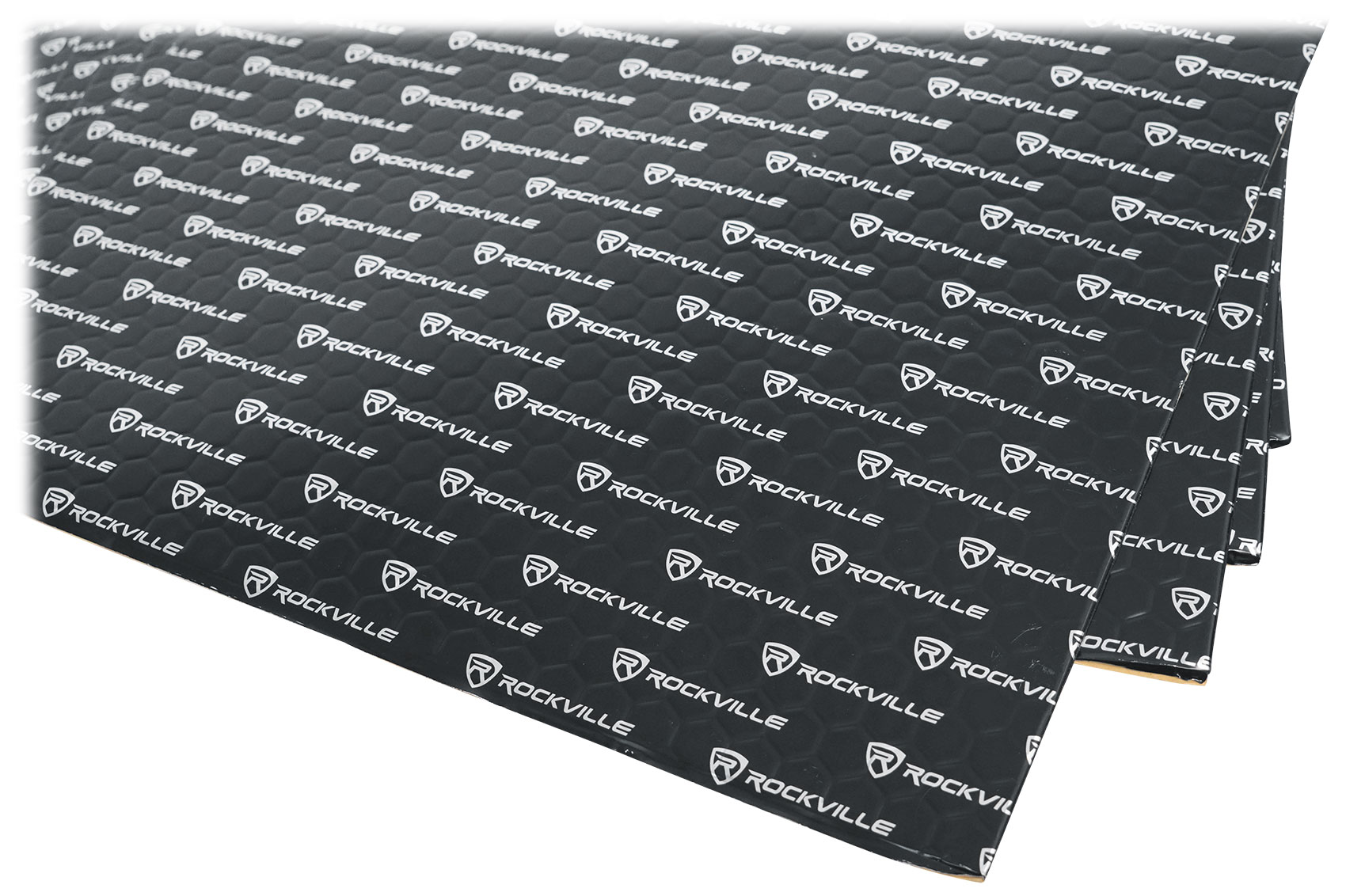

• Installation Indicator: Our unique embossing turns from hexagon to flat when properly installed, ensuring you get it right every time.

Universal Compatibility: Whether it's for your car, boat, UTV, ATV, or home studios, RockMat adheres seamlessly to any surface, enhancing sound quality wherever applied.

Waterproof and Durable: Perfect for all weather conditions, our material remains flexible and effective, resisting saltwater, moisture, heat, and cold.

Performance Beyond Expectations:

• Enhanced Sound Quality: RockMat not only reduces unwanted noise but also improves bass response and clarity, making your audio experience richer and more immersive.
• Increase in SPL: By reducing sound leakage, RockMat effectively makes your music louder without the need for increased power, preserving your audio equipment.

Eco-Friendly and Non-Toxic: Engineered with health and environmental considerations, our product is free from harmful chemicals, making it safe for all users.

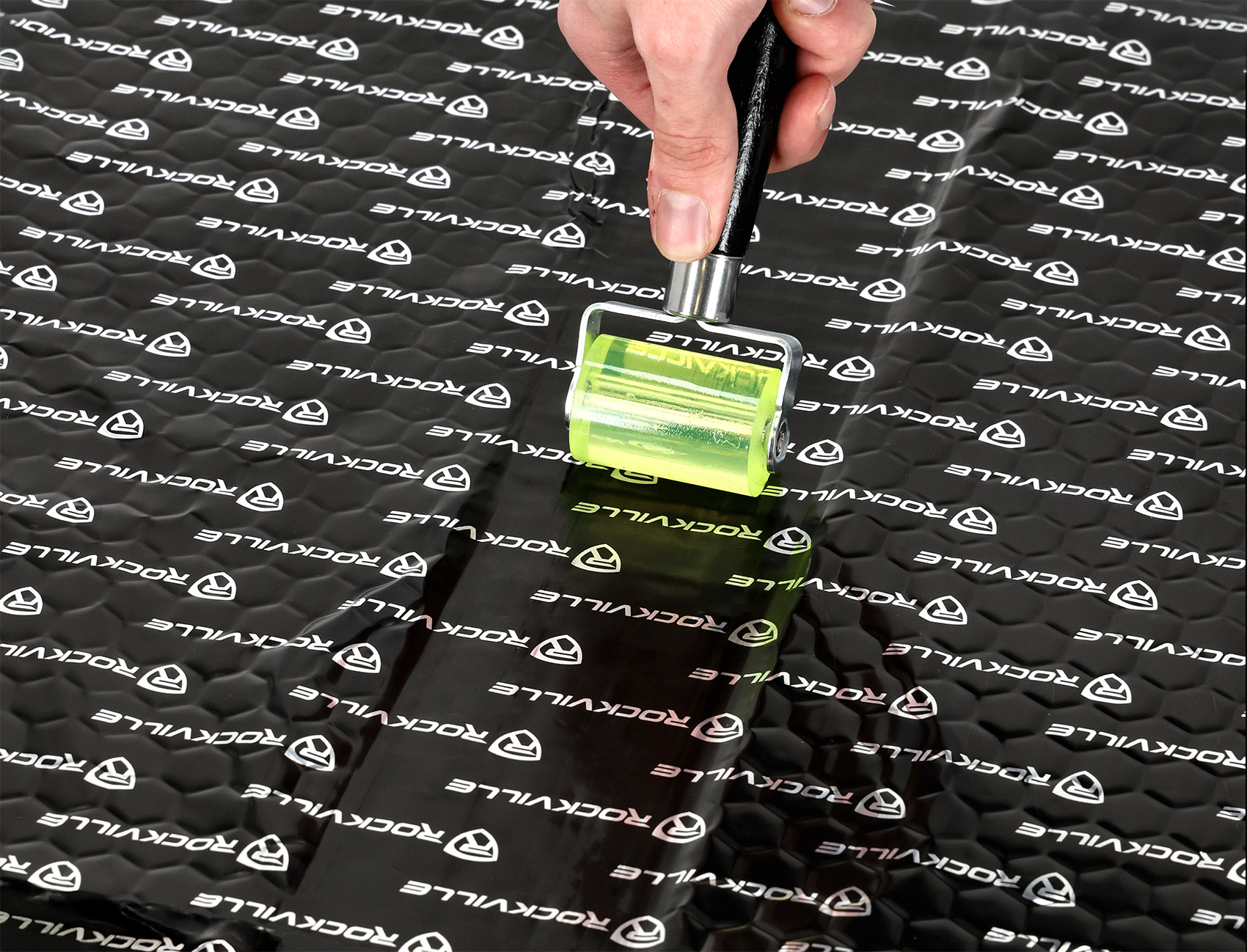

Includes a High-Quality Roller: Our included roller, made from durable wood and steel, is specifically designed to ensure the RockMat adheres perfectly, enhancing installation efficiency.

Features:

• Rockville RockMat 15-25 15 Sq Ft 2.5MM 100 MIL Sound Deadener Car Kit

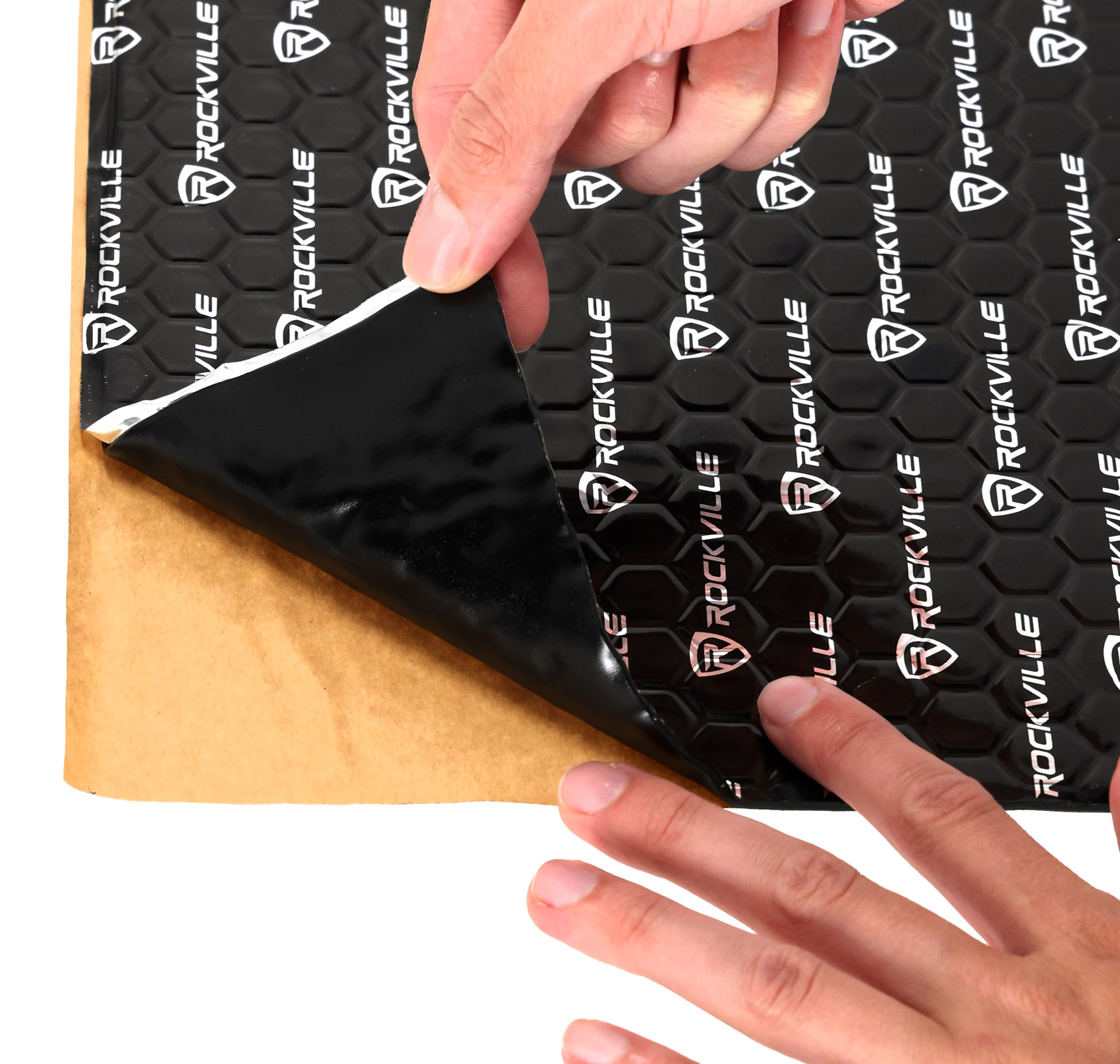

• 100% virgin butyl rubber material with an aluminum heat-resistant coating and pressure-activated adhesive
• Ships without being folded, bent, creased, or rolled, making installation easier
• Aluminum-coated for heat resistance, now 20% thicker than the first-generation model
• High-tack permanent adhesive ensures installation even in high temperatures
• Waterproof, heatproof, and flexible material
• Suitable for cars, boats, UTVs, ATVs, studios, and home theater rooms
• No foul smells, made from 100% pure materials
• Features an installation indicator; embossing turns from hexagon to flat when installed correctly
• Increases Sound Pressure Level (SPL), enhancing sound clarity and reducing distortion
• Improves bass quality and reduces bass distortion
• Eliminates unwanted noise, rattles, and vibrations
• Reduces exhaust and engine noise

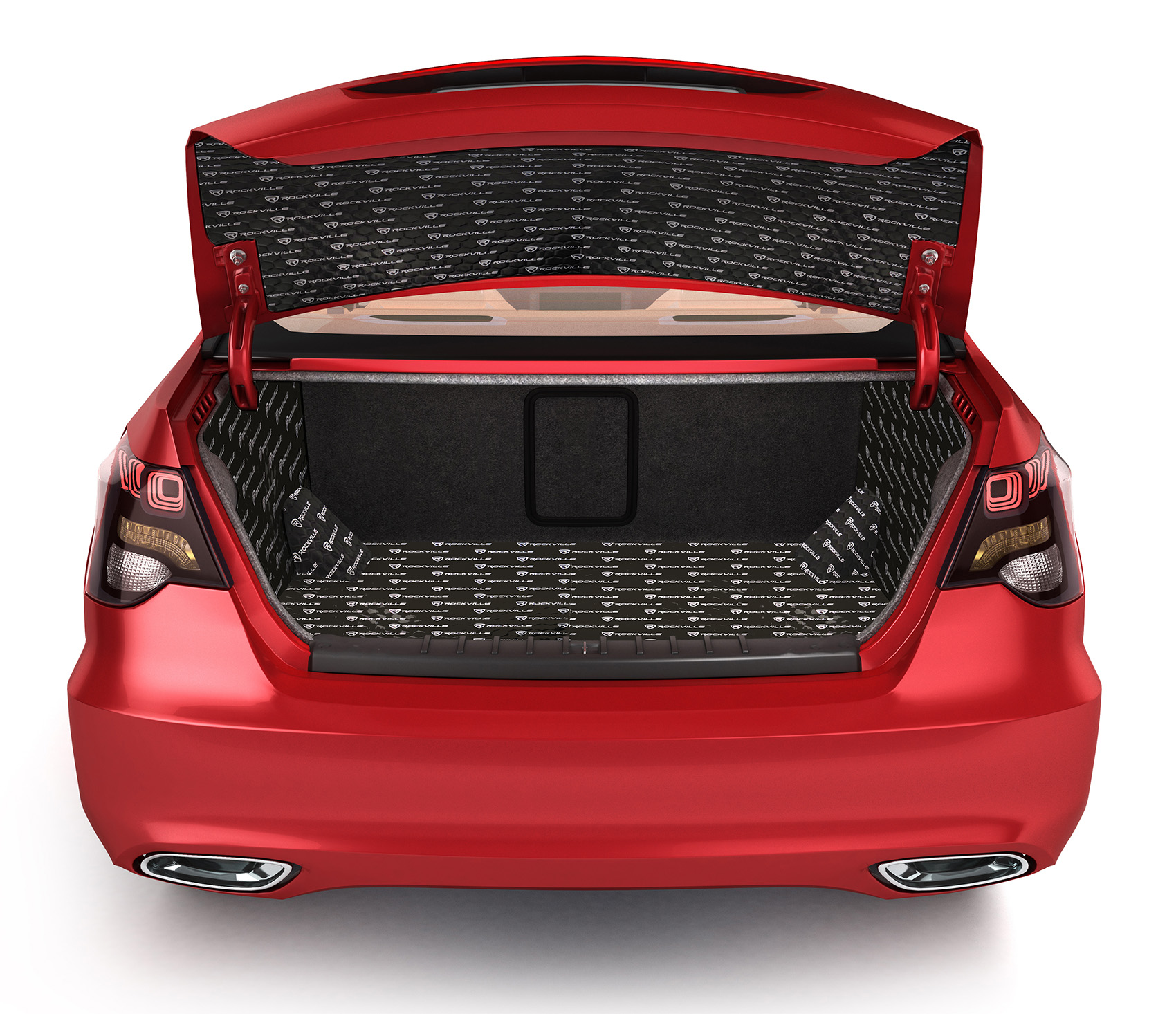

• Can be used on trunks, rear decks, doors, floors, hoods, roofs, quarter panels, etc
• Paintable
• Eco-friendly, non-toxic, and harmless
• Designed and engineered by Rockville USA!

Specifications:

• Adhesive Temperature Range: -14°F to 320°F
• Weight: 1.1 lbs per sheet, 15.4 lbs for all 14 sheets
• Thickness: 100 Mil (2.5MM)
• Sheet Size: 16" x 10" per sheet (14 sheets total)
• Coverage Area: 15.5 square feet

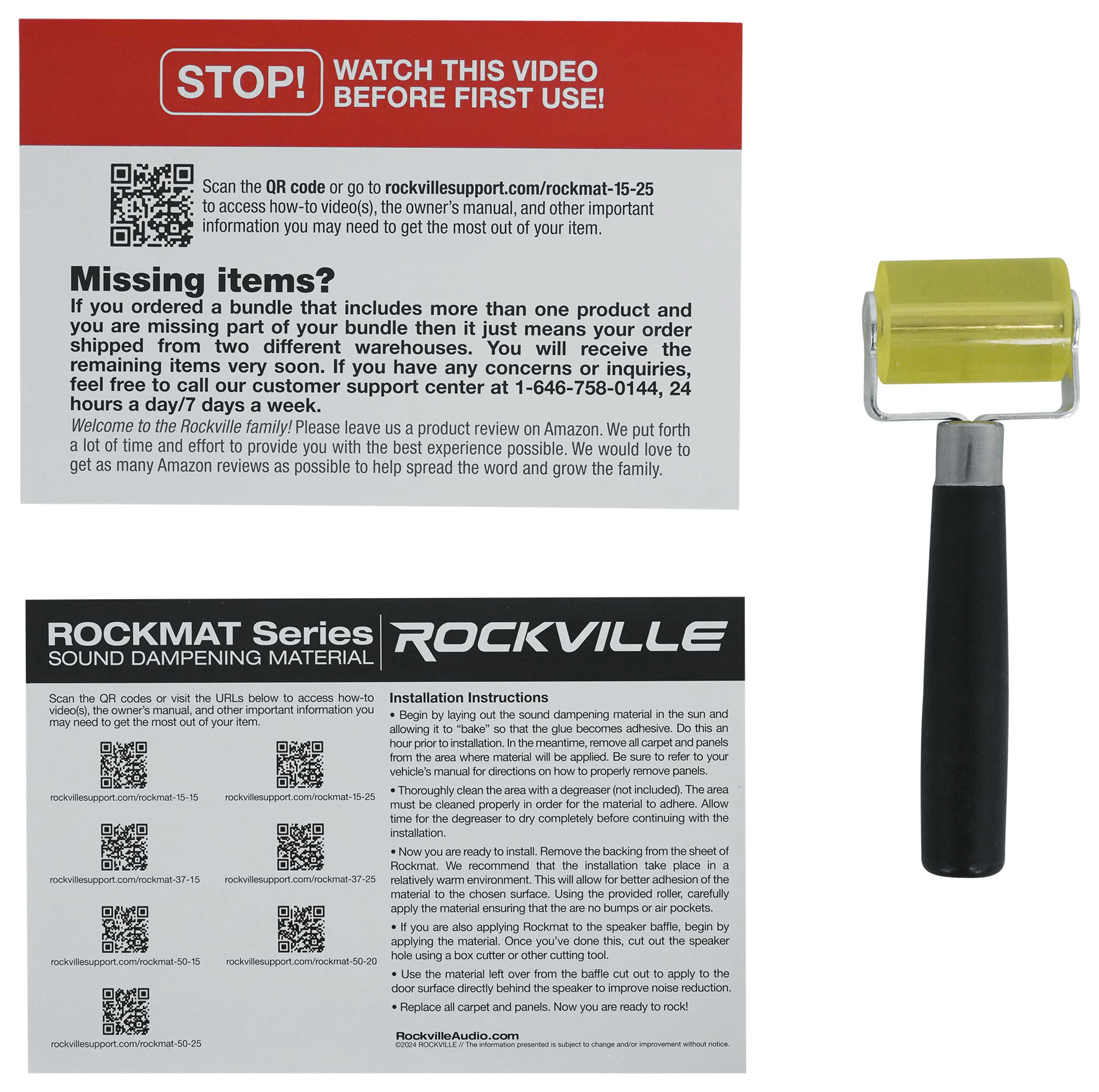

Features of Roller:

• Designed specifically for installing sound dampening material
• Made of high-quality wood and steel
• Length: 6.69 inches
• Handle Length: 5 inches
• Roller Diameter: 1.38 inches
• Product Weight: 0.99 lbs
• Product Dimension: 16.14" x 9.84" x 0.102"
